Intelligent Power over Ethernet (PoE) Access Control

About ASSA ABLOY's Authorized Channel Partner and Certified Integrator Programs

The Corbin Russwin Access 800 (R) IP1 is part of the expanding ASSA ABLOY family of innovative products combining our proven mechanical locking devices with leading-edge technologies to provide integrated electronic access control solutions. As such, these products require training and certification for resellers and integrators to ensure proper product selection, successful deployment and customer satisfaction.

To aid our customers in this area, ASSA ABLOY has created two programs that provide the necessary training to sell, order, install and service our technology products, including Aperio wireless, Integrated Wiegand, IP-enabled and self-configurable intelligent components:

  • • The Authorized Channel Partner (ACP) program is open to resellers, who sell ASSA ABLOY's technology products to certified integrators and help with product selection based on the application.
  • • The Certified Integrator (CI) program provides hands-on training for security systems integrators and network administrators.

Not only does this training familiarize certified integrator candidates with product features and applications, it also gives them valuable experience installing, commissioning and troubleshooting the products in a real-world environment.

For more information on the qualifications for becoming an ACP or CI, contact your local ASSA ABLOY Door Security Solutions sales consultant for details.

Sold through: Installed by:

Applications

Index

Applications 3
Features and Benefits 4
Overview 5
ML20800 Mortise Locks
Features 6
Functions 7
Escutcheons & Cylinders 8
Options & Accessories 9
Available Trim Options10-11
How to Order12-13
Quick Codes 14
CL33800 Cylindrical Locks
Features 15
Features & Functions 16
Options & Accessories 17
Available Trim Options &
How to Order 18
Quick Codes 19
ED5000 Series Exit Devices
Features20-21
Functions 22
Options & Accessories 23
Available Trim Options24-25
How to Order26-27
Quick Codes27-28
Lock Management Tool
Features 29
Options & Accessories30-32
Architectural Specifications 33
Quick Code Index 34

The Corbin Russwin Access 800® IP1 is an intelligent Power over Ethernet (PoE) solution that integrates all standard access control components – including ANSI/ BHMA Grade 1 Corbin Russwin hardware, contactless reader, and door status monitoring and controller into a single device.

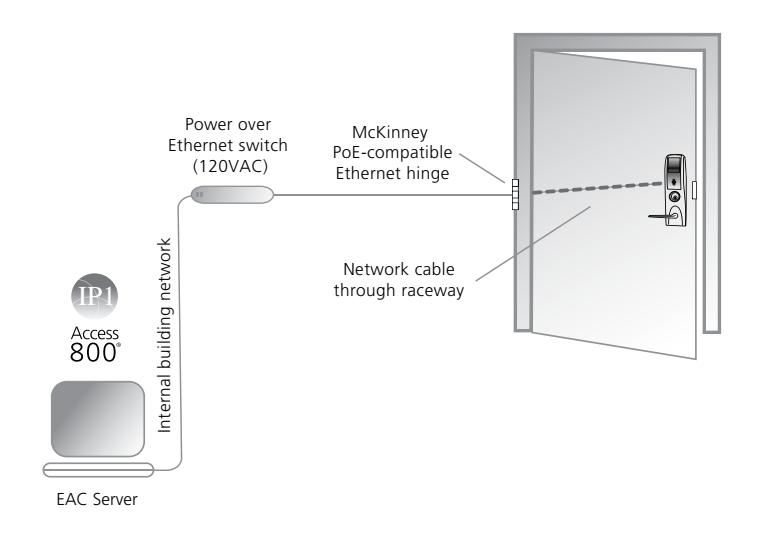

The Access 800 IP1 PoE lock uses a single ethernet cable for both power and data, eliminating the need for any additional power supply or electrical wiring. It uses existing IEEE 802.3af PoE infrastructure to streamline the installation process, reduce costs, enable real-time communication, and minimize power consumption.

Using the Local Area Network and HID® 125 kHz proximity or 13.56 MHz iCLASS® credentials, the Access 800 IP1 offers complete access control features such as built-in door status monitoring and real-time configurable alarm notifications. Local decision making ensures operation regardless of network status.

Programming and security management is performed utilizing the ASSA ABLOY Lock Management Tool (LMT) or a third party access control system. All products utilize a microprocessor based controller with non-volatile memory to preserve user and transaction information.

The Access 800 IP1 is offered in ANSI/BHMA Grade 1 cylindrical lock, mortise lock and exit device configurations with a variety of finishes and lever styles for a consistent design aesthetic throughout your facility.

Features & Benefits

Features

  • • IEEE 802.3af PoE-enabled network infrastructure for both power and data (Class 2 device)
  • • Integrated ANSI/BHMA Grade 1 lock, available in cylindrical lock, mortise lock and exit device configurations
  • • Advanced data security with standard encryption techniques
    • AES 128-bit encryption
  • • Local decision making ensures operation regardless of network status
  • • Built-in door status monitoring and real-time, configurable alarm notifications
  • • Mortise locks and exit devices support EcoFlex technology
  • • Supports 2,400 users and 10,000 event audit trail
  • • Supports HID® 125 kHz prox or 13.56 MHz iCLASS® credentials (26 39 bit); supports CSN reads for other common 13.56 MHz cards, including MiFare, DesFire, and Felica
  • Full iCLASS credential authentication
  • • Available with a keypad option for two-factor authentication
  • • Available with a variety of finishes and Muséo® decorative levers for a consistent design aesthetic throughout your facility
  • • Weatherseal gaskets and conduit included for use on exterior doors

Benefits

  • • Streamlines the installation process, reduces costs, and enables real-time communication
  • • Significantly reduces installation time and cost compared to traditional access control
  • • Integration with many popular third party access control systems. For more information, call 800-810-WIRE.
  • • No proprietary equipment required; integrates easily with existing infrastructure

Environmental Specifications

  • Operating temperature:
  • 125 kHz proximity products: -31° F (-35°C) to 151° F (66°C)
  • 13.56 MHz iCLASS products: -13°F (-25°C) to 151°F (66°C)
  • Humidity: 85% non-condensing relative humidity @ 30°C (86°F)
  • Storage temperature: -22°F (-30°C) to 176°F (80°C)
  • Meets UL1034

Electrical Specifications

  • Power supplied through Ethernet
  • Class 2 Device defined by IEEE 802.3AF requiring only 7 Watts
  • Network Drop Cable (by others) Specifications:
    • Cat5e or higher
    • Belden 1533P D15A1000 or equivalent
    • TIA/EIA-568-B
    • Shielded with drain wire
    • Plenum-rated
    • 24AWG
  • FCC Part 15-compliant
  • Network Surface Mount Box (by others):
    • Cat5e or higher
    • TIA/EIA-568-B

Overview

M802 and M812

The M802 (proximity only) and M812 (iCLASS® only) configurations of the Access 800® IP1 provide a higher level of security by utilizing proximity or iCLASS credentials only. The lock is programmed utilizing LMT or approved third party access control software (via SDK). This configuration is ideal for higher traffic applications where keypad usage is less desirable.

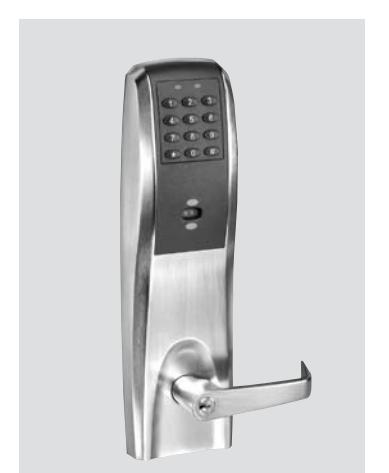

M803 and M813

The M803 (proximity/keypad) and M813 ( iCLASS /keypad) versions of the IP1 offers the highest level of security and flexibility. Programming and security management is done utilizing LMT or approved third party access control software (via SDK). The M803 and M813 can be programmed to require both PIN code and proximity or iCLASS credentials to gain entry or proximity/ iCLASS only.

Features

ML20800 IP1 Mortise Locks IP1

Mortise Lock ML20800

Featuring Ecoflex™ technology, the one-piece escutcheon of the motorized mortise lock product has a clean, crisp design and is available with a variety of lever designs and hardware finishes. ML20800 mortise locks are ideal for business and facility entrances, computer room areas, telephone rooms, health clubs, and child care facilities.

Auxiliary Latchbolt

9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt

One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Lever Trim

Free floating, to fit doors 1-3/4" (44mm) to 2-1/4" (57mm) ; see Quick Code section.

Hub

Steel, 5/16" (8mm).

Strike

Wrought brass, bronze or stainless steel ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available.

Cylinder

1000-138-A01, 6-pin, L4, keyed random, furnished standard for 1-3/4" (44mm) door.

Optional cylinders available.

Monitoring

  • Request to Exit
  • Latchbolt
  • Door Position
  • Deadbolt (where applicable)

Warranty

10-year limited mechanical. 2-year limited electrical.

Certification/Compliance

ANSI

Meets A156.13, Grade 1 requirements. Meets A117.1 Accessibility Code. Meets A156.25 requirements.

UL /ULC-UL10C Positive Pressure

All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Credential Quick Codes

Description Specify
Prox Only M802
Keypad/Prox M803
iCLASS® Only M812
Keypad/iCLASS M813

Features

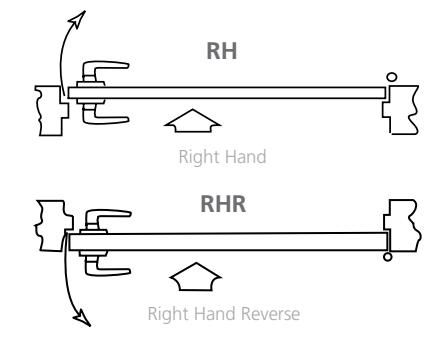

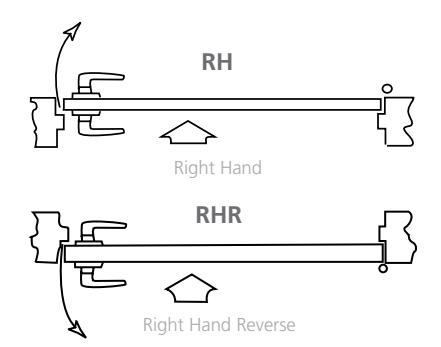

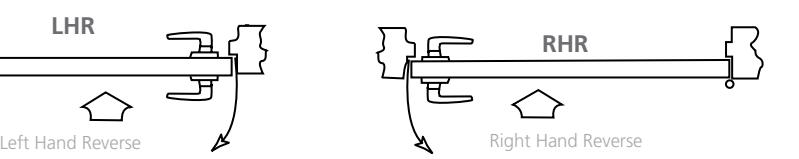

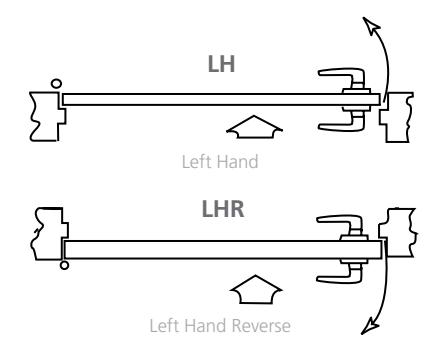

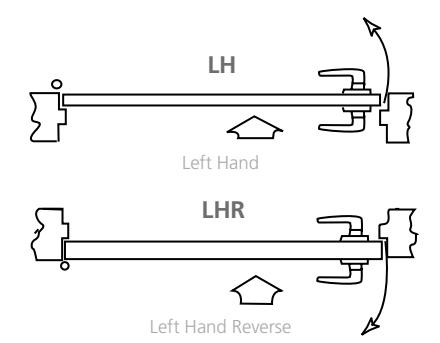

Handing

Handed; quick reversibility. The lockset can be re-handed without disassembling the lock body.

Door Thickness

1-3/4" (44mm) standard. Optional 2" (50mm) to 2-1/4" (57mm); see Quick Code section.

Backset

2-3/4" (70mm).

Lockcase

Heavy-gauge plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front

Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm).

Armored Front

Wrought brass, bronze or stainless steel attached by machine screws to lockcase front.

Latch

Patented, quick, reversible 2-piece mechanical with anti-friction insert 5/8" (16mm) x 1" (25mm) x 3/4" (19mm). U.S. Patent #6,349,982.

Functions

IP1 ML20800 IP1 Mortise Locks

Outside
Inside 		Series/Function Type Function Description
ML20833
No Key Override*
No Deadbolt 		Entry • Deadlocking latch
• Latch retracted by inside lever at all times
• Outside lever rigid except when in "passage" mode or valid user code entered
ML20834
With Key Override
No Deadbolt 		Entry • Deadlocking latch
• Latch retracted by inside lever at all times
• Outside lever rigid except when in "passage" mode or valid user code entered
• Key outside retracts latch
• No deadbolt function
ML20835
No Key Override*
With Deadbolt 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times
• Outside lever rigid except when in "passage" mode or valid user code
entered
• When deadbolt thrown, outside lever operable only with emergency code or
master code
ML20836
With Key Override
With Deadbolt 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever and deadbolt at all times
• Outside lever rigid except when in "passage" mode or valid user code
entered
• Key outside projects or retracts deadbolt and retracts latch
• When deadbolt projected, outside lever operable only with emergency code,
master code, or key (key retracts deadbolt and latch)

* Outside escutcheon will not have cylinder hole cutout

Escutcheons & Cylinders

Sold through:

ML20800 IP1 Mortise Locks IP1

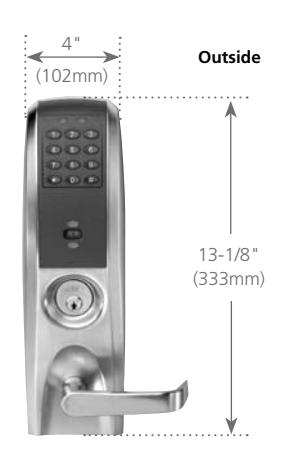

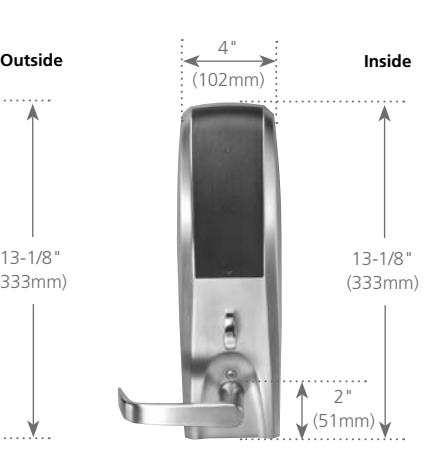

Escutcheons

  • Zinc die cast
  • • Lowest projection 11/16" (17mm) less lever
  • • Highest projection 1-5/8" (41mm)
  • • Tactile keypad
  • • Operating temperature: 125 kHz proximity products: -40°F (-40°C) to 135°F (57°C)
  • 13.56 MHz iCLASS® products:
  • -13°F (-25°C) to 151°F (66°C)
  • • LEDs indicate valid/invalid entries
  • • Keys/buttons with double shot mold construction prevents wear

Cylinders

  • Conventional (standard for ML2000)
  • Security (standard for ML2000HS)
  • Pyramid (optional)
  • Interchangeable Core (IC)
  • 2 nickel silver keys
  • Finishes: See Key Systems and Pyramid

Conventional (Fixed Core)

Interchangeable Core

Cylinder Quick Codes

Mortise Cylinder Type Keyed Functions for 1-3/4" Door
Pyramid High Security (PHS) 1020-114-A01
Pyramid High Security Interchangeable Core (PCHS) 1030-138-A01
Pyramid Security (PS) 1027-114-A01
Pyramid Security IC (PCS) 1037-138-A01
Conventional 6-pin 1000-138-A01
7-pin (7P) 1000-138-A01-7
6-pin IC (C6) 1080-138-A01
7-pin IC (C7) 1080-112-A01-7
Security IC (CHS) 1090-138-A01
Security (HS) 1010-138-A01

For complete Pyramid information and options refer to Pyramid catalog.

To order optional cylinder with lockset, see Quick Codes, page 14.

To order cylinder separately, specify Part No. x Keyway x Finish (e.g., 1000-138-A01 x L4 x 626).

Options & Accessories

ML20800 IP1 Mortise Locks

Strikes

ANSI Straight Lip (standard)

Brass, Bronze or Stainless Steel

Non-handed

4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center

Optional lip lengths: 7/8" (22mm), 1-1/4" (32mm), 1-3/8" (35mm), 1-1/2" (38mm),

1-3/4" (44mm), 2" (51mm),

2-1/4" (57mm), 2-1/2" (64mm), 2-3/4"

(70mm), 3" (76mm)

ANSI Curved Lip

Brass, Bronze or Stainless Steel Handed 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center Optional lip lengths: 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm)

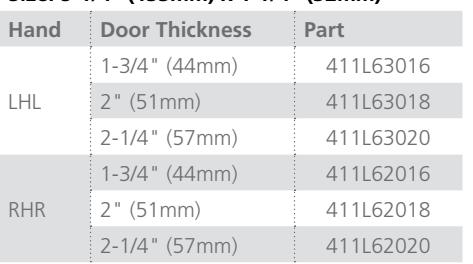

ANSI Wrought Strike Box

To order with lockset; see Quick Codes, page 14. To order separately, specify 120F768.

Part No. Description
236L72 Straight Lip
340L60 Curved Lip for RH, LHR
Latchbolt X Deadbolt 340L61 Curved Lip for LH, RHR
6 236L73 Straight Lip
340L62 Curved Lip for RH, LHR
Latchbolt Only 340L63 Curved Lip for LH, RHR

To order strike with lockset, see Quick Codes, page 14. To order strike separately, specify Part No. \times Lip Length \times Finish (e.g., 340L60 \times 1-1/2 " \times 626).

Open Back Size: 5-1/4" (133mm) x 1-1/4" (32mm)

To order with lockset; see Quick Codes, pg. 14. To order separately, specify Part No. x Door Thickness x Finish (e.g., 411L62 x 2" x 626).

Rabbeted Front and Strike

Brass or bronze. For 1/2" (13mm) rabbet. No optional lip lengths.

Part No. Hand
Latchbolt x
deadbolt 		318F66
318F69 		RH/LHR
LH/RHR
Latchbolt only 318F64
318F67 		RH/LHR
LH/RHR

To order with lockset; see Quick Codes, page 14. To order separately, specify Part No. x Finish (e.g., 318F66 x 626).

ML20800 IP1 Mortise Locks IP1

Standard
ML20800
Armstrong ASZ
Newport NSZ
Princeton PSZ
Armstrong Citation Dirke Essex*
Citation CSZ
Dirke DSZ
Essex ESZ
Lustra LSZ Lustra
* 		Newport* Princeton* Regis
Regis RSZ
Vineyard™
Frascati FSZ
Merlot MSZ
Tuscany TSZ
Zinfandel ZSZ Frascati Merlot Tuscany Zinfandel
Muséo®
Georgia
102 102Z
103 103Z
104 104Z
124 124Z
125 125Z
salvador 101 102 103 104 124* 125*
106 106Z
107 107Z
108 108Z
109 109Z
110 110Z 106 107 108 109
123 123Z
128 128Z
129 129Z 110 123* 128* 129*
Marc
111 111Z
112 112Z
113 113Z
114 114Z 111 112 113 114
115 115Z
116 116Z
115 116 130* 131*
130
131 		130Z
131Z
132 132Z
pablo 132*
117 117Z
126 126Z
Jackson 105 117 120 126*
119 119Z
121 121Z
122 122Z
127 127Z 119 121 122 127*
PIET
21G 21GZ
21L 21LZ
21M 21MZ
21S 21SZ 21G 21L 21M 21S
21W 21WZ
23M 23MZ
25M 25MZ 21W 23M 25M 27M

Available Trim Options

IP1 ML20800 IP1 Mortise Locks

Muséo® Piet Lever Collection Trim and Finish Options

Piet Finish Codes

BHMA Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
N/A BH Birch (wood insert)
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

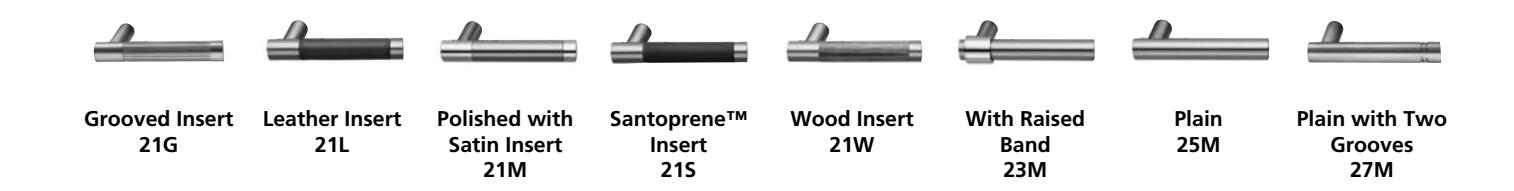

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 292929 or 303030
21L Leather Insert 29BK29, 29BN29 or 30BK30, 30BN30
21M Metallic Insert 293029** only
21S Santoprene Insert 29BK29 or 30BK30
21W Wood Insert 29BH29 or 30BH30
23M Raised Band 290029, 300030 or 290030**
25M Plain 290029 or 300030
27M Two Grooves 290029 or 300030

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

How to Order

ML20800 IP1 Mortise Locks

How to Order the Muséo® Piet Lever Collection

21G, 21L, 21M, 21S, 21W

23M

25M, 27M

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 ML20834 TCIP1 21MZ 293029 625 RHR M803

& gt; Muséo® Piet Lever 21M - Polished with Satin Insert

Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip

Stock Order

Quantity Series/Function Technology Code Trim Lever Finish Lock
Finish* 		Hand Credential
Quick Code
2 ML20834 TCIP1 21WZ 29BH29 625 RHR M813

& gt; Muséo® Piet Lever 21W - Wood Insert

Handing

Note: Arrow indicates secure side of door.

& gt; 293029 Lever Finish

› 625 Lock Finish

& gt; 29BH29 Lever Finish

Wood insert with polished stainless steel (629) shank and polished stainless steel (629) grip

& gt; 625 Lock Finish

* Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

How to Order

IP1 ML20800 IP1 Mortise Locks

Ordering Examples

Stock Order

Quantity Series/Function Technology
Code 		Trim Finish Hand Credential
Quick Code
24 ML20834 TCIP1 LSZ 626 RHR M803

Split Trim/Finish Order

Technology Trim Finish Credential
Quantity Series/Function Code Outside Inside Outside Inside Hand Quick Code
24 ML20834 TCIP1 LSZ CSZ 626 606 RHR M803

Contract/Detailed Order

Credential
Series/ Technology Door Optional Quick Optional
Quantity Keyset Function Code Trim Finish Hand Thickness Strike Code Cylinder Keying
24 AA1 ML20834 TCIP1 LSZ 626 RHR D214 SA200 M813 C7 VKC3

Handing

Note: Arrow indicates secure side of door.

Quick Codes

ML20800 IP1 Mortise Locks IP1

Cylinders and Keying

Cylinders and Keying
Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red CT6R
Blue CT6B
Green CT6G
CI 6-pin Less Core CL6
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC disposable
temporary core 		CT6SD
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red CT7R
Blue CT7B
Green CT7G
IC 7-pin Less Core CL7
SFIC 7-pin with Less Core CLS7
SFIC 7-pin with SFIC disposable
temporary core 		CT7SD
Security HS
Security IC CHS
Pyramid Fixed Core PHS
Pyramid IC PCHS
Pyramid IC Less Core CLP
Pyramid with Temporary
Construction Core 		CTP
Pyramid Security PS
Pyramid Security IC PCS
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
Keyed Random (Standard) KR
Construction Master Eyed (not
available for Pyramid) 		CMK
Visual Key Control
- No Keying Data Stamped
- on Key or Cylinder 		VKC0
- Keys Only VKC1
- Cylinders and Keys
-(not for HS, CHS, PHS
- or PCHS) 		VKC2
- Cylinders Only (not for -
HS, CHS, PHS or PCHS) 		VKC3

Cylinders and Keying (Cont.)

Description Specify
Concealed Key Control
(CKC)
- CKC Cylinders with
VKC Keys 		CKC2
- CKC Cylinders Only
(not for PHS, PCHS) 		CKC3
2 Keys per Lock (standard)
More than 2 Keys KY#
(e.g.,
KY6)

Finish

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear
Coated 		611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome
with MicroShield® 		626C
Black Oxidized Bronze,
Oil Rubbed 		722

Miscellaneous Options

Description Specify
Torx® head screws M04
ANSI wrought strike box M17
Knurling outside and inside* M20
Knurling outside only* M21
Knurling inside only M22
Abrasive coat outside and
inside* 		M23
Abrasive coat inside only* M24
Abrasive coat outside only M25

* Not available with Vineyard or Museo levers.

Door Thickness

Door Thickness Specify
1-3/4" (44mm) (standard)
2" (51mm) D200
2-1/4" (57mm) D214

Credential Quick Codes

Description Specify
Prox Only M802
Keypad/Prox M803
iCLASS® Only M812
Keypad/iCLASS M813

Strikes

ANSI
Straight Lip
Specify 		Curved
Lip
Specify
SS078 N/A
(standard) N/A
SS114 SA114
SS138 SA138
SS112 SA112
SS134 SA134
SS200 SA200
SS214 SA214
SS212 SA212
SS234 SA234
SS300 SA300
Door Thickness Specify
1-3/4" (44mm) SB134
2" (51mm) SB200
2-1/4" (57mm) SB214
Rabbeted front and strike - Specify SR118

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Features

IP1 CL33800 IP1 Cylindrical Lock

The motorized Access 800® CL33800 design provides uniformity when used with other Corbin Russwin CL3300 locks at a facility. Access 800 products offer access control solutions for meeting rooms, country club locker rooms and assisted living facilities. The product features three different lever designs, seven hardware finishes and cylinder override.

Features

Non-handed

Door Thickness

1-3/4" (44mm) to 2" (50mm) standard, 2" (50mm) to 2-1/4" (57mm) optional

Lock Chassis

Steel, zinc dichromated for corrosion resistance.

Backset

2-3/4" (70mm) standard.

Optional: 3-3/4" (95mm) and 5" (127mm).

Latchbolt

Stainless steel, 1/2" (13mm) throw.

Optional: 3/4" (19mm) throw deadlocking fire latch for pair of doors.

Auxiliary Latchbolt

Deadlocking latchbolt prevents manipulation when door is closed.

Front

Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates non-beveled and beveled doors 1/8" (3mm) in 2" (51mm).

Optional: rounded corners.

Strike

Wrought brass or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder

Brass, 6-pin, L4 keyway, 0-bitted standard.

Keying Features Available

Master keying

Construction master keying

Visual key control

Concealed key control

Interchangeable core (IC)

Security

Security IC

Pyramid

Pyramid IC

Pyramid Security

Pyramid Security IC

Keys

Two nickel silver standard.

Key Override

Standard not available with non-key override.

Monitoring

  • • Request to Exit (Non-Handed)
  • • Door Position Switch (Supplied and mounted above the lock. Connects directly into the lock's electronics.)

Warranty

7-year limited mechanical;

2-year limited electrical.

Features & Functions

CL33800 IP1 Cylindrical Lock IP1

Certification/Compliance

ANSI/BHMA

Meets A156.2 Grade 1 requirements.

Federal

Meets FF-H-106C.

California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face.

C-UL US

All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or

warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Credential Quick Codes

Description Specify
Prox Only M802
Keypad/Prox M803
iCLASS® Only M812
Keypad/iCLASS M813
Outside Inside Series/Function Type Function Description
CL33834
With Key Override 		Entry • Latch retracted by inside lever at all times.
• Key outside retracts latch.
• Outside lever locked (freewheeling) except
when in "passage" mode or valid user
code entered.

Escutcheons • Zinc die cast

  • Lowest projection 11/16" (17mm) less lever
  • Highest projection 1-5/8" (41mm)
  • Tactile keypad
  • Operating temperature: 125 kHz proximity products: -40° F (-40°C) to 135° F (57°C)

13.56 MHz iCLASS products:

  • -13°F (-25°C) to 151°F (66°C) • LEDs indicate valid/invalid entries
  • Keys/buttons with double shot mold construction prevents wear
  • Freewheeling outside lever when locked

Options & Accessories

CL33800 IP1 Cylindrical Lock IP1

Strikes

ANSI Curved Lip (standard)

Brass or stainless steel, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm),

1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm),

2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order with lockset, see Quick Codes on page 19. To order separately, specify 217L13 x Lip Length x Finish.

Curved Lip Box

Brass, 2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

To order with lockset, see Quick Codes on page 19. To order separately, specify 586L19 x Lip Length x Finish.

Rabbeted Front and Strike

Brass, 4" (102mm) x 5/8" (16mm) for 1/2" (13mm) rabbet. No optional lip lengths.

To order with lockset, see Quick Codes on page 19. To order separately, specify 601F28 x Finish.

ANSI Wrought Strike Box

To order with lockset, see Quick Codes on page 19. To order separately, specify 120F768.

Available Trim Options and How to Order

CL33800 IP1 Cylindrical Lock IP1

Standard

CL33800
Armstrong AZZ
Newport NZZ
Princeton PZZ Armstrong Newport* Princeton*
Vineyard™
Frascati FZZ Frascati

Levers shown on mortise locks.

Ordering Examples

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Finish Hand Credential
Quick Code
100 CL33834 TCIP1 NZZ 626 RHR M803

Split Trim/Finish Order

Series/ Technology Trim Finish Credential
Quantity Function Code Outside Inside Outside Inside Hand Quick Code
12 CL33834 TCIP1 NZZ AZZ 626 625 LH M813

Contract/Detailed Order

Quantity Keyset Series
Function 		Technology
Code 		Trim Finish Hand Door
Thickness 		Backset Optional
Strike 		Credential
Quick Code 		Optional
Cylinder 		Keying
24 AA1 CL33834 TCIP1 NZZ 626 RHR D214 B334 SC114 M802 C6 VKC3

Quick Codes

IP1 CL33800 IP1 Cylindrical Locks

Cylinders and Keying
Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
Security HS
Security IC CHS
Pyramid Security PS
Pyramid Security IC PCS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid with Temporary
Construction Core 		CTP
Pyramid Less Core CLP
IC 6-pin C6
IC 6-pin with Temporary Construction Core
Red CT6R
Blue CT6B
Green CT6G
IC 6-pin Less Core CL6
IC 7-pin C7
IC 7-pin with Temporary Construction Core
Red CT7R
Blue CT7B
Green CT7G
IC 7-pin Less Core CL7
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
SFIC 6- or 7-pin Small Format
Disposable Core 		CTSD
0-Bitted with 2 Blank Keys (standard)
Keyed Random KR
Construction Master Keyed CMK
Visual Key Control (VKC)
- No Bitting or Keyset
Stamping on Keys 		VKC0
- Keys Only VKC1
- Cylinders and Keys (not for
HS, CHS, PHS or PCHS) 		VKC2
- Cylinders Only (not for HS,
CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with VKC Keys CKC2
- CKC Cylinders Only (not for
PHS, PCHS) 		CKC3
2 Keys per Lock (standard)
More than 2 Keys KY#
(e.g., KY6)
Schlage® C Keyway cylinder1 C
Schlage® LA Keyway cylinder2 LA
1 Available 0-bitted & keyed random (KR) only

2 Available 0-bitted only

Finish
Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Black Oxidized Bronze,
Oil Rubbed 		722
Satin Chrome
with MicroShield® 		626C

Strikes

Lip to Center ANSI
Curved Lip
Specify 		Curved Lip
Box Specify
1" (25mm) SA100 SC100
1-1/8" (29mm) SA118 SC118
1-1/4" (32mm) (standard) SC114
1-3/8" (35mm) SA138 SC138
1-1/2" (38mm) SA112 SC112
1-3/4" (44mm) SA134 SC134
2" (51mm) SA200 SC200
2-1/4" (57mm) SA214 SC214
2-1/2" (64mm) SA212 SC212
2-3/4" (70mm) SA234 SC234
3" (76mm) SA300 SC300

Rabbeted front and strike Specify SR118

Door Thickness

Door Thickness Specify
1-3/4" (44mm) - 2" (51mm) (standard)
2" (51mm) - 2-1/4" (57mm) D214

Backset

Description Specify
2-3/4" (70mm) (standard)
3-3/4" (95mm) B334
5" (127mm) B500

Miscellaneous Options

Description Specify
Torx® head screws M04
Less cylinder, with tailpiece for
Schlage® cylinder 		M06
Lever to accept Best® type core
(NZD & PZD designs only) 		M08
Lever to accept Sargent® cylinder
(NZD & PZD design only) 		M09
Rounded corners on latch front M13
3/4" (19mm) throw fire latch M16
ANSI wrought strike box M17
Knurling outside and inside M20
Knurling outside only M21
Knurling inside only M22
Abrasive coat outside and inside M23
Abrasive coat inside only M24
Abrasive coat outside only M25
Lever to accept Schlage®
interchangeable core (NZD & PZD
design only) 		M69

Credential Quick Codes

Description Specify
Prox Only M802
Keypad/Prox M803
iCLASS® Only M812
Keypad/iCLASS M813

Features

ED5000 x 9800/9M800 IP1 Exit Device IP1

Access 800® products for Corbin Russwin's ED5000 Series rim, SecureBolt® and mortise exits provide access control in areas where life safety is a concern. This includes stairwell areas or tenant occupied facilities. Corbin Russwin Access 800 exit devices are available with a variety of lever design styles and hardware finishes.

Features

Handing

Rim device is non-handed. Lever trim is handed. Mortise device is handed.

Bar Length

Easily field cut to size.

Standard: 36" (914mm) bar fits 30" (762mm)

to 36" (914mm) door.

Optional: 24" (610mm) bar fits 24" (610mm)

door; specify W024.

Optional: 48" (1219mm) bar fits 36" (914mm)

to 48" (1219mm) door; specify W048.

Door Thickness

1-3/4" (44mm) standard.

Optional: 2" (51mm); specify D200. Optional: 2-1/4" (57mm); specify D214.

Stile

Minimum width 4-1/2" (114mm).

Latchbolt

3/4" (19mm) throw, stainless steel pullman-type with stainless steel deadlocking latch.

Latchbolt - for ED5200S(A) SecureBolt

Full 3/4" (19mm) projection, 1" (25mm) strike engagement, positive deadlocking by auxiliary bolt.

Projection

3-1/4" (83mm) active, 2-3/4" (70mm) dogged.

Dogging

Standard on panic-rated devices; single-point 1/4 turn hex key dogging. Optional: less dogging, specify M51. Optional: cylinder dogging; specify M52. Optional: electric dogging; specify M97. Mechanical dogging not available on fire-rated devices.

Fasteners

Standard on panic devices: machine screws and wood door fasteners.

Standard on fire-rated devices: sex nuts and bolts. Optional on panic devices: sex nuts and bolts for use on wood, composite or unreinforced metal doors; specify M54. Optional wood screws for use on approved fire-rated solid wood or wood core doors. Specify M64.

Strike

Surface-mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims, assuring low friction relocking for a long, trouble-free life.

Functions and Trims

Through-bolted lever trim available with wide range of functions; see Trim, pages 27-28.

Cylinders

Cylinder not included unless specified.

Shim Kit

Optional for mounting device over raised vision light molding; specify M58.

Key Override

Standard. Available with non-key override.

Monitoring

  • • Request to Exit (Non-Handed)
  • • Door Position Switch (Supplied and mounted above the lock. Connects directly into the lock's electronics.)

Warranty

5-year limited mechanical. 2-year limited electrical.

Features

IP1 ED5000 x 9800/9M800 IP1 Exit Device

Escutcheons

  • Zinc die cast
  • • Projection at top 1-5/8" (41mm)
  • • Tactile Keypad
  • • Operating temperature: 125 kHz proximity products:
  • -40° F (-40°C) to 135° F (57°C)
  • 13.56 MHz iCLASS® products:
  • -13°F (-25°C) to 151°F (66°C)
  • • LEDs indicate valid/ invalid entries
  • Keys/buttons with double shot mold construction prevents wear

Outside Lever Control

  • Cast lever
  • Forged escutcheon
  • Free wheeling lever when locked (9833 and 9834 only)

Certification/Compliance

ANSI

Meets A156.3, Type 1 & 3, Grade 1. Meets A117.1 Accessibility Code.

C-UL US

All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on active case cover indicates listing.

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new firerated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code

This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

NFPA

All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows.

ADA

Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Credential Quick Codes

Description Specify
Prox Only M802
Keypad/Prox M803
iCLASS Only M812
Keypad/iCLASS M813

Functions

ED5000 x 9800/9M800 IP1 Exit Device IP1

Outside
Inside 		Series/Function Type Function Description
ED5200(A)N & ED5200S(A)N
*9833
No Key Override** 		Entry • Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when
in passage mode or valid user code entered
ED5200(A)N & ED5200S(A)N
*9834
With Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when
in passage mode or valid user code entered
• Outside cylinder override allows lever to retract latch
ED5633(A)LN
*9M833
No Key Override** 		Entry • Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode
or valid user code entered
ED5634(A)LN
*9M834
With Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode
or valid user code entered
• Outside cylinder override retracts latch

Note: 9M833 and 9M834 cannot be retrofitted to an existing ED5600 Series mortise device. When ordered as "Trim Only", 9M833 and 9M834 will be furnished with the appropriate mortise lock.

* Lever Design (prefix)

** Outside escutcheon will not have cylinder hole cutout.

Option & Accessories

IP1 ED5000 x 9800/9M800 IP1 Exit Device

SecureBolt® and Fire-Rated Rim Strike

Standard on ED5200S, ED5200SA, ED5200A and ED5200 devices. Supplied with locking plate and two 1/16" (1.6mm) shims. For doors with 1/2" (13mm) or 5/8" (16mm) stop. Adjustable to compensate for shrinkage and swelling of door. 3-1/2" x 1-1/4" (99mm x 32mm). Black finish only. To order separately specify 650F30-8.

Mortise Strikes

Mortise Strike

Standard on ED5600(A) Series. Non-handed, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center. To order separately, specify 650L657020.

Mortise Strike for Pairs of Doors with Astragal

Optional for use with ED5600(A) Series devices where an astragal is to be installed. Non-handed, ANSI straight lip, 4-7/8" x 1-1/4" x 7/8" (124mm x 32mm x 22mm) lip to center. To order with exit device, specify SS078. To order separately, specify 653L157014.

Filler Plates

Optional for use on stock metal doors when required. To order, specify 334F99-8 600.

Optional for use on stock metal doors when required. To order, specify 236L708018 x Fin.

Optional for use on stock metal doors when required. To order, specify 077F19-8 600.

Open Back Strike

Optional for use with ED5600 x vertical rod devices on a pair of doors. Non-handed, 4-7/8" x 1-1/4" (124mm x 32mm). To order with exit device, specify SB134 for 1-3/4" doors, SB214 for 2-1/4"doors. To order separately, specify Part No. listed below.

Door Thickness Type Part No.
1-3/4" (44mm) Curved lip 653L183016
Straight lip 653L163016
Curved lip 653L183020
2-1/4" (57mm) Straight lip 653L163020

Mortise Strike

Standard on ED5600 and ED5600(A) devices on 2" (51mm) (D200) and 2-1/4" (57mm) (D214) thick doors. Handed ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/2" (124mm x 32mm x 38mm) lip to center. To order separately, specify 656L677024 for RH, 656L687024 for LH.

ANSI Wrought Strike Box

Optional for use with ED5600 and ED5600A devices. To order with exit device, specify M17. To order separately, specify 120F76-8.

Kit allows you to retrofit an existing ED5000 mechanical exit device with M92 (Touch Bar Monitor/REX) that will integrate with Access 800 IP1 trim

Kit Includes:

  • Touch bar monitor/REX assembly
  • Harness from REX switch to Access 800 IP1 controller
  • Trim slide retainer/screw
  • Trim slide wire bracket
  • • Wire grommet
  • Installation instructions
  • Specify 716F129

Available Trim Options

ED5000 x 9800/9M800 IP1 Exit Device IP1

Standard

ED5200N ED5600N
Armstrong A9800 A9M800
Newport N9800 N9M800
Princeton PR9800 PR9M800 Armstrong Citation Dirke Essex*
Citation C9800 C9M800
Dirke D9800 D9M800
Essex E9800 E9M800
Lustra L9800 L9M800
Lustra* Newport* Princeton* Regis
Regis R9800 R9M800
Vineyard™
Frascati F9800 F9M800
Merlot M9800 M9M800
Tuscany TS9800 TS9M800
Zinfandel Z9800 Z9M800 Frascati Merlot Tuscany* Zinfandel
Muséo®
Georgia
102 1029800 1029M800
103 1039800 1019M800 1039M800
104 1049800 1049M800
124 1249800 1249M800
125 1259800 1259M800 102 103 104
124* 		125*
salvador
106 1069800 1069M800
107 1079800 1079M800
108 1089800 1089M800
109 1099800 1099M800 106 107 108 109*
110 1109800 1109M800
123 1239800 1239M800
128 1289800 1289M800
129 1299800 1299M800 110 123* 128* 129*
Marc
111 1119800 1119M800
112 1129800 1129M800
113 1139800 1139M800
114 1149800 1149M800 111 112 113 114 115
115 1159800 1159M800
116 1169800 1169M800
130 1309800 1309M800
131 1319800 1319M800 132*
132 1329800 1329M800 116 130* 131*
pablo
117 1179800 1179M800 117 126*
126 1269800 1269M800
Jackson
119 1199800 1199M800
121 1219800 1219M800
122 1229800 1229M800
127 1279800 1279M800 119 121 122 127*
PIET
21G 21G9800 21G9M800
21L 21L9800
21M9800 		21L9M800
21M9M800
21M
21S 21S9800 21S9M800
21W 21W9800 21W9M800
23M
25M 		23M9800
25M9800 		23M9M800
25M9M800 		21G 21L 21M
21S 		21W 23M 27M

Available Trim Options

IP1 ED5000 x 9800/9M800 IP1 Exit Device

Muséo® Piet Lever Collection Trim and Finish Options

21L 21S 21W 25M 27M

Leather Insert Santoprene™ Insert Wood Insert Plain Plain with Two Grooves

Trim Lever Finish Options
Lever Style Shank Finish Specify Insert Finish Specify Grip Finish* Specify
21L 629 or 630 29 or 30 Black or Brown BK or BN 629 or 630 29 or 30
21S 629 or 630 29 or 30 Black BK 629 or 630 29 or 30
21W 629 or 630 29 or 30 Birch BH 629 or 630 29 or 30
25M 629 or 630 29 or 30 N/A 00 629 or 630 29 or 30
27M 629 or 630 29 or 30 N/A 00 629 or 630 29 or 30

Grooved Insert 21G

Polished with Satin Insert 21M

With Raised Band 23M

Trim Lever Finish Options
Lever Style Shank Finish Specify Insert Finish Specify Grip Finish Specify
21G 629 or 630 29 or 30 N/A 00 629 or 630 29 or 30
21M 629 29 630 30 629 29
23M 629 or 630 29 or 30 N/A 00 629 or 630 29 or 30

* Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

** Grip finish must match shank finish

How to Order

ED5000 x 9800/9M800 IP1 Exit Device

How to Order the Muséo® Piet Lever Collection

21G, 21L, 21M, 21S, 21W

23M

25M, 27M

Trim Only

Quantity Trim/
Function 		Technology
Code 		Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 21M9833 TCIP1 293029 625 RHR M803

  • > Muséo® Piet Lever 21M Polished with Satin Insert
  • > 293029 Lever Finish

Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip

> 625 Lock Finish

Exit Device with Trim

Quantity Exit
Device 		Trim/
Function 		Technology
Code 		Lever
Finish 		Cylinder
Option 		Door
Thickness 		Credential
Quick Code
2 ED5634LN 21W9M834 TCIP1 29BH29 625 LHR 6P D200 SB134 W048 M813

  • > Muséo® Piet Lever 21W Wood Insert
  • > 29BH29 Lever Finish
  • Polished with stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip
  • > 625 Lock Finish
  • * Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

Handing

Note: Arrow indicates secure side of door

How To Order & Quick Codes

IP1 ED5000 x 9800/9M800 IP1 Exit Device

Ordering Examples

Handing

Note: Arrow indicates secure side of door

Trim Only

Quantity Trim/Function Technology
Code 		Finish Hand Credential
Quick Code
24 N9833 TCIP1 625 RHR M803

Exit Device with Trim

Technology Cylinder Door Optional Door Misc. Credential
Quantity Exit Device Trim/Function Code Finish Hand Option Thickness Strike Width Options Quick Code
65 ED5634LN N9M834 TCIP1 605 LHR 6P D200 SB134 W048 M51-M54 M802

Contract/Detailed Order - Rim Exit Device with Trim

Quantity Keyset Exit Device Trim/Function Technology
Code 		Finish Hand Door
Width 		Credential
Quick Code 		Cylinder
Option
36 AA1 ED5200N C9834 TCIP1 626 LHR W048 M813 7P

Quick Codes

ED5000 x 9800/9M800 IP1 Exit Device IP1

Description Specify
Conventional 6-pin 6P
Conventional 7-pin 7P
Less Cylinder(s) standard
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red CT6R
Blue CT6B
Green CT6G
IC 6-pin Less Core CL6
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC disposable
temporary core 		CT6SD
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red CT7R
Blue CT7B
Green CT7G
IC 7-pin Less Core CL7
SFIC 7-pin with Less Core CLS7
SFIC 7-pin with SFIC disposable
temporary core 		CT7SD
Security HS
Security IC CHS
Pyramid Security PS
Pyramid Security IC PCS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid with Temporary
Construction Core 		CTP
Pyramid IC Less Core CLP
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
Standard
0-bitted with 2 Blank Keys with
Cylinder
Keyed random KR
Construction Master Keyed (not
available for Pyramid) 		CMK
Visual Key Control
- No Keying Data Stamped on Key
or Cylinder 		VKC0
- Keys Only VKC1
- Cylinders and Keys (not for HS,
CHS, PHS or PCHS) 		VKC2
- Cylinders Only (not for HS, CHS,
PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with 		CKC2
-VKC Keys
- CKC Cylinders Only (not for PHS, 		CKC3
PCHS)
2 Keys per Cylinder standard
Other than 2 Keys KY#
(e.g., KY6)

Finishes

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear
Coated 		611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome
with MicroShield® 		626C
Polished Stainless Steel* 629
Satin Stainless Steel* 630
Satin Stainless Steel
with MicroShield* 		630C
Black Oxidized Bronze,
Oil Rubbed 		722

* Lever only. Escutcheons plated to match.

Door Thickness

Door Thickness Specify
1-3/4" (44mm) standard
2" (51mm) D200
2-1/4" (57mm) D214

Door Width

Door Width Specify
24" (610mm) W024
36" (914mm) standard
48" (1219mm) W048

Credential Quick Codes

Description Specify
Prox Only M802
Keypad/Prox M803
iCLASS® Only M812
Keypad/iCLASS M813

Strikes

Description Specify
Mortise ANSI strike
for pairs of doors with
astragal 		SS078
Open back strike for
1-3/4" doors 		SB134
Open back strike for
2-1/4" doors 		SB214

Handing

Hand Specify
Right Hand Reverse RHR
Left Hand Reverse LHR

Miscellaneous Options

Description Specify
Torx® Head Screws M04
ANSI wrought strike box
(mortise) 		M17
Knurling outside & inside
(embossed touchbar -
device side)* 		M20
Knurling outside only
(trim side)* 		M21
Knurling inside only
(embossed touchbar -
device side) 		M22
Abrasive coat outside and
inside (trim and device)* 		M23
Abrasive coat inside only
(device side) 		M24
Abrasive coat outside only
(trim side)* 		M25
Less dogging M51
Cylinder dogging M52
Sex nuts and bolts (SNBs) M54
Shim kit (for vision light) M58
Wood screws for use on
fire-rated solid wood or
wood core doors 		M64

* Not available with Vineyard or Museo levers.

Management Tool

Lock Management Tool

Lock Management Tool™ allows programming, interrogation and overall management from a centralized location for up to 50 doors. The application facilitates communication from a computer to the Access 800® IP1 locks via 802.3af PoE infrastructure. Lock Management Tool is a program that allows an administrator to establish multiple user types, time zones, holidays, user groups, auto-unlock periods and to obtain transaction history from all locks connected to the system. The Lock Management Tool consists of a server based installation (a small workstation will be sufficient) with most of the daily administration and configuration being done through a web browser.

Lock Management Tool (Part Number WFCD2) Features

  • • Password protected database
  • • User database size based on local hardware configuration
  • • Allows for creation of user groups
  • • Easy to follow data entry
  • • Real-time clock with date and time
  • • Sixteen different time zones
  • • Holiday support
  • • Auto-unlock schedule with or without "first in" unlock
  • • Allows viewing of system wide events and history (total number of events based on local hardware configuration) – includes event type, date, time, user ID and name
  • • Configurable for all major HID Prox 125 kHz or iCLASS® 13.56 MHz card formats
  • • Scheduler utility to establish lock communication at pre-defined intervals
  • • User manual included
  • • Browser-based user interface
  • • Simple drag-and-drop configurations
  • • Basic alarm monitoring

Hardware and Software Requirements Hardware

  • • Memory: 2 GB minimum, 4 GB+ recommended
  • • Storage: 20 GB free hard disk space
  • • Processor: Dual Core/(min Pentium IV w/HT) @ 2GHz (or equivalent) or faster
  • • Screen: 800 x 600 required; 1024 x 768 Recommended
  • • Network Card required
  • • CD-ROM required
  • • RS232 Serial Port (DB9)

Operating System:

• Windows XP 32bit, Server 2003 32bit, Vista 32/64bit, Windows 7 32/64bit, or Windows Server 2008/2008R2

Note: IP address must be assigned by authorized network administrator and PC must utilize a static IP address

Integration Tools for ASSA ABLOY Locks

The Corbin Russwin IP-enabled locks are managed by a range of access control and security systems. For more information on which systems support the Corbin Russwin IP-enabled locks, please contact your local ASSA ABLOY Door Security Solutions office, www.assaabloydss.com. To learn more about how to integrate these and other ASSA ABLOY products with your system, please call 800-810-WIRE.

Options & Accessories

The access credentials below are only compatible with the M802 (125 kHz reader) option. Other credentials (125 kHz proximity and 13.56 MHz iCLASS®, 26-39 bit formats) can be purchased from HID®.

Credential Features

  • • Allows integration into existing facilities with HIDbased technology
  • • Standard credentials available with 26 bit Wiegand format and Corbin Russwin assigned site code
  • HID credentials available. For a higher level of security, custom cards, fobs or tags with unique site codes are available; consult factory.

ProxKey III

PF Corbin Russwin ProxKey III

  • • Site Code and Proximity ID#'s determined and controlled by Corbin Russwin
  • • 26 Bit Format, HID Coded Wiegand Output 125kHz
  • • 1.555" x 1.25" x 0.235" inches max (3.95 cm x 3.18 cm x 0.60 cm)
  • • Key ring sold separately (part no. 57-0001-02)
  • • Corbin Russwin ProxKey III ordered individually*** (Minimum order is 25 ProxKey III)

ISOProx® II Card

  • • 26 bit format
  • • Blank (white) card
  • • Blank card can be printed with customer's text and graphics – by others
  • • 25/pkg.
  • • Dimensions: 2-1/8" x 3-3/8" (54mm x 85.7mm)
  • • Thickness: .033" nom. (.84mm)

794F329 C/R 26 bit ISOProx II Card blank
794F369 HID 26 bit ISOProx II Card without logo

MicroProx® Tag

  • • 26 bit format with Corbin Russwin site code or customer site code
  • • Sequence numbers marked on each tag
  • • Gray color with HID Logo
  • • 10/pkg. (100 minimum order quantity)
  • • Dimensions: 1.285" x 0.070" (32.6mm x 1.78mm)
  • • For MicroProx Tag with customer site code, consult factory for minimum quantities

PF-C Custom ProxKey III

  • • Site Code requested by customer
  • • Proximity ID#'s requested by customer
  • • 26 Bit Format, HID Coded Wiegand Output 125kHz
  • • 1.555" x 1.25" x 0.235" inches max (3.95 cm x 3.18 cm x 0.60 cm)
  • • Key ring sold separately (part no. 57-0001-02)
  • • PF-C Custom ProxKey III ordered individually*** (Minimum order is 100 Custom ProxKey III)

794F439 C/R 26 bit ProxKey III
794F459 HID 26 bit ProxKey III

Note 1: Access 800® will support all HID bit formats when proximity credentials are programmed directly into keypad (Presentation Method).

Options & Accessories

WFCD1 Network And Lock Configuration CD Tool Kit*

• Required to configure network settings of the Access 800® IP1 lock

Contains:

  • • NCT/LCT software
  • • Serial adapter cable (to order, specify 716F179)
  • • Users' manual (on CD)
  • • Prox card
  • • iCLASS® Reader Configuration Cards Pack (WF001)

WFCD2 Lock Management Tool (LMT) CD*

  • • Lock Management Tool™ allows programming, interrogation and overall management from a centralized location of up to 25 doors
  • • License is included and is obtained at time of installation
  • • Kit Contains:
    • LMT software
  • Users' manual (on CD)

WFCD3 Lock Management Tool (LMT) CD*

  • • Lock Management Tool™ allows programming, interrogation and overall management from a centralized location of up to 50 doors
  • • License is included and is obtained at time of installation
  • • Kit Contains:
    • LMT software
  • Users' manual (on CD)

*The network and lock configuration CD Tool Kit (WFCD1) is required to set up Access 800 IP1 locks. Only one is required per system. Lock Management Tool or a compatible system is also required.

WF001 - iCLASS® Reader Configuration Cards Pack (included in WFCD1)

Includes four (4) cards for field configuration of reader

  • • iCLASS Configuration Card
  • • iCLASS Hard-Powered/PoE Configuration Card
  • • CSN Configuration Card
  • • CSN Hard-Powered/PoE Configuration Card

Common Replacement Parts

Adapter Cable

  • • Included with the Access 800® IP1
  • • Allows for certain monitoring features
  • • Compatible with ElectroLynx® system
  • • To order separately, specify 712F859

Door Position Switch (DPS)

  • • SPDT concealed switch (2 wire)
  • • Metal door adapter included
  • • 3/8" diameter for wood door
  • • 3/4" diameter for metal door
  • • Supplied with Access 800 IP1 exit devices and cylindrical locks
  • • To order separately, specify 712F869

Weatherseal Gasketing Kit

  • Includes rubber gasket(s) and durable ABS Conduit
  • Gaskets provide sealing between escutcheons and door for exterior applications
  • Conduit provides weather protection inside of door
  • Gasketing and conduit for use on non-fire rated exterior applications only
  • To order separately, specify kit part number

Access 800 Product Kit Part Number
ML20800 Series Mortise Lock 794F929
CL33800 Series Cylindrical Lock 794F919
9800/9M800 Series Exit Trim 794F909

Exit Keypad Escutcheon

Mortise Escutcheon Cylindrical Escutcheon

Exit Trim Escutcheon

Readers:

Keypad and Proximity or iCLASS Proximity or iCLASS

Controller

Keypad/Prox/RF Assemblies

Assembly* Product Part Number
M802 (prox only) 716F389
M803 (prox with keypad) 716F399
Readers M812 (iCLASS® only) 716F409
M813 (iCLASS with keypad) 716F419
Controller M802/M803/M812/M813 (iCLASS or prox) 712F809

* Assemblies include circuit board and housing. Batteries not included.

Architectural Specifications

ML20800 x TCIP1 Series Mortise Locks

Intelligent Power over Ethernet (PoE) Access Control

  • 1. PoE access control mortise locks shall be ML20800 Series as manufactured by Corbin Russwin Architectural Hardware of Berlin, CT.
  • 2. BHMA certified extra heavy duty, lever type mortise lock conforming to ANSI 156.13 Series 1000, Grade 1 standard and ANSI A117.1 accessibility guidelines. Motorized locking control of lever handle trim (solenoids not acceptable) with 3/4" anti-friction deadlocking latch and 1" case hardened steel deadbolt. UL listed and labeled for up to 3 hour fire rated openings.
  • 3. PoE access control locks interface to the electronic access control (EAC) system via a direct 10/100 TCP/IP connection. Integration with third party EAC systems is easily accomplished using a Software Development Kit (SDK) or Door Service Router (DSR). Locks will continue to function at the door independent of Ethernet (LAN) connection slowdown or failure.
    • a. Provide access control products with nonvolatile memory.
  • 4. Provide keypad/proximity (M803), proximity only (M802), keypad/iCLASS® (M813) and iCLASS only (M812) locks with a minimum of 2,400 user codes and the ability to audit the last 10,000 transactions.
  • 5. Provide Lock Management Tool (M802, M803, M812, M813), Microsoft Windows operating system compatible, required to program time zone periods, blocked holidays, automatic unlock with or without first entry, and listing 10,000 event transaction history – event type, date, time, user ID and name
  • 6. Monitoring: Software accessible monitoring (via SDK) of inside lever handle (Request-to-Exit), auxiliary latch, deadbolt, and door position switch (door open/closed status).
  • 7. Emergency override access capability by mechanical key retraction of both latch bolt and deadbolt without electronic activation necessary.
  • 8. Inside lever retracts latch bolt and deadbolt simultaneously.
  • 9. Locks to be weather resistant via installation of shroud (optional), conduit and gaskets.
  • 10.Hard wiring electrical connections and wiring by others.
  • 11. Cylinders: Reference 2.04 Keying for keying requirements.

CL33800 x TCIP1 Cylindrical Locks Intelligent Power over Ethernet (PoE) Access Control

  • 1. PoE access control cylindrical locks shall be CL33800 Series as manufactured by Corbin Russwin Architectural Hardware of Berlin, CT.
  • 2. BHMA certified extra heavy duty, lever type cylindrical lock conforming to ANSI 156.2 Series 4000, Grade 1 standard and ANSI A117.1 accessibility guidelines. Motorized locking control of lever handle trim (solenoids not acceptable) with 1/2" anti-friction deadlocking latch, UL listed and labeled for up to 3 hour fire rated openings.
    • a. Backset: 2 3/4 inches.
  • 3. PoE access control locks interface to the electronic access control (EAC) system via a direct 10/100 TCP/IP connection. Integration with third party EAC systems is easily accomplished using a Software Development Kit (SDK) or Door Service Router (DSR). Locks will continue to function at the door independent of Ethernet (LAN) connection slowdown or failure.
  • a. Provide access control products with nonvolatile memory.
  • 4. Provide keypad/proximity (M803), proximity only (M802), keypad/ iCLASS (M813) and iCLASS only (M812) locks with a minimum of 2,400 user codes and the ability to audit the last 10,000 transactions.
  • 5. Provide Lock Management Tool (M802, M803, M812, M813), Microsoft Windows operating system compatible, required to program time zone periods, blocked holidays, automatic unlock with or without first entry, and listing 10,000 event transaction history – event type, date, time, user ID and name
  • 6. Monitoring: Software accessible monitoring (via SDK) of inside lever handle (Request-to-Exit) and Door Position Switch (door open/closed status).
  • 7. Emergency override access capability by mechanical key retraction of latch bolt without electronic activation necessary.
  • 8. Inside lever retracts latch bolt.
  • 9. Locks to be weather resistant via installation of shroud (optional), conduit and gaskets.
  • 10.Hard wiring electrical connections and wiring by others.
  • 11.Cylinders: Reference 2.04 Keying for keying requirements.

ED5000N x 9800 x TCIP1 Exit Devices Intelligent Power over Ethernet (PoE) Access Control

  • 1. PoE access control exit devices shall be ED5000 Series as manufactured by Corbin Russwin Architectural Hardware of Berlin, CT.
  • 2. BHMA certified panic and exit device hardware conforming to ANSI 156.3, Grade 1 standard and ANSI A117.1 accessibility guidelines. U.L. listed for either panic or as "Fire Exit Hardware" for us on labeled doors up to 3 hour fire rated openings.
  • 3. Motorized locking and unlocking of lever handle (solenoids not acceptable) contained completely within the body of the outside trim control. Provide lever design matching lock lever design.
  • 4. PoE access control locks interface to the electronic access control (EAC) system via a direct 10/100 TCP/IP connection. Integration with third party EAC systems is easily accomplished using a Software Development Kit (SDK) or Door Service Router (DSR). Locks will continue to function at the door independent of Ethernet (LAN) connection slowdown or failure.
    • a. Provide access control products with nonvolatile memory.
  • 5. Provide keypad/proximity (M803), proximity only (M802), keypad/ iCLASS (M813) and iCLASS only (M812)locks with a minimum of 2,400 user codes and the ability to audit the last 10,000 transactions.
  • 6. Provide Lock Management Tool (M802, M803, M812, M813), Microsoft Windows operating system compatible, required to program time zone periods, blocked holidays, automatic unlock with or without first entry, and listing 10,000 event transaction history – event type, date, time, user ID and name
  • 7. Monitoring: Software accessible monitoring (via SDK) of inside push bar (Request-to-Exit), latch, and door position switch (door open/closed status).
  • 8. Provide keyed cylinder dogging feature for nonrated panic devices and keyed removable mullions as specified in the Hardware Groups.
  • 9. Locks to be weather resistant via installation of shroud (optional), conduit and gaskets.
  • 10.Hard wiring electrical connections and wiring by others.
  • 11.Cylinders: Reference 2.04 Keying for keying requirements. Provide cylinders for exit devices with cylinder override and cylinder dogging
    • a. Cylinders: Refer to 2.04 KEYING, keying requirements.

Quick Code Index

Hardware

Part No./
Quick Code 		Description
784 Optional Power Supply - Gel Cell Battery,
ordered with Device
708F979 Conduit
712F859 Adapter Cable
793F029 Ribbon Cable
793F039 784 Remote power supply (includes plug-in wall trans
former & 12 feet of shielded wire)
793F049 Plug in wall transformer
793F059 Cable assembly - power supply
793F069 Power/remote unlocking harness
793F089 12 V 1.2 A/Hr. Gel Cell Battery
793F199 Battery, Alkaline (AA) (single battery)
793F309 Power Supply Circuit Board

Gaskets

794F509 Gaskets Exit device - Reader
794F519 Gaskets Exit device trim
794F529 Gaskets Cylindrical lock
794F539 Gaskets Mortise lock

Credentials

794F319 C/R 26 bit ISOProx® II with logo
794F329 C/R 26 bit ISOProx II blank
794F359 HID 26 bit ISOProx II with logo
794F369 HID 26 bit ISOProx II without logo
794F339 C/R 26 bit ProxCard® II with logo
794F349 C/R 26 bit ProxCard II blank
794F379 HID 26 bit ProxCard II with logo
794F389 HID 26 bit ProxCard II without logo
794F399 C/R DuoProx® II - Prox and magstripe with logo
794F409 C/R DuoProx II - Prox and magstripe without logo
794F419 HID 26 bit DuoProx II - Prox and magstripe
794F429 C/R MicroProx® tag
794F449 HID MicroProx tag with customer site code
794F439 C/R 26 bit ProxKey® III
794F459 HID 26 bit ProxKey III

Notes

In U.S. Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 corbinrusswin.com

In Canada ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989

www.assaabloydss.ca

For more information regarding Corbin Russwin Locksets, Exit Devices, Door Controls and Key Systems, contact your authorized Corbin Russwin Distributor or Sales Representative.

MicroShield®

As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria. MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
