PoE Campus Access Control

About ASSA ABLOY's Authorized Channel Partner and Certified Integrator Programs

The Corbin Russwin Access 700® PIP1 is part of the expanding ASSA ABLOY family of innovative products combining our proven mechanical locking devices with leading-edge technologies to provide integrated electronic access control solutions. As such, these products require training and certification for resellers and integrators to ensure proper product selection, successful deployment and customer satisfaction.

To aid our customers in this area, ASSA ABLOY has created two programs that provide the necessary training to sell, order, install and service our technology products, including Aperio wireless, Integrated Wiegand, IP-enabled and self-configurable intelligent components:

  • The Authorized Channel Partner (ACP) program is open to resellers, who sell ASSA ABLOY's technology products to certified integrators and help with product selection based on the application.
  • The Certified Integrator (CI) program provides hands-on training for security systems integrators and network administrators. Not only does this training familiarize certified integrator candidates with product features and applications, it also gives them valuable experience installing, commissioning and troubleshooting the products in a real-world environment.

For more information on the qualifications for becoming an ACP or CI, contact your local ASSA ABLOY Door Security Solutions sales consultant for details.

Sold through: Installed by:

Overview

Index

Access 700® PIP1 Overview 1-2
Mortise Lock
Features 3
Functions 4
Technical Features 5
Cylinders 6
Options & Accessories 7
Quick Codes 8

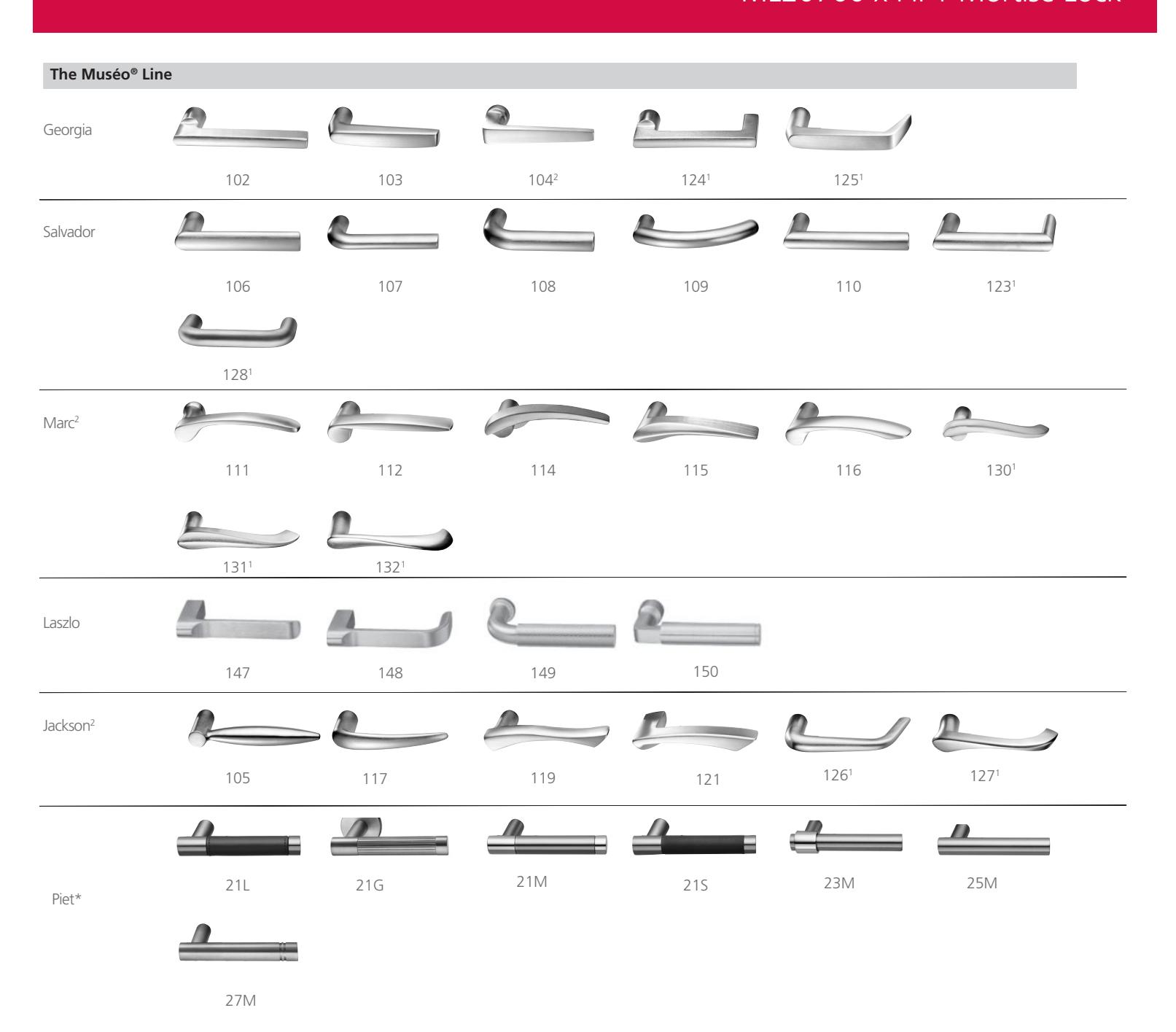

Lever Trim Designs 9
How to Order 10-11
Available Trim Options 12
How to Order 13

Cylindrical Lock

Features & Functions 14
Technical Features 15
Options & Accessories 16
Quick Codes 17
How to Order 18
Lever Trim Designs 19

Exit Devices

Features 20
Technical Features 21
Functions 22
Options & Accessories 23
Quick Codes 24
Lever Trim Designs 25
How to Order 26
Available Trim Options 27
How to Order 28

Multi-Point Locks

Quick Code Index ............... 41

Common Replacement Parts .................................... 42

The Corbin Russwin Access 700® PIP1 intelligent Power over Ethernet (PoE) lockset offers online access control, using magstripe, PIN code, and HID® multiCLASS SE® technologies for customized access to campus facilities. This offers an ideal solution for forward thinking campuses looking for an easy migration path to higher security credentials and mobile access.

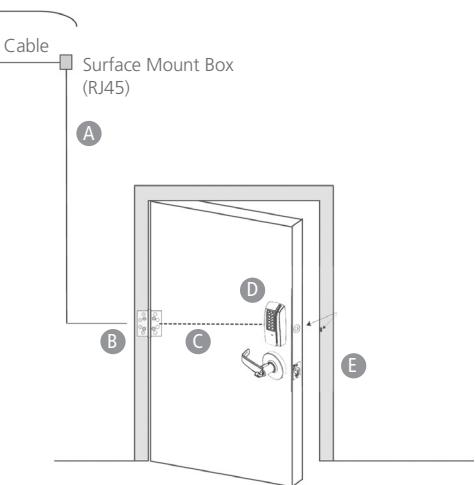

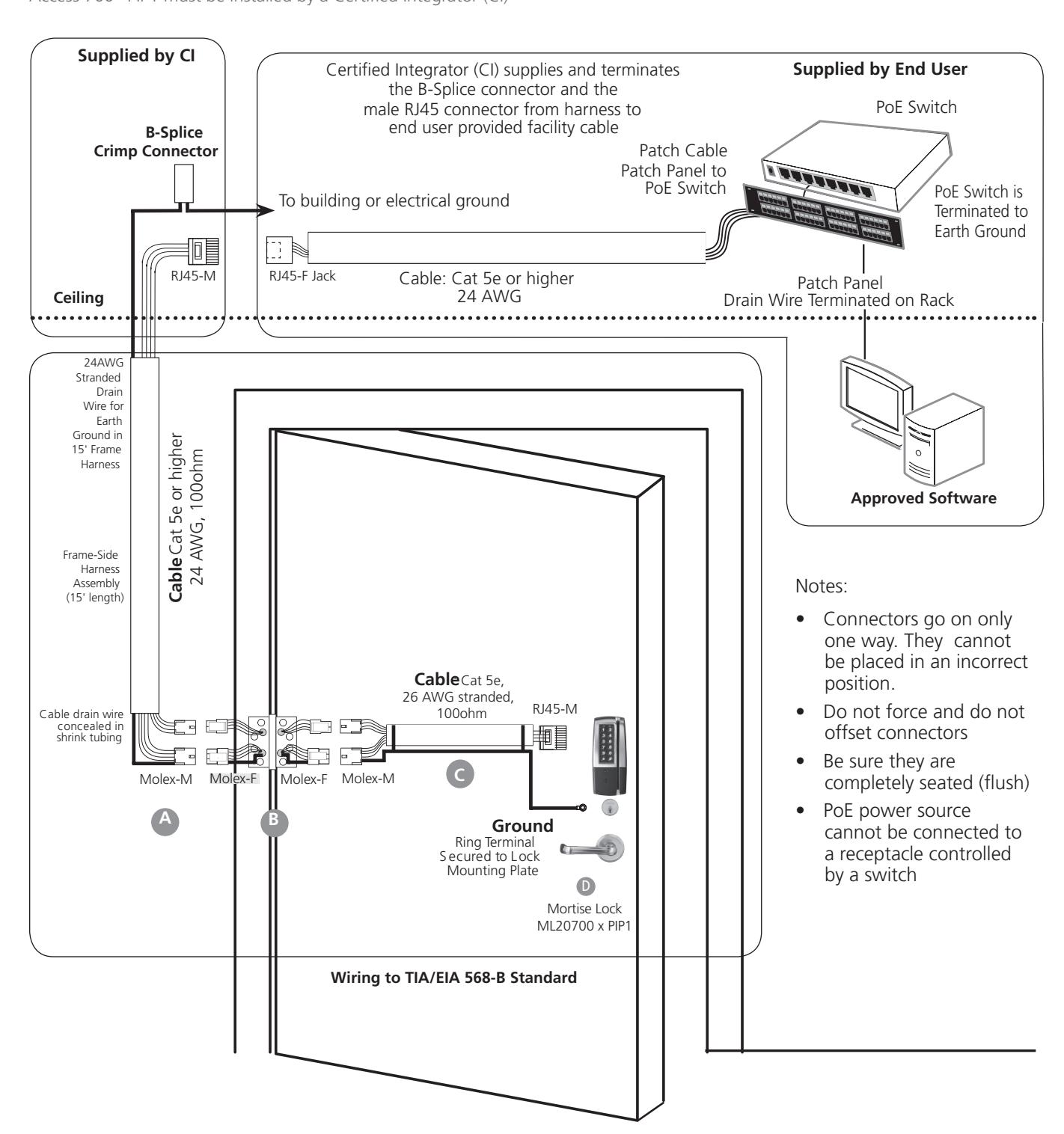

Access 700® PIP1 Online PoE (Power over Ethernet) Typical Application

Provided by others Network Cable

Network Switch (802.3af)

Purchased through ASSA ABLOY:

  • A. Cable PoE Frame side Harness Assembly

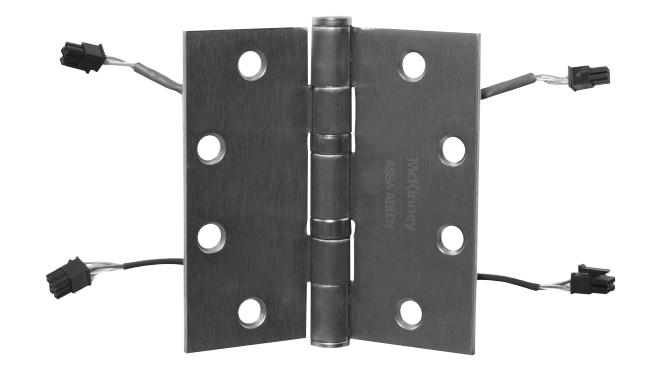

  • B. PoE Data Hinge (Patent Pending)
  • C. Cable PoE Door Harness Assembly*
  • D. Access 700® PIP1 PoE Lock
  • E. Door Position Switch (DPS) Cylindrical & Exit devices only
  • *Door width determines length

For a detailed explanation of the above, please refer to Application Diagram on page 26.

Access 700® PIP1 Lock Features and Benefits

Features Benefits
Utilizes IEEE 802.3af PoE-enabled network
infrastructure for both power and data 		• Streamlines the installation process, reducing costs
• Eliminates the need for any proprietary equipment
• Enables real-time communication
HID® multiCLASS SE® Technology with
magnetic stripe reader 		• Provides heightened security
• Supports multiple credential technologies, offering easy migration
from magnetic stripe or other contactless standards to higher
security credentials or consolidation of mixed credentials
• Supports HID Mobile Access® powered by Seos®
Keypad option available • Two-factor authentication offers enhanced security
Intelligence built into lock for local decision
making 		• Lock operates regardless of network status*
• Supports up to 2,400/10,000 users**
• Provides a 10,000 event transaction history/audit trail
Privacy button • Allows shelter in place / local lockdown
• Enables privacy capabilities for applications such as residence halls
Reduced energy consumption and product
sustainability measures 		• Uses 76% less power in standby mode than traditional access
control installations
• Reuses existing network infrastructure
• Streamlined system architecture provides improved reliability and
reduces materials

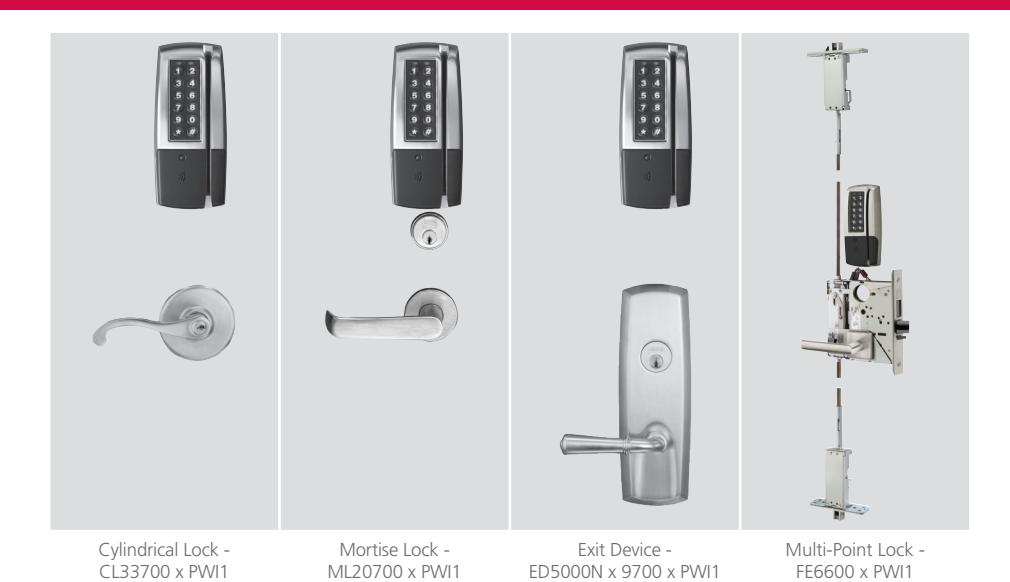

Integrated ANSI/BHMA Grade 1 hardware,
available in cylindrical lock, mortise lock, exit
device and multi-point lock configurations 		• Flexibility to support various openings
• Assurance of high quality hardware
Available with a wide range of finishes and • Blends into any environment seamlessly

• Designed to meet the requirements of designers and architects

decorative levers *Requires power backup

** Contact your access control system manufacturer for more information

Overview

Applications

Access 700® PIP1 ideal for:

  • Residence Halls
  • Restrooms
  • Dining Halls
  • Libraries
  • Book Stores
  • Leisure Centers
  • Sports Halls
  • Classrooms
  • Laboratories

Technical Specifications

• Conforms to IEEE 802.3af Class 1 standard, requiring up less than 3.84 watts

Access Credentials Magnetic Stripe:

  • Read speed: 4 to 40 in/s
  • Card track: Track 2
  • Card Coercivity: HiCo (4000 Oersted) or LoCo (300 Oersted)
  • Time resolution on card:
  • 1 minute
  • Magnetic head lifetime: 300,000 operations

Keypad:

• PIN code: 4-digits with card, or 6-digits PIN only

Credential Reader:

  • 2.4 GHz credentials:
    • Secure Identity Object™ (SIO) on Mobile IDs (Bluetooth Smart)
  • NFC & BLE-enabled Mobile Phones:
  • HID Mobile Access (BLE and NFC)
  • High Frequency (13.56 MHz):
    • HID iCLASS®
    • HID iCLASS SE® (SIO-enabled)
    • HID iCLASS® Seos™
    • HID MIFARE® SE
    • HID DESfire® EV1 SE
    • MIFARE Classic
    • DESfire EV1
    • •PIV/PIV-1 (40-bit BCD, 64-bit BCD, 75 bit,
  • 128-bit or 200-bit outputs)
  • Low Frequency (125 kHz):
    • HID Prox®
    • •AWID
    • •EM4102
  • 13.56 MHz credentials:
    • iCLASS®
    • iCLASS SE® (SIO-enabled)
    • iCLASS® Seos®
    • SIO on MIFARE® Classic
    • SIO on MIFARE DESfire® EV1
    • MIFARE Classic
    • DESfire EV1
    • NFC-enabled mobile phones
  • 125 kHz credentials:

Security

• AES 128-bit encryption

EAC Regulatory Compliance:

  • UL294 6th Edition (not applicable to FE6600)
  • CAN/ULC S319 (not applicable to FE6600)
  • BHMA A156.25 (not applicable to FE6600)

Access 700® PIP1.2 45165 05/22

Overview

MA Magstripe Only – Most existing magstripe ID cards work with the system including high coercivity magnetic stripe.

  • Read speed: 4 to 40 in/s
  • Magnetic head lifetime: 300,000 operations
  • Card track: Track 2

KM Keypad & Magstripe

  • PIN code: 4-digits with card, or 6-digits PIN only
  • Read speed: 4 to 40 in/s
  • Magnetic head lifetime: 300,000 operations
  • Card track: Track 2

IKMPS* HID® multiCLASS SE® reader, Keypad & Magstripe

  • PIN code: 4-digits with card, or 6-digits PIN only
  • Read speed: 4 to 40 in/s
  • Magnetic head lifetime: 300,000 operations
  • Card track: Track 2
  • iCLASS, keypad, mag stripe, Prox, smart card (MIFARE, DESFIRE)

IMPS* HID® multiCLASS SE® reader & Magstripe

  • Read speed: 4 to 40 in/s
  • Magnetic head lifetime: 300,000 operations
  • Card track: Track 2
  • iCLASS, mag stripe, Prox, smart card (MIFARE, DESFIRE)

CKMP* HID® multiCLASS SE® reader, keypad & magstripe

  • PIN code: 4-digits with card, or 6-digits PIN only
  • Read speed: 4 to 40 in/s
  • Magnetic head lifetime: 300,000 operations
  • Card track: Track 2
  • FeliCa, keypad, mag stripe, Prox

CMP* HID® multiCLASS SE® reader & magstripe

  • Read speed: 4 to 40 in/s
  • Magnetic head lifetime: 300,000 operations
  • Card track: Track 2
  • FeliCa, mag stripe, Prox

PERSONA Campus™ Software Features

  • PERSONA's Campus™ Software runs on a single PC as a stand alone or networked system
  • Most existing magstripe ID cards work with the system including high coercivity magnetic stripe.
  • Importing student or personnel information is easy (without duplicating existing databases)
  • The System Events Log is password protected; level of security is user-configurable
  • Time scheduling allows different access to various users at designated times throughout the day
  • Can perform individual user or group searches and generate reports

* For Bluetooth Smart support, add "B" to the beginning of the credential quick code.

Features

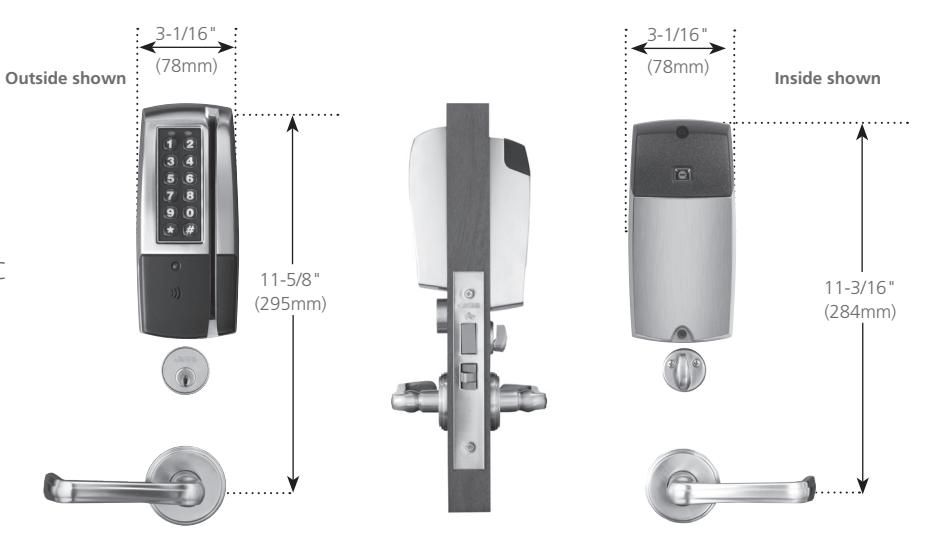

ML20700 x PIP1 Mortise Lock

Mortise Lock ML20700 x PIP1

Integration of Corbin Russwin mechanical locking security with PoE intelligence, provides an intelligent, One Card solution for economical and effective campus access control. The ML20700 x PIP1 PoE locking solution features four operating modes: passage, card only, card plus PIN code, and PIN code only, providing scalable security credentials for any door, room or building.

Featuring EcoFlex™ technology, the integrated lockset uses a standard, high coercivity magnetic stripe card. Manual key override, a standard feature, provides for fail-safe backup in emergency situations.

Customize access, facilitated by on-board memory, lets you define unlimited access, extended-hours access or no access, by user, by facility, down to the individual lock. Audit trail capability provides a history of up to 10,000 events.

Features

  • ANSI/BHMA A156.13 Grade 1 mortise lock
  • Complete, integrated lockset
  • Optional patented security cylinder for emergency key override
  • Patented, quick reversible latchbolt, 2-piece mechanical with anti-friction insert 5/8" (16mm) x 1" (25mm) x 3/4" (19mm). U.S. Patent #6,349,982

Auxiliary Latchbolt

9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking

Deadbolt

One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw

  • 3-hour UL fire rating for maximum security and safety Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes
  • All electronics and batteries mounted in inner escutcheon on secure side of door
  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • ADA compliant

and ratings.

• 10 year mechanical warranty; 2 year electrical component warranty

The Access 700® PIP1 ML20700 mortise lock with deadbolt is required for escape return functionality (a residential requirement in Canada). No other Access 700® PIP1 locks will support this requirement.

Functions

ML20700 x PIP1 Mortise Lock

Outside
Inside 		Series/Function Type Function Description
ML20733
No Key Override
No Deadbolt 		Entry • Deadlocking latch
• Latch retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• No deadbolt function
ML20734
With Key Override
No Deadbolt 		Entry • Deadlocking latch
• Latch retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• Key outside retracts latch
ML20735
No Key Override
With Deadbolt* 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• When deadbolt thrown, outside lever operable only
with certain authorized credentials
ML20736
With Key Override
and Deadbolt* 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever
at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• Key outside projects or retracts deadbolt
and retracts latch
• When deadbolt projected, outside lever operable only
with certain authorized credentials, or key (key retracts
deadbolt and latch)

* Deadbolt required for escape return functionality (a residential requirement in Canada

Technical Features

ML20700 x PIP1 Mortise Lock

Technical Data

Card Track: Track 2
Card Coercivity HiCo (4000 Oersted)

Monitoring

ML20700 x PIP1 Request to Exit (REX); Latchbolt (LX); Dead Bolt (DX); Auxiliary Latchbolt (AX)

Features

Operating Modes PIN required: Specify KM, IKMPS, or CKMP; In addition to card, a 4 digit PIN might be required
No PIN required: Specify MA, IMPS, CMP; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule) or might
optionally be configured to require two consecutive swipes to toggle the passage state

Electrical Specifications

  • Power supplied through Ethernet
  • Class 1 Device defined by IEEE 802.3af requiring max 3.84 watts
  • Network Drop Cable (by others) Specifications:
  • Cat5e or higher
  • Belden 1533P D15A1000 or equivalent
  • TIA/EIA-568-B
  • Shielded with drain wire
  • Plenum-rated
  • 24AWG

  • FCC Part 15-compliant

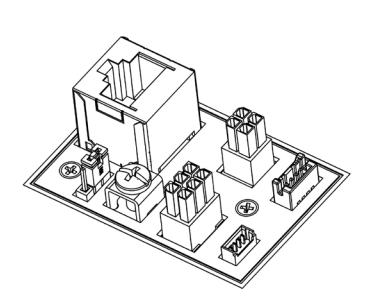

  • Network Surface Mount Box:
  • Cat5e or higher (RJ45)
  • TIA/EIA-568-B

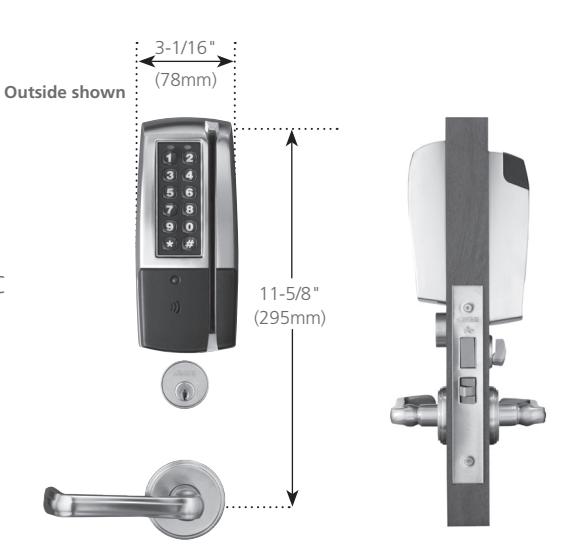

Inside/Outside Escutcheons

  • Keys/buttons overmolded to prevent wear
  • Zinc die cast
  • Tactile keypad
  • LED's indicate valid/invalid entries
  • Escutcheon projection 1-11/16" (43mm)
  • Operating temperature: -31°F to 150°F (-35°C to 65°C)
  • • Operating humidity: 5% to 95% relative humidity non-condensing
  • Storage temperature: -22°F (-30°C) to 176°F (80°C)

Cylinders

ML20700 x PIP1 Mortise Lock

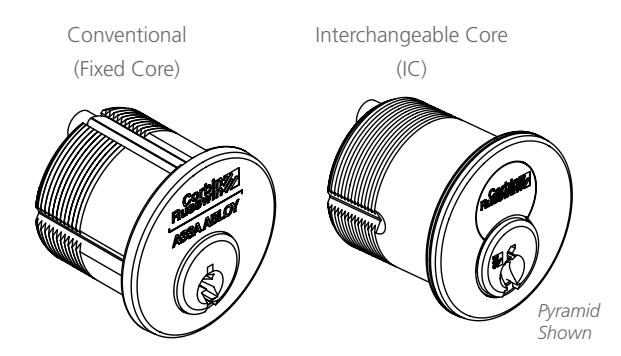

Cylinders

  • Conventional (standard)
  • Pyramid (optional)
  • Interchangeable Core (IC)
  • 2 nickel silver keys
  • Finishes: See Key Systems and Pyramid

Cylinder Quick Codes

Mortise Cylinder Type Keyed Functions for 1-3/4" Door
Pyramid High Security (PHS) 1020-114-A01
Pyramid High Security Interchangeable Core (PCHS) 1030-114-A01
Pyramid Security (PS) 1027-114-A01
Pyramid Security IC (PCS) 1037-114-A01
Conventional 6-pin 1000-118-A01
7-pin (7P) 1000-114-A01
6-pin IC (C6) 1080-114-A01
7-pin IC (C7) 1080-112-A01-7
Security IC (CHS) 1090-114-A01
Security (HS) 1010-118-A01

For complete Pyramid information and options refer to Key Systems catalog.

To order optional cylinder with lockset, see Quick Codes, page 28.

To order cylinder separately, specify Part No. x Keyway x Finish (e.g., 1000-138-A01 x L4 x 626).

Options & Accessories

ML20700 x PIP1 Mortise Lock

Strikes

ANSI Straight Lip (standard) Brass, Bronze or Stainless Steel Non-handed 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center Optional lip lengths: 7/8" (22mm), 1-1/4" (32mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm)

ANSI Curved Lip

Brass, Bronze or Stainless Steel

Handed 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center

Optional lip lengths: 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm),

3" (76mm)

ANSI Wrought Strike Box

To order with lockset; see Quick Codes, page. 8. To order separately, specify 120F768.

Part No. Description
236L72 Straight Lip
340L60 Curved Lip for RH, LHR
Latchbolt X Deadbolt 340L61 Curved Lip for LH, RHR
236L73 Straight Lip
340L62 Curved Lip for RH, LHR
Latchbolt Only 340L63 Curved Lip for LH, RHR

To order strike with lockset, see Quick Codes, page 8. To order strike separately, specify Part No. x Lip Length x Finish (e.g., 340L60 x 1-1/2" x 626).

Open Back Size: 5-1/4" (133mm) x 1-1/4" (32mm)

Hand Door Thickness Part
1-3/4" (44mm) 411L63016
LHR 2" (51mm) 411L63018
2-1/4" (57mm) 411L63020
1-3/4" (44mm) 411L62016
RHR 2" (51mm) 411L62018
2-1/4" (57mm) 411L62020

To order with lockset; see Quick Codes, page 8. To order separately, specify Part No. x Door Thickness x Finish (e.g., 411L62 x 2" x 626).

Rabbeted Front and Strike

Brass or bronze. For 1/2" (13mm) rabbet. No optional lip lengths.

Part No. Hand
Latchbolt x 318F66 RH/LHR
deadbolt 318F69 LH/RHR
Latchbolt 318F64 RH/LHR
only 318F67 LH/RHR

To order with lockset; see Quick Codes, page 8. To order separately, specify Part No. x Finish (e.g., 318F66 x 626).

Quick Codes

ML20700 x PIP1 Mortise Lock

Cylinders and Keying
Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red
Blue
Green 		CT6R
CT6B
CT6G
CI 6-pin Less Core CL6
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC disposable
temporary core 		CT6SD
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red
Blue
Green 		CT7R
CT7B
CT7G
IC 7-pin Less Core CL7
SFIC 7-pin with Less Core CLS7
SFIC 7-pin with SFIC disposable
temporary core 		CT7SD
Security HS
Security IC CHS
Pyramid Fixed Core PHS
Pyramid IC PCHS
Pyramid IC Less Core CLP
Pyramid with Temporary
Construction Core 		CTP
Pyramid Security PS
Pyramid Security IC PCS
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
Keyed Random (Standard) KR
Construction Master Keyed (not
available for Pyramid) 		CMK
Visual Key Control
- No Keying Data Stamped
on Key or Cylinder 		VKC0
- Keys Only
- Cylinders and Keys
(not for HS, CHS, PHS
or PCHS) 		VKC1
VKC2
- Cylinders Only (not for HS,
CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with
VKC Keys 		CKC2
- CKC Cylinders Only (not
for PHS, PCHS) 		CKC3
2 Keys per Lock (standard)
More than 2 Keys KY#
(e.g., KY6)

Finish

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		6131
Dark Oxidized Satin Bronze -
Equivalent 		613E
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome with
MicroShield® 		626C
Bright Stainless Steel 6293
Satin Stainless Steel 6303
Satin Stainless Steel with
MicroShield 		630C
Black Oxidized Bronze,
Oil Rubbed 		7222
Black Suede Powder Coat BSP
White Suede Powder Coat WBSP

  • New, March 2007
  • Formerly 613 prior to March 2007
  • Escutcheon finished to match 629, 630 finish

Miscellaneous Options

Description Specify
Torx®
head screws 		M04
ANSI wrought strike box M17
Knurling outside and inside1 M202
Knurling outside only1 M212
Knurling inside only M222
Abrasive coat outside and
inside1 		M23
Abrasive coat inside only1 M24
Abrasive coat outside only M25

  • 1 Not available with Vineyard™ or Muséo® levers.
  • 2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Door Thickness

Description Specify
1-3/4" (44mm) std
1-7/8" (48mm) D178
2" (51mm) D200
2-1/8" (54mm) D218
2-1/4" (57mm) D214

Consult factory for door thicknesses greater than 2-1/4

Credential Quick Codes

Description Specify
Magstripe Only MA
Keypad & Magstripe KM
HID iCLASS®, HID iCLASS SE® (SIO
enabled), HID iCLASS® Seos™, HID
MIFARE® SE, HID DESfire® EV1 SE,
MIFARE Classic, DESfire EV1, HID
Prox®, NFC-enabled mobile phones,
keypad, mag stripe 		IKMPS*
HID iCLASS®, HID iCLASS SE® (SIO
enabled), HID iCLASS® Seos™, HID
MIFARE® SE, HID DESfire® EV1 SE,
MIFARE Classic, DESfire EV1, HID
Prox®, NFC-enabled mobile phones,
mag stripe 		IMPS*
FeliCa, HID Prox®, NFC-enabled
mobile phones, keypad, mag stripe 		CKMP*
FeliCa, HID Prox®, NFC-enabled
mobile phones, mag stripe 		CMP*

* For Bluetooth Smart support, add "B" to the beginning of the credential quick code.

Strikes

ANSI
Lip to Center 		ANSI
Straight Lip
Specify 		Curved Lip
Specify
7/8" (22mm) SS078 N/A
1-1/8" (29mm) (standard) N/A
1-1/4" (32mm) SS114 SA114
1-3/8" (35mm) SS138 SA138
1-1/2" (38mm) SS112 SA112
1-3/4" (44mm) SS134 SA134
2" (51mm) SS200 SA200
2-1/4" (57mm) SS214 SA214
2-1/2" (64mm) SS212 SA212
2-3/4" (70mm) SS234 SA234
3" (76mm) SS300 SA300
Open Back Strike Door Thickness Specify
1-3/4" (44mm) SB134
2" (51mm) SB200
2-1/4" (57mm) SB214
Rabbeted front and strike - Specify SR118

Lever Trim Designs

ML20700 x PIP1 Mortise Lock

Standard
Lever 		A Rose B Rose F Rose
Armstrong ASA ASB ASF
Newport NSA NSB NSF
Princeton PSA PSB PSF
Citation CSA CSB CSF
Dirke DSA DSB DSF
Essex ESA ESB ESF
Lustra LSA LSB LSF Armstrong Citation
Regis RSA RSB RSF
Dirke Essex*
Lustra Newport*
Vineyard™ G Rose
Frascati FSG
Merlot MSG
Tuscany TSG
Zinfandel ZSG

Frascati Merlot

Tuscany Zinfandel

Princeton* Regis

Lever Trim Designs

ML20700 x PIP1 Mortise Lock

  • 1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
  • 2. Not available in 32D or 32 finish.
  • *Piet levers are customized. See "How to Order" on page 14 for ordering information.

How to Order

ML20700 x PIP1 Mortise Lock

Ordering Examples

Stock Order

Quantity Series/Function Technology Code Trim Finish Hand Credential
Quick Code
24 ML20736 TCPIP1 LWA 626 RHR IKMPS

Split Trim/Finish Order

Quantity Series/
Function 		Technology
Code 		Trim
Outside
Inside 		Finish
Outside 		Inside Hand Credential
Quick Code
24 ML20735 TCPIP1 CSA CSA 626 606 RHR IMPS

Contract/Detailed Order

Quantity Keyset Series/
Function 		Technology
Code 		Trim Finish Hand Door
Thickness 		Optional
Strike 		Optional
Cylinder 		Keying Credential
Quick Code
24 AA1 ML20734 TCPIP1 111X 626 RHR D214 SA200 PS VKC3 CKMP

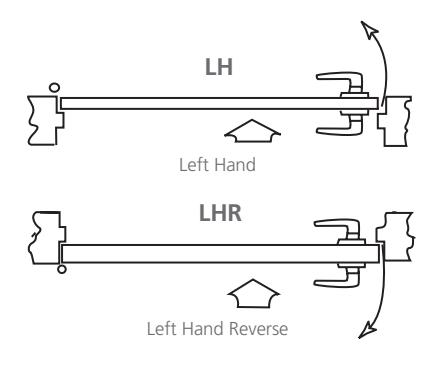

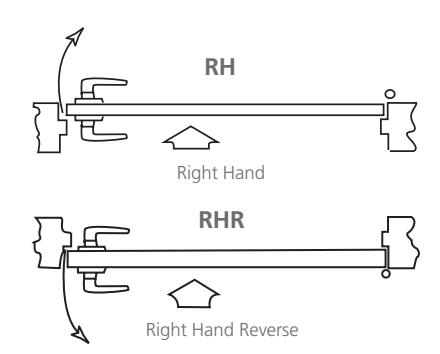

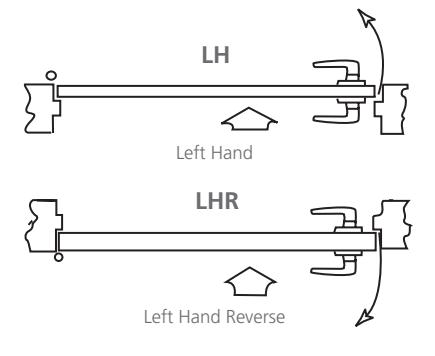

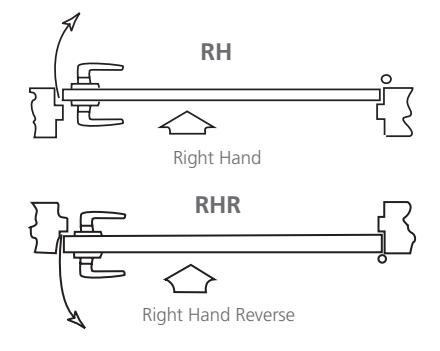

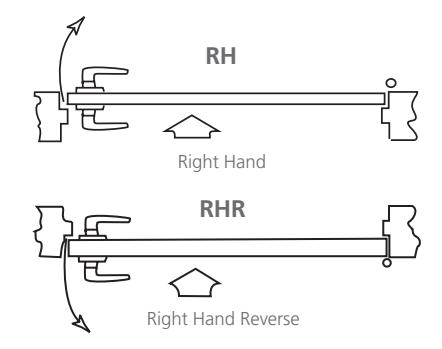

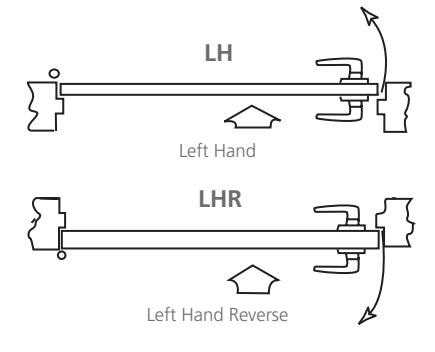

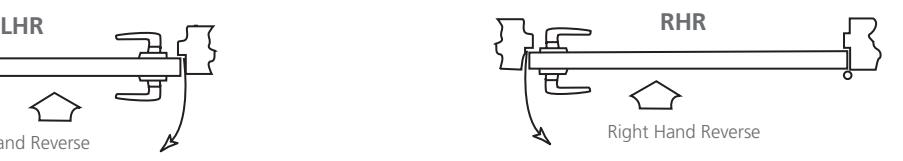

Handing

Note: Arrow indicates secure side of door.

How To Order

ML20700 x PIP1 Mortise Lock

Mortise Locksets

Function Trim Finish Hand
ML20733 Standard Muséo®
Vineyard™
605 		RH
ML20734 ASA ASB ASF 102V 102U 102T 102Y 102X 102W FSG 606 RHR
ML20735 NSA NSB NSF 103V 103U 103T 103Y 103X 103W MSG 611 LH
ML20736 PSA PSB PSF 104V 104U 104T 104Y 104X 104W TSG 612 LHR
CSA CSB CSF 124V 124U 124T 124Y 124X 124W ZSG 613
DSA DSB DSF 125V 125U 125T 125Y 125X 125W 618
ESA ESB ESF 106V 106U 106T 106Y 106X 106W 619
LSA LSB LSF 107V 107U 107T 107Y 107X 107W 625
RSA RSB RSF 108V 108U 108T 108Y 108X 108W 626
109V 109U 109T 109Y 109X 109W 722
110V 110U 110T 110Y 110X 110W 626C
123V 123U 123T 123Y 123X 123W
128V 128U 128T 128Y 128X 128W
129V 129U 129T 129Y 129X 129W
111V 111U 111T 111Y 111X 111W
112V 112U 112T 112Y 112X 112W
114V 114U 114T 114Y 114X 114W
115V 115U 115T 115Y 115X 115W
116V 116U 116T 116Y 116X 116W
130V 130U 130T 130Y 130X 130W
131V 131U 131T 131Y 131X 131W
132V 132U 132T 132Y 132X 132W
117V 117U 117T 117Y 117X 117W
126V 126U 126T 126Y 126X 126W
119V 119U 119T 119Y 119X 119W
121V 121U 121T 121Y 121X 121W
127V 127U 127T 127Y 127X 127W
21LV 21LU 21LT 21LY 21LX 21LW
21MV 21MU 21MT 21MY 21MX 21MW
21SV 21SU 21ST 21SY 21SX 21SW
23MV 23MU 23MT 23MY 23MX 23MW
25MV 25MU 25MT 25MY 25MX 25MW

Available Trim Options

ML20700 x PIP1 Mortise Lock

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

How To Order

ML20700 x PIP1 Mortise Lock

How to Order the Muséo® Piet Lever Collection

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential Quick
Code
2 ML20736 TCPIP1 21MV 293029 625 RHR IKMPS

  • > Muséo® Piet Lever 21M Polished with Satin Insert with V rose
  • > 293029 Lever Finish
  • Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip
  • > 625 Lock Finish
  • > Right hand reverse
  • > iCLASS®, Keypad, Magstripe, Prox, smart card (MIFARE, DESFIRE)

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 ML20735 TCPIP1 21MU 293029 625 RHR IMPS

  • > Muséo® Piet Lever 21M Polished with Satin Insert with U rose
  • > 293029 Lever Finish
  • Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip
  • > 625 Lock Finish
  • > Right hand reverse
  • > iCLASS®, Magstripe, Prox, smart card (MIFARE, DESFIRE)
  • * Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

Features & Functions

Sold through:

CL33700 x PIP1 Cylindrical Lock

Integration of Corbin Russwin mechanical locking security with PoE intelligence, provides an intelligent, One Card solution for economical and effective campus access control. The CL33700 x PIP1 PoE locking solution features four operating modes: passage, card only, card plus PIN code, and PIN code only, providing scalable security credentials for any door, room or building.

The integrated lockset uses a standard, high coercivity magnetic stripe card. Manual key override, a standard feature, is provided for fail-safe backup in emergency situations.

Customized access, facilitated by on-board memory lets you define unlimited access, extended-hours access or no access, by user, by facility, down to the individual lock. Audit trail capability provides a history of up to 10,000 events.

Cylindrical Lock CL33700 x PIP1

Features

  • ANSI/BHMA A156.2 Grade 1 lock
  • Complete, integrated lockset
  • Optional patented security cylinder for emergency key override
  • Stainless steel deadlocking latchbolt x 1/2" throw
  • 3-hour UL fire rating for maximum security and safety

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

  • All electronics and batteries mounted in inner escutcheon on secure side of door
  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • ADA compliant
  • 7 year mechanical warranty; 2 year electrical component warranties

Outside Inside Series/Function Type Function Description
CL33734
With Cylinder 		Entry • Latch retracted by inside lever at all times
• Key outside retracts latch
• Outside lever locked (free-wheeling) except when in
"passage" mode or valid user code entered

Technical Features

CL33700 x PIP1 Cylindrical Lock

Technical Data

Card Track: Track 2
Card Coercivity HiCo (4000 Oested)

Monitoring

CL3370 x PIP1 Request to Exit (REX) (non-handed); external door position switch (DPS)

Features

Operating Modes PIN required: Specify KM, IKMPS, or CKMP; In addition to card, a 4 digit PIN might be required
No PIN required: Specify MA, IMPS, CMP; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule)
or might optionally be configured to require two consecutive swipes to toggle the passage state

Electrical Specifications

  • Power supplied through Ethernet
  • Class 1 Device defined by IEEE 802.3af requiring max 3.84 watts
  • Network Drop Cable (by others) Specifications:
  • Cat5e or higher
  • Belden 1533P D15A1000 or equivalent
  • TIA/EIA-568-B
  • Shielded with drain wire
  • Plenum-rated
  • 24AWG

  • FCC Part 15-compliant
  • Network Surface Mount Box:
  • Cat5e or higher (RJ45)
  • TIA/EIA-568-B

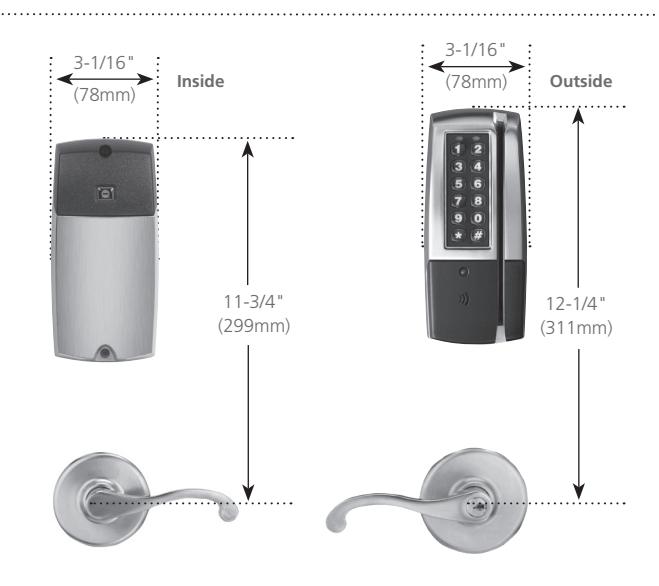

Escutcheons

  • Zinc die cast
  • Tactile keypad
  • LED's indicate valid/invalid entries
  • Keys/buttons overmolded to prevent wear
  • Escutcheon projection 1-11/16" (43mm)
  • Operating temperature: -31°F to 150°F (-35°C to 65°C)
  • Operating humidity: 5% to 95% relative humidity non-condensing
  • Storage temperature: -22°F (-30°C) to 176°F (80°C)

Options & Accessories

CL33700 x PIP1 Cylindrical Lock

Strikes

ANSI Curved Lip (standard)

Brass or stainless steel, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 217L13 x Lip Length x Finish.

Curved Lip Box

Brass, 2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 586L19 x Lip Length x Finish.

Rabbeted Front and Strike

Brass, 4" (102mm) x 5/8" (16mm) for 1/2" (13mm) rabbet. No optional lip lengths.

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 601F28 x Finish.

ANSI Wrought Strike Box

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 120F768.

Quick Codes

CL33700 x PIP1 Cylindrical Lock

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
Security HS
Security IC CHS
Pyramid Security PS
Pyramid Security IC PCS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid with Temporary
Construction Core 		CTP
Pyramid Less Core CLP
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red CT6R
Blue CT6B
Green CT6G
IC 6-pin Less Core CL6
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red CT7R
Blue CT7B
Green CT7G
IC 7-pin Less Core CL7
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
SFIC 6- or 7-pin Small Format
Disposable Core 		CTSD
0-Bitted with 2 Blank Keys (standard)
Keyed Random KR
Construction Master Keyed
Visual Key Control (VKC) 		CMK
- No Bitting or Keyset
Stamping on Keys 		VKC0
- Keys Only VKC1
- Cylinders and Keys (not for
HS, CHS, PHS or PCHS) 		VKC2
- Cylinders Only (not for HS,
CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with
VKC Keys 		CKC2
- CKC Cylinders Only (not for
PHS, PCHS) 		CKC3
2 Keys per Lock (standard)
More than 2 Keys KY#
(e.g., KY6)
Schlage® C Keyway cylinder1 C
Schlage® LA Keyway cylinder2 LA

Finish

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Black Oxidized Bronze,
Oil Rubbed 		722
Satin Chrome
with MicroShield® 		626C
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

Miscellaneous Options

Description Specify
Torx® Head Screws M04
Less cylinder, with tailpiece for
Schlage® cylinder 		M06
Lever to accept Best® type core
(NZD & PZD designs only) 		M08
Lever to accept SARGENT®
cylinder (NZD & PZD design only) 		M09
Rounded corners on latch front M13
3/4" (19mm) throw fire latch M16
ANSI wrought strike box M17
Knurling outside and inside M20*
Knurling outside only M21*
Knurling inside only M22*
Abrasive coat outside and inside M23
Abrasive coat inside only M24
Abrasive coat outside only M25
Lever to accept Schlage®
interchangeable core (NZD &
PZD design only) 		M69

* All levers provided in a powder coat finish will be supplied with an abrasive coating

Backset

Description Specify
2-3/4" (70mm) (standard)
3-3/4" (95mm) B334
5" (127mm) B500

Door Thickness

Door Thickness Specify
1-3/4" (44mm) - 2" (51mm) (standard)
2" (51mm) - 2-1/4" (57mm) D214

Credential Quick Codes

Description Specify
Magstripe Only MA
Keypad & Magstripe KM
HID iCLASS®, HID iCLASS SE®
(SIO-enabled), HID iCLASS®
Seos™, HID MIFARE® SE,
HID DESfire® EV1 SE, MIFARE
Classic, DESfire EV1, HID Prox®,
NFC-enabled mobile phones,
keypad, mag stripe 		IKMPS*
HID iCLASS®, HID iCLASS SE®
(SIO-enabled), HID iCLASS®
Seos™, HID MIFARE® SE,
HID DESfire® EV1 SE, MIFARE
Classic, DESfire EV1, HID Prox®,
NFC-enabled mobile phones,
mag stripe 		IMPS*
FeliCa, HID Prox®, NFC-enabled
mobile phones,
keypad, mag stripe 		CKMP*
FeliCa, HID Prox®, NFC-enabled
mobile phones, mag stripe 		CMP*

* For Bluetooth Smart support, add "B" to the beginning of the credential quick code.

Strikes

ANSI
Curved Lip 		Curved Lip Box
Lip to Center Specify Specify
1" (25mm) SA100 SC100
1-1/8" (29mm) SA118 SC118
1-1/4" (32mm) (standard) SC114
1-3/8" (35mm) SA138 SC138
1-1/2" (38mm) SA112 SC112
1-3/4" (44mm) SA134 SC134
2" (51mm) SA200 SC200
2-1/4" (57mm) SA214 SC214
2-1/2" (64mm) SA212 SC212
2-3/4" (70mm) SA234 SC234
3" (76mm) SA300 SC300

Rabbeted front and strike Specify SR118

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

2 Available 0-bitted only

How to Order

CL33700 x PIP1 Cylindrical Lock

Ordering Examples

Stock Order

Quantity Series/Function Technology Code Trim Finish Hand Credential
Quick Code
24 CL33734 TCPIP1 NZD 626 RHR IKMPS

Split Trim/Finish Order

Quantity Series/
Function 		Technology
Code 		Trim
Outside 		Inside Finish
Outside 		Inside Hand Credential
Quick Code
24 CL33734 TCPIP1 NZD AZD 626 625 LH IMPS

Contract/Detailed Order

Quantity Keyset Series/
Function 		Technology
Code 		Trim Finish Hand Door
Thickness 		Optional
Strike 		Optional
Cylinder 		Keying Credential
Quick Code
24 AA1 CL33734 TCPIP1 FZD 626 RHR D214 SA200 PS VKC3 CKMP

Handing

Note: Arrow indicates secure side of door.

How to Order & Lever Trim Designs

CL33700 x PIP1 Cylindrical Lock

Cylindrical Locksets

Function Trim Finish Hand Backset
CL33734 Standard 605 RH (standard)
AZD 606 RHR B334
NZD 611 LH B500
PZD 612 LHR
FZD 613
618
619
625
626
722
626C
BSP
WSP

Standard

Lever D Rose
Armstrong AZD
Newport NZD
Princeton PZD Armstrong Newport* Princeton*

Vineyard™

D Rose
Frascati FZD
Frascati

* Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

Features

ED5000N 9700 x PIP1 Exit Device

Integration of Corbin Russwin life safety mechanical exit devices with PoE intelligence, provides an intelligent, One Card solution for economical and effective campus access control. The ED5000N x 9700 x PIP1 PoE locking solution features four operating modes: passage, card only, card plus PIN code, and PIN code only, providing scalable security credentials for any door, room or building.

Featuring EcoFlex technology, the integrated lockset uses a standard, high coercivity magnetic stripe card. Manual key override, a standard feature is provided for fail-safe backup in emergency situations.

Customized access, facilitated by on-board memory lets you define unlimited access, extended-hours access or no access, by user, by facility, down to the individual lock. Audit trail capability provides a history of up to 10,000 events.

Features

  • ANSI/BHMA A156.3 Grade 1 Exit Device
  • Complete, integrated lockset
  • Optional patented security cylinder for emergency key override
  • 3-hour UL fire rating for maximum security and safety

Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • EcoFlex™ technology offers improved battery life
  • ADA compliant
  • 5 year mechanical warranty; 2 year electrical component warranty

ED5000N x 9700 x PIP1

Exit Device

Featuring SecureBolt® locking security

Exit Device ED5600N x PIP1

Technical Features

ED5000N 9700 x PIP1 Exit Device

Technical Data

Card Track: Track 2
Card Coercivity HiCo (4000 Oested)

Monitoring

ED5000N 9700 x PIP1 Request to Exit (REX); external door position switch (DPS)

Features

Operating Modes PIN required: Specify KM, IKMPS, or CKMP; In addition to card, a 4 digit PIN might be required
No PIN required: Specify MA, IMPS, CMP; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule)
or might optionally be configured to require two consecutive swipes to toggle the passage state

Electrical Specifications

  • Power supplied through Ethernet
  • Class 1 Device defined by IEEE 802.3af requiring max 3.84 watts
  • Network Drop Cable (by others) Specifications:
  • Cat5e or higher
  • Belden 1533P D15A1000 or equivalent
  • TIA/EIA-568-B
  • Shielded with drain wire
  • Plenum-rated
  • 24AWG

  • FCC Part 15-compliant
  • Network Surface Mount Box:
  • Cat5e or higher (RJ45)
  • TIA/EIA-568-B

Secure Side of Door

Rim/SecureBolt®, Mortise

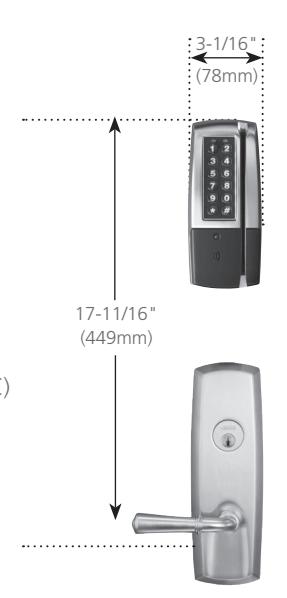

Reader Escutcheon

  • Zinc die cast
  • Tactile keypad
  • LED's indicate valid/invalid entries
  • Keys/buttons overmolded to prevent wear
  • Projection at top 1-5/8" (41mm)
  • Operating temperature: -31°F to 150°F (-35°C to 65°C)
  • Operating humidity: 5% to 95% relative humidity non-condensing
  • Storage temperature: -22°F (-30°C) to 176°F (80°C)

Lever Escutcheon

• Brass cast

Sold through:

Functions

ED5000N 9700 x PIP1 Exit Device

Inside Outside Series/Function Type Function Description
ED5200(A)N & ED5200S(A)N
x 9733 x PIP1
No Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when
in passage mode or valid user code entered
ED5200(A)N & ED5200S(A)N
x 9734 x PIP1
With Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when
in passage mode or valid user code entered
• Outside cylinder override allows lever to retract latch
ED5633(A)LN
x 9M733 x PIP1
No Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode
or valid user code entered
ED5634(A)LN
x 9M734 x PIP1
With Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode
or valid user code entered
• Outside cylinder override retracts latch

Option & Accessories

ED5000N 9700 x PIP1 Exit Device

(Screws Included)

SecureBolt®, Fire-Rated Rim and Rim Strike

Standard on ED5200SN, ED5200S(A)N, ED5200(A)N and ED5200N devices. Supplied with locking plate and two 1/16" (1.6mm) shims. For doors with 1/2" (13mm) or 5/8" (16mm) stop. Adjustable to compensate for shrinkage and swelling of door. 3-1/2" x 1-1/4" (99mm x 32mm). Black finish only. To order separately specify 650F30-8.

Mortise Strikes

Mortise Strike Standard on ED5600(A)N Series. Non-handed, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center. To order separately, specify 650L657020.

Mortise Strike for Pairs of Doors with Astragal

Optional for use with ED5600(A)N Series devices where an astragal is to be installed. Non-handed, ANSI straight lip, 4-7/8" x 1-1/4" x 7/8" (124mm x 32mm x 22mm) lip to center. To order with exit device, specify SS078. To order separately, specify 653L157014.

Open Back Strike

Optional for use with ED5600N x vertical rod devices on a pair of doors. Non-handed, 4-7/8" x 1-1/4" (124mm x 32mm). To order with exit device, specify SB134 for 1-3/4" doors, SB214 for 2-1/4"doors. To order separately, specify Part No. listed below.

Door Thickness Type Part No.
Curved lip 653L183016
1-3/4" (44mm) Straight lip 653L163016
Curved lip 653L183020
2-1/4" (57mm) Straight lip 653L163020

Mortise Strike

Standard on ED5600N and ED5600(A)N devices on 2" (51mm) (D200) and 2-1/4" (57mm) (D214) thick doors. Handed ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/2" (124mm x 32mm x 38mm) lip to center. To order separately, specify 656L677024 for RH, 656L687024 for LH.

ANSI Wrought Strike Box Optional for use with ED5600N and ED5600AN devices. To order with exit device, specify M17. To order separately, specify 120F76-8.

Filler Plates

Optional for use on stock metal doors when required. To order, specify 334F99-8 600.

Optional for use on stock metal doors when required. To order, specify 236L708018 x Fin.

Optional for use on stock metal doors when required. To order, specify 077F19-8 600.

Quick Codes

ED5000N 9700 x PIP1 Exit Device

Description Specify
Conventional 6-pin 6P
Conventional 7-pin 7P
Less Cylinder(s) standard
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red
Blue
Green 		CT6R
CT6B
CT6G
IC 6-pin Less Core CL6
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC
disposable temporary core 		CT6SD
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red
Blue
Green 		CT7R
CT7B
CT7G
IC 7-pin Less Core CL7
SFIC 7-pin with Less Core CLS7
SFIC 7-pin with SFIC
disposable temporary core 		CT7SD
Security HS
Security IC CHS
Pyramid Security PS
Pyramid Security IC PCS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid with Temporary
Construction Core 		СТР
Pyramid IC Less Core CLP
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
0-bitted with 2 Blank Keys Standard
with
Cylinder
Keyed random KR
Construction Master Keyed (not available for Pyramid) СМК
Visual Key Control (VKC)
  • No Keying Data Stamped on
    Key or Cylinder
VKC0
- Keys Only VKC1
- Cylinders and Keys (not for HS, CHS, PHS or PCHS) VKC2
- Cylinders Only (not for HS,
CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with VKC Keys CKC2
- CKC Cylinders Only (not for PHS, PCHS) CKC3
2 Keys per Cylinder standard
Other than 2 Keys KY#
(e.g., KY6)

Finishes

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze, Oil
Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome
with MicroShield ® 		626C
Polished Stainless Steel* 629
Satin Stainless Steel* 630
Satin Stainless Steel
with MicroShield* 		630C
Black Oxidized Bronze,
Oil Rubbed 		722
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

* Lever only. Escutcheons plated to match.

Miscellaneous Options

Description Specify
Torx® Head Screws M04
ANSI wrought strike box (mortise) M17
Knurling outside & inside
(embossed touchbar -
device side) 1 		M20 2
Knurling outside only (trim side) 1 M21 2
Knurling inside only
(embossed touchbar -
device side) 		M22²
Abrasive coat outside and inside (trim and device) 1 M23
Abrasive coat inside only (device side) M24
Abrasive coat outside only (trim side) 1 M25
Less dogging M51
Cylinder dogging M52
Sex nuts and bolts (SNBs) M54
Shim kit (for vision light) M58
Wood screws for use on fire-rated solid wood or wood core doors M64

1 Not available with Vineyard™ or Muséo® levers.

Door Thickness

Door Thickness Specify
1-3/4" (44mm) standard
2" (51mm) D200
2-1/4" (57mm) D214

Door Width

Door Width Specify
24" (610mm) W024
36" (914mm) standard
48" (1219mm) W048

Credential Quick Codes

Description Specify
Magstripe Only MA
Keypad & Magstripe KM
HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE® SE, HID DESfire® EV1 SE, MIFARE Classic, DESfire EV1, HID Prox®, NFC-enabled mobile phones, keypad, mag stripe IKMPS*
HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE® SE, HID DESfire® EV1 SE, MIFARE Classic, DESfire EV1, HID Prox®, NFC-enabled mobile phones, mag stripe IMPS*
FeliCa, HID Prox®, NFC-enabled
mobile phones,
keypad, mag stripe 		CKMP*
FeliCa, HID Prox®, NFC-enabled mobile phones, mag stripe CMP*

* For Bluetooth Smart support, add "B" to the beginning of the credential quick code.

Strikes

Builde
Description Specify
Mortise ANSI strike for pairs of doors with astragal SS078
Open back strike for
1-3/4" doors 		SB134
Open back strike for 2-1/4" doors SB214

Handing

Hand Specify
Right Hand Reverse RHR
Left Hand Reverse LHR

Copyright © 2010-2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Lever Trim Designs

ED5000N 9700 x PIP1 Exit Device

Standard ED5200N
x 9700 		ED5600N
x 9M700
Armstrong A9700 A9M700
Newport N9700 N9M700
Princeton PR9700 PR9M700
Citation C9700 C9M700 Armstrong Citation Dirke Essex*
Dirke D9700 D9M700
Essex E9700 E9M700
Lustra L9700 L9M700
Regis R9700 R9M700 Lustra* Newport* Princeton* Regis
Vineyard
Frascati FR9700 FR9M700
Merlot M9700 M9M700
Tuscany TS9700 TS9M700
Zinfandel Z9700 Z9M700 Frascati Merlot Tuscany Zinfandel
Muséo®
Georgia 		102 1029700 1029M700
103 1039700 1039M700
104 1049700 1049M700
124 1249700 1249M700 1241 1251
125 1259700 1259M700 102 103 1042
Salvador 106 1069700 1069M700
107 1079700 1079M700
108 1089700 1089M700
109 1099700 1099M700 106 107 108 1091
110 1109700 1109M700
123 1239700 1239M700
128 1289700 1289M700
110 1231 1281
Marc 111 1119700 1119M700
112 1129700 1129M700
114 1149700 1149M700
115 1159700 1159M700 1112 1122 1142 1152
116 1169700 1169M700
130 1309700 1309M700
131 1319700 1319M700
132 1329700 1329M700 1162 1301,2 1311,2 1321,2
Laszlo 147 1479700 1479M700
148 1489700 1489M700
149 1499700 1499M700
150 1509700 1509M700 147 148 149 150
Jackson 117 1179700 1179M700
119 1199700 1199M700
121 1219700 1219M700 1172 1192 1212 122
2 		1262
122 1229700 1229M700
126 1269700 1269M700 1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
127 1279700 1279M700 2. Not available in 32D or 32 finish.
Piet* 21L 21L9700 21L9M700 1271,2 *Piet levers are customized. See "How to Order" on page 29 for ordering information.
21M 21M9700 21M9M700
21S 21S9700 21S9M700
23M 23M9700 23M9M700
25M9700 25M9M700 21L 21M 21S 23M 25M
25M

How to Order

ED5000N 9700 x PIP1 Exit Device

Ordering Examples

Exit Device Only

Quantity Function Technology Code Finish Hand
24 ED5200SN TCPIP1 625 RHR

Trim Only

Quantity Trim/Function Technology Code Finish Hand Credential Quick Code
24 N9733 TCPIP1 625 RHR IKMPS

Exit Device with Trim

Trim/ Technology Cylinder Door Optional Door Misc. Credential
Quantity Exit Device Function Code Finish Hand Option Thickness Strike Width Options Quick Code
10 ED5200AN A9734 TCPIP1 630 LHR C6 D214 SB214 W048 M20 IMPS

Contract/Detailed Order - Rim Exit Device with Trim

Quantity Keyset Exit Device Trim/Function Technology
Code 		Finish Hand Door
Width 		Credential
Quick Code 		Cylinder
Option
36 AA1 ED5200N 1149734 TCPIP1 605 LHR W048 CKMP PS

Handing

Note: Arrow indicates secure side of door.

Exit Devices

Exit Device Function Trim Finish Hand
ED5200(A) 9733 Standard Muséo® Vineyard™ 605 RHR
ED5202(A) 9734 A 102 112 125 21L FR 606 LHR
ED5633(A) 9M733 N 103 114 126 21M M 611
ED5634(A) 9M734 PR 104 115 127 21S TS 612
C 106 116 128 23M Z 613
D 107 117 129 25M 618
E 108 119 130 619
L 109 121 131 625
R 110 123 132 626
111 124 626C
722
BSP
WSP

Available Trim Options

ED5000N 9700 x PIP1 Exit Device

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

How to Order

ED5000N 9700 x PIP1 Exit Device

How to Order the Muséo® Piet Lever Collection

Trim Only

Quantity Trim/
Function 		Technology
Code 		Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 21M9733 TCPIP1 293029 625 RHR IKMPS

  • > Muséo® Piet Lever 21M Polished with Satin Insert
  • > 293029 Lever Finish

Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip

  • > 625 Lock Finish
  • > Right hand reverse
  • > iCLASS®, Keypad, Magstripe, Prox, Smart Card (MIFARE, DESFIRE)

Exit Device with Trim

Quantity Exit
Device 		Trim/
Function 		Technology
Code 		Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code 		Cylinder
Option 		Door
Thickness 		Optional
Strike 		Door
Width
2 ED5200N 21M9734 TCPIP1 293029 625 LHR IMPS 6P D200 SB214 W048

Inside:

  • > Muséo® Piet Lever 21M Polished with Satin Insert
  • > 293029 Lever finish 48" wide door

Outside:

  • > Muséo® Piet Lever 21M Polished with Satin Insert
  • > Key Override
  • > 293029 Lever Finish

Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip

  • > 625 Lock Finish
  • > Left hand reverse
  • > 6 pin cylinder
  • > 2-1/4" thick door
  • > iCLASS®, Keypad, Magstripe, Prox, Smart Card (MIFARE, DESFIRE)
  • * Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

45165 05/22

Features

FE66735 x PIP1 Multi-Point Lock

Multi-Point Lock FE66735 x PIP1

FE6600 Series lock is a multi-point, deadlocking system developed to help protect lives while securing a community shelter and/or safe room entry. Sturdy heavy-duty steel components firmly secure the door within the frame – at top, bottom, and center latch points – fortifying the opening during a windstorm event. The FE6600 Series is UL-listed for FEMA P-361 (2015), FEMA P-320 (2014) and ICC 500 (2014) capable of withstanding severe wind speeds and flying debris. This device consists of concealed vertical rods with top and bottom latching complemented by a mortise lock with a latchbolt and deadbolt at the center of the door and an optional indicator to show the status of the top and bottom latches.

The lever rotation retracts the top bolt, the bottom bolt, and center bolts simultaneously. When retracted, the bolts are held in position as the door swings. As the door closes, the hold-back feature engages the frame and the top, center, and bottom bolts project simultaneously. With the deadbolt thrown, this system protects room occupants from threatening conditions. The FE6600 Series device can be used on fire-rated doors.

Mechanical Features

  • Certified to ANSI/BHMA A156.37 Series 1000 Operational Grade 1 and Security Grade 1
  • Motor driven FE6600 Series Mortise Lock n 1-3/4" thick door only; fully integrated FE6600 is part of a complete ASSA ABLOY windstorm solution utilizing Ceco StormPro® 361 and Curries StormPro® 361 doors and frames and McKinney® StormPro® hinges
  • Stainless steel non-handed deadlocking latch n Handed, easily field reversible without disassembling lockbody
  • Lever trim through-bolted for increased security and durability
  • Concealed vertical assembly (rods, latches and cassette) pre-installed in door
  • UL/ULC Listed for fire doors*
  • FCC certified
  • Windstorm certification information is listed in the Corbin Russwin FE6600 Series catalog
  • * Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
  • All electronics and batteries mounted in inner escutcheon on secure side of door
  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • ADA compliant
  • 7 year mechanical warranty; 2 year electrical component warranty

Functions

FE66735 x PIP1 Multi-Point Lock

Outside
Inside 		Series/Function Type Function Description
FE66735
No Key Override
With Deadbolt* 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• When deadbolt thrown, outside lever operable only
with certain authorized credentials
FE66736
Key Override
With Deadbolt 		Entry
With Deadbolt 		• Key outside retracts deadbolt. Key outside also retracts latch and
unlocks outside when trim is locked electronically
• Top and bottom rods retracted by lever
• Deadbolt projected and retracted by thumbturn or key

* Deadbolt required for escape return functionality (a residential requirement in Canada

Technical Features

FE66735 x PIP1 Multi-Point Lock

Technical Data

Card Track: Track 2
Card Coercivity HiCo (4000 Oersted)

Monitoring

ML20700 x PIP1 Latchbolt (LX); Dead Bolt (DX)

Features

Operating Modes PIN required: Specify KM, IKMPS, or CKMP; In addition to card, a 4 digit PIN might be required
No PIN required: Specify MA, IMPS, CMP; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule) or might
optionally be configured to require two consecutive swipes to toggle the passage state

Electrical Specifications

  • Power supplied through Ethernet
  • Class 1 Device defined by IEEE 802.3af requiring max 3.84 watts
  • Network Drop Cable (by others) Specifications:
  • Cat5e or higher
  • Belden 1533P D15A1000 or equivalent
  • TIA/EIA-568-B
  • Shielded with drain wire
  • Plenum-rated
  • 24AWG

  • FCC Part 15-compliant
  • Network Surface Mount Box:
  • Cat5e or higher (RJ45)
  • TIA/EIA-568-B

Inside/Outside Escutcheons

  • Keys/buttons overmolded to prevent wear
  • Zinc die cast
  • Tactile keypad
  • LED's indicate valid/invalid entries
  • Escutcheon projection 1-11/16" (43mm)
  • Operating temperature: -31°F to 150°F (-35°C to 65°C)
  • Operating humidity: 5% to 95% relative humidity non-condensing
  • Storage temperature: -22°F (-30°C) to 176°F (80°C)

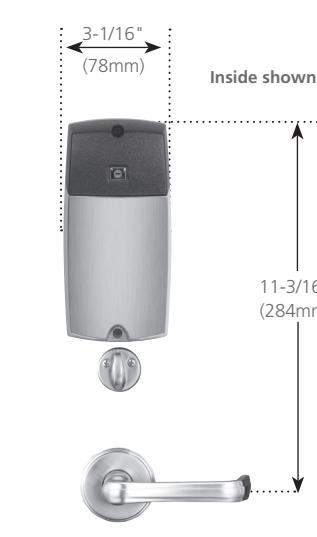

11-3/16" (284mm)

Quick Codes

FE66735 x PIP1 Multi-Point Lock

Finish

Finish
Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		6131
Dark Oxidized Satin Bronze -
Equivalent 		613E
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome with
MicroShield® 		626C
Bright Stainless Steel 6293
Satin Stainless Steel 6303
Satin Stainless Steel with
MicroShield 		630C
Black Oxidized Bronze,
Oil Rubbed 		7222
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

New, March 2007

Miscellaneous Options

Description Specify
Torx®
head screws 		M04
ANSI wrought strike box M17
Knurling outside and inside1 M202
Knurling outside only1 M212
Knurling inside only M222
Abrasive coat outside and
inside1 		M23
Abrasive coat inside only1 M24
Abrasive coat outside only M25

1 Not available with Vineyard™ or Muséo® levers.

Credential Quick Codes

Description Specify
Magstripe Only MA
Keypad & Magstripe KM
HID iCLASS®, HID iCLASS SE® (SIO
enabled), HID iCLASS® Seos™, HID
MIFARE® SE, HID DESfire® EV1 SE,
MIFARE Classic, DESfire EV1, HID
Prox®, NFC-enabled mobile phones,
keypad, mag stripe 		IKMPS*
HID iCLASS®, HID iCLASS SE® (SIO
enabled), HID iCLASS® Seos™, HID
MIFARE® SE, HID DESfire® EV1 SE,
MIFARE Classic, DESfire EV1, HID
Prox®, NFC-enabled mobile phones,
mag stripe 		IMPS*
FeliCa, HID Prox®, NFC-enabled
mobile phones, keypad, mag stripe 		CKMP*
FeliCa, HID Prox®, NFC-enabled
mobile phones, mag stripe 		CMP*

* For Bluetooth Smart support, add "B" to the beginning of the credential quick code.

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Formerly 613 prior to March 2007

Escutcheon finished to match 629, 630 finish

2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Lever Trim Designs

FE66735 x PIP1 Multi-Point Lock

Standard Lever
Armstrong 		A Rose
ASA 		B Rose
ASB 		F Rose
ASF
Newport NSA NSB NSF
Princeton PSA PSB PSF
Citation CSA CSB CSF Armstrong Citation Dirke Essex*
Dirke DSA DSB DSF
Essex ESA ESB ESF
Lustra LSA LSB LSF Lustra* Newport* Princeton* Regis
Regis RSA RSB RSF
Vineyard™ G Rose
Frascati FSG
Merlot MSG
Tuscany TSG
Zinfandel ZSG Frascati Merlot Tuscany Zinfandel
The Muséo® Line
Georgia
102 103 1042 1241 1251
Salvador
106 107 108 109 110 1231
1281
Marc2
111 112 114 115 116 1301
1311 1321
Laszlo
150
147 148 149
Jackson2
105 117 119 121 1261 1271
21L 21G 21M 21S 23M 25M
Piet*
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
2. Not available in 32D or 32 finish.

*Piet levers are customized. See "How to Order" on page 36 for ordering information.

Copyright © 2010-2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

27M

Available Trim Options

FE66735 x PIP1 Multi-Point Lock

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

How to Order

FE66735 x PIP1 Multi-Point Lock

Ordering Examples

Stock Order

Quantity Series/Function Technology Code Trim Finish Hand Credential
Quick Code
24 FE66735 TCPIP1 LWA 626 RHR IKMPS

Split Trim/Finish Order

Quantity Series/
Function 		Technology
Code 		Trim
Outside 		Inside Finish
Outside 		Inside Hand Credential
Quick Code
24 FE66735 TCPIP1 CSA CSA 626 606 RHR IMPS

Contract/Detailed Order

Quantity Series/Function Technology
Code 		Trim Finish Hand Credential
Quick Code
24 FE66735 TCPIP1 111X 626 RHR CKMP

Handing

Note: Arrow indicates secure side of door.

Sold through:

How to Order

FE66735 x PIP1 Multi-Point Lock

Multi-Point Locks

Function Trim Finish Hand
FE66735 Standard Muséo® Vineyard™ 605 RH
ASA ASB ASF 102V 102U 102T 102Y 102X 102W FSG 606 RHR
NSA NSB NSF 103V 103U 103T 103Y 103X 103W MSG 611 LH
PSA PSB PSF 104V 104U 104T 104Y 104X 104W TSG 612 LHR
CSA CSB CSF 124V 124U 124T 124Y 124X 124W ZSG 613
DSA DSB DSF 125V 125U 125T 125Y 125X 125W 618
ESA ESB ESF 106V 106U 106T 106Y 106X 106W 619
LSA LSB LSF 107V 107U 107T 107Y 107X 107W 625
RSA RSB RSF 108V 108U 108T 108Y 108X 108W 626
109V 109U 109T 109Y 109X 109W 722
110V 110U 110T 110Y 110X 110W 626C
123V 123U 123T 123Y 123X 123W BSP
128V 128U 128T 128Y 128X 128W WSP
129V 129U 129T 129Y 129X 129W
111V 111U 111T 111Y 111X 111W
112V 112U 112T 112Y 112X 112W
114V 114U 114T 114Y 114X 114W
115V 115U 115T 115Y 115X 115W
116V 116U 116T 116Y 116X 116W
130V 130U 130T 130Y 130X 130W
131V 131U 131T 131Y 131X 131W
132V 132U 132T 132Y 132X 132W
117V 117U 117T 117Y 117X 117W
126V 126U 126T 126Y 126X 126W
119V 119U 119T 119Y 119X 119W
121V 121U 121T 121Y 121X 121W
127V 127U 127T 127Y 127X 127W
21LV 21LU 21LT 21LY 21LX 21LW
21MV 21MU 21MT 21MY 21MX 21MW
21SV 21SU 21ST 21SY 21SX 21SW
23MV 23MU 23MT 23MY 23MX 23MW
25MV 25MU 25MT 25MY 25MX 25MW

How To Order

FE66735 x PIP1 Multi-Point Lock

How to Order the Muséo® Piet Lever Collection

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential Quick
Code
2 FE66735 TCPIP1 21MV 293029 625 RHR IKMPS

  • > Muséo® Piet Lever 21M Polished with Satin Insert with V rose
  • > 293029 Lever Finish
  • Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip
  • > 625 Lock Finish
  • > Right hand reverse
  • > iCLASS®, Keypad, Magstripe, Prox, smart card (MIFARE, DESFIRE)

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 FE66735 TCPIP1 21MU 293029 625 RHR IMPS

  • > Muséo® Piet Lever 21M Polished with Satin Insert with U rose
  • > 293029 Lever Finish
  • Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip
  • > 625 Lock Finish
  • > Right hand reverse
  • > iCLASS®, Magstripe, Prox, smart card (MIFARE, DESFIRE)
  • * Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

Accessories

DHTA

Power over Ethernet (PoE) Cable and Data Hinge Test Adapter

Developed for troubleshooting Corbin Russwin PoE locks, the ASSA ABLOY PoE cable and data hinge test adapter verifies your PoE installation in the field. Sold as a kit containing two test adapters, it allows you to verify proper wiring from the door frame to the PoE data hinge and lock, or test the frame, hinge or door cables independently.

This test tool helps answer the question "Is the problem in the lock or in the wiring to the lock?" and will save you troubleshooting time.

The DHTA works in conjunction with the following products or their equivalent, provided by others:

  • · BK Precision model 231A
  • · FLUKE DTX 1800 CableAnalyzer™
  • · Two (2) Category 5e patch cables, each (10) feet in length

The following are required system components ordered through McKINNEY, in addition to the lock.

Please note that one electrified hinge, one door harness assembly and one frame harness assembly are required for each PoE opening.

McKinney ElectroLynx® PoE Hinges*

Description

4 ½ x 4 ½ TA2714 26D PoE (Standard Weight 5 knuckle)

4 ½ x 4 ½ T4A3786 26D PoE (Heavy Weight 5 knuckle)

The PoE door & frame harnesses can accommodate a variety of new (with raceway) and retrofit applications.

McKinney ElectroLynx® PoE Door Harnesses

Door Width Cable
Length 		Wood Door Hollow Metal
Door
28" to 31" 36" PoE-C300RJ PoE-C300PRJ
32" to 36" 42" PoE-C306RJ PoE-C306PRJ
37" to 42" 48" PoE-C400RJ PoE-C400PRJ
43" to 48" 54" PoE-C406RJ PoE-C406PRJ

All are Cat5e, 26 AWG, Shielded, Stranded, 100 Ohm

* U.S. Patent No. 7,824,200

McKinney ElectroLynx® PoE Frame Harness

Cable Length Harness Description
180" PoE-C1500P
Cat5e, 24 AWG, Shielded, Stranded, 100 Ohm

*See the McKINNEY catalog for additional finishes and hinge types Note: One electrified hinge, door harness and frame harness are required for each PoE opening.

Sold through:

Application Diagram

Note: Access 700® PIP1 must be installed by a Certified Integrator (CI)

Quick Code Index

Cylinder and Keying Options

Part No./
Quick Code Description Cylindrical Mortise Exit Device
6P Conventional 6-pin std std •
7P Conventional 7-pin • • •
LC Less Cylinder(s) • • std
HS Security • • •
CHS Security IC • • •
PS Pyramid Security • • •
PCS Pyramid Security IC • • •
PHS Pyramid High Security Fixed Core • • •
PCHS Pyramid High Security IC • • •
CTP Pyramid IC with Temporary Construction Core • • •
CLP Pyramid IC Less Core • • •
C6 IC 6-pin • • •
CT6R IC 6-pin with Temporary Construction Core (Red) • • •
CT6B IC 6-pin with Temporary Construction Core (Blue) • • •
CT6G IC 6-pin with Temporary Construction Core (Green) • • •
CL6 IC 6-pin Less Core • • •
CLS6 SFIC 6-pin with Less Core • •
CT6SD SFIC 6-pin with SFIC disposable temporary core • •
CTSD SFIC 6- or 7-pin Small Format Disposable Core1 •
C7 IC 7-pin • • •
CT7R IC 7-pin with Temporary Construction Core (Red) • • •
CT7B IC 7-pin with Temporary Construction Core (Blue) • • •
CT7G IC 7-pin with Temporary Construction Core (Green) • • •
CL7 IC 7-pin Less Core • • •
CLS7 SFIC 7-pin with Less Core • •
CT7SD SFIC 7-pin with SFIC disposable temporary core • •
CTPD Pyramid Disposable Core • • •
CT6D 6-pin IC with Disposable Core • • •
CT7D 7-pin IC with Disposable Core • • •
0-bitted with 2 Blank Keys std std (with cylinder)
KR Keyed random • • •
CMK Construction master keyed • • •
VKC0 Visual Key Control (VKC) - No bitting or keyset stamping on keys • • •
VKC1 Visual Key Control (VKC) - Keys only • • •
VKC2 Visual Key Control (VKC) - Cylinders and Keys (not for HS, CHS, PHS, or PCHS) • • •
VKC3 Visual Key Control (VKC) - Cylinders only (not for HS, CHS, PHS, or PCHS) • •
CKC2 Concealed Key Control (CKC) - Cylinders with VKC keys • • •
CKC3 Concealed Key Control (CKC) - Cylinders Only (not for PHS, PCHS) • • •
2 keys per Lock std std std
KY# (e.g. KY6) More than 2 keys • • •
C Lockset furnished in Schlage® C Keyway •
LA Lockset furnished in SARGENT® LA Keyway •

Note: 1. Specify M08 for levers to accept SFIC cores; which ship standard with temporary disposable core • = available

Gaskets

795F439 Outside Escutcheon

Credential Quick Codes

Description Specify
Magstripe Only MA
Keypad & Magstripe KM
iCLASS, keypad, mag stripe, Prox, smart card (MIFARE, DESFIRE) IKMPS*
iCLASS, mag stripe, Prox, smart card (MIFARE, DESFIRE) IMPS*
FeliCa, keypad, mag stripe, Prox CKMP*
FeliCa, mag stripe, Prox CMP*

* For Bluetooth Smart support, add "B" to the beginning of the credential quick code.

Common Replacement Parts

Part Number Description
784F565 [finish] MA Outside Escutcheon Assembly; Mag Stripe
784F575 [finish] KM Outside Escutcheon Assembly; Keypad and Mag Stripe
784F585 [finish] IKMPS Outside Escutcheon Assembly; iCLASS, Keypad, Mag Stripe, Prox, Smartcard (MIFARE, DESFIRE)
784F595 [finish] IMPS Outside Escutcheon Assembly; iCLASS, Mag Stripe, Prox, Smartcard (MIFARE, DESFIRE)
784F605 [finish] CKMP Outside Escutcheon Assembly; Mag Swipe, Keypad, Prox & FeliCa
784F615 [finish] CMP Outside Escutcheon Assembly; Mag Swipe, Prox & FeliCa
725F325 [finish] BIKMPS Outside Escutcheon Assembly; Bluetooth Smart-enabled mobile phones, iCLASS, Keypad, Mag
Stripe, Prox, Smartcard (MIFARE, DESFIRE)
725F335 [finish] BIMPS Outside Escutcheon Assembly; Bluetooth Smart-enabled mobile phones, iCLASS, Mag Stripe, Prox,
Smartcard (MIFARE, DESFIRE)
725F345 [finish] BCKMP Outside Escutcheon Assembly; Bluetooth Smart-enabled mobile phones, Mag Swipe, Keypad, Prox
& FeliCa
725F355 [finish] BCMP Outside Escutcheon Assembly; Bluetooth Smart-enabled mobile phones, Mag Swipe, Prox & FeliCa
784F565 [finish] Outside Escutcheon Assembly; Mag Swipe
784F575 [finish] Outside Escutcheon Assembly; Mag Swipe and Keypad
784585 [finish] Outside Escutcheon Assembly; Mag Swipe, Keypad, Prox
784595 [finish] Outside Escutcheon Assembly; Mag Swipe, Prox
784F605 [finish] Outside Escutcheon Assembly; Mag Swipe, Keypad, Prox and Felica
725F325 [finish] Outside Escutcheon Assembly; Standard Reader and Keypad
725F335 [finish] Outside Escutcheon Assembly; Standard Reader
PIP-CREM03 PoE Controller Assembly
PIP-CREM04 Mounting Plate Assembly
PIP-CREM02 [finish] Inside Escutcheon with Privacy Button
PIP-CREM07 [finish] Replacement Kit (WiFi Controller, Mounting Plate, Battery Cover)

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989

www.assaabloydss.ca

MicroShield®

As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.

Microshield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must

still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA
