The Corbin Russwin Access 700® PAC1 is part of a stream of new ASSA ABLOY products moving from traditional mechanical locks to being extensions of access control systems in facilities. These exciting new technology-rich products require an increase in knowledge to ensure the correct selection and implementation in various environments.

To aid our customers in this area, ASSA ABLOY has created two programs that provide the necessary training to sell, order, install and service our technology products, including Aperio wireless, Integrated Wiegand, IP-enabled and self-configurable intelligent components:

  • The Authorized Channel Partner (ACP) program is open to resellers, who sell ASSA ABLOY's technology products to certified integrators and help with product selection based on the application.
  • The Certified Integrator (CI) program provides hands-on training for security systems integrators and network administrators. Not only does this training familiarize certified integrator candidates with product features and applications, it also gives them valuable experience installing, commissioning and troubleshooting the products in a real-world environment.

For more information on the qualifications for becoming an ACP or CI, contact your local ASSA ABLOY Door Security Solutions sales consultant for details.

Sold through: Installed by:

Overview

Sold through:

Index

Access 700® PAC1 Overview 1-2
PERSONA Campus™
Software 3-4
Offline Locking Solutions 5
Mortise Lock
Features 6
Functions 7
Technical Features 8
Cylinders 9
Options & Accessories 10
Quick Codes 11
How to Order 12-13
Lever Trim Designs 14
Trim Options 15
How to Order 16
Cylindrical Lock
Features & Functions 17
Technical Features 18
Options & Accessories 19
Quick Codes 20
How to Order 19-20
Lever Trim Designs2122
Exit Devices
Features 23
Technical Features 24
Functions 25
Options & Accessories 26
Quick Codes 27
How to Order 28
Lever Trim Designs 29
Trim Options 30
How to Order 31
Multi-Point Locks
Features 32
Functions 33
Technical Features 34
Quick Codes 35
Lever Trim Designs 36, 40
Trim Options 37
How to Order 38-39, 41
Quick Code Index 42

The One Card solution for securing campuses

The Corbin Russwin Access 700® PAC1 lockset with PERSONA Campus™ software is an intelligent, One Card solution for economical and effective campus access control. The Grade 1 quality lockset – available with keypad and magnetic stripe, or magnetic stripe only versions – is a battery-operated lockset with on-board memory.

PERSONA Campus™ software technology provides seamless database integration and software interfacing with enterprise, transaction and housing systems.

Access 700 offline locks with PERSONA provide centralized security at a fraction of the cost of a hardwired system, as well as the top quality and high security you expect from Corbin Russwin.

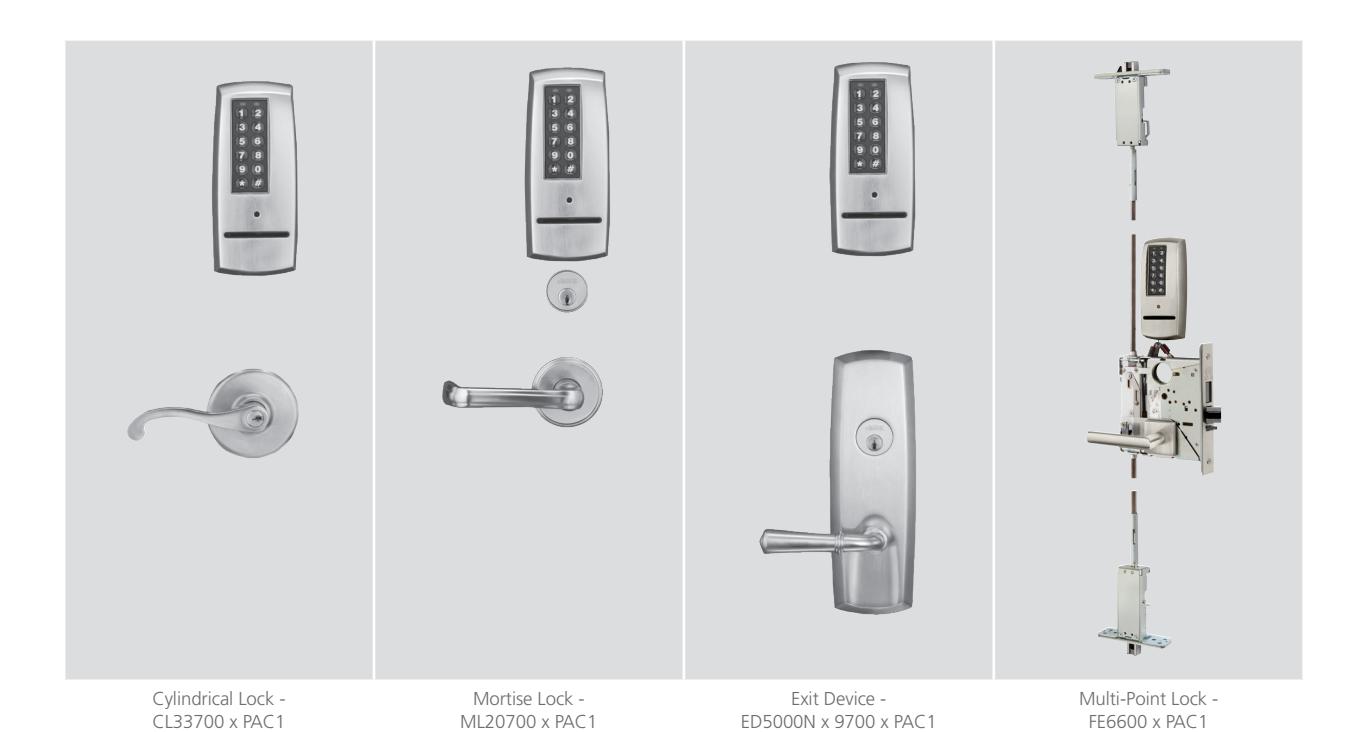

Access 700® PAC1 Applications

  • Residence Halls
  • Restrooms
  • Dining Halls
  • Libraries
  • Book Stores
  • Leisure Centers
  • Sports Halls
  • Classrooms
  • Laboratories

Access 700® PAC1 Lock Features

  • High security offline battery-operated lock
  • Complete lockset with on-board memory:
  • 1,200 users supported per lock
  • Audit trail for last 700 events
  • Available with:
    • keypad and magnetic stripe
    • magnetic stripe only
    • high coercivity
  • 3-hour UL fire rating for maximum security and safety
  • ADA-compliant

Overview

M807

Magstripe Only – Most existing magstripe ID cards work with the system including high coercivity magnetic stripe.

  • Card track: Track 1 or 3
  • Card Coercivity: HiCo (4000 Oersted)
  • Time resolution on card: 1 minute

M808

Keypad & Magstripe

PERSONA Campus™ Software

The Case For a More Intelligent Locking System.

Hard-wired locking systems may solve the problem, but at what expense? The cost to install in an existing facility makes hard-wired solutions largely prohibitive. And in a new construction, change orders or modifications can be difficult and expensive. PERSONA represents a more reasonable choice.

PERSONA is an intelligent locking system, battery-powered, simply installed, easy-to manage, and fully upgradable. Each stand-alone lock reads programmable keycards, customized to fit the unique needs of your user population. No expensive networking or wiring is required. And the system's user-friendly software runs on any desktop PC, simplifying management of your security locking system.

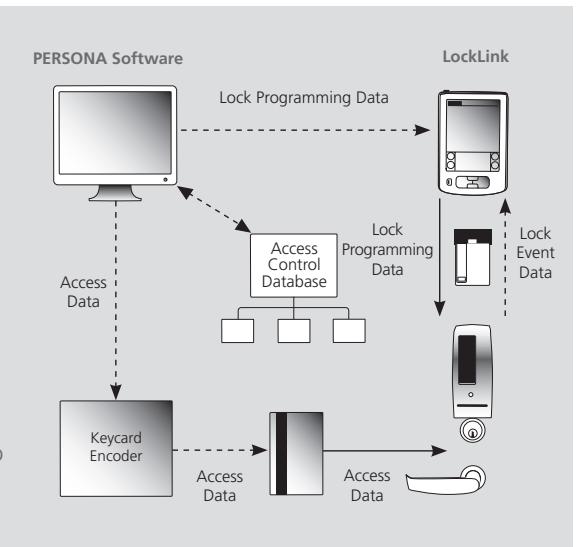

How the PERSONA System Works

The PERSONA system combines the following state-of-the-art elements to provide unparalleled flexibility and security in your campus locking solution.

High Security Lockset

The PERSONA lockset is a battery-operated, standalone unit, requiring no wiring from locks to CPU. All electronics and batteries are mounted inside the durable, metal casing. The lock is opened using a standard high coercivity magnetic stripe card, with tracks one or three open for encoding. This configuration provides maximum programming flexibility, allowing user information to be stored on one track while security access information is stored on another. A manual key override is also provided for

failsafe backup in emergency situations. The lock's three-tiered operating mode of passage, card only, or cardplus-PIN code offers the flexibility to tailor security from building to building, room to room, even door to door. The lockset features an on-board memory, allowing you to control access privileges for cardholders down to exact location and time of day. It remembers who entered when and where. The mortise lock version also records if the door was propped open and how long it remained that way.

System Software

Easy-to-learn, easy-to-use PERSONA system software is designed to run on any single PC or network, using Windows based operating system. Using database information from most student administration systems, the software allows you to name locks, buildings, special days, and timetables for easy system management. The software makes custom programming of keycards for individual access quick and easy. Users may be given access to common areas during certain hours, while having unlimited access to individual rooms dependent on security clearance. Because the access information is stored on the keycard, not in the lock, you won't have to reprogram a lock when room assignments change.

PERSONA Campus™ Software

Your Changing Environment Deserves The High Security of a PERSONA Locking System

You already know that responsible management of a heavily populated facility or campus environment demands a high-security locking solution. The potential liabilities associated with your choice make that solution all the more critical. Still, someone at your campus must manage and maintain the system dayto-day. So the system you install today must also be easy to live with tomorrow. If not, the temptation to short cut necessary security measures could undo your lock system investment.

PERSONA protects your people and property, while providing the fluid operating environment you need to efficiently manage your campus. Because PERSONA offers you:

  • Friendly Fit a non-disruptive, easy to-live-with security lock system that fits the needs of your facility, today and tomorrow.
  • Easy Integration minimal impact on your facility and organization, both throughout the installation and bringing the system online.
  • Minimal Expense cost-effective to own and operate, simple to care for, manage, and maintain.

PERSONA adapts naturally to your diverse security needs. Choose a more personable, reliable, customizable security solution. Inspect the benefits of PERSONA.

Get a Lock That Fits the Persona of Your Facility…PERSONA

PERSONA is the one intelligent locking system that secures your entire physical environment, without forcing you to change the way you go about your business. With PERSONA, you can:

  • Issue cards at multiple locations Place terminals across campus, allowing administrators to issue new or replacement keycards in seconds.
  • Customize access Lets you define unlimited access, extended-hours access or no access, by user, by facility, down to the individual lock.
  • Program full access for privileged staff Privileged staff can respond quickly, without delay, using a master keycard personalized for security with a unique PIN code.
  • Assure security for every user A single keycard can provide user identification, building access, and parking privileges allowing for personalized security at its best.

  • Time-control user access Limit entry to specific areas and hours, controlling who goes where and when.
  • Audit event histories Allows you to interrogate locks, review event history, and prevent false accusations of entry and theft.
  • Simplify special events Special conferences and other programs are easy-to-manage, using limited-access cards programmed in TrueTime™.
  • Simplify overall administration Interrogate individual locks and perform system upgrades and changes quickly and easily using unique LockLink technology by PERSONA.

Offline Locking Solutions

Remote Reader

For doors where a lockset cannot be used, the PERSONA remote reader offers independent, stand-alone security compatible with your overall keycard system. A relay output allows you to control access to revolving doors, electric strikes and magnets, door openers, vehicle entrances, and other units.

Encoder

The PERSONA encoder allows you to place customized user information onto the magnetic stripe of most any keycard. The information on the card is checked by each lock into which the card is inserted, determining whether or not access will be granted. Information stored includes issue time, start time, end time, facility code, user ID, PIN code, access privileges, and more.

The encoder also runs in an unattended mode which allows the PERSONA server to encode any keycard with the latest information. This might include a room change driven by an interface to a host system, or a privilege extension granted by a system operator in their PERSONA Campus software. Unattended encoders are perfect for bulk move-in periods as well as day-to-day upkeep of the PERSONA card data.

LockLink

Interrogating access history and updating locks in your facility is made easy with the PERSONA portable LockLink Transfer Device. The device makes it simple to reprogram a lock or download an audit trail of the last 700 events stored inside the lockset. Events include successful and failed access attempts, use of the deadbolt (mortise version only), use of the metal key override (mortise version only), and door position status (mortise version only). All transactions are password protected.

Features

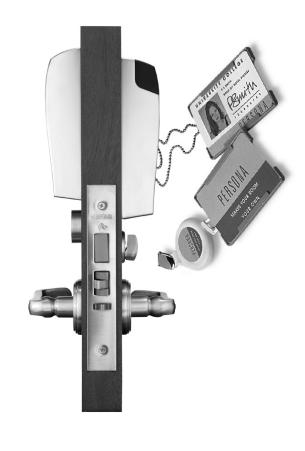

ML20700 x PAC1 Mortise Lock

Mortise Lock ML20700 x PAC1

Integration of Corbin Russwin mechanical locking security with PERSONA offline intelligence, provides an intelligent, One Card solution for economical and effective campus access control. The ML20700 x PAC1 offline locking solution features three operating modes: passage, card only and card plus PIN code, providing scalable security credentials for any door, room or building.

The integrated lockset uses a standard, high coercivity magnetic stripe card, formatted so that card tracks 1 or 3 are open for encoding. Manual key override, a standard feature, provided for fail-safe backup in emergency situations.

Customize access, facilitated by on-board memory, lets you define unlimited access, extended-hours access or no access, by user, by facility, down to the individual lock. Audit trail capable, it also remembers who entered where and when.

Features

  • ANSI/BHMA A156.13 Grade 1 mortise lock
  • Complete, integrated lockset
  • Stand-alone, battery operated lock; no need for expensive wiring
  • Optional patented security cylinder for emergency key override
  • EcoFlex technology reduces power consumption by up to 96%
  • Patented, quick reversible latchbolt, 2-piece mechanical with anti-friction insert 5/8" (16mm) x 1" (25mm) x 3/4" (19mm). U.S. Patent #6,349,982

Auxiliary Latchbolt

9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking

Deadbolt

One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw

  • 3-hour UL fire rating for maximum security and safety
  • All electronics and batteries mounted in inner escutcheon on secure side of door
  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • ADA compliant
  • 10 year mechanical warranty; 2 year electrical component warranty

Functions

ML20700 x PAC1 Mortise Lock

Outside
Inside 		Series/Function Type Function Description
ML20733
No Key Override
No Deadbolt 		Entry • Deadlocking latch
• Latch retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• No deadbolt function
ML20734
With Key Override
No Deadbolt 		Entry • Deadlocking latch
• Latch retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• Key outside retracts latch
ML20735
No Key Override
With Deadbolt 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• When deadbolt thrown, outside lever operable only
with certain authorized credentials
ML20736
With Key Override
and Deadbolt 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever
at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• Key outside projects or retracts deadbolt
and retracts latch
• When deadbolt projected, outside lever operable only
with certain authorized credentials, or key (key retracts
deadbolt and latch)

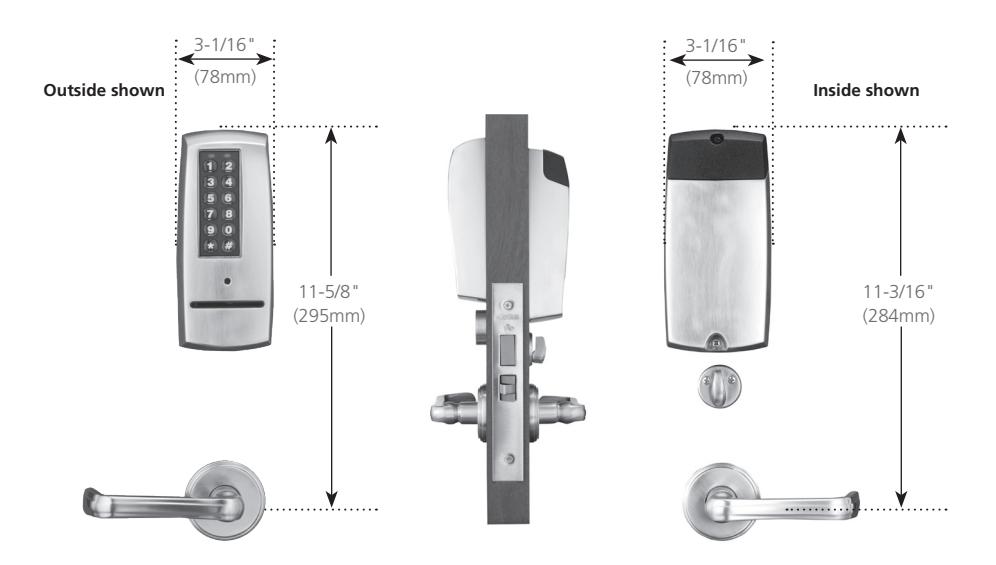

Technical Features

ML20700 x PAC1 Mortise Lock

Technical Data

Power Supply: 6 AA alkaline batteries
Voltage (max/min): 9 VDC / 6.0 VDC
Expected Battery Life: 1-3 years based on usage
Card Track: Standard track 3, optional track 1
Card Coercivity HiCo

Monitoring

ML20700 x PAC1 Request to Exit (REX); Latchbolt (LX); Dead Bolt (DX); Auxiliary Latchbolt (AX)

Features

Operating Modes PIN required: Specify M808; In addition to card, a 4 digit PIN is required
No PIN required: Specify M807; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule) or might
optionally be configured to require two consecutive swipes to toggle the passage state

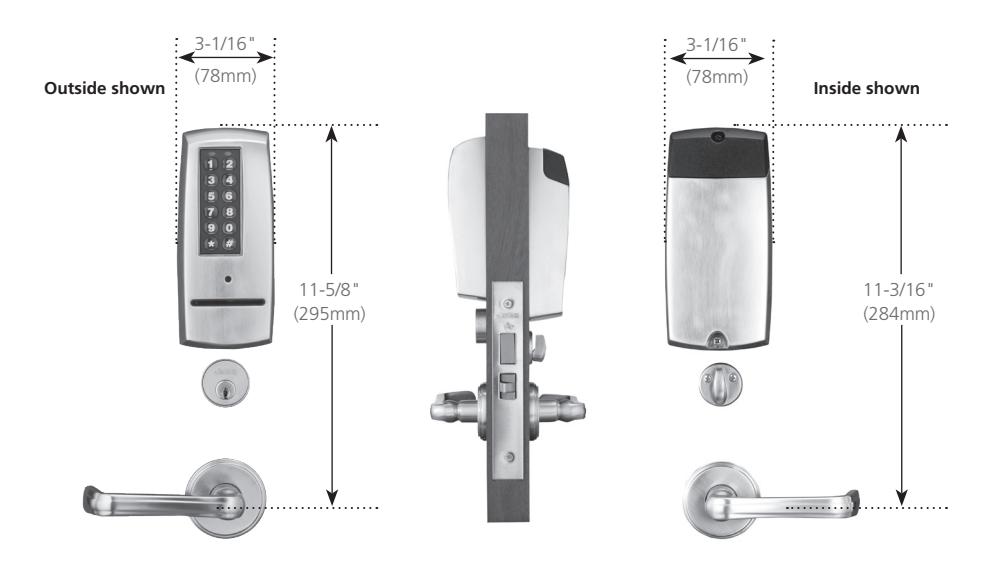

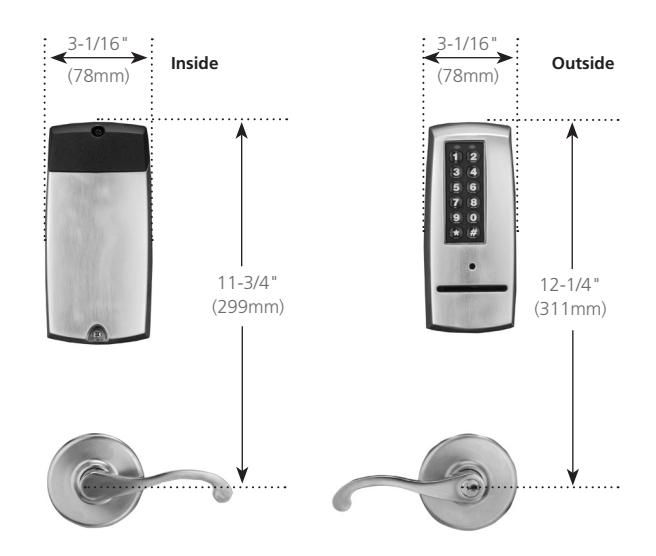

Inside/Outside Escutcheons

  • Keys/buttons overmolded to prevent wear
  • Zinc die cast
  • Operating temperature -40°F (-40°C) to 135°F (57°C)
  • LED's indicate valid/invalid entries
  • Escutcheon projection 1-11/16" (43mm)

Cylinders

ML20700 x PAC1 Mortise Lock

Cylinders

  • Conventional (standard)
  • Pyramid (optional)
  • Interchangeable Core (IC)
  • 2 nickel silver keys
  • Finishes: See Key Systems and Pyramid

Conventional (Fixed Core)

Interchangeable Core (IC)

Pyramid Shown

Cylinder Quick Codes

Keyed Functions for 1-3/4" Door
1020-114-A01
1030-114-A01
1027-114-A01
1037-114-A01
1000-118-A01
1000-114-A01
1080-114-A01
1080-112-A01-7
1090-114-A01
1010-118-A01

For complete Pyramid information and options refer to Key Systems catalog.

To order optional cylinder with lockset, see Quick Codes, page 29.

To order cylinder separately, specify Part No. x Keyway x Finish (e.g., 1000-138-A01 x L4 x 626).

Options & Accessories

ML20700 x PAC1 Mortise Lock

Strikes

ANSI Straight Lip (standard) Brass, Bronze or Stainless Steel Non-handed 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center Optional lip lengths: 7/8" (22mm), 1-1/4" (32mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm)

ANSI Curved Lip

Brass, Bronze or Stainless Steel Handed 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center

Optional lip lengths: 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm),

3" (76mm)

ANSI Wrought Strike Box

To order with lockset; see Quick Codes, pg. 11. To order separately, specify 120F768.

Part No. Description
236L72 Straight Lip
340L60 Curved Lip for RH, LHR
Latchbolt X Deadbolt 340L61 Curved Lip for LH, RHR
236L73 Straight Lip
340L62 Curved Lip for RH, LHR
Latchbolt Only 340L63 Curved Lip for LH, RHR

To order strike with lockset, see Quick Codes, page 11. To order strike separately, specify Part No. x Lip Length x Finish (e.g., 340L60 x 1-1/2" x 626).

Door Thickness Part
1-3/4" (44mm) 411L63016
2" (51mm) 411L63018
2-1/4" (57mm) 411L63020
1-3/4" (44mm) 411L62016
2" (51mm) 411L62018
2-1/4" (57mm) 411L62020

To order with lockset; see Quick Codes, pg. 11. To order separately, specify Part No. x Door Thickness x Finish (e.g., 411L62 x 2" x 626).

Rabbeted Front and Strike

Brass or bronze. For 1/2" (13mm) rabbet.

No optional lip lengths.

Part No. Hand
Latchbolt x 318F66 RH/LHR
deadbolt 318F69 LH/RHR
Latchbolt 318F64 RH/LHR
only 318F67 LH/RHR

To order with lockset; see Quick Codes, page 11. To order separately, specify Part No. x Finish (e.g., 318F66 x 626).

Quick Codes

ML20700 x PAC1 Mortise Lock

Cylinders and Keying

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red
Blue 		CT6R
CT6B
Green CT6G
CI 6-pin Less Core CL6
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC disposable
temporary core 		CT6SD
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red
Blue
Green 		CT7R
CT7B
CT7G
IC 7-pin Less Core CL7
SFIC 7-pin with Less Core CLS7
SFIC 7-pin with SFIC disposable
temporary core 		CT7SD
Security HS
Security IC CHS
Pyramid Fixed Core PHS
Pyramid IC PCHS
Pyramid IC Less Core CLP
Pyramid with Temporary
Construction Core 		CTP
Pyramid Security PS
Pyramid Security IC PCS
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
Keyed Random (Standard) KR
Construction Master Keyed (not
available for Pyramid) 		CMK
Visual Key Control
- No Keying Data Stamped
on Key or Cylinder 		VKC0
- Keys Only
- Cylinders and Keys
(not for HS, CHS, PHS
or PCHS) 		VKC1
VKC2
- Cylinders Only (not for HS,
CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with 		CKC2
CKC3
VKC Keys
- CKC Cylinders Only (not
for PHS, PCHS)
2 Keys per Lock (standard)

Finish

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		6131
Dark Oxidized Satin Bronze -
Equivalent 		613E
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome with
MicroShield® 		626C
Bright Stainless Steel 6293
Satin Stainless Steel 6303
Satin Stainless Steel with
MicroShield 		630C
Black Oxidized Bronze,
Oil Rubbed 		7222
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

New, March 2007

Miscellaneous Options

Description Specify
Torx®
head screws 		M04
ANSI wrought strike box M17
Knurling outside and inside1 M20²
Knurling outside only1 M212
Knurling inside only M222
Abrasive coat outside and
inside1 		M23
Abrasive coat inside only1 M24
Abrasive coat outside only M25

1 Not available with Vineyard™ or Muséo® levers.

Door Thickness

Description Specify
1-3/4" (44mm) std
1-7/8" (48mm) D178
2" (51mm) D200
2-1/8" (54mm) D218
2-1/4" (57mm) D214

Consult factory for door thicknesses greater than 2-1/4

Credential Quick Codes

Description Specify
Magstripe Only M807
Keypad & Magstripe M808

Strikes

ANSI
Lip to Center 		ANSI
Straight Lip
Specify 		Curved Lip
Specify
7/8" (22mm) SS078 N/A
1-1/8" (29mm) (standard) N/A
1-1/4" (32mm) SS114 SA114
1-3/8" (35mm) SS138 SA138
1-1/2" (38mm) SS112 SA112
1-3/4" (44mm) SS134 SA134
2" (51mm) SS200 SA200
2-1/4" (57mm) SS214 SA214
2-1/2" (64mm) SS212 SA212
2-3/4" (70mm) SS234 SA234
3" (76mm) SS300 SA300
Open Back Strike Door Thickness Specify
1-3/4" (44mm) SB134
2" (51mm) SB200
2-1/4" (57mm) SB214
Rabbeted front and strike - Specify SR118

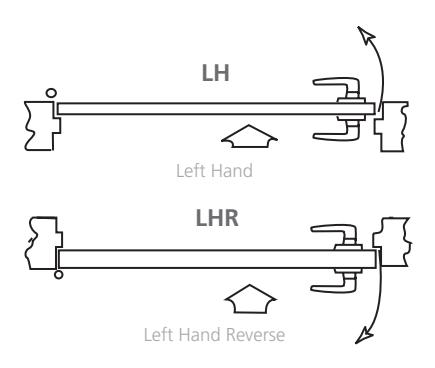

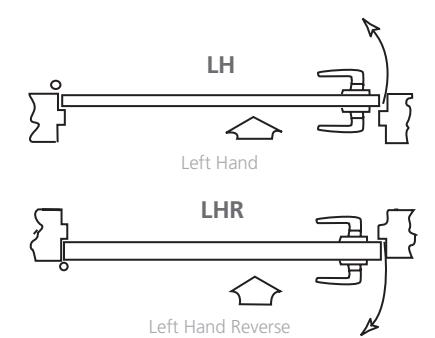

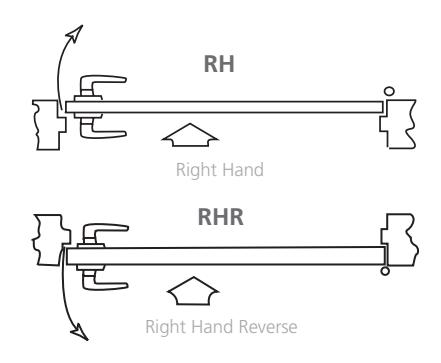

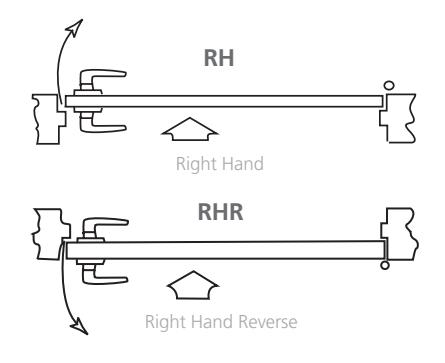

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Formerly 613 prior to March 2007

Escutcheon finished to match 629, 630 finish

2 All levers provided in a powder coat finish will be supplied with an abrasive coating

How to Order

ML20700 x PAC1 Mortise Lock

Ordering Examples

Stock Order

Quantity Series/Function Technology Code Trim Finish Hand Credential
Quick Code
24 ML20736 TCPAC1 LWA 626 RHR M808

Split Trim/Finish Order

Quantity Series/
Function 		Technology
Code 		Trim
Outside 		Inside Finish
Outside 		Inside Hand Credential
Quick Code
24 ML20735 TCPAC1 CSA CSA 626 606 RHR M808

Contract/Detailed Order

Quantity Keyset Series/
Function 		Technology
Code 		Trim Finish Hand Door
Thickness 		Optional
Strike 		Optional
Cylinder 		Key
ing 		Credential
Quick Code
24 AA1 ML20734 TCPAC1 111X 626 RHR D214 SA200 PS VKC3 M808

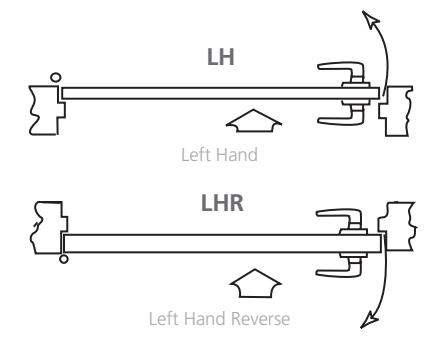

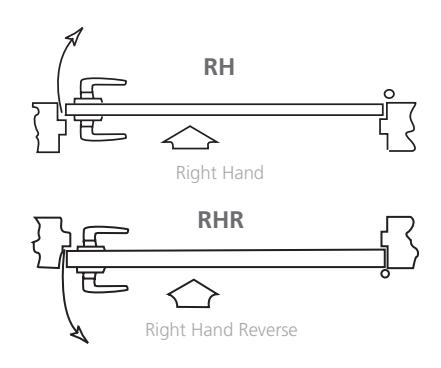

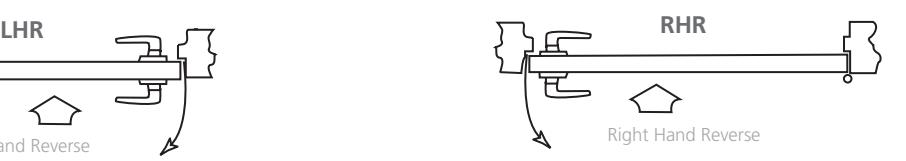

Handing

Note: Arrow indicates security side of door.

How to Order

ML20700 x PAC1 Mortise Lock

Mortise Locksets

Function Trim Finish Hand
ML20733 Standard Muséo® Vineyard™ 605 RH
ML20734 ASA ASB ASF 102V 102U 102T 102Y 102X 102W FSG 606 RHR
ML20735 NSA NSB NSF 103V 103U 103T 103Y 103X 103W MSG 611 LH
ML20736 PSA PSB PSF 104V 104U 104T 104Y 104X 104W TSG 612 LHR
CSA CSB CSF 124V 124U 124T 124Y 124X 124W ZSG 613
DSA DSB DSF 125V 125U 125T 125Y 125X 125W 618
ESA ESB ESF 106V 106U 106T 106Y 106X 106W 619
LSA LSB LSF 107V 107U 107T 107Y 107X 107W 625
RSA RSB RSF 108V 108U 108T 108Y 108X 108W 626
109V 109U 109T 109Y 109X 109W 722
110V 110U 110T 110Y 110X 110W 626C
123V 123U 123T 123Y 123X 123W
128V 128U 128T 128Y 128X 128W
129V 129U 129T 129Y 129X 129W
111V 111U 111T 111Y 111X 111W
112V 112U 112T 112Y 112X 112W
114V 114U 114T 114Y 114X 114W
115V 115U 115T 115Y 115X 115W
116V 116U 116T 116Y 116X 116W
130V 130U 130T 130Y 130X 130W
131V 131U 131T 131Y 131X 131W
132V 132U 132T 132Y 132X 132W
117V 117U 117T 117Y 117X 117W
126V 126U 126T 126Y 126X 126W
119V 119U 119T 119Y 119X 119W
121V 121U 121T 121Y 121X 121W
127V 127U 127T 127Y 127X 127W
21LV 21LU 21LT 21LY 21LX 21LW
21MV 21MU 21MT 21MY 21MX 21MW
21SV 21SU 21ST 21SY 21SX 21SW
23MV 23MU 23MT 23MY 23MX 23MW
25MV 25MU 25MT 25MY 25MX 25MW

Available Trim Options

ML20700 x PAC1 Mortise Lock

Standard Lever A Rose B Rose F Rose
Armstrong ASA ASB ASF
Newport NSA NSB NSF
Princeton PSA PSB PSF Armstrong Citation Dirke Essex*
Citation CSA CSB CSF
Dirke DSA DSB DSF
Essex ESA ESB ESF
Lustra
Regis 		LSA
RSA 		LSB
RSB 		LSF
RSF 		Lustra* Newport* Princeton* Regis
Vineyard™ G Rose
Frascati FSG
Merlot MSG
Tuscany TSG Frascati Merlot Tuscany Zinfandel
Zinfandel ZSG
Muséo® V Rose U Rose T Rose Y Rose X Rose W Rose
Georgia 102 102V 102U 102T 102Y 102X 102W
103 103V 103U 103T 103Y 103X 103W
104 104V 104U 104T 104Y 104X 104W 102 103 1042
124 124V 124U 124T 124Y 124X 124W
125 125V 125U 125T 125Y 125X 125W
1241 1251
Salvador 106 106V 106U 106T 106Y 106X 106W
107 107V 107U 107T 107Y 107X 107W
108 108V 108U 108T 108Y 108X 108W
109 109V 109U 109T 109Y 109X 109W 106 107 108
1091
110 110V 110U 110T 110Y 110X 110W
123 123V 123U 123T 123Y 123X 123W
128 128V 128U 128T 128Y 128X 128W
129 129V 129U 129T 129Y 129X 129W 110 1231 1281
1291
Marc 111 111V 111U 111T 111Y 111X 111W
112 112V 112U 112T 112Y 112X 112W
114 114V 114U 114T 114Y 114X 114W 1112 1122 1142
115 115V 115U 115T 115Y 115X 115W
116 116V 116U 116T 116Y 116X 116W
130 130V 130U 130T 130Y 130X 130W 1152 1162 1301,2
131 131V 131U 131T 131Y 131X 131W
132 132V 132U 132T 132Y 132X 132W
1311,2 1321,2
Pablo 117 117V 117U 117T 117Y 117X 117W
126 126V 126U 126T 126Y 126X 126W
1172 1261,2
Jackson 119
121 		119V
121V 		119U
121U 		119T
121T 		119Y
121Y 		119X
121X 		119W
121W
127 127V 127U 127T 127Y 127X 127W
1192 1212 1271,2
Piet 21L 21LV 21LU 21LT 21LY 21LX 21LW
21M 21MV 21MU 21MT 21MY 21MX 21MW
21S 21SV 21SU 21ST 21SY 21SX 21SW 21L 21M 21S
23M 23MV 23MU 23MT 23MY 23MX 23MW
25M 25MV 25MU 25MT 25MY 25MX 25MW

1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

2. Not available in 32D or 32 finish.

Available Trim Options

ML20700 x PAC1 Mortise Lock

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

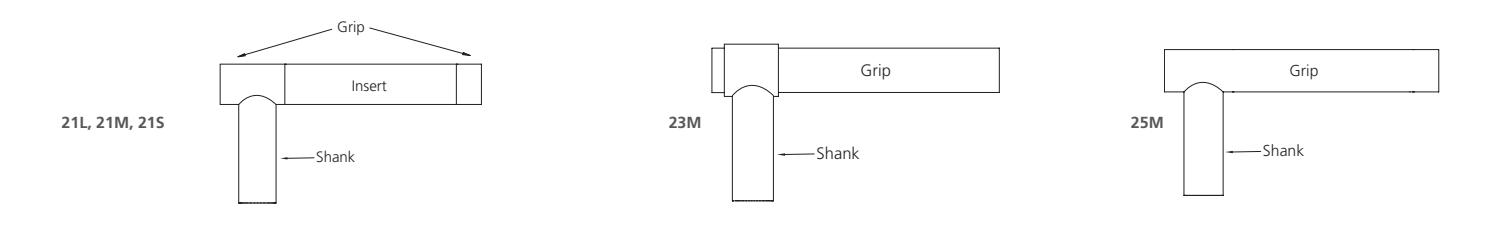

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

Authorized Channel Partner

How To Order

ML20700 x PAC1 Mortise Lock

How to Order the Muséo® Piet Lever Collection

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential Quick
Code
2 ML20736 TCPAC1 21MV 293029 625 RHR M808

  • > Muséo® Piet Lever 21M Polished with Satin Insert with V rose
  • > 293029 Lever Finish
  • Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip
  • > 625 Lock Finish
  • > Right hand reverse
  • > Keypad & Magstripe

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 ML20735 TCPAC1 21GU 292929 625 RHR M808

  • > 625 Lock Finish
  • > Right hand reverse
  • > Keypad & Magstripe

* Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

Features & Functions

CL33700 x PAC1 Cylindrical Lock

Integration of Corbin Russwin mechanical locking security with PERSONA offline intelligence, provides an intelligent, One Card solution for economical and effective campus access control. The CL33700 x PAC1 offline locking solution features three operating modes: passage, card only and card plus PIN code, providing scalable security credentials for any door, room or building.

The integrated lockset uses a standard, high coercivity magnetic stripe card, formatted so that card tracks 1 or 3 are open for encoding. Manual key override, a standard feature, is provided for fail-safe backup in emergency situations.

Customized access, facilitated by on-board memory lets you define unlimited access, extended-hours access or no access, by user, by facility, down to the individual lock. Audit trail capable, it also remembers who entered where and when.

Cylindrical Lock CL33700 x PAC1

Features

  • ANSI/BHMA A156.2 Grade 1 lock
  • Complete, integrated lockset
  • Stand-alone, battery operated lock; no need for expensive wiring.
  • Optional patented security cylinder for emergency key override
  • Stainless steel deadlocking latchbolt x 1/2" throw
  • 3-hour UL fire rating for maximum security and safety
  • All electronics and batteries mounted in inner escutcheon on secure side of door
  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • ADA compliant
  • 7 year mechanical warranty; 2 year electrical component warranties

Outside
Inside 		Series/Function Type Function Description
CL33734
With Cylinder 		Entry • Latch retracted by inside lever at all times
• Key outside retracts latch
• Outside lever locked (free-wheeling) except when in
"passage" mode or valid user code entered

Technical Features

CL33700 x PAC1 Cylindrical Lock

Technical Data

Power Supply: 6 AA alkaline batteries
Voltage (max/min): 9 VDC / 6.0 VDC
Expected Battery Life: 1-3 years based on usage
Card Track: Standard track 3, optional track 1
Card Coercivity
HiCo

Features

Operating Modes PIN required: Specify M808; In addition to card, a 4 digit PIN is required
No PIN required: Specify M807; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule)
or might optionally be configured to require two consecutive swipes to toggle the passage state

Escutcheons

  • Zinc die cast
  • Tactile keypad
  • Operating temperature -40°F (-40°C) to 135°F (57°C)
  • LED's indicate valid/invalid entries
  • Keys/buttons overmolded to prevent wear
  • Escutcheon projection 1-11/16" (43mm)

Options & Accessories

CL33700 x PAC1 Cylindrical Lock

Strikes

ANSI Curved Lip (standard)

Brass or stainless steel, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 217L13 x Lip Length x Finish.

Curved Lip Box

Brass, 2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 586L19 x Lip Length x Finish.

Rabbeted Front and Strike

Brass, 4" (102mm) x 5/8" (16mm) for 1/2" (13mm) rabbet. No optional lip lengths.

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 601F28 x Finish.

ANSI Wrought Strike Box

  • To order with lockset, see Quick Codes on next page.
  • To order separately, specify 120F768.

Sold through:

Quick Codes

CL33700 x PAC1 Cylindrical Lock

Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less Cylinder(s) LC
Security HS
Security IC CHS
Pyramid Security PS
Pyramid Security IC PCS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid with Temporary
Construction Core 		CTP
Pyramid Less Core CLP
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red CT6R
Blue CT6B
Green CT6G
IC 6-pin Less Core CL6
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red CT7R
Blue CT7B
Green CT7G
IC 7-pin Less Core CL7
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
SFIC 6- or 7-pin Small Format
Disposable Core 		CTSD
0-Bitted with 2 Blank Keys (standard)
Keyed Random KR
Construction Master Keyed
Visual Key Control (VKC) 		CMK
- No Bitting or Keyset
Stamping on Keys 		VKC0
- Keys Only VKC1
- Cylinders and Keys (not for
HS, CHS, PHS or PCHS) 		VKC2
- Cylinders Only (not for HS,
CHS, PHS or PCHS) 		VKC3
Concealed Key Control (CKC)
- CKC Cylinders with
VKC Keys 		CKC2
- CKC Cylinders Only (not for
PHS, PCHS) 		CKC3
2 Keys per Lock (standard)
KY#
More than 2 Keys (e.g., KY6)
Schlage® C Keyway cylinder1 C

Finish

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Black Oxidized Bronze,
Oil Rubbed 		722
Satin Chrome
with MicroShield® 		626C
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

Miscellaneous Options

Description Specify
Torx® head screws M04
Less cylinder, with tailpiece for
Schlage® cylinder 		M06
Lever to accept Best® type core
(NZD & PZD designs only) 		M08
Lever to accept SARGENT®
cylinder (NZD & PZD design only) 		M09
Rounded corners on latch front M13
3/4" (19mm) throw fire latch M16
ANSI wrought strike box M17
Knurling outside and inside M20*
Knurling outside only M21*
Knurling inside only M22*
Abrasive coat outside and inside M23
Abrasive coat inside only M24
Abrasive coat outside only M25
Lever to accept Schlage®
interchangeable core (NZD & PZD
design only) 		M69

* All levers provided in a powder coat finish will be supplied with an abrasive coating

Door Thickness

Door Thickness Specify
1-3/4" (44mm) - 2" (51mm) (standard)
2" (51mm) - 2-1/4" (57mm) D214

Credential Quick Codes

Description Specify
Magstripe Only M807
Keypad & Magstripe M808

Strikes

Lip to Center ANSI
Curved Lip
Specify 		Curved Lip Box
Specify
1" (25mm) SA100 SC100
1-1/8" (29mm) SA118 SC118
1-1/4" (32mm) (standard) SC114
1-3/8" (35mm) SA138 SC138
1-1/2" (38mm) SA112 SC112
1-3/4" (44mm) SA134 SC134
2" (51mm) SA200 SC200
2-1/4" (57mm) SA214 SC214
2-1/2" (64mm) SA212 SC212
2-3/4" (70mm) SA234 SC234
3" (76mm) SA300 SC300

Rabbeted front and strike Specify SR118

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Backset

Description Specify
2-3/4" (70mm) (standard)
3-3/4" (95mm) B334
5" (127mm) B500

2 Available 0-bitted only

How to Order

CL33700 x PAC1 Cylindrical Lock

Ordering Examples

Stock Order

Quantity Series/Function Technology Code Trim Finish Hand Credential
Quick Code
24 CL33734 TCPAC1 NZD 626 RHR M808

Split Trim/Finish Order

Quantity Series/
Function 		Technology
Code 		Trim
Outside 		Inside Finish
Outside 		Inside Hand Credential
Quick Code
24 CL33734 TCPAC1 NZD AZD 626 625 LH M808

Contract/Detailed Order

Quantity Keyset Series/
Function 		Technology
Code 		Trim Finish Hand Door
Thickness 		Optional
Strike 		Optional
Cylinder 		Keying Credential
Quick Code
24 AA1 CL33734 TCPAC1 FZD 626 RHR D214 SA200 PS VKC3 M808

Handing

Note: Arrow indicates security side of door.

How to Order & Lever Trim Designs

CL33700 x PAC1 Cylindrical Lock

Cylindrical Locksets

Function Trim Finish Hand Backset
CL33734 Standard 605 RH (standard)
AZD 606 RHR B334
NZD 611 LH B500
PZD 612 LHR
FZD 613
618
619
625
626
722
626C
BSP
WSP

Standard

Lever D Rose
Armstrong AZD
Newport NZD
Princeton PZD Armstrong Newport* Princeton*

Vineyard™

D Rose
Frascati FZD
Frascati

* Complies with codes requiring lever to return to within 1/2" (13mm) of door face.

Features

ED5000N 9700 x PAC1 Exit Device

Integration of Corbin Russwin life safety mechanical exit devices with PERSONA offline intelligence, provides an intelligent, One Card solution for economical and effective campus access control. The ED5000N x 9700 x PAC1 offline locking solution features three operating modes: passage, card only and card plus PIN code, providing scalable security credentials for any door, room or building.

The integrated lockset uses a standard, high coercivity magnetic stripe card, formatted so that card tracks 1 or 3 are open for encoding. Manual key override, a standard feature is provided for fail-safe backup in emergency situations.

Customized access, facilitated by on-board memory lets you define unlimited access, extended-hours access or no access, by user, by facility, down to the individual lock. Audit trail capable, it also remembers who entered where and when.

• ANSI/BHMA A156.3 Grade 1 Exit Device

  • Complete, integrated lockset
  • Stand-alone, battery operated lock; no need for expensive wiring
  • Optional patented security cylinder for emergency key override
  • 3-hour UL fire rating for maximum security and safety
  • All electronics and batteries mounted in inner escutcheon on secure side of door
  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • EcoFlex technology reduces power consumption by up to 95%
  • ADA compliant

Features

• 5 year mechanical warranty; 2 year electrical component warranty

Featuring SecureBolt® locking security

Exit Device ED5600N x PAC1

Technical Features

ED5000N 9700 x PAC1 Exit Device

Technical Data

Power Supply: 6 AA alkaline batteries
Voltage (max/min): 9 VDC / 6.0 VDC
Expected Battery Life: 1-3 years based on usage
Card Track: Standard track 3, optional track 1
Card Coercivity HiCo

Features

Operating Modes PIN required: Specify M808; In addition to card, a 4 digit PIN is required
No PIN required: Specify M807; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule)
or might optionally be configured to require two consecutive swipes to toggle the passage state

Secure Side of Door Rim/SecureBolt®, Mortise

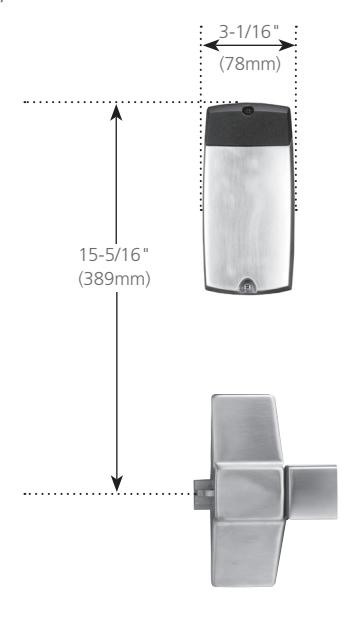

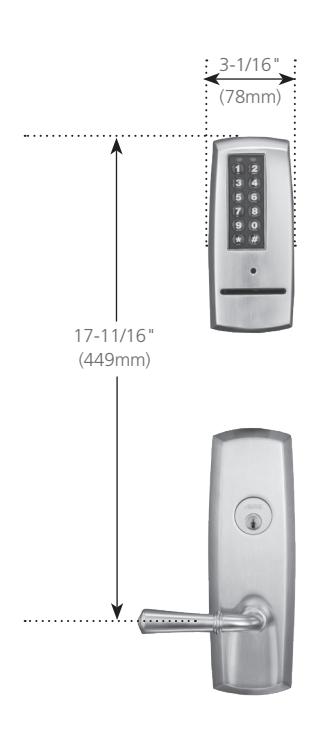

Reader Escutcheon

  • Zinc die cast
  • Projection at top 1-5/8" (41mm)

Lever Escutcheon

  • Brass cast
  • Operating temperature -40°F (-40°C) to 135°F (57°C)
  • LEDs indicate valid/ invalid credential

Functions

ED5000N 9700 x PAC1 Exit Device

Inside Outside Series/Function Type Function Description
ED5200(A)N & ED5200S(A)N
x 9733 x PAC1
No Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when
in passage mode or valid user code entered
ED5200(A)N & ED5200S(A)N
x 9734 x PAC1
With Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever locked (freewheeling) except when
in passage mode or valid user code entered
• Outside cylinder override allows lever to retract latch
ED5633(A)LN
x 9M733 x PAC1
No Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode
or valid user code entered
ED5634(A)LN
x 9M734 x PAC1
With Key Override 		Entry • Latch retracted by inside push pad at all times
• Outside lever rigid except when in passage mode
or valid user code entered
• Outside cylinder override retracts latch

Option & Accessories

ED5000N 9700 x PAC1 Exit Device

Rim Strike

(Screws Included)

SecureBolt®, Fire-Rated Rim and Rim Strike

Standard on ED5200SN, ED5200S(A)N, ED5200(A)N and ED5200N devices. Supplied with locking plate and two 1/16" (1.6mm) shims.

For doors with 1/2" (13mm) or 5/8" (16mm) stop. Adjustable to compensate for shrinkage and swelling of door. 3-1/2" x 1-1/4" (99mm x 32mm). Black finish only. To order separately specify 650F30-8.

Mortise Strikes

Mortise Strike Standard on ED5600(A)N Series. Non-handed, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center. To order separately, specify 650L657020.

Mortise Strike for Pairs of Doors with Astragal Optional for use with ED5600(A)N Series devices where an astragal is to be installed. Non-handed, ANSI straight lip, 4-7/8" x 1-1/4" x 7/8" (124mm x 32mm x 22mm) lip to center. To order with exit device, specify SS078. To order separately, specify 653L157014.

Open Back Strike

Optional for use with ED5600N x vertical rod devices on a pair of doors. Non-handed, 4-7/8" x 1-1/4" (124mm x 32mm). To order with exit device, specify SB134 for 1-3/4" doors, SB214 for 2-1/4"doors. To order separately, specify Part No. listed below.

Door Thickness Type Part No.
Curved lip 653L183016
1-3/4" (44mm) Straight lip 653L163016
Curved lip 653L183020
2-1/4" (57mm) Straight lip 653L163020

Mortise Strike

Standard on ED5600N and ED5600(A)N devices on 2" (51mm) (D200) and 2-1/4" (57mm) (D214) thick doors. Handed ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/2" (124mm x 32mm x 38mm) lip to center. To order separately, specify 656L677024 for RH, 656L687024 for LH.

ANSI Wrought Strike Box

Optional for use with ED5600N and ED5600AN devices. To order with exit device, specify M17. To order separately, specify 120F76-8.

Filler Plates

Optional for use on stock metal doors when required. To order, specify 334F99-8 600.

Optional for use on stock metal doors when required. To order, specify 236L708018 x Fin.

Optional for use on stock metal doors when required. To order, specify 077F19-8 600.

Quick Codes

ED5000N 9700 x PAC1 Exit Device

Cylinders and Keying
Description Specify
Conventional 6-pin 6P
Conventional 7-pin 7P
Less Cylinder(s) standard
IC 6-pin C6
IC 6-pin with Temporary
Construction Core
Red
Blue
Green 		CT6R
CT6B
CT6G
IC 6-pin Less Core CL6
SFIC 6-pin with Less Core CLS6
SFIC 6-pin with SFIC disposable temporary core CT6SD
IC 7-pin C7
IC 7-pin with Temporary
Construction Core
Red
Blue
Green 		CT7R
CT7B
CT7G
IC 7-pin Less Core CL7
SFIC 7-pin with Less Core CLS7
SFIC 7-pin with SFIC disposable temporary core CT7SD
Security HS
Security IC CHS
Pyramid Security PS
Pyramid Security IC PCS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid with Temporary
Construction Core 		СТР
Pyramid IC Less Core CLP
Pyramid Disposable Core CTPD
6-pin Disposable Core CT6D
7-pin Disposable Core CT7D
0-bitted with 2 Blank Keys Standard
with Cylinder
Keyed random KR
Construction Master Keyed (not available for Pyramid) CMK
Visual Key Control (VKC)
  • No Keying Data Stamped
    on Key or Cylinder
VKC0
- Keys Only VKC1
- Cylinders and Keys (not for HS, CHS, PHS or PCHS) VKC2
- Cylinders Only (not for HS, CHS, PHS or PCHS) VKC3
Concealed Key Control (CKC) - CKC Cylinders with VKC Keys CKC2
- CKC Cylinders Only (not
for PHS, PCHS) 		CKC3
2 Keys per Cylinder standard
Other than 2 Keys KY#
(e.g., KY6)
, (0.9., 1010)

Finishes

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear
Coated 		611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		613
Dark Oxidized Satin Bronze -
Equivalent 		613E
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome
with MicroShield® 		626C
Polished Stainless Steel* 629
Satin Stainless Steel* 630
Satin Stainless Steel with MicroShield* 630C
Black Oxidized Bronze,
Oil Rubbed 		722
Black Suede Powder Coat BSP
White Suede Powder Coat WSP
*Lever only. Escutcheons plated to matc h.

Lever only. Escutcheons plated to match.

Miscellaneous Options

Description Specify
Torx® Head Screws M04
ANSI wrought strike box (mortise) M17
Knurling outside & inside
(embossed touchbar -
device side) 1 		M20²
Knurling outside only (trim side) 1 M21 2
Knurling inside only
(embossed touchbar -
device side) 		M22²
Abrasive coat outside and inside (trim and device) 1 M23
Abrasive coat inside only (device side) M24
Abrasive coat outside only (trim side) 1 M25
Less dogging M51
Cylinder dogging M52
Sex nuts and bolts (SNBs) M54
Shim kit (for vision light) M58
Wood screws for use on fire-rated solid wood or wood core doors 1. Not available with Vigouard™ or Mus. M64

1 Not available with Vineyard™ or Muséo® levers. 2 All levers provided in a powder coat finish will be

Door Thickness

Door Thickness Specify
1-3/4" (44mm) standard
2" (51mm) D200
2-1/4" (57mm) D214

Door Width

Door Width Specify
24" (610mm) W024
36" (914mm) standard
48" (1219mm) W048

Credential Quick Codes

Description Specify
Magstripe Only M807
Keypad & Magstripe M808

Strikes

Description Specify
Mortise ANSI strike
for pairs of doors with
astragal 		SS078
Open back strike for 1-3/4" doors SB134
Open back strike for 2-1/4" doors SB214

Handing

•
Hand Specify
Right Hand Reverse RHR
Left Hand Reverse LHR

Copyright © 2009-2022, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assabloydss.com/patents.

2 All levers provided in a powder coat finish will be supplied with an abrasive coating

How to Order

ED5000N 9700 x PAC1 Exit Device

Ordering Examples

Exit Device Only

Quantity Function Technology Code Finish Hand
12 ED5200N TCPAC1 626 LH

Trim Only

Quantity Trim/Function Technology Code Finish Hand Credential Quick Code
24 N9733 TCPAC1 625 RHR M808

Exit Device with Trim

Quantity Exit Device Trim/
Function 		Technology
Code 		Finish Hand Cylinder
Option 		Door
Thickness 		Optional
Strike 		Door
Width 		Misc.
Options 		Credential
Quick Code
65 ED5633ALN F9M734 TCPAC1 605 LHR 6P D200 SB134 W048 M51-M54 M808

Contract/Detailed Order - Rim Exit Device with Trim

Quantity Keyset Exit Device Trim/Function Technology
Code 		Finish Hand Door
Width 		Credential
Quick Code 		Cylinder
Option
36 AA1 ED5200N 1149734 TCPAC1 605 LHR W048 M808 PS

Handing

Note: Arrow indicates security side of door.

Exit Devices

Exit Device Function Trim Finish Hand
ED5200(A) 9733 Standard Muséo® Vineyard™ 605 RHR
ED5202(A) 9734 A 102 112 125 21L FR 606 LHR
ED5633(A) 9M733 N 103 114 126 21M M 611
ED5634(A) 9M734 PR 104 115 127 21S TS 612
C 106 116 128 23M Z 613
D 107 117 129 25M 618
E 108 119 130 619
L 109 121 131 625
R 110 123 132 626
111 124 626C
722
BSP
WSP

Lever Trim Designs

ED5000N 9700 x PAC1 Exit Device

Cr l l ED5200 ED5600
Standard x 9700 x 9M700
Armstrong A9700 A9M700 _
Newport N9700 N9M700 100
Princeton PR9700 PR9M700
Citation C9700 C9M700 Armstrong Citation Dirke Essex*
Dirke D9700 D9M700
Essex E9700 E9M700
Lustra L9700 L9M700
Regis R9700 R9M700 Lustra* Newport* Princeton* Regis
Regis K9700 K91V1700 Lustra Νεννροιτ rinceton Regis
Vineyard
Frascati FR9700 FR9M700
Merlot M9700 M9M700
Tuscany TS9700 TS9M700
÷
Zinfandel Z9700 Z9M700 Frascati Merlot Tuscany Zinfandel

Muséo®
GEORGIA 102 1029700 1029M700
103 1039700 1039M700
104 1049700 1049M700 A
124 1249700 1249M700 12.41 1251
125 1259700 1259M700 102 103 104 2 124 1 125¹
123 1233700 1255141700
Salvador 106 1069700 1069M700
107 1079700 1079M700
108 1089700 1089M700 •
109 1099700 1099M700 106 107 108 109 1
110 1109700 1109M700 107 .00 105
123 1239700 1239M700 0 0
128 1289700 1289M700
129 1299700 1299M700 110 123 1 128 1 129 1
123 1299700 1233101700 123 120 123
MARC 111 1119700 1119M700
112 1129700 1129M700
114 1149700 1149M700
115 1159700 1159M700 111 2 112 2 1142 115 2
116 1169700 1169M700
130 1309700 1309M700 D 0
131 1319700 1319M700
132 1329700 1329M700 116² 1301,2 1311,2 1321,2
132 : 1323/00 : 1323101700 110
PABLO 117 1179700 1179M700 0 0
126 1269700 1269M700
· : • 1172 126²
Jackson 119 1199700 1199M700 6 •
121 1219700 1219M700
127 1279700 1279M700 119 2 1212 1271,2
: · -
PIET 21L 21L9700 21L9M700
21M 21M9700 21M9M700
215 21S9700 21S9M700 21L 21M 215
; 23M9700 23M9M700 -
23M
23M
25M 		25M9700 25M9M700

1. Complies with codes requiring lever to return to within 1/2 " (13mm) of door face. 2. Not available in 32D or 32 finish.

Available Trim Options

ED5000N 9700 x PAC1 Exit Device

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

How to Order

ED5000N 9700 x PAC1 Exit Device

How to Order the Muséo® Piet Lever Collection

Trim Only

Quantity Trim/
Function 		Technology
Code 		Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 21M9733 TCPAC1 293029 625 RHR M802

  • > Muséo® Piet Lever 21M Polished with Satin Insert
  • > 293029 Lever Finish

Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip

  • > 625 Lock Finish
  • > Right hand reverse
  • > Keypad & Magstripe

Exit Device with Trim

Quantity Exit
Device 		Trim/
Function 		Technology
Code 		Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code 		Cylinder
Option 		Door
Thickness 		Optional
Strike 		Door
Width
2 ED5200N 21G9734 TCPAC1 292929 625 LHR M808 6P D200 SB214 W048

Inside:

  • > 292929 Lever Finish
  • > 48" wide door

Outside:

  • › Key Override
  • > 625 Lock Finish
  • > Left hand reverse
  • > 13.56 MHz iCLASS® Proximity reader
  • › 6 pin cylinder
  • > 2-1/4" thick door
  • > Keypad & Magstripe
  • * Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

Features

FE66735 x PAC1 Multi-Point Lock

Multi-Point Lock - FE6600 x PAC1

FE6600 Series lock is a multi-point, deadlocking system developed to help protect lives while securing a community shelter and/or safe room entry. Sturdy heavy-duty steel components firmly secure the door within the frame – at top, bottom, and center latch points – fortifying the opening during a windstorm event. The FE6600 Series is UL-listed for FEMA P3-61 (2015), FEMA P3-20 (2014) and ICC 500 (2014) capable of withstanding severe wind speeds and flying debris. This device consists of concealed vertical rods with top and bottom latching complemented by a mortise lock with a latchbolt and deadbolt at the center of the door and an optional indicator to show the status of the top and bottom latches.

The lever rotation retracts the top bolt, the bottom bolt, and center bolts simultaneously. When retracted, the bolts are held in position as the door swings. As the door closes, the hold-back feature engages the frame and the top, center, and bottom bolts project simultaneously. With the deadbolt thrown, this system protects room occupants from threatening conditions. The FE6600 Series device can be used on fire-rated doors.

Mechanical Features

  • Certified to ANSI/BHMA A156.37 Series 1000 Operational Grade 1 and Security Grade 1
  • Motor driven FE6600 Series Mortise Lock
  • 1-3/4" thick door only; fully integrated FE6600 is part of a complete ASSA ABLOY windstorm solution utilizing Ceco StormPro® 361 and Curries StormPro® 361 doors and frames and McKinney® StormPro® hinges
  • Stainless steel non-handed deadlocking latch n Handed, easily field reversible without disassembling lockbody
  • Lever trim through-bolted for increased security and durability
  • Concealed vertical assembly (rods, latches and cassette) pre-installed in door
  • UL/ULC Listed for fire doors*
  • FCC certified
  • Windstorm certification information is listed in the Corbin Russwin FE6600 Series catalog

*Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

  • All electronics and batteries mounted in inner escutcheon on secure side of door
  • Keycard read upon removal ensuring that keycards are not left in the lock
  • Available without keypad
  • ADA compliant
  • 7 year mechanical warranty; 2 year electrical component warranty

Functions

FE66735 x PAC1 Multi-Point Lock

Outside
Inside 		Series/Function Type Function Description
FE66735
No Key Override
With Deadbolt 		Entry • Deadlocking latch
• Latch and deadbolt retracted by inside lever at all times
• Outside lever rigid except when in "passage"
mode or valid user credential entered
• When deadbolt thrown, outside lever operable only
with certain authorized credentials
FE66736
Key Override
With Deadbolt 		Entry
With Deadbolt 		• Key outside retracts deadbolt. Key outside also retracts latch and
unlocks outside when trim is locked electronically
• Top and bottom rods retracted by lever
• Deadbolt projected and retracted by thumbturn or key

Sold through:

Technical Features

FE66735 x PAC1 Multi-Point Lock

Technical Data

Power Supply: 6 AA alkaline batteries
Voltage (max/min): 9 VDC / 6.0 VDC
Expected Battery Life: 1-3 years based on usage
Card Track: Standard track 3, optional track 1
Card Coercivity HiCo

Monitoring

ML20700 x PAC1 Latchbolt (LX); Dead Bolt (DX)

Features

Operating Modes PIN required: Specify M808; In addition to card, a 4 digit PIN is required
No PIN required: Specify M807; Only card is required
Passage Modes Automatic: The door automatically becomes unlocked during any passage mode
Manual: The door only becomes unlocked after the first card of the day is presented (within a schedule) or might
optionally be configured to require two consecutive swipes to toggle the passage state

Inside/Outside Escutcheons

  • Keys/buttons overmolded to prevent wear
  • Zinc die cast
  • Operating temperature -40°F (-40°C) to 135°F (57°C)
  • LED's indicate valid/invalid entries
  • Escutcheon projection 1-11/16" (43mm)

Quick Codes

FE66735 x PAC1 Multi-Point Lock

Finish

Description Specify
Polished Brass, Clear Coated 605
Satin Brass, Clear Coated 606
Polished Bronze, Clear Coated 611
Satin Bronze, Clear Coated 612
Dark Oxidized Satin Bronze,
Oil Rubbed 		6131
Dark Oxidized Satin Bronze -
Equivalent 		613E
Dark Oxidized Satin Bronze,
Clear Coated 		613L
Polished Nickel 618
Satin Nickel 619
Polished Chrome 625
Satin Chrome 626
Satin Chrome with
MicroShield® 		626C
Bright Stainless Steel 6293
Satin Stainless Steel 6303
Satin Stainless Steel with
MicroShield 		630C
Black Oxidized Bronze,
Oil Rubbed 		7222
Black Suede Powder Coat BSP
White Suede Powder Coat WSP

New, March 2007

Credential Quick Codes

Description Specify
Magstripe Only M807
Keypad & Magstripe M808

Handing

Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR

Miscellaneous Options

Specify
M04
M17
M202
M212
M222
M23
M24
M25

  • 1 Not available with Vineyard™ or Muséo® levers.
  • 2 All levers provided in a powder coat finish will be supplied with an abrasive coating

Formerly 613 prior to March 2007

Escutcheon finished to match 629, 630 finish

Lever Trim Designs

FE66735 x PAC1 Multi-Point Lock

Standard Lever A Rose B Rose F Rose
Armstrong ASA ASB ASF
Newport NSA NSB NSF
Princeton
Citation 		PSA
CSA 		PSB
CSB 		PSF
CSF 		Armstrong Citation Dirke Essex*
Dirke DSA DSB DSF
Essex ESA ESB ESF
Lustra LSA LSB LSF Lustra* Newport* Princeton* Regis
Regis RSA RSB RSF
Vineyard™ G Rose
Frascati FSG
Merlot MSG
Tuscany TSG Frascati Merlot Tuscany Zinfandel
Zinfandel ZSG
Muséo® V Rose U Rose T Rose Y Rose X Rose W Rose
Georgia 102 102V 102U 102T 102Y 102X 102W
103 103V 103U 103T 103Y 103X 103W
104
124 		104V
124V 		104U
124U 		104T
124T 		104Y
124Y 		104X
124X 		104W
124W 		102 103 1042
125 125V 125U 125T 125Y 125X 125W
1241 1251
salvador 106 106V 106U 106T 106Y 106X 106W
107 107V 107U 107T 107Y 107X 107W
108 108V 108U 108T 108Y 108X 108W
109 109V 109U 109T 109Y 109X 109W
110 110V 110U 110T 110Y 110X 110W 106 107 108 1091
123 123V 123U 123T 123Y 123X 123W
128 128V 128U 128T 128Y 128X 128W
129 129V 129U 129T 129Y 129X 129W 110 1231 1281 1291
Marc 111 111V 111U 111T 111Y 111X 111W
112 112V 112U 112T 112Y 112X 112W
114 114V 114U 114T 114Y 114X 114W
115 115V 115U 115T 115Y 115X 115W 1112 1122 1142 1152
116 116V 116U 116T 116Y 116X 116W
130 130V 130U 130T 130Y 130X 130W
131 131V 131U 131T 131Y 131X 131W 1162 1301,2 1311,2 1321,2
132 132V 132U 132T 132Y 132X 132W
pablo 117 117V 117U 117T 117Y 117X 117W
126 126V 126U 126T 126Y 126X 126W
1172 1261,2
Jackson 119
121 		119V
121V 		119U
121U 		119T
121T 		119Y
121Y 		119X
121X 		119W
121W
127 127V 127U 127T 127Y 127X 127W
1192 1212 1271,2
Piet 21L 21LV 21LU 21LT 21LY 21LX 21LW
21M 21MV 21MU 21MT 21MY 21MX 21MW
21S 21SV 21SU 21ST 21SY 21SX 21SW 21L 21M 21S
23M 23MV 23MU 23MT 23MY 23MX 23MW
25M 25MV 25MU 25MT 25MY 25MX 25MW

2. Not available in 32D or 32 finish.

Available Trim Options

FE66735 x PAC1 Multi-Point Lock

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

How to Order

FE66735 x PAC1 Multi-Point Lock

Ordering Examples

Stock Order

Quantity Series/Function Technology Code Trim Finish Hand Credential
Quick Code
24 FE66735 TCPAC1 LWA 626 RHR M808

Split Trim/Finish Order

Quantity Series/
Function 		Technology
Code 		Trim
Outside 		Inside Finish
Outside 		Inside Hand Credential
Quick Code
24 FE66735 TCPAC1 CSA CSA 626 606 RHR M808

Contract/Detailed Order

Quantity Series/Function Technology
Code 		Trim Finish Hand Credential
Quick Code
24 FE66735 TCPAC1 111X 626 RHR M808

Handing

Note: Arrow indicates security side of door.

How to Order

FE66735 x PAC1 Multi-Point Lock

Multi-Point Locks

Function Trim Finish Hand
FE66735 Standard Muséo® Vineyard™ 605 RH
ASA ASB ASF 102V 102U 102T 102Y 102X 102W FSG 606 RHR
NSA NSB NSF 103V 103U 103T 103Y 103X 103W MSG 611 LH
PSA PSB PSF 104V 104U 104T 104Y 104X 104W TSG 612 LHR
CSA CSB CSF 124V 124U 124T 124Y 124X 124W ZSG 613
DSA DSB DSF 125V 125U 125T 125Y 125X 125W 618
ESA ESB ESF 106V 106U 106T 106Y 106X 106W 619
LSA LSB LSF 107V 107U 107T 107Y 107X 107W 625
RSA RSB RSF 108V 108U 108T 108Y 108X 108W 626
109V 109U 109T 109Y 109X 109W 722
110V 110U 110T 110Y 110X 110W 626C
123V 123U 123T 123Y 123X 123W BSP
128V 128U 128T 128Y 128X 128W WSP
129V 129U 129T 129Y 129X 129W
111V 111U 111T 111Y 111X 111W
112V 112U 112T 112Y 112X 112W
114V 114U 114T 114Y 114X 114W
115V 115U 115T 115Y 115X 115W
116V 116U 116T 116Y 116X 116W
130V 130U 130T 130Y 130X 130W
131V 131U 131T 131Y 131X 131W
132V 132U 132T 132Y 132X 132W
117V 117U 117T 117Y 117X 117W
126V 126U 126T 126Y 126X 126W
119V 119U 119T 119Y 119X 119W
121V 121U 121T 121Y 121X 121W
127V 127U 127T 127Y 127X 127W
21LV 21LU 21LT 21LY 21LX 21LW
21MV 21MU 21MT 21MY 21MX 21MW
21SV 21SU 21ST 21SY 21SX 21SW
23MV 23MU 23MT 23MY 23MX 23MW
25MV 25MU 25MT 25MY 25MX 25MW

Available Trim Options

FE66735 x PAC1 Multi-Point Lock

Grooved Insert 21G

Leather Insert 21L

Polished with Satin Insert 21M

Santoprene™ Insert 21S

With Raised Band 23M

Plain 25M

Plain with Two Grooves 27M

Piet Finish Codes

Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
613E 3E Dark Oxidized Satin Bronze, Equivalent
BSP BS Black Suede Powder Coat
WSP WS White Suede Powder Coat
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert

* Code used to specify Piet Collection finishes only. Use available finishes list to specify desired finish when ordering.

Piet Lever Descriptions & Available Finishes

Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 303030, 292929, 293029, 302930, 3E003E, BS00BS
OR WS00WS
21L Leather Insert 30BK30, 30BN30, 29BK29, 29BN29, 3EBK3E,
BSBKBS, WSBKWS, 3EBN3E, BSBNBS OR WSBNWS
21M Metallic Insert 293029**
21S Santoprene Insert 30BK30, 29BK29, 3E003E, BS00BS or WS00WS
23M Raised Band 290030, 290029, 300030, 300029, 3E003E, BS00BS
OR WS00WS
25M Plain 290029, 300030, 3E003E, BS00BS or WS00WS
27M Two Grooves 290029, 300030, 3E003E, BS00BS or WS00WS

** Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.

How to Order

FE66735 x PAC1 Multi-Point Lock

How to Order the Muséo® Piet Lever Collection

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential Quick
Code
2 FE66735 TCPAC1 21MV 293029 625 RHR M808

  • > Muséo® Piet Lever 21M Polished with Satin Insert with V rose
  • > 293029 Lever Finish
  • Polished with satin stainless steel insert (630), polished stainless steel (629) shank and polished stainless steel (629) grip
  • > 625 Lock Finish
  • > Right hand reverse
  • > Keypad & Magstripe

Stock Order

Quantity Series/
Function 		Technology
Code 		Trim Lever
Finish 		Lock
Finish* 		Hand Credential
Quick Code
2 FE66735 TCPAC1 21GU 292929 625 RHR M808

  • > 625 Lock Finish
  • > Right hand reverse
  • › Keypad & Magstripe

* Escutcheons (lock finish) are plated to match polished stainless steel (629) and satin stainless steel (630) finishes.

Quick Code Index

Part No./
Quick Code Description Cylindrical Mortise Exit Device
6P Conventional 6-pin std std •
7P Conventional 7-pin • • •
LC Less Cylinder(s) • • std
HS Security • • •
CHS Security IC • • •
PS Pyramid Security • • •
PCS Pyramid Security IC • • •
PHS Pyramid High Security Fixed Core • • •
PCHS Pyramid High Security IC • • •
CTP Pyramid IC with Temporary Construction Core • • •
CLP Pyramid IC Less Core • • •
C6 IC 6-pin • • •
CT6R IC 6-pin with Temporary Construction Core (Red) • • •
CT6B IC 6-pin with Temporary Construction Core (Blue) • • •
CT6G IC 6-pin with Temporary Construction Core (Green) • • •
CL6 IC 6-pin Less Core • • •
CLS6 SFIC 6-pin with Less Core • •
CT6SD SFIC 6-pin with SFIC disposable temporary core • •
CTSD SFIC 6- or 7-pin Small Format Disposable Core1 •
C7 IC 7-pin • • •
CT7R IC 7-pin with Temporary Construction Core (Red) • • •
CT7B IC 7-pin with Temporary Construction Core (Blue) • • •
CT7G IC 7-pin with Temporary Construction Core (Green) • • •
CL7 IC 7-pin Less Core • • •
CLS7 SFIC 7-pin with Less Core • •
CT7SD SFIC 7-pin with SFIC disposable temporary core • •
CTPD Pyramid Disposable Core • • •
CT6D 6-pin IC with Disposable Core • • •
CT7D 7-pin IC with Disposable Core • • •
0-bitted with 2 Blank Keys std std • (with cylinder)
KR Keyed random • • •
CMK Construction master keyed • • •
VKC0 Visual Key Control (VKC) - No bitting or keyset stamping on keys • • •
VKC1 Visual Key Control (VKC) - Keys only • • •
VKC2 Visual Key Control (VKC) - Cylinders and Keys (not for HS, CHS, PHS, or PCHS) • • •
VKC3 Visual Key Control (VKC) - Cylinders only (not for HS, CHS, PHS, or PCHS) • •
CKC2 Concealed Key Control (CKC) - Cylinders with VKC keys • • •
CKC3 Concealed Key Control (CKC) - Cylinders Only (not for PHS, PCHS) • • •
2 keys per Lock std std std
KY# (e.g. KY6) More than 2 keys • • •
C Lockset furnished in Schlage® C Keyway •
LA Lockset furnished in SARGENT® LA Keyway •

Note: 1. Specify M08 for levers to accept SFIC cores; which ship standard with temporary disposable core • = available

Gaskets

795F439 Outside Escutcheon

Credential Quick Codes

Description Specify
Magstripe Only M807
Keypad & Magstripe M808

Notes

Notes

Sold through:

Notes

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca

MicroShield®

As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.

Microshield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must

still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA
