TERMS & TEAM	2	POWER SUPPLIES	22
ELECTRIFIED MORTISE LOCKS	4	POWER ACCESSORIES	23
ELECTRIFIED CYLINDRICAL LOCKS	10	POWER TRANSFER HINGES	24
ELECTRIFIED EXIT TRIM	13	POWER TRANSFER PIVOTS	30
EXIT DEVICES & KITS	16	DOOR LOOPS	31

PRICES: All list prices are subject to change without prior notice and are not guaranteed. All prices are per unit (each) unless otherwise specified and do not include sales or local taxes. All shipments will be made at prices prevailing at time of shipment.

EXPEDITE FEE: A customer may request that an order be expedited. Expedite fees will be determined based on current production capacity and any overtime required to meet the customer's requested timeline. Fees typically range from 25-50% of the cost of the expedited items. CAT reserves the right to decline expedite requests based on current workload and production capacity. Not all expedite requests can be granted. Please call Customer Service at 888-622-2377 for approval before placing an

PAYMENT TERMS: he standard credit terms of Command Access Technologies (herein called CAT) are 2% 10 days net 30. To qualify for the 2% discount, payment must be received by CAT within 10 days of invoice date. After day 10, the full invoice amount is due. Net 30 means payment must be received at CAT on or before 30 days from the date of the invoice. Interest will be charged at the rate of 2% per month on all past due accounts, calculated from day 31.

ACCEPTANCE OF ORDERS AND/OR QUOTATIONS: Possession of prices from CAT does not commit CAT to accept any order. CAT reserves the right to refuse any order and will not be bound to fulfill any order until it has been accepted by a representative of CAT and confirmed by a written acknowledgement. Quotations are valid for thirty (30) days following the date of the quotation.

OPEN ACCOUNT STATUS: CAT reserves the right to decline or discontinue direct sales to any customer who does not meet an annual minimum sales requirement of $10,000.00 in invoiced purchases. Accounts falling below this minimum may be converted to prepay status or may be directed to purchase through our authorized distribution partners after a 30-day notice period.

ACKNOWLEDGEMENTS: An acknowledgement is an exact copy of a customer's order as entered by CAT and should be verified by the customer. If the acknowledgement does not agree with said customers understanding CAT should be advised within (3) three days or the order will be billed as acknowledged. CAT's sales terms shall apply irrespective of any special stipulation appearing in customer order, unless specifically acknowledged and accepted by CAT.

RETURNED GOODS: The customer must advise customer service at CAT of merchandise to be returned and a Returned Goods Authorization (RGA) will be issued. CAT will not accept goods returned without an RGA. Full credit against further purchases or a replacement will be made at the option of CAT if upon investigation reveals that goods were shipped in error (when reported within 30 days of receipt) or if goods are defective in workmanship or material (when reported within the warranty period). Otherwise, a restocking fee of not less than (25) twenty-five percent will be charged. All merchandise must be PREPAID AND PROPERLY PACKED. All C.O.D. orders shipped to CAT will be refused. Returned goods must be packed in their original boxes. If product has been installed it cannot be returned but only repaired, please consult factory for repair costs (unless under warrantee). No credit will be given for product not

in its original form unless, upon CAT's inspection, product is found to be defective. If product is returned as defective and is found to be operational, product will be returned to customer

(C.O.D.) and no credit will be issued.

MINIMUM CHARGE: No order will be invoiced for less than $25.00 net plus shipping charges.

SPECIAL ORDER: When a special order is accepted, and entered, no change can be made and the order is non-cancellable.

CHANGES OR CANCELLATIONS: When a special order is accepted, and entered, no change can be made, and the order is non-cancellable. Cancellation for items already packed for shipment will be removed if possible. A twenty-five percent (25%) restocking fee will apply.

CLAIMS OR SHORTAGES: No claim for damage, shortage, or loss in transit will be accepted unless notice is given in writing to the carrier and to CAT within (10) ten days of receipt of goods. Documentation of damage, including photographs of damaged product and packaging, must be provided with all claims to expedite processing. CAT reserves the right to request inspection of damaged goods before issuing credit or replacement.

BACK CHARGES: CAT is not responsible for, does not authorize, and will not accept any charges for the cost of labor, travel or material incurred by anyone other than CAT for any installation, repair, service, or replacement unless incurred with CAT's prior written consent and agreement. To obtain authorization for back charges, customers must submit a written estimate detailing all costs before work begins and receive written approval from a CAT representative. Unauthorized back charges will not be honored.

FREIGHT CHARGES: All goods are invoiced F.O.B. CAT, Yorba Linda, California. Freight charges are prepaid and are added to invoice. Consignee pays C.O.D. freight charges when delivered to the Freight Company the shipment becomes the property of the purchaser, who assumes the risk of loss or damage in transit. If invoice exceeds $1,500.00 net, full-service freight by UPS or our choice within the continental U.S.A. (excluding Hawaii, Alaska, Guam & Puerto Rico) is deductible, provided invoice is paid within set terms. Custom fabrications, oversized items (exceeding 48" in any dimension), and hazardous materials do not qualify for freight deduction. Airfreight and other special shipments are not deductible. CAT does not ship to directly to Canada, for all Canadian destinations please contact Connection Network Agencies at 905-823-3002.

PRODUCT CHANGES OR CANCELLATIONS: CAT reserves the right to modify or discontinue any price, product, design, function and finish without prior notice.

LIMITED WARRANTY: Command Access Technologies warrants that its products are free from defects in workmanship and material under normal use and service. Since CAT does not control product usage, CAT makes no representation as to the degree of security conveyed by the use of any product. This warranty does not cover defects or damage which occur from improper maintenance, improper storage, improper installation, shipping and handling, ordinary wear and tear, misuse, abuse, accidents, unauthorized service, work done by others or consequential damages. CAT will not pay for the cost of repair performed other than in accordance with this warranty. CAT can only perform authorized warranty work at the factory. CAT's only liability, in tort or contract, whether under this warranty or otherwise, is limited to providing repair or replacement of any product or component part which is proven to be defective as covered by the warranty, within three (3) years after delivery from CAT to the original purchaser. Written notice of a product or component part believed to be defective, as covered by this warranty, should be sent to Command Access Technologies 22901 La Palma Avenue, Yorba Linda, CA 92887. Include Claimant's name, address, phone, and identification of the product, invoice number and date, and a brief description of the defect. Upon receipt of such notice, a CAT representative will contact claimants to where to ship such product or component part, with shipping charges prepaid, for examination and, in the event such examination reveals a defect covered by this warranty, the product will be repaired (existing product installed 6+ months) or replaced (all new installations of 6 months or less). This warranty is in lieu of all other express warranties. To the extent permitted by law, all implied warranties are limited to the duration or this warranty. CAT shall not be liable for any incident or consequential damages. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary, from state to state.

PRODUCT FINISHES: Although CAT modifies products with the finest protective coatings, they do have their limitations. In time, they might deteriorate from extremes in climate, frequency of use, perspiration, or other factors. CAT does not consider excessive wear or tarnishing of the finish because of any of the above conditions as a defect. It is considered a normal process, which cannot be avoided. Thus, CAT cannot guarantee product finishes and will not repair or replace finishes under this warranty.

COMMAND TEAM ROSTER

Jordan Henderson

CSR Team Member JH@commandaccess.com

Danny Lopez

CSR Team Member DL@commandaccess.com

MANNY CHAvez

CSR Team Member MC@commandaccess.com

Hayli Thurman

CSR Team Member HT@commandaccess.com

John VAN ANDRIGHEM

Tech Support Lead JV@commandaccess.com

Sarah AFARIAN

CSR Manager SA@commandaccess.com

Brian kenley

director of technical services BWK@commandaccess.com

Jerrad Freymuth

Director of Sales JF@commandaccess.com

Mateo Kristoff

VP Sales & Marketing MK@commandaccess.com

World Headquarters: 22901 La Palma Ave., Yorba Linda CA 92887

East Coast Warehouse: 106 Spring Lake Drive, New Britain, PA 18901

What always here to help means...

• • We answer the phone with a live voice, Monday thru Friday 7:30AM 4:00PM PST
• • Our customer service department strives to deliver excellent customer satisfaction
• • Our live chat is operated by our customer service team making it easy to get a hold of us, especially if you like to multi-task
• • OuR lead times are 5-10 days for cataloged items. If we can ship sooner, we will sure try!
• • If we make a mistake, we are committed to making it right
• • Our website is user friendly and expanding daily with information & demonstration videos
• • We have competent, reachable technical support everyday during business hours
• • Anyone who needs our support gets it
• • We are willing to train on site, at your customers or via webinar
• • We take good mechanical products & make them better electromechanical products
• • We will ship replacement products as soon as possible, usually within the next business day
• • We strive to acknowledge your order within 24 hours
• • All of our documents, including acknowledgments, invoices, statements, and RMA's will be emailed

COMMAND ACCESS KNOWLEDGE BASE

• • Your First Stop for Tech Support A library of easy-to-follow videos to help you solve common technical issues on your own.
• • 24/7 Access to Solutions Get help anytime, anywhere without needing to call in.
• • Step-by-Step Video Guides Watch our technicians walk you through installs, troubleshooting, and repairs.
• • Save Time on Support Calls Most problems can be fixed with just a few clicks and a quick video.
• • Searchable Video Library Find the exact solution you need by product, issue, or keyword.
• • Constantly Updated New videos added regularly to keep up with product updates and common questions.

ELECTRIFIED MORTISE LOCKS

FOR MODIFICATION, CHASSIS ONLY AND COMPLETE LOCKS FOR AND COMPLETE LOCKS ONLY

PREFIX or SUFFIX

MD - Modification - Prefix CH - Chassis Only - Suffix

MODEL + FUNCTION

Select a model number and add EL (Fail Safe) - Electronically Locked EU (Fail Secure) - Electronically Unlocked

VOLTAGE

12 or 24 Volts must be specified Motorized = Universal Input 11-30V

OPTIONAL SWITCHES

REX – Request-to-Exit

DPS – Door Position Switch

LBM – Latchbolt Monitor

M-OPTION FOR MORTISE LOCK

For Command Access & Schlage model #s only.

• Intelligent auto voltage sensing 11-30 VDC
• Extremely low holding current = motorized
• Field selectable EU/EL with press of a button

TRIM

– Tubular – Bent

– Straight

FINISH (BHMA std)

613 – Oil Rubbed Bronze 625 – Polished Chrome 626 – Satin Chrome

SPECIAL ORDER

605 – Polished Bronze 606 – Satin Brass 612 – Satin Bronze 630 – Satin Stainless

KEYWAY

S – "C" Kwy Standard LC – Less Cylinder SFIC – Small Format I/C Prep LFIC – Factory Large Format I/C Prep

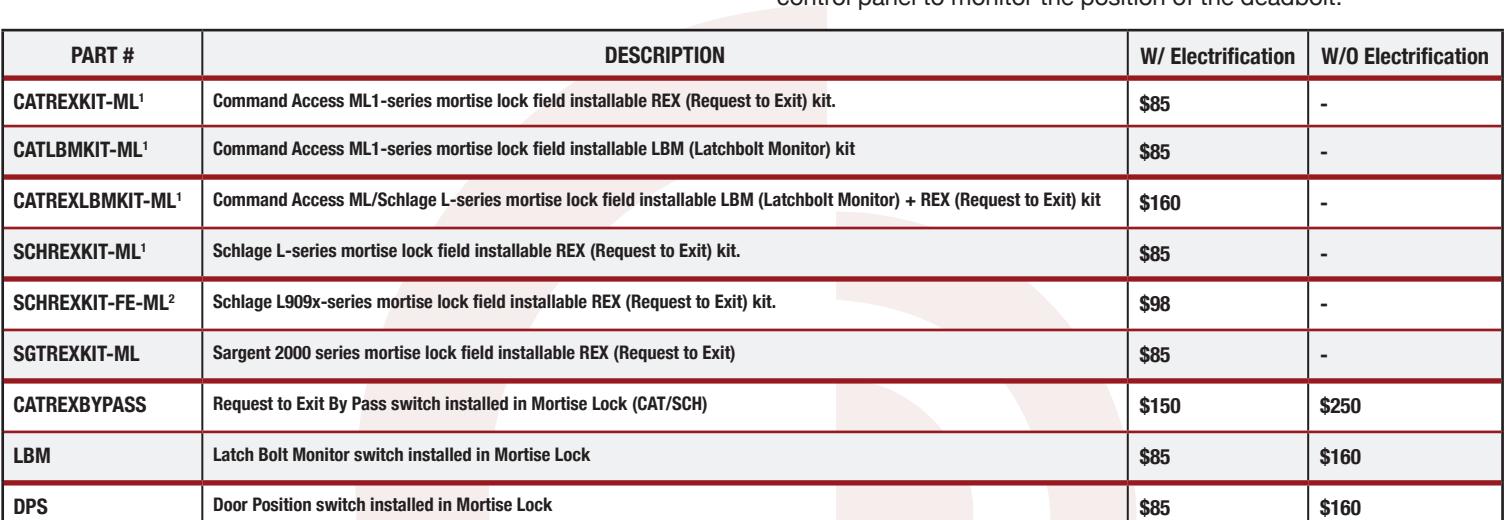

DBM – Deadbolt Monitor ACCESSORIES

Faceplates – Storeroom function in specified finishes

Strikes – 4-7/8" ASA Strike in specified finishes

CRU2 – Current Reduction Unit (AC & DC input)

4 Lead – 4' Wire Lead to switches

10 Lead - 10' Wire lead to switches

QC – Molex Connectors

BR1 - Bridge Rectifier w/ 12" lead (included) BR5 - Bridge Rectifier w/ 5' lead

EXAMPLES

MODIFICATION ONLY

	PREFIX	MODEL	FUNCTION	SUFFIX	VOLTAGE	FINISH	KEYWAY	OPTIONS	ACC	COMPLETE PART #
Part #	MD	ML80	EL	-	12V	-	-	REX	CRU2	MDML80 EL 12V REX CRU2
List $	-	$165	-	-	-	-	-	$85	$41	$291

CHASSIS ONLY

	PREFIX	MODEL	FUNCTION	SUFFIX	VOLTAGE	FINISH	KEYWAY	OPTIONS	ACC
Part #	-	ML19092	EU	CH	-	-	-	REX LBM	-
List $	-	$456	-	-	-	-	-	$160

COMPLETE PART #
ML19092 EU CH REX LBM
$616

COMPLETE LOCK

	PREFIX	MODEL	FUNCTION	SUFFIX	VOLTAGE	FINISH	KEYWAY	OPTIONS	ACC	COMPLETE PART #
Part #	-	ML1485	EU	L3B	24V	626	S	REX	QC	ML1485 EU L3B 24V 626 S REX QC
List $	-	$815	-	+$18	-	-	-	$85	$29	$947

COM	MAND A	CCE	SS					MPLET								Cabla	a.a. a.a.	oo atilal	ا ما ما	ulm ar
ML1	SERIES	E LOCK	ONLY	S).		/onage I n-sto c		d Hand 1				re/Fa NISHE			KEYW				e nous /ITCHES
S	DLENOID LOCKS PART #	COMPLET LIST $	CHASSIS ONLY LIST $	ـ	Ĺ	4	4	B ROSE	ŀ	626	625	613	LC	sc	SFIC	LFIC	REX	LBM	or $ = # = = Not # DPS
	ML170EU/EL	$710	$350	L3	L6	L7	L17	+$18	+55	✓	✓	✓	-	✓	+$76	+$38	+$85	+$85	-	-
	ML180EU/EL	$710	$350	L3	L6	L7	L17	+$18	+55	✓	✓	✓	-	✓	+$76	+$38	+$85	+$85	+$85	-
	ML182EU/EL	$740	$360	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$76	+$38	+$85	+$85	+$85	-
	ML1480EU/EL	$762	$392	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$76	+$38	+$85	+$85	-	+$85
	ML1482EU/EL	$793	$403	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$76	+$38	+$85	+$85	-	+$85
	ML1485EU	$815	$445	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$76	+$38	+$85	+$85	-	+$85
MOTOR DRIVEN	MOTORIZED LOCKS																		•
DRIVEN	ML19092-M	$816	$456	L3	L6	L7	L17	+$18	+55	✓	✓	✓	-	✓	+$76	+$38	+$85	+$85	+$85	-
	ML19095-M	$846	$466	L3	L6	L7	L17	+$18	+55	✓	✓	✓	-	✓	+$152	+$76	+$85	+$85	+$85	-
	Mechanical Locks	6
	ML1010	$524	$196	L3	L6	L7	L17	+$18	+55	✓	✓	✓	-	✓	+$76	+$38	+160	+160	+$160	-
	ML1040	$578	$208	L3	L6	L7	L17	+$18	+55	✓	✓	✓	-	✓	+$76	+$38	+160	+160	-
	ML1053	$597	$227	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$76	+$38	+160	+160	-	+$160
	ML1050/70	$557	$215	L3	L6	L7	L17	+$18	+55	✓	✓	✓	-	✓	+$76	+$38	+160	+160	+$160	-
	ML1080	$557	$215	L3	L6	L7	L17	+$18	+55	1	✓	✓	-	✓	+$76	+$38	+160	+160	+$160	-
	ML1082	$572	$220	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$152	+$76	+160	+160	+$160	-
	ML182 KIT	-	$42	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

COMMAND ACCESS ML1 STRIKE LOCK

COMMAND ACCESS COMPLETE LOCK RETROFIT SCHLAGE L9000

11-30V. Field Hand-able. Fail Secure/Fail Safe. LFIC = Schlage compatible housing

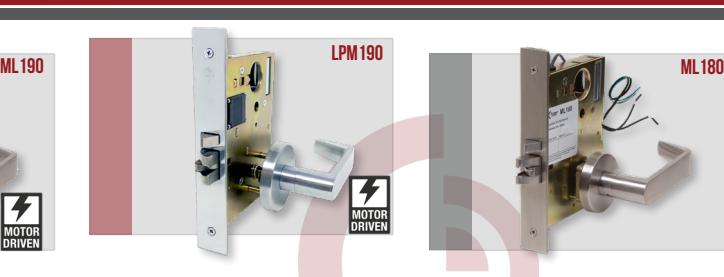

MOTORIZED LOCKS

-	-	-

ELECTRIFIED LATCH PULLBACK

The LPM190X series is a motorized latch retraction mortise lockset that is compatible with Schlage trim and prep. Latch retraction makes it an ideal lock for pairing with auto-operators, double doors, push/pull conditions & single occupancy restroom applications. Available with lever control solenoid for latch retraction x lever control allowing for multiple specialty functions.

• Motorized Latch Retraction
• Retrofits to Schlage L9000 series
• Grade 1 UL listed
• · Available with REX, LBM, & DPS
• Input voltage 24VDC
• Current Peak 1A
• Holding current 300mA
• Lever control EU/EL field changeable

	LOCK	≥
	뷬	SIS ONLY			In-st	оск Тғ	RIM		In-st	оск	Finisi	HES	K	EYWAY	0	PTIONAL	Switc	CHES
PART #	COMPLETE List $	CHASS LIST $	4	4	4	4	B ROSE	ŀ	626	625	613	LC	sc	SFIC	LFIC	REX	LBM	DPS
LPM1910 1	$1033	$700	L3	L6	L7	L17	+$18	+$55	✓	✓	✓	-	✓	+$66	+$28	+$80	+$80	_2
LPM1901	$1054	$700	L3	L6	L7	L17	+$18	+$55	✓	✓	✓	-	✓	+$66	+$28	+$80	+$80	_2
LPM192 1	$1092	$723	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$66	+$28	+$80	+$80	_2
LPM1931	$1219	$865	L3	L6	L7	L17	+$18	+$55	✓	✓	✓	-	✓	+$66	+$28	+$80	+$80	_2
LPM194 1	$1219	$865	L3	L6	L7	L17	+$18	+$55	✓	✓	✓	-	✓	+$66	+$28	+$80	+$80	_2
LPM195 1	$1234	$865	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$66	+$28	+$80	+$80	_2
LPM196 1	$1234	$865	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$66	+$28	+$80	+$80	_2
LPM197 1	$1234	$865	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$66	+$56	+$80	+$80	_2
LPM1981	$1234	$865	L3	L6	L7	L17	+$18	-	✓	✓	✓	-	✓	+$66	+$56	+$80	+$80	_2

LPM180 Solenoid Series - Limited Availabilty - Call for Pricing See IDPS Series for Door Postion option

COMMAND ACCESS

RETROFIT CHASSIS ONLY

MRC1 Series

Specify Voltage, Fail Safe (EL) or Fail Secure (EU) and Handing. Includes 626 faceplate & strike (other finishes available upon request at an upcharge $60).

$\backslash sqrt\{\backslash text\{\; or\; \}\}$ = Available = Not Available

	PART #	LIST $	626	LC	SC	SFIC	LFIC	REX	LBM	DPS	DBM
BEST 35 SERIES	MRC135D EU/EL	$476	✓	-	-	✓	-	+$85	+$85	+$85	-
	MRC135W EU/EL	$504	✓	-	-	✓	-	+$85	+$85	+$85	-
CAL ROYAL 8800 SERIES	MRC18080 EU/EL	$476	✓	✓	+$34	+$76	+$38	+$85	+$85	+$85	-
	MRC18082 EU/EL	$504	✓	✓	+$34	+$152	+$76	+$85	+$85	+$85	-
CORBIN RUSSWIN 2000 SERIES	MRC105/03 EU/EL	$476	✓	✓	+$34	+$76	+$38	+$85	+$85	+$85	-
	MRC104/01 EU/EL	$504	✓	✓	+$34	+$152	+$76	+$85	+$85	+$85	-
FALCON MA Series	MRC181/51 EU/EL	$476	✓	✓	+$34	+$76	+$38	+$85	+$85	+$85	-
	MRC121/11 EU/EL	$504	✓	✓	+$34	+$152	+$76	+$85	+$85	+$85	-
	MRC1681/51 EU/EL	$504	✓	✓	+$34	+$76	+$38	+$85	+$85	-	+$85
SARGENT 8200 SERIES	MRC1370/71 EU/EL	$476	✓	✓	+$34	+$76	+$38	+$85	+$85	+$85	-
	MRC1373/11 EU/EL	$504	✓	✓	+$34	+$152	+$76	+$85	+$85	+$85	-

ELECTRIFIED MORTISE LOCKS

or $ = Available - = Not Available

BEST 45

MODIFICATION (Customer's Best 45HD, 45HAB & 45HUNAB Chassis) / CHASSIS ONLY / COMPLETE LOCK Specify Voltage, Fail Safe (EL) or Fail Secure (EU) and Handing. Special order trims and finishes available. Faceplates &

		Strikes available in 626
FUNCTION	PART #	COM $	CH $	MD $						626	625	613	LC	SC	SFIC	LFIC	REX	LBM	DPS	DBM
STOREROOM	ML45DEU/EL	-	$609	$159	3H	15H	-	14H	M*	✔	✔	✔	✔	-	+$76	-	+$85	+$85	+$85	-
INSTITUTIONAL	ML45WEU/EL	-	$609	$175	3H	15H	-	14H	-	✔	✔	✔	✔	-	+$152	-	+$85	+$85	+$85	-
ENTRANCE W/DB	ML453DEU/EL	-	$785	$175	3H	15H	-	14H	-	✔	✔	✔	✔	-	+$76	-	-	-	-	-

CAL ROYAL

MODIFICATION (Customer's Cal-Royal M8080 & M8453 Chassis) / COMPLETE LOCK Specify Voltage, Fail Safe (EL) or Fail Secure (EU) and Handing+.

FUNCTION	PART #	COM $	CH $	MD $						626	625	613	LC	SC	SFIC	LFIC	REX	LBM	DPS	DBM
STOREROOM	ML8080EU/EL	-	-	$159	TS	SS	GS	JS	-	✔	✔	✔	-	✔	+$76	+$28	+$85	+$85	-	-
ENTRANCE W/DB	ML8053EU/EL	-	-	$199	TS	SS	GS	JS	-	✔	✔	✔	-	✔	+$76	+$28	+$85	+$85	-	-

CORBIN RUSSWIN

MODIFICATION (Customer's Corbin ML2057 Chassis)

Specify Voltage, Fail Safe (EL) or Fail Secure (EU). Faceplates & Strikes available in 613, 625, 626 (see page 9 for pricing)

FUNCTION	PART #	COM $	CH $	MD $						626	625	613	LC	SC	SFIC	LFIC	REX	LBM	DPS	DBM
STOREROOM	ML05EU/03EL	-	$762	$157	-	-	-	-	-	✔	CALL	CALL	✔	✔	+$76	+$38	+$85	+$85	+$85	-
INSTITUTIONAL	ML04EU/01EL	-	$781	$175	-	-	-	-	-	✔	CALL	CALL	✔	✔	+$152	+$76	+$85	+$85	+$85	-

FALCON MODIFICATION (Customer's Falcon MA 561/31 Chassis)

Specify Voltage, Fail Safe (EL) or Fail Secure (EU). Faceplates & Strikes available in 613, 625, 626 (see page 9 for pricing)

STOREROOM	ML81EU/51EL	-	-	$157	- - - - - - - - - - - -	+$85	+$85	-	-
INSTITUTIONAL	ML21EU/11EL	-	-	$175	Se e MRC 1 Se f o r C On r i e s h a ss i s ly - - - - - - - - - - - -	+$85	+$85	-	-
ENTRANCE W/DB	ML681EU/EL	-	-	$175	- - - - - - - - - - - -	+$85	+$85	-	-

^1. Not available on deadbolt models

^2. Call for availability of deadbolt trims.

( ) ELECTRIFIED MORTISE LOCKS

	LI	IST$			Stock	c Trim S	ityles	Stock	c Finish	ies		Key	way		10	otional	Switch	ies
PART #	COMPLETE LOCK List $	CHASSIS ONLY List $	MODIFICATION ONLY List $	G	4	4	4	929	625	613	S	97	SFIC (less core)	LFIC ((less core)	Request to Exit (REX)	Latchbolt Monitor (LBM)	Door Position (DPS)	Deadbolt Monitor

√ or $ = Available = Not Available

MODIFICATION (Customer's Sargent 8237 Chassis) / CHASSIS ONLY

Specify Voltage, Fail Safe (EL) or Fail Secure (EU). Faceplates & Strikes available in 613, 625, 626 (see page 9 for pricing). Fire link is removed for LBM.

STOREROOM	ML371EU/70EL	-	$930	$157	-	-	-	-	-	✓	-	✓	✓	✓	+$76	+$38	+$85	+$85	-	-
INSTITUTIONAL	ML373EU/11EL	-	$949	$175	-	-	-	-	-	✓	-	✓	✓	✓	+152	+$76	+$85	+$85	-	-

SCHLAGE

SARGENT

MODIFICATION (Customer's Schlage L9050/9070 & L9453 Chassis) / CHASSIS ONLY / COMPLETE LOCK Specify Voltage. Faceplates & Strikes available in 613, 625, & 626. Call Factory for other finishes

FUNCTION	PART #	COM $	CH $	MD $	G	4	4	4		626	625	613	LC	SC	SFIC	LFIC	REX	LBM	DPS	DBM
CLASSROOM	ML70EU/EL	$1698	$627	$171	03	06	Call	17	Call	✓	✓	✓	\	✓	+$76	+$38	+$85	+$85	-	-
STOREROOM	ML80EU/EL	$1585	$594	$165	03	06	Call	17	Call	✓	✓	✓	✓	✓	+$76	+$38	+$85	+$85	+$85	+$85
INSTITUTIONAL	ML82EU/EL	$1657	$605	$175	03	06	Call	17	Call	✓	✓	✓	✓	✓	+152	+$76	+$85	+$85	+$85	+$85
ENTRANCE W/DB	ML480EU/EL	$1698	$694	$227	03	06	Call	17	Call	✓	✓	✓	✓	✓	+$76	+$38	+$85	+$85	-	+$85
INSTITUTIONAL W/DB	ML482EU/EL	$1758	$706	$237	03	06	Call	17	Call	✓	✓	✓	✓	✓	+152	+$76	+$85	+$85	-	+$85
PRIVACY w/DB	ML485EU	$1743	$739	$258	03	06	Call	17	Call	✓	✓	✓	✓	✓	+$76	+$38	+$85	+$85	-	+$85

Motorized Locks 11-30V, Field Selectable Fail Secure/Fail Safe. Field Hand-able. LFIC = Schlage compatible housing

							- 1	(
-FUNCTION	PART #	COM $	CH $	MD $	4_	4	4	4		626	625	613	LC	SC	SFIC -	LFIC	- REX	LBM	DPS-	DBM
STOREROOM	ML92-M EU/EL	$1697	$706	$278	03	06	07	17	L/N	✓	✓	✓	✓	✓	+$76	+$38	+$85	+$85	-	-
INSTITUTIONAL	ML95-M EU/EL	$1769	$717	$288	03	06	07	17	L/N	✓	✓	✓	✓	✓	+152	+$76	+$85	+$85	-	-

YALE MODIFICATION (Customer's Yale 8808 Chassis) / CHASSIS ONLY

Specify Voltage, Fail Safe (EL) or Fail Secure (EU) and Handing. Faceplates (List $57) & Strikes available in 626 (see page 9 for pricing). Fire link is removed for LBM.

'	IIIK IS TEITIOVE	u ioi Lbi	VI.				- 1
FUNCTION	PART #	COM $	CH $	MD $	4	4	4	4		626	625	613	LC	SC	SFIC	LFIC	REX	LBM	DPS	DBM
STOREROOM	ML91EU/90EL	-	$784	$165	-	-	-	-	CALL	✓	-	-	✓	✓	+$76	+$38	+$85	+$85	-	-
INSTITUTIONAL	ML95EU/94EL	-	$823	$182	-	-	-	-	CALL	✓	-	-	✓	✓	+152	+$76	+$85	+$85	-	[ - ]

ACCESSORIES

MORTISE LOCK SWITCH OPTIONS

REX - Request to Exit or AE switch available - sends a signal to alert the control panel that the door is about to be opened by someone intending to exit from within the secured area.

LBM - Latchbolt Monitor switch available - sends a signal to the control panel to monitor the position of the latchbolt.

DBM - Deadbolt Monitor switch available - sends a signal to the control panel to monitor the position of the deadbolt.

DBM Deadbolt Monitor switch installed in Mortise Lock $85 $150 REX Deadbolt Monitor $85 $160

ACCESSORIES & REPLACEMENT FOR MORTISE LOCKS

FACEPLATE	Storeroom or Deadbolt function in specified finishes.	$46
STRIKE	4-7/8" ASA Strike in specified finishes	$46
Lead Lining	Add Lead Lining to CAT or Schlage Mortise Lock	$500
I/O Mouting Plate	Inside Only Mounting Plate for CAT/Schlage trim for less outside trim applications.	$85
CRU	Current Reduction Unit	$41
4' LEAD	Add 4' lead to any switch (per switch)	$38
BR1	Bridge Rectifier w/ 12" Lead	$19
BR5	Bridge Rectifier w/ 5' Lead	$31
QC/CON	8-pin or 12-pin Molex Connectors added to locking device retrofit ElectroLynx or Allegion Connect	$29
QC/CON w/ Lead 3-5'	8-pin or 12-pin Molex Connectors w/3-5' lead added to locking device retrofit ElectroLynx or Allegion Connect	$49
QC/CON w/ Lead 10-20'	8/12-pin Molex Connectors w/ 10-20' lead added to connect a power supply directly to to QC prepped power transfer hinge	$110
Door Cord QC/CON	3-5' Door Cord to connect a QC prepped locking device to the power transfer hinge	$90
SOL-ML	Mortise Lock Replacement Solenoids (Specify brand, EU or EL & Voltage	$90

^1. Requires the lock body to be opened for installation.

^2. Only compatible with new Schlage L909x Lock Body with Cutout for REX.

( ) ELECTRIFIED CYLINDRICAL LOCK

FOR MODIFICATION AND COMPLETE LOCKS

PREFIX

MD - Modification

MODEL + FUNCTION

Select a model number and add EL (Fail Safe) - Electronically Locked EU (Fail Secure) - Electronically Unlocked

VOLTAGE

12 or 24 Volts must be specified Motorized = Universal Input 11-30V LE = Universal Input 11-30V

OPTIONAL SWITCHES

REX - Request-to-Exit

FOR COMPLETE LOCKS ONLY

TRIM – Tubular

- Straight - Curved

FINISH (BHMA std)

605 - Polished Bronze 625 - Polished Chrome 613 - Oil Rubbed Bronze 626 - Satin Chrome

SPECIAL ORDER 606 - Satin Brass

■ Bent

612 - Satin Bronze

KEYWAY

SC - "C" Kwy Standard SFIC - Small Format I/C Prep LC - Less Cylinder LFIC - Factory Large Format I/C Prep

ACCESSORIES

Strikes - 4-7/8" ASA Strike in specified finishes

CRU2 - Current Reduction Unit (AC & DC input)

4 Lead - 4' Wire Lead to switches

10 Lead - 10' Wire lead to switches

QC - Molex Connectors

BR1 - Bridge Rectifier w/ 12" lead (included)

BR5 - Bridge Rectifier w/5' lead

EXAMPLES

MODIFICATION ONLY

	PREFIX	MODEL	FUNCTION	SUFFIX	VOLTAGE	FINISH	KEYWAY	OPTIONS	ACC		COMPLETE PART #
Part #	MD	CL93D	EL	-	12V	-	-	-	CRU2	-	MDCL93D EL 12V CRI
List $	-	$147	-	-	-	-	-	-	$41	-	$188

COMPLETE LOCK

	JOIVII LL I	L LOOK								_
	PREFIX	MODEL	FUNCTION	SUFFIX	VOLTAGE	FINISH	KEYWAY	OPTIONS	ACC		COMPLETE I
Part #	-	CL180	EU	L6	24V	626	SFIC	REX	-	—	CL180 EU L6 24V 6
List $	-	$364	-	-	-	-	-	$85	-	-	$449

ELECTRIFIED CYLINDRICAL LOCK

COMMAND ACCESS CL1 COMPLETE LOCK Specify Voltage. Typically Stocked Finishes - 605*, 612*, 613, 625, 626. 2-3/8" backset List $35

-
	FUNCTION	PART #	COM $	4	4	4	4	626	625	613	LC	SC	SFIC	LFIC 2	REX	$\backslash sqrt\{\backslash text\{\; or\; \}\}$ = Available
	STOREROOM	CL180EU/EL	$364	-	L6	L7 3	L17	✓	✓	✓	-	✓	✓	✓	+$85	= = Not Available
	LE STOREROOM 1	CL180-LE EU/EL	$454	-	L6	L7*	L17	✓	✓	✓	-	✓	✓	✓	✓

• 1. Universal input 11-30V
• 2. Available in L6 626 only

• 3. Limited availability, please call to confirm stock.
• *2-3/8" backset available list $35

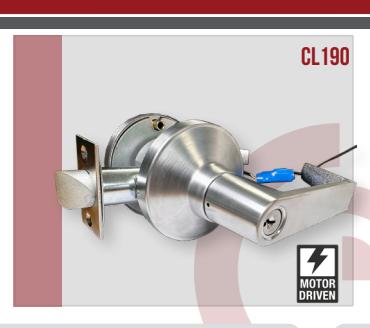

COMMAND ACCESS CL1-HD COMPLETE LOCK

Automatically senses 12v or 24v, Typically Stocked Finishes - 605*, 612*, 613, 625, 626. 2-3/8" backset List $35

MOTOR DRIVEN	FUNCTION	PART #	COM $	4	4	4	4	626	625	613	LC	SC	SFIC	LFIC 2	REX	√ or $ = Available = = Not Available
MOTORI	ZED STOREROOM	CL190HD-M EU/EL	$590	-	L6	L7 3	L17	✓	✓	✓	-	✓	✓	✓	+$85

PATENT PENDING

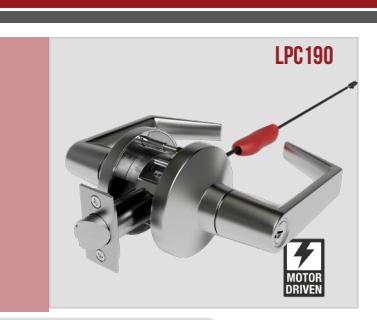

LPC 190-HD SERIES

The LPC190-HD is a motorized latch retraction cylindrical lockset that is compatible with the standard 161 prep. The 1st of its kind latch retraction cylindrical makes it an ideal lock for pairing with auto-operators, double doors, push/pull conditions & single occupancy restroom applications.

• Motorized Latch Retraction
• Input voltage range 24VDC
• Surge current 550mA
• Holding current- 15mA

• UL listed HD Grade 1 lockset
• EU Fail Secure Only
• · Request to Exit switch optional

COMPLETE LOCK COMMAND ACCESS LPC1-HD

1st of its kind motorized latch retraction in a cylindrical lock, 24v, Typically Stocked Finishes, backset List $35 PATENT PENDING FUNCTION PART # COM S LFIC² $\backslash sqrt\{\backslash text\{\; or\; \}\}$ = Available 626 625 613 LC SFIC REX = = Not Available STOREROOM LPC190-HD EU $800 L6 L7 ³ L17 +$8 PASSAGE LPC110-HD EU $800 L7* L17 L6

How to Order

CATEGORY	SERIES	FUNCTION	LEVER	VOLTAGE	FINISH	BRACKSET	STRIKE	CYLIDNER	OPTIONS
LPC	110	EU	L6	24VDC	612	2-3/4"- Standard	ASA- STANDARD	Р	REX- REQUEST TO EXIT SWITCH
	190		L7		613	2-3/8"	FL- FULL UP	LC	QC/CON/BC - MOLEX CONNECTORS - SPECIFY BRAND
		J	L17	-	622		T-	SFIC	SF - SPLIT FINISH
				J	625		"T" STRIKE	LFIC - SCHLAGE NOTE: AVAILABLE IN LG LEVER ONLY	AM - Antimicrobial coating
					626	1

ELECTRIFIED CYLINDRICAL LOCK

MODIFICATION (Customer's Best 93K Series) / COMPLETE LOCK BEST
Specify Voltage. Typically Stocked Finishes - 626. C & D Roses Available	or $ = Available - = Not Available
MD $ FUNCTION PART # COM $ 626	625 613 LC SC SFIC LFIC REX
✔ STOREROOM CL93D EU/EL $849 $147 - 15 - 14	✔ ✔ ✔ - - - +$85
CAL ROYAL MODIFICATION (Customer's Cal Royal CGN05) / COMPLETE LOCK Specify Voltage. Typically Stocked Finishes - 613, 625, 626.
MD $ FUNCTION PART # COM $ 626	625 613 L SC SFIC LFIC REX
✔ STOREROOM CLUTCH CLCR05 EU/EL - $139 - - - -	✔ ✔ ✔ ✔ ✔ ✔ +$85
CORBIN RUSSWIN MODIFICATION (Customer's Corbin CL3357) / COMPLETE LOCK Specify Voltage. Typically Stocked Finishes - 613, 625, 626.
FUNCTION PART # COM $ MD $ 626	625 613 LC SC SFIC LFIC REX
✔ STOREROOM CL05 EU $997 $167 - NZD - PZD	✔ ✔ ✔ - - - +$85
✔ STOREROOM CL03 EL $997 $167 - NZD - PZD	✔ ✔ ✔ - - - +$85
LSDA MODIFICATION ONLY (Customer's LSDA C5400 Grade One Lock) Specify Voltage.
FUNCTION PART # MD $ 626 COM $ STOREROOM CLUTCH CLC5400 EU/EL - $231 - - - - -	LC 625 613 SC SFIC LFIC REX - - - - - - +$85
MARKS MODIFICATION ONLY (Customer's Marks 195F) Specify Voltage.
MD $ FUNCTION PART # COM $ 626	625 613 LC SC SFIC LFIC REX
STOREROOM CLF95 EU/EL - $173 - - - - - SARGENT MODIFICATION (Customer's Sargent 10G04) / COMPLETE LOCK Specify Voltage. Typically Stocked Finishes - 613, 625, 626. Call for availability.	- - - - - - +$85
FUNCTION PART # COM $ MD $ 626 ✔ ✔ ✔ STOREROOM CL371 EU - - $997 $167	625 613 LC SC SFIC LFIC REX ✔ ✔ ✔ - - - +$85

SCHLAGE

MODIFICATION (Customer's Schlage ND12PD, ND70PD, ND80PD, ND94PD, ND96PD) / COMPLETE LOCK

or $ = Available - = Not Available

Specify Voltage. Typically Stocked Finishes - 613, 625, 626. Classic 'C' type keyway comes standard.

FUNCTION	PART #	COM $	MD $					626	625	613	LC	SC	SFIC/BD LFIC/JD		REX
CLASSROOM	CLN70 EU/EL	$1042	$127	-	RHO	ATH*	SPA	✔	✔	+$33	-$12	✔	+$22	✔	+$85
STOREROOM	CLN80 EU/EL	$1042	$127	-	RHO	ATH*	SPA	✔	✔	+$33	-$12	✔	+$22	✔	+$85
STOREROOM CLUTCH	CLN96 EU/EL	$1064	$135	-	RHO	ATH*	SPA	✔	✔	+$33	-$12	✔	+$22	✔	+$85
STOREROOM	CLN80-M	CALL	CALL	-	RHO CO	ATH	SPA MING SOON	✔	✔	$33	-$12	✔	-	-	-

Add $35 list for Schlage original C & Everest C123. Add $15 list for Control key..

Add $70 List net for RD & TD

*Athens Handle Style Only Available in PD - 626

MODIFICATION (Customer's Schlage ALX) / COMPLETE LOCK

Specify Voltage. Typically Stocked Finishes - 613, 625, 626. Classic 'C' type keyway comes standard.

FUNCTION	PART #	COM $	MD $					626	625	613	LC	SC	SFIC/BD LFIC/JD		REX
STOREROOM	CLX80-M	CALL	CALL	-	CO RHO	ATH*	MING SOON SPA	✔	✔	+$33	-$12	✔	-	-	-

Add $35 list for Schlage original C & Everest C123. Add $15 list for Control key.. Add $70 List net for RD & TD

*Athens Handle Style Only Available in PD - 626

ACCESSORIES & REPLACEMENT FOR CYLINDIRCAL LOCKS

CATREXKIT-CL	REX (Request to Exit) installed on CAT CL1 spring cage field installable) kit.	$98
SCHREXKIT-CL	Schlage ND series Anti-Rotation Plate with Request to Exit (REX) switch installed	$98
REX	Request to Exit (REX) switch installed installed on cylindrical lock	$85

ACCESSORIES & REPLACEMENT FOR CLYLINDRICAL LOCKS

STRIKE	Standard ASA Strike in specified finishes	$44
CRU	Current Reduction Unit	$41
4' LEAD	Add 4' lead to any switch (per switch)	$38
BR1	Bridge Rectifier w/ 12" Lead	$19
BR5	Bridge Rectifier w/ 5' Lead	$32
QC/CON	8-pin or 12-pin Molex Connectors added to locking device retrofit ElectroLynx or Allegion Connect	$30
QC/CON w/ Lead 3-5'	8-pin or 12-pin Molex Connectors w/3-5' lead added to locking device retrofit ElectroLynx or Allegion Connect	$49
QC/CON w/ Lead 10-20'	8/12-pin Molex Connectors w/ 10-20' lead added to connect a power supply directly to to QC prepped power transfer hinge	$110
Door Cord QC/CON	3-5' Door Cord to connect a QC prepped locking device to the power transfer hinge	$90
SOL-CL	Cylindrical Lock Replacement Solenoids (Specify brand, EU or EL & Voltage) Factory replacement only	$90

Allegion Connect® is a registered trademark of Allegion

ElectroLynx® is a registered trademark of Assa Abloy

Micro-Fit 3.0™ Interconnect System available to retrofit common quick connection systems such

Lawrence, LSDA, Marks, Marshal-Best, Molex, Omnia, PBB, PDQ, or any of their subsidiaries or affiliates.

PACKAGES

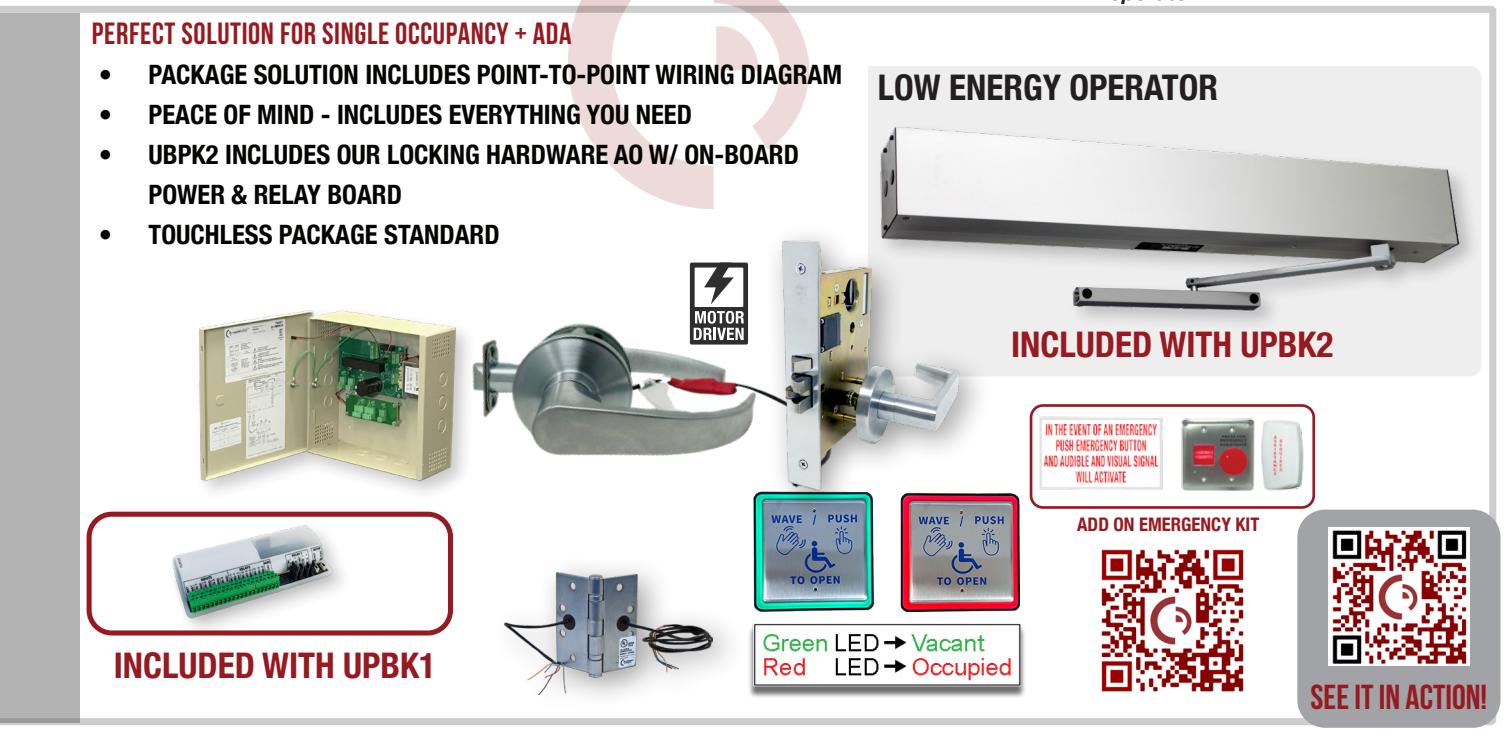

UBPK1 UBPK2 COMMAND ACCESS UNIVERSAL BATHROOM PRIVACY KIT

Includes everything needed for a single occupancy restroom ADA accessible & secure insuring privacy. All you need to add is low energy operator of choice.

Includes everything needed for a single occupancy restroom ADA accessible & secure insuring privacy. Includes heavy duty low energy operator .

UBPK1-FM-EUxEL	Includes: PS220B, LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EL), Logic Module, Illuminated Out side/Inside (Push to Open & Push to Lock) IDPS door contact, power transfer hinge, Flush mounted push buttons.	$2600
UBPK1-FM-EUxEU	Includes: PS220B, LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EU), Logic Module, Illuminated Out side/Inside (Push to Open & Push to Lock), IDPS door contact, power transfer hinge, Flush mounted push buttons.	$2600
UBPK1-SM-EUxEL	Includes: PS220B, LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EL), Logic Module, Illuminated Out side/Inside (Push to Open & Push to Lock), IDPS door contact, power transfer hinge, Surface mounted push buttons.	$2600
UBPK1-SM-EUxEU	Includes: PS220B LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EU), Logic Module, Illuminated Out side/Inside (Push to Open & Push to Lock) IDPS door contact, power transfer hinge, Surface mounted push buttons.	$2600
UBPK2-FM-EUxEL	Includes: Low Energy Operator, LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EL), IDPS door contact, Illuminated Outside/Inside (Push to Open & Push to Lock), power transfer hinge, Flush mounted push buttons.	$6200
UBPK2-FM-EUxEU	Includes: Low Energy Operator, LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EU), IDPS door contact, Illuminated Outside/Inside (Push to Open & Push to Lock), power transfer hinge, Flush mounted push buttons.	$6200
UBPK2-SM-EUxEL	Includes: Low Energy Operator, LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EL), IDPS door contact, Illuminated Outside/Inside (Push to Open & Push to Lock), power transfer hinge, Surface mounted push buttons.	$6200
UBPK2-SM-EUxEU	Includes: Low Energy Operator, LPM193 or LPC190-HD Complete Lock (latch retraction EU x lever control EU), IDPS door contact, Illuminated Outside/Inside (Push to Open & Push to Lock), power transfer hinge, Surface mounted push buttons.	$6200
EME KIT ADD	Add on Emergency Annunciator Kit for UBPK	$670

ELECTRIFIED EXIT TRIM

FOR MODIFICATION AND COMPLETE TRIM

PREFIX

MODEL + FUNCTION

Select a model number and add EL (Fail Safe) - Electronically Locked EU (Fail Secure) - Electronically Unlocked

VOLTAGE

12 or 24 Volts must be specified Motorized = Universal Input 11-30V LE = Universal Input 11-30V

OPTIONAL SWITCHES

REE-Request-to-Enter

FOR COMPLETE TRIM ONLY

TRIM

MD - Modification – Tubular – Bent

– Straight – Curved

FINISH (BHMA std)

626 – Satin Chrome SPECIAL ORDER

613 – Oil Rubbed Bronze 625 – Polished Chrome

KEYWAY

Only ET15/25 have cylinder provided. Rim Cylinder – "C" Standard LC – Less Cylinder

ACCESSORIES

CRU2 – Current Reduction Unit (AC & DC input) 4 Lead – 4' Wire Lead to switches 10 Lead - 10' Wire lead to switches QC – Molex Connectors BR5 - Bridge Rectifier w/ 5' lead

EXAMPLES

MODIFICATION ONLY

	PREFIX	MODEL	FUNCTION	SUFFIX	VOLTAGE	FINISH	KEYWAY	OPTIONS	ACC	COMPLETE PART #
Part #	MD	MDCR22	EL	-	12V	-	-	-	CRU2	MDCR22 EL 12V CRU2
List $	-	$241	-	-	-	-	-	-	$41	$282

COMPLETE EXIT TRIM

	PREFIX	MODEL	FUNCTION	SUFFIX	VOLTAGE	FINISH	KEYWAY	OPTIONS	ACC	COMPLETE PART #
Part #	-	ET27	EU	06	11-30V	626	-	REE	-	ET27 EU L6 24V 626 REE
List $	-	$742	-	-	-	-	-	$85	-	$827

() ELECTRIFIED EXIT TRIM

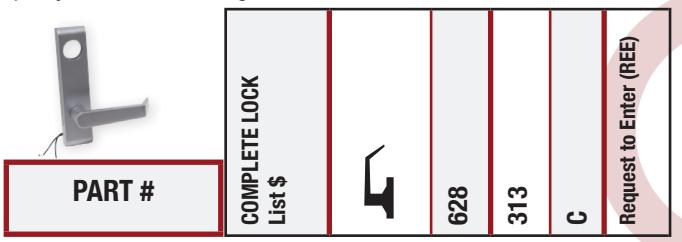

COMMAND ACCESS ET15/16 SERIES

Specify EU or EL & Handing.

ET15RIM EU/EL	$546	L6	✓	✓	✓	+$85
ET15CVR EU/EL	$546	L6	✓	✓	✓	+$85
ET16 RIM	$322	L6	✓	✓	✓	+$85
ET16 CVR	$322	L6	✓	✓	✓	+$85

COMMAND ACCESS ET25/26 SERIES Command Access PD25/26, Cal Royal 7700 R/SVR, Marks M9000 & Von Duprin 98/99 R/V series

Specify LO of LL & I	ianang.
6	ETE LOCK							t to Enter (REE)
PART #	COMPL List $	4	4	626	613	ပ	ပ	Request

ET25/26 for: Von Duprin 98/99 Command Access PD25 Cal-Royal 77

L123/20 IOI. VOIT Dupi	111 00/00 0	ommana 7	000001 D2	o our i	loyui i	'
ET25 EU/EL	$572	L6	L17	✓	+$30	✓	+$76	+$85
ET25-LE EU/EL	$660	L6	L17	✓	+$30	✓	+$76	✓
ET26 ELT	$339	L6	L17	✓	+$30	✓	+$76	+$85
ET26 SLT	$339	L6	L17	✓	+$30	✓	+$76	+$85
ET26 PLT	$339	L6	L17	✓	+$30	-		+$85
ET26 DLT	$339	L6	L17	✓	+$30	-		-
ET26 NPT	$260	-	-	✓	+$30	✓	+$76	-
ET26 DPT	$244	-	-	✓	+$30	-		-

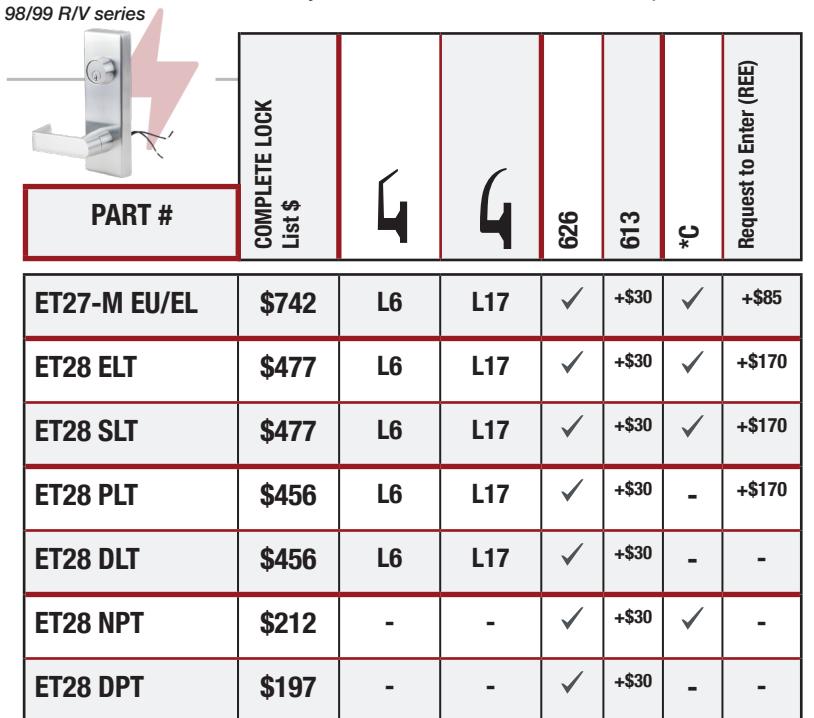

COMMAND ACCESS ET27/28 SERIES

Command Access PD27/28, Cal Royal 7700 R/SVR, Marks M9000 & Von Duprin

COMMAND ACCESS ET30 SERIES

Command Access PD29/30, series

PART #	COMPLETE LOCK List $	4	4	979	613	) *
ET30 ELT	$482	L6	L17	✓	+$30	✓
ET30 SLT	$482	L6	L17	✓	+$30	✓
ET30 PLT	$435	L6	L17	✓	+$30	-
ET30 DLT	$435	L6	L17	✓	+$30	-
ET30 NPT	$212	-	-	✓	+$30	✓
ET30 DPT	$197	-	-	✓	+$30	-

√ or $ = Available = = Not Available

MODIFICATIONS

Specify EU or EL, Voltage and Handing. PART # EXIT TRIM Specify EU or EL, Voltage and Handing.		MODIFICATION ( List $ (add prefix					MAINTAIN KEY OVER	Request to Enter
PART #	EXIT TRIM	COMPL List $	MODIFI List $ (	4	4	626	O	MAINTAI	Rednes
CR22E U/EL	CAL ROYAL NESC 2200 R/SVR SERIES	-	$241	-	-	-	-	✓	-
CR77 EU/EL	CAL ROYAL NESC 7700 R/SVR SERIES	_	$241	-	-	-	-	✓	+$85
CR98E U/EL	CAL ROYAL NESC 9800 R/SVR SERIES	-	$241	-	-	-	-	✓	-
FAL581EU/51EL	FALCON 510 SERIES	-	$309	-	-	-	-	✓	+$85
SGT700EU/EL	SARGENT 713 SERIES	-	$534	-	-	-	-	✓	+$85
V23EU/EL	VON DUPRIN 230L SERIES	$847	$241	06	-	✓	✓	✓	-
V36EU/EL*	VON DUPRIN 360L/BE/T SERIES	-	$534	-	-	-	-	-	-
V96EU/EL	Von Duprin 996L R/V & M Series	$1092	$206	06	17	✓	✓	✓	+$85
V96-M Kit	FIELD INSTALLABLE KIT FOR 996L R/V & M SERIES			COM	ING SO	ON

^* NOTE: V36 DO NOT MAINTAIN KEY OVERRIDE- A DUMMY CYLINDER WILL BE ADDED TO ALL CYLINDER PREP TRIMS.

ACCESSORIES & REPLACEMENTS FOR EXIT TRIM

VDREEKIT-ET	Field installable Request to Enter kit for the Von Duprin 996L Series	$98
SGTREEKIT-ET	Field installable Request to Enter kit for the Sargent 713 Series	$98
CRU	Current Reduction Unit	$41
4' LEAD	Add 4' lead to any switch (per switch)	$38
10' LEAD	Add 10' lead to any switch (per switch)	$58
BR5	Bridge Rectifier w/ 5' Lead	$32
QC/CON	8-pin or 12-pin Molex Connectors added to locking device retrofit ElectroLynx or Allegion Connect	$30
QC/CON w/ lead	8-pin or 12-pin Molex Connectors w/3-5' lead added to locking device retrofit ElectroLynx or Allegion Connect	$49
QC/CON w/ Lead	8/12-pin Molex Connectors w/ 10-20' lead added to connect a power supply directly to to QC prepped power transfer hinge	$110
Door Cord QC/CON	3-5' Door Cord to connect a QC prepped locking device to the power transfer hinge	$90
SOL-ET	Exit Trim Lock Replacement Solenoids (Specify brand, EU or EL & Voltage) - Call Factory to confirm field swap is available	$95

ELECTRIFIED LATCH RETRACTION KITS

HOW TO ORDER

	MODEL	MANUFACTURER	OPTIONS
Part #	MLRK1	VD	REX
List $	$610	-	N/C
Part #	MLRK1	AR	REX
List $	$610	-	$85

COMPLETE PART #
MLRK1-VD
$610
MLRK1-AR REX
$695

BUILT-IN

MOTORIZED LATCH RETRACTION KITS

ALL 24V & Fail Secure (EU) ONLY Kits work on all style devices: RIM, SVR, CVR, & Mortise.

1	7
	MOTOR
	2111751

REXKIT or $ = Available - = Not Available

PART #	EXIT DEVICE	LIST	REX	AVAILABLE1
MLRK1-AR	Adams Rite 82/84/86/88 series	$610	+$85	$98
MLRK1-AREX	Adams Rite Ex series	$610	+$85	$98
MLRK1-ARW	Arrow 1000 series	$610	-	$98
MLRK1-CAL77	Cal Royal 7700 series	$610	+$85	$98
MLRK1-COR	Corbin Russ win 4000/5000	$610	+$85	$98
MLRK1-DEX	Dexter 1000 Series	$610	+$85	$98
MLRK1-DRX	Dorex 9500 Series	$610	-	$98
MLRK1-DOR	Dorma 9000 series	$610	-	$98
MLRK1-FAL17	Falcon 16/17 & First Choice 36/37 Series	$610	✔	$98
MLRK1-DTX	Detex Advantex & Value Series	$610	-	$98

PART #	EXIT DEVICE	LIST	BUILT-IN REX	REXKIT AVAILABLE1	or $ = Available
MLRK1-FAL25	Falcon 24/25 series	$610	✔	$98	- = Not Available
MLRK1-HAG	Hager 4500/4600 series	$610	+$85	$98
MLRK1-JAC12	Jackson 1285/1295 Series & Kawneer 1686/1786 Series	$610	+$85	$98
MLRK1-KAWP	Kawneer Paneline	$650	+$85	$98
MLRK1-MBS	Marshall Best Q1/2000 Series	$610	+$85	$98
MLRK1-MRK	Marks M9900 Series & Design Hardware 1000 Series	$610	+$85	$98
MLRK1-MRK8	Marks M8800 Series	$610	+$85	$98
MLRK1-PDQ	PDQ 6200 Series	$610	+$85	$98
MLRK1-PDQ63	PDQ 63/6400 Series	$610	+$85	$98
MLRK1-PHI	Philadelphia Hardware 9000 Series	$610	+$85	$98
MLRK1-SGT	Sargent 80 Series/Cal Royal/Arrow/Dorex	$610	-	$98
MLRK1-SQ	Stanley QED 100/200	$610	-	$98
MLRK1-TEL	Tell 9500 Series	$610	+$85	$98
MLRK1-TS1	Townsteel 1000 Series	$610	+$85	$98
MLRK1-TS2	Townsteel 9700 Series	$610	+$85	$98
MLRK1-VD22	Von Duprin 22 Series	$610	✔	$98
MLRK1-VD	Von Duprin 33/35 & 98/99 Series	$610	✔	$98
MLRK1-VDAX	Von Duprin 33/35 & 98/99 AX Series	$610	✔	$98
MLRK1-COR	Yale 7000 Series	$610	+$85	$98
MLRK1-YAL6	Kawneer Paneline Series	$610	+$85	$98

1. See page 21 for REXKIT's available & part #. Order REX Kit separately.

SOLENOID LATCH RETRACTION KITS

PART #	EXIT DEVICE	LIST	REXKIT AVAILABLE
ARLP88-KIT	Adams Rite 8800 series	$250	$85
MDMLRK1-VD95	Von Duprin Impact 94/95	$675	$85

(5) ELECTRIFIED EXIT DEVICES

FOR MODIFICATION AND COMPLETE DEVICE

PREFIX

MD - Modification

MODEL + FUNCTION

Select a model number and add EU (Fail Secure) - Electronically Unlocked only

VOLTAGE

24 Volts

12 Volts - Adams Rite 88 & PD18-RIM ONLY

OPTIONAL SWITCHES

REX – Request-to-Exit LBM – Latchbolt Monitor

FOR COMPLETE DEVICE ONLY

SIZE (Width of device)

36 – 36" wide device 42 – 42" wide device

48 – 48" wide device

FINISH

ARCHITECTURAL

626 – Satin Chrome 613 – Oil Rubbed Bronze

STOREFRONT

628 – Aluminum 313 – Duronatic

ACCESSORIES

3' Lead - 3' Wire Lead w/ connector(s) 4' Lead - 4' Wire Lead w/ connector(s)

QC - Molex Connectors

EXAMPLES

MODIFICATION ONLY - SOLENOID DRIVEN

	PREFIX	MODEL	SUFFIX	FUNCTION	VOLTAGE	SIZE	FINISH	OPTIONS		COMPLETE PART #
Part #	MD	MDARLP86	-	EU	24V	-	-	REX	-	MDARLP86-EU-24V REX
List $	-	$464	-	-	-	-	-	-	→	$464

COMPLETE MOTOR DRIVEN DEVICE

	PREFIX	MODEL	SUFFIX	FUNCTION	VOLTAGE	SIZE	FINISH	OPTIONS		COMPLETE PART #
Part #	-	PD27	М	RIM	24V	36	626	REX	-	PD25-M-RIM-36-626 REX
List $	-	$1582	-	-	-	-	-	$85	→	$1667

STOREFRONT COMPLETE DEVICES PD10 / PD11

PD10 / PD11 Series retrofits Doromatic 1600/1700 & First Choice 3600/3700.

or $ = Available - = Not Available

PART #	FUNCTION	LIST $	36"	*42"	48"	ALUM	DURO	REX	LBM	EXT RODS
PD10-M-RIM	Motorized Latch Retraction (EU)	$964	✔	+$150	+$40	✔	+$10	+$85	+$85	+$70
PD10-M-CVR	Motorized Latch Retraction (EU)	$990	✔	+$150	+$40	✔	+$10	+$85	+$85	+$70
PD11-RIM	Mechanical RIM Device	$484	✔	+$150	+$40	✔	+$10	+$85	+$85	+$70
PD11-CVR	Mechanical CVR Device	$541	✔	+$150	+$40	✔	+$10	+$85	-	+$70

^*48& quot; Device mechanics can be relocated at factory for 42" or speciality size for field cut down.

PD15 / PD16

COMPLETE DEVICE - PD15 / PD16 retrofits Jackson 1200, Kawneer 1686/1736 & AHT 8000/9000. Please Specify Handing for CVR.

PART #	Specify Handing for CVR. FUNCTION	LIST $	36"	42"*	48"	ALUM	DURO	REX	LBM	EXT RODS
PD15-M-RIM	Motorized Latch Retraction (EU)	$986	✔	-	+$40	✔	+$10	+$85	-	+$70
PD15-M-CVR	Motorized Latch Retraction (EU)	$1028	✔	-	+$40	✔	+$10	+$85	-	+$70
PD16-RIM	Mechanical RIM Device	$488	✔	-	+$40	✔	+$10	+$85	-	+$70
PD16-CVR	Mechanical CVR Device	$504	✔	-	+$40	✔	+$10	+$85	-	+$70

^*48& quot; Device mechanics can be cut down to 42" in the field.

PD18 / PD19 COMPLETE DEVICE - PD18 / PD19 retrofits Adams Rite 8800 & 8600 series.

EXT

PART #	FUNCTION	LIST $	36"	42"	48"	ALUM	DURO	REX	LBM	RODS
PD18-RIM*	Solenoid Latch Retraction (EU)	$700	✔	-	+$40	✔	+$10	+$85	-	-
PD18-CVR	Solenoid Latch Retraction (EU)	$1018	✔	-	+$40	✔	+$10	+$85	-	-
PD18-M-RIM	Motorized Latch Retraction (EU)	$971	✔	-	+$40	✔	+$10	+$85
PD18-M-CVR	Motorized Latch Retraction (EU)	$1134	✔	-	+$40	✔	+$10	+$85
PD19-RIM	Mechanical RIM Device	$488	✔	-	+$40	✔	+$10	+$85	-	-
PD19-CVR	Mechanical CVR Device	$572	✔	-	+$40	✔	+$10	+$85	-	-

PD25/26 COMPLETE DEVICE - PD25 / PD26 Series retrofits Cal Royal 7700 & Von Duprin 98/99 RIM & SVR.

	EXT
PART #	FUNCTION	LIST $	36"	42"	48"	626	613	REX	LBM	RODS
PD25-M-RIM	Motorized Latch Retraction (EU)	$1403	✔	-	+$40	✔	+$75	+$85	+$85	-
PD25-M-SVR	Motorized Latch Retraction (EU)	$1855	✔	-	+$40	✔	+$75	+$85	-	+$95
PD25F-M-RIM	Motorized Latch Retraction (EU) -Fire Rated	$1738	✔	-	+$40	✔	+$75	+$85	+$85	-
PD25F-M-SVR	Motorized Latch Retraction (EU) -Fire Rated	$2190	✔	-	+$40	✔	+$75	+$85	-	+$95
PD26-RIM	Mechanical RIM Device	$814	✔	-	+$40	✔	+$75	+$85	+$85	-
PD26-SVR	Mechanical SVR Device	$1275	✔	-	+$40	✔	+$75	+$85	-	+$95
PD26F-RIM	Mechanical RIM Device - Fire Rated	$1149	✔	-	+$40	✔	+$75	+$85	+$85	-
PD26F-SVR	Mechanical SVR Device - Fire Rated	$1610	✔	-	+$40	✔	+$75	+$85	-	+$95

^- Auxiliary Fire Bolt List $95

( ) ELECTRIFIED EXIT DEVICES

PD27/28 COMPLETE EXIT DEVICE - Wide Stile | ARCHITECTURAL - Matches Von Duprin Template

PART #	FUNCTION	LIST $	36"	42"	48"	626	613	FIRE RATED	REX	LBM	EXT RODS
PD27-M-RIM	Motorized Latch Retraction (EU)	$1582	✓	-	+$40	✓	+$75	+$70	+$85	+$85	-
PD27-M-SVR	Motorized Latch Retraction (EU)	$1991	✓	-	+$40	✓	+$75	+$70	+$85	-	+$95
PD27-M-CVR	Motorized Latch Retraction (EU)	$2390	✓	-	+$40		+$75	+$70	+$85	-	+$95
PD28-RIM	Mechanical RIM Device	$1041	✓	-	+$40	✓	+$75	+$70	+$85	+$85	-
PD28-SVR	Mechanical SVR Device	$1450	✓	-	+$40	✓	+$75	+$70	+$85	-	+$95
PD28-CVR	Mechanical SVR Device	$1850	✓	-	+$40		+$75	+$70	+$85	-	+$95

PD29/30 COMPLETE DEVICE ARCHITECTURAL - Narrow Stile - Matches Von Duprin Template

PD29-M-RIM	Motorized Latch Retraction (EU)	$1549	✓	-	+$40	✓	+$75	+$70	+$85	+$85	-
PD29-M-SVR	Motorized Latch Retraction (EU)	$2097	✓	-	+$40	Y	+$75	+$70	+$85	-	+$95
PD29-M-CVR	Motorized Latch Retraction (EU)	$2438	✓	-	+$40	✓	+$75	+$70	+$85
PD30-RIM	Mechanical RIM Device	$1054	/	_	+$40	1	+$75	+$70	+$85	+$85	_
	modification Dollor	Ψ.σσ.			1410	·	Ι Ψ/ Ο	1470	- φ03	ΤψΟΟ	_
PD30-SVR	Mechanical SVR Device	$1556	√	-	+$40	✓	+$75	+$70	+$85	-	+$95

Additional Electrification Options

Below prices will be added with the PD28 & PD30 Mechanical List Price

ADD ON	LIST $
Delayed Egress Add On	+1300
Alarm Kit Add On	+420

How to Order

CATEGORY	SERIES	RATING	FUNCTION	DEVICE TYPE	VOLTAGE	DOOR WIDTH	FINISH	HARDWARE OPTIONS	OPTIONS
PD	27 - WIDE	BLANK - PANIC	M- FAIL SECURE (EU)	RIM	24V	36"	605*	BS - BLADE STOP STRIKE	REX- REQUEST TO EXIT SWITCH
	28 - WIDE Mechanical	F - FIRE RATED	A- alarm	SVR		48"	606*	DD - DOUBLE DOOR STRIKE	LBM- Latchbolt monitor switch
		•	AHW- ALARM HARD WIRED	CVR			613	LBR - LESS BOTTOM ROD (SVR/CVR)	QC/CON/BC - Molex connectors - specify brand
			DE- DELAYED EGRESS		•		622	LBR-FP - LESS BOTTOM ROD WITH FIRE PIN (SVR/CVR)
			BLANK- MECHANICAL				625*	WS - WINDSTORM RATED (RIM/SVR)
EXAMPI	LE PART N	Number: 1		M 36" 626		*	626/630 SELECT FINISHES MAY	7 - 7' DOOR

10 - 8'-10' DOOR

ADAMS RITE MODIFICATION (Customer's Adams Rite 8000 Series Devices) - Maintains factory dogging ability.

PART #	FUNCTION	LIST $	REX	LBM
MDARLP82	$464 +$85 Solenoid Latch Retraction (EU)			-
MDARLP84	$464 Solenoid Latch Retraction (EU)		+$85	-
MDARLP86	$464 Solenoid Latch Retraction (EU)		+$85	-
MDARLP88*	Solenoid Latch Retraction (EU)	$263	+$85	-

^* Available in 12V or 24V. Please specify when ordering

VON DUPRIN MODIFICATION (Customer's Von Duprin 94/95 Impact Device)

PART #	FUNCTION	LIST $	REX	LBM
VON DUPRIN 94/95 IMPACT DEVICE Motorized Latch Retraction		$675	-	-

^* Available in 12V or 24V. Please specify when ordering

ACCESSORIES & REPLACEMENT FOR EXIT DEVICES

PART #	FUNCTION	LIST $
8' Lead	8' Power Lead for Exit Devices	$50
10' LEAD	Add 10' lead to any switch (per switch)	$58
QC/CON	8-pin or 12-pin Molex Connectors added to locking device retrofit ElectroLynx or Allegion Connect	$30
QC/CON w/ lead	8-pin or 12-pin Molex Connectors w/3-5' lead added to locking device retrofit ElectroLynx or Allegion Connect	$49
QC/CON w/ Lead	8/12-pin Molex Connectors w/ 10-20' lead added to connect a power supply directly to to QC prepped power transfer hinge	$110
Door Cord QC/CON	3-5' Door Cord to connect a QC prepped locking device to the power transfer hinge	$90
50944	Motor Molex Power Lead 12" - Plugs directly into our MM modules	$20
50944	Motor Molex Power Lead 36" - Plugs directly into our MM modules	$30
SOL-LP1	Replacement Solenoid Assembly for Electrified Latch Retraction - Single Coil	$135
SOL-LP2	Replacement Solenoid Assembly for Electrified Latch Retraction - Dual Coil	$135
SOL-LP3	Replacement Solenoid Assembly for Electrified Latch Retraction - Single Coil (12EU ARLP88)	$135
SOL-LP4	Replacement Solenoid Assembly for Electrified Latch Retraction - Two-Solenoid Assembly	$223
SOL-LP5	Replacement Solenoid Assembly for Electrified Latch Retraction - Single Coil (24EU ARLP88)	$135

NOTES* See website for specific applications. ElectroLynx® is a registered trademark of Assa Abloy

ElectroLynx® is a registered trademark of Assa Abloy Allegion Connect® is a registered trademark of Allegion

Micro-Fit 3.0™ Interconnect System available to retrofit common quick connection systems such as ElectroLynx® or Allegion Connect®.

EXIT DEVICE SWITCH OPTIONS

PART #	FUNCTION
REX	Add Request to Exit Switch to device	$85
LBM	Add Latchbolt Monitor Switch to device	$85
REX2	Add Double Request to Exit Switch to device	$160
Switch Only	Adding Above Switch Only to Mechanical Device	$160

^* Call Factory for specific device availability

SWITCH FIELD KITS FOR EXIT DEVICES

ARREXKIT-ED	Field Installable Request to Exit Kit for Adams Rite 8000 Series	$98	✓	✓	-
ARREXKIT2-ED	Field Installable Double Request to Exit Kit for Adams Rite 8000 Series	$170	✓	✓	-
ARREXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1 Adams Rite Series	$98	-	-	✓
CRSREXKIT-ED	Field Installable Request to Exit Kit for Cal Royal 22/98 & Sargent 80 Series	$98	✓	-	✓
CYREXKIT-ED	Field Installable Request to Exit Kit for Corbin 4/5000 & Yale 7000 Series	$98	✓	-	-
CYREXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1 Corbin & Yale Series	$98	-	-	✓
ED1REXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1 Philadelphia & Tell Series	$98	-	-	✓
ED2REXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1 Series LSDA9200, USCAN2100, & Townsteel 1000 Series	$98	-	-	✓
DORREXKIT-ED	Field Installable Request to Exit Kit for Dorma 9000 series	$98	✓	✓	✓
MRKREXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1-MRK Marks M9900/8800 & Design Hardware Series-	$98	-	-	✓
LLPREXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1-Hager, LSDA9000, Lawrence, PDQ Series	$98	-	-	✓
PD10REXKIT-ED	Field Installable Request to Exit Kit for Falcon 16/17 & First Choice 36/37 Series	$98	✓	✓	✓
PD15REXKIT-ED	Field Installable Request to Exit Kit for Jackson 1285/95 & Kawneer 16/17 Series	$98	✓	-	-
PD15REXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1 Jackson & Kawneer Series -	$98	-	-	✓
PD25REXKIT-ED	Field Installable Request to Exit Kit for PD25/26 & Cal Royal 7700 Series	$98	✓	-	✓
PREREXKIT-ED	Field Installable Request to Exit Kit for Precision 2000 Series	$98	✓	✓	-
VDREXKIT-ED	Field Installable Request to Exit Kit for Von Duprin 99/98 & 35/33 Series	$98	✓	✓	✓
VDREXKIT-LC-ED	Field Installable Low Energy Request to Exit Kit for Von Duprin 99/98 & 35/33 Series	$108	✓	✓	✓
VDREXKIT2-ED	Field Installable Double Request to Exit Kit for Von Duprin 99/98 & 35/33 Series		✓	✓	✓
VDLBMKIT-ED	Field Installable Latchbolt Monitor Kit for Von Duprin 99/98 & 35/33 Series	$98	✓	✓	✓
YAL6REXKIT-ED	Field Installable Request to Exit Kit for Yale 6000 Series	$98	✓	-	-
YAL6REXKIT-M-ED	Field Installable Request to Exit Kit for MRLK1 Yale 6000 Series- MRLK1-YAL6 Series	$98	-	-	✓

POWER SUPPLIES

UL294 6TH EDITION LISTING

PS210 PS220/220B

PS440B PS480B

POWER SUPPLIES FOR ALL LATCH PULLBACK/EXIT DEVICES

PS210	1.5A, 24V regulated PS w/boost circuitry for up to (2) electric latch pullback devices. Includes (1) solid state input/output
PS220	2A, 24V regulated PS w/boost circuitry for up to (2) electric latch pullback devices. Includes (2) solid state inputs/outputs and a fire alarm link. (1) 24VDC Power Tap	$398
PS220B	2A, 24V regulated PS w/boost circuitry for up to (2) electric latch pullback devices. Includes (2) solid state inputs/outputs, battery charging circuit, and a fire alarm link. (1) 24VDC Power Tap. Battery Back-up	$466
PS440B	4A, 24V regulated PS w/boost circuitry is capable of powering up to (4) electric latch pullback devices. Includes (4) solid state inputs/outputs, battery charging circuit, and a fire alarm link. Battery Back-up	$525
PS480B	4A, 24V regulated PS w/boost circuitry for up to (8) electric latch pullback devices. Includes (8) solid state inputs/outputs, battery charging circuit, and a fire alarm link. Battery Back-up	$573

POWER SUPPLIES FOR MOTORIZED LATCH RETRACTION, MORTISE/CYLINDRICAL LOCK, & EXIT TRIM

PS204	2A, 24V regulated PS w/boost circuitry for up to (4) Motorized electric latch pullback devices. Includes (4) solid state inputs/outputs, and a fire alarm link	$373
PS204B	2A, 24V regulated PS w/boost circuitry for up to (4) Motorized electric latch pullback devices. Includes (4) solid state inputs/outputs, and a fire alarm link. Battery Back-up	$424

POWER SUPPLIES & AUXILIARY BOARDS

PS-OP-2	Replacement Relay Board for PS202/202B/220/220B (Specify Series)
PS-OP-4 Replacement Relay Board for PS204/204B/440B (Specify Series)		$231
PS-OP-8 Replacement Relay Board for PS480B		$244
SW3 2.4A 27VDC regulated power supply w/ (3) non-fused outputs for electric strikes, mortise locks and cylindrical locks. **NOT UL**		$212
BB12V7	Set of (2) 12VDC 7AH Batteries for Power Supplies with Battery Back-Up	$170
CAMLCK-PS	Cam Lock For Command Power Supplies	$35

LOCKING HARDWARE AUTO-OPERATOR

Heavy Duty Auto-Operator - On-Board door sequencing, Push To Learn, & locking hardware power tap.

CATHDO100-PUSH	Command Heavy Duty Locking Hardware Auto-Operator 39" -Alum/Duro/Black - Push Arm - Handing Reversible	$3700
CATHDO100-PULL	Command Heavy Duty Locking Hardware Auto-Operator 39" -Alum/Duro/Black - Pull Arm - Handing Reversible	$3700

^* For Double Doors with single header, double single unit price.

MODULES & ACCESSORIES

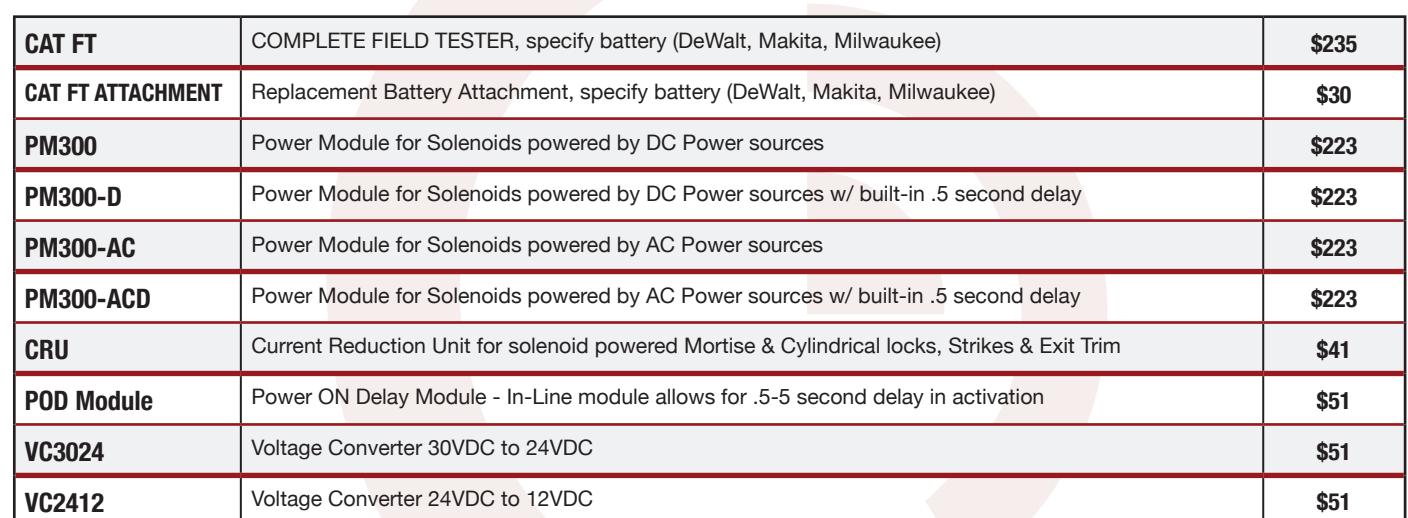

POWER SUPPLY ACCESSORIES

Command EDC BAG	Command Everyday Carry Service Bag With CAT FT	$1250
Command EDC BAG	Command Everyday Carry Service Bag With Out CAT FT
DS1+	Door Sequencer
DS1-X	Door Sequencer
VD2-873	Replacement Relay Board for Von Duprin PS873 (871-2 board)
VD2-914	Replacement Relay Board for Von Duprin PS914 (2RS board)	$212

POWER ACCESSORIES

SWITCH ACCESSORIES

IDPS1	Independent DPS switch installs in frame & alum (wood, hollow metal, & FRP)
IDPS2	Independent High Security DPS switch installs in frame & alum (wood, hollow metal, & FRP)	$47
IDPSSC-1	Vandal Resistance Independent Concealed Magnetic Contact switch DPS switch installs in frame & alum (wood, hollow metal, & FRP)	$95

MODULES & ACCESSORIES

ACUATORS & MORE ACCESSORIES

TA120	Touchless Actuator - Wave to Open Logo - Surface Mount	$233
TA121	Touchless Actuator - Wave to Lock Logo - Surface Mount	$233
TA122	Touchless Actuator - Wave to Open + Handicap Logo - Surface Mount	$233
IA120	Illuminated Actuator - Push to Open - Handicap	$233
IA121	Illuminated Actuator - Push to Lock - Surface Mount	$233
IA122	Illuminated Actuator - Push to Open - Surface Mount
2WRB	2 Wire Retrofit Board - allows 4 wire toucless acuator to use 2 exsisting wires
RB1	Remote Buzzer Single Gang
RB1-NS	Remote Buzzer Narrow Stile	$69
DTC MOMA2	Remote 2 Door Desktop Console	$615
DTC MOMA4	Remote 4 Door Desktop Console
DTC MOMA8	Remote 8 Door Desktop Console	$1882

POWER TRANSFER HINGES

ELEMENTS OF A PART NUMBER

TYPE

ETH - Energy Transfer Hinge ETM - Energy Transfer Monitor Hinge

WIRES

M - Monitor Only 2W - (2/20ga) 4W - (4/26ga) 6W - (6/26ga) 8W - (8/28ga) 10W - (10/28ga) 12W - (12/28ga) 2WH* - (2/18ga) 4WH* - (2/18ga+2/26ga 6WH* - (2/18ga+4/28ga) 8WH* - (2/20ga+6/28ga) 10WH* - (2/20ga+8/28ga) 12WH* - (2/20ga+10/28ga)

*NOT AVAILABLE ON ALL HINGES SIZES .

SIZE / HANDING

4.0 x 4.0 (SQ or RC) 4.5 x 4.0 (SQ or RC) 4.5 x 4.5 5.0 x 4.0 5.0 x 4.5 5.0 x 5.0 4.5 x 6.0 (WT) 5.0 x 6.0 (WT) LH - Left Hand RH - Right Hand

OPTIONS

QC - Molex Connectors HT - Hospital Tip (SS/Brass Only)

4' Leads - ALWAYS SUPPLIED AT NO CHARGE

EXTRA HINGES FOR MODIFICATION

Due to the nature of the modification process, please send 1 extra hinge for every 8 to be modified. We will return any hinges not need back with your order. For Example: 1-8 hinges, 1 extra | 9-16 hinges, 2 extra .

FINISH (Steel Base Metal)

600/P – Prime Coat 605-632/3 – Bright Brass 606-633/4 – Satin Brass 609-638/5 – Satin Brass Antique 611-637/9 – Bright Bronze 612-639/10 – Satin Bronze

641/10A – Antique Bronze Laq. 613-640/10B – Anti. Bronze Oil 619-646/15 – Satin Nickel 625-651/26 – Bright Chrome 626-652/26D – Satin Chrome 693/L1 – Black

FINISH (Brass Base Metal)

600/P – Prime Coat 605/3 – Bright Brass 606/4 – Satin Brass 609/5 – Satin Brass Antique 611/9 – Bright Bronze 612/10 – Satin Bronze 613/10B – Antique Bronze Oil 619/15 – Satin Nickel 625/26 – Bright Chrome 626/26D – Satin Chrome 693/L1 – Black ¹

FINISH (Stainless Steel Base Metal)

629 – Polished Stainless 630 – Brushed Stainless

STYLE

3SW - 3 Knuckle Standard Weight 3HW - 3 Knuckle Heavy Weight 5SW - 5 Knuckle Standard Weight 5HW - 5 Knuckle Heavy Weight

CATPIVOT - 3/4" Offset Pivot 5SWSC - CAT Swingclear Standard weight (specify straight or bevelled)

3/4" - offset pivot (top/intermediate) 1-1/2" - offset pivot (top/intermediate) TP - Top pivot (center hung)

PP - Pocket pivot (center hung) SC -Swing Clear Hinge

RB - Raised Barrel

EXAMPLES

MODIFICATION ONLY - BUTT HINGE

	TYPE	WIRES	SIZE	BASE	STYLE	HANDING	OPTIONS
Part #	ETM	4W	4540	Steel	3CB1	-	QC
List $	-	$218	-	-	-	-	$48

COMPLETE ENERGY TRANSFER HINGE

	TYPE	WIRES	SIZE	FINISH	STYLE	HANDING	OPTIONS
Part #	ETH	8W	4545	626	BB79	-	4' Lead
List $	-	$161	-	-	-	-	N/C

COMPLETE ENERGY TRANSFER PIVOT

	TYPE	WIRES	SIZE	FINISH	STYLE	HANDING	OPTIONS	COMPLETE PART #
Part #	ETH	420W	-	626	CATPIVOT	RH	4' Lead	ETH420W-626-CATPIVOT RH
List $	-	$362	-	-	-	-	N/C	$362

HOW TO ORDER

HOW TO MEASURE A HINGE REFERENCE

1/4" 5/8" 4.5" 4.0" Example: 4.5 (Height) x 4.0 (Width)

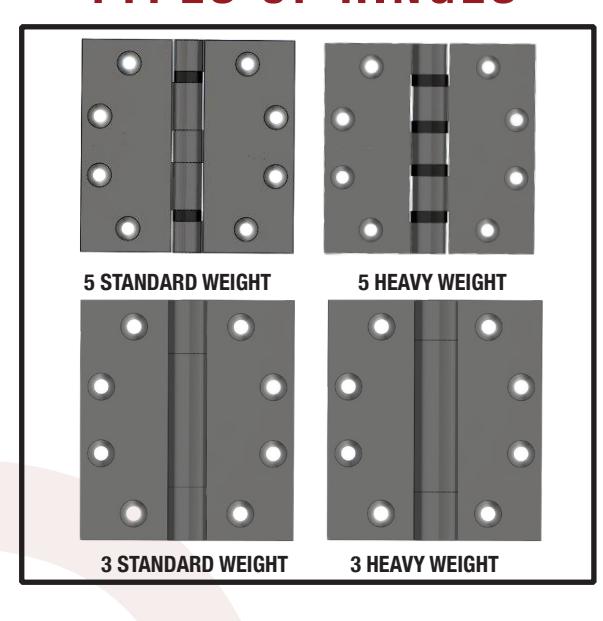

TYPES OF HINGES

HINGE CROSS REFERENCE SHEET	COMMAND ACCESS	HAGER	STANLEY	MCKINNEY	PBB	IVES	CAL ROYAL	BOMMER
5 KNUCKLE - SW STEEL BASE	BB79	BB1279	FBB179 CB179	TA2714	BB81	5BB1	BB31	BB5000
5 KNUCKLE - SW BRASS BASE	BB91	BB1191	FB191 CB191	TA2314	BB21	5BB1	SBB31	BB5001
5 KNUCKLE - SW STAINLESS STEEL BASE	BB91	BB1191	FBB191 CB191	TA2314	BB51	5BB1	BB31-630	BB5002
5 KNUCKLE - HW STEEL BASE	BB68	BB1168	FBB168 CB168	T4A3786	4B81	5BB1HW	BB5200	BB5004
5 KNUCKLE - HW BRASS BASE	BB99	BB1199	FB199 CB199	T4A3385	4B81	5BB1HW	N/A	BB5005
5 KNUCKLE - HW STAINLESS STEEL BASE	BB99	BB1199	FBB199 CB199	T4A3385	4B21	5BB1HW	BB5200-630	BB5006
3 KNUCKLE - SW STEEL BASE	CB70	AB700	CB1900R	TA714	CB81	3CB1	BB200	LB8000
3 KNUCKLE - SW BRASS BASE	CB80	AB800	CB1960R	TA314	CB21	3CB1	N/A	LB8001
3 KNUCKLE - SW STAINLESS STEEL BASE	CB80	AB800	CB1960R	TA314	CB51	3CB1	BB2200-630	LB8002
3 KNUCKLE - HW STEEL BASE	CB75	AB750	CB1901R	TA786	4C81	3CB1HW	BB3300	LB8004
3 KNUCKLE - HW BRASS BASE	CB85	AB850	CB1961R	TA386	4C21	3CB1HW	N/A	LB8005
3 KNUCKLE - HW STAINLESS STEEL BASE	CB85	AB850	CB1961R	TA386	4C51	3CB1HW	BB3300-630	LB8006

5 KNUCKLE STANDARD TRANSFER HINGES - ETH

STEEL BASE (BB79)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.0 x 4.0	$130	$130	$150	$161	$193	$193	-	-	-	-	-	-
4.5 x 4.0	$130	$130	$150	$161	$193	$193	$176	$191	$201	$211	$243	$256
4.5 x 4.5	$130	$130	$150	$161	$193	$193	$176	$191	$201	$211	$243	$256
5.0 x 4.5	$153	$153	$172	$193	$216	$216	$201	$216	$226	$243	$266	$279
5.0 x 5.0	$176	$176	$195	$216	$239	$239	$224	$239	$249	$266	$289	$302
BRASS BASE (BB91)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.0 x 4.0	$163	$163	$180	$199	$216	$216	-	-	-	-	-	-
4.5 x 4.0	$163	$163	$180	$199	$216	$216	$211	$226	$236	$249	$266	$279
4.5 x 4.5	$163	$163	$180	$199	$216	$216	$211	$226	$236	$249	$266	$279
5.0 x 4.5	$180	$180	$199	$216	$237	$237	$228	$243	$253	$266	$287	$300
5.0 x 5.0	$195	$195	$216	$237	$258	$258	$243	$258	$268	$287	$308	$321
STAINLESS STEEL BASE (BB91)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.0 x 4.0	$176	$176	$196	$211	$254	$254	-	-	-	-	-	-
4.5 x 4.0	$176	$176	$196	$211	$254	$254	$224	$239	$249	$261	$304	$317
4.5 x 4.5	$176	$176	$196	$211	$254	$254	$224	$239	$249	$261	$304	$317
5.0 x 4.5	$196	$196	$216	$237	$271	$271	$244	$259	$269	$287	$321	$334
5.0 x 5.0	$216	$216	$237	$254	$288	$288	$264	$279	$289	$304	$338	$351

5 KNUCKLE HEAVY TRANSFER HINGES - ETH

STEEL BASE (BB68)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$169	$169	$186	$201	$218	$218	$217	$232	$242	$254	$271	$284
4.5 x 4.5	$169	$169	$186	$201	$218	$218	$217	$232	$242	$254	$271	$284
5.0 x 4.5	$190	$190	$205	$218	$236	$236	$238	$253	$263	$271	$289	$302
5.0 x 5.0	$203	$203	$221	$231	$248	$248	$251	$266	$276	$284	$301	$314
BRASS BASE (BB99)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$190	$190	$208	$227	$246	$246	$238	$253	$263	$280	$299	$312
4.5 x 4.5	$190	$190	$208	$227	$246	$246	$238	$253	$263	$280	$299	$312
5.0 x 4.5	$208	$208	$227	$246	$265	$265	$256	$271	$281	$299	$318	$331
5.0 x 5.0	$221	$221	$239	$258	$283	$283	$269	$284	$294	$311	$336	$349
STAINLESS STEEL BASE (BB99)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$212	$212	$221	$241	$270	$270	$260	$275	$285	$294	$323	$336
4.5 x 4.5	$212	$212	$221	$241	$270	$270	$260	$275	$285	$294	$323	$336
5.0 x 4.5	$227	$227	$246	$263	$291	$291	$275	$290	$300	$316	$344	$357
5.0 x 5.0	$239	$239	$258	$275	$305	$305	$287	$302	$312	$328	$358	$371

5 KNUCKLE ENERGY TRANSFER HINGES- ETH

MODIFICATION ONLY	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
5 KNUCKLE - SW STEEL OR BRASS	$113	$113	$132	$148	$170	$186	$164	$176	$194	$211	$233	$246
5 KNUCKLE - SW STAINLESS STEEL	$152	$152	$170	$187	$205	$221	$203	$215	$233	$250	$268	$284
5 KNUCKLE - HW STEEL OR BRASS	$127	$127	$143	$161	$178	$195	$178	$190	$208	$224	$241	$254
5 KNUCKLE - HW STAINLESS STEEL	$167	$167	$184	$203	$220	$237	$218	$230	$248	$266	$283	$296

3 KNUCKLE STANDARD TRANSFER HINGES - ETH

STEEL BASE (CB70)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$142	$142	$160	$177	$195	$195	$190	$205	$215	$230	$248	$261
4.5 x 4.5	$142	$142	$160	$177	$195	$195	$190	$205	$215	$230	$248	$261
5.0 x 4.5	$163	$163	$180	$199	$216	$216	$211	$226	$236	$252	$269	$282
5.0 x 5.0	$180	$180	$199	$216	$235	$235	$228	$243	$253	$269	$288	$301
BRASS BASE (CB80)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$172	$172	$190	$208	$227	$227	$220	$235	$245	$261	$280	$293
4.5 x 4.5	$172	$172	$190	$208	$227	$227	$220	$235	$245	$261	$280	$293
5.0 x 4.5	$190	$190	$208	$227	$246	$246	$238	$253	$263	$280	$299	$312
5.0 x 5.0	$203	$203	$221	$239	$260	$260	$251	$266	$276	$292	$313	$326
STAINLESS STEEL BASE (CB80)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$186	$186	$204	$221	$239	$239	$234	$249	$259	$274	$292	$305
4.5 x 4.5	$186	$186	$204	$221	$239	$239	$234	$249	$259	$274	$292	$305
5.0 x 4.5	$208	$208	$227	$244	$265	$265	$256	$271	$281	$297	$318	$331
5.0 x 5.0	$221	$221	$244	$263	$280	$280	$269	$284	$294	$316	$333	$346

3 KNUCKLE HEAVY TRANSFER HINGES - ETH

STEEL BASE (CB75)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$169	$169	$188	$208	$221	$221	$217	$232	$242	$261	$274	$287
4.5 x 4.5	$169	$169	$188	$208	$221	$221	$217	$232	$242	$261	$274	$287
5.0 x 4.5	$190	$190	$210	$231	$244	$244	$238	$253	$263	$284	$297	$310
5.0 x 5.0	$212	$212	$233	$253	$267	$267	$260	$275	$285	$306	$320	$333
BRASS BASE (CB85)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$185	$185	$203	$221	$239	$239	$233	$248	$258	$274	$292	$305
4.5 x 4.5	$185	$185	$203	$221	$239	$239	$233	$248	$258	$274	$292	$305
5.0 x 4.5	$203	$203	$221	$239	$258	$258	$251	$266	$276	$292	$311	$324
5.0 x 5.0	$227	$227	$244	$263	$280	$280	$275	$290	$300	$316	$333	$346
STAINLESS STEEL BASE (CB85)	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
4.5 x 4.0	$200	$200	$218	$241	$265	$265	$248	$263	$273	$294	$318	$331
4.5 x 4.5	$200	$200	$218	$241	$265	$265	$248	$263	$273	$294	$318	$331
5.0 x 4.5	$231	$231	$241	$265	$283	$283	$269	$284	$294	$318	$336	$349
5.0 x 5.0	$244	$244	$265	$287	$305	$305	$292	$307	$317	$340	$358	$371

3 KNUCKLE ENERGY TRANSFER HINGES- ETH

MODIFICATION ONLY	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
3 KNUCKLE - SW STEEL OR BRASS	$117	$117	$135	$152	$170	$185	$168	$180	$198	$215	$233	$246
3 KNUCKLE - SW STAINLESS STEEL	$161	$161	$178	$195	$213	$227	$212	$224	$242	$258	$276	$289
3 KNUCKLE - HW STEEL OR BRASS	$143	$143	$161	$178	$196	$210	$194	$206	$224	$241	$259	$272
3 KNUCKLE - HW STAINLESS STEEL	$174	$174	$193	$210	$229	$243	$225	$237	$255	$273	$292	$305

5 KNUCKLE STANDARD TRANSFER HINGES - ETM

STEEL BASE (BB79)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$139	$231	$231	$251	$270	$280	$279	$306	$321	$345
4.5 x 4.5	$139	$231	$231	$251	$270	$280	$279	$306	$321	$345
5.0 x 4.5	$157	$248	$248	$270	$288	$300	$296	$323	$338	$363
5.0 x 5.0	$179	$272	$272	$294	$311	$322	$320	$347	$362	$386
BRASS BASE (BB91)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$166	$261	$261	$276	$296	$313	$319	$336	$351	$371
4.5 x 4.5	$166	$261	$261	$276	$296	$313	$319	$336	$351	$371
5.0 x 4.5	$184	$278	$278	$296	$313	$332	$336	$353	$368	$388
5.0 x 5.0	$207	$301	$301	$313	$337	$355	$359	$376	$391	$412
STAINLESS STEEL BASE (BB91)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$184	$276	$276	$296	$313	$322	$334	$351	$366	$388
4.5 x 4.5	$184	$276	$276	$296	$313	$322	$334	$351	$366	$388
5.0 x 4.5	$203	$296	$296	$313	$332	$351	$354	$371	$386	$407
5.0 x 5.0	$228	$318	$318	$336	$355	$373	$376	$393	$408	$430

5 KNUCKLE HEAVY TRANSFER HINGES - ETM

STEEL BASE (BB68)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$181	$277	$277	$297	$314	$324	$335	$352	$367	$389
4.5 x 4.5	$181	$277	$277	$297	$314	$324	$335	$352	$367	$389
5.0 x 4.5	$201	$297	$297	$314	$335	$345	$355	$372	$387	$410
5.0 x 5.0	$224	$320	$320	$340	$345	$356	$378	$395	$410	$420
BRASS BASE (BB99)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$197	$284	$284	$304	$322	$341	$342	$359	$374	$397
4.5 x 4.5	$197	$284	$284	$304	$322	$341	$342	$359	$374	$397
5.0 x 4.5	$214	$304	$304	$322	$341	$359	$362	$379	$394	$416
5.0 x 5.0	$237	$328	$328	$345	$364	$382	$386	$403	$418	$439
STAINLESS STEEL BASE (BB99)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$214	$304	$304	$322	$341	$359	$362	$379	$394	$416
4.5 x 4.5	$214	$304	$304	$322	$341	$359	$362	$379	$394	$416
5.0 x 4.5	$244	$337	$337	$355	$373	$392	$395	$412	$427	$448
5.0 x 5.0	$261	$351	$351	$369	$385	$405	$409	$426	$441	$491

5 KNUCKLE ENERGY TRANSFER HINGES- ETM

MODIFICATION ONLY	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
5 KNUCKLE - SW STEEL OR BRASS	$119	$212	$212	$229	$249	$267	$263	$280	$300	$318
5 KNUCKLE - SW STAINLESS STEEL	$156	$248	$248	$267	$282	$300	$299	$318	$333	$351
5 KNUCKLE - HW STEEL OR BRASS	$129	$218	$218	$239	$258	$273	$269	$290	$309	$324
5 KNUCKLE - HW STAINLESS STEEL	$165	$258	$258	$273	$291	$309	$309	$324	$342	$360

3 KNUCKLE STANDARD TRANSFER HINGES - ETM

STEEL BASE (CB70)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$147	$242	$242	$261	$276	$296	$300	$317	-	-
4.5 x 4.5	$147	$242	$242	$261	$276	$296	$300	$317	-	-
5.0 x 4.5	$166	$261	$261	$278	$296	$313	$319	$336	-	-
5.0 x 5.0	$190	$283	$283	$302	$318	$337	$341	$358	-	-
BRASS BASE (CB80)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$166	$261	$261	$276	$296	$313	$319	$336	$351	$371
4.5 x 4.5	$166	$261	$261	$276	$296	$313	$319	$336	$351	$371
5.0 x 4.5	$184	$278	$278	$296	$313	$332	$336	$353	$368	$388
5.0 x 5.0	$207	$302	$302	$318	$337	$355	$360	$377	$392	$412
STAINLESS STEEL BASE (CB80)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$190	$280	$280	$300	$318	$337	$338	$355	$370	$393
4.5 x 4.5	$190	$280	$280	$300	$318	$337	$338	$355	$370	$393
5.0 x 4.5	$207	$300	$300	$318	$337	$355	$358	$375	$390	$412
5.0 x 5.0	$231	$322	$322	$344	$359	$378	$380	$397	$412	$434

3 KNUCKLE HEAVY TRANSFER HINGES - ETM

STEEL BASE (CB75)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$175	$270	$270	$286	$304	$322	$328	$341	-	-
4.5 x 4.5	$175	$270	$270	$286	$304	$322	$328	$341	-	-
5.0 x 4.5	$194	$289	$289	$304	$322	$341	$347	$359	-	-
5.0 x 5.0	$216	$311	$311	$328	$345	$364	$369	$383	-	-
BRASS BASE (CB85)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$197	$286	$286	$304	$322	$341	$344	$361	$376	$397
4.5 x 4.5	$197	$286	$286	$304	$322	$341	$344	$361	$376	$397
5.0 x 4.5	$214	$304	$304	$322	$341	$359	$362	$379	$394	$416
5.0 x 5.0	$238	$328	$328	$345	$364	$382	$386	$403	$418	$439
STAINLESS STEEL BASE (CB85)	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
4.5 x 4.0	$220	$313	$313	$332	$357	$376	$371	$388	$403	$432
4.5 x 4.5	$220	$313	$313	$332	$357	$376	$371	$388	$403	$432
5.0 x 4.5	$240	$332	$332	$351	$376	$394	$390	$407	$422	$451
5.0 x 5.0	$263	$355	$355	$373	$399	$417	$413	$430	$445	$474

3 KNUCKLE ENERGY TRANSFER HINGES- ETM

MODIFICATION ONLY	M	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
3 KNUCKLE - SW STEEL OR BRASS	$129	$218	$218	$237	$255	$273	$269	$288	$306	$324
3 KNUCKLE - SW STAINLESS STEEL	$182	$273	$273	$291	$309	$328	$324	$342	$360	$379
3 KNUCKLE - HW STEEL OR BRASS	$146	$239	$239	$258	$275	$294	$290	$309	$326	$345
3 KNUCKLE - HW STAINLESS STEEL	$203	$294	$294	$311	$330	$348	$345	$362	$381	$399

WIRE MORTISE/CYLINDRICAL LOCK, & EXIT TRIM						WIRE HEAVY	LATCH RETRACTION
ETH2W (2/20GA)	ETH4W (4/26GA)	ETH6W (6/26GA)	ETH8W (8/28GA)	ETH10W (10/28GA)	ETH2WH (2/18GA)	(2/18GA + 2/26GA) ETH4WH	(2/18GA + 4/28GA) ETH6WH	(2/20GA + 6/28GA) ETH8WH

COMMAND ACCESS

ENERGY TRANSFER SWINGCLEAR Specify Bevelled or Square. 626 Finish. Consult factory for other finishes.

5SW STEEL BASED SC	$389	$389	$409	$427	$445	$437	$457	$475	$493
5HW STEEL BASED SC	$436	$436	$457	$473	$473	$484	$505	$521	$541

ENERGY TRANSFER SPECIALTY- MOD

HINGE TYPE	2W	4W	6W	8W	10W	2WH	4WH	6WH	8WH
SWINGCLEAR - SW STEEL HINGE	$276	$276	$295	$313	$332	$325	$336	$355	$373
SWINGCLEAR - HW STEEL HINGE	$303	$303	$322	$340	$358	$352	$363	$382	$400
SWINGCLEAR - SW SS HINGE	$313	$313	$332	$350	$369	$362	$373	$392	$410
SWINGCLEAR - HW SS HINGE	$340	$340	$358	$378	$396	$389	$400	$418	$438
RAISED BARREL - SW STEEL HINGE	$276	$276	$295	$313	$332	$325	$336	$355	$373
RAISED BARREL - HW STEEL HINGE	$303	$303	$322	$340	$358	$352	$363	$382	$400
RAISED BARREL - SW SS HINGE	$313	$313	$332	$350	$369	$362	$373	$392	$410
RAISED BARREL - HW SS HINGE	$340	$340	$358	$378	$396	$389	$400	$418	$438
HALF OR FULL SURFACE - SW STEEL	$288	$288	$305	$324	$342	$337	$348	$362	$384
HALF OR FULL SURFACE - HW STEEL	$305	$305	$324	$342	$362	$354	$365	$384	$402
HALF OR FULL SURFACE - SW SS	$322	$322	$340	$359	$378	$371	$382	$400	$419
HALF OR FULL SURFACE - HW SS	$344	$344	$364	$382	$400	$393	$404	$424	$442

NOTE : Wire access hole location on all hinges, regardless of hinge manufacturer, are located per Command Access Templates unless otherwise requested. Our standard templates are available on our website at www.commandaccess. com.

COMMAND ACCESS

ENERGY TRANSFER PIVOTS Specify Handing, Finishes available in 613, 625, 626.

HINGE TYPE	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH
INTERMEDIATE PIVOT - CAT PIVOT	$332	$332	$350	$369	$387	$398	$380	$398	$417	$435	$446

ENERGY TRANSFER PIVOTS - MOD

HINGE TYPE	2W	4W	6W	8W	10W	12W	2WH	4WH	6WH	8WH	10WH	12WH
3/4" OFFSET BRASS OR ALUMINUM	$313	$313	$332	$350	$369	$380	$362	$373	$392	$410	$429	$440
3/4" OFFSET STAINLESS STEEL	$340	$340	$358	$378	$396	$407	$389	$400	$418	$438	$456	$467
1-1/2" OFFSET BRASS OR ALUMINUM	$322	$322	$340	$358	$378	$388	$371	$382	$400	$418	$438	$448
1-1/2" OFFSET STAINLESS STEEL	$350	$350	$369	$387	$404	$416	$399	$410	$429	$447	$464	$476
TOP, POCKET, OR CENTER HUNG PIVOT	$183	$183	$202	$220	$239	$249	$232	$243	$262	$280	$299	$309

CONCEALED EPT

CAT EPT ALUM	Concealed Power Transfer ALUM specify (2 Wire or 10 Wire), same prep as Von Duprin EPT	$482
CAT EPT DURO	Concealed Power Transfer DURO specify (2 Wire or 10 Wire), same prep as Von Duprin EPT	$482

CONCEALED DOOR LOOPS

CDL-AL	Aluminum Finish, 6" total length.	$53
CDL-BLK	Black Finish, 6" total length.	$53
CDL-AL-FX	Aluminum Finish, 6" total length. Includes 1 side fixed for complete concealment in opposite side.	$57
CDL-BLK-FX	Black Finish, 6" total length. Includes 1 side fixed for complete concealment in opposite side.	$57

FOR 3/4" OFFSET PIVOT APPLICATIONS

CDL-AL-EXT	Aluminum Finish, 12" total length. Includes 1 side fixed for complete concealment in opposite side & extended length for wire guideance	$68
CDL-BLK-EXT	Black Finish, 12" total length. Includes 1 side fixed for complete concealment in opposite side & extended length for wire guideance	$68
CDL-AL-EXT2	Aluminum Finish, 18" total length. Includes 1 side fixed for complete concealment in opposite side & extended length for wire guideance	$87
CDL-BLK-EXT2	Black Finish, 18" total length. Includes 1 side fixed for complete concealment in opposite side & extended length for wire guideance	$87

DOOR LOOPS

DL-20A	20" Door Loop, Aluminum Finish (Can be cut in the field to length)	$49
DL-20D	20" Door Loop, Aluminum Finish (Can be cut in the field to length)	$49
NDL-18A	Narrow 18" Door Loop, Aluminum Finish (Can be cut in the field to length)	$42
NDL-18D	Narrow 18" Door Loop, Aluminum Finish (Can be cut in the field to length)	$42

ADDITIONAL OPTIONS FOR POWER TRANSFER

DOOR 4' LEAD	Standard 4' Lead on Door Side - Included Standard with every hinge	n/c
FRAME 4' LEAD	Add 4' Lead on Frame Side	CALL
WT	Additional charge to supply a wide throw hinge	$47
QC/CON	8-pin or 12-pin Molex Connectors added to locking device retrofit ElectroLynx or Allegion Connect	$48
Door Cord QC/CON	8-pin or 12-pin Molex Connectors w/3-5' lead added to locking device retrofit ElectroLynx or Allegion Connect	$78
DC6"-18"	6-18" Door Cord to connect a QC prepped locking device to the power transfer hinge	$75
DC36"-118"	3-9' Door Cord to connect a QC prepped locking device to the power transfer hinge	$95
DC120"-240"	10-20' Door Cord to connect a QC prepped locking device to the power transfer hinge	$165
HT	Add Hospital Tip to Hinge (SS/Brass Only)	$93
CAT HINGE REWIRE	Rewire Command Access Hinge	$93
OTHER HINGE REWIRE	Rewire another manufacturers hinge	$117

Allegion Connect® is a registered trademark of Allegion & ElectroLynx® is a registered trademark of Assa Abloy Micro-Fit 3.0™ Interconnect System available to retrofit common quick connection systems such as ElectroLynx® or Allegion Connect®.

INSTALLATION TOOLS

CAT-HIT-60	WIRE RACEWAY DRILL GUIDE FOR ELECTRIFIED LOCKS
CAT-HIIT-66- CLAMP	CLAMP SYSTEM FOR ALL HIT-66 GUIDES	CALL
DOOR DOLLY 1	MINI DOOR DOLLY	CALL
DOOR DOLLY 2	DOOR DOLLY	CALL

CALL FOR MORE!

www.commandaccess.com

orders@commandaccess.com

Live Chat Available

Customer Support 1-888-622-2377

Address: 22901 LA PALMA AVE YORBA LINDA CA 92887

www.commandaccess.com
