Camden CX Series Magnetic Locks Certificate
Open the original PDF document
View PDF
CAMDEN DOOR CONTROLS Subscriber: 975180001 5502 TIMBERLEA BLVD PartySite: MISSISSAUGA File No:
DAVID PRICE Date: 2010/05/26
ON L4W 2T7 CANADA Service Request No: SR5930216 Project Number: 10SR5930216
PD No: 10M26314
PO Number:
Subject: Multiple Listing Correlation Sheet
Dear David Price,
Enclosed is a copy of your completed Multiple Listing Correlation Sheet covering the Basic File listed below. The following documents were added (new)or revised on 05/26/2010.
| Basic File Vol ML File Pages | Revised | New | |||
|---|---|---|---|---|---|
| S5351 | 1 | S6579 | New ML Correlation Page(s) | ||
| S5351 | 3 | S6579 | New ML Correlation Page(s) |
Please review this material and report any inaccuracies to our Customer Experience Center, PHONE: 1-877-ULHELPS (1-877-854-3577) or by email at MLS@us.ul.com, referring to the above Service Request number .
This material is provided on behalf of Underwriters Laboratories Inc.(UL) or any authorized licensee of UL.
CAM File
ML FILE NO. S6579
Issued: 2010-05-14 Revised: 2010-05-26
MULTIPLE LISTING of RELEASING DEVICES (SZNT, SZNT7) for
[975180-001] CAMDEN DOOR CONTROLS
Basically Listed for:
[825038-001] VANGUARD SECURITY ENGINEERING CORP (NBK)
Basically Listed products covered by Procedure and/or Reports under File No. S5351, Volume 1
|
Products
Covered |
Report
Date |
Basic Applicant's
(Supplier's) Product Designation |
Multiple Listee's
Product Designation |
ILL # |
|---|---|---|---|---|
| Releasing devices | 1993-07-15 | MLSH-01-0 | CX-91S-06 | 1, 4 |
| MLSH-01T | CX-91S-06TDS | 1, 4 | ||
| MLS-01-0 | CX-91M-06 | 2, 4 | ||
| MLS-01T | CX-91M-06TDS | 2, 4 | ||
| ML-01 | CX-91S-12 | 3, 4 | ||
| ML-01HT | CX-91S-12TDS | 3, 4 | ||
| MLSH-02 | CX-92S-06 | 1, 4 | ||
| MLSH-02T | CX-92S-06TDS | 1, 4 | ||
| ML-02 | CX-92S-12 | 3, 4 | ||
| ML-02HT | CX-92S-12TDS | 3, 4 |
LITERATURE IS IDENTICAL TO BASICS
MARKING: Same as that described in Follow-Up Service Procedure and/or Report except for
Multiple Listee's name, ML Tradename, when applicable, and
product designation.
UL INSPECTION CENTER TAIPEI - 818
CX-91S-06 and CX-92S-06 Magnetic Lock 600 Lbs Surface Mount, Double and Single Door Installation Instructions
| Model | Description | Features | Current Draw |
|---|---|---|---|
| CX-91-S-06 | Single | Basic | 500mA @ 12V |
| CX-91-S-06TDS | Single | adj. timer, door position | 250mA @ 24V |
| switch & bond sensor | |||
| CX-92-S-06 | Double | Basic | 2 X 500mA @ 12V |
| CX-92-S-06TDS | Double | adj. timer, door position switch & bond sensors | 2 X 250mA @ 24V |
SHOCK HAZARD. Care must be taken to keep the power supply and wiring isolated from ground (earth). Use of an ohmmeter to test for shorts is recommended prior to service.
A. 12V DC Input:
Set jumpers for 12V DC operation. (See diagram below)
Connect the ground (-) lead from a 12V DC power source to terminal 2.
Connect the positive (+) lead from a 12V DC power source to terminal 1.
B. 24V DC Input:
Unit is delivered from Factory with single jumper ON for 24V operation.
Connect the ground (-) lead from a 24V DC power source to terminal 2.
Connect the positive (+) lead from a 24V DC power source to terminal.
C. Contacts:
Door Position Reed Switch dry contacts are rated 0.5A@30 V DC/AC.
Bond Sensor Output Relay dry contacts are rated 1.0A@30VDC.
For safe operation, do not exceed this rating.
Note: Only use UL Listed Regulated Limited Power Source.

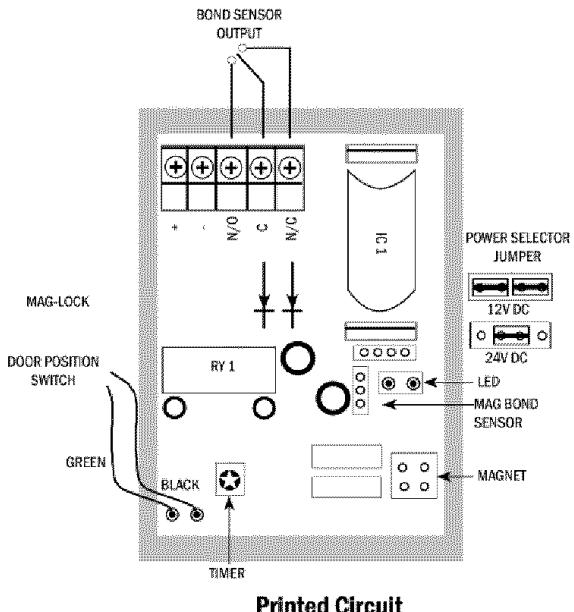

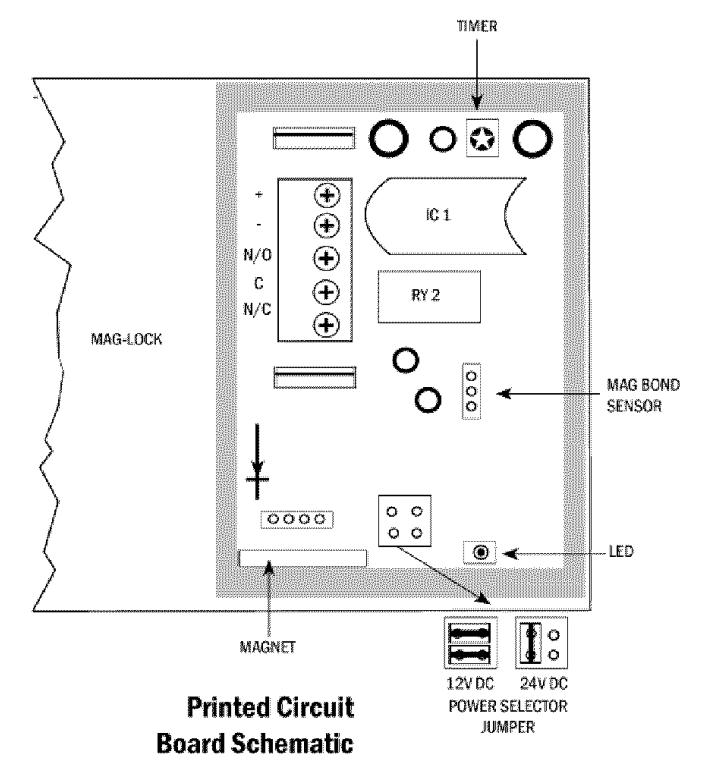

Printed Circuit Board Schematic
(SHOWN WITH ALL OPTIONS)
CX-91S-06 and CX-92S-06 Installation Instructions
Important

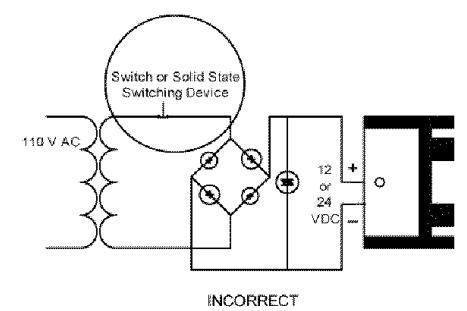

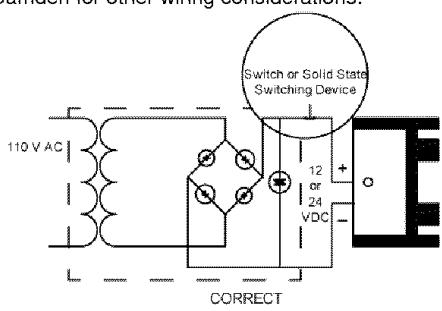

Power switch should always be wired as shown below in order to minimize the effect of residual magnetism. Contact Camden for other wiring considerations.
Important! Please read before installation
- A. Handle the components with care. Damaging the surfaces of the magnet or armature plate may reduce locking efficiency.

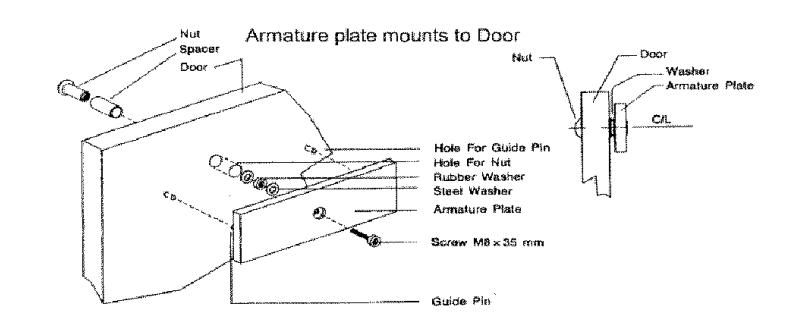

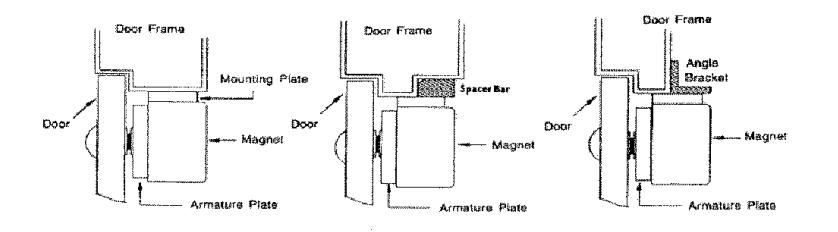

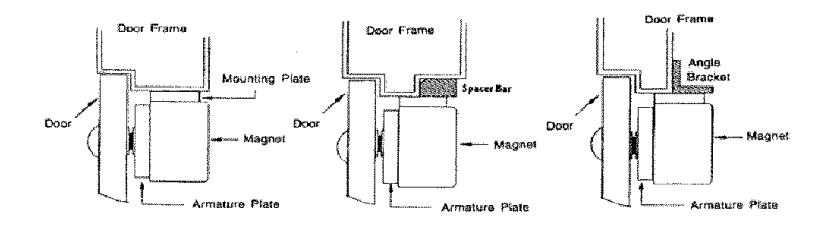

- B. The magnet mounts to the door frame. The armature plate must be mounted to the door with the hardware supplied. This allows it to pivot about its center compensate for door wear and misalignment.
- C. Affix template with the door in its normally closed position.
- D. Mark and drill holes. Mount magnet and armature plate with screws installed finger tight at first. Verify all parts align correctly, and then firmly tighten screws.
Key Pads
Strikes
Magnetic Locks
Key Switches
Relays & Timers | Access Control
5502 Timberlea Blvd., Mississauga, ON Canada L4W 2T7
www.camdencontrols.com Toll Free: 1.877.226.3369
File: CX-91S-92S-06_Man_NF_Rev1.doc Revised: May 12, 2010 Part No.:40-828051
5502 Timberlea Blvd. Mississauga, Ontario L4W 2T7 905-366-3377 Toll Free: 877-226-3369 www.camdencontrols.com

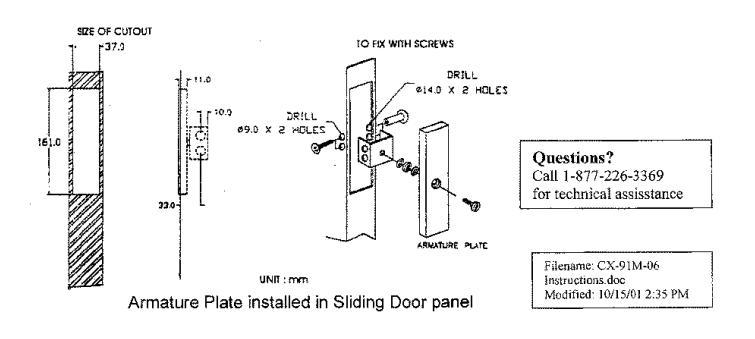

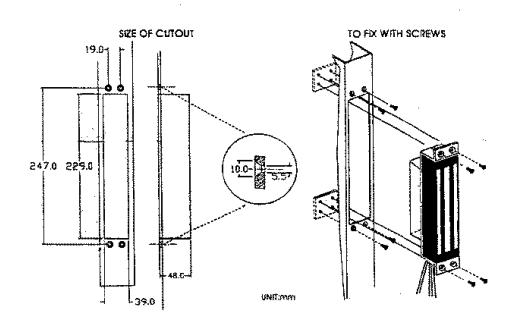

CX-91M-06 Installation Instructions
| Model | Description | Features | Current Draw |
|---|---|---|---|
| CX-91M-06 | Single | Basic | 480mA @ 12V |
| CX-91M-06TDS | Single |
adj. timer, door position
switch & bond sensor |
240mA @ 24V |
SHOCK HAZARD. Care must be taken to keep the power supply and wiring isolated from ground (earth). Use of an ohmmeter to test for shorts is recommended prior to service.
A. 12V DC Input:
Set jumpers for 12V DC operation. (See diagram below) Connect the ground (-) lead from a 12V DC power source to terminal 2. Connect the positive (+) lead from a 12V DC power source to terminal 1.
B. 24V DC Input:
Unit is delivered from Factory with single jumper ON for 24V operation. Connect the ground (-) lead from a 24V DC power source to terminal 2. Connect the positive (+) lead from a 24V DC power source to terminal.
C. Contacts:
Reed switch dry contacts are rated 0.5 Amp@30V DC/AC. For safe operation, do not exceed this rating. If you normally require a normally open contact, connect to the black and green wire of the PCB. If you normally require a normally closed contact, connect to the black and red wire of the PCB.

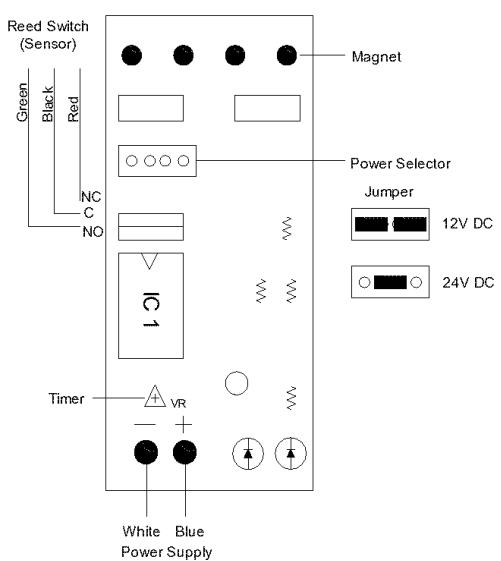

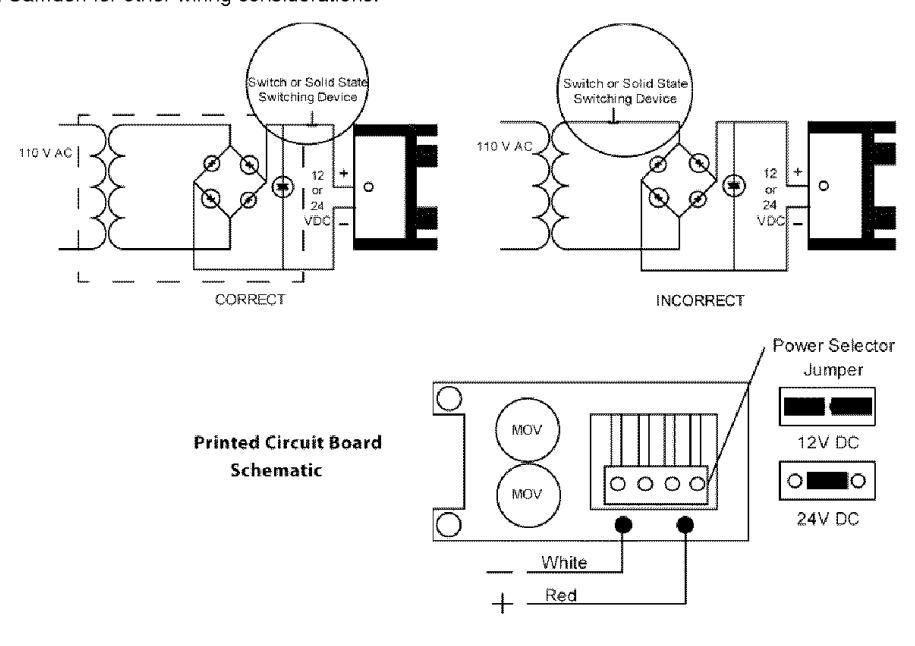

Printed Circuit Board Schematic
(shown with all options)
CX-91S-12 and CX-92S-12 Magnetic Lock 1200 Lbs Surface Mount, Double and Single Door Installation Instructions
| Model | Description | Features | Current Draw |
|---|---|---|---|
| CX-91-S-12 | Single | Basic | 500mA @ 12V |
| CX-91-S-12TDS | Single | adj. timer, door position | 250mA @ 24V |
| switch & bond sensor | |||
| CX-92-S-12 | Double | Basic | 2 X 500mA @ 12V |
| CX-92-S-12TDS | Double | adj. timer, door position switch & bond sensors | 2 X 250mA @ 24V |
SHOCK HAZARD. Care must be taken to keep the power supply and wiring isolated from ground (earth). Use of an ohmmeter to test for shorts is recommended prior to service.
A. 12V DC Input:
Set jumpers for 12V DC operation. Connect the ground (-) lead from a 12V DC
power source to terminal 2.
Connect the positive (+) lead from a 12V DC power source to terminal 1.
B. 24V DC Input:
Unit is delivered from Factory with single jumper ON for 24V operation.
Connect the ground (-) lead from a 24V DC power source to terminal 2.
Connect the positive (+) lead from a 24V DC power source to terminal.
C. Contacts:
Door Position Reed Switch dry contacts are rated 0.5A@30 V DC/AC.
Bond Sensor Output Relay dry contacts are rated 1.0A@30VDC.
For safe operation, do not exceed this rating.
Note: Only use UL Listed Regulated Limited Power Source.
(SHOWN WITH ALL OPTIONS)
CX-91S-12 and CX-92S-12 Installation Instructions
Important

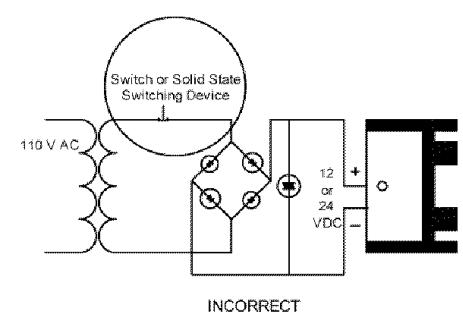

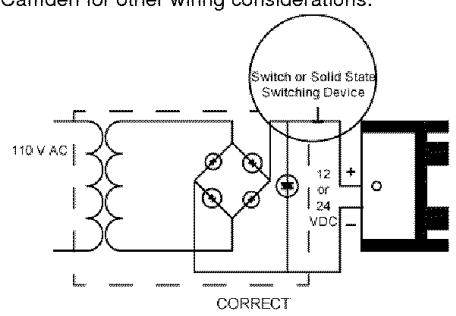

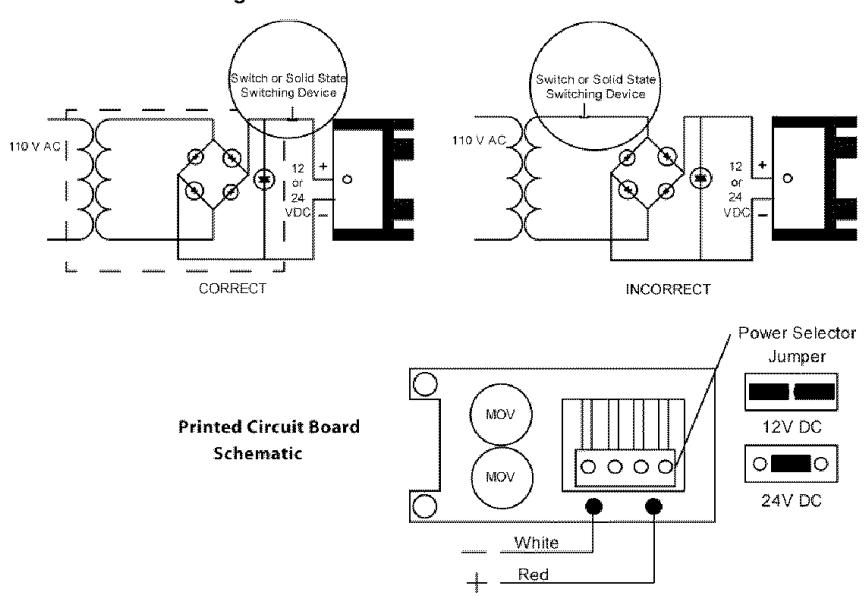

Power switch should always be wired as shown below in order to minimize the effect of residual magnetism. Contact Camden for other wiring considerations.
Important! Please read before installation

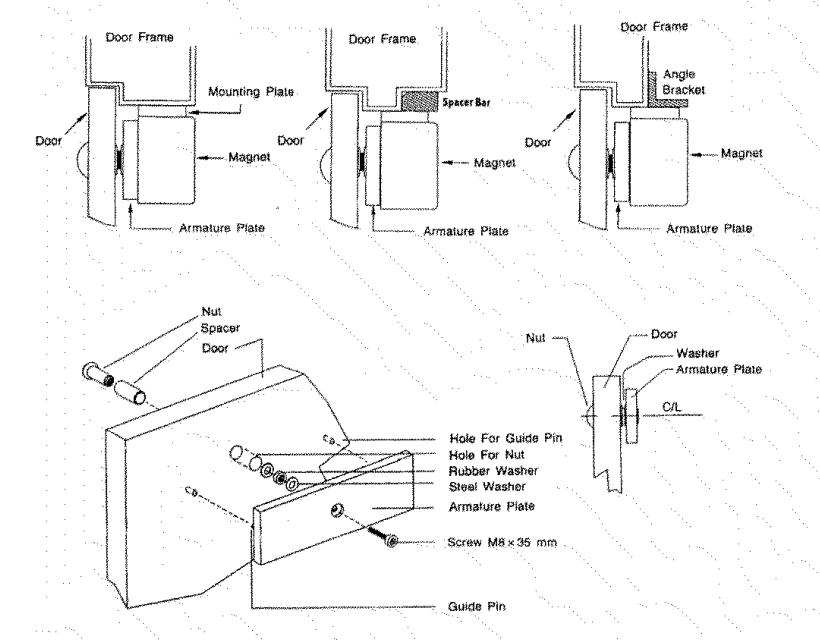

- A. Handle the components with care. Damaging the surfaces of the magnet or armature plate may reduce locking efficiency.

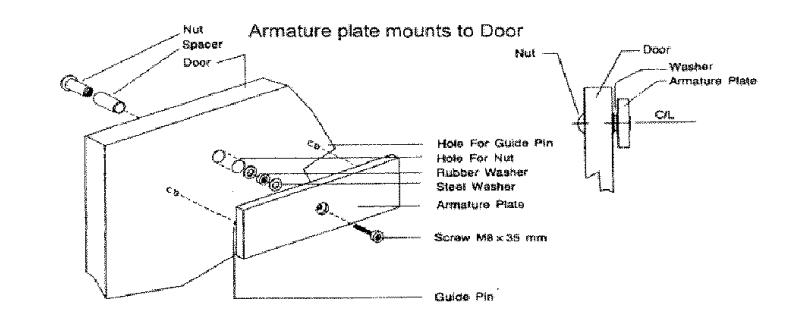

- B. The magnet mounts to the door frame. The armature plate must be mounted to the door with the hardware supplied. This allows it to pivot about its center compensate for door wear and misalignment.
- C. Affix template with the door in its normally closed position.
- D. Mark and drill holes. Mount magnet and armature plate with screws installed finger tight at first. Verify all parts align correctly, and then firmly tighten screws.
Key Pads
Strikes
Magnetic Locks
Key Switches
Relays & Timers | Access Control
5502 Timberlea Blvd., Mississauga, ON Canada L4W 2T7
www.camdencontrols.com Toll Free: 1.877.226.3369
File: CX-91S-92S-12_Man_NF_Rev1.doc Revised: May 12, 2010 Part No.: 40-82B094
MAGNETIC LOCKS
MAGNETIC LOCKS
FEATURES
- COMPATIBLE WITH ALL ACCESS/EGRESS SYSTEMS
- ALUMINUM/STAINLESS CASINGS ARE WEATHER AND VANDAL RESISTANT
- ON BOARD MOV'S PROVIDE PROTECTION AGAINST VOLTAGE SPIKES AND SURGES
- ASSORTED MOUNTING BRACKETS AND FILLER PLATES AVAILABLE
| ITEM | MODEL | DESCRIPTION | CURRENT DRAW | DIMENSIONS | |
|---|---|---|---|---|---|
|
1200 LBS SURFACE MOUNT
SINGLE DOOR |
CX-91S-12 | Basic | |||
| construction of the second | CX-91S-12TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
500 mA @12V
250 mA @24V |
10 1/2" x 2 7/8" x 1 7/8"
267 mm x 73 mm x 48 mm |
|
| 1200 LBS SURFACE MOUNT DOUBLE DOORS | CX-92S-12 | Basic | |||
| on H | CX-92S-12TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
2 x 500 mA @12V
2 x 250 mA @24V |
21" x 2 7/8" x 1 7/8"
533 mm x 73 mm x 48 mm |
|
|
600 LBS SURFACE MOUNT
SINGLE DOOR |
CX-91S-06 | Basic | |||
| o (Numb | CX-91S-06TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
2 x 500 mA @12V
2 x 250 mA @24V |
9 7/8" x 1 7/8" x 1"
251 mm x 48 mm x 25 mm |
|
| 600 LBS SURFACE MOUNT DOUBLE DOORS | CX-92S-06 | Basic | |||
| court | CX-92S-06TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
2 x 500 mA @12V
2 x 250 mA @24V |
19 5/8" x 1 7/8" x 11/16"
498 mm x 48 mm x 17 mm |
|
|
600 LBS MORTISE MOUNT
SINGLE DOOR |
CX-91M-06 | Basic | |||
| c (D) using | CX-91M-06TLS |
c/w Adjustable Timer &
Lock Sensor/Relay |
480 mA @12V
240 mA @24V |
9" x 1 1/2" x 1 1/8"
229 mm x 38 mm x 29 mm |
|
| 300 LBS SURFACE MOUNT SINGLE DOOR | CX-90S-03 | Basic |
360 mA @12V
180 mA @24V |
6 1/2" x 1 3/8" x 13/16"
165 mm x 35 mm x 21 mm |
|
|
300 LBS MORTISE MOUNT
SINGLE DOOR |
CX-90M-03 | Basic |
360 mA @12V
180 mA @24V |
8" x 1 3/8" x 13/16"
203 mm x 35 mm x 21 mm |
|
|
1200 LBS SURFACE MOUNT
GATE LOCK |
CX-945-12LS | c/w Lock Sensor/Relay |
500 mA @12V
250 mA @24V |
10 5/8" x 1 3/8" x 1 1/4"
270 mm x 35 mm x 32 mm |
|
| 2600 LBS SHEAR LOCK | |||||
| Self aligning Ultra low current draw Compact mortise mount | CX-93M-26LS | c/w Lock Sensor/Relay |
480 mA @12V
240 mA @24V |
9 1/16" x 1 1/4" x 1 1/16"
230 mm x 32 mm x 27 mm |
|
5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9) Tel: (905) 366-3377 • Fax: (905) 366-3378 • E-mail: info@camdencontrols.com • www.camdencontrols.com
| MAGNETIC LOCK ACCESSORIES | ||||
|---|---|---|---|---|
| ITEM | MODEL | DESCRIPTION | DIMENSIONS | |
|
ARMATURE
HOUSING |
CX-0001
CX-0011 |
For 1200 lbs Magnet For 600 lbs Magnet |
7 15/16" x 3" x 5/8"
202mm x 76mm x 16mm 7 15/16" x 2 3/16" x 5/8" 202mm x 56mm x 16mm |
|
|
ADJUSTABLE L
BRACKET |
CX-1001
CX-1011 |
For 1200 lbs Magnet For 600 lbs Magnet |
10 1/2" x 3" x 1 1/2"
267mm x 76mm x 38mm 9 13/16" x 1 15/16" x 1 1/8" 250mm x 49mm x 29mm |
|
|
SET OF L & Z
BRACKETS |
CX-1002
CX-1012 |
For 1200 lbs Magnet
For 600 lbs Magnet |
10 1/2" x 3" x 1 13/16"
267mm x 76mm x 46mm 6 5/16" x 2 1/2" x 2 1/2" 160mm x 64mm x 64mm 9 13/16" x 1 13/16" x 1 1/8" 250mm x 46mm x 29mm 6 3/16" x 2" x 2" 160mm x 51mm x 51mm |
|
|
ANGLE
BRACKET |
CX-1003 | For 1200 & 600 lbs Mags |
10 1/2" x 1 1/2" x 1"
267mm x 38mm x 25mm |
|
| SPACER BAR | CX-1004 | For 1200 & 600 lbs Mags |
10 1/2" x 11/16" x 5/8"
267mm x 17mm x 16mm |
|
|
STAINLESS STEEL
SURFACE MOUNTING KIT |
CX-1008 | For 2600 lbs Shear Lock |
9 1/4" x 1 5/8" x 1 1/2"
235mm x 41mm x 38mm |
|
|
GLASS DOOR
MOUNTING KIT |
CX-1013 |
For 1200 and 600 lbs
Mags, use on 1/2* or 3/4" thick doors |
7 1/4" x 2 7/16" x 1 1/4"
184mm x 62mm x 32mm |
|
|
MOUNTING
BRACKET/SPACER |
CX-AL005 | For 600 lbs Mags |
9 7/8" x 1" x 3/16"
251mm x 25mm x 5mm |
|
|
MOUNTING
BRACKET/SPACER |
CX-AL015 | For 1200 lbs Mags |
10 1/2" x 1 9/16" x 1/4"
267mm x 40mm x 32mm |
|
ML FILE NO. S6579
Issued: 2010-05-17 Revised: 2010-05-26
MULTIPLE LISTING of RELEASING DEVICES (SZNT) for
[975180-001] CAMDEN DOOR CONTROLS
Basically Listed for:
[825038-001] VANGUARD SECURITY ENGINEERING
(NBK)
CORP
Basically Listed products covered by Procedure and/or Reports under File No. S5351, Volume 3
|
Products
Covered |
Report
Date |
Basic Applicant's
(Supplier's) Product Designation |
Multiple Listee's
Product Designation |
ILL # |
|---|---|---|---|---|
| Releasing devices | 2008-10-21 | ML300 | CX-90M-03 | 1, 3 |
| ML300H | CX-90S-03 | 2, 3 |
LITERATURE IS IDENTICAL TO BASICS
MARKING: Same as that described in Follow-Up Service Procedure and/or Report except for
Multiple Listee's name, ML Tradename, when applicable, and
product designation.
UL INSPECTION CENTER TAIPEI - 818
| Model | Description | Features | Current Draw |
|---|---|---|---|
| CX-90M-03 | Single | Basic | 360 mA @ 12VDC |
| 180 mA @ 24 VDC |
C100986861

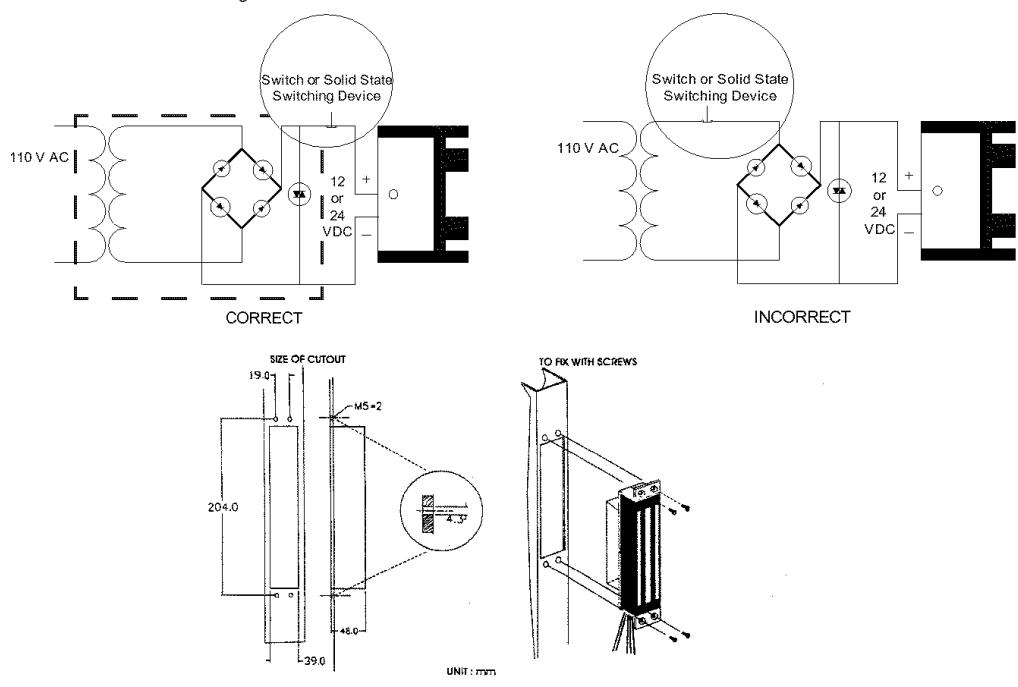

CX-90M-03 Installation Instructions
Important! Please read before installation
- A. Handle the components with care. Damaging the surfaces of the magnet or armature plate may reduce locking
- B. The magnet mounts to the door frame. The armature plate must be mounted to the door with the hardware supplied. This allows it to pivot about its center to compensate for door wear and misalignment.
- C. Affix template with the door in its normally closed position.
- D. Mark and drill holes. Mount magnet and armature plate with screws installed finger tight at first. Verify all parts align correctly, then firmly tighten screws.

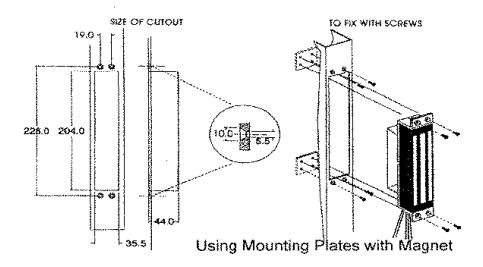

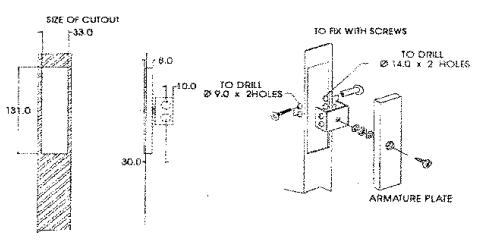

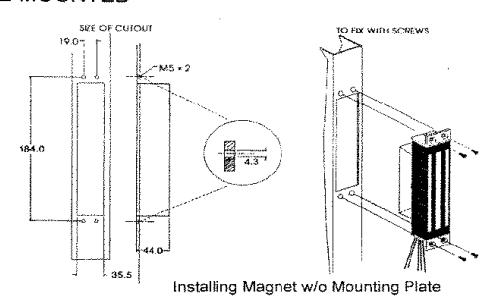

MORTISE MOUNTED
Key Pads
Strikes
Magnetic Locks
Key Switches
Relays & Timers | Access Control
5502 Timberlea Blvd., Mississauga, ON Canada L4W 2T7
www.camdencontrols.com Toll Free: 1.877.226.3369
File: CX-90M-03_Man_NF_Rev1.doc Revised: May 12, 2010 Part No.: 40-82B111
| Model | Description | Features | Current Draw |
|---|---|---|---|
| CX-90S-03 | Single | Basic | 360 mA @ 12VDC |
| 180 mA @ 24 VDC |
C100986862
CX-90S-03 Installation Instructions
Important! Please read before installation
- A. Handle the components with care. Damaging the surfaces of the magnet or armature plate may reduce locking efficiency.
- B. The magnet mounts to the door frame. The armature plate must be mounted to the door with the hardware supplied. This allows it to pivot about its center to compensate for door wear and misalignment.
- C. Affix template with the door in its normally closed position.
- D. Mark and drill holes. Mount magnet and armature plate with screws installed finger tight at first. Verify all parts align correctly, and then firmly tighten screws.
Typical Installation:
5502 Timberlea Blvd., Mississauga, ON Canada L4W 2T7
www.camdencontrols.com Toll Free: 1.877.226.3369
File: CX-90S-03_Man_NF-Rev1.doc Revised: May 12, 2010 Part No.: 40-82B112
MAGNETIC LOCKS
MAGNETIC LOCKS
FEATURES
- COMPATIBLE WITH ALL ACCESS/EGRESS SYSTEMS
- ALUMINUM/STAINLESS CASINGS ARE WEATHER AND VANDAL RESISTANT
- ON BOARD MOV'S PROVIDE PROTECTION AGAINST VOLTAGE SPIKES AND SURGES
- ASSORTED MOUNTING BRACKETS AND FILLER PLATES AVAILABLE
| ITEM | MODEL | DESCRIPTION | CURRENT DRAW | DIMENSIONS | |
|---|---|---|---|---|---|
|
1200 LBS SURFACE MOUNT
SINGLE DOOR |
CX-91S-12 | Basic | |||
| construction of the second | CX-91S-12TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
500 mA @12V
250 mA @24V |
10 1/2" x 2 7/8" x 1 7/8"
267 mm x 73 mm x 48 mm |
|
| 1200 LBS SURFACE MOUNT DOUBLE DOORS | CX-92S-12 | Basic | |||
| on H | CX-92S-12TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
2 x 500 mA @12V
2 x 250 mA @24V |
21" x 2 7/8" x 1 7/8"
533 mm x 73 mm x 48 mm |
|
|
600 LBS SURFACE MOUNT
SINGLE DOOR |
CX-91S-06 | Basic | |||
| o (Numb | CX-91S-06TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
2 x 500 mA @12V
2 x 250 mA @24V |
9 7/8" x 1 7/8" x 1"
251 mm x 48 mm x 25 mm |
|
| 600 LBS SURFACE MOUNT DOUBLE DOORS | CX-92S-06 | Basic | |||
| court | CX-92S-06TDS |
c/w Adjustable Timer,
Lock Sensor, Door Status Switch, Relay & LED |
2 x 500 mA @12V
2 x 250 mA @24V |
19 5/8" x 1 7/8" x 11/16"
498 mm x 48 mm x 17 mm |
|
|
600 LBS MORTISE MOUNT
SINGLE DOOR |
CX-91M-06 | Basic | |||
| c (D) using | CX-91M-06TLS |
c/w Adjustable Timer &
Lock Sensor/Relay |
480 mA @12V
240 mA @24V |
9" x 1 1/2" x 1 1/8"
229 mm x 38 mm x 29 mm |
|
| 300 LBS SURFACE MOUNT SINGLE DOOR | CX-90S-03 | Basic |
360 mA @12V
180 mA @24V |
6 1/2" x 1 3/8" x 13/16"
165 mm x 35 mm x 21 mm |
|
|
300 LBS MORTISE MOUNT
SINGLE DOOR |
CX-90M-03 | Basic |
360 mA @12V
180 mA @24V |
8" x 1 3/8" x 13/16"
203 mm x 35 mm x 21 mm |
|
|
1200 LBS SURFACE MOUNT
GATE LOCK |
CX-945-12LS | c/w Lock Sensor/Relay |
500 mA @12V
250 mA @24V |
10 5/8" x 1 3/8" x 1 1/4"
270 mm x 35 mm x 32 mm |
|
| 2600 LBS SHEAR LOCK | |||||
| Self aligning Ultra low current draw Compact mortise mount | CX-93M-26LS | c/w Lock Sensor/Relay |
480 mA @12V
240 mA @24V |
9 1/16" x 1 1/4" x 1 1/16"
230 mm x 32 mm x 27 mm |
|
5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9) Tel: (905) 366-3377 • Fax: (905) 366-3378 • E-mail: info@camdencontrols.com • www.camdencontrols.com
| MAGNETIC LOCK ACCESSORIES | |||||
|---|---|---|---|---|---|
| ITEM | MODEL | DESCRIPTION | DIMENSIONS | ||
|
ARMATURE
HOUSING |
CX-0001
CX-0011 |
For 1200 lbs Magnet For 600 lbs Magnet |
7 15/16" x 3" x 5/8"
202mm x 76mm x 16mm 7 15/16" x 2 3/16" x 5/8" 202mm x 56mm x 16mm |
||
|
ADJUSTABLE L
BRACKET |
CX-1001
CX-1011 |
For 1200 lbs Magnet
For 600 lbs Magnet |
10 1/2" x 3" x 1 1/2"
267mm x 76mm x 38mm 9 13/16" x 1 15/16" x 1 1/8" 250mm x 49mm x 29mm |
||
|
SET OF L & Z
BRACKETS |
CX-1002
CX-1012 |
For 1200 lbs Magnet
For 600 lbs Magnet |
10 1/2" x 3" x 1 13/16"
267mm x 76mm x 46mm 6 5/16" x 2 1/2" x 2 1/2" 160mm x 64mm x 64mm 9 13/16" x 1 13/16" x 1 1/8" 250mm x 46mm x 29mm 6 3/16" x 2" x 2" 160mm x 51mm x 51mm |
||
|
ANGLE
BRACKET |
CX-1003 | For 1200 & 600 lbs Mags |
10 1/2" x 1 1/2" x 1"
267mm x 38mm x 25mm |
||
| SPACER BAR | CX-1004 | For 1200 & 600 lbs Mags |
10 1/2" x 11/16" x 5/8"
267mm x 17mm x 16mm |
||
|
STAINLESS STEEL
SURFACE MOUNTING KIT |
CX-1008 | For 2600 lbs Shear Lock |
9 1/4" x 1 5/8" x 1 1/2"
235mm x 41mm x 38mm |
||
|
GLASS DOOR
MOUNTING KIT |
CX-1013 |
For 1200 and 600 lbs
Mags, use on 1/2* or 3/4" thick doors |
7 1/4" x 2 7/16" x 1 1/4"
184mm x 62mm x 32mm |
||
|
MOUNTING
BRACKET/SPACER |
CX-AL005 | For 600 lbs Mags |
9 7/8" x 1" x 3/16"
251mm x 25mm x 5mm |
||
|
MOUNTING
BRACKET/SPACER |
CX-AL015 | For 1200 lbs Mags |
10 1/2" x 1 9/16" x 1/4"
267mm x 40mm x 32mm |
||
