SURE

CM-325/42

CM-325/41WS

CM-325/40W

CM-325 SERIES

SHORT RANGE 'HANDS-FREE' SWITCH

FEATURES

• SPECIFICALLY DESIGNED FOR HEALTHCARE AND OTHER APPLICATIONS REQUIRING A SHORT OPERATING RANGE
• ADJUSTABLE OPERATING RANGE 2"-3" (HAND). SEE CHART BELOW FOR OTHER RANGES
• ADJUSTABLE TIME DELAY 1-5 SECONDS
• FAIL-SAFE/NON-FAIL-SAFE SELECTABLE
• ON-BOARD LED FOR EASE OF SET-UP (SELECTABLE ON/OFF)
• ROHS COMPLIANT

• SUPER-FAST ACTIVATION RESPONSE. <100MS
• FULLY SHIELDED AGAINST EMI, LINE VOLTAGE SPIKES AND NOISE
• •12/24V AC/DC OPERATION
• HEAVY DUTY 5 AMP RELAY, FOR USE WITH ALL AUTOMATIC OPERATORS AND ELECTRIFIED LOCKS
• STAINLESS STEEL OR HIGH-IMPACT POLYCARBONATE FACEPLATES

DESCRIPTION

Sure-Wave™ CM-325 Series Hands-Free Switches are active infra-red door activation devices specifically designed for control of automatic doors operators or locks, where high reflective surfaces (such as chrome or polished stainless steel) cause standard hands-free switches to false activate. The switches are available in a range of narrow, single gang and double gang faceplates, stainless steel or polycarbonate, and three faceplate graphics.

APPLICATION

Sure-Wave™ CM-325 Series 'short range' hands-free switches are specifically designed for use in healthcare and other facilities where highly reflective equipment (such as chrome, stainless steel or even safety vests) would false activate a standard hands-free switch (from many feet away.) CM-325 switches are American Disability Act (ADA) compliant, and provide barrier free access and egress to buildings and washroom facilities.

ARCHITECTS / ENGINEERS SPECIFICATIONS

Door activation switches to be used throughout the facility shall be Sure-Wave™ 'short range' CM-325 Series active infra-red hands-free switches manufactured by Camden Door Controls.

The switches shall be jamb/narrow, single gang or double gang, with stainless steel or polycarbonate faceplate, as required. They shall have an on-board LED for ease of setup, fail-safe or non-fail-safe selectable, have an adjustable minimum operating range of 2" and a maximum operating range of not more than 18", regardless of the reflective material placed within the sensor field. The switch shall have a relay contact rating of 5 amps @ 30 VDC and shall also be ROHS compliant. Switches mounted outdoors, or exposed to interior water/humidity shall be mounted with weather resistant integral rubber gasket and back box, supplied by the same manufacturer.

OBJECT		MIN	MAX
1/	Hand	2"	3"
2/	8 1/2" x 11" White Paper	3 1/2"	4 1/2"
3/	S/S Chrome Post	5"	6"
4/	S/S Plate 12" x 12"	7"	9"
5/	Small Make-up Mirror	11"	18"

SPECIFICATIONS

TECHNOLOGY: INFRA-RED WITH CODED MODULATED CARRIER

SECURITY: AUTOMATIC SELF-CHANGING ID

OPERATING

MODES: PULSE (SENSE) / TOGGLE

OPERATING TEMP: -4°F TO +153°F (-20°C TO +85°C)

OPERATING

VOLTAGE: 12-24 VOLTS, AC/DC ± 12%

CURRENT DRAW: 50 - 60 MA. RESPONSE TIME: 100 MS.

ACTIVATION

RANGE: MINIMUM 2" (51 MM) HAND, MAXIMUM 18" (457 MM) MIRROR

RELAY OUTPUT: FORM 'C' (SPDT)

RELAY CONTACT

RATING: 5 AMPS @ 30 VDC OUTPUT TYPE: NORMAL OR FAIL-SAFE CONNECTIONS: 11" 22 AWG LEADS TIME DELAY: 1 TO 5 SECONDS

ELECTRICAL LIFE : 100,000 OPERATIONS @ RATED CAPACITY

500,000 OPERATIONS @ 1/2 RATED CAPACITY

ORDERING INFORMATION

MODEL DESCRIPTION

CM-325 WIRED 'SHORT RANGE' TOUCHLESS SWITCH, 1 RELAY

CONFIGURATION OPTIONS

FACEPLATE MATERIAL

CM-XXXP POLYCARBONATE FACEPLATE CM-XXXS STAINLESS STEEL FACEPLATE

FACEPLATE SIZE

CM-XXX/N NARROW FACEPLATE CM-XXX SINGLE GANG FACEPLATE CM-XXX/W DOUBLE GANG FACEPLATE

FACEPLATE GRAPHICS

CM-XXX/40 HAND ICON

CM-XXX/41 HAND ICON AND 'WAVE TO OPEN' TEXT

CM-XXX/42 HAND ICON, 'WAVE TO OPEN' TEXT AND WHEELCHAIR SYMBOL

LITHIUM BATTERIES

CX-XXXL1 ADD SUFFIX 'L1' FOR (2) 'AA' LITHIUM BATTERIES IN PLACE OF (2)

ALKALINE

CM-LP1 (2) AA LITHIUM BATTERY PACKS

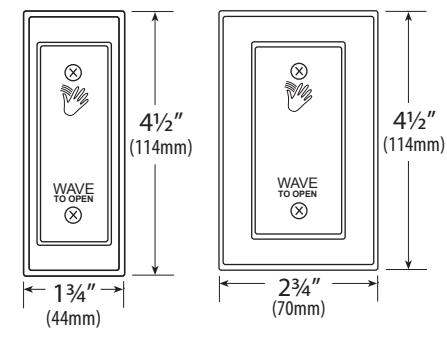

SURE WAVE

CM-325/41N

CM-325/41

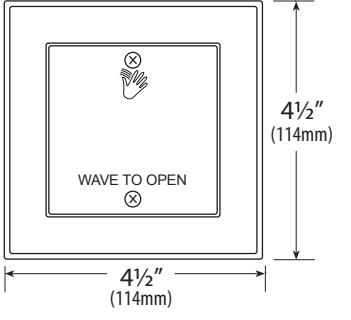

CM-325/41W

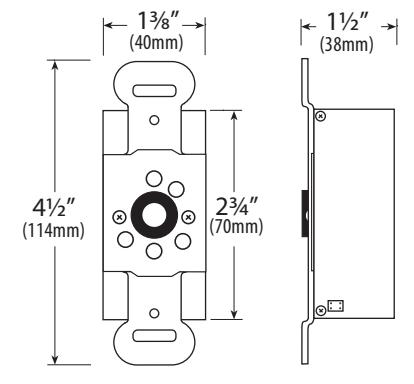

FRONT VIEW SIDE VIEW

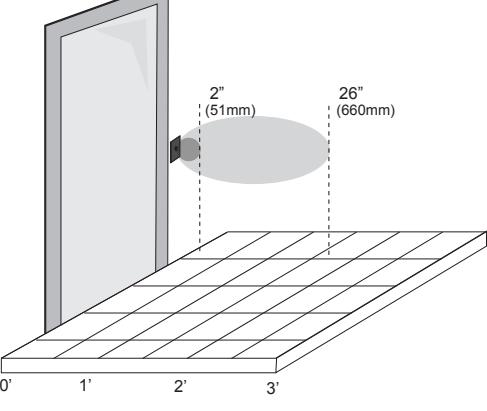

ADJUSTABLE RANGE SETTINGS
