Install the BEST. And keep the rest.

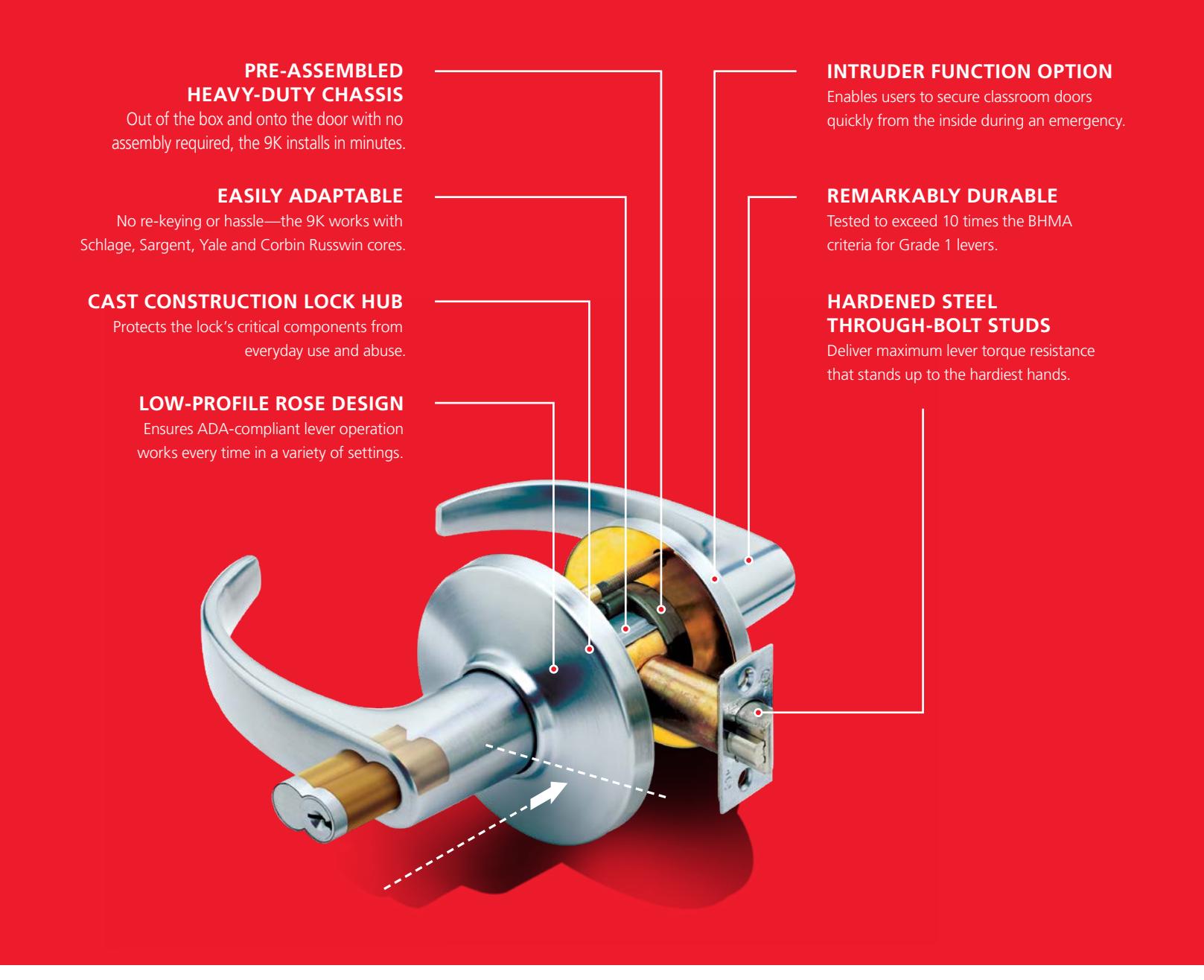

The 9K is durable, safe and easy to install. And now, it accommodates Schlage, Sargent, Yale and Corbin Russwin cores. So just about everyone can keep their key systems and still have the BEST. Easy choice.
The 9K is the easiest upgrade you'll ever make.

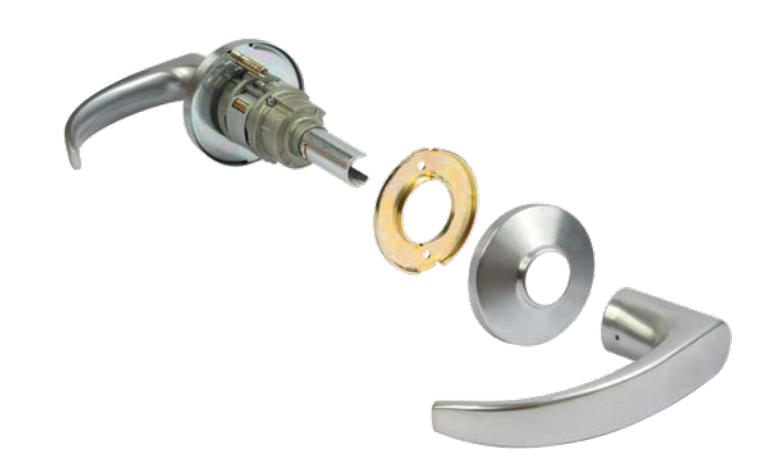

Now that the 9K houses most major cores, upgrading to BEST is easy. Start by selecting the right lockset for your core system from the chart below to ensure you get the proper configuration option. Once you receive your 9K, installation is a snap. Just slide the existing core out of the lock you're replacing, install the new 9K, and snap your old core into the new 9K lever. No assembly, drilling or re-keying required.
How to Order: 9K Heavy-Duty Levers
| 9K3 | 6 | AB | 15 | D | STK | 626 | KD |
|---|---|---|---|---|---|---|---|
| Backset |
Core
Housing |
Function
Code |
Lever |
Trim
Style |
Strike
Package |
Standard
Finish |
Options |
|
9K3 – 2 3/4"
9K4 – 3 3/4" 9K5 – 5" |
0 – keyless functions or competitive cylinder (IC and non-IC) 6 – 6 pin non-IC cylinder |
AB – entrance
D – storeroom R – classroom etc. |
14 – curved &
15 – return contour angle return & 16 – curved no return & |
C – 3"
D – 3 1/2" |
STK –
standard S3 – ANSI |
605
606 612 613 625 626 690 |
OB* – non-IC zero-bitted KA* – non-IC keyed alike KD* – non-IC keyed different COR** – non-IC Corbin Russwin MED** – non-IC Medeco SAR** – non-IC Sargent SCH** – non-IC Schlage YAL** – non-IC Yale CORRC** – Corbin Russwin removable core SARRC** – Sargent removable core SCHRC** – Schlage removable core (14 and 15 lever only) YALRC** – Yale removable core ATB*** – 2 3/4" through-bolt ATB2*** – 2 5/8" through-bolt |
* Six-pin cylinder in Schlage "C" included with OB, KA and KD options. Must specify "6" for core housing.
For questions about ordering and to be sure you get the right configuration for your needs, contact your BEST dormakaba sales representative.
6161 East 75th Street Indianapolis, IN 46250 USA
Phone 855-365-2407
bestaccess.com
** Cylinder not included with OEM options. "0" must be specified for core housing.
*** Only available on D rose; not available for 9K stand-alone electronic products or IDH Max.
