DC300

ARROW LOCK® warrants that its products sold under the "ARROW LOCK" trade name in the United States of America are free from defects in workmanship and materials under normal use and service.

This warranty does not cover defects or damage arising from improper installation, lack of or improper maintenance, improper storage, shipping and handling, corrosion, erosion, ordinary wear and tear, misuse, abuse, accident, unauthorized service, or use with unauthorized non-ARROW LOCK products or parts.

DC500

This warranty is void if any modification is made to the warranty product, regardless of whether the modification causes or contributes to the alleged defect. All modifications are made at the risk of the party making the modification.

The only liability of ARROW LOCK®, in tort or contract whether under this warranty or otherwise, shall be limited to the repair or replacement of any product or component part which shall prove defective as covered by this warranty, within the stated time period listed below, after delivery to the original purchaser.

900N

• Door Closers 10 years
• 7800 & 7900 2 Years
• 7700 1 Year

5016N

ARROW LOCK® will not pay for the cost of repair performed other than in accordance with this warranty.

Refer to our Returned Goods Policy regarding the return of a product or component part believed to be defective as covered by this warranty. A brief description ofthe defect will be required. Product will be examined upon return. In the event such examination reveals a defect covered by this warranty, the product will be repaired or replaced.

7800/7900

THISWARRANTY IS INLIEU OFALL OTHER EXPRESSWARRANTIES. TO THE EXTENT PERMITTEDBY LAW, ALL IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THIS WARRANTY. ARROW LOCK® MANUFACTURING COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. NO AGENT, SALES REPRESENTATIVE OR DEALER HAS THE AUTHORITY TO INCREASE OR ALTER THE OBLIGATIONS OF THIS WARRANTY.

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

7700

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

ARROW LOCK® Manufacturing Company

Value Product

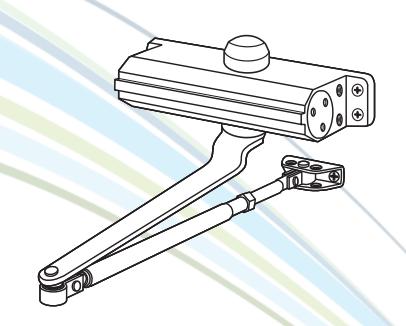

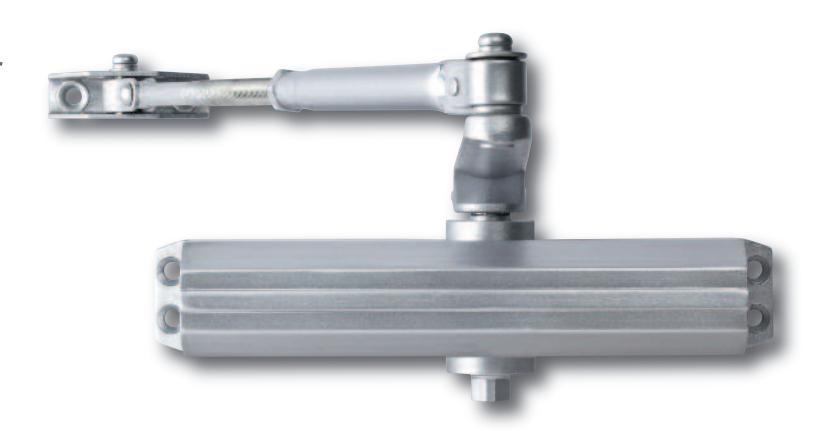

The Arrow DC300 Series surface applied door closers are an economical value for customers requiring convenience and security in an affordable package. They are ideally suited for retail or office buildings.

Compliance:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997).
• Meets requirements of ANSI A156.4.
• Adjustable size closers may be adjusted to meet requirements of ADA and ANSI ICC A117.1.

Sizes (Adjustable/Fixed):

• DC314 Adjustable sizes 1 through 4.
• DC325 Adjustable sizes 2 through 5.
• DC304 Fixed size 4.
• DC305 Fixed size 5.

Interior Door	Width	(610		_		8" 4 mm) (121:		72mm)
Regular Arm 8	Top Jamb		Size 1	Size 2	Size 3	Size 4	Size 5
Parallel Arm			Size 2	Size 3	Size 4	Size 5
Exterior (& Ve	stibule)	2 4 (610			6" 4.	2" 7mm)
Regular Arm 8	Top Jamb		Size 3	Size 4	Size 5
Parallel Arm			Size 4	Size 5

Features:

• Cast aluminum body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Full plastic cover available (sold separately).
• Non-handed for regular, top jamb and parallel arm mount applications.

• Hold open arm available on adjustable closers Specify: DC3xx-1.
• Supplied with fully threaded wood screws, machine screws and thru-bolts for 1-3/4" thick doors.
• Packaging: one per box and six boxes per carton.
• 10 year limited warranty.

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DBZ

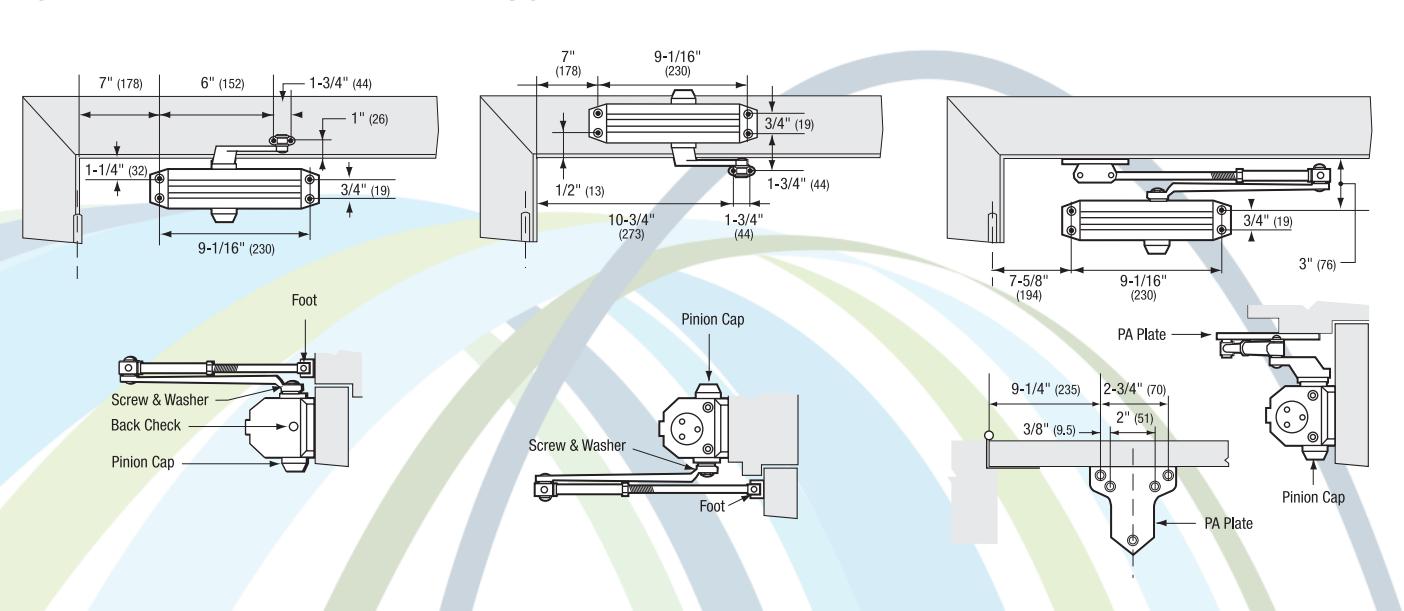

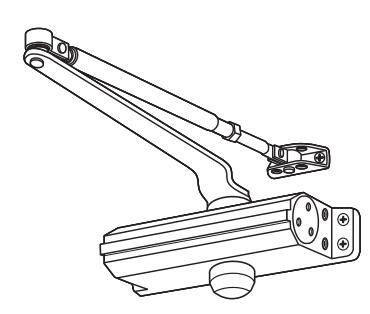

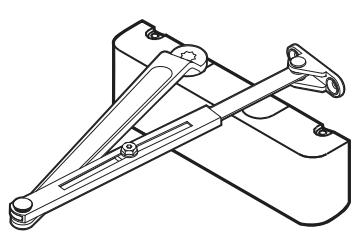

Regular Arm Installation

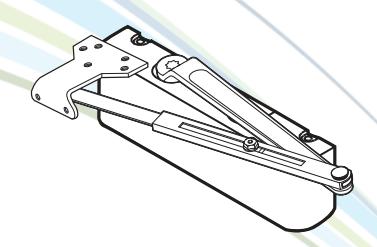

Top Jamb Installation

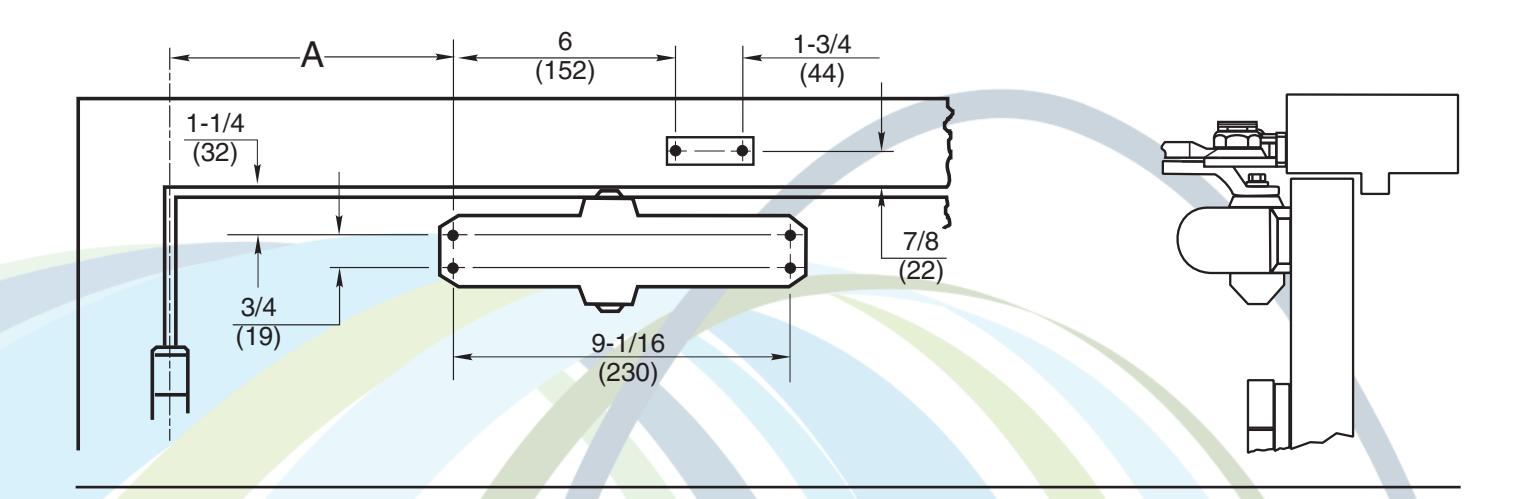

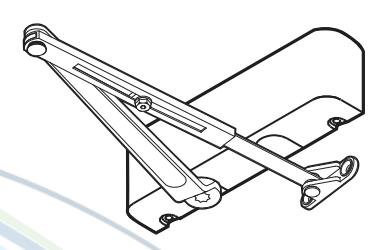

Parallel Arm Installation

Value Product

Regular Arm Installation Top Jamb Installation Parallel Arm Installation

How to order the DC300 Series

Ordering Example:

Quantity Part Number Finish 20 DC314-1 • AL

Complete Units:

						Part No.
		Size 4, Standard Non-Hold Open Arm with PA BracketDC304
		Size 5, Standard Non-Hold Open Arm with PA BracketDC305
		Size 1-4, Standard Non-Hold Open Arm with PA BracketDC314
		Size 1-4, Standard Hold Open Arm with PA BracketDC314-1
		Size 2-5, Standard Non-Hold Open Arm with PA BracketDC325
		Size 2-5, Standard Hold Open Arm with PA BracketDC325-1

Parts & Accessories:

				Part No.
	Full Plastic Cover, Screw Pack, 1-3/8" Thru-boltsDC3CVR
	Thru-bolts 2-1/4"DC300TB2

Specify Finish AL or DBZ.

Classic Product

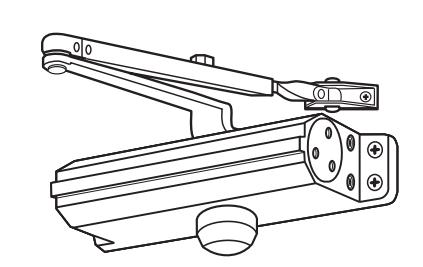

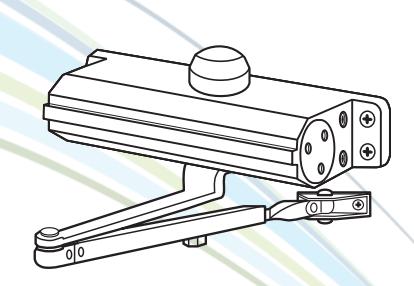

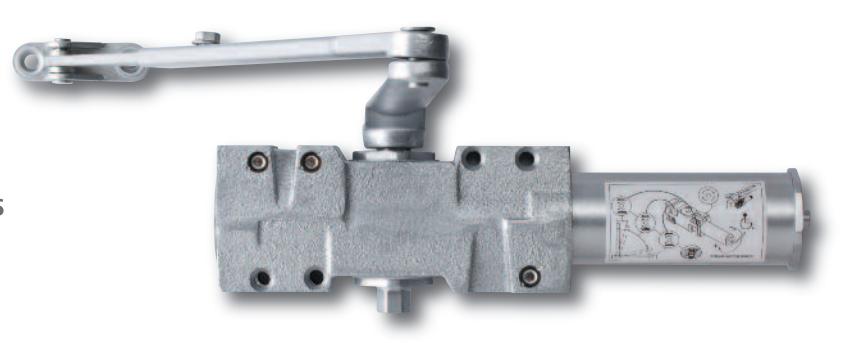

The Arrow DC500 Series Heavy Duty Surface Applied Door Closers are ideal for Institutions or other high traffic applications. The DC500 is designed for end users looking for value and versatility in a rugged design making this series suitable for a wide variety of applications.

Compliance:

• UL/cUL listed.
• UL10C listed for positive pressure to comply with UBC-72 (1997).
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
• Meets ADA requirements (Americans with Disabilities Act).

Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.

Sizes (Adjustable):

• DC516 closers are adjustable for spring sizes 1 through 6.

Interior Door Width				~ .	_	4" 60" 2mm) (1524mr
Regular Arm & Top Jamb	Size 1	Size 2	Size 3	Size 4	Size 5	Size 6
Parallel Arm	Size 2	Size 3	Size 4	Size 5	Size 6
Exterior (& Vestibule) Door Width 24" (610mm) (762mm) (914mm) (1067mm) (1219mm) (1219mm)
Regular Arm & Top Jamb	Size 3	Size 4	Size 5	Size 6
Parallel Arm	Size 4	Size 5	Size 6

Features:

• Heavy duty cast iron body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temp<mark>erat</mark>ure fluid.
• Full plastic cover standard.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Supplied with fully threaded selfreaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.

• DC516-1 Series door closers are supplied with a hold open arm.
• DC516-2 has a heavy duty parallel arm with a stop feature for door openings between 90° and 110°.
• DC516-3 has a heavy duty parallel arm with a stop and thumb turn hold open feature for door openings between 90° and 110°.
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DBZ

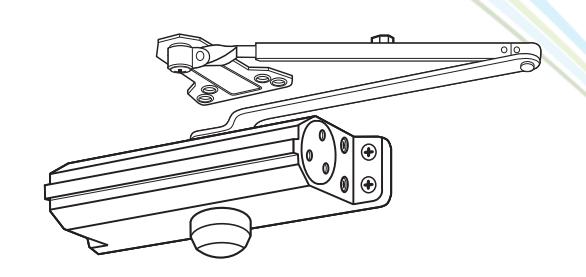

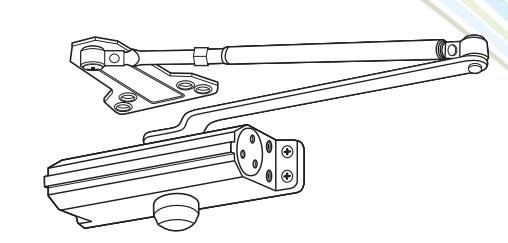

Regular Arm Installation

Top Jamb Installation

Parallel Arm Installation

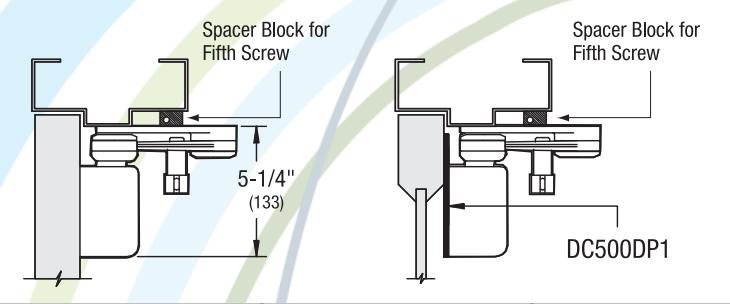

Heavy Duty Parallel Arm Installation

Regular Arm Installation Parallel Arm Installation (180° maximum door swing template illustrated). Min. Top Rail 3-7/16" (87mm). Min. Top Rail 2-1/16" (52mm). Min. Top Rail 2-11/16" (68mm). Classic Product

Top Jamb Installation

Parts:

Cover with Screw Pack • DC500COV

Non-Hold Open Arm (Standard with)

• DC516

• DC500A

Hold Open Arm (Standard with)

• DC516-1

(To order separately)

• DC500A1

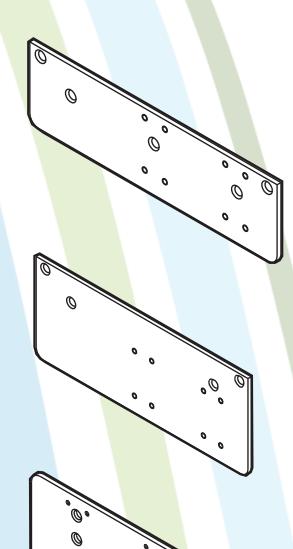

Drop Plates

Regular Arm Application

• DC500DP

Parallel Arm Application

• DC500DP1

Min. Top Rail 5-9/16" (141mm).

Top Jamb Application

• DC500DP2

Top Jamb Low Ceiling Application

• DC500DP3

Classic Product

Heavy Duty Parallel Arm with a choice:

• DC516-2 Non-Hold Open Arm with Stop Feature
• DC516-3 Thumbturn Hold Open Arm with Stop Feature
• Door Closer can be installed to stop door at: 85°, 90°, 100° or 110° of door swing.

Parts:

Heavy Duty Parallel Arm Non-Hold Open with Stop Feature (Standard with)

• DC516-2

(To order separately)

• DC500A2

Heavy Duty Parallel Arm with Thumbturn Hold Open and Stop Feature (Standard with)

• DC516-3

(To order separately)

• DC500A3

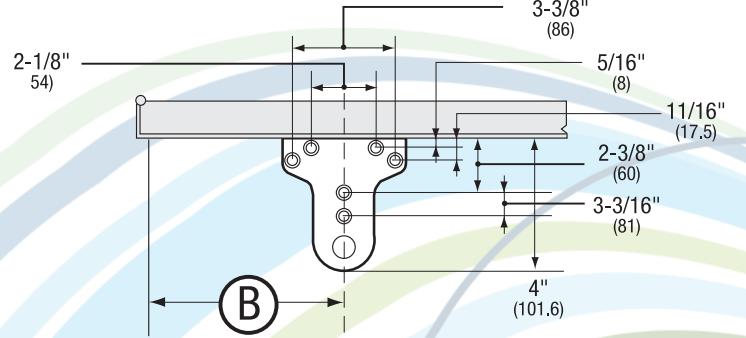

Drop Plate

• DC500DP1

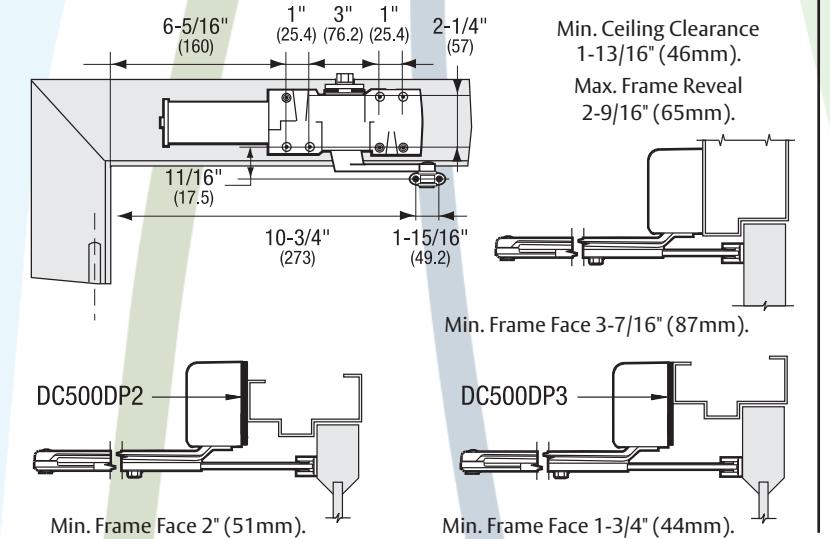

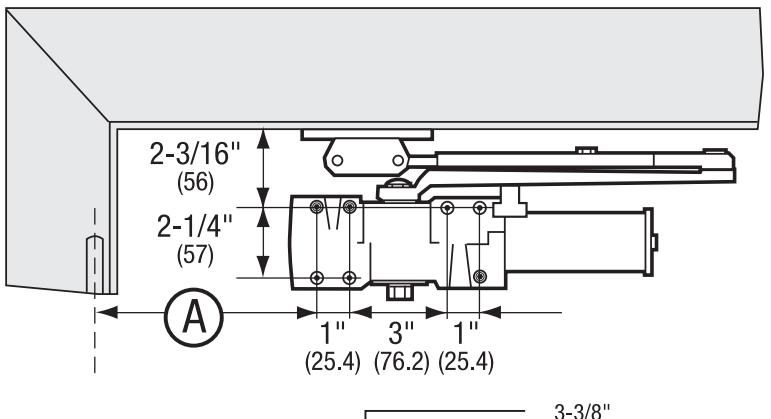

"A"	9-1/2"	8-3/4"	7-5/8"	6-5/8"
Dimension	(241)	(222)	(194)	(168)
"B"	11-1/8"	10-1/2"	9-1/4"	8-3/8"
Dimension	(283)	(267)	(235)	(213)
Degree of Stop	85°	90°	100°

Classic Product

How to order the DC500 Series

Ordering Example:

Quantity Part Number Finish 20 DC516-3 • AL

Complete Units:

	Part No.
Size 1-6, Non-Hold Open Arm with PA Bracket, Full Plastic Cover, Screw Pack, 1-3/4" Thru-bolts	DC516
Size 1-6, Hold Open Arm with PA Bracket, Full Plastic Cover, Screw Pack, 1-3/4" Thru-bolts	DC516-1
Size 1-6, Heavy-Duty Dead Stop NHO, Full Plastic Cover, Screw Pack, 1-3/4" Thru-bolts	DC516-2
Size 1-6, Heavy-Duty Dead Stop HO, Full Plastic Cover, Screw Pack, 1-3/4" Thru-bolts	DC516-3

Parts & Accessories:

Full Plastic Cover	DC500CV
Drop Plate - Regular Drop Plate - Parallel Arm Drop Plate - Top Jamb Drop Plate - Top Jamb, Flush Ceiling	DC500DP
Drop Plate - Parallel Arm	DC500DP1
Drop Plate - Top Jamb	DC500DP2
Drop Plate - Top Jamb, Flush Ceiling	DC500DP3
Thru-bolts 1-3/4"	DC500TB1
Thru-bolts 1-3/8"	DC500TB3
Thru-bolts 1-3/4"	DC500 TB 2
Supplemental Reaming/Tapping Screw Pack	DC500SP1
Supplemental Reaming/Tapping Screw Pack Standard Screw Pack	DC500SP2
Standard Non-Hold Open Arm	DC500A
Standard Hold Open Arm	DC500A1
Standard Hold Open Arm Heavy-Duty Dead Stop Arm Non-Hold Open	DC500A2
Heavy-Duty Dead Stop Arm Hold Open	DC500A3

Specify Finish AL or DBZ.

Premier Product

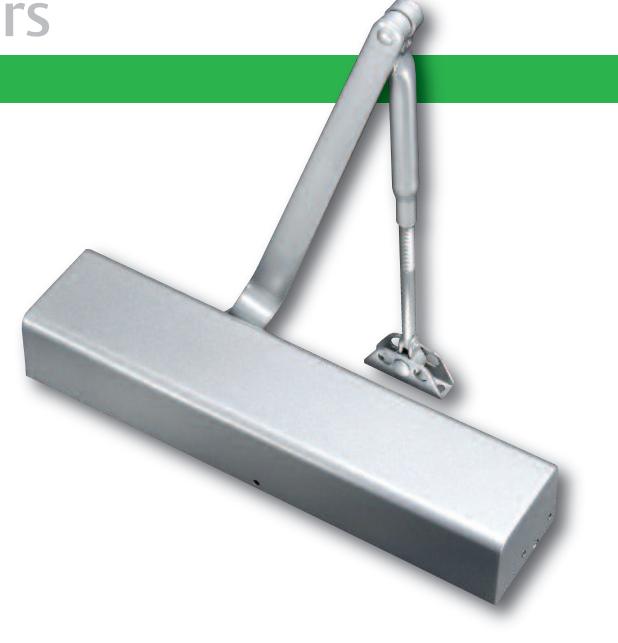

The Arrow 900N Series Surface Applied Door Closers are ideal for dealers or end users looking for value and versatility in a compact design. The adjustable spring sizes and ADA barrier free accessibility make this Series ideally suitable for a wide variety of applications.

Compliance:

• UL/cUL listed.
• Meets the requirements of UL10C and UBC7.2 (1997) for positive pressure.
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
• Meets ADA requirements (Americans with disabilities Act).

Sizes (Adjustable):

• 914N Adjustable sizes 1 through 4.
• 936N Adjustable sizes 3 through 6.

Interior Door Width	24" (610mm	3( n) (762			8" 4: imm) (1219			0 " 4mm) ▼
Regular Arm & Top Jamb		Size 1	Size 2	Size 3	Size 4	Size 5	Size 6
Parallel Arm		Size 2	Size 3	Size 4	Size 5	Size 6
Exterior (& Vestibule) 24" 30" 36" 42" 48" (610mm) (762mm) (914mm) (1067mm) (1219mm)
Regular Arm & Top Jamb		Size 3	Size 4	Size 5	Size 6
Parallel Arm		Size 4	Size 5	Size 6

Features:

• Cast aluminum body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Non-handed for regular, top jamb and parallel arm mount applications.
• Hold open arm available: Specify "H" Suffix.
• Supplied with machine screws, fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.

• Packaging: one per box and six boxes per carton.
• 10 year limited warranty.

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DBZ
• Light Bronze (691), Specify LBZ
• Gold (696), Specify GL
• Black (693), Specify BLK

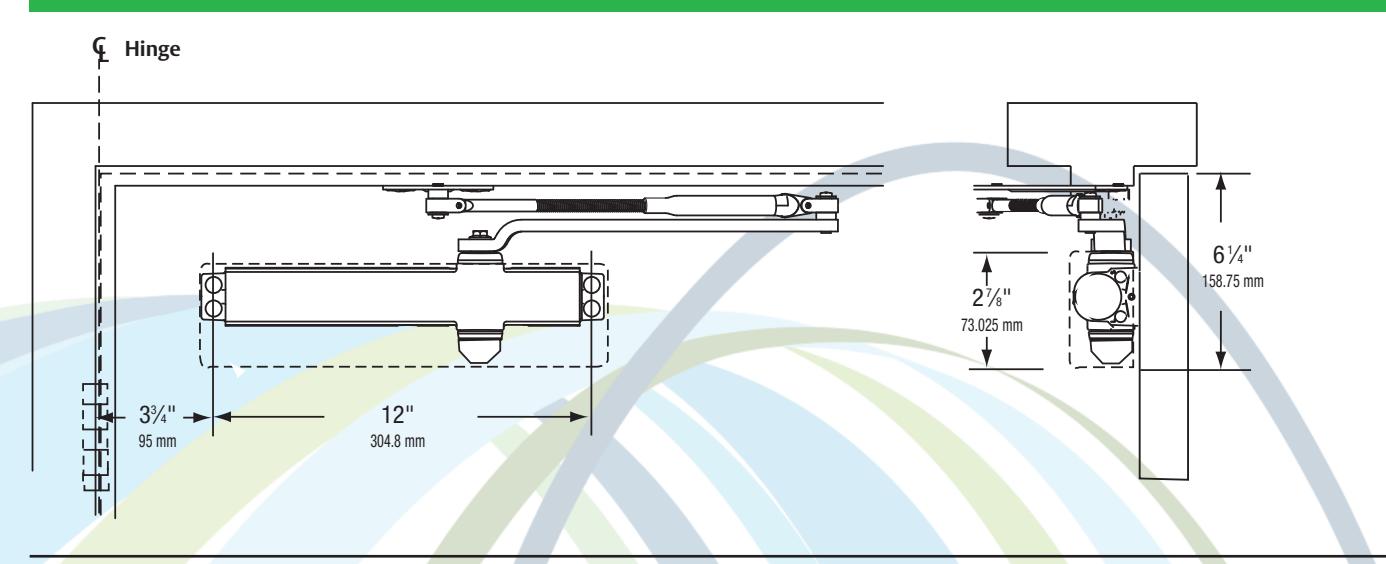

Top Jamb Installation

Parallel Arm Installation

Premier Product

How to order the 900N Series

Ordering Example:

Quantity Part Number Finish 20 936N • AL

Complete Units:

	Part No.
Tri-Pack, Standard Arm, Sizes 1-4	914N
Tri-Pack, Standard Arm, Sizes 3-6	936N
Tri-Pack, Hold Open Arm, Sizes 3-6
Tri-Pack, Hold Open Arm, Sizes 1-4	914NH

Parts & Accessories:

	Part No.
Drop Plate	936DP
914N Closer Body Only	9 1 4BO
936N Closer Body Only
Through-Bolts for 1-3/8" Thick Door	501 6TB38
Through-B olts f or 1-3/4" Thick Door	501 6TB34
Complete Non-Hold Open Arm Assembly (tri-pack)	5016 CNA
Complete Hold Open Arm Assembly (tri-pack)	5 016C HA

Specify Finish: AL, DBZ, LBZ, GL, or BLK

Premier Product

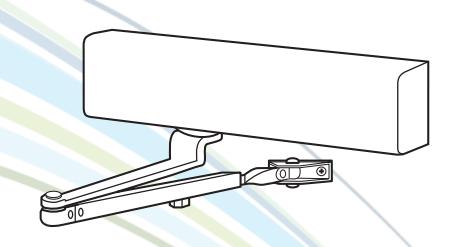

The Arrow 5016N Series Surface Applied Door Closers are ideal for use in commercial and institutional facilities where there is a demand for reliability and flexibility. Arrow offers multiple options for compliance with barrier-free codes for interior or exterior doors.

Compliance:

• UL/cUL listed.
• Meets the requirements of UL10C and UBC7.2 (1997) for positive pressure.
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1.
• Meets ADA requirements (Americans with disabilities Act).
• 6 Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.

Sizes (Adjustable):

• 5016N– Adjustable sizes 1 through 6, Standard Arm or Hold Open Arm.

Interior Door Width	24" (610mm)	(762)					4" 60" 2mm ) (1524m
Regular Arm & Top Jamb		Size 1	Size 2	Size 3	Size 4	Size 5	Size 6
Parallel Arm		Size 2	Size 3	Size 4	Size 5	Size 6
Exterior (& Vestibule) Door Width	24" (610mm)	3( (762)				8" 9mm)
Regular Arm & Top Jamb		Size 3	Size 4	Size 5	Size 6
Parallel Arm		Size 4	Size 5	Size 6

Features:

• Cast aluminum body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Available with a full plastic cover or a slim plastic cover (specify "S" suffix)...
• Non-handed for regular, top jamb and parallel arm mount applications.
• Hold open arm available on adjustable closers.

• Available with optional delayed action adjusted with separate independent valve. Delays door closing to allow unimpeded passage through the opening. Specify "D" suffix
• Supplied with machine screws, fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.
• Packaging: one per box and four boxes per carton.
• 10 year limited warranty.

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DBZ
• Light Bronze (691), Specify LBZ
• Gold (696), Specify GL
• Black (693), Specify BLK

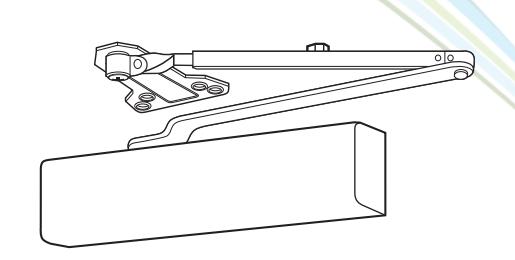

Regular Arm Installation

Top Jamb Installation

Parallel Arm Installation

Premier Product

How to order the 5016N Series

Ordering Example:

Quantity Part Number Finish 20 5016N • AL

Complete Units:

	Part No.
Tri-Pack, Slim Plastic Cover, Standard Arm, Sizes 1-6	5016NS
Tri-Pack, Full Plastic Cover, Standard Arm, Sizes 1-6	5016N
Tri-Pack, Slim Cover, Standard Arm, Sizes 1-6, Delayed Action	5016NSD
Tri-Pack, Full Cover, Standard Arm, Sizes 1-6, Delayed Action	5016ND

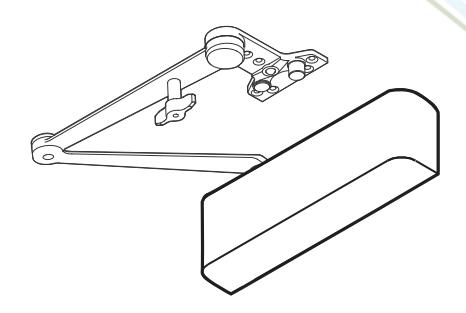

Tri-Pack, Slim Plastic Cover, Hold Open Arm, Sizes 1-6	5016NSH
Tri-Pack, Full Plastic Cover, Hold Open Arm, Sizes 1-6	5016NH
Tri-Pack, Slim Plastic Cover, Hold Open Arm, Sizes 1-6, Delayed Action	5016NSHD
Tri-Pack, Full Plastic Cover, Hold Open Arm, Sizes 1-6, Delayed Action	5016NHD

Parts & Accessories:

	rdi	LINO.
Drop Plate
Full Plastic Cover	501	6FC
Slim Plastic Cover	501	6SC
5016N Closer Body Only	501	6BO
5016N Closer Body Only with Delayed Action	501	6BOD
Through-Bolts for 1-3/8" Thick Door	501	6TB38
Through-Bolts for 1-3/4" Thick Door	501	6TB34
Complete Non-Hold Open Arm Assembly (tri-pack)
Complete Hold Open Arm Assembly (tri-pack)	501	6CHA

Specify Finish: AL, DBZ, LBZ, GL, or BLK

Premier Product

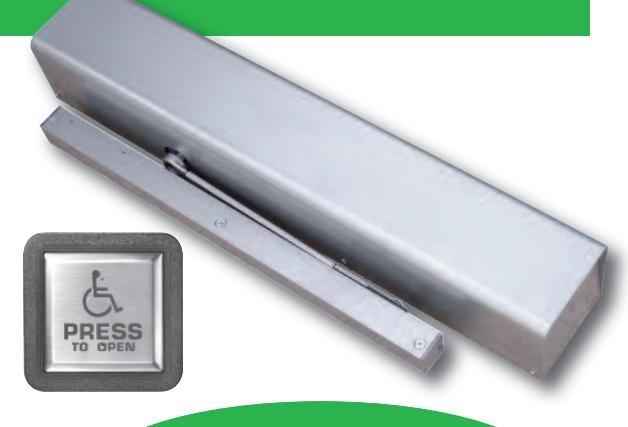

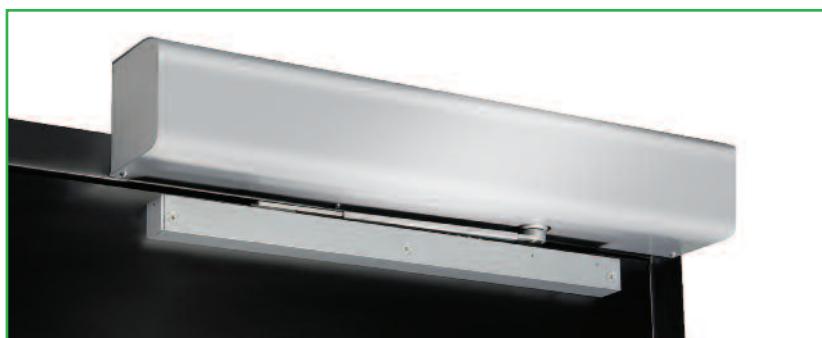

The Arrow 7800 & 7900 Series Powered Door Operators are low-energy operators which function as standard spring-force closers during close cycles when a door is opened manually, or if power is lost or turned off.

The 7800 is a hard wired door operator ideal for doctors' offices, retirement facilities, schools, churches, and other applications where noise may be a concern. The 7900 Series builds off the platform of the 7800 but is supplied with a plug-in power cord.

Compliance:

• UL/cUL listed.
• Meets the requirements of ANSI A156.4, ANSI ICC A117.1 and ANSI/BHMA A156.19 requirements.
• Meets ADA requirements (Americans with disabilities Act).

Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.

and the second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second second s		_	4" 3 mm) (965				0" 4mm)
Regular Arm & Top Jamb	Size 1	Size 2	Size 3	Size 4	Size 5	Size 6
Parallel Arm	Size 2	Size 3	Size 4	Size 5	Size 6
		_	6" 4. mm) (106	2" 4 7mm) (1219
Regular Arm & Top Jamb	Size 3	Size 4	Size 5	Size 6
Parallel Arm	Size 4	Size 5	Size 6

Features:

• Ease of installation and setup
• Simple instructions
• Application versatility and ease of adjustment. Push or pull side mounted units available
• Operates as mechanical surface closer during close cycles, when door is opened manually or if power is interrupted
• Quiet operation
• Spring force provides the feel of a normal manual door closer
• Adjustable Spring Power
• Backcheck Valve
• Sweep Valve & Latch Valve
• Non-Handed
• Unit Activation Options:
• Wall switches
• Radio frequency device
• End-User On/Off Switch
• Hold Open options:
• 0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19)

• Obstruction Detection:
• Motor stops if door is obstructed during a powered opening cycle
• Door closes under manual spring force (not to exceed 15lbs)
• Power Input: 120 VAC, 60Hz
• Current Draw: .6A
• Relay Output: DPDT
• Normally Open/Normally Closed (jumper) for electric strike function
• On Board UL Listed Power Supply
• Rated at 1.1 amps
• 24VDC filtered and regulated voltage output
• 2-year warranty

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DB

Introducing the Arrow 7900 Series Door Operator with Plug-in Power Cord!

Arrow is pleased to announce the addition of the 7900 series powered door operator to it's product line. This series is an extension of

the 7800 series but offers the convenience of a plug-in power cord, in lieu of the hard wire power input requirement for the 7800 series. The 7900 series, once installed, simply plugs into a code compliant 120 VAC power receptacle.

The power cord is only available on new 7900 Series products and cannot be added to 7800 Series operators. The offering is the same as our current non-power cord version (7800 Series) except that the part numbers begin with 79xx instead of 78xx.

Premier Product

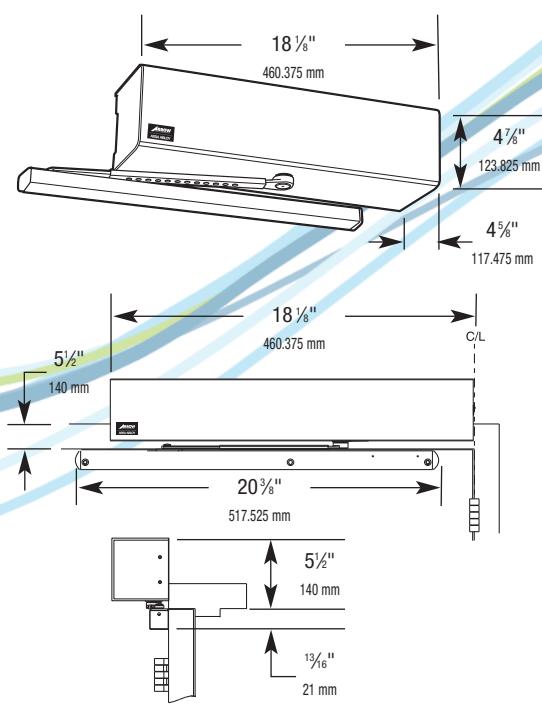

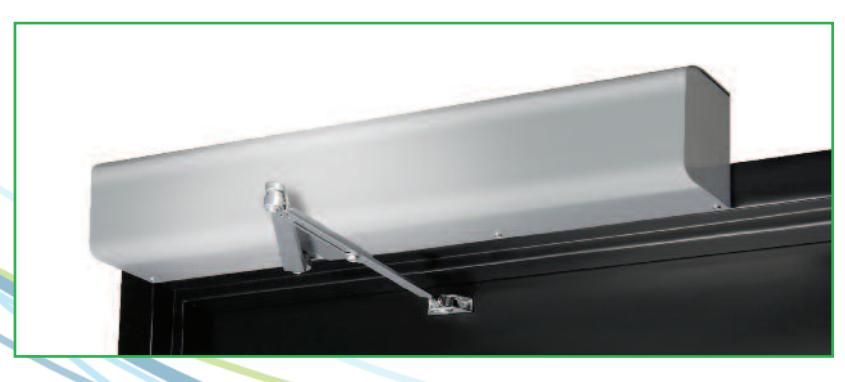

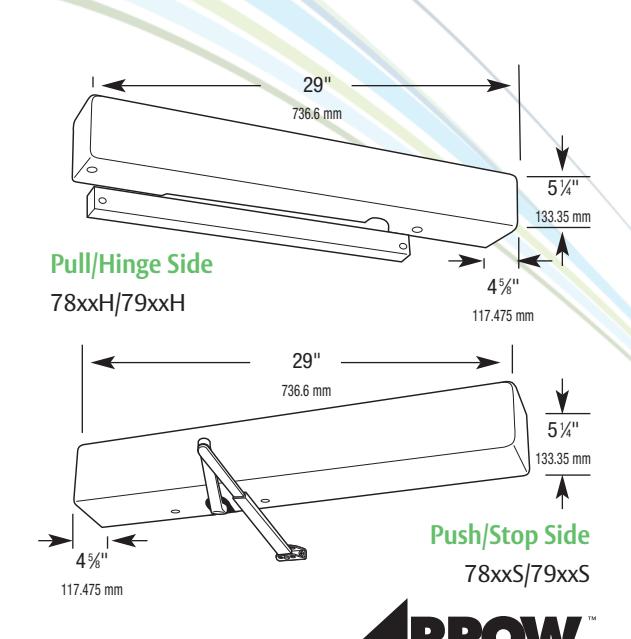

Standard Applications:

7814H/7836H/7914H/7936H

Hinge (Pull) Side of Door

• Adjustable Stop
• 180° swing (trim permitting)

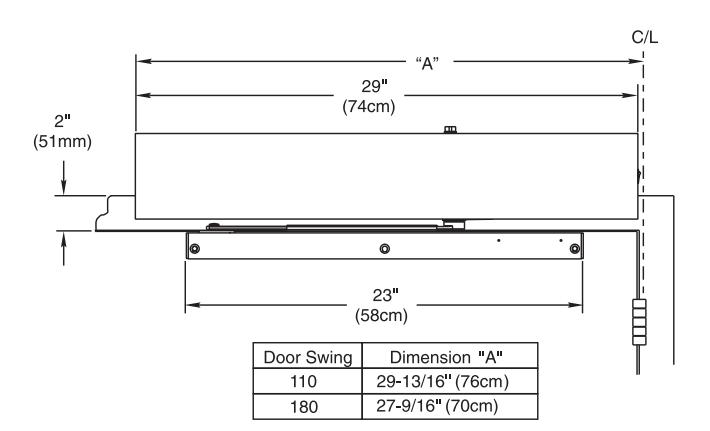

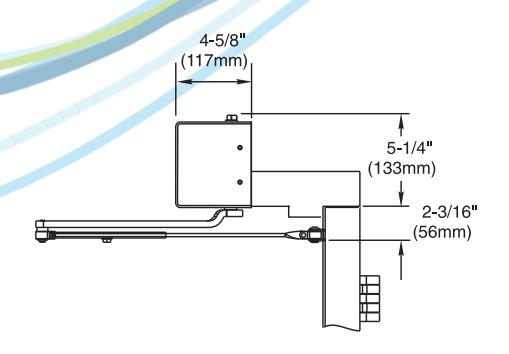

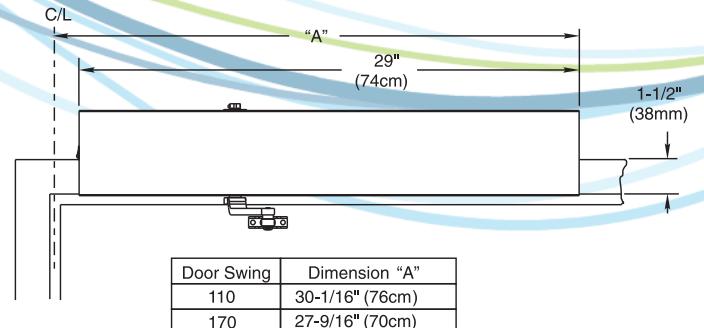

Minimum Door width Single Door – 29" (74cm) Double Door – 30" (76cm)

An auxiliary door stop is suggested where severe conditions exist, or door opens beyond 110°.

NOTE: Contact factory for use on doors exceeding 250 lbs.

7814S/7836S/7914S/7936S

Stop (Push) Side of Door

Standard Duty Double Lever Arm

• Frame reveals 2-5/8" to 6-3/4" (67-171mm)
• An auxiliary door stop is required for these applications.
• 170° swing (trim permitting)

NOTE: Contact factory for use on doors exceeding 250 lbs.

Premier Product

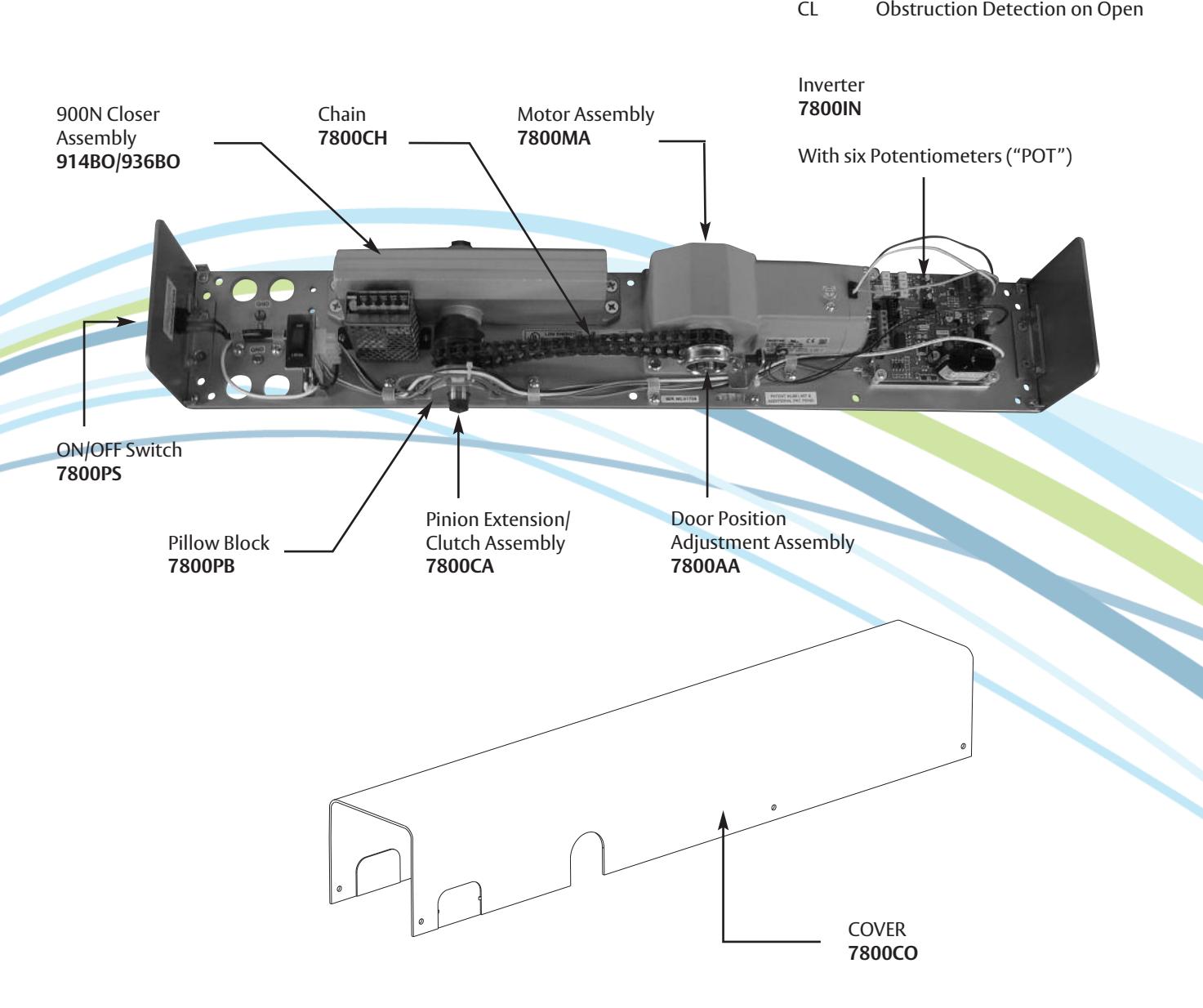

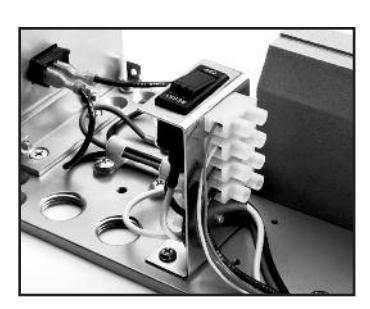

Internal Components & Mechanism:

• Circuit breaker
• Activation switch terminal
• Relay terminal

POT DESCRIPTION COMP Motor Torque at Hold Open Position ACC Door Mounting (Factory Set) DEC/B Hold Open Time (5-30 Seconds) MIN Motor Reversing Speed MAX Door Open Speed

Premier Product

Parts & Accessories:

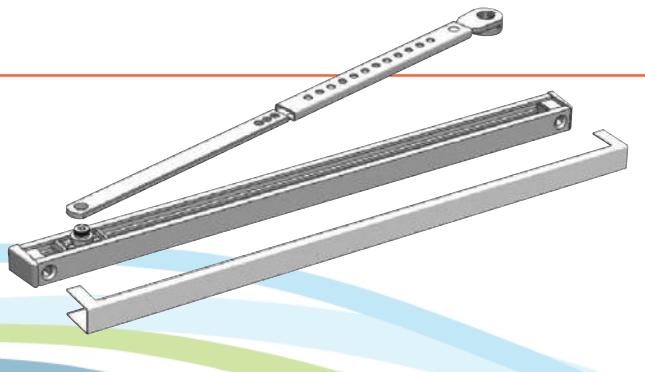

Arm and Track Assemblies

7800TC – Arm and Track Assembly 7800TA – Arm Assembly 7800TO – Track Assembly

7800SC – Arm Assembly 7800SA – Main Arm & Adjusting Tube 7800ST – Rod & Shoe

Signage

•Supplied standard

2 Per Operator 1 Per Switch 1 Per Switch

Push Switches

• 6-5/8" square (box); 8-1/8" square (trim)
• 9 volt battery for RF switches
• Temperature: -4° F to 122° F
• 15 amp @ 125VAC
• Flush or surface† mounted
• Stainless steel with blue letters
• 7800WSHR and 7800WSTR – radio frequency (433MHz)
• For units with radio frequency option having the 7800RK kit
• 7800WST and 7800WSH
• hard wired*

† When surface mounted, switches project 2" from wall.

7800WSH, 7800WSHR

7800WST, 7800WSTR

Radio Frequency Kit

• Radio Frequency Receiver (433 MHz)
• 24 VDC power supply
• Activation switches not included.
• Order 7800KF, 7800T1, 7800T2, 7800WSHR, or 7800WSTR separately.

7800RK

Key Fob 7800KF

• Used with radio frequency option 7800RK kit

7800KF

Transmitters

• A. Single Channel 7800T1
  • 2-3/8"w x 4-3/16"h x 15/16"d
• B. Two Channel 7800T2
  • 2-3/8"w x 4-3/16"h x 15-16"d

A. 7800T1

B. 7800T2

Premier Product

How to order the 7800 & 7900 Series

Ordering Example:

Quantity Part Number Finish 20 7836H • AL

7800 & 7900 Series Powered Door Operators

Mount Application	Closer Size	Radio Frequency	2 Wall Switches	7800	7900
				7814H	7914H
	1-4	✓		7814HR	7914HR
Himme /Dull		✓	✓	7814HRP	7914HRP
Hinge/Pull —				7836H	7936H
	3-6	✓		7836HR	7936HR
		✓		7836HRP	7936HRP
				7814S	7914S
Olean /Decale	1-4	✓		7814SR	7914SR
		✓	✓	7814SRP	7914SRP
Stop/Push —				7836S	7936S
	3-6	✓		7836SR	7936SR
	✓ ✓	7836SRP	7936SRP
	1 /			7814U	7914U
Universal	1-4	✓		7814UR	7914UR
	2.6			7836U	7936U
	3-6	√		7836UR	7936UR

Accessories

Description	Radio Frequency	Switch Displays Handicap Icon	Part Number7800WSTR
6" x 6" Door Switch
Key FobSingle Channel Hand Held Transmitter			7800KF
Two Channel Hand Held Transmitter Radio Frequency Kit			7800T2
Mounted Sample Unit (includes 7800MK)			M7802

Parts

Description	Part Number
Chain	7800CH
Motor Assembly	7800MA
Inverter	7800IN
On/Off Switch	7800PS
Pillow Block
Pinion Extension Clutch Assembly	7800CA
Door Position Adjustment Assembly	7800AA
Cover	7800CO
Arm & Track Assembly	7800TC
Arm Assembly	7800TA
Track Assembly	7800TO
Standard Arm Assembly	7800SC
Main Arm & Rod	7800SA
Adjusting Tube & Shoe	7800ST

Complete Units, Specify Finish AL or DBZ.

7700 Powered Door Operator

Classic Product

The Arrow 7700 Series offers functionality and control at an affordable price. Ideal for retrofit applications, the 7700 Series converts interior, non-fire rated doors for ADA compliance easily and affordably while providing a simple way to achieve touchless environments in public restrooms. Furnished standard with a track assembly, the pull-side mounted unit can be operated manually or activated by wall switches, or radio frequency devices. Easy to install, set-up and adjust, the 7700 Series is perfect for ADA-compliant offices, classrooms and dorm rooms, and touch free applications like public restrooms, labs and examination rooms.

Compliance:

• * ETL listed
• * Meets the requirements of ANSI/U.L. standard 325 for automatic closing doors
• * Meets the requirements of ANSI/BHMA standard A117.1
• * Meets ADA requirements (Americans with Disabilities Act)

Look for the universal symbol next to Arrow products u that comply with ADA accessibility requirements.

Features:

• •Pull sidemounting
• •Non-handed
• •Quietoperation
• •Electrically controlledbackcheck, sweepandlatch
• •Activationoptions:wall switches, radiofrequencydevices
• •Easeofinstallationandset-up
• •On/OffSwitch
• •Holdopenoptions:0-30seconds (5secondsminimumrequiredforADA andANSI/BHMAA156.19)
• •Onboard24VDC(1.1A)power supply foraccessories
• •Door closermodeformanualusage
• •Electronicmotordampening –provides feelofnormal,manual door closer
• •Electrichardwareandaccess controlinterface
• •OptionalACpower cord
• •Push&Go
  • –As thedoorismanuallyopened,the operator"senses"movementand opensdoortothefull-openposition.

• Obstruction Detection
  • Motor stops if door is obstructed during opening
• Motor Start Delay
  • 0-5 second delay to allowing locking hardware to release first
• Overload Safety Shut-Off
  • After two minutes of receiving a door activation signal, the inverter will time out and close the door
  • Prevents motor/inverter damage
• Power Input; 120 VAC, 60Hz
• Current Draw: .6A
• Relay Output: SPDT
  • Normally Open/Normally Closed (jumper)
  • For electric strike function
• 1-year warranty

Finishes:

• Aluminum (689), Specify AL
• Dark Bronze (690), Specify DB

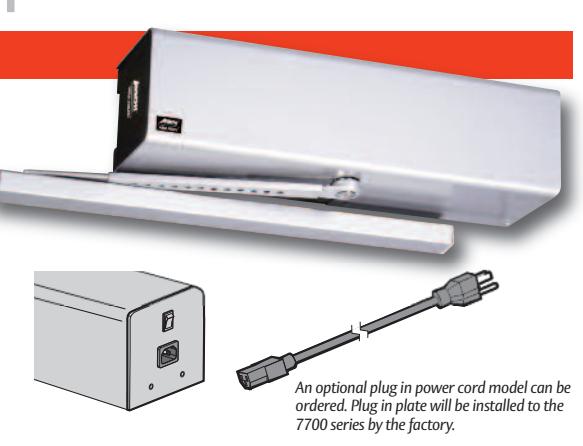

Introducing the Arrow 7710P and 7710PRF1 Series Door Operator with an Optional Plug-in Power Cord!

Arrow is pleased to announce the addition of the 7700 series powered door operator to it's product line. The 7700 series requires hard wired installation with standard electric power. An optional plug in power cord model can be ordered (factory installed only) and will simply plug into a code compliant 120 VAC power receptacle.

Radio frequency can also be ordered as an additional feature for convenience. See the parts reference chart and ordering requirements for more information.

Pull/Hinge Side

7700 Powered Door Operator

Classic Product

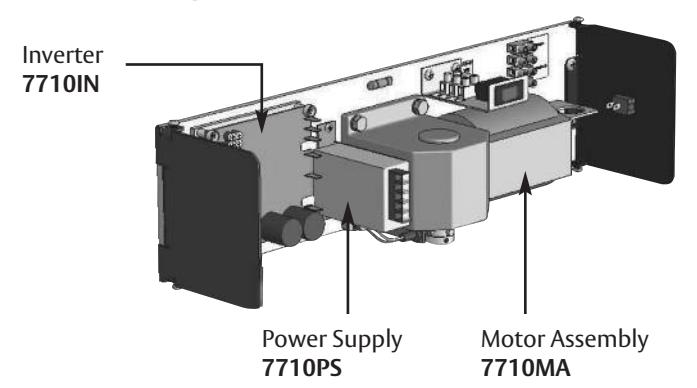

Internal Components & Mechanism:

Parts & Accessories:

7710-1 – Arm and Track Assembly

7800SW2,

7800SW1, 7800SW4

Push Door Switches

• 6" width x 6" height
• 9 volt battery
• 15 amp @ 125VAC
• Flush or surface mounted
• Stainless steel with blue letters
• 7800SW1, 7800SW2 Radio frequency (433MHz). Used with RF1 option and 7710RK Radio Frequency Kit.
• 7800SW1, 7800SW2
• hard wired*

7710SW5

7710RK

Touchless Wall Switch

• Single gang and double gang
• Doppler radar
• Sensor requires movement for activation
• Variable relay-hold time from 1 to 10 seconds
• Range of 2" to 24" field adjustable
• 2-3/4" (Single); 4-1/2" (Double) w x 4-1/2" h.

Radio Frequency Receiver

• Radio Frequency Receiver (433 MHz)
• Activation switches not included.

Replacement Power Cord

18" power cord. This replacement can be ordered if the original is lost or damaged.

7710PC

7700 Powered Door Operator

Classic Product

How to order the 7700 Series

Ordering Example:

Quantity Part Number Finish 20 7710 • AL

7700 Series Powered Door Operator

	Radio	1 Touchless
Mount Application	Frequency	Wall Switch	Part Number
Hinge (Pull) Side of Door		/	7710.AL
Hinge (Pull) Side of Door		✓	7710.DBZ
Hinge (Pull) Side of Door with Radio Frequency		✓	7710RF1.AL
Hinge (Pull) Side of Door with Radio Frequency		✓	7710RF2.DBZ
Hinge (Pull) Side of Door with Power Cord		✓	7710PC.AL
Hinge (Pull) Side of Door with Power Cord		✓	7710PC.DBZ
Hinge (Pull) Side of Door with Radio Frequency & Power Cord		✓	7710PRF1.AL
Hinge (Pull) Side of Door with Radio Frequency & Power Cord		✓	7710PRF2.DBZ

Accessories

	Radio	Switch Displays	3
Description	Frequency	Handicap Icon	Part Number
Door Switch - 6" x 6", Radio Frequency, ADA Symbol			7800SW2
SPDT Door Switch – 6" x 6", Hard Wired			7800SW4
Door Switch – 6" x 6", Radio Frequency			7800SW1
SPDT Door Switch - 6" x 6", Hard Wired, ADA Symbol			7800SW3
Touchless Wall Switch			7710SW5
Radio Frequency (RF1) Kit	√		7710RK

Parts

Description	Part Number
Power Cord	7710PC
Inverter	7710IN

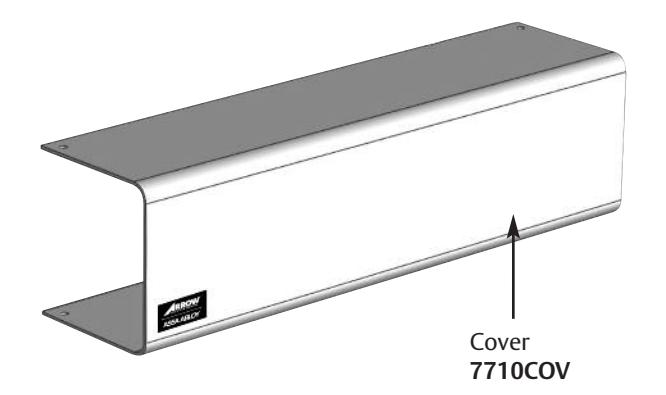

Cover	7710COV.AL/DBZ
Screw Pack	77107710SP
Arm and Track Assembly	7710-1.AL/DBZ
Power Supply	7710PS

Complete Units, Specify Finish AL or DBZ.

The new DC500 from Arrow offers a quality cast iron closer from a recognizable ASSA ABLOY brand, at a price point you can afford.

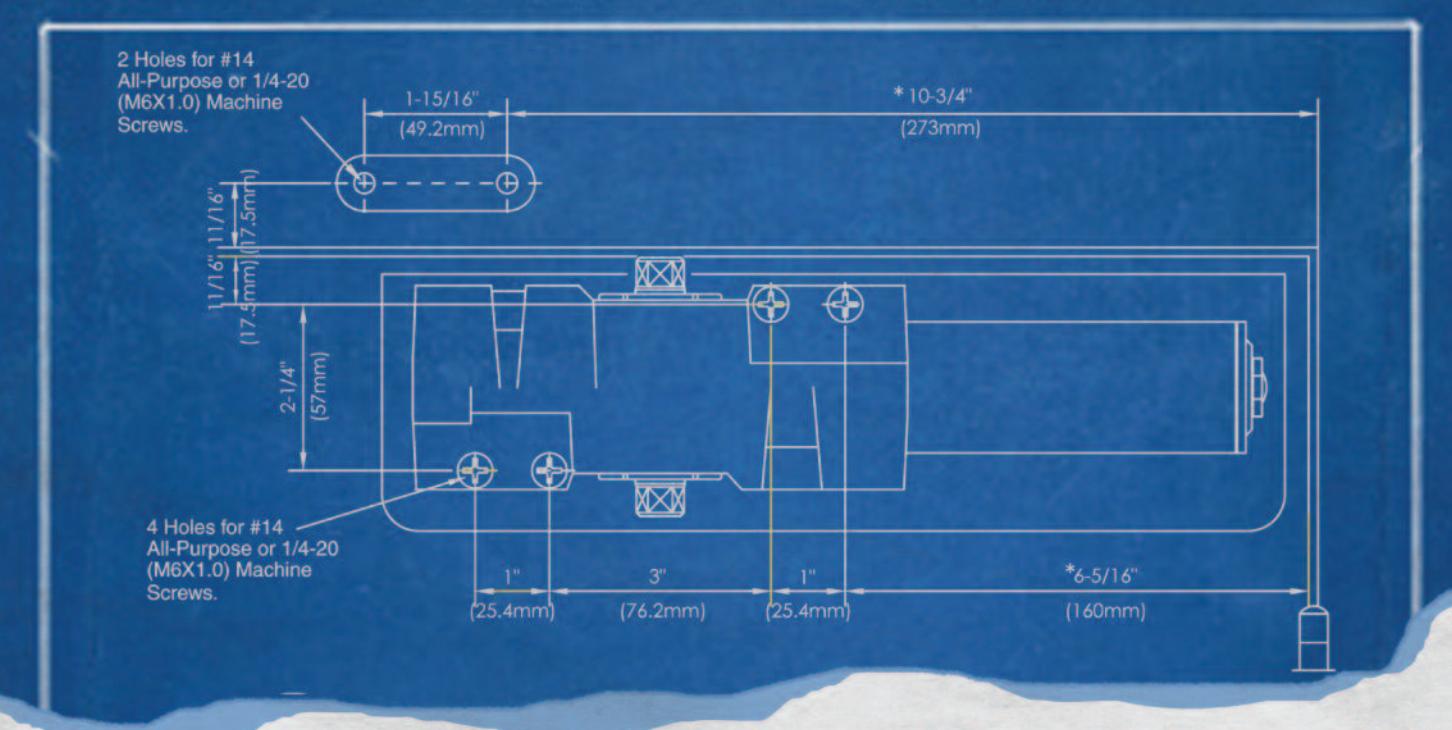

The DC500 is designed to fit the most popular retrofit hole pattern in the field today, so installation is simple and easy.

The right products, at the right price, that's the Arrow advantage.

ARROW USA

Phone: 800-839-3157 Fax: 800-421-6615

ARROW CANADA

Phone: 1-888-633-3264 Fax: 1-888-263-3326

Visit us at our Website: www.arrowlock.com

For more information regarding Arrow locksets, exit devices, door closers and key systems, contact your authorized Arrow distributor.

Facebook: www.facebook.com/arrowrevolution

Twitter: www.twitter.com/arrowrevolution

YouTube: www.youtube.com/revolutionbyarrow

E-Newsletter Signup: www.arrowlock.com/newsletter

ASSA ABLOY is the global leader in door opening solutions dedicated to satisfying end-user needs for security, safety and convenience.
