TABLE OF CONTENTS
|
BFX Series
120 Min. Fire U.L. Level I Burglary4 |
|
|---|---|
|
BFII Series
120 Min. Fire U.L. Level II Burglary8 |
|
|
RF Series
120 Min. Fire U.L. Listed High Security 11 |
|
|
NF Series
90-Minute Fire U.L. Level I Burglary12 |
|
|
SF Series
60-Minute Fire13 |
|
|
TF Series
30-Minute Fire14 |
|
|
Defense Vault
15 |
|
| AM Series16 | |

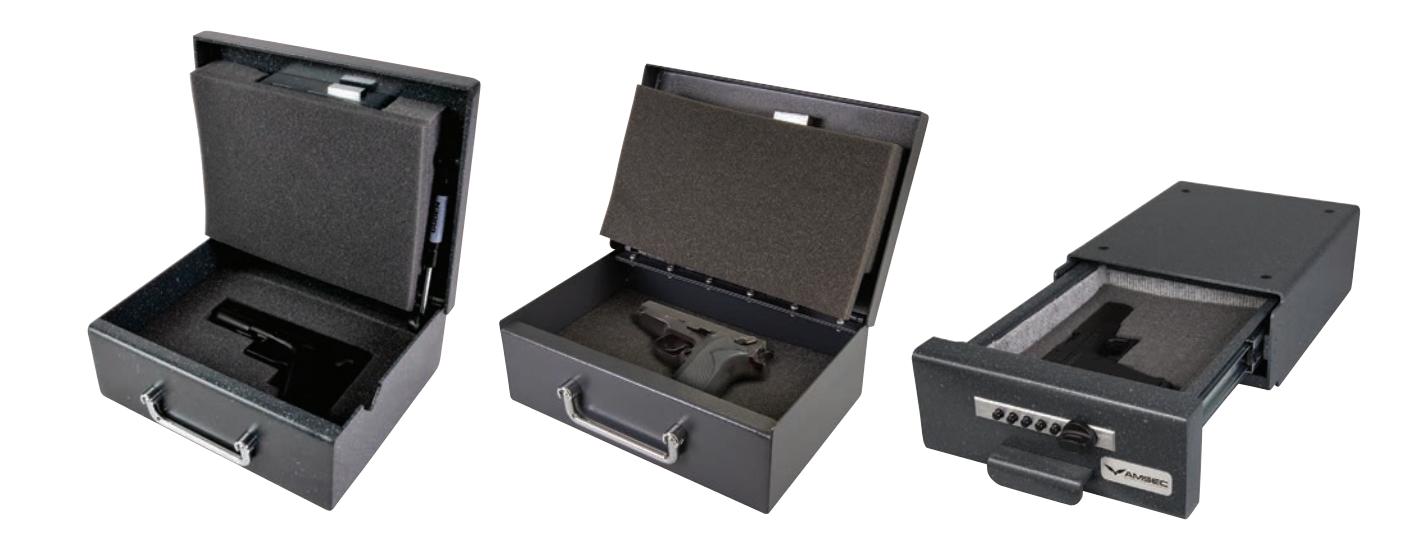

| Handgun Safes17 | |
| Compact Safes18 | |

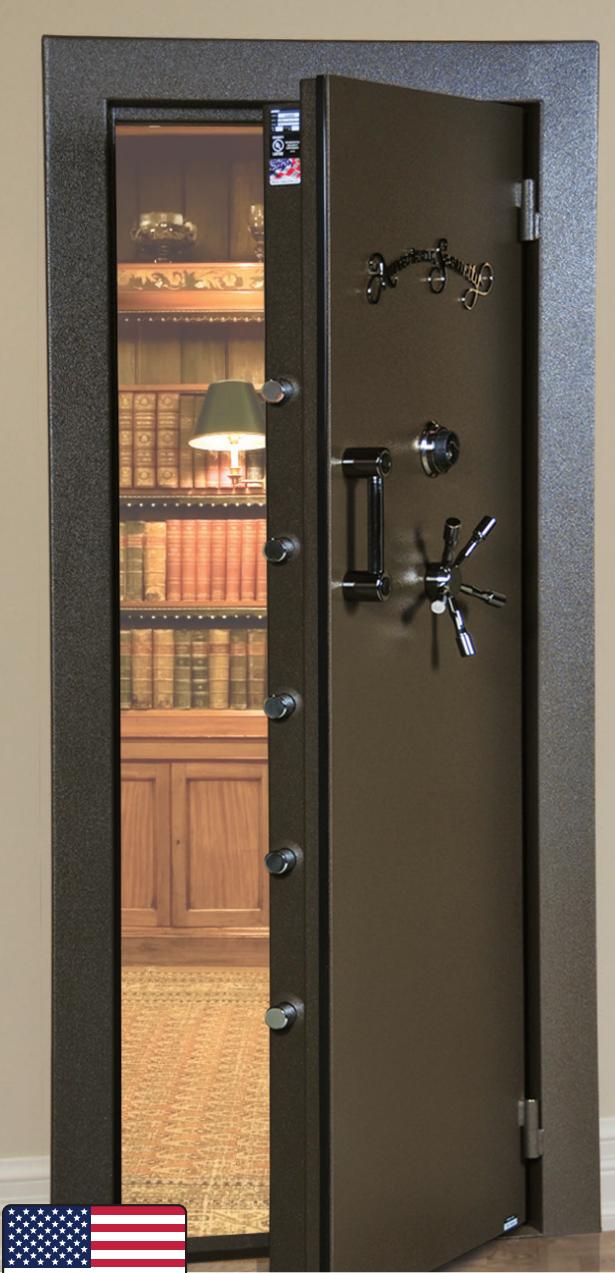

| Vault Doors19 | |

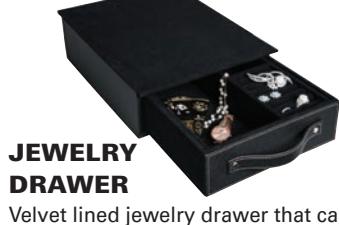

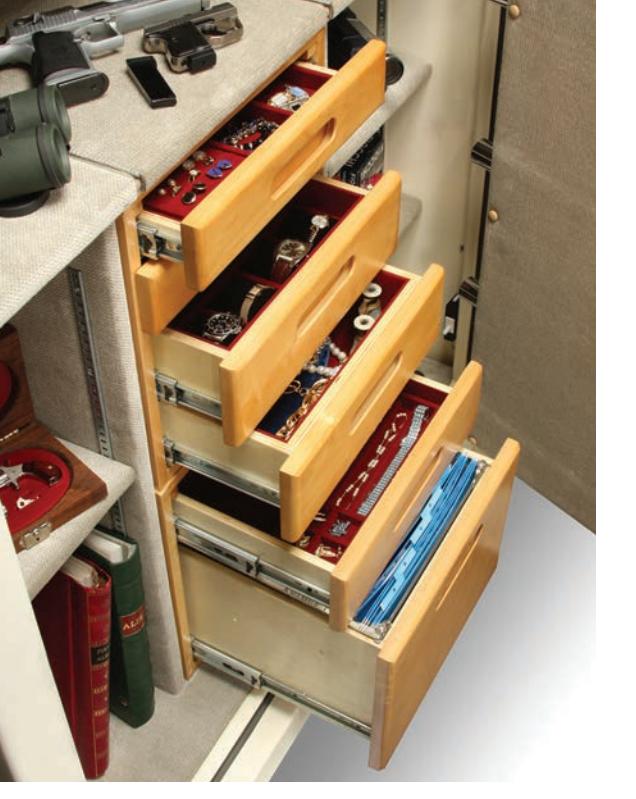

| Storage Options20 | |
|

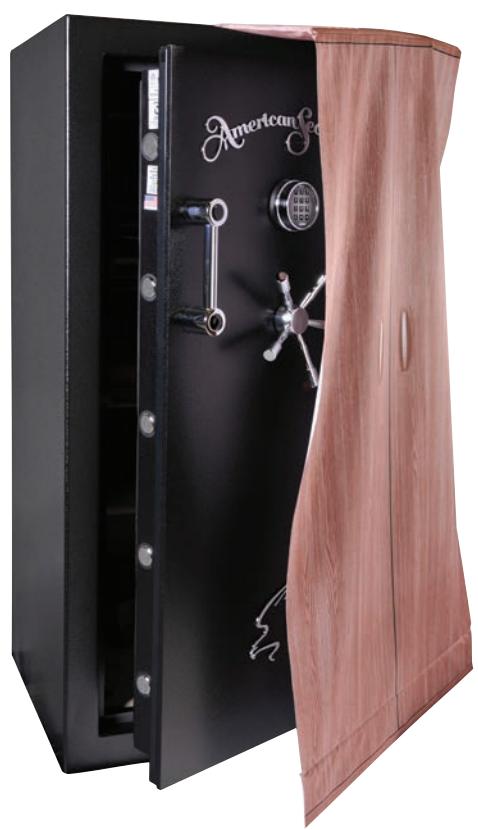

Safe Cloak
20 |
|
| Electronic Locks & Other Options21 | |
| Features At A Glance22 |

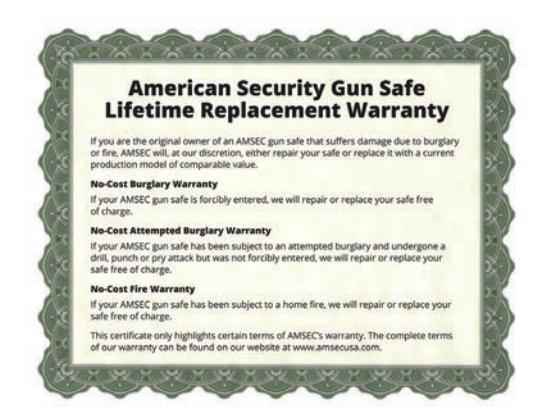

WE STAND BEHIND OUR CRAFTSMANSHIP WITH A "NO COST" LIFETIME WARRANTY AGAINST THEFT & FIRE
American Security Products manufactures safes with the best fi re and burglary protection in the industry. We're so confi dent in our products, that we off er a lifetime warranty on all our gun safes. Our warranty covers:
- Burglaries If your safe is forcibly entered, we will repair or replace it free of charge.
- Attempted Burglaries If your safe undergoes a drill, punch or pry attack and is not breached, we will repair or replace it free of charge.
- Damage from a Home Fire If your safe is damaged in a home fi re, we will repair or replace it free of charge.
At no cost to you, we will either repair your damaged gun safe or replace it with a current production model of comparable value. 1
AMSEC is one of the fi rst manufacturers in the gun safe industry to use standardized test procedures from independent laboratories to substantiate our burglary and fi re ratings. Standardized independent testing provides consistent test procedures that can be used across the industry so consumers can meaningfully compare ratings between diff erent safes when making a purchasing decision.
BURGLARY RATINGS
In the United States, the most recognized testing organization for burglary resistance of safes is Underwriters Laboratories (UL). UL publishes standards and administers tests to check if products meet those standards. Standards include specifi c tools that are used during a break-in attempt and a specifi c time limit for the test. There are several diff erent burglary classifi cations that establish specifi c levels of attack resistance. The most common listing in the gun safe industry is Residential Security Container (RSC).

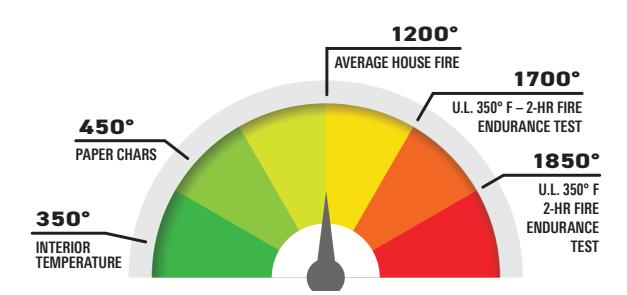

FIRE RATINGS
The ETL logo on our fi re-rating labels indicates that our ratings have been verifi ed by independent testing at Intertek Laboratories. Intertek is a multinational independent inspection, product testing and certifi cation organization with over 38,000 employees in over 100 countries. To test our products, Intertek places our safes in a furnace with 8 gas burners. The test furnaces reach 1200°F in 8 minutes. That temperature is maintained for the duration of the test. Five separate thermocouples monitor the temperature inside the safe. To pass Intertek's test, the internal temperature inside a safe must remain below 350°F. Paper burns at approximately 450°F.
| Series | Fire Label |
Outside
Temp |
Time
Period |
Inside Temp
Less Than |
|---|---|---|---|---|
| RF Series | 120 | 1850ºF | 120 min. | 350ºF |
| BFII / BFX Series | ETL 120 | 1200ºF | 120 min. | 350ºF |
| NF Series | ETL 90 | 1200ºF | 90 min. | 350ºF |
| SF Series | ETL 60 | 1200ºF | 60 min. | 350ºF |
| TF Series | 30 | 1200ºF | 30 min. | 350ºF |
1 To fi le a claim, you must be the original owner of the AMSEC Gun Safe. Within 30 days of the burglary/fi re incident, you must properly fi le a police report documenting the incident. A copy of the police report must be submitted to AMSEC with your warranty claim.

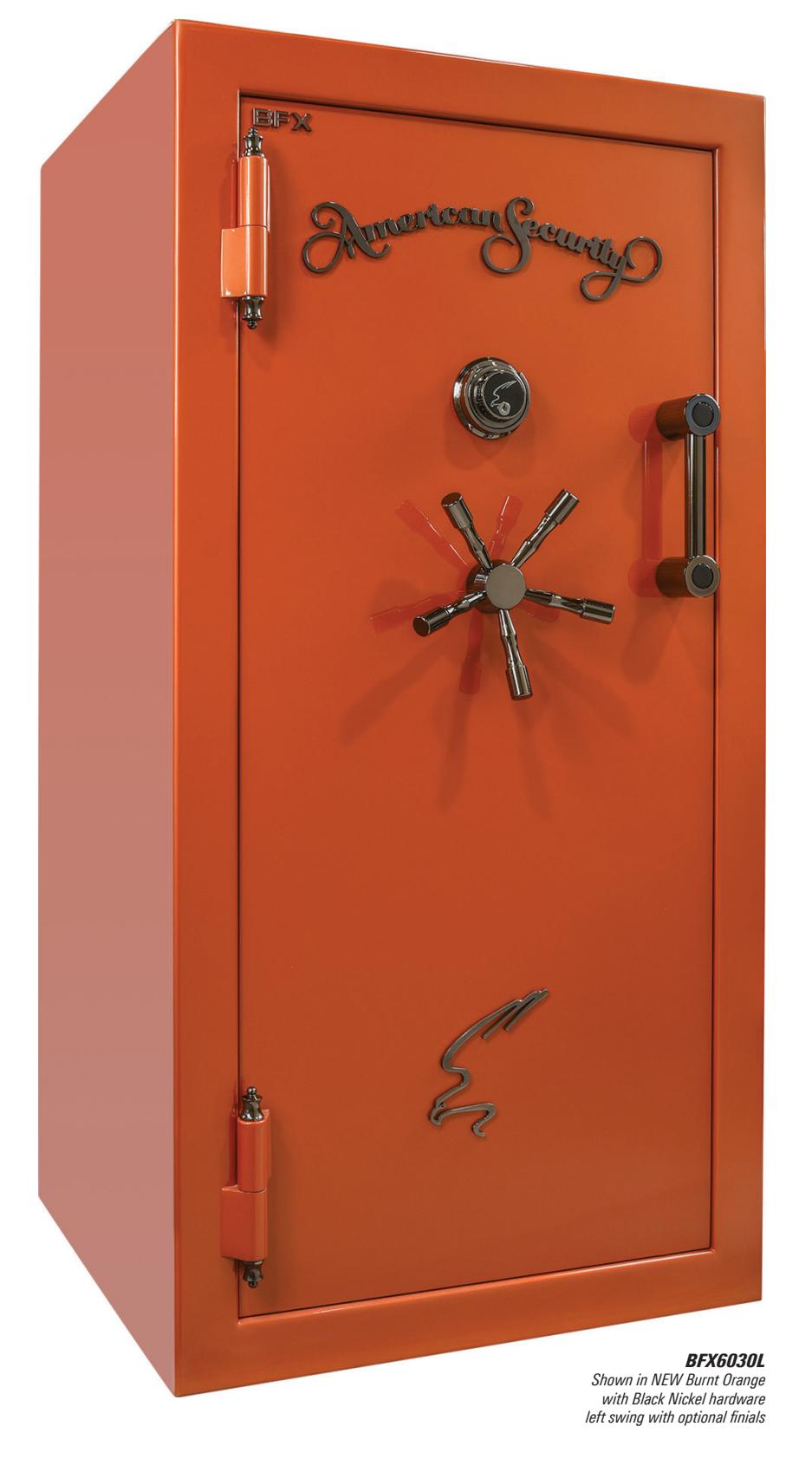

BFX SERIES – 120 MINUTE FIRE
SECURITY
- ½"-Thick Steel Plate Door (BFX7250 & BFX6024 have 3/8" steel plate)
- Four-Way Active Bolt Work (BFX6024 has Two-Way Bolt Work)
- Active 4x Locking System (See Page 6 for Details)
- 2"-Thick Body
- UL Level I RSC Burglary Classification
- Massive 1½" Chrome Plated Bolts
- Anchor Holes Provided
WARRANTY
- 5-year parts and labor warranty when purchased with a factory installed AMSEC lock.
- Special lifetime warranty for damage from burglary attempts and fire.
FIRE PROTECTION
- Seamless DryLight Fill
- 120-Minute Intertek Verified Fire Rating
- Dual Door Seals to Protect Against Fire and Smoke
FUNCTIONALITY
- Industry's Most Flexible Interior
- Door Organizer
- Storage for up to Two Long Guns on Door
- Spy-proof, key-locking dial with decorative five-spoke handle and a convenient pull handle. (BXF6024 offers a three-spoke handle and does not come with a pull handle).
- Mirrored Back Wall for Added Interior Visibility
- AC Power Outlet with Removable Cord
- LED Light Kit
U.L. LISTED LEVEL I BURGLARY SAFE

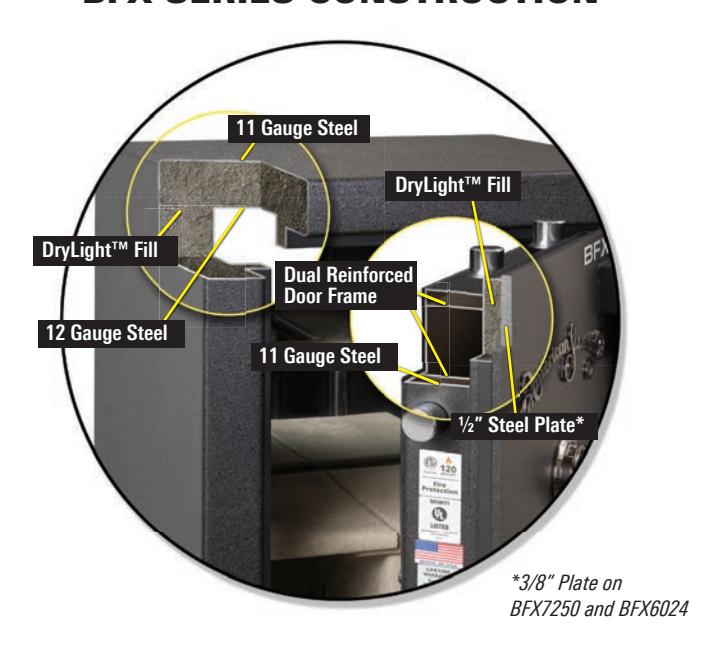

BFX SERIES CONSTRUCTION
BFX GUN SAFES: 11 GA OUTER STEEL LINER WITH 12GA INNER STEEL LINER TOTALING APPROX 1/4" STEEL BARRIER
| BFX SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Model |
Outside Dim
H x W x D |
Interior
Capacity |
Weight
Lbs. |
||
| BFX7250 | 71-1/4" x 50" x 28" | 14-14-14-28-42 + 2 Gun or 73 + 2 Gun | 1,851 | ||
| BFX7240 | 71-1/4" x 40" x 26" | 12-12-12-24-36 + 2 Gun or 58 + 2 Gun | 1,647 | ||
| BFX6636 | 65-1/4" x 36" x 26" | 12-12-24 + 2 Gun | 1,375 | ||
| BFX6030 | 59-1/4" x 30" x 26" | 11-11-22 + 2 Gun | 1,081 | ||
| BFX6032 | 59-1/4" x 30" x 21" | 9-9-18 + 2 Gun | 958 | ||
| BFX6024 | 59-1/4" x 24" x 21" | 8-8-16 Gun + 1 Gun | 751 | ||

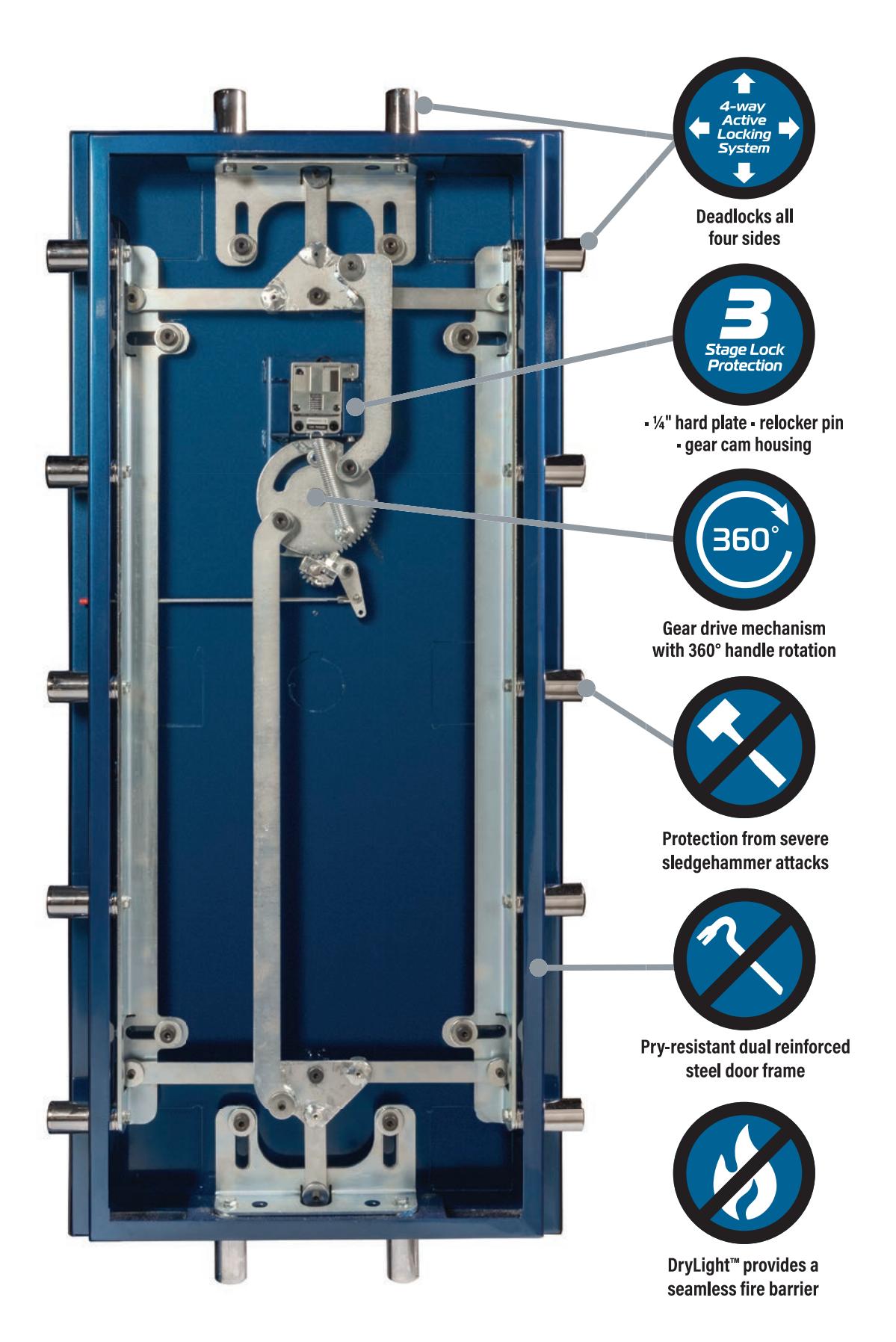

BFX SERIES
BUILT WITH UNBEATABLE SECURITY FEATURES THAT KEEP BURGLARS OUT!
DRILL ATTACK PROTECTION
- ¼" hardplate and a top-rated hardened disc defeats lock attack's
- Spring loaded relock mechanism
- Gear cam housing with precision engineered lock bolt protection

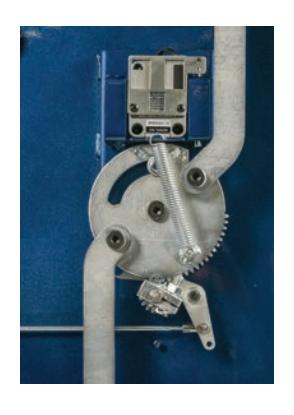

GEAR-DRIVEN BOLTWORK WITH 360° HANDLE ROTATION
Drives the industry's longest solid steel locking bolts deep into the body of the safe protecting the safe against severe pry attacks.

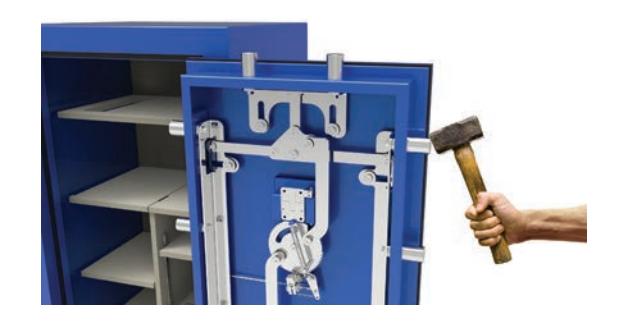

SLEDGEHAMMER IMPACT-RESISTANT BOLTWORK
Protects the heart of the Active 4x locking mechanism from severe sledgehammer attacks.

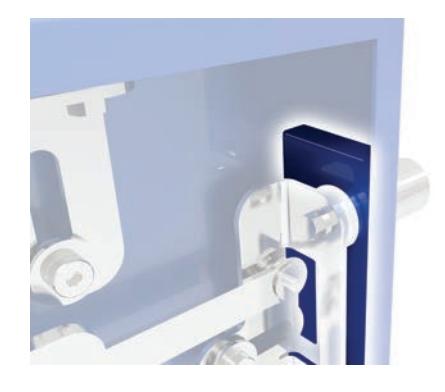

PRY-RESISTANT DUAL REINFORCED STEEL DOOR FRAME
Protects the heart of the Active 4x locking mechanism from severe pry attacks.

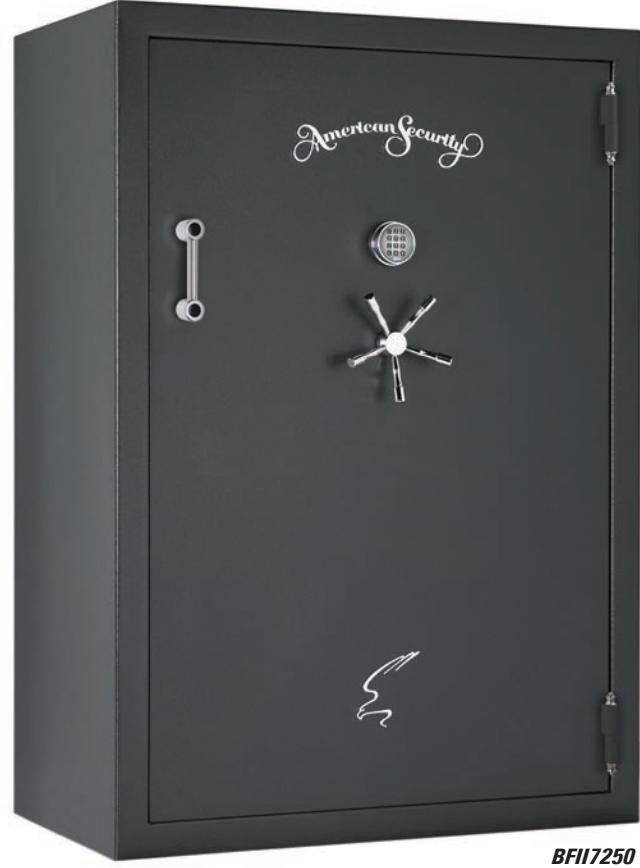

BFII SERIES – 120 MINUTE FIRE
U.L. LISTED LEVEL II BURGLARY
Shown in Textured Black with Chrome Hardware and optional fi nials
SECURITY
- ½" solid steel plate door
- 2¼"-Thick Body with 1/8" outer shell and 5/16" thick inner liner
- Combined steel thickness of ½" in body construction
- UL Level II RSC Burglary Classifi cation (2-Man team, 10-minute test. Utilizes same tools as a TL-15)
- AMSEC's Patented Active Hardplate
- TL-15 boltwork with 10 massive 1½" Chrome Plated Bolts
- Anchor Holes Provided
WARRANTY
- 5-year parts and labor warranty when purchased with a factory installed AMSEC lock.
- Special lifetime warranty for damage from burglary attempts and fi re.

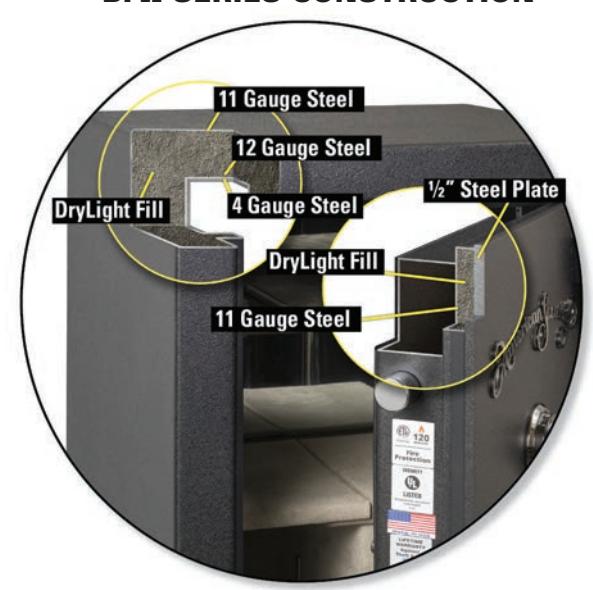

BFII SERIES CONSTRUCTION
BFII GUN SAFES:
11GA OUTER STEEL LINER WITH A COMBINED 5/16" INNER STEEL LINER PROVIDING A TOTAL 1/2" THICK STEEL BARRIER FOR ADDED BURGLARY PROTECTION
FIRE PROTECTION
- Seamless DryLight Fill
- 120-Minute Intertek Verifi ed Fire Rating
- Dual Door Seals to Protect Against Fire and Smoke
FUNCTIONALITY
- Industry's Most Flexible Interior
- Door Organizer
- Storage for Long Guns on Door
- Spy-proof, key-locking dial with decorative fi ve-spoke handle and a convenient pull handle. (BFII6024 off ers an "L" handle and does not come with a pull handle).
- Mirrored Back Wall for Added Interior Visibility
- AC Power Outlet with Removable Cord
- LED Light Kit
BFII SPECIFICATIONS Model Outside Dim H x W x D Interior Capacity Weight Lbs. BFII7250 71-1/4 "x 50" x 28" BFII7240 71-1/4" x 40" x 26" BFII6636 65-1/4" x 36" x 26" BFII6030 59-1/4" x 30" x 26" BFII6032 59-1/4" x 30" x 21" BFII6024 59-1/4" x 24" x 21" 14-14-14-28-42 + 2 Gun or 73 + 2 Gun 2,438 12-12-12-24-36 + 2 Gun or 58 + 2 Gun 1,991 12-12-24 + 2 Gun 1,716 11-11-22 + 2 Gun 1,395 9-9-18 + 2 Gun 1,244 8-8-16 Gun + 1 Gun 1,067
BFII AND BFX SERIES
The American Security Products BF Gun Safes are the best gun safe available today. For burglary protection, it has a massive ½"-thick steel plate in the door. For fi re protection, it is fi lled with our revolutionary DryLight.
For many years, smaller fi re safes have been constructed with a poured fi ll material. But larger gun safes pose several manufacturing challenges when it comes time to fi ll them with insulating materials. Because of this, the industry adopted the use of drywall as the primary material for fi re protection. The problem with using drywall is that no matter how much care is taken in assembling the many pieces of drywall into the safe body, gaps and joints
still remain in the construction that can allow heat to penetrate the safe body. AMSEC was able to
overcome this technical challenge by developing manufacturing processes that allow us to produce a safe body fi lled with the seamless DryLight fi re barrier. Independent testing at Intertek Laboratories has confi rmed that these safes outperform gun safe bodies constructed with drywall.
BFX/BFII BURGLARY RATINGS COMPARISON
|
BFX Gun Safes - RSC Level I (1-Man, 5 minute test.
Utilizes tools typically found in a household) |
BFII Gun Safes - RSC Level II (2-man Team, 10 minute test.
Utilizes same tools as a TL-15 test) |
|
|---|---|---|
| 1/4" Dia Punch | 1/2" Dia Punch | |
| Sledge Hammer 3 lb | Sledge Hammer 10 lb | |
| Crow Bar, 18" | Pry Bar, 6 ft | |
| Chisel 1/2" | Chisel 1" Wide x 12" L | |
| Screw Driver 18 | Screw Driver 18 | |
| 1/4" Drill Bits | 1/2" Drill Bits | |
| 3/8" Drill | 1/2" HD Drill | |
| Pick, 30" | ||
| Axe, 35" | ||
| 4" Conic Punch | ||
| Hole Saw, 3" Carbide | ||
| Pin Hammer | ||
| Wedge, Log Splitting | ||
| Punch/Chisel Holder | ||

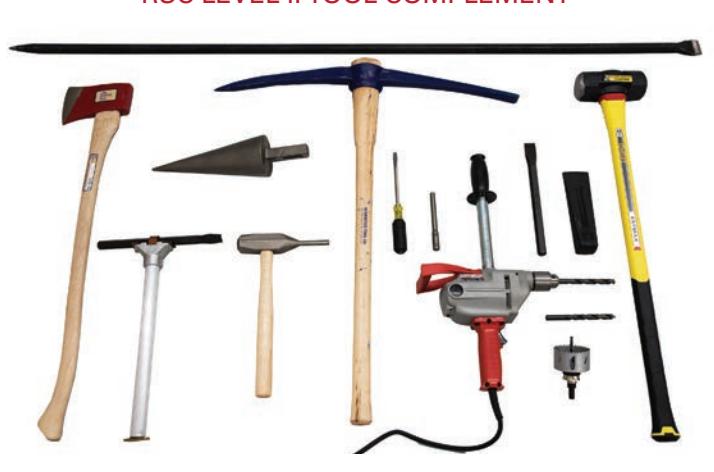

RSC LEVEL I TOOL COMPLEMENT RSC LEVEL II TOOL COMPLEMENT
BFII AND BFX SERIES
COLOR AND INTERIOR OPTIONS

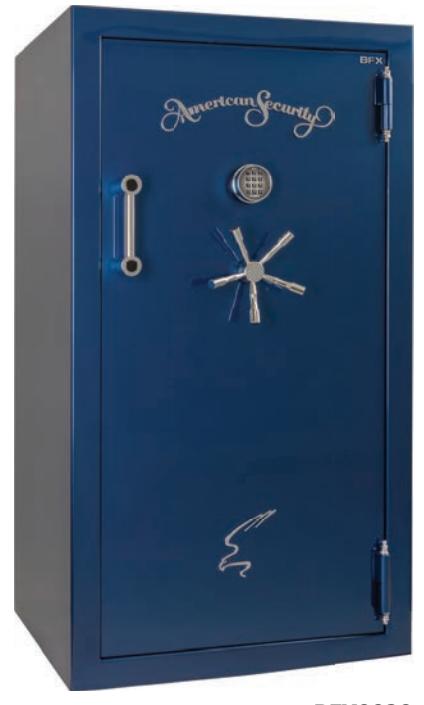

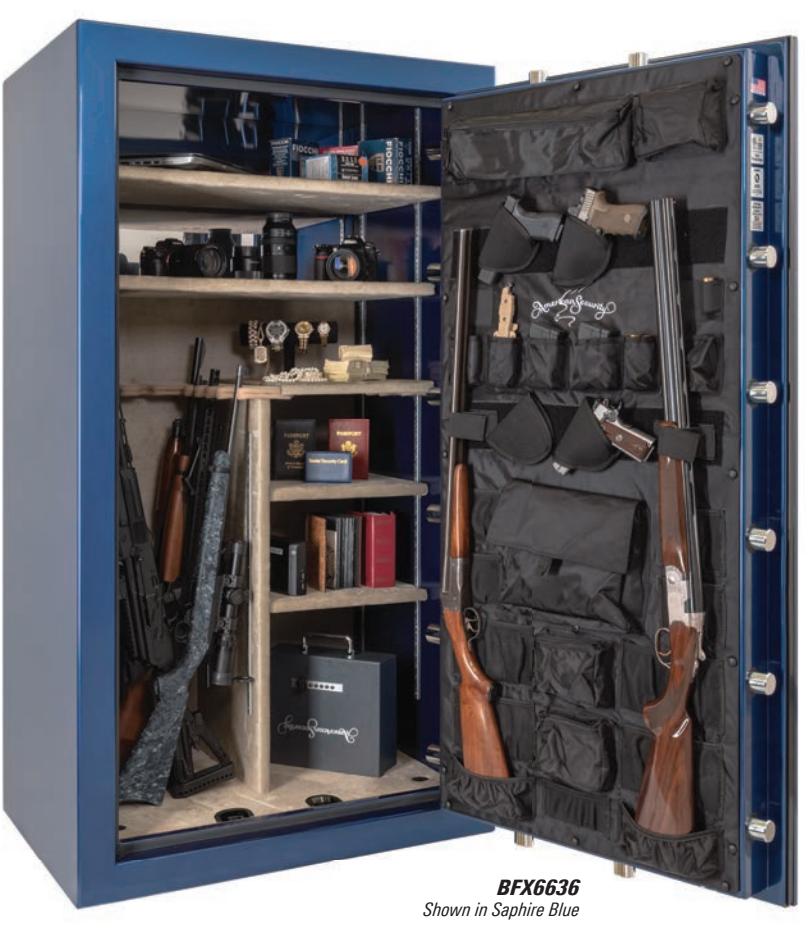

BFX6636
Shown above in Saphire Blue with Chrome hardware, new barrel hinge with optional decorative finials and optional ESL10XL electronic lock

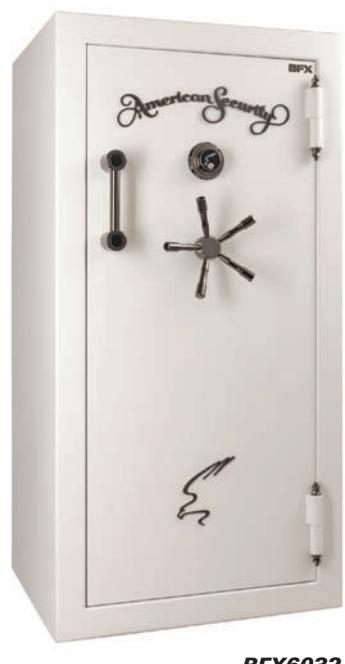

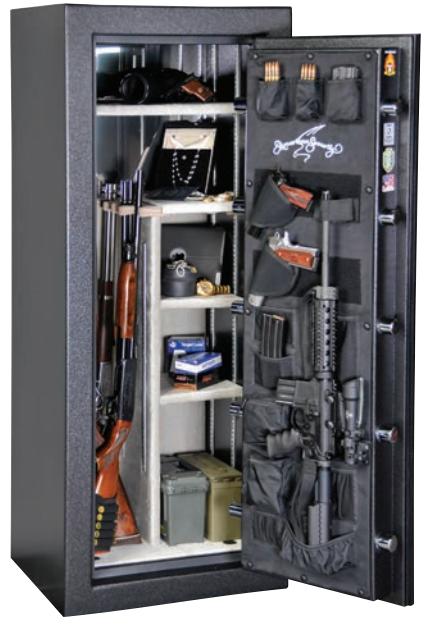

BFX6032
Shown in Pearl Essence with Black Nickel hardware and optional decorative finials
BFX6024
Shown in Textured Black
HIGH-GLOSS COLORS
Platinum Metallic
Burnt Orange
Charcoal Metallic
Rosso Corsa
Essence
TEXTURED COLORS
Sandstone
Granite
Black
Chocolate Brown
Black/Onyx
Granite/ Charcoal
HARDWARE COLORS
Chrome
Brass
Black Nickel
BFII/BFX SERIES INTERIOR CONFIGURATIONS:
7250 Standard Gun Interior
7250 Optional 73 Gun Interior
7240 Standard Gun Interior
7240 Optional 58 Gun Interior
6636 Standard Gun Interior
Gun Interior
6032 Standard Gun Interior
6024 Standard Gun Interior
RF SERIES – 120 MINUTE FIRE
U.L. LISTED HIGH SECURITY
AMSEC offers the only gun safes that have a TL - 30 and TL - 30x6 Six-Sided UL Burglary Rating. To earn a TL - 30 or TL - 30x6 UL Burglary Rating, these safes are subjected to a brutal 30-minute attack by trained technicians using tools such as sledge hammers, picks, chisels, circular saws, carbide drills, wedges, and pry bars. These safes represent the industry standard for protecting high value assets against the threat of serious attack.
The high level of security of these safe comes from AMSEC's unique composite construction. High-strength concrete with proprietary aggregate combined with a matrix of formed steel barriers stop all types of attacks outlined in the Underwriters Laboratories standard. These massive safes weigh between 3,400 and 4,500 pounds. No one is walking out of your house with one of these.
This is the same commercial safe construction that AMSEC sells to banks and jewelers across the county. Today there are hundreds of millions of dollars in assets protected by AMSEC High-Security Composite Safes.

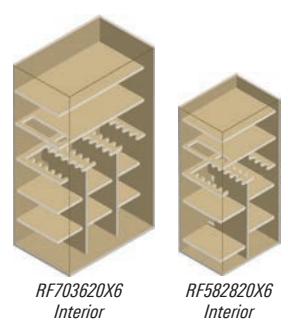

RF582820X6
| Model |
Outside Dim
H x W x D |
Interior
Capacity |
Weight
Lbs. |
|---|---|---|---|
| RF703620X6 | 76" x 42" x 291⁄4" |
12-12-12-24-36 Gun +2 Gun or 58
+ 2 Gun |
4,578 |
| RF582820X6 | 64" x 34" x 291/4" | 12-12-24 Gun + 2 Gun | 3,418 |
| RF6528 | 72" x 35" x 29½" | 12-12-24 Gun + 2 Gun | 3,455 |

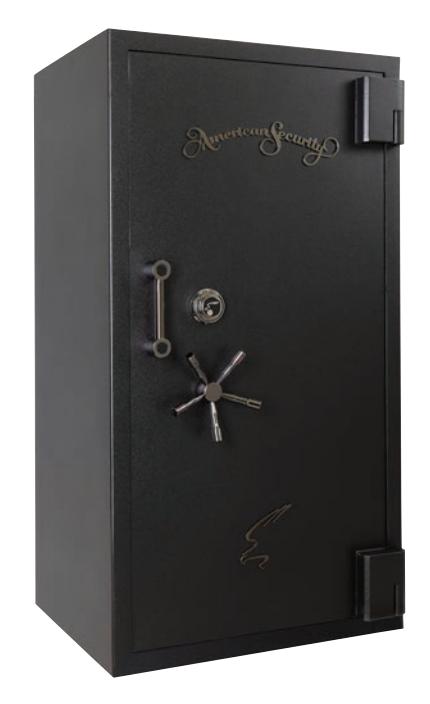

RF6528
- 6" Thick High Security Composite Door
- 3½" Thick High Security Body (3" on X6)
- UL Listed TL 30 or TL 30X6 High Security Burglary Classification
- 10 Massive 11/2" Chrome Plated Bolts
- · Anchor Holes Provided
FIRE PROTECTION
SECURITY
- Seamless High Security Composite Fill
- 120-Minute Fire Rating
- Palusol Door Seal Protects Against Fire and Smoke
FUNCTIONALITY
- Industry's Most Flexible Interior
- Door Organizer
- Storage for Two Long Guns on Door
- 3 Outlet power strip with USB ports
- LED Light Kit
HIGH-GLOSS COLORS (AVAILABLE ON RF6528 ONLY)
HARDWARE COLORS
11
Gun Safe Catalog 2021
NF SERIES – 90 MINUTE FIRE
U.L. LISTED LEVEL I BURGLARY
The American Security Products NF Gun Safe offers both superior performance and value. For burglary protection, it has a stout ¼"-thick steel plate door. For fire protection, it is lined with 3 to 4 layers of drywall that are strategically engineered for optimal fire protection. This enables the NF Gun Safe to pass a verified 90-minute fire test at Intertek, an independent testing laboratory.
SECURITY
- 1/4"-Thick Steel Plate Door
- Four-Way Bolt Work
- 11-Gauge Steel Body
- UL Level I RSC Burglary Classification (1-Man, 5-minute test. Utilizes tools typically found in a household)
- 14 Massive 11/2" Chrome Plated Bolts
- · Anchor Holes Provided

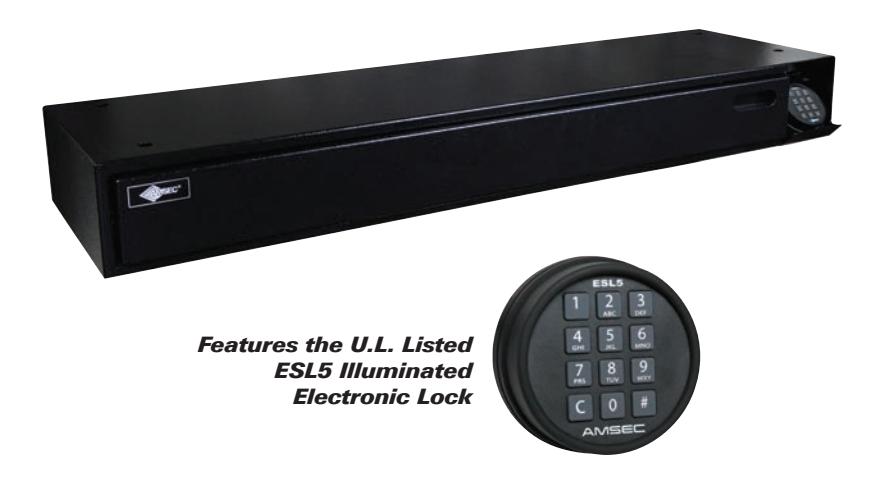

- U.L. Listed ESL5 Electronic Lock with Illuminated Keypad
FIRE PROTECTION
- · Lined with Three Layers of Drywall
- 90-Minute Intertek Verified Fire Rating
- · Dual Door Seals to Protect Against Fire and Smoke
FUNCTIONALITY
- · Industry's Most Flexible Interior
- · Door Organizer
- · Storage for up to Two Long Guns on Door
- · AC Power Outlet

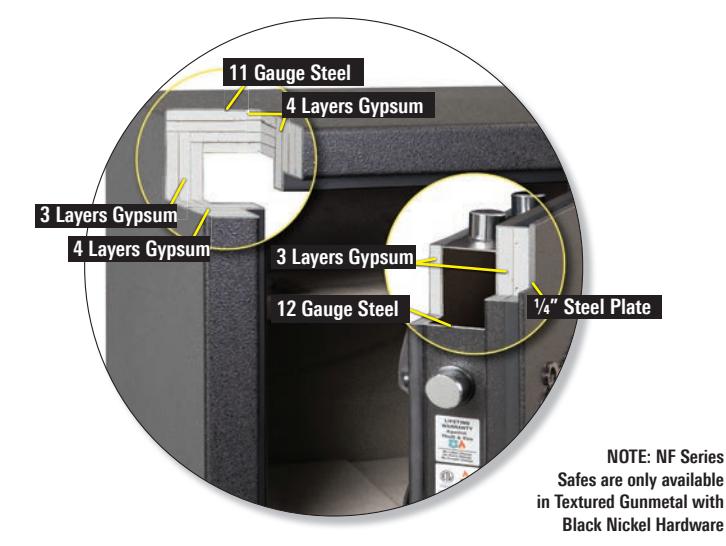

NF SERIES CONSTRUCTION

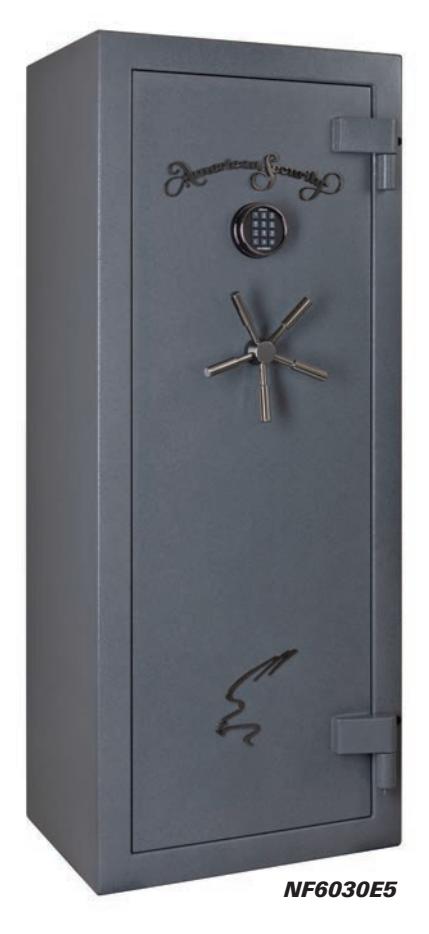

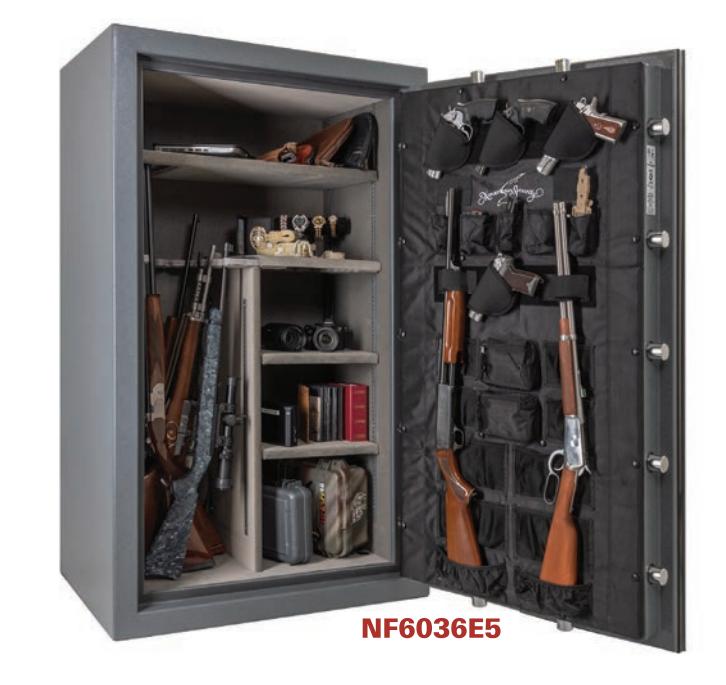

NF6036E5 NF6030E5 Standard Interior Standard Interior
NF6032E5 Standard Interior
NF5924E5 Standard Interior
COLOR & HARDWARE
Grav
Black Nickel
Model Outside Dim Interior Weight H x W x D Capacity Lbs. NF6036E5 59" x 36" x 26" 17-17-34 + 2 Gun 977 NF6030E5 59" x 30" x 26" 14-14-28 + 2 Gun 854 NF6032E5 59" x 30" x 21" 9-9-18 + 2 Gun 761 NF5924E5 59" x 24" x 18" 8-8-16 Gun + 1 Gun 600
SF SERIES – 60 MINUTE FIRE
The American Security Products SF gun safe off ers both performance and value. For burglary protection, it has a stout 3/16"- thick steel plate door. For fi re protection, it is lined with 3 to 4 layers of drywall that are strategically engineered for optimal fi re protection. This enables the SF Gun Safe to pass a verifi ed 60-minute fi re test at Intertek, an independent testing laboratory.
SECURITY
- 3/16"-Thick Steel Plate Door
- Four-Way Bolt Work
- 12-Gauge steel body
- 14 1¼" Chrome Plated Bolts
- Anchor Holes Provided
- U.L. Listed ESL5 Electronic Lock with Illuminated Keypad
FIRE PROTECTION
- Lined with three layers of drywall
- 60-Minute Intertek Verifi ed Fire Rating
- Dual Door Seals to Protect Against Fire and Smoke

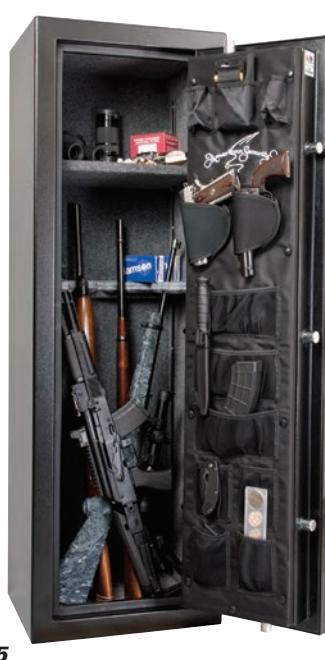

FUNCTIONALITY
- Industry's Most Flexible Interior
- Door Organizer
- Storage for up to Two Long Guns on Door

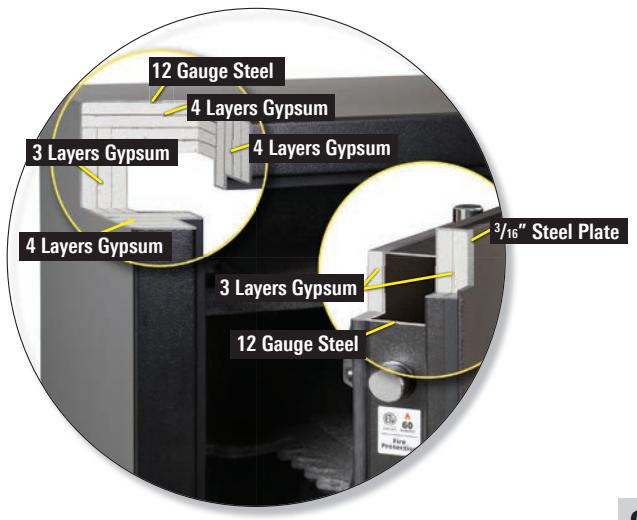

SF SERIES CONSTRUCTION
COLOR & HARDWARE
NOTE: SF Series Safes are only available in Textured Black with Black Nickel Hardware
SF7240E5 Standard Interior

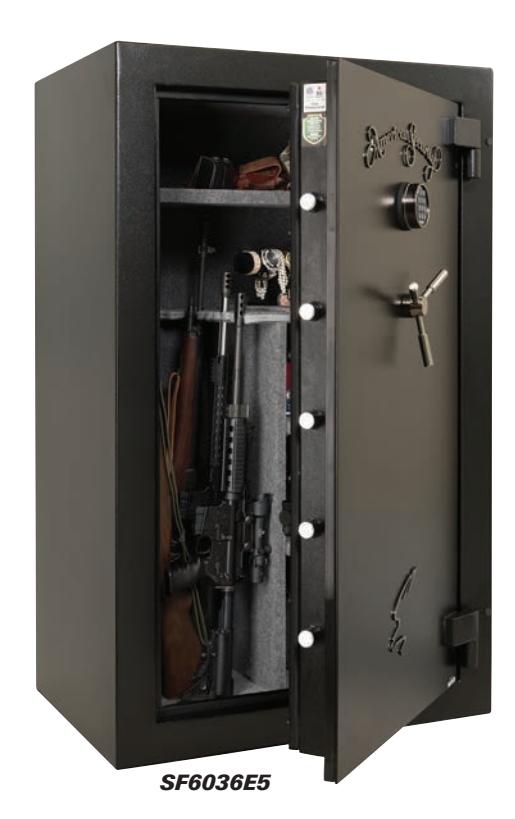

SF6036E5 Standard Interior SF6032E5 Standard Interior
SF6030E5 Standard Interior
| Model |
Outside Dim
H x W x D |
Interior
Capacity |
Weight
Lbs. |
|---|---|---|---|
| SF7240E5 | 72" x 40" x 26" | 15-15-15-30-45 + 2 Gun | 1,086 |
| SF6036E5 | 59" x 36" x 26" | 17-17-34 + 2 Gun | 840 |
| SF6030E5 | 59" x 30" x 26" | 15-15-30 + 2 Gun | 748 |

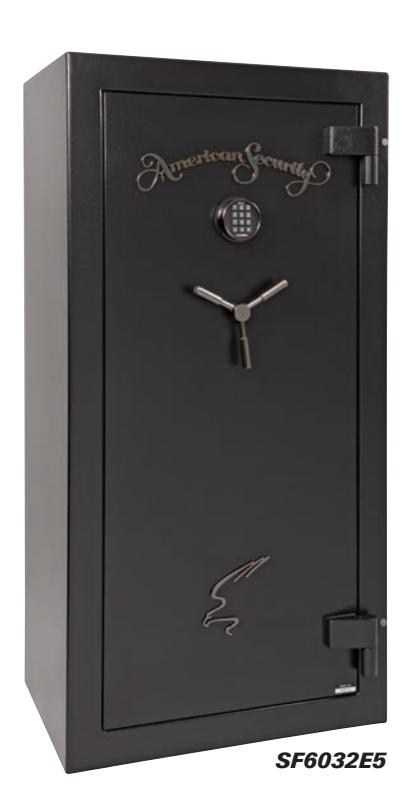

| SF6032E5 | 59" x 30" x 21" | 11-11-22 + 2 Gun | 662 |
TF SERIES 30 MINUTE FIRE
The American Security Products TF Gun Safe off ers economic trusted protection. For burglary protection, it has a stout 3/16"-thick steel plate door. For fi re protection, it is lined with drywall that is strategically engineered for 30 minutes of fi re protection.
SECURITY
- 3/16"-Thick Steel Plate Door
- Four-Way Bolt Work
- 14-Gauge Steel Body
- 14 1¼" Chrome Plated Bolts on TF5924E5
- 8 1" Chrome Plated Bolts on TF5517E5
- Anchor Holes Provided
- U.L. Listed ESL5 Electronic Lock with Illuminated Keypad
FIRE PROTECTION
- Lined with Two Layers of Drywall on the Ceiling and Door
- Lined with One Layer of Drywall in All the Walls
- 30-Minute Factory Label
- Dual Door Seals to Protect Against Fire and Smoke
FUNCTIONALITY
- Industry's Most Flexible Interior
- Long Gun on the Door
- Door Organizer
- TF5924 has Storage for One

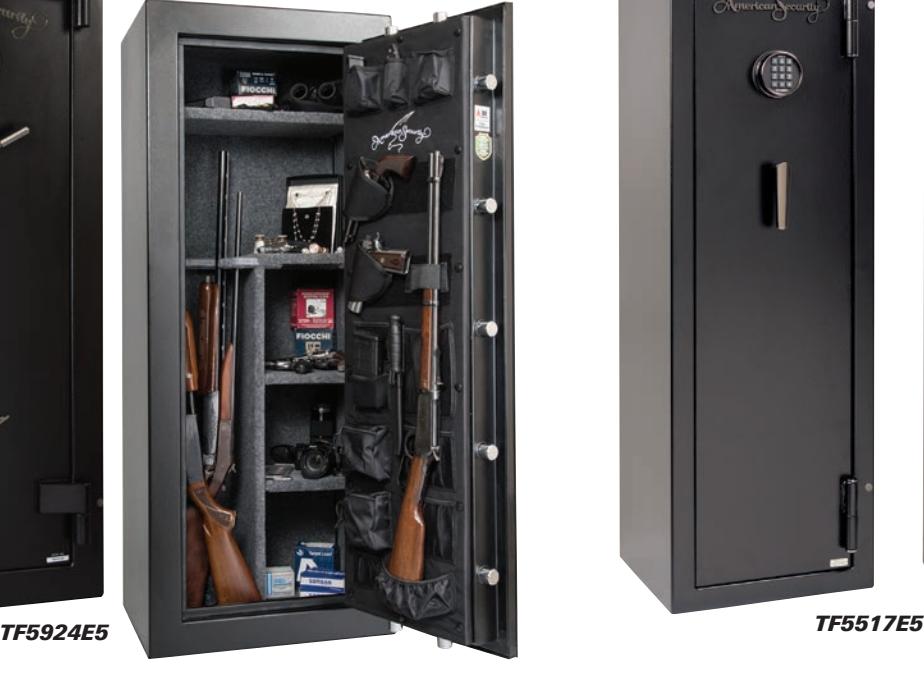

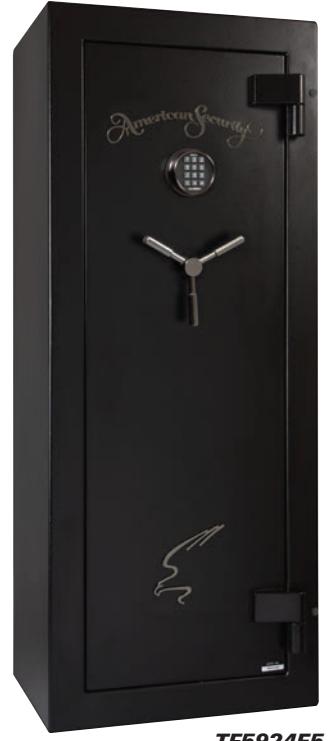

TF5924E5 Standard Gun Interior

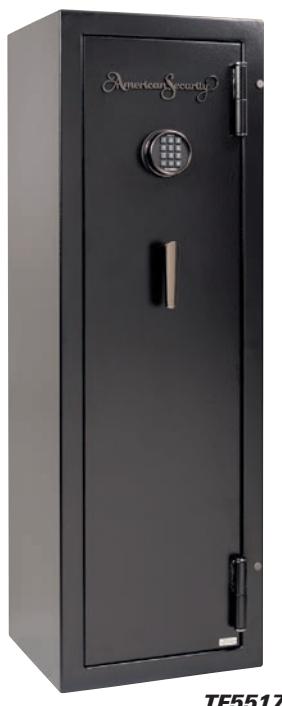

TF5517E5 Standard Gun Interior

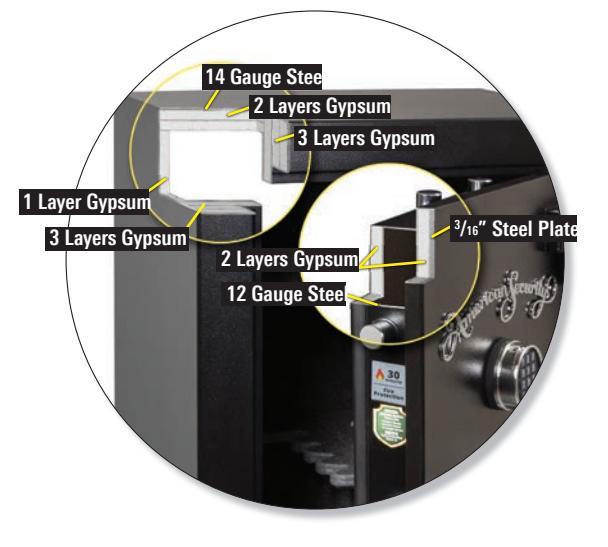

TF SERIES CONSTRUCTION
Model Outside Dim Interior Weight
| H x W x D | Capacity | Lbs. | |
|---|---|---|---|
| TF5924E5 | 59" x 24" x 18" | 8-8-16 Gun + 1 Gun | 388 |
| TF5517E5 | 55-1/4" x 17-3/4" x 16" | 11 Gun | 286 |
COLOR & HARDWARE
NOTE: TF Series Safes are only available in Textured Black with Black Nickel Hardware

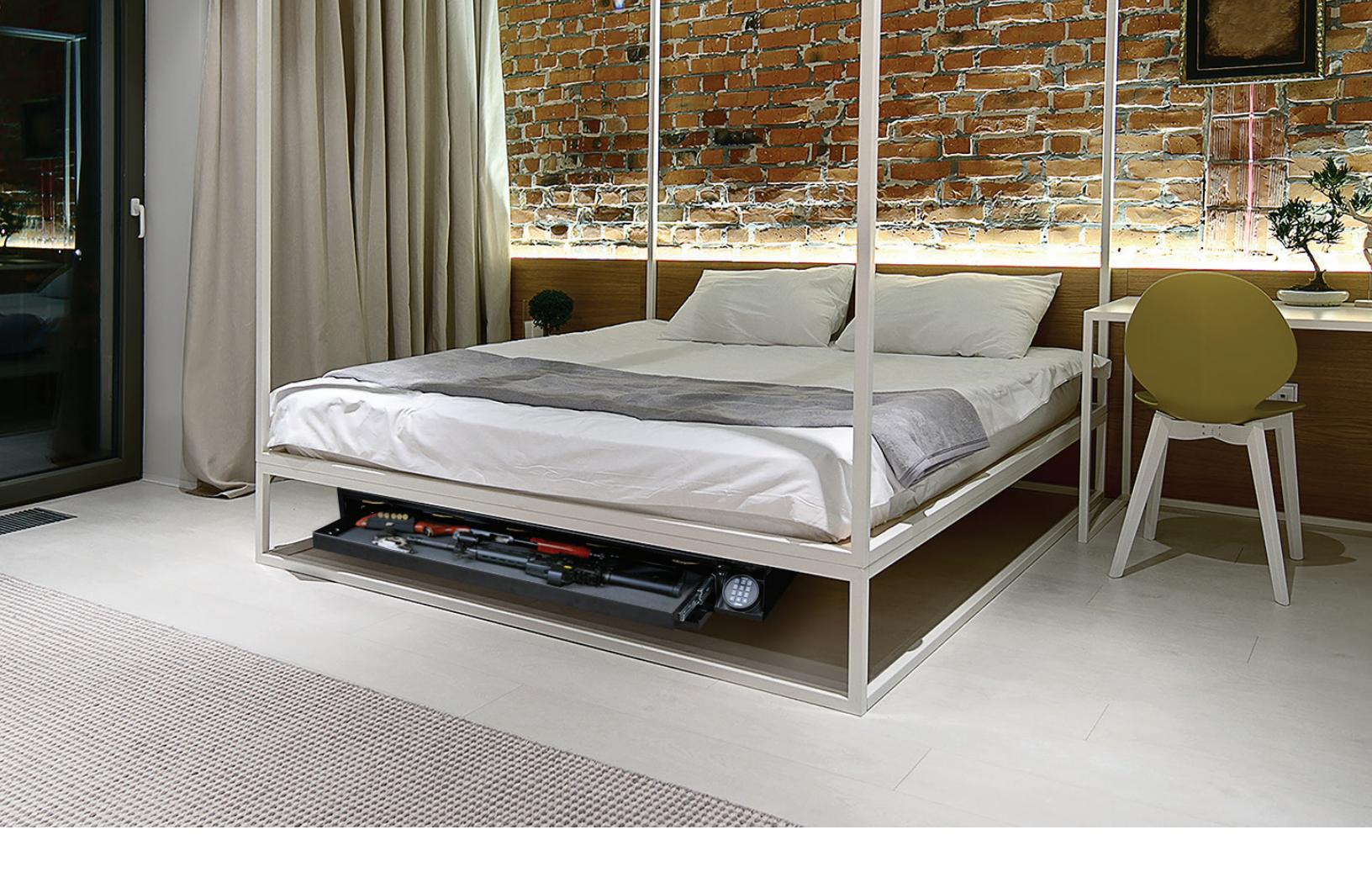

DEFENSE VAULT
PUTS HOME SECURITY WHERE YOU NEED IT
AMSEC's DV652 was produced from our culture of listening to customers. Customers wanted a secure place to store their home defense weapons. They wanted something that could be kept in their bedrooms, close to their bed. After days of brainstorming, the DV652 was born. Sleek enough to fit under most beds, the DV652 can be secured to either the floor or the bed and is equipped with our backlit ESL5 lock, which offers a silent stealth-mode option and was specifically designed for this product.
FEATURES
- Slide-Out Drawer
- Backlit U.L. Listed ESL5 Electronic Lock
- 14-Gauge Steel Construction
- 5-Point Locking Bar
- 4 Mounting Holes on Both the Top and Bottom
| Model |
Outside
Dimension |
Tray Size |
Wt.
Lbs. |
Locking Device | Warranty |
|---|---|---|---|---|---|
| DV652 | 6" x 52" x 14" | 33/8" x 431/4" x 13" | 90 |
5-Point Slide
Locking Bar with ESL5 Electronic Lock |
1 Year Parts & Labor |
Gun Safe Catalog 2021

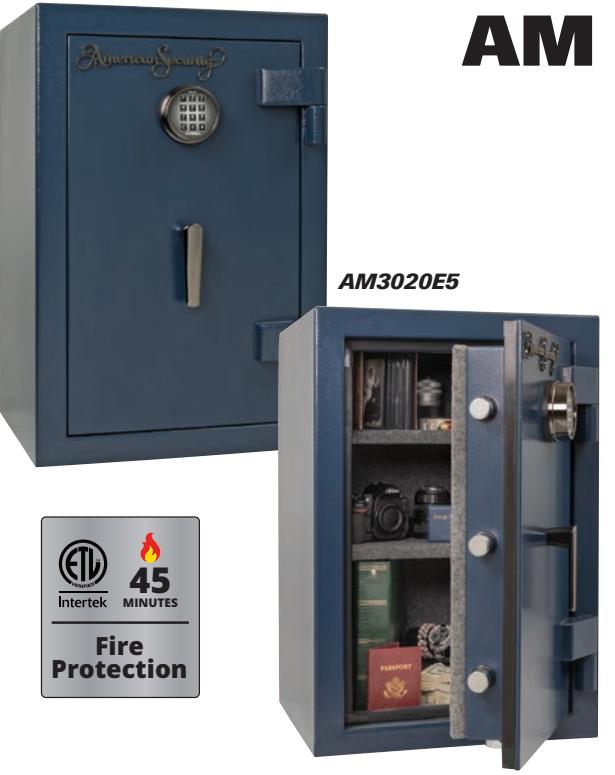

AM SERIES HOME SAFES
FEATURES:
- Powder-Coated Blue with Black Nickel Hardware
- Gray Fabric Interior
- Backlit U.L. Listed ESL5 Electronic Lock
- 12-Gauge Steel Body
- Drywall Lined
- 45-Minute ETL Verified Fire Rating
- Three-Way Bolt Work
- Electrical Access Hole
- 4 Pre-Cut Anchor Holes
- 1 Year Parts and Labor Warranty
| Model |
Outside
Dimensions |
Inside
Dimensions |
Cu. In. | Wt. Lbs. | Shelves |
|---|---|---|---|---|---|
| AM2020E5 | 17-1/4 x 17-1/4 x 14 | 20" x 20" x 20" | 4,166 | 180 | 1 |
| AM3020E5 | 27-1/4 x 17-1/4 x 14 | 30" x 20" x 20" | 6,581 | 230 | 2 |

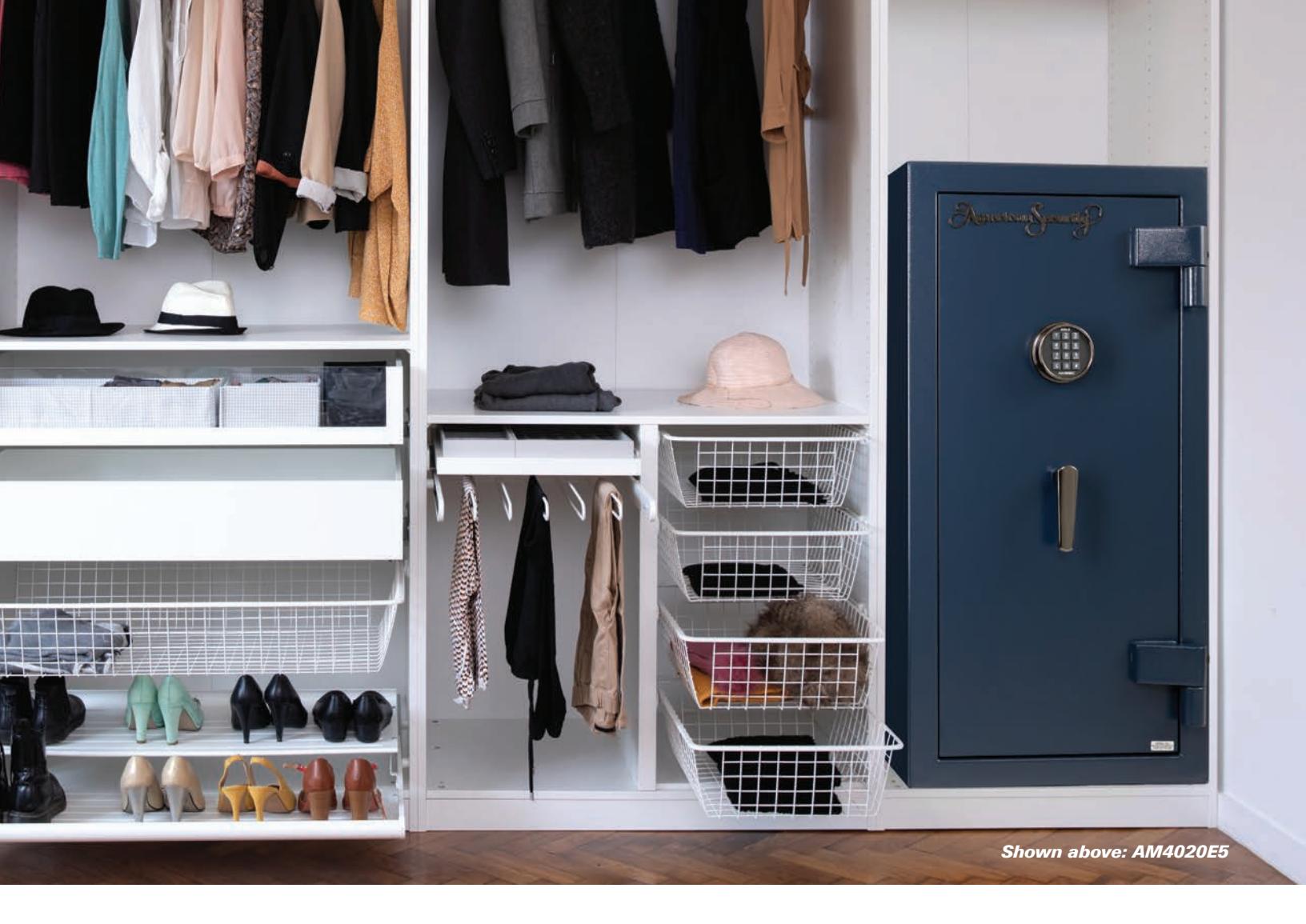

| AM4020E5 | 37-1/4 x 17-1/4 x 14 | 40" x 20" x 20" | 8,996 | 282 | 3 |
HANDGUN SAFES
| PS1210HD | PS1208EZ | HAS410 | |
|---|---|---|---|
| Type | Portable | Portable | Hide-a-Safe |
| Exterior Dimension | 10 1/4" x 12 1/2" x 4 1/4" | 8 1/8" x 12 1/4" x 4" | 12" x 10" x 4" |
| Weight | 24 Lbs. | 11 Lbs. | 20 Lbs. |
| Body | 10 ga. Solid Steel | 14 ga. Solid Steel | 10 ga. Solid Steel |
| Door | 3/16" Solid Steel | 14 ga. Solid Steel | 3/16" Solid Steel |
| Lock | Simplex Mechanical Push Button | Simplex Mechanical Push Button | Simplex Mechanical Push Button |
| Locking Bolt | 1 1/2" x 1/2" Solid Steel Block | 1 1/2" x 1/2" Solid Steel Block | 1 1/2" x 1/2" Solid Steel Block |
| Lock Protection | Solid Steel Lock Housing | Solid Steel Lock Housing | Solid Steel Lock Housing |
| Interior | High Density Pluck Foam | High Density Pluck Foam | High Density Pluck Foam |
| Finish | Granite Textured | Charcoal Gray | Granite Textured |
| Carry Handle | Chrome Plated Collapsible | Chrome Plated Collapsible | Solid Steel Fixed |
| Anchor Holes | 4 | 4 | 4 (Top & Bottom) |
| Origin | China | China | China |

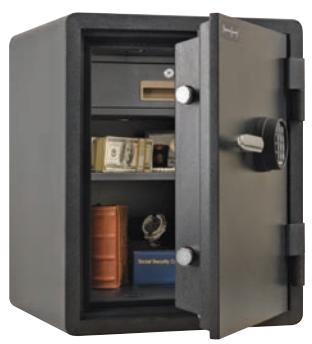

FIRE SAFES
THE ONLY UL-RATED 1-HOUR IMPORTED RESIDENTIAL FIRE SAFES WITH HIGH SECURITY, BOUNCE-RESISTANT LOCKS
Amsec 1-Hour Fire Safes are the only UL listed 1-hour fire safe offering a UL listed electronic lock. These locks offer far greater security than the locks offered on any other 1-hour fire safe.
FS914E5LP FS149E5LP FS914 FS149 FS1814E5
FEATURES:
- UL 350°F 1-Hour Fire Rating
- UL Listed Type 1 Electronic Lock
- Mechanical Combination Lock with Key Activated Boltwork on FS914 & FS149
- Backlit Keypad
- Black Granite Textured Finish
- 1 Year Parts and Labor Warranty
| Model |
Interior
Dimensions |
Exterior
Dimensions |
Clear Door |
Cu.
In. |
Wt.
Lbs. |
|---|---|---|---|---|---|
| FS914E5LP | 9-3/4 x 15-1/4 x 9-7/8 | 14 x 19-1/2 x 15-3/8 | 9-3/4 x 15-1/4 | 1,438 | 96 |
| FS149E5LP | 15-1/4 x 9-3/4 x 9-7/8 | 19-1/2 x 14 x 15-3/8 | 15-1/4 x 9-3/4 | 1,468 | 96 |
| FS914 | 9-3/4 x 15-1/4 x 9-7/8 | 14 x 19-1/2 x 15-3/8 | 9-3/4 x 15-1/4 | 1,438 | 96 |
| FS149 | 15-1/4 x 9-3/4 x 9-7/8 | 19-1/2 x 14 x 15-3/8 | 15-1/4 x 9-3/4 | 1,468 | 96 |
| FS1814E5 | 18-1/4 x 13-1/8 x 12-3/8 | 23-3/4 x 18-7/8 x 18-1/2 | 18-1/4 x 13-1/8 | 2,964 | 164 |

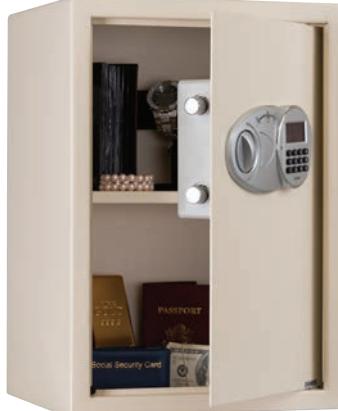

ELECTRONIC SAFES
WITH DL6000 ELECTRONIC LOCK
EST813
EST1014
EST916
EST2014
FEATURES:
- 14-Gauge Steel Body
- DL6000 Electronic Lock
- LCD Display
- Pry-Resistant Recessed Door
- Internal Hinges
- 1 Year Parts and Labor Warranty
- Bounce-Resistant Lock Design
| Model |
Interior
Dimensions |
Exterior
Dimensions |
Clear Door |
Cu.
In. |
Wt.
Lbs. |
|---|---|---|---|---|---|
| EST813 | 7-11/16 x 12 1/16 x 5-3/8 | 7-7/8 x 12-1/4 x 8 | 5-3/4 x 8-1/4 | 499 | 16 |
| EST916 | 8-13/16 x 15-13/16 x 11-1/8 | 9 x 16 x 13-1/4 | 6-3/4 x 12-1/8 | 1,550 | 27 |
| EST1014 | 9-9/16 x 13-15/16 x 7-3/4 | 9-3/4 x 14-1/8 x 9-3/4 | 7-5/8 x 10-1/4 | 1,032 | 22 |
| EST2014 | 19-9/16 x 13-9/16 x 10 | 19-3/4 x 13-3/4 x 12-1/4 | 17-1/8 x 9-1/4 | 2,602 | 40 |
TURN YOUR ENTIRE ROOM INTO A SECURITY VAULT
AMSEC Vault Doors offer the same protection as our innovative BF Gun Safes. They are designed to fit standard 80" x 30" and 80" x 36" door openings. With our inward-swinging vault door option, your vault room can also serve as a storm shelter. The vault door's inward swing ensures that you will be able to open the door even if debris has fallen on the other side. All AMSEC vault doors can be opened from the inside, ensuring personal safety.
STANDARD FEATURES
- 2" Thick Door
- 10 11/2" Chrome Plated Bolts (5 bolts on inswing doors)
- Adjustable Frame to Fit Walls Ranging From 4¾" to 9½" Thick
- Safety Lock Release
- Spy-proof, key-locking dial with decorative five-spoke handle and a convenient pull handle.
- 1 Year Parts and Labor Warranty
BF SERIES VAULT DOOR FEATURES
- ½" Steel Plate on Face of Door
- 1%" of Seamless Drylight as Fire Protection
BFQ SERIES VAULT DOOR FEATURES
- 1/4" Steel Plate on Face of Door
- 15%" of Seamless Drylight as Fire Protection
OPTIONS
• Left-Swing Door Available
VD8030BFQ Chocolate Brown with Black Nickel Hardware
VAULT DOORS
VD8030BF / VD8036BF
PROUDLY MADE IN THE U.S.A.
VD8030BFQ / VD8036BFQ
Color Options
Chocolate Brown
Hardware Options
Black Sandstone
| Model | Description |
Wall
Opening |
Door
Opening |
Weight (lbs.)
Door Only |
Shipping
Wt. Lbs. |
|---|---|---|---|---|---|
| VD8030BFQ | Vault Door | 79-½" x 29-½" | 77-½" x 24-¾" | 506 | 650 |
| VD8030BFQIS | In-Swing Vault Door | 79-1/2" x 29-1/2" | 77" x 20-3/8" | 490 | 634 |
| VD8036BFQ | Vault Door | 79-1/2" x 35-1/2" | 77-½" x 31" | 592 | 762 |
| VD8036BFQIS | In-Swing Vault Door | 79-1/2" x 35-1/2" | 77" x 26-1/4" | 556 | 726 |
| VD8030BF | Vault Door | 79-1/2" x 29-1/2" | 77-½" x 24-¾" | 695 | 839 |
| VD8030BFIS | In-Swing Vault Door | 79-1/2" x 29-1/2" | 77" x 20-3/8" | 672 | 816 |
| VD8036BF | Vault Door | 79-1/2" x 35-1/2" | 77-1/2" x 31 | 819 | 989 |
| VD8036BFIS | In-Swing Vault Door | 79-1/2" x 35-1/2" | 77" x 26-1/4" | 792 | 957 |
Gun Safe Catalog 2021 19
These elegant, well-appointed 2-drawer and 4-drawer interior chests are the most sophisticated way to store and display your jewelry collection and letter files. These stunning chests are finely crafted with solid-wood maple drawer fronts and maple veneer and finished in a rich honey maple stain. Recessed door pulls give these cabinets a more streamlined appearance and makes for an easier fit into a variety of AMSEC safes. All drawers are elegantly lined in a silky, dark red felt and include a variety of Stor-It Jewelry Organizer Inserts.
TWO-DRAWER CABINET
Top drawer includes a Three Compartment Ring Organizer and a Seven Compartment Jewelry Organizer. Bottom drawer can be used for bulky items or as a file drawer.
FOUR-DRAWER CABINET
Top drawer includes a Three Compartment Ring Organizer and a Seven Compartment Jewelry Organizer. Drawer Two Includes a
Three Compartment Necklace Organizer. Drawer Three Includes a Four Compartment Watch Organizer. Drawer Four is left open for easy storage of large, bulky items.
Storage Cabinet Specifications
| Model |
Outside
Dimensions (HxWxD) |
Weight |
|---|---|---|
| 2-Drawer |
⁄8
16 ¾ x 16 x 141 |
28 |
| 4-Drawer |
⁄8
16 ¾ x 16 x 141 |
29 |
StorIt-Cabinets are available as an option on the following Gun Safe models:
RF6528, RF703620X6, RF582820X6, BFX7250*, BFX7240, BFX6636, BFX6030, BFII7250*, BFII7240, BFII6636, BFII6030, NF6036E5, NF6030E5.
Cabinets do not fit any 6032, 6024 or 5924 models, the FV Series or the TF Series.
*No kit needed for installation on BFX7250 & BFII7250 - Cabinets slide right in.
NOTE: DIFFERENT INTERIOR NEEDS TO BE ORDER WHEN ORDERING CABINETS. REFERENCE INTERIOR KITS ON PRICE SHEET.
THE SAFE CLOAK
HIDE YOUR GUN SAFE IN PLAIN SIGHT!
Instantly disguise your gun safe with Amsec's Safe Cloak. Available in five different sizes, the Safe Cloak attaches to your gun safe to instantly disguise it as a wood cabinet. Strong magnets and a sewn-in PVC board at the top easily and securely hold the cloak in place. The thermal-transfer, four-color wood-cabinet print is so good, it will fool not only passersby, but guests as well.
Available in the following sizes: 6024, 6030, 6636, 7240, 7250.
ELECTRONIC LOCK OPTIONS
For quick and easy entry, an electronic lock is the lock of choice. These locks are powered by batteries located in the keypad and allow you to change your combination anytime.
AMSEC ESL10XL
Available in Brass, Chrome and Black Nickel Finish
AMSEC ESL5
Available in Brass, Chrome and Black Nickel Finish
ROTOBOLT REDUNDANT LOCK
The convenience of an Electronic lock and the trusted reliability of a mechanical combination lock.
S&G MODEL 6120
Available in Brass or Chrome Finish
S&G TITAN
"EZ" Keypad, Brass, Chrome or Black Nickel Finish
LG BASIC
Chrome Finish
OTHER OPTIONS
.50 CALIBER HANDLE
Available in Black Nickel RF, BFX, BFII & NF Gun Safes only.
POWER STRIP
3 Outlet Power Strip with two USB ports and removable cord.
36" LED LIGHT KIT
Has two 36" light strips with high-intensity white LED lights and a motion sensor that automatically turns the lights on when motion is detected. The lights turn off 30 seconds after motion has stopped. This light kit can be installed on any AMSEC safe and is also available as a retrofi t kit.
DESICCANT
Prevents rust and moisture damage. Recommended for safes without electrical access.
DEHUMIDIFIER ROD Keeps your guns safe from the threat of rust, pitting and moisture damage. Electrical access required.
Velvet lined jewelry drawer that can be installed on top or underneath any shelf larger than 10" wide and 1313/16 deep.
8" COMPACT LED LIGHT KIT
Features two 8" light strips with high-intensity white LED lights and a motion sensor that automatically turns the lights on when motion is detected. Comes with battery box.

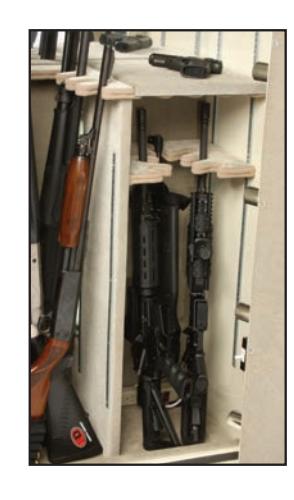

AR GUN RACKS
These gun racks are fully adjustable and custom fi t the side shelf area of our BFX & BFII series gun safes. Each rack is designed with enough clearance to accommodate extra large front sights or optics. All racks feature rich pin-dot fabric.
PISTOL RACK
This four-gun rack is ideal for organizing pistols inside your safe.
PREMIUM UPGRADE PACKAGE FOR RF, BFX, NF AND SF SAFES
When you choose to upgrade your American Security RF, BFX, NF or SF Series with a Premium Package, we'll add on some of our most popular options, including the Dehumidifi er Rod, a Jewelry Drawer, an LED light kit*, and a 3-outlet power strip with USB.
*LED light kit standard on BFX gun safes
FEATURES AT A GLANCE
| Model |
Exterior
Dimensions |
Gun Capacity | Weight |
PDO
Included |
Bolts |
Bolt
Dia. |
Relocker | |
|---|---|---|---|---|---|---|---|---|
| RF SERIES | ||||||||
| RF703620X6 | 76" x 42" x 29¼" |
12-12-12-24-36 Gun +2 Gun or 58 + 2
Gun |
4,578 | Yes | 10 | 1½" | Yes | |
| RF582820X6 | 64" x 34" x 29¼" | 12-12-24 Gun + 2 Gun | 3,418 | Yes | 10 | 1½" | Yes | |
| RF6528 | 72" x 35" x 29½" | 12-12-24 Gun + 2 Gun | 3,455 | Yes | 10 | 1½" | Yes | |
| BFII SERIES | ||||||||
| BFII7250 | 71-1/4 "x 50" x 28" | 14-14-14-28-42 + 2 Gun or 73 + 2 Gun | 2,438 | Yes | 10 | 1½" | Yes | |
| BFII7240 | 71-1/4" x 40" x 26" | 12-12-12-24-36 + 2 Gun or 58 + 2 Gun | 1,991 | Yes | 10 | 1½" | Yes | |
| BFII6636 | 65-1/4" x 36" x 26" | 12-12-24 + 2 Gun | 1,716 | Yes | 10 | 1½" | Yes | |
| BFII6030 | 59-1/4" x 30" x 26" | 11-11-22 + 2 Gun | 1,395 | Yes | 10 | 1½" | Yes | |
| BFII6032 | 59-1/4" x 30" x 21" | 9-9-18 + 2 Gun | 1,244 | Yes | 10 | 1½" | Yes | |
| BFII6024 | 59-1/4" x 24" x 21" | 8-8-16 Gun + 1 Gun | 1,067 | Yes | 10 | 1½" | Yes | |
| BFX SERIES | ||||||||
| BFX7250 | 71-1/4" x 50" x 28" | 14-14-14-28-42 + 2 Gun or 73 + 2 Gun | 1,851 | Yes | 16 | 1½" | Yes | |
| BFX7240 | 71-1/4" x 40" x 26" | 12-12-12-24-36 + 2 Gun or 58 + 2 Gun | 1,647 | Yes | 16 | 1½" | Yes | |
| BFX6636 | 65-1/4" x 36" x 26" | 12-12-24 + 2 Gun | 1,375 | Yes | 16 | 1½" | Yes | |
| BFX6030 | 59-1/4" x 30" x 26" | 11-11-22 + 2 Gun | 1,081 | Yes | 14 | 1½" | Yes | |
| BFX6032 | 59-1/4" x 30" x 21" | 9-9-18 + 2 Gun | 958 | Yes | 14 | 1½" | Yes | |
| BFX6024 | 59-1/4" x 24" x 21" | 8-8-16 Gun + 1 Gun | 751 | Yes | 10 | 1½" | Yes | |
| NF SERIES | ||||||||
| NF6036E5 | 59" x 36" x 26" | 17-17-34 + 2 Gun | 977 | Yes | 14 | 1½" | Yes | |
| NF6030E5 | 59" x 30" x 26" | 14-14-28 + 2 Gun | 854 | Yes | 14 | 1½" | Yes | |
| NF6032E5 | 59" x 30" x 21" | 9-9-18 + 2 Gun | 761 | Yes | 14 | 1½" | Yes | |
| NF5924E5 | 59" x 24" x 18" | 8-8-16 Gun + 1 Gun | 600 | Yes | 14 | 1½" | Yes | |
| SF SERIES | ||||||||
| SF7240E5 | 72" x 40" x 26" | 15-15-15-30-45 + 2 Gun | 1,086 | Yes | 14 | 1¼" | Yes | |
| SF6036E5 | 59" x 36" x 26" | 17-17-34 + 2 Gun | 840 | Yes | 14 | 1¼" | Yes | |
| SF6030E5 | 59" x 30" x 26" | 15-15-30 + 2 Gun | 748 | Yes | 14 | 1¼" | Yes | |
| SF6032E5 | 59" x 30" x 21" | 11-11-22 + 2 Gun | 662 | Yes | 14 | 1¼" | Yes | |
| TF SERIES | ||||||||
| TF5924E5 | 59" x 24" x 18" | 8-8-16 Gun + 1 Gun | 388 | Yes | 14 | 1¼" | Yes | |
| TF5517E5 | 55-1/4" x 17-3/4" x 16" | 11 Gun | 286 | Yes | 8 | 1" | Yes |
Dimensions listed are exterior dimensions. Add 2 3/4 " on all RF, BF and NF safes and 2" on all other safes to overall depth for lock and handle.
FEATURES AT A GLANCE
|
fetime Theft & Fire
fetime Theft & Fire fetime Theft & Fire |
TL-30X6 |
Door
Overall/ Steel Plate |
Body | Interior | |||
|---|---|---|---|---|---|---|---|
| fetime Theft & Fire | 6" | 2"_ | |||||
| fetime Theft & Fire | 6" | 3" | |||||
| TL-30X6 | J | 120 min / 1850° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot | ||
| fetime Theft & Fire | 6" | 3" | 120 min / 1850° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot | |
| TL-30 | 6" | 31/2" | 120 min / 1850° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot | |
| 5-year parts and | RSC Level II | 43/4" / 1/2" | 21/4" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| bor warranty when purchased with a | RSC Level II | 43/4" / 1/2" | 21/4" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| factory installed AMSEC lock. | RSC Level II | 43/4" / 1/2" | 21/4" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| Special lifetime | RSC Level II | 43/4" / 1/2" | 21/4" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| from burglary | RSC Level II | 43/4" / 1/2" | 21/4" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| RSC Level II | 43/4" / 1/2" | 21/4" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | L-Handle | Tan Pin-Dot | |
| 5 year parts and | RSC Level I | 45/8" / 3/8" | 2" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| abor warranty when | RSC Level I | 43/4" / 1/2" | 2" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| factory installed | RSC Level I | 43/4" / 1/2" | 2" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| Special lifetime | RSC Level I | 43/4" / 1/2" | 2" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| from burglary | RSC Level I | 43/4" / 1/2" | 2" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 5-Spoke | Tan Pin-Dot |
| attempts and me. | RSC Level I | 45/8" / 3/8" | 2" | ETL 120 min / 1200° | Spy-Proof, Key-Locking Dial | 3-Spoke | Tan Pin-Dot |
| ifetime Theft & Fire | RSC Level I | 41/4" / 1/4" | 11 ga. | ETL 90 min / 1200° | ESL5 Electronic Lock | 5-Spoke | Gray Fabric |
| ifetime Theft & Fire | RSC Level I | 41/4" / 1/4" | 11 ga. | ETL 90 min / 1200° | ESL5 Electronic Lock | 5-Spoke | Gray Fabric |
| ifetime Theft & Fire | RSC Level I | 41/4" / 1/4" | 11 ga. | ETL 90 min / 1200° | ESL5 Electronic Lock | 5-Spoke | Gray Fabric |
| ifetime Theft & Fire | RSC Level I | 41/4" / 1/4" | 11 ga. | ETL 90 min / 1200° | ESL5 Electronic Lock | 5-Spoke | Gray Fabric |
| ifetime Theft & Fire | B-Rate | 35/8" / 3/16" | 12 ga. | ETL 60 min / 1200° | ESL5 Electronic Lock | 3-Spoke | Gray Fabric |
| ifetime Theft & Fire | B-Rate | 35/8" / 3/16" | 12 ga. | ETL 60 min / 1200° | ESL5 Electronic Lock | 3-Spoke | Gray Fabric |
| ifetime Theft & Fire | B-Rate | 35/8" / 3/16" | 12 ga. | ETL 60 min / 1200° | ESL5 Electronic Lock | 3-Spoke | Gray Fabric |
| ifetime Theft & Fire | B-Rate | 35/8" / 3/16" | 12 ga. | ETL 60 min / 1200° | ESL5 Electronic Lock | 3-Spoke | Gray Fabric |
| ifetime Theft & Fire | B-Rate | 35/8" / 3/16" | 14 ga. | 30 min / 1200° | ESL5 Electronic Lock | 3-Spoke |
Gray Fabric
Gray Fabric |
| purchased with a factory installed AMSEC lock. Special lifetime rarranty for damage from burglary attempts and fire. 5-year parts and abor warranty when purchased with a factory installed AMSEC lock. Special lifetime rarranty for damage from burglary attempts and fire. \nifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire ifetime Theft & Fire | 5-year parts and bor warranty when purchased with a factory installed AMSEC lock. Special lifetime rarranty for damage from burglary attempts and fire. 5-year parts and abor warranty when purchased with a factory installed AMSEC lock. Special lifetime rarranty for damage from burglary attempts and fire. RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II RSC Level II R | 5-year parts and bor warranty when purchased with a factory installed AMSEC lock. Special lifetime arranty for damage from burglary attempts and fire. SPEC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4" / ½" RSC Level II 43/4 | 5-year parts and bor warranty when purchased with a factory installed AMSEC lock. Special lifetime rarranty for damage from burglary attempts and fire. RSC Level II | 5-year parts and bloor warranty when purchased with a factory installed AMSEC lock. RSC Level II 43/4" / ½" 2½" ETL 120 min / 1200° Special lifetime arranty for damage from burglary attempts and fire. RSC Level II 43/4" / ½" 2½" ETL 120 min / 1200° RSC Level II 43/4" / ½" 2½" ETL 120 min / 1200° RSC Level II 43/4" / ½" 2½" ETL 120 min / 1200° RSC Level II 43/4" / ½" 2½" ETL 120 min / 1200° S-year parts and fire. 43/4" / ½" 2½" ETL 120 min / 1200° RSC Level II 43/4" / ½" 2" ETL 120 min / 1200° RSC Level II 43/4" / ½" 2" ETL 120 min / 1200° RSC Level II 43/4" / ½" 2" ETL 120 min / 1200° RSC Level I 43/4" / ½" 2" ETL 120 min / 1200° RSC Level I 43/4" / ½" 2" ETL 120 min / 1200° RSC Level I 43/4" / ½" 2" ETL 120 min / 1200° RSC Level I 43/4" / ½" 2" ETL 120 min / 1200° Ifetime Theft & Fire RSC Level I 44/4" / ½" | 5-year parts and born warranty when purchased with a factory installed AMSEC lock. Special lifetime arranty for damage from burglary attempts and fire. RSC Level II 43/4" / ½" 2½" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial factory installed AMSEC lock. RSC Level II 44/4" / ½" 2½" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2½" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 44/4" / ½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 4/4" / ½" 11 ga. ETL 90 min / 1200" Spy-Proof, Key-Locking Dial maranty for damage from burglary attempts and fire. RSC Level II 4/4" / ½" 11 ga. ETL 90 min / 1200" ESL5 Electronic Lock feetime Theft & Fire RSC Level II 4/4" / ½" 11 ga. ETL 90 min / 1200" ESL5 Electronic Lock iffetime Theft & Fire B-Rate 3/4" / ½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock iffetime Theft & Fire B-Rate 3/4" / ½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock iffetime Theft & Fire B-Rate 3/4" / ½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock iffetime Theft & Fire B-Rate 3/4" / ½" 12 ga. ETL 60 min / 1200" ESL5 Electronic L | 5-year parts and born warranty when purchased with a fractory installed AMSEC lock. Special lifetime arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2½" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke Spycar and fire. RSC Level II 4½" /½" 2½" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke Spycar arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2½" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke Spycar arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2½" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke Spy-Proof, Key-Locking Dial 5-Spoke Spycar arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke Spycar arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke Spycar arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke arranty for famage from burglary attempts and fire. RSC Level II 4½" /½" 2" ETL 120 min / 1200" Spy-Proof, Key-Locking Dial 5-Spoke ifetime Theft 8 Fire RSC Level II 4½" /½" 11 ga. ETL 90 min / 1200" Spy-Proof, Key-Locking Dial 3-Spoke ifetime Theft 8 Fire RSC Level II 4½" /½" 11 ga. ETL 90 min / 1200" ESL5 Electronic Lock 5-Spoke ifetime Theft 8 Fire RSC Level II 4½" /½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock 5-Spoke ifetime Theft 8 Fire RSC Level II 4½" /½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock 3-Spoke ifetime Theft 8 Fire R-Rate 3½" /½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock 3-Spoke ifetime Theft 8 Fire R-Rate 3½" /½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock 3-Spoke ifetime Theft 8 Fire R-Rate 3½" /½" 12 ga. ETL 60 min / 1200" ESL5 Electronic Lock 3-Spoke ifetime Theft 8 Fire R-Rate 3½" /½" 12 |
Gun Safe Catalog 2021
THE INDUSTRY LEADER FOR OVER 75 YEARS
Since 1946 American Security Products has protected the assets of our clients throughout the world by providing a broad array of safes and consulting services with the highest degree of quality, integrity and responsiveness. Customers have trusted AMSEC safes for generations. The design of each AMSEC safe draws on 75 years of experience on protecting the physical assets of our customers. There aren't many criminals with 75 years of experience, so we think that gives us the advantage.
Before the American Security name is attached, each safe must undergo a rigid 28-point inspection. In addition, every AMSEC safe undergoes the industry's most comprehensive testing program. AMSEC uses independent agencies such as Underwriters Laboratories to put our designs to the test. We maintain the tightest tolerances and highest standards of fi t and fi nish in the industry.
Our commitment doesn't end there. We have built our company on the commitment to off er the best service in the industry which will insure that AMSEC remains the industry leader.
Our corporate center is staff ed with highly trained Customer Service Representatives and our Service Department is supported by 7,500 factory-trained technicians throughout the world. Technicians are available 24 hours a day, 365 days a year to answer questions and help solve problems with any safe shipped anywhere in the world. We have been providing safes and security solutions to the banking industry since 1946. This type of high security technology is built right into our gun safes.

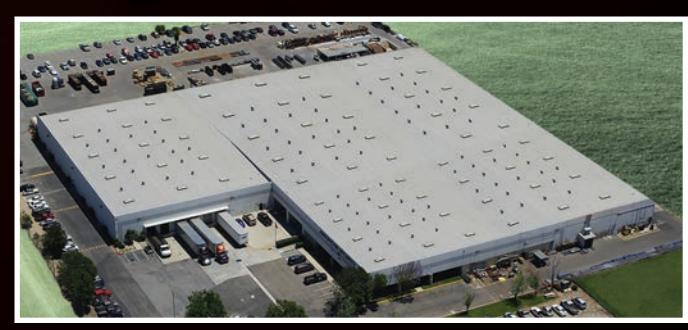

We produce over 60,000 safes each year and we take protecting our customers' assets very seriously. That's how we got to be the largest security safe manufacturer in the world, and that's why you can't buy a better gun safe than an American Security safe.
Simply put, our reputation is built on product design, innovative technology and the best support in the industry.
It has worked for us for 75 years and it ensures our complete customer satisfaction. The choice is easy:
American Security Products Co.
11925 Pacifi c Avenue, Fontana, CA 92337 951-685-9680
NF6030E5
www.amsecusa.com
AMSEC reserves the right to update products as necessary. AMSEC is not responsible for typographical errors.
Part #4305172 21v1 Revised 01/21
