Altronix Trove™ access and power integration solutions easily combine Altronix power and accessories with access controllers available from the industry's leading manufacturers. A wide range of scalable access and power configurations simplify board layout and wire management, while reducing installation and labor costs. Customize your access control with Trove.

• Trove streamlines access control design and deployment, increasing profits and ROI.
• Removable backplanes allow you to configure and test prior to on-site installation.
• Trove enclosures are available in 3 sizes and have convenient knockout configurations with ample room for wiring and space to accommodate batteries.
• Available in rack mount and outdoor configurations for added flexibility.
• Optional LINQ™ Networked Power Management Technology allows you remotely monitor, control and report power/diagnostics, streamlining service and maintenance operations by leveraging the network. A built-in timer can reset devices automatically on a schedule.
• Proudly Made in the U.S.A.
• Free online Trove System Design tool simplifies the design and product selection process: www.altronix.com/system_design_tools/trove

TABLE OF CONTENTS:

ENCLOSURE OPTIONS4	1
AMAG5
BOSCH6
CDVI7	1000
DMP8
HID/VERTX9
HONEYWELL10	,
KANTECH11
KERI SYSTEMS12
KEYSCAN13	370
SYSTEM CONFIGURATIONS (LENEL/MERCURY)14
LENEL15-16

MERCURY17-18
PAXTON19
PRODATAKEY20
SALTO2
SIELOX22
SOFTWARE HOUSE23
ZK-TECO USA24
CREATE A CUSTOM LAYOUT25
TROVE OUTDOOR26
TROVE RACK MOUNT27-28
POWER SUPPLY/CHARGERS29
SUB-ASSEMBLIES/ACCESSORIES30

All registered trademarks are property of their respective owners

More than just power.™

Made in the U.S.A. & Backed by a Lifetime Warranty

Enclosure Options

TROVE1

• Knockouts accommodate up to 1.5" conduit
• Accommodates two (2) 12VDC/7AH batteries

Dimensions: 18" H x 14.5" W x 4.625" D

TROVE2

• Knockouts accommodate up to 2.0" conduit
• Accommodates four (4) 12VDC/12AH batteries

Dimensions: 27.25" H x 21.75" W x 6.5" D

TROVE3

• Knockouts accommodate up to 2.0" conduit
• Accommodates four (4) 12VDC/12AH batteries Dimensions: 36.12" H x 30.12" W x 7.06" D

• NEMA 4/4X, IP66-11Rated Outoor Enclosure
• Lockable latches and integral fl anges simplify mounting

Dimensions: 17.53" H x 15.3" W x 6.67" D

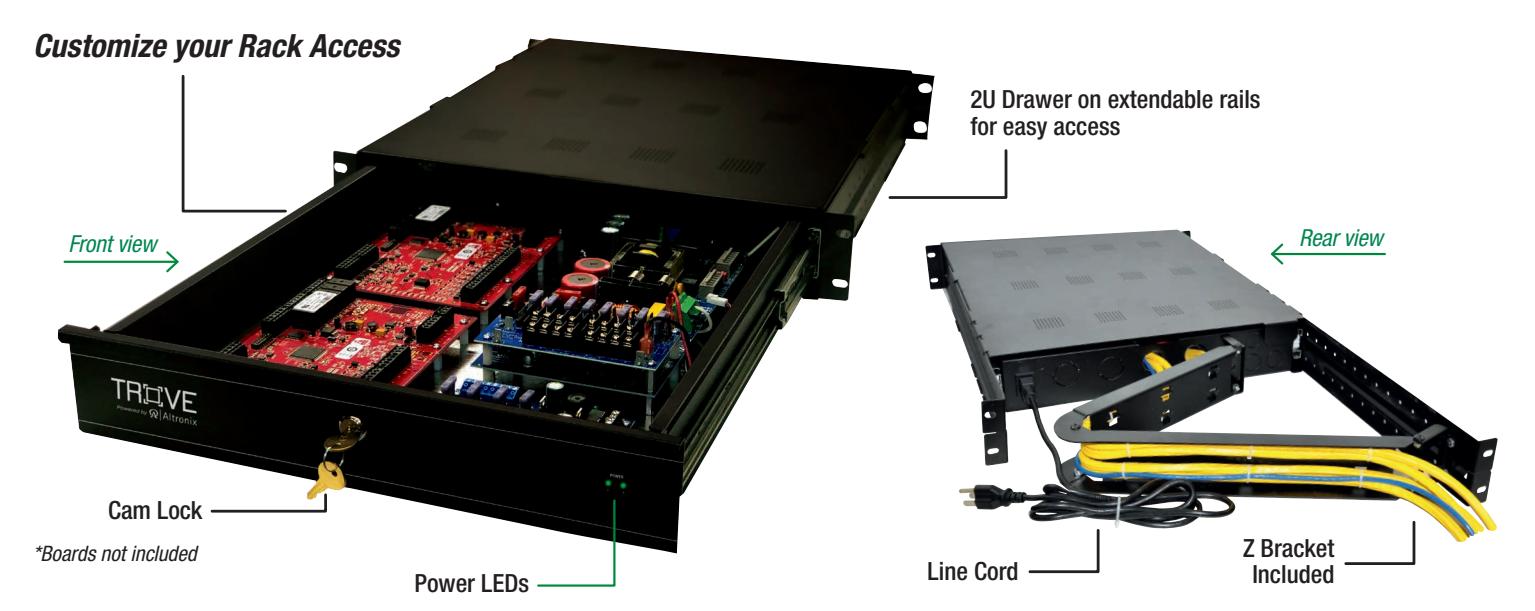

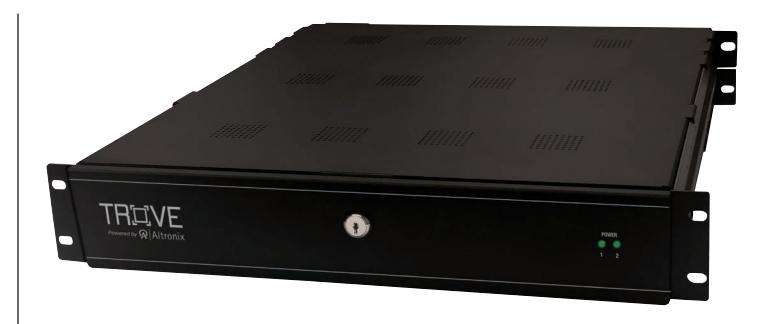

TROVE RACK MOUNT

• Integrated Z bracket on rear facilitates wiring
• 2U drawer on extendable rails (rails extend to 36" for deeper racks)

TROVE OUTDOOR Dimensions: 3.375" H x 19" W x 24" D

Altronix Model	Description	System Capacity	Compatible AMAG Models
		Trove 2 Series
TROVE2AM2	Enclosure + Backplane		M2150-2DC, M2150-4DC, M2150-AC24/4,
TAM2	Backplane only	12-Doors	M2150-2DBC, M2150-4DBC, M2150-8DBC
TROVE2AG2	Enclosure + Backplane
TAG2	Backplane only	12-Doors	M4000
		Trove 2 Series Pre-assembled Kits
T2AMK7F8 EFLOW104NB, ACM8, VR6, PDS8		8-Doors	M2150-2DC, M2150-4DC, M2150-AC24/4, M2150-2DBC, M2150-4DBC, M2150-8DBC
T2AGK3F8	EFLOW6NB, ACM8, VR6, PDS8	8-Doors
T2AGK7F12	EFLOW104NB, ACM4, ACM8, VR6, PDS8	12-Doors
T2AGK75F8	EFLOW102NB, EFLOW104NB, ACM8, PD8UL	8-Doors	M4000
T2AGK75F12	EFLOW102NB, EFLOW104NB, ACM4, ACM8, PD4UL	12-Doors

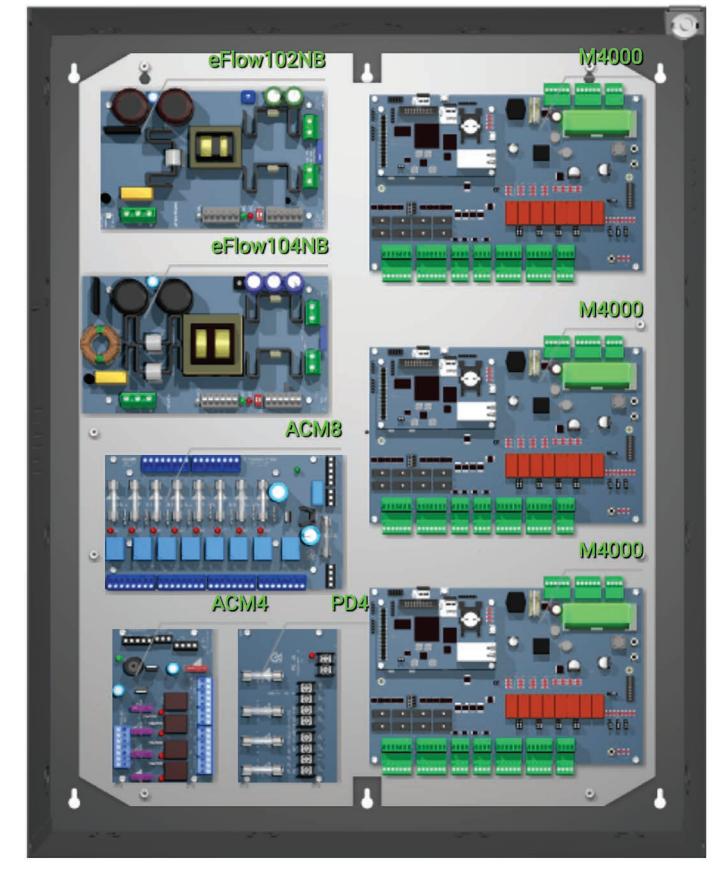

T2AGK75F12 12-Door Access System with Power

T2AMK7F8 8-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible BOSCH Models
Trove 2 Series
TROVE2BH2	Enclosure + Backplane	Accommodates Various Intrusion and	D7412GV4, D9412GV4, B8512G, B9512G, B520, B901, B299, B600, D8128D, D8125/MUX, D8129, D125B,
TBH2	Backplane only	Access Control Devices, (dependent on application)	D129, D132A, D192G, D8130, B208, B308, B426, B450, ICP-SDI-9114

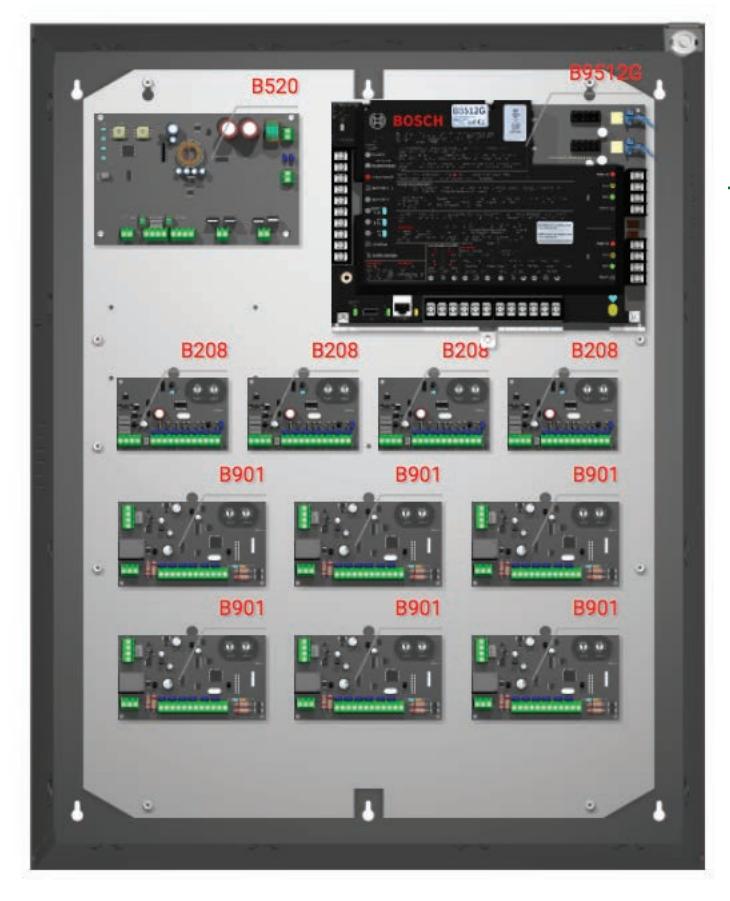

6-Door Access System with 40 Intrusion Points

Altronix Model	Description	System Capacity	Compatible CDVI Models
Trove 1 Series
TROVE1C1	Enclosure + Backplane
TC1	Backplane only	8-Doors	A22NB, A22K, ADH10
		Trove 1 Series Pre-assembled Kits
T1CVK3F4	EFLOW6NB, ACM4	4-Doors	A22NB, A22K, ADH10
		Trove 2 Series
TROVE2CV2	Enclosure + Backplane	10-Doors	A22NB, A22K, ADH10
TCV2	Backplane only
		Trove 2 Series Pre-assembled Kits
T2CVK33F10	2-EFLOW6NB, 2-MOM5
T2CVK33F10Q	2-EFLOW6NB, LINQ2, 2-MOM5	10-Doors	A22NB, A22K, ADH10
T2CVK7F10	EFLOW104NB, ACM4, ACM8, PD8UL
T2CVK7F10Q	EFLOW104NB, LINQ2, ACM4, ACM8, PD8UL
		Trove 3 Series
TROVE3CV3	Enclosure + Backplane
TCV3	Backplane only	20-Doors	A22NB, A22K, ADH10
		Trove 3 Series Pre-assembled Kits
T3CVK77F20	2-EFLOW104NB, ACM4, 2-ACM8, PD8UL, RSB2	20-Doors	A22NB, A22K, ADH10

T2CVK33F10 10-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible DMP Models
	Trove 1 Series
TROVE1DM1	Enclosure + Backplane
TDM1	Backplane only	8-Doors	734 / 734N
Trove 1 Series Pre-assembled Kits
T1DMK3F4	EFLOW6NB, VR6, PDS8	4-Doors	734 / 734N
		Trove 2 Series
TROVE2DM2	Enclosure + Backplane
TDM2	Backplane only	16-Doors	734 / 734N
		Trove 2 Door Backplane
TDMD2	Door Backplane only	48-Zones	XR-150, XR-550, 714-8PCB, 714-16PCB
		Trove 2 Series Pre-assembled Kits
T2DMK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors	734 / 734N

T2DMK7F8

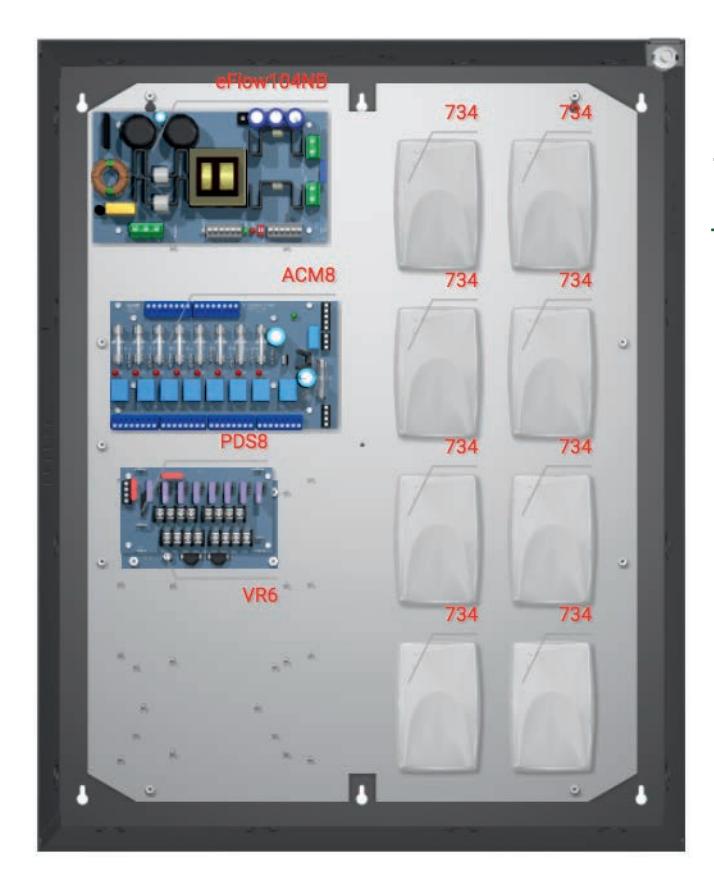

8-Door Access System with Power

T1DMK3F4 4-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible HID/VERTX Models*
Trove 1 Series
TROVE1V1	Enclosure + Backplane
TV1	Backplane only	8-Doors	V100, V200, V300, V1000 or V2000
	Trove 1 Series Pre-assembled Kits
T1VK3F4	EFLOW6NB, VR6, PDS8	4-Doors	V100, V200, V300, V1000 or V2000
	Trove 2 Series
TROVE2V2	Enclosure + Backplane
TV2	Backplane only	12-Doors	V100, V200, V300, V1000 or V2000
	Trove 2 Series Pre-assembled Kits
T2VK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors	V100, V200, V300, V1000 or V2000
	Trove 3 Series
TROVE3V3	Enclosure + Backplane
TV3	Backplane only	30-Doors	V100, V200, V300, V1000 or V2000
	Trove 3 Series Pre-assembled Kits
T3VK75F20	EFLOW104NB, EFLOW102NB, 2-ACM8, ACM4, PD8UL, RSB2		V100, V200, V300, V1000 or V2000
	Trove 2 and Trove 3 Door Backplane
TMV2	Door Backplane only	12-Doors	V100, V200, V300, V1000 or V2000

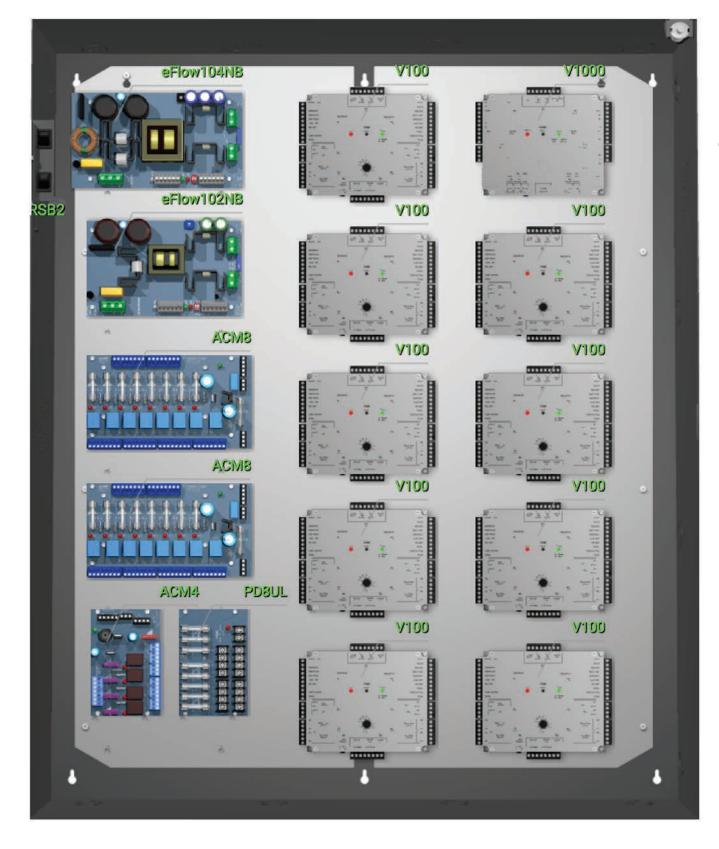

T3VK75F20 20-Door Access System with Power

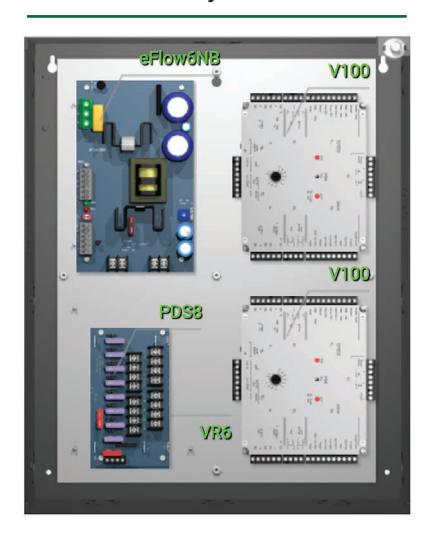

T1VK3F4 4-Door Access System with Power

^* Also comptabile with these Authentic HID Partners: Avigilon, cbord, Genetec, IMRON, Open Options, PCSC

TRIVE

Honeywell

Access and Power Integration -

Altronix Model	Description	System Capacity	Compatible HONEYWELL Models
			Trove 2 Series
TROVE2HW2	Enclosure + Backplane	10-Doors	ProWatch & Win-Pak: PR032IC, PR032E1PS, PR032R2, PR032IN, PR0320UT,
THW2	Backplane only	10-00015	PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K10UT, PW6K1R2, PW6K1ICE, PW6K1R1E
TROVE2HN2	Enclosure + Backplane	8-Doors	NetAXS: NXC1, NXC1 with NXD1, NXC1 with NXD2, NX4, NX4IN, NX4OUT
THN2	Backplane only	0-00018	NELAGE WAST, WAST WILLTWADT, WAST WILLTWADZ, WA4, WA4IN, WA4OUT
		Trove 2 Se	ries Pre-assembled Kits
T2HWK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors	ProWatch & Win-Pak: PRO32IC, PRO32E1PS, PRO32R2, PRO32IN, PRO32OUT, PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K1OUT, PW6K1R2, PW6K1ICE, PW6K1R1E
T2HNK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors	NetAXS: NXC1, NXC1 with NXD1, NXC1 with NXD2, NX4, NX4IN, NX4OUT
			Trove 3 Series
TROVE3HW3	Enclosure + Backplane	16-Doors	ProWatch & Win-Pak: PRO32IC, PRO32E1PS, PRO32R2, PRO32IN, PRO32OUT,
THW3	Backplane only	10-00018	PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K10UT, PW6K1R2, PW6K1ICE, PW6K1R1E
		Trove 3 Se	eries Pre-assembled Kits
T3HWK75F16	EFLOW104NB, EFLOW102NB, 2-ACM8, PD8UL, RSB2	16-Doors	ProWatch & Win-Pak: PR032IC, PR032E1PS, PR032R2, PR032IN, PR032OUT, PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K1OUT, PW6K1R2, PW6K1ICE, PW6K1R1E
		Trove 2 and	d Trove 3 Door Backplane
THWD2	Door Backplane only	12-Doors	ProWatch & Win-Pak: PR032IC, PR032E1PS, PR032R2, PR032IN, PR032OUT, PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K1OUT, PW6K1R2, PW6K1ICE, PW6K1R1E

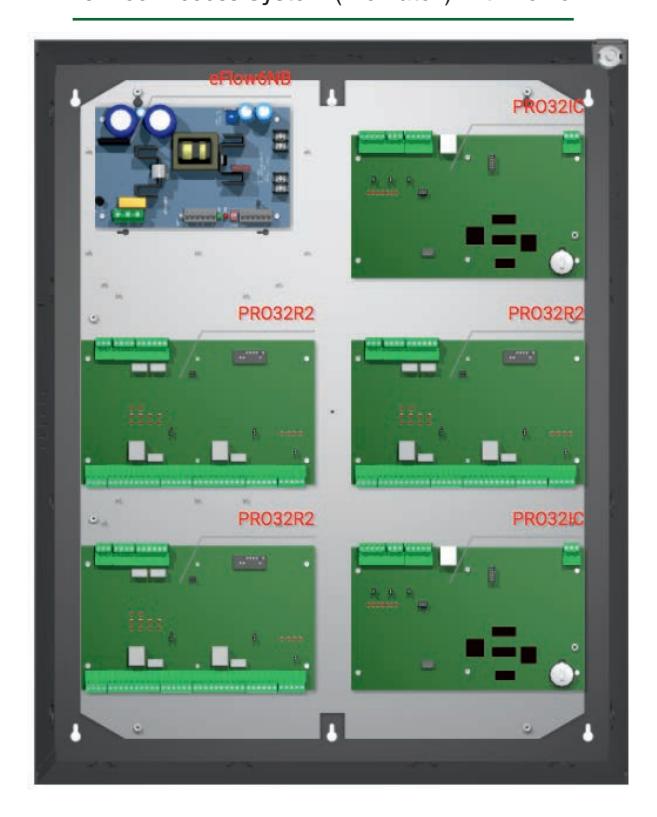

10-Door Access System (ProWatch) with Power

T2HNK7F8 8-Door Access System (NetAXS) with Power

Altronix Model	Description	System Capacity	Compatible KANTECH Models
Trove 2 Series
TROVE2KH2	Enclosure + Backplane
TKH2	Backplane only	12-Doors	KT-300, KT-400, KT-MOD-INP16, KT-MOD-OUT16
Trove 2 Series Pre-assembled Kits
T2KHK3F12	EFLOW6NB, T1618300K, ACM8, ACM4	12-Doors	KT-300, KT-400, KT-MOD-INP16, KT-MOD-OUT16

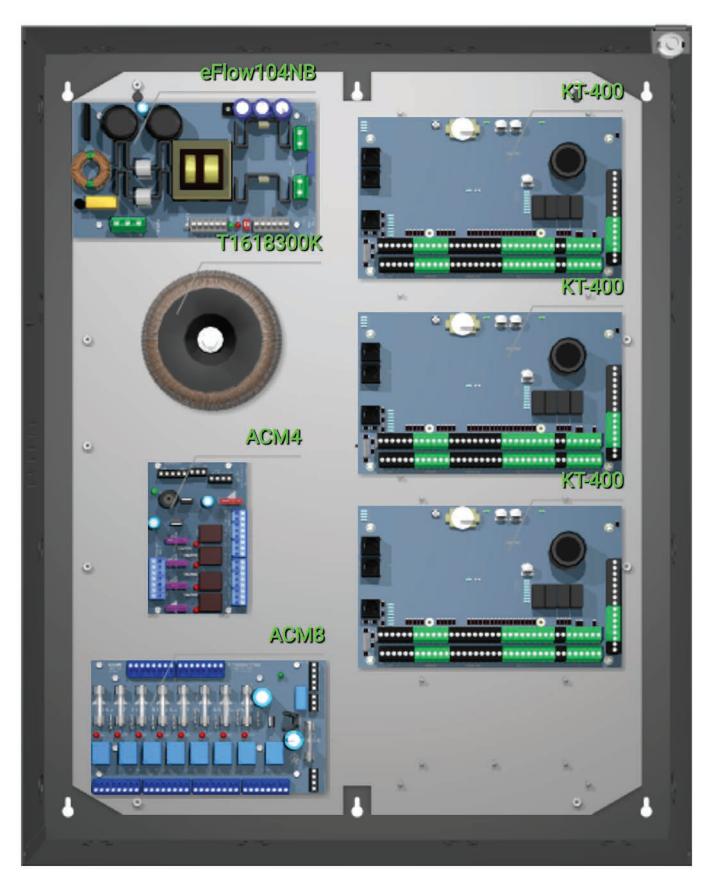

T2KHK3F12 12-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible KERI SYSTEMS Models
		Trove 2 Series
TROVE2KS2	Enclosure + Backplane		NXT-2D-MSCNE, NXT-4D-MSCNE,
TKS2	Backplane only	12-Doors	NXT-4X4NE, NXTW1, NXTRM3
Trove 2 Series Pre-assembled Kits
T2KSK3F8	EFLOW6NB, ACMS8, PDS8, VR6	8-Doors	NXT-2D-MSCNE, NXT-4D-MSCNE,
T2KSK7F12	EFLOW104NB, ACM4, ACMS8, PDS8, VR6	12-Door	NXT-4X4NE, NXTW1, NXTRM3

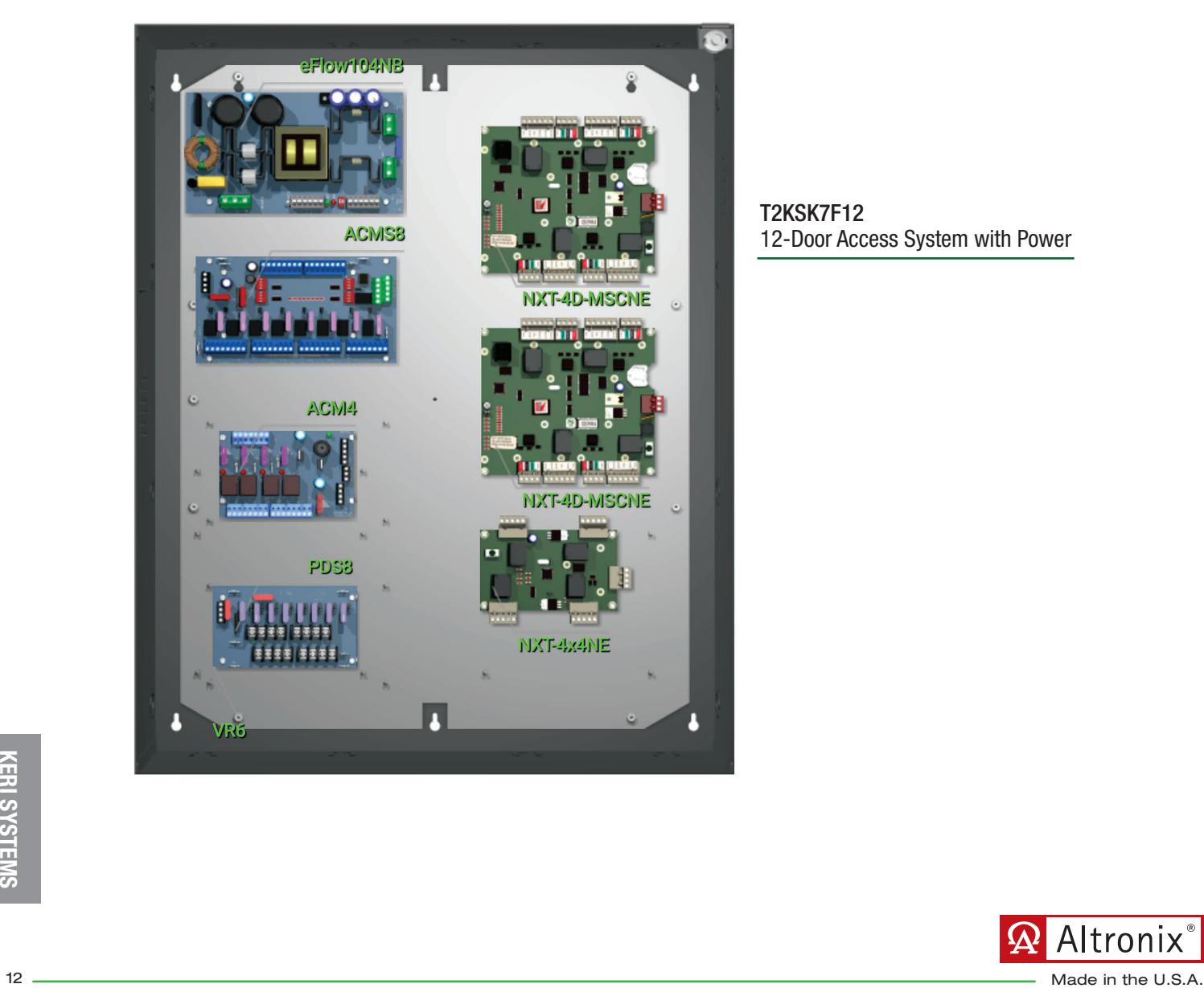

T2KSK7F12 12-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible KEYSCAN Models
	Trove 2 Series
TROVE2KA2	Enclosure + Backplane
TKA2	Backplane only	8-Doors	250B, 4500B, 8500B, CIM, DPS15 and OCB8
		Trove 2 Series Pre-assembled Kits
T2KK3F8	EFLOW6NB, ACM8, T16100
T2KK3F8D	EFLOW6NB, ACM8CB, T16100	8-Doors	250B, 4500B, 8500B, CIM, DPS15 and OCB8
Networkable Kits
T2KK3F8Q	EFLOW6NB, LINQ2, ACM8, T16100
T2KK3F8DQ	EFLOW6NB, LINQ2, ACM8CB, T16100	8-Doors	250B, 4500B, 8500B, CIM, DPS15 and OCB8

T2KK3F8 8-Door Access System with Power

System Configurations

Main Configuration

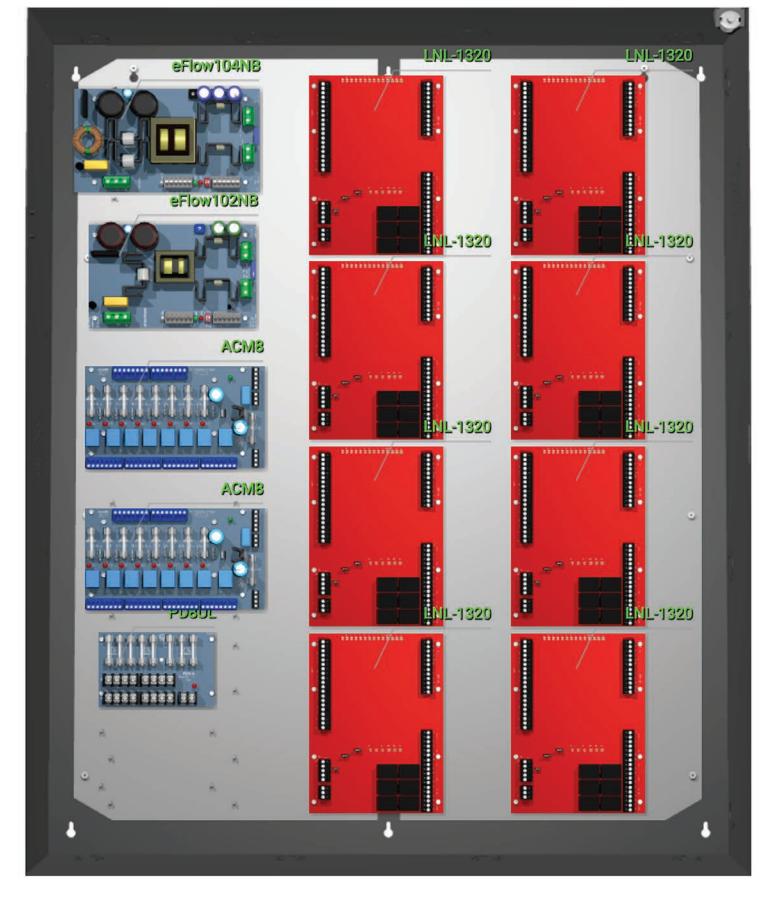

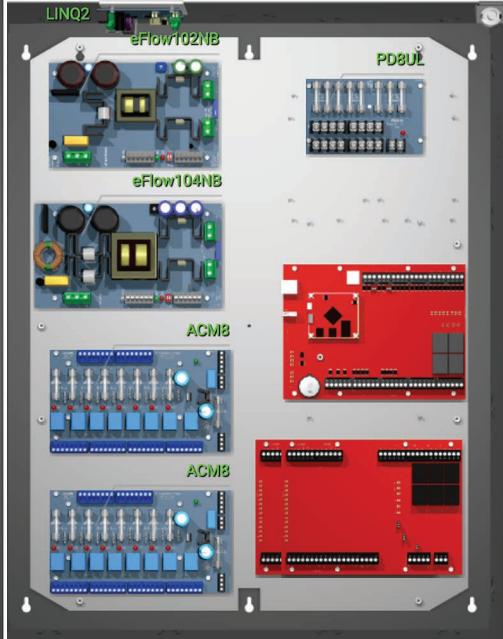

T2MK75F16Q

16-Door Access System with Power + Network Power Management

T1MK1F4

4-Door Access System with Power

T3MK75F16

16-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible LENEL Models
			Trove 1 Series
TROVE1M1	Enclosure + Backplane	Q Dooro	LNL-1100(-S3), LNL1200(-S3), LNL-1300(-S3), LNL-1300e,
TM1	Backplane only	8-Doors	LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)4420, LNL-8000
			Trove 2 Series
TROVE2M2	Enclosure + Backplane	10 Daara	LNL-1100(-S3), LNL-1200(-S3), LNL-1300(-S3), LNL-1300e,
TM2	Backplane only	12-Doors	LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)3300, LNL-(X)4420, LNL-8000
			Trove 3 Series
TROVE3M3	Enclosure + Backplane	24-Doors	LNL-1100(-S3), LNL-1200(-S3), LNL-1300(-S3), LNL-1300e,
TM3	Backplane only	24-00015	LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)3300, LNL-(X)4420, LNL-8000
		Trove 2 and	Trove 3 Door Backplane only
TMV2	Door Backplane only	12-Doors	LNL-1100(-S3), LNL-1200(-S3), LNL-1300(-S3), LNL-1300e, LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)3300, LNL-(X)4420, LNL-8000
	Compact Lenel Enclosure
TM400	Enclosure	3-Doors	LNL-1100(-S3), LNL1200(-S3), LNL-1300(-S3), LNL-1300e, LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)4420

T2MK3F8DQ

8-Door Access System with Power + Network Power Management

UL Listed in the U.S. and Canada when installing Lenel access controllers with or without Altronix power/sub-assemblies.

UL Listed in the U.S. and Canada when installing Altronix power/sub-assemblies.

Altronix Kit Model	Description		Compatible LENEL Models
	Trove 1 Series Pre-assembled Kits
T1MK1F4	EFLOW4NB, ACM4, VR6
T1MK1F4D	EFLOW4NB, ACM4CB, VR6
T1MK1F4S	EFLOW4NB, ACM4CB, VR6, PDS8	4-Doors
T1MK1F4SD	EFLOW4NB, ACM4CB, VR6, PDS8CB
	Trove 2 Pre-assembled Kits
T2MK3F4	EFLOW6NB, ACM4, VR6, PDS8	4-Doors
T2MK3F8	EFLOW6NB, ACM8, VR6, PDS8
T2MK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors
T2MK3F4D	EFLOW6NB, ACM4CB, VR6, PDS8CB	4-Doors	LNL-1100(-S3), LNL-1200(-S3)
T2MK3F8D	EFLOW6NB, ACM8CB, VR6, PDS8CB		LNL-1300(-S3),
T2MK7F8D	EFLOW104NB, ACM8CB, VR6, PDS8CB	8-Doors	LNL-1300e,
Networkable Kits			LNL-1320(-S3)
T2MK3F4Q	EFLOW6NB, LINQ2, ACM4, VR6, PDS8	4-Doors	LNL-(X)2210, LNL-(X)2220,
T2MK3F8Q	EFLOW6NB, LINQ2, ACM8, VR6, PDS8	8-Doors	LNL-(X)3300,
T2MK7F8Q	EFLOW104NB, LINQ2, ACM8, VR6, PDS8		LNL-(X)4420,
T2MK3F4DQ	EFLOW6NB, LINQ2, ACM4CB, VR6, PDS8CB	4-Doors	LNL-8000
T2MK3F8DQ	EFLOW6NB, LINQ2, ACM8CB, VR6, PDS8CB	8-Doors
T2MK7F8DQ	EFLOW104NB, LINQ2, ACM8CB, VR6, PDS8CB
	Trove 2 Series Pre-assembled Kits (Utilizing TMV2 Door Backplane)		Altronix LINQ™
T2MK75F16 EFLOW102NB, EFLOW104NB, 2 - ACM8, PD8UL			Network Power Management
T2MK77F16	2 - EFLOW104NB, 2 - ACM8, VR6, PDS8	16-Doors	Solutions
T2MK75F16D	EFLOW102NB, EFLOW104NB, 2 - ACM8CB, PD8ULCB		Interface with
T2MK77F16D	2 - EFLOW104NB, 2 - ACM8CB, VR6, PDS8CB		LENEL OnGuard®
Networkable Kits			Access Control System.
T2MK75F16Q	EFLOW102NB, EFLOW104NB, LINQ2, 2 - ACM8, PD8UL
T2MK77F16Q	2 - EFLOW104NB, LINQ2, 2 - ACM8, VR6, PDS8	16-Doors
T2MK75F16DQ	EFLOW102NB, EFLOW104NB, LINQ2, 2 - ACM8CB, PD8ULCB
T2MK77F16DQ	2 - EFLOW104NB, LINQ2, 2 - ACM8CB, VR6, PDS8CB
	Trove 3 Series Pre-assembled Kits
T3MK75F16	EFLOW102NB, EFLOW104NB, 2 - ACM8, PD8UL, RSB2
T3MK75F16D EFLOW102NB, EFLOW104NB, 2 - ACM8CB, PD8ULCB, RSB2 T3MK77F16 2 - EFLOW104NB, 2 - ACM8, 2 - PD8UL, RSB2		16-Doors
T3MK77F16D	2 - EFLOW104NB, 2 - ACM8CB, 2 - PD8ULCB, RSB2

Altronix Model	Description	System Capacity	Compatible MERCURY Models*
	Trove 1 Series
TROVE1M1	Enclosure + Backplane	8-Doors	EP(LP)1501, EP(LP)1502, EP(LP)2500, EP(LP)4502, MR16IN(-S3), MR16OUT(-S3), MR50(-S3), MR51e/MR62e,
TM1	Backplane only		MR52(-S3) and (M5-)MUX8
		Trove 2 Series
TROVE2M2	Enclosure + Backplane	12-Doors	EP(LP)1501, EP(LP)1502, EP(LP)2500, EP(LP)4502, MR16IN(-S3), MR16OUT(-S3), MR50(-S3), MR51e/MR62e,
TM2	Backplane only		MR52(-S3) and (M5-)MUX8
		Trove 3 Series
TROVE3M3	Enclosure + Backplane	24-Doors	EP(LP)1501, EP(LP)1502, EP(LP)2500, EP(LP)4502, MR16IN(-S3), MR16OUT(-S3), MR50(-S3), MR51e/MR62e,
TM3	Backplane only		MR52(-S3) and (M5-)MUX8
		Trove 2 and Trove 3 Door Backplane only
TMV2	Door Backplane only	12-Doors	EP(LP)1501, EP(LP)1502, EP(LP)2500, EP(LP)4502, MR16IN(-S3), MR16OUT(-S3), MR50(-S3), MR51e/MR62e, MR52(-S3) and (M5-)MUX8

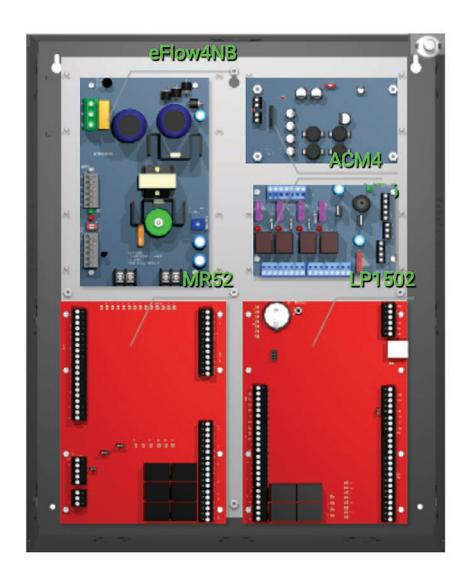

		Compact Mercury Enclosure
TM400	Enclosure	3-Doors	EP(LP)1501, EP(LP)1502, EP(LP)4502, MR16IN(-S3), MR16OUT(-S3), MR50(-S3), MR51e/MR62e, MR52(-S3)

T2MK7F8 8-Door Access System with Power

Schneider Electric, Vanderbilt

* Also comptabile with these Authentic Mercury Partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, S2 Security,

Altronix Kit Model	Description	System Capacity	Compatible MERCURY Models*
	Trove 1 Series Pre-assembled Kits
T1MK1F4	EFLOW4NB, ACM4, VR6
T1MK1F4D	EFLOW4NB, ACM4CB, VR6	- 4-Doors
T1MK1F4S	EFLOW4NB, ACM4CB, VR6, PDS8
T1MK1F4SD	EFLOW4NB, ACM4CB, VR6, PDS8CB
	Trove 2 Pre-assembled Kits	_
T2MK3F4	EFLOW6NB, ACM4, VR6, PDS8	4-Doors
T2MK3F8	EFLOW6NB, ACM8, VR6, PDS8	8-Doors
T2MK7F8	EFLOW104NB, ACM8, VR6, PDS8	0-00018
T2MK3F4D	EFLOW6NB, ACM4CB, VR6, PDS8CB	4-Doors
T2MK3F8D	EFLOW6NB, ACM8CB, VR6, PDS8CB	O. Dooro
T2MK7F8D	EFLOW104NB, ACM8CB, VR6, PDS8CB	8-Doors
Networkable Kits
T2MK3F4Q	EFLOW6NB, LINQ2, ACM4, VR6, PDS8	4-Doors	EP(LP)1501,
T2MK3F8Q	EFLOW6NB, LINQ2, ACM8, VR6, PDS8	8-Doors	EP(LP)1502, EP(LP)2500, EP(LP)4502, MR16IN(-S3),
T2MK7F8Q	EFLOW104NB, LINQ2, ACM8, VR6, PDS8	0-00012
T2MK3F4DQ	EFLOW6NB, LINQ2, ACM4CB, VR6, PDS8CB	4-Doors
T2MK3F8DQ	EFLOW6NB, LINQ2, ACM8CB, VR6, PDS8CB	8-Doors	MR160UT(-S3),
T2MK7F8DQ	EFLOW104NB, LINQ2, ACM8CB, VR6, PDS8CB	0-00015	MR50(-S3), MR51e/MR62e,
	Trove 2 Series Pre-assembled Kits (Utilizing TMV2 Door Backpland	e)	MR52(-S3),
T2MK75F16	EFLOW102NB, EFLOW104NB, 2 - ACM8, PD8UL		(M5-)MUX8
T2MK77F16	2 - EFLOW104NB, 2 - ACM8, VR6, PDS8	16-Doors
T2MK75F16D	EFLOW102NB, EFLOW104NB, 2 - ACM8CB, PD8ULCB	10-00013
T2MK77F16D	2 - EFLOW104NB, 2 - ACM8CB, VR6, PDS8CB
Networkable Kits
T2MK75F16Q	EFLOW102NB, EFLOW104NB, LINQ2, 2 - ACM8, PD8UL
T2MK77F16Q	2 - EFLOW104NB, LINQ2, 2 - ACM8, VR6, PDS8	16-Doors
T2MK75F16DQ	T2MK75F16DQ EFLOW102NB, EFLOW104NB, LINQ2, 2 - ACM8CB, PD8ULCB
T2MK77F16DQ	2 - EFLOW104NB, LINQ2, 2 - ACM8CB, VR6, PDS8CB
	Trove 3 Series Pre-assembled Kits
T3MK75F16	EFLOW102NB, EFLOW104NB, 2 - ACM8, PD8UL, RSB2
T3MK75F16D	EFLOW102NB, EFLOW104NB, 2 - ACM8CB, PD8ULCB, RSB2	16-Doors
T3MK77F16	2 - EFLOW104NB, 2 - ACM8, 2 - PD8UL, RSB2	10 00013
T3MK77F16D	2 - EFLOW104NB, 2 - ACM8, 2 - PD8ULCB, RSB2

* Also comptabile with these Authentic Mercury Partners:

AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

Altronix Model	Description	System Capacity	Compatible PAXTON Models
Trove 2 Series
TROVE2PX2	Enclosure + Backplane
TPX2	Backplane only	12-Doors	Net2 Plus Controller
Trove 2 Series Pre-assembled Kits
T2PXK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors	Net2 Plus Controller

T2PXK7F8 8-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible PRODATAKEY Models
Trove 1 Series
TROVE1PD1	Enclosure + Backplane
TPD1	Backplane only	32-Doors	PM-07-EIOE-E
Trove 1 Series Pre-assembled Kits
T1PDK7F24	EFLOW104NB	24-Doors	PM-07-EIOE-E

16-Door Access System with Power

T1PDK7F24

24-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible SALTO Models
	Trove 1 Series
TROVE1SA1	Enclosure + Backplane
TSA1	Backplane only	16-Doors	CU42E0, CU4EB8, CU4200
	Trove 1 Series Pre-assembled Kits
T1SAK1F4	EFLOW4NB, VR6, PDS8, ACM4
T1SAK3F4	EFLOW6NB, VR6, PDS8, ACM4	4-Doors	CU42E0, CU4EB8, CU4200
	Trove 2 Series
TROVE2SA2	Enclosure + Backplane
TSA2	Backplane only	36-Doors	CU42E0, CU4EB8, CU4200
Trove 2 Series Pre-assembled Kits
T2SAK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors
T2SAK75F12	EFLOW104NB, EFLOW102NB, ACM8, ACM4, PDS8	12-Doors	CU42E0, CU4EB8, CU4200

T1SAK3F4

8-Door Access System with Power

T2SAK75F12 12-Door Access System with Power

Altronix Model	Description	System Capacity	Compatible SIELOX Models
		Trove 2 Series
TROVE2SL2	Enclosure + Backplane
TSL2	Backplane only	32-Doors	AC-1700
Trove 2 Series Pre-assembled Kits
T2SLK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors	AC-1700

T2SLK7F8 8-Door Access System with Power

32-Door Access System

Altronix Model	Description		Compatible SOFTWARE HOUSE Models
	Trove 2 Series
TROVE2SH2	Enclosure + Backplane		iStar ACM SE, iStar Pro ACM, iStar Pro GCM,
TSH2	Backplane only	16-Doors	iStar Ultra GCM, iStar Ultra ACM, i8, r8, i8 CSI
Trove 2 Series Pre-assembled Kits
T2SK7F8	EFLOW104NB, ACM8, VR6, PDS8, RSB1		iStar ACM SE, iStar Pro ACM, iStar Pro GCM,
T2SK7F8D	EFLOW104NB, ACM8CB, VR6, PDS8CB, RSB1	8-Doors	iStar Ultra GCM, iStar Ultra ACM, i8, r8, i8 CSI
	Trove 3 Series
TROVE3SH3	Enclosure + Backplane	16-Doors	iStar ACM SE, iStar Pro ACM, iStar Pro GCM,
TSH3	Backplane only		iStar Ultra GCM, iStar Ultra ACM, i8, r8, i8 CSI
	Trove 3 Series Pre-assembled Kits
T3SK75F8	EFLOW104NB, EFLOW102NB, ACM8, PD8UL, RSB2		iStar ACM SE, iStar Pro ACM, iStar Pro GCM,
T3SK75F8D	EFLOW104NB, EFLOW102NB, ACM8CB, PD8ULCB, RSB2	8-Doors	iStar Ultra GCM, iStar Ultra ACM, i8, r8, i8 CSI
T3SK75F16	EFLOW104NB, EFLOW102NB, 2-ACM8, PD8UL, RSB2		iStar ACM SE, iStar Pro ACM, iStar Pro GCM,
T3SK75F16D	EFLOW104NB, EFLOW102NB, 2-ACM8CB, PD8ULCB, RSB2	16-Doors	iStar Ultra GCM, iStar Ultra ACM, i8, r8, i8 CSI

T2SK7F8D 8-Door Access System with Power

			Access and Power Integration

Altronix Model	Description	System Capacity	Compatible ZK-TECO USA Models
		Trove 2 Series
TROVE2Z2	Enclosure + Backplane		SMB/Pro Series C3 and In Bio 1, 2 and 4
TZ2	Backplane only	32-Doors	Door Controllers
	Trove 2 Series Pre-assembled Kits
T2ZK7F8	EFLOW104NB, ACM8, VR6, PDS8	8-Doors	SMB/Pro Series C3 and In Bio 1, 2 and 4
T2ZK7F16	EFLOW104NB, 2-ACM8, VR6, PDS8	16-Doors	Door Controllers

T2ZK7F16 16-Door Access System with Power

32-Door Access System

Altronix Model Description System Capacity Compatible with Various Manufacturers Trove 2 Series TROVE2BL2 Enclosure + Backplane Dependant on Access Controllers Create a custom layout TBL2 Backplane only Trove 3 Series TROVE3BL3 Enclosure + Backplane Dependant on Access Controllers Create a custom layout TBL3 Backplane only Access and Power Integration

These models allow you the option of drilling your own mounting holes to accommodate the access controller boards, power supplies and accessories to customize your own access system.

Outdoor Access and Power Integration

Altronix Model	Description	System Capacity Compatible MERCURY* Models		Compatible LENEL Models
			Trove Outdoor Series
TROVE1M1WP	NEMA4/4X IP66 Outdoor Enclosure	4-Doors	EP(LP)1501, EP(LP)1502, EP(LP)4502, MR16IN(-S3), MR16OUT(-S3), MR50(-S3), MR51e/MR62e, MR52(-S3), (M5-)MUX8	LNL-1100(-S3), LNL1200(-S3), LNL-1300(-S3), LNL-1300e, LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)4420, LNL-8000

Stainless steel continuous hinge and stainless steel pad-lockable latches Removable backplane allows you to configure and test prior to on-site installation Lightweight NEMA 4/4X, IP66-11 Rated enclosure for outdoor use Customize your Mercury/Lenel Access system for outdoor applications, such as vehicle/ pedestrian gate access control

Optional Accessories:

- PMK2 - Pole Mount Kit - WM5 - Magnetic cable tie mounts for easy wire management, Pack of 5 (WM25 - Pack of 25)

* Also comptabile with these Authentic Mercury Partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

Altronix

Rack Mount Access and Power Integration

SOFTWARE HOUSE

Altronix Model	Description	System Capacity	Compatible Altronix power/accessories	Compatible Access Controller Models
Trove Rack Series
TROVE1AL1R		16-Doors		Designed for Altronix power/accessories only
TROVE1BL1R		N/A	eFlow4NB eFlow6NB	Any Manufacturers Boards/Equipment (blank backplane allows option to drill as needed)
TROVE1HW1R	2U Rack Enclosure	8-Doors	ACM8(CB) ACMS8(CB) LINQ8PD(CB) MOM5 PD4UL(CB) PD8UL(CB)	eFlow104NB ACM4(CB) ACM8(CB) ACMS8(CB)	eFlow104NB 8-Doors ACM4(CB) ACM8(CB) ACMS8(CB)	ProWatch & Win-Pak: PRO32IC, PRO32E1PS, PRO32R2, PRO32IN, PRO32OUT, PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K1OUT, PW6K1R2, PW6K1ICE, PW6K1R1E
TROVE1M1R	+ Backplane	4-Doors MOM5 4-Doors PD4UL(CB)		*Mercury: EP(LP)1501, EP(LP)1502, EP(LP)4502, MR16IN(-S3), MR160UT(-S3), MR50(-S3), MR51e/MR62e, MR52(-S3), (M5-)MUX8 Lenel: LNL-1100(-S3), LNL1200(-S3), LNL-1300(-S3), LNL-1300e, LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)4420, LNL-8000
TROVE1SH1R		16-Doors	VR6	Software House: iStar ACM SE, iStar Pro ACM, iStar Ultra ACM, i8, r8, i8 CSI
TROVE1V1R		12-Doors		**HID/VertX: V100, V200, V300, V1000 or V2000

• * Also comptabile with these Authentic Mercury Partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
• ** Also comptabile with these Authentic HID Partners: Avigilon, cbord, Genetec, IMRON, Open Options, PCSC

718.567.8181 | info@altronix.com

Rack Mount Access and Power Integration

Honeywell

SOFTWARE HOUSE

Description	System Capacity	Compatible Access Controller Models
	Trove Rack	Series Pre-assmbled Kits
EFLOW6NB, ACMS8, VR6, PDS8	8-Doors	Designed for Altronix power/accessories only
2-EFLOW6NB, 2-ACMS8	16-Doors	Designed for Altionix power/accessories only
Honeywell Pro-Watch / WinPak Kit
EFLOW6NB, ACM4, VR6, PDS8	4-Doors	ProWatch & Win-Pak: PRO32IC, PRO32E1PS, PRO32R2, PRO32IN, PRO32OUT, PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K1OUT, PW6K1R2, PW6K1ICE, PW6K1R1E
Kit
EFLOW6NB, ACM4, VR6, PDS8	4-Doors	*Mercury: EP(LP)1501, EP(LP)1502, EP(LP)4502, MR16IN(-S3), MR16OUT(-S3), MR50(-S3), MR51e/MR62e, MR52(-S3), (M5-)MUX8 Lenel: LNL-1100(-S3), LNL1200(-S3), LNL-1300(-S3), LNL-1300e, LNL-1320(-S3), LNL-(X)2210, LNL-(X)2220, LNL-(X)4420, LNL-8000
Kit
EFLOW6NB, ACMS8, VR6	8-Doors	Software House: iStar ACM SE, iStar Pro ACM, iStar Ultra ACM, i8, r8, i8 CSI
HID / VertX Kit
EFLOW6NB, ACM4, VR6, PDS8	4-Doors	** HID/VertX: V100, V200, V300, V1000 or V2000
	EFLOW6NB, ACMS8, VR6, PDS8 2-EFLOW6NB, 2-ACMS8 /atch / WinPak Kit EFLOW6NB, ACM4, VR6, PDS8 Kit EFLOW6NB, ACM4, VR6, PDS8	EFLOW6NB, ACMS8, VR6, PDS8 8-Doors 2-EFLOW6NB, 2-ACMS8 16-Doors /atch / WinPak Kit EFLOW6NB, ACM4, VR6, PDS8 4-Doors Kit EFLOW6NB, ACM4, VR6, PDS8 4-Doors Kit EFLOW6NB, ACM4, VR6, PDS8 4-Doors

PTC versions are available - include "D" in the model number (ie. T1RM3F4D)

T1RM3F4 4-Door Rack Mount Access System with Power

• RE2 Rack Mount Battery Enclosure (2U) Accommodates up to four (4) 12VDC/7AH batteries
• * Also comptabile with these Authentic Mercury Partners: AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic Video Insight, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt
• ** Also comptabile with these Authentic HID Partners: Avigilon, cbord, Genetec, IMRON, Open Options, PCSC

PoE Driven Power Supply with Lithium Battery Backup -

Model	Total Output Power	Number of Outputs	Built-in Lithium Battery Charger	Battery Supervision	PoE Supervision	Input	Dimensions (L x W x H)
Tango1B	12VDC up to 6.25A (75W) and 24VDC up to 3A (75W)	2	1	√	✓	90W 802.3bt	7.625" x 4.125" x 1.25"

Power Sourcing Equipment / Stackable Power Distribution Modules
Model	Description
NetWaySP1BT	Single Port 802.3bt Converter/Injector - 48-56V input, 90W Output
NetWay4BT	4-Port Managed 802.3bt Midspan Injector supplies 90W per port (480W total power)	® Netway [ ] [ ] [ ]
NetWay8BT	8-Port Managed 802.3bt Midspan Injector supplies 90W per port (480W total power)	NetWay8BT
PDS8(CB)	Power Distribution Modules - Dual Input, Eight (8) Fuse/PTC Protected Outputs
ACMS8(CB)	Access Power Controllers - Dual Input, Eight (8) Fuse/PTC Protected Outputs
LINQ8PD(CB)	Networked Power Distribution Modules - Dual Input, Eight (8) Fuse/PTC Protected Outputs	ACMS8
LINQ8ACM(CB)	Networked Access Power Controllers - Dual Input, Eight (8) Fuse/PTC Protected Outputs

718.567.8181 | info@altronix.com ————————————————————————————————————

Power Supply/Chargers for 7	TROVE Series

Model	Total Output Power	Number of Outputs	Built-in Battery Charger	Fire Alarm Disconnect, Low Power Cut-off, Over Voltage Protection	Input	Dimensions (L x W x H)
eFlow Series Enhanced Power Supply/Chargers
eFlow4NB	12VDC or 24VDC @ 4A	2 (1 main output plus 1 - 1A Class 2 rated power-limited aux output)	V	✓	115VAC (220VAC available)	4.6" x 7.5" x 1.6"
eFlow6NB	12VDC or 24VDC @ 6A					4.6" x 7.5" x 1.6"
eFlow102NB	12VDC @ 10A					4.6" x 7.625" x 1.875"
eFlow104NB	24VDC @ 10A					4.6" x 8.25" x 1.6"

Model	Total Output Power	Number of Outputs	Built-in Battery Charger	Input	Dimensions (L x W x H)
ULX Series Power Supply/Chargers
AL400ULXB2	12VDC @ 4A or 24VDC @ 3A				4.5" x 7.1" x 1.44"
AL600ULXB	12VDC or 24VDC @ 6A	1	✓	115VAC (220VAC available)	4.5" x 7.1" x 2.6"
AL1012ULXB	12VDC @ 10A				4.5" x 7.5" x 2.25"
AL1024ULXB2	24VDC @ 10A			,	4.5" x 8.4" x 1.95"

30

Power Distribution / Sub Assemblies for TROVE Series

Model	Description		Dimensions
ACM4 / ACM4CB	4-Output Access Power Controller	4	5.175" x 3.36" x 1.25"
ACM8 / ACM8CB	8-Output Access Power Controller	8	8" x 4.5" 1.25"
ACMS8 / ACMS8CB	Dual Input, 8-Output Access Power Controller	8	8" x 4.5" 1.25"
ACMS8K1 / ACMS8CBK1	Dual Input, 8-Output Access Power Controller and Voltage Regulator Kit	8	8" x 4.5" 2.125"
NETWAY5B	5-Port Switch Board	5	5.625" x 3.5" x 1"
PD4UL / PD4ULCB	4-Output Power Distribution Module	4	5.21" x 3.25" x 1"
PD8UL / PD8ULCB	8-Output Power Distribution Module	8	5.21" x 3.25" x 1"
PDS8 / PDS8CB	Dual Input, 8-Output Power Distribution Module	8	5.375" x 3" x 1"
PDS8K1 / PDS8CBK1	Dual Input, 8-Output Power Distribution Module and Voltage Regulator Kit	8	5.375" x 3" x 2"
PD16W / PD16WCB	16-Output Power Distribution Module	16	5.875" x 6" x 0.95"
M0M5	5-Output Power Distribution Module with Fire Alarm Interface	5	5.25" x 3.5" x 1"
LINQ8PD / LINQ8PDCB	8-Output Network Power Distribution Module - Control, Monitor and report Power/Diagnostics	8	5.5" x 3.625" x 0.96"
LINQ2	Network Communication Module - Connects up to 2-eFlow Power Supply/Chargers	N/A	3.25" x 3.65" x 0.96"
VR6	Voltage Regulator - For use with PDS8/CB, ACMS8/CB or LINQ8PD/CB	1	5.375" x 3" x 1"

Optional Accessories for TROVE Series

Model	Description
BL3	18" Battery Leads (black and red)
BL4	8" Battery Series Jumper (yellow)
BL6	68" Battery Leads (black and red)
BR1	Add-on mounting bracket. Mount additional Altronix sub-assemblies to the enclosure's side wall.
BT126	12VDC / 7AH Rechargeable Battery
BT1212	12VDC / 12AH Rechargeable Battery
CLK1	Thumb Lock. Fits Trove1, Trove2 and Trove3 enclosures.
GB1	Altronix Adapter Plate for Genetec Synergis Cloud Link (For Mercury and HID/Vertx)
RSB2	Rocker Switch Bracket - Includes two (2) Master Power ON/OFF Switches and Wires
SPACER1	5/8" Nylon spacers (standoffs) with 6/32 screws. Pack of 25 each.
SPACER2	5/8" Nylon springlock spacers. Pack of 4.
SPACER3	5/8" Metal spacers (standoffs) with 6/32 screws. Pack of 25 each.
WM5	Magnetic cable tie mount. Accommodates standard zip ties. 16 lbs. holding force. Pack of 5.
WM10	Magnetic cable tie mount. Accommodates standard zip ties. 16 lbs. holding force. Pack of 10.
WM25	Magnetic cable tie mount. Accommodates standard zip ties. 16 lbs. holding force. Pack of 25.
WM100	Magnetic cable tie mount. Accommodates standard zip ties. 16 lbs. holding force. Pack of 100.

718.567.8181 | info@altronix.com 31

Rev. 0819
