Features & Benefits

• Variety of stations

Mix and match up to 25 stations to create the desired communication solution

Access control

Select up to 2 door stations to have entry security in addition to communication

Paging and talkback

Page individual zones or all zones at once, both with talkback capability

Internal communication

Call and receive calls from any connected master station (multi-talk paths allowed)

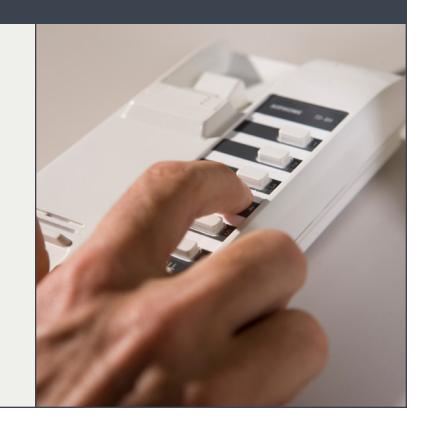

• Handset page button

Prevent accidental paging with the strategic location of the page button (also used for door release)

Complements phone system

Improve communication with quick access paging, a feature telephones do not offer

Great for noisy environments

Use the system's speakers and amplifiers to produce loud and clear announcements in any environment

Reliable and designed to last

Install the system and have guaranteed trouble-free use for years to come!

Ideal Applications

Offices

Retail Outlets

Warehouses

Industrial Facilities

Components - Mix and match up to 25 stations

A maximum of 2 door stations and 12 paging adaptors are allowed in a system configuration.

Optional Door Stations – Install up to 2 (counts toward total capacity of 25 stations)

AX-DM Audio Door

• Station
• Plastic chassis Mullion surface mount 3-7/8" W 6-5/16" H 1-11/16" W 7/8" D

IF-DA

• Audio Door Station
• Plastic chassis
• Surface mount
• 5-1/8" H
• 1-1/8" D

IE-IA

Audio Door Station

• Stainless steel cover
• Flush mount
• Fits 2-gang box 4-1/2" H
• 4-9/16" W
• 2-1/2" D (back box depth)

IE-SS/A

• Audio Door Station
• Stainless steel panel
• Flush mount
• Fits 2-gang box
• 4-3/4" H
• 4-3/4" W
• 2-1/2" D (back box depth)

IE-SSR

• Audio Door Station
• Red mushroom call button
• Stainless steel panel
• Flush mount
• Fits 2-gang box
• 4-3/4" H
• 4-3/4" W
• 2-1/2" D
• (back box depth)

Door Station Adaptor (1 required per door station)

DE-UR

1-3/4" D

Door Station Adaptor

• Allows door station to be added for
• Activates door release 6-5/16" H 5-7/8" W

Master Stations – Install up to 25 (up to 23 if using 2 door stations or up to 11 if using 2 door stations and 12 paging adaptors)

1-Call Audio Master Station

Handset for privacy

3-Call Audio Master Station

• Handset for privacy

TD-6H/B

6-Call Audio Master Station

• Handset for privacy

TD-12H/B

12-Call Audio Master Station • Handset

for privacy

TD-24H/B

24-Call Audio Master Station

• Handset for privacy

Paging Adaptors – Install up to 12

(counts toward total capacity of 25 stations and requires 1 paging amplifier per paging adaptor)

PD-1 Zone Paging Adaptor 2" H 3-9/16" W 5-7/16" D

PD-2 Zone Paging / Talkback Adaptor 2" H 3-9/16" W 5-7/16" D

Paging Amplifiers (1 required per paging adaptor)

P30BGM 30W Paging Amplifier 3-1/2" H 10-1/2" W 9-1/2" D

DMA2120 120W Paging Amplifier 4" H 10-3/4" W 11" D

Paging Speakers – Install number of speakers needed (based on amplifier wattage)

AH-16TN

Horn Speaker

• 8Ω, 25/70V, 16W
• Indoor or outdoor use
• Surface mount Bell Diameter: 8-1/8" Depth: 9"

AH-32TN

Horn Speaker

• 25/70V, 32W
• Indoor or outdoor use
• Surface mount Bell Diameter: 8-1/8" Depth: 9"

SP-2570N

Ceiling Speaker

• 8Ω, 25/70V, 5W
• Indoor use
• Flush mount Diameter: 12-7/8" Baffle Diameter: 8"

Power Supply

(1 required per system)

PS-1225UL 12V DC Power Supply 6-9/16" H 3-9/16" W 2-1/16" D

Accessories

HID-SS

Card Access Station with HID® ProxPoint® Plus Proximity Card Reader (requires a 3rd party host)

SBX-2G Surface Mount Box for IE-JA, IE-SS/A, or IE-SSR

SSB-2 Ceiling Support Bracket for SP-2570N

TDW-nA Terminal Box for TD-nH/B (n=1, 3, 6, 12 or 24

Specifications
Power Source	12V DC - use PS-1225UL	Communication	Handset (full-duplex)
Consumption	Max. 70mA per station	Door Release	N/O 30V AC/DC, 1A (at DE-UR)
Wire Type	Door Station to DE-UR: 2 cond., overall shield - use Aiphone #822202 DE-UR to Master Station: 6 cond., overall shield - use Aiphone #822206 TD-1H/B / TD-1HL to another Master Station: 6 cond., overall shield - use Aiphone #822206 TD-3H/B / TD-3HL / TD-6H/B / TD-6HL: 10 cond., overall shield - use Aiphone #822210 TD-12H/B / TD-12HL / TD-24H/B*: 16 cond., non-shielded - use Aiphone #812216 *Two runs of 812216 are required for full functionality of the TD-24H/B
Wiring Distance	Door Station to DE-UR: 500'(22AWG) 1,200	)'(18AWG) Between Mas	ters: 2,000'(22AWG) 4,800'(18AWG)

Local Aiphone Experts are here to help. CONTACT US TODAY!

TD‑H Series Brochure 02/2017 Digital Copy
