Knob selection
CAMBRIDGE (CB)
DARTMOUTH (DM)
OXFORD (XF)
Knob/Lever Specifications
Door Specs 2 1/8" Face Bore 1" Edge Bore
2 3/8"or 2 3/4" Backset
Box Pack:
Latch Face 1" x 2 1/4" RC (Round Corner) SC (Square Corner, optional)
Latch Box Pack: Adjustable
2 3/8" to 2 3/4" RC RC (Round Corner)
Door Thickness 1 3/8" to 1 3/4"
Cylinder 6 Pin Cylinder
(KW-1 Compatible)
Keying Box Pack:
KA3 (Keyed Alike)
Faceplate 1" W x 2 1/4" H
RC (Round Corner)
Strike Box Pack: 2 1/4" Full Lip
RC (Round Corner)
Certified A156.2 Series 4000
ANSI/BHMA Grade 2

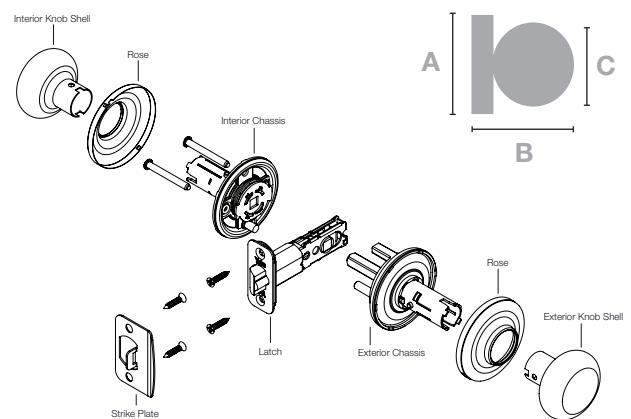

DIMENSIONS A B C
BRIDGEPORT 2 9/16" 2 9/16" 2" CAMBRIDGE 2 9/16" 2 1/4" 2 5/64" DARTMOUTH 2 9/16" 2 3/8" 2 1/2" OXFORD 2 9/16" 2 1/4" 2 1/8"
FUNCTIONS KNOB
DUMMY 80 PASSAGE 10
ONE SIDED w/Plate 60 PRIVACY 20
BATH* 26 ENTRY 70
CLASSROOM 75 STOREROOM 78
* Bath: Privacy with US26 interior finish
| QuickShip™ | US3 | US5 US10BP | US10BE | US15 | US15A | US26 | US26D | GM BSP | ||
|---|---|---|---|---|---|---|---|---|---|---|
| BRIDGEPORT | • | • | ||||||||
| CAMBRIDGE | • | • | • | • | • | • | • | • | • | |
| DARTMOUTH | • | • | • | |||||||
| OXFORD | • | • | • |
Does your lock have these features?
Lever selection
AUGUSTA
CHARLESTON
DELAWARE (DW)
MARINA (MA)
McCLURE MC)
MILAN (MN)
MONROE (MO)
NORWOOD (NW)
PACIFIC BEACH (PB)
VALDOSTA (VL)

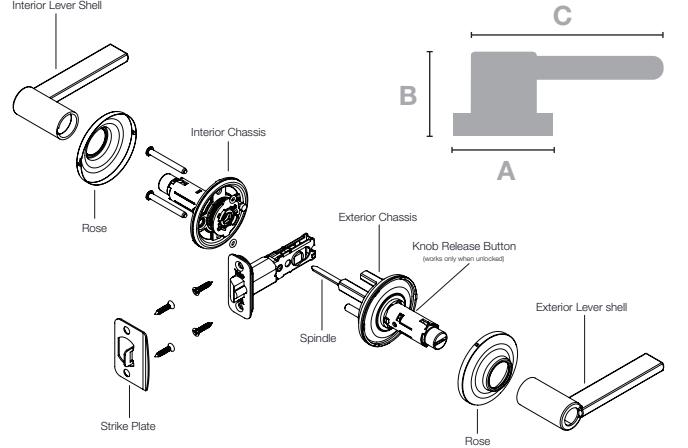

DIMENSIONS A B C
| ACADEMY | 2 9/16" | 2 7/16" | 4 19/64" |
|---|---|---|---|
| AUGUSTA | 2 9/16" | 2 1/2" | 4 3/4" |
| CHARLESTON | 2 9/16" | 2 1/2" | 5 3/8" |
| DELAWARE | 2 9/16" | 2 3/4" | 4 5/8" |
| KINCAID | 2 9/16" | 2 7/16" | 4 1/2" |
| MARINA | 2 9/16" | 3 5/16" | 4 7/8" |
| McCLURE | 2 9/16" | 2 7/16" | 4 3/16" |
| MILAN | 2 9/16" | 2 7/16" | 4 1/16" |
| MONROE | 2 9/16" | 2 7/16" | 4 5/8" |
| NORWOOD | 2 9/16" | 2 1/2" | 4 7/32" |
| PACIFIC BEACH | 2 9/16" | 2 7/16" | 4 3/4" |
| VALDOSTA | 2 9/16" | 2 1/2" | 4 5/8" |
| VIRGO | 2 9/16" | 2 9/16" | 4 1/2" |
FUNCTIONS LEVER
DUMMY 81 PASSAGE 11 ONE SIDED w/Plate 61 PRIVACY 21 BATH* 22 ENTRY Lever/Lever 71 ENTRY T-turn 73 ENTRY SFIC** 74LC CLASSROOM 76 STOREROOM 79
* Bath: Privacy with US26 interior finish ** Available in Augusta, Monroe, Pacific Beach

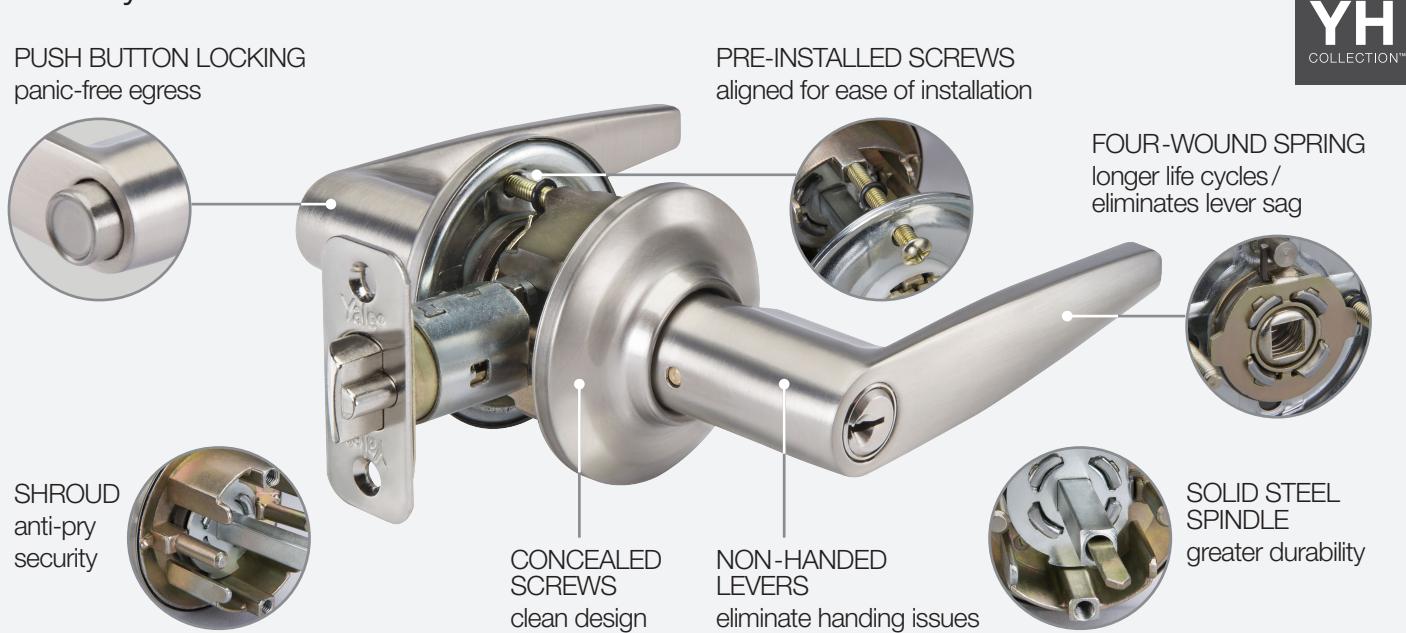

YH Collection™
Superior light commercial quality with a lifetime limited finish and mechanical warranty.
- Easy install mounting system and square spindles simplify knob and lever Installation
- Keyway: KW-1; SC-1, PARA optional
- Non-handed levers eliminate handing issues
- Solid brass key cylinder and housing
- Removable levers/knobs and rosettes allow for easy scratch-free installation
- Premier series deadbolts are face removable for easy access to the deadbolt cylinders to make quick work of rekeying without removing the entire deadbolt
- Heavy-duty shroud adds a security level of anti-pry robustness
| QuickShip™ | US3 | US5 US10BP | US10BE | US15 | US15A | US26 | US26D | GM BSP | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ACADEMY | • | • | • | |||||||
| AUGUSTA | • | • | • | • | ||||||
| CHARLESTON | • | • | • | • | ||||||
| DELAWARE | ||||||||||
| KINCAID | • | • | ||||||||
| KINCAID/BLK | • | • | • | |||||||
| MARINA | • | • | • | |||||||
| McCLURE | • | • | • | |||||||
| MILAN | • | • | • | |||||||
| MONROE | • | |||||||||
| NORWOOD | • | • | • | • | • | • | • | • | • | |
| PACIFIC BEACH | • | • | • | |||||||
| VALDOSTA | • | • | • | • | ||||||
| VIRGO |
Knob | Lever rosettes
Select an upgrade for any knob or lever styles in Polished Brass, Oil Rubbed Bronze Permanent, Satin Nickel, or Polished Chrome.
FLAT ROUND OVAL FLAT SQUARE
TRADITIONAL
