Residential Mechanical Price Book

Volume 1 Effective date March 1, 2024 US ONLY

Finishes

Please check each product's specifications for availability.

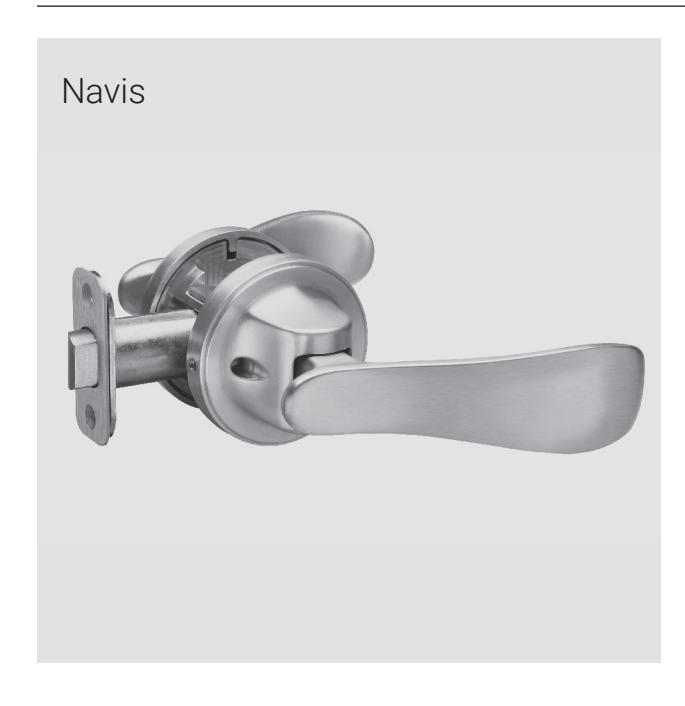

Navis Paddle

Heritage Collection

Contents

Terms of Sale Ordering Information 3
Heritage Collection Grade 2 Interconnected Mechanical

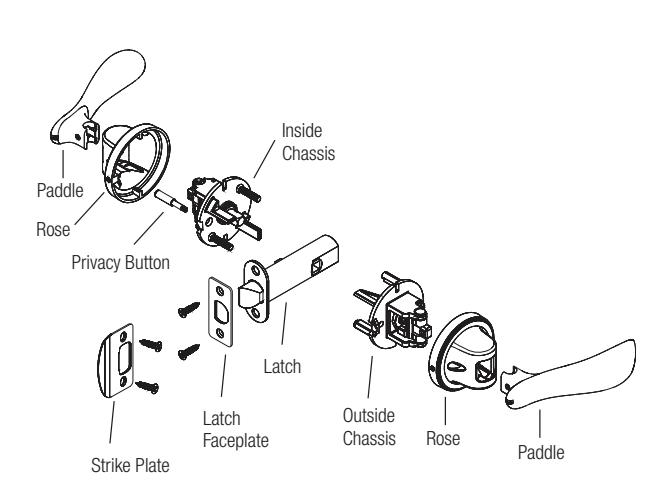

Navis Paddle 14 		9
Heritage Collection Grade 2
Knobs 16
Bridgeport, Dartmouth, Cambridge, Oxford
Levers 19

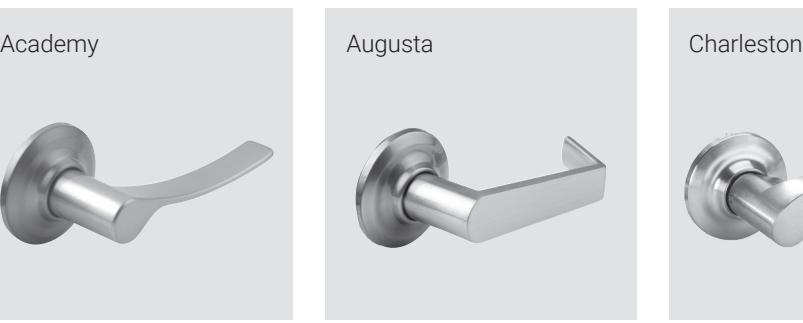

Academy, Augusta, Charleston, Delaware, Kincaid, Marina, McClure, Milan, Monroe, Norwood, Pacific Beach, Valdosta, Virgo

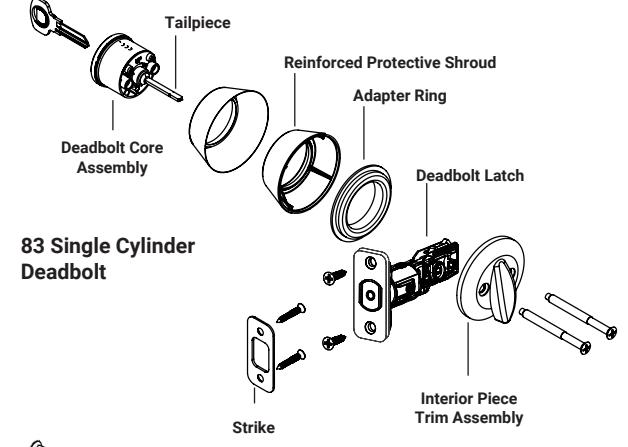

Deadbolts 24
Latches 27
Heritage Collection Grade 3
Knobs 28

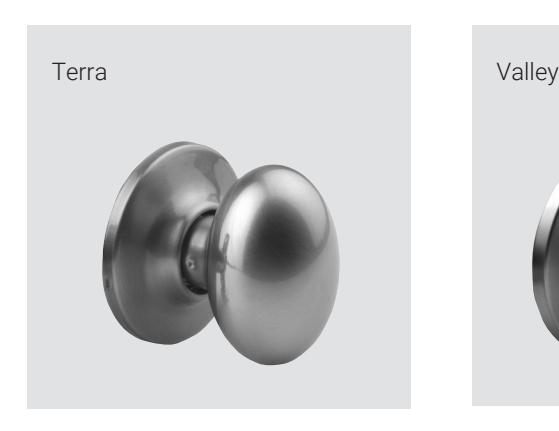

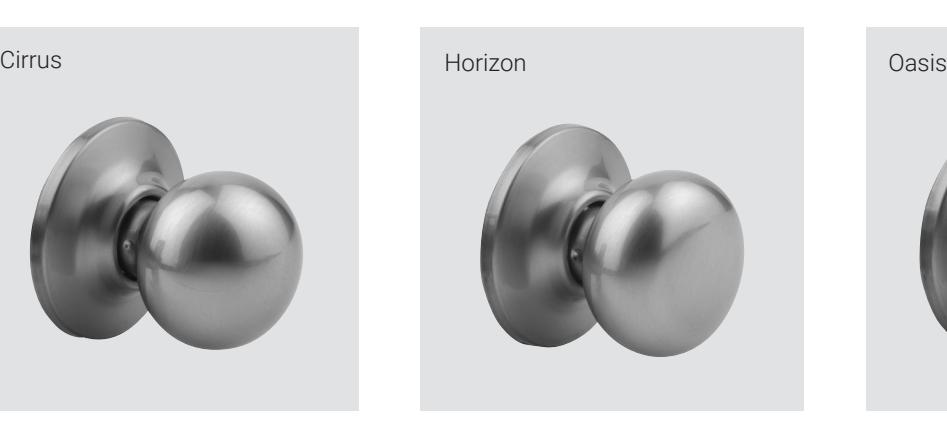

Cirrus, Horizon, Oasis, Terra, Valley

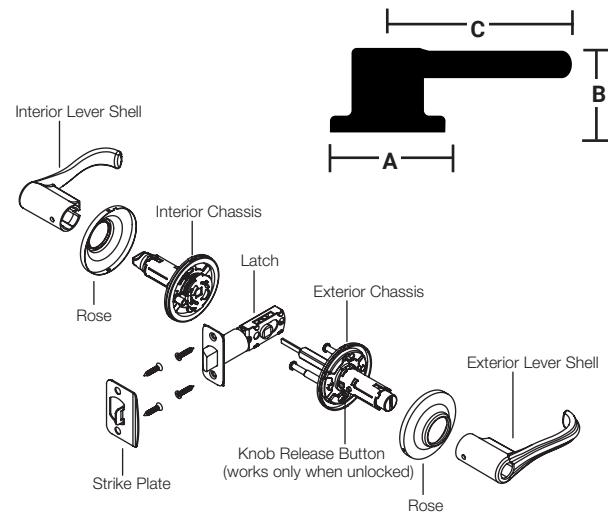

Levers 31

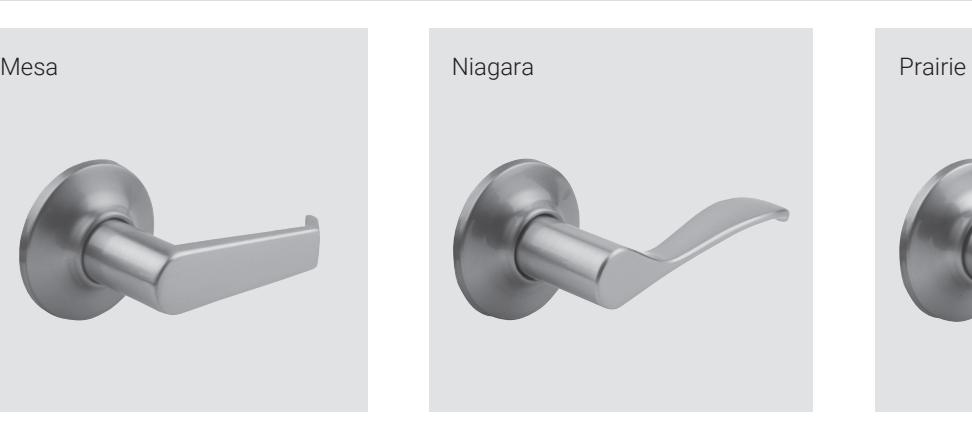

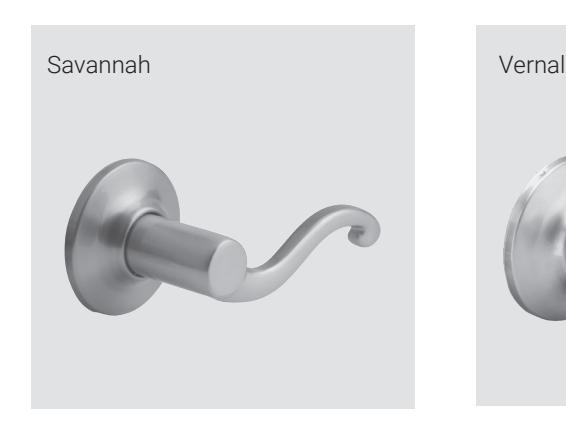

Mesa, Niagara, Prairie, Savannah, Vidalia, Woodland
Deadbolts 34
Latches 37
Decorative Handlesets 38

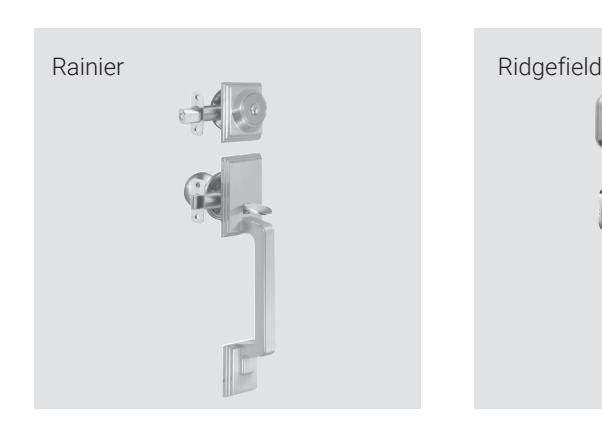

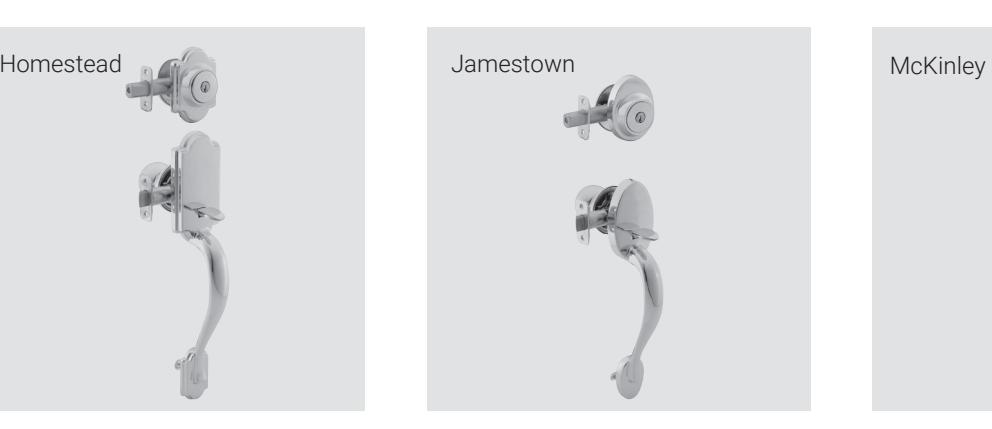

Homestead, Jamestown, McKinley, Pedestal, Rainier, Ridgefield, Teton
Handing 10, 20, 32
Accessories 42
Keying Information 43
UL Ratings 6

Terms and Conditions of Sale

Terms & Conditions

Minimum freight requirements apply. The Terms and Conditions contained on the ASSA ABLOY ACCENTRA™ Website, as published from time to time, shall apply to all purchases of Goods. To the extent that any terms in any invoice conflict with the terms of the Price List, the terms of the Price List shall govern.

Applicable Law; Definitions

All sales of ACCENTRA branded goods ("Goods") shall be governed by the laws of the State of Connecticut, including the Uniform Commercial Code as in effect in Connecticut on the date of sale (the "Code"). Whenever a term defined by the Code is used in these Terms and Conditions of Sale, the definition contained in the Code shall apply here. The purchaser of the Goods agrees that any proceeding brought in connection with the purchase of the Goods shall be brought in any court of competent jurisdiction in Connecticut.

Purchase Price

The purchase price of the Goods is subject to change without notice, and the prices prevailing at the time the Goods are shipped by ACCENTRA shall apply unless ACCENTRA has agreed in writing to a different price or has given a prior written quotation which constitutes a firm offer. ACCENTRA does not guarantee that the price, terms and conditions for reorders of the Goods will be the same as contained in the ACCENTRA Price List. Rebates or refunds for Goods that represent dealer stock on hand or for Goods already shipped by ACCENTRA will not be given due to any price reduction. The purchase price for any Goods purchased shall be due as and when specified in the invoice covering such Goods. Title to the Goods shall not pass to purchaser until full payment for the Goods is made to ACCENTRA.

Binding for all Purchases

All orders, whether solicited or written by our representatives or delivered by you are deemed offers by you to purchase our products. Our acceptance of each such offer is expressly subject to and conditioned on your assent to the Terms and Conditions of Sale contained herein (assent may be deemed to occur if we do not receive a written objection or retraction of such offer within 48 hours after you receive our confirmation of receipt of such offer). No other terms or conditions shall apply.

Prices and Minimum Charges

All prices are subject to change without notice and are not guaranteed. All shipments will be made at prices in effect at the time of shipment. Possession of this price list does not constitute an agreement to sell. We reserve the right to correct clerical, stenographic and other obvious errors at any time.

Minimum order value for complete product is $250.00 net product value. The minimum order value for parts orders is $100.00 net product value. In the event that the net product value does not meet the required net minimum, ASSA ABLOY ACCENTRA™ may, at its sole discretion (a) apply a minimum order charge, (b) reject the order or (c) waive the minimum requirement provided that the waiver of the requirement for one order shall not constitute a waiver of the requirement for any future orders. The following products are exempt from this policy: Cut (bitted) keys of any type, Master keys, Master keyed cylinders or padlocks and factory generated bitting lists.

Payment

Standard sales terms are 2/10 net 30. The 2.0% discount only applies for invoices paid in full within 10 days of invoice date. Invoices not paid in full within 30 days of invoice date shall incur a service charge of 1.5% per month for each month or fraction thereof (or the maximum rate permitted by law) until paid in full. All delinquent accounts are subject to credit hold.

Freight

All orders are shipped FOB factory/warehouse, except as expressly provided below. When delivered to the Transportation Company, the

Purchaser assumes the risk of loss or damage in transit.

Customer orders with net product value in excess of $7,000.00 will be shipped prepaid by the ACCENTRA carrier of choice to a single destination point in the United States.

Customer orders with net product value less than $7,000.00 will be shipped prepaid by the ACCENTRA carrier of choice and freight and handling charges will be added to the customer's invoice. A minimum freight and handling charge of $15.00 will be charged on orders with net product value of $400.00 or less. The minimum freight and handling charge will not apply to orders for only Cut (bitted) keys of any type, Master keys, Master keyed cylinders or padlocks and factory generated bitting lists that do not have any other product types included on the order. Freight on these orders will be charged as the percentage of invoice value.

For orders with net product value greater than $400.00 and less than $7,000.00, freight charges will be calculated as a percentage of the net invoice value and will be added to Customer's invoice. The percentage is based on the National U.S. Average On Highway Diesel Fuel Prices as reported by the US Department of Energy in effect at the beginning of each quarter. On the first Monday of each quarter, the new rate will be published on the ACCENTRA and Door Security Solutions extranet and will go into effect on the 2nd Monday of the quarter. Please refer to the ACCENTRA distributor extranet for the rate chart and information on the current freight charge percentage. The percentage in effect at the time of shipment of the order will be charged. Great Grand Master keys, Grand Master keys, Master keys, Construction Master keys, Control Keys, and Change Keys which are shipped separate from customer order for security reasons, on orders with total net product value in excess of $7,000.00 will be shipped prepaid by the ACCENTRA carrier of choice. If the total order value is less than $7,000.00, the shipping charges will be added to Customer's invoice.

If a customer provides their own freight account number for the freight charges, ACCENTRA will apply a handling fee of $25.00 to the invoice.

Expedited shipping options – If the customer requests an expedited method of shipment such as "Next Day Air" the charges will be prepaid by ASSA ABLOY ACCENTRA™ and the full rate for the service, as published by the carrier, will be added to the customer's invoice.

Packing – ACCENTRA will pack, mark and ship the products according to its standard procedures for shipment, unless the parties agree, in writing, that ASSA ABLOY ACCENTRA™ will comply with any special instructions provided by the customer. Special instructions must be submitted, in writing, at time of order placement. Compliance with special instructions may result in an increased price.

Discrepancies must be noted with carrier upon receipt as they are your responsibility to claim.

Minimum Annual Purchase Requirement

We may discontinue direct sales to you if you do not meet the minimum annual purchase requirement (currently $10,000), based on total accepted, shipped and non-canceled orders within each calendar year.

Limited Warranty

ASSA ABLOY ACCENTRA (the "Warrantor") warrants that its products sold under the ASSA ABLOY ACCENTRA brand name in the United States of America & Canada are free from defects in work-manship and materials under normal use and service.

The only liability of the Warrantor in tort or contract whether under this warranty or otherwise shall be limited to the repair or replacement of any product or component part which shall prove defective as covered by this warranty, within the stated time frame listed below, after delivery to the original purchaser.

Terms and Conditions of Sale

1. MECHANICAL PARTS & FINISH.

ACCENTRA, extends the following LIMITED WARRANTY to the original purchaser for a single family home, (herein the "lockset" or "locksets") shipped to, and installed in the U S or Canada. Because the Company cannot control the quality of Devices sold by unauthorized sellers, this Warranty applies only to Devices purchased from ACCENTRA or an ACCENTRA authorized seller in the United States of America, unless otherwise prohibited by law. ACCENTRA reserves the right to reject warranty claims from purchasers for Devices purchased from unauthorized sellers, including unauthorized internet sites.

ASSA ABLOY ACCENTRA provides a ONE (1) YEAR warranty on finish and TWO (2) YEAR warranty on mechanical Devices for collections listed below:

Heritage Collection Grade 2 Heritage Collection Grade 3 Navis Paddle

2. CONDITIONS AND EXCEPTIONS.

This Limited Warranty shall apply only when the lockset is properly installed in accordance with local codes, ordinances and regulations, the printed instructions provided with it and good industry practices. THIS WARRANTY DOES NOT COVER defects caused by: modification, alteration, repair or service of the lockset by anyone other than Warrantor or an authorized designee of Warrantor; physical abuse to, or misuse of, the lockset or operation of it in a manner contrary to the accompanying instructions; shipment of the product to anyone other than Warrantor for service; improper installation; acts of God; fire; flood; casualty; failure to exercise normal maintenance; for the consequences of uses for which locksets were not designed or designated, or for defects caused by the use of paints, solvents or other chemicals which come in contact with the lockset. THIS WARRANTY DOES NOT COVER scratches or abrasions. THIS WARRANTY DOES NOT APPLY to locksets or component parts of locksets that were not originally manufactured by Warrantor. THIS WARRANTY SHALL NOT APPLY TO SUBSEQUENT OWNERS.

3. SERVICE AND REPAIR EXPENSE.

Under this Limited Warranty the Warrantor will provide only a replacement lockset or a part of it. Warrantor will pay reasonable shipping costs for surface transportation only for locksets returned to Warrantor's Customer Service Department. Warrantor will ship replacement parts under this Limited Warranty at its expense by surface transportation only. Any special handling, express or expedited service or different method of transportation shall only be provided at the request and expense of the purchaser of the locksets. However, if warrantor determines that a lockset does not qualify for repair or replacement under the applicable Limited Warranty, Warrantor will notify the consumer of the estimated costs of repair or replacement and obtain the consumer's authorization and agreement to pay actual repair or replacement costs before proceeding with nonwarranty repair or replacement. Warrantor shall have no liability to pay any costs for repairs performed by anyone other than Warrantor or its designee, unless in each instance Warrantor has given written approval for such repair. Warrantor shall not be responsible for any costs incurred for the removal or reinstallation of locksets covered by this Limited Warranty.

4. LIMITATION ON IMPLIED WARRANTIES.

ANY EXPRESS WARRANTY NOT PROVIDED IN THIS LIMITED WARRANTY, AND ANY REMEDY FOR BREACH OF CONTRACT THAT, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO THE DURATION OF EACH EXPRESS WARRANTY PERIOD.

a. Should the locksets be considered a consumer product as may be covered by the Magnusson-Moss Federal Warranty Act, please be advised that some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

5. CLAIM PROCEDURE.

To obtain performance of any obligation under this Limited Warranty, you must contact: ASSA ABLOY ACCENTRA™ Technical Product Support, 225 Episcopal Road, Berlin, CT 06037 USA, Tel 1-855-686-2204 option 1 Fax 1-800-338-0965.

  • a. The Warrantor will only honor replacement with an identical or similar lockset or parts of it which are manufactured or distributed by the Warrantor.
  • b. Customer service department hours are M-F 8:00am 4:30pm, except holidays.

6. DISCLAIMER.

THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS DOCUMENT. NO OTHER EXPRESS WARRANTY HAS BEEN MADE OR WILL BE MADE ON BEHALF OF THE WARRANTOR WITH RESPECT TO THE LOCKSET OR THE INSTALLATION, OPERATION, REPAIR OR REPLACEMENT OF THE LOCKSET. THE MAXIMUM LIABILITY OF ACCENTRA HEREUNDER IS LIMITED TO THE PURCHASE PRICE OF THE LOCKSET. UNDER NO CIRCUMSTANCES SHALL ACCENTRA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF TORT, BREACH OF WARRANTY, BREACH OF CONTRACT OR OTHERWISE. a. Should the locksets be considered a consumer product as may be covered by the Magnusson-Moss Federal Warranty Act, please be advised that (i) some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you, and (ii) this Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

b. Warrantor reserves the right to make changes in designs and specifications or to make additions or improvements on its products without notice and without incurring any obligation to incorporate them on products previously manufactured.

General Conditions

  • (a) Shipping; Acceptance; Risk of Loss; Security Interest. Any shipment date given by ACCENTRA is approximate and not a guarantee of delivery on the shipment date. Failure of a purchaser to inspect the Goods and notify ACCENTRA or any authorized distributor or factory representative in writing of such purchaser's rejection of any Goods upon completion of inspection within 24 hours after receipt of shipment, in each case setting forth the specific grounds for rejection, shall constitute unconditional acceptance of the Goods. Title to the Goods shall not pass until the full purchase price therefore has been paid in full. If after acceptance, the purchaser fails to pay the full purchase price as and when due, ACCENTRA shall be entitled to a writ of immediate possession to recover possession of the Goods. Risk of loss or damage to the Goods passes to the purchaser upon delivery of the Goods to the carrier regardless of who pays the shipping costs for such Goods. The purchaser hereby grants to ACCENTRA a continuing security interest in and to the Goods purchased from and/or financed by or through ACCENTRA to secure repayment of any debt or obligation owed to ACCENTRA by the purchaser.
  • (b) Force Majeure. Under no circumstances shall ACCENTRA be liable for failure or delay in delivery occasioned in whole or in part by fire, flood, explosion, casualty, accident, acts of God or natural catastrophe, war, riot, strike, lock-out or other labor dispute or industrial disturbance, embargo, law, regulation, ruling, order or requirement of any government or government agency or authority, court, tribunal or military authority, shortage or failure of, or ACCENTRA's inability to obtain, Goods, appropriate supplies, materials, equipment, transport or labor, or any other cause or circumstance beyond ACCENTRA's control, including delays due to a purchaser's acts omissions or rush circumstances. Under such circumstances, ACCENTRA may extend the date of delivery for a reasonable period of time after the period of the delay, apportion its products among its customers in such manner as it deems equitable and substitute for products which cannot be obtained within a

Terms and Conditions of Sale

reasonable period of time, and the purchaser shall not be relieved of accepting delivery of such products.

(c) No Other Warranty. The only warranty given in connection with any Goods sold by ACCENTRA is its Limited Warranty to the first purchaser-user provided in Section 3 of these Terms and Conditions of Sale, and no other representations or warranties of any kind shall be made or given by any distributor or other person in connection with the sale of the Goods.

Enforcement Policy

In the event ACCENTRA deems it necessary to collect any amount due it from any purchaser, the purchaser shall pay to ACCENTRA, upon demand, all costs and expenses of such collection or enforcement including, without limitation, reasonable attorneys' fees and all other costs of collection. In addition, ACCENTRA will assess a 1.5% finance charge per month (18% APR) on amounts not paid when due.

Returned Goods Policy

ACCENTRA will not accept returned Goods from purchasers for credit or exchange. Under limited exceptions the following conditions generally would apply:

(a) Written consent to the return of the Goods must be obtained from the ACCENTRA Customer Service Manager prior to returning the Goods (at ACCENTRA's discretion);

(b)Any returned Goods shall be accompanied by a completed Merchandise Return Authorization Form provided to the purchaser by ACCENTRA;

(c)Shipping charges and insurance must be prepaid by the purchaser; (d)All returned Goods accepted by ACCENTRA shall be subject to a minimum charge of 45% of the original purchase price or the current price, whichever is lower, to cover the cost of testing and repackaging. Additional charges may be imposed if the returned Goods, in the opinion of ACCENTRA, require reconditioning; and

(e)Any credit given will be based on the original purchase price or the current price for the returned Goods, whichever is the lower.

Terms and Conditions Contained in ACCENTRA Price Book

The Terms and Conditions contained in the ACCENTRA Price Book, as published from time to time, shall apply to all purchases of Goods. To the extent that any terms in any invoice conflict with the terms of the ACCENTRA Price Book, the terms of the ACCENTRA Price Book shall govern.

Dispute Resolution

All disputes, controversies, claims or differences which may arise between the parties out of or in relation to the purchase of Goods covered by any invoice or otherwise made by purchaser from ACCENTRA (including questions as to whether a matter is governed by this arbitration provision) shall be solely and exclusively settled by binding arbitration conducted in accordance with the American Arbitration Association (AAA) Rules. All hearings and proceedings regarding arbitration shall take place in Berlin, Connecticut. All disputes involving less than $250,000 shall be heard by a single arbitrator, and all other disputes shall be heard by panel of three arbitrators. The arbitrators shall be selected in a manner as set forth by the AAA. Reasonable discovery shall be allowed. The costs and fees of the arbitration shall be allocated by the arbitrators. The award rendered by the arbitrators shall be final and binding upon the parties, and judgement may be entered and enforced in accordance with applicable law in any court having jurisdiction thereof. The resolution of the arbitration shall be kept confidential by the parties and the arbitrators. Nothing herein shall bar the right of either party to obtain injunctive relief against conduct that will cause irreparable loss or damages under rules of equity. The parties hereby consent to jurisdiction in any court in the State of Connecticut with respect to the enforcement of any arbitration award or injunctive or other judicial relief.

Changes or Cancellations

Any item additions, quantity changes or specification changes made to accepted orders will generate a new acknowledgment for the entire order and a new shipment date. All sales are final. Quantity reductions or cancellations are accepted only with prior written consent at least 2 weeks prior to the scheduled shipment date. Cancellations or reductions after 2 business days of acknowledgement may be subject to a 45% fee. We may without liability cancel any accepted order before shipment if our credit department does not approve your credit.

Programs

All support programs related to the business are only applicable to customers whose account is current and in good standing.

Customer Service

ASSA ABLOY ACCENTRA™, Customer Service Department

225 Episcopal Road, Berlin, CT 06037 USA Tel 1-855-686-2204 | Fax 1-800-338-0965

Customer service department hours are between 8:00 am and 4:30 pm EST, Monday through Friday, except holidays.

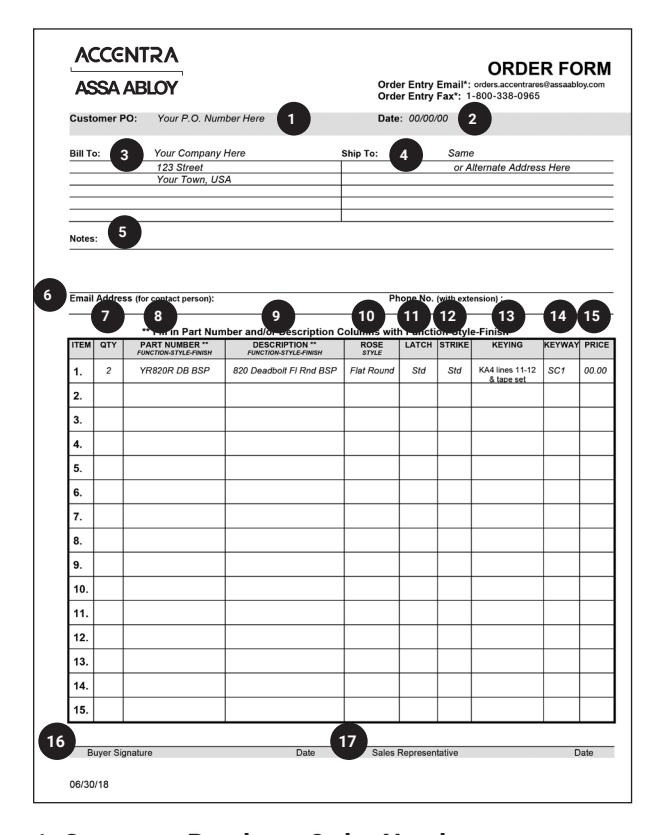

Ordering Information

1 Customer Purchase Order Number

Enter the purchase order number that your company has assigned for this order. No order will be processed without a purchase order number and written acknowledgement.

2 Order Date

Enter the date on which you are placing the order.

3 Bill To

Enter the billing name of the company and the full mailing address.

4 Ship To

Enter the company name and the full address to which the order should be shipped. If that information is exactly the same as the "Bill To" information, enter "Same" on the lines provided.

5 Special Instructions

  • Enter any special shipping, packing, product, keying, or delivery requests in this area.
  • Enter job name if applicable.
  • For warehouse orders (non job orders) full case quantities should be ordered.

• UL RATING REQUIREMENTS:

Enter when UL is required.

See price book pages for listing. Underwriters Laboratories requires that the Fire Shield packed with each UL listed products, UL listed latches and the correct strike to be used.

6 Email Address and Phone Number

Indicate an email address and phone number (with extension) to ensure ASSA ABLOY ACCENTRA™ Locks is able to respond with questions regarding the order.

7 Quantity (Units Only)

Standard Case Quantities

Heritage Collection
Grade 2 		Heritage Collection
Grade 3
Dummy 12 12
Knobs 24 24
Levers 12 12
Deadbolts 12 12
Combosets 12 12
Interconnected Mechanical 4
Handlesets 6 6
Handlesets Interior Pack 6 6

8 Part Number

FUNCTION-STYLE-FINISH

FUNCTION: Function numbers and descriptions are noted with each series throughout this ACCENTRA Price Book.

STYLE: Indicate by using the two letter designation of the names, listed on price pages.

Ordering Information

FINISH: Indicate by using the BHMA designation of the names, listed on price pages.

BHMA Description
605 Polished Brass
609 Antique Brass
613E Dark Oxidized Satin Bronze-equivalent
10BP Oil Rubbed Bronze Permanent
619 Satin Nickel
620 Antique Nickel
625 Polished Chrome
626 Satin Chrome
BSP Black Suede
GM Gun Metal

Split Finishes: Print as stated in current price book

9 Description

FUNCTION-STYLE-FINISH-PACKAGING-HANDING

FUNCTION: Function numbers and descriptions are noted with each series throughout this Price Book. DESIGN: Indicate by using the two letter designation of the names, listed on price pages.

FINISH CODES: see above.

PACKAGING: All locks are shipped Box Packed as standard unless otherwise specified. SP: Box Packed (Standard Packed)

BP: Bulk Pack – Lock trim individually

boxed and packed 24 per case. Latches, strikes, screws packed separately.

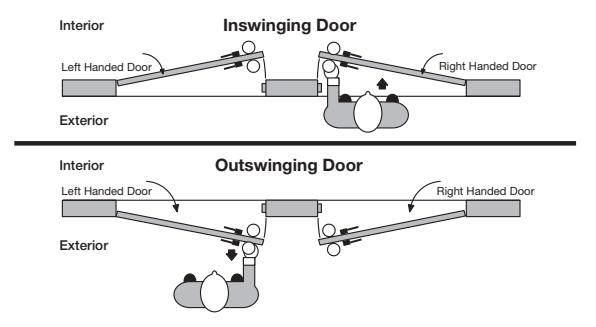

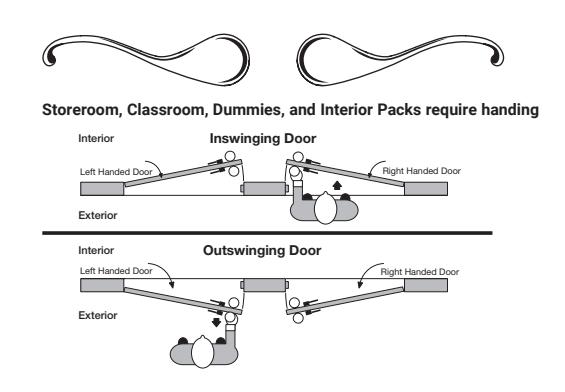

HANDING: The hand of a door is always determined by facing the outside of a door. See diagram on pages 10, 20, 32 for further details.

LH: If the hinge is on the left side of the door, then the door is left-handed.

RH: If the hinge is on the right side of the door, then the door is right-handed.

10 Decorative Rose Style

Specify decorative rose style selection. Standard rose ships unless specified.

See Examples:

SC (Square Corner)

RC (Round Corner)

DI (Drive-In)

ADJ-SC (Adjustable Square Corner)

See pages 27, and 37 for more details.

12 Strike Options

Specify strike type. See page 42 for more details.

13 Specifying Keying

Keying requirements must be specified at time of order.

KD: Keyed Different KA: Keyed Alike

MK: Master Keyed* (A single master key operates all locks within the system.)

BK: Builder Key* (Builder key operates all locksets within a system. Use of homeowner's key cancels the builder key.)

BMK: Builder Keyed and Master Keyed* (Builder key and master key operates all locksets within a system. Use of tenants key cancels the builder key.)

K-T-P: Keyed To Pass (For apartment vestibules or laundry rooms. All tenant keys will operate.)

GMK: Grand Master Keyed* (More than 1 master key system operated by a single master key.)

BGMK: Builder Keyed and Grand Master Keyed* (Combination of BK and GMK.) *Builder and/ or master keys are sent certified mail to the "Bill To"address, referencing the purchase order number and the original order number. All Master Keyed orders shipped with three (3) master keys at no extra charge. All Builder Keyed orders are shipped with ten (10) builder keys at no extra charge.

14 Keyway / Key System Specifications

KEYWAY: All locks will be shipped with our Heritage Collection Grade 3 KW 5-Pin cylinder or Heritage Collection Grade 2 6-Pin cylinder as standard depending upon the locks ordered. If SC keyway is specified it will ship as 5-pin standard. Para keyway will ship as 6-pin standard. See the available options sections in this Price Book.

KEY SYSTEMS: Note the specific key system to be used if any. This is particularly important if the order is an extension of an existing system.

11 Latch Options

Specify 2-3/8", 2-3/4", or Adjustable along with latch face type.

15 Price

Enter the price. NOTE: Price may be adjusted if required to correspond to published pricelist.

Ordering Information

16 Buyer Signature

No order will be processed without an authorized signature.

17 ASSA ABLOY ACCENTRA™ Company Representative

If the order is written by someone other than the authorized buyer, the full name of the person placing the order.

Submit The Order

FAXING ORDERS

Fax number for Factory Direct Heritage Collection Grade 2 and Grade 3 orders:

1-800-338-0965

EMAILING ORDERS

Email all orders to: orders.AccentraRes@assaabloy.com

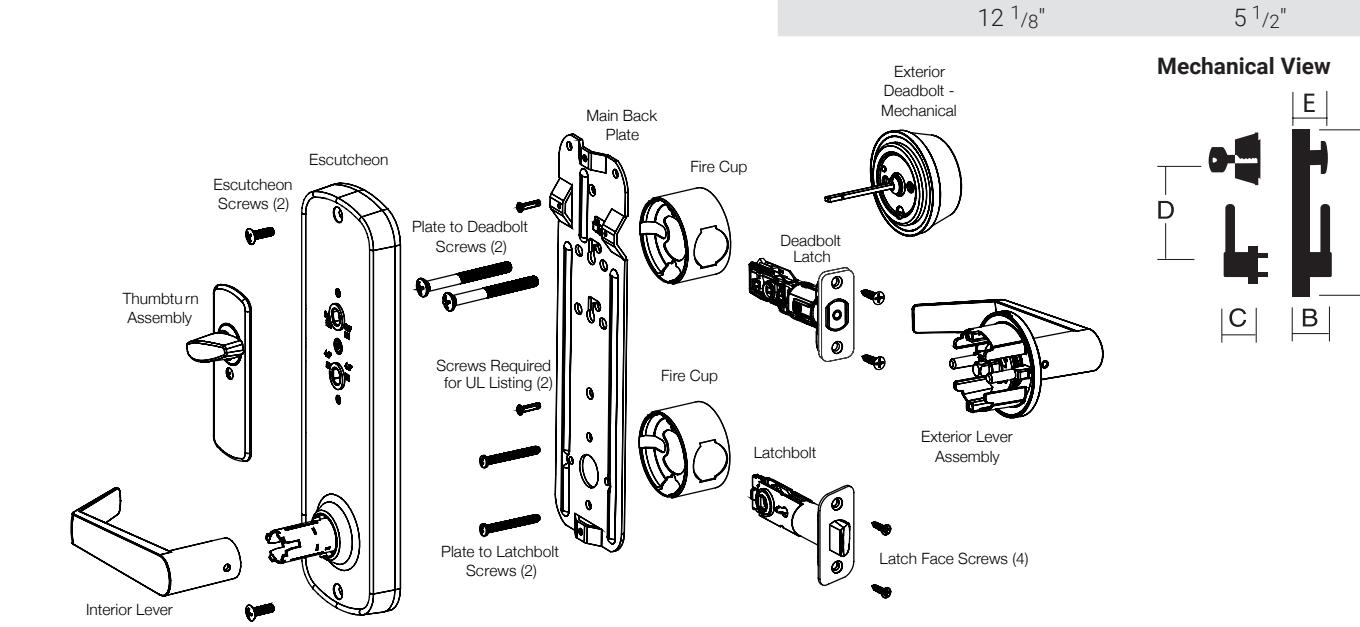

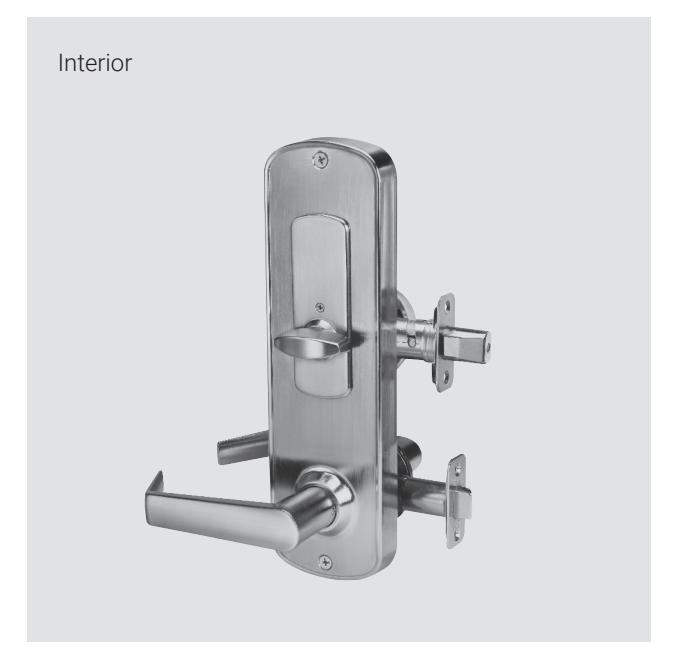

Heritage Collection Grade 2 Interconnected Mechanical Locksets

Adjustable 4" or 5.5"

The Heritage Collection Grade 2 Interconnected Mechanical Locksets offer flexible, convenient and stylish security for new or retrofit multi-family applications. The center to center dimension is field-adjustable and installs into most standard door preps. From the inside, latchbolt and deadbolt retract simultaneously for easy egress and the thumbturn quickly secures the opening. Available in two functions with 14 levers in 6 finishes, the Interconnected Mechanical locksets are sure to complement any décor.

Heritage Collection Grade 2 Interconnected Mechanical Locksets

FUNCTIONS NO. DESCRIPTION PASSAGE: Single point lock. Latchbolt is operated by either lever at all times. Deadbolt activated by key on outside; inside by T-turn. Interior lever retracts latch and deadbolt simultaneously. PRIVACY WITH DEADBOLT INDICATOR:

YR853

Single point lock. Latchbolt is operated by either lever at all times. Deadbolt activated by emergency key on outside; inside by T-turn. Occupancy indicator displays "In Use" when deadbolt thrown or "Vacant" when deadbolt retracted. Interior lever retracts latch and deadbolt simultaneously.

PRODUCT SPECIFICATIONS 21/8" Face Bore, 1" Edge Bore, 4" or 51/2" Center to Center Backset 23/8" or 23/4" Door Thickness 13/8" to 13/4" Cylinder KW-1 Compatible standard, other cylinders/keyways available to order Keying KD (Keyed Different) standard, master keying available to order Other Keying options see page 43 Latch Faceplate 1" W x 21/4" H; Round Corner standard, Square Corner available to order Strike 21/4 RC Full Lip & 11/8 x 23/4 RC Universal standard, Other strikes Available to order. Certified ANSI/BHMA UL/cUL Listed for 90 minute fire doors Company of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the property of the proper
| Strike | 21/4 RC Full Lip & 11/8 x 28/4 RC Universal standard, Other strikes Available to order | Strike | A156.12, Grade 2 | SHMA. | | Strike | Different | Listed for 90 minute fire doors PRODUCT SPECIFICATIONS
Door Thickness 13/8" to 13/4" KW-1 Compatible standard, other cylinders/keyways available to order Keying KD (Keyed Different) standard, master keying available to order Other Keying options see page 43 Latch Faceplate 1" W x 21/4" H; Round Corner standard, Square Corner available to order Strike 21/4 RC Full Lip & 11/8 x 23/4 RC Universal standard, Other strikes Available to order. Certified ANSI/BHMA UL/cUL Listed for 90 minute fire doors DIMENSIONS A B C D WIDTH Based on Woodland Lever Door Specs
Cylinder KW-1 Compatible standard, other cylinders/keyways available to order Keying KD (Keyed Different) standard, master keying available to order Other Keying options see page 43 Latch Faceplate 1" W x 2¹/₄" H; Round Corner standard, Square Corner available to order Strike 2¹/₄ RC Full Lip & 1¹/₃ x 2³/₄ RC Universal standard, Other strikes Available to order. Certified ANSI/BHMA UL/cUL Listed for 90 minute fire doors DIMENSIONS A B C D WIDTH Based on Woodland Lever Backset 2^{3}/_{8} " or 2^{3}/_{4} "
cylinders/keyways available to order Keying KD (Keyed Different) standard, master keying available to order Other Keying options see page 43 Latch Faceplate 1" W x 21/4" H; Round Corner standard, Square Corner available to order Strike 21/4 RC Full Lip & 11/8 x 23/4 RC Universal standard, Other strikes Available to order. Certified ANSI/BHMA UL/cUL Listed for 90 minute fire doors DIMENSIONS A B C D WIDTH Based on Woodland Lever Door Thickness 1 3 / 8 " to 1 3 / 4 "
master keying available to order Other Keying options see page 43 Latch Faceplate 1" W x 21/4" H; Round Corner standard, Square Corner available to order Strike 21/4 RC Full Lip & 11/8 x 23/4 RC Universal standard, Other strikes Available to order. Certified ANSI/BHMA UL/cUL Listed for 90 minute fire doors DIMENSIONS A B C D WIDTH Based on Woodland Lever Cylinder cylinders/keyways available to
standard, Square Corner available to order Strike 2¹/₄ RC Full Lip & 1¹/₅ x 2³/₄ RC Universal standard, Other strikes Available to order. Certified ANSI/BHMA UL/cUL Listed for 90 minute fire doors DIMENSIONS A B C D WIDTH Based on Woodland Lever Keying master keying available to order
Universal standard, Other strikes Available to order. Certified ANSI/BHMA UL/cUL Listed for 90 minute fire doors DIMENSIONS A B C D WIDTH Based on Woodland Lever Latch Faceplate 1" W x 2 1 / 4 " H; Round Corner
standard, Square Corner available
ANSI/BHMA UL/cUL Listed for 90 minute fire doors DIMENSIONS A B C D WIDTH Based on Woodland Lever Strike Universal standard, Other strikes
DIMENSIONS A B C D WIDTH Based on Woodland Lever A156.12, Grade 2 BHMA .
Based on Woodland Lever UL/cUL Listed for 90 minute fire doors (9)
Based on Woodland Lever
DIMENSIONS A A B C D WIDTH
PASSAGE Based on Woodland I Lever
PASSAGE

10 8/16"

12 <sup>1</sup>/8"

10 8/16"

Lever

ENTRY

Lever

2^{5/8} "

25/8"

2^{1/2} "

2 1/2"

4"

5 1/2"

4"

2<sup>13</sup>/16"

2<sup>13</sup>/16

Price List

HERITAGE COLLECTION
GRADE 2
LIST PRICE
Interconnected

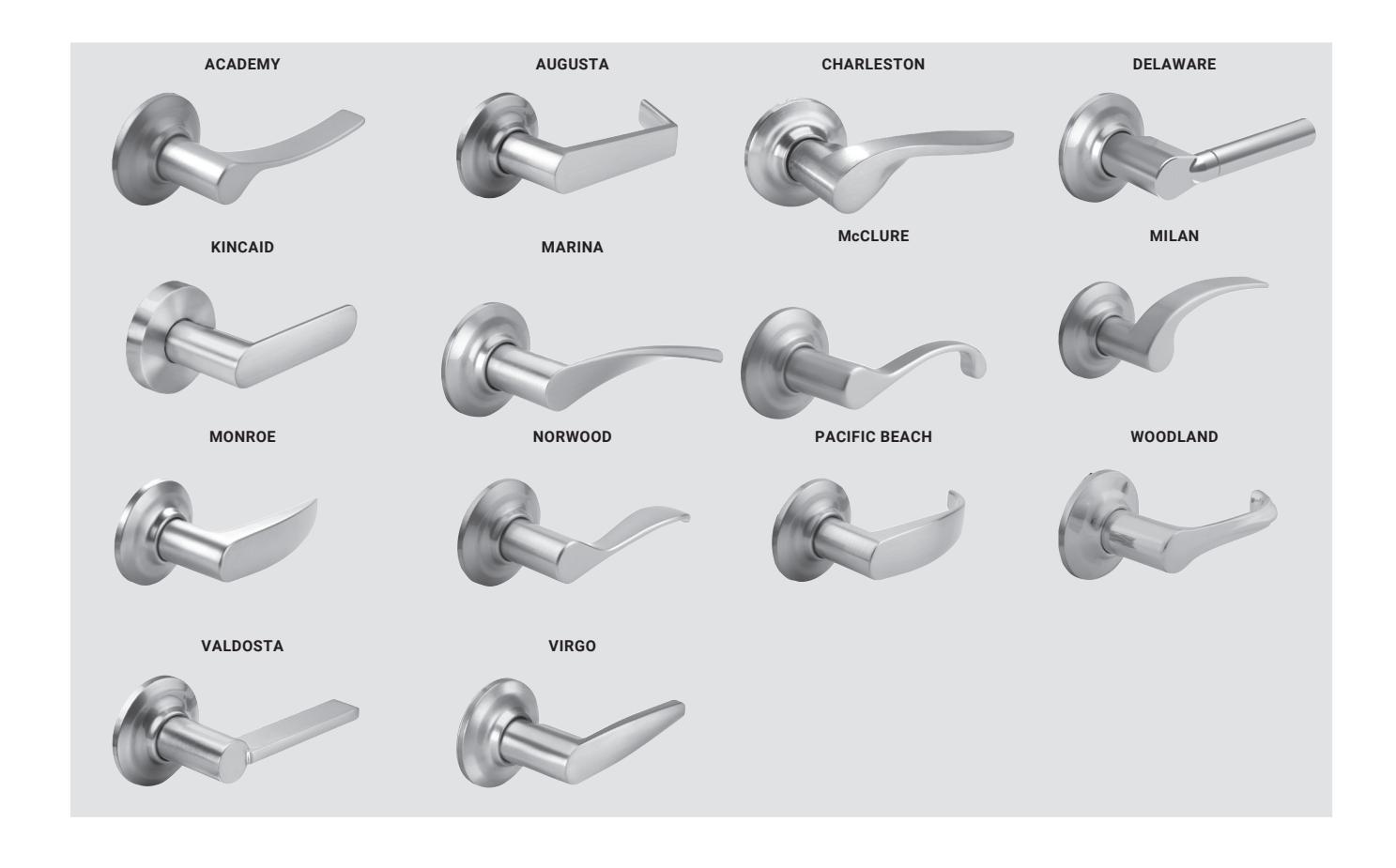

Available lever styles shown below.

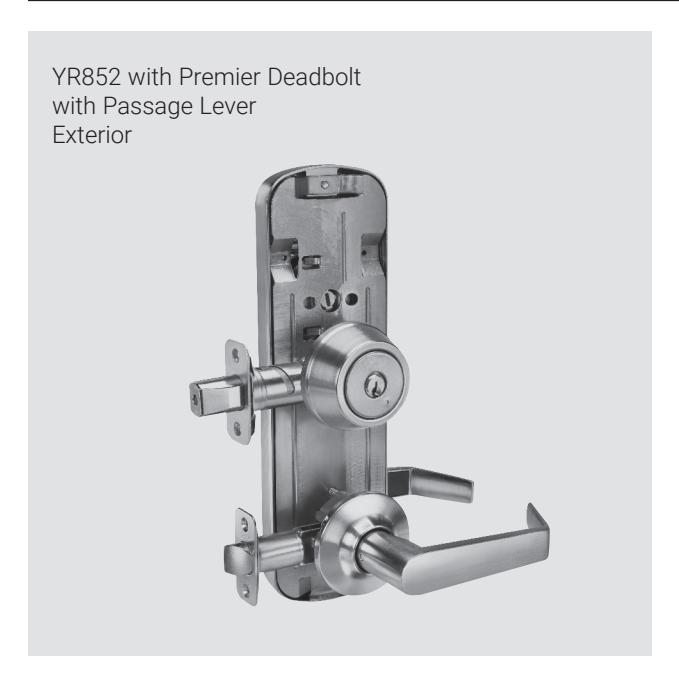

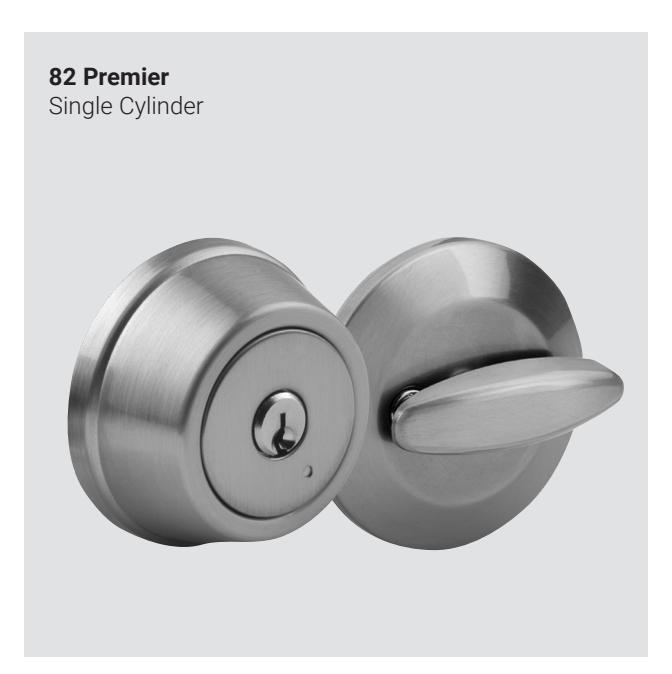

Premier Deadbolt - Standard KW, SC, Para
D200 Deadbolt - GA, SFIC, Others
90 Min UL Rating Standard 		DESIGN FUNCTION NO
BHMA 		605 619 BSP
Black
Suede 		626 10BE
613E 		10BP
YR852 Single Locking All Levers Interconnect 852 260.00 260.00 260.00 260.00 280.80 280.80
YR853 Privacy with Indicator All Levers Interconnect 853 260.00 260.00 260.00 260.00 280.80 280.80

Price List

INTERCONNECTED PASSAGE LEVER PAIRS
Design Part # 626 619
Academy
(Passage Lever Pair) 		YR05D67 37.40 37.40
Augusta
(Passage Lever Pair) 		YR05D66
Delaware
(Passage Lever Pair) 		YR05D6D 37.40 37.40
Kincaid
(Passage Lever Pair) 		YR05D6K
Marina
(Passage Lever Pair) 		YR05D64 37.40 37.40
McClure
(Passage Lever Pair) 		YR05D65

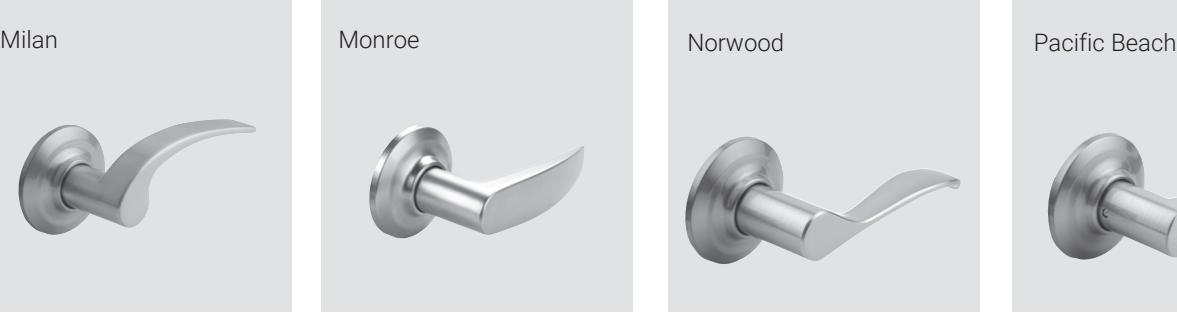

Milan
(Passage Lever Pair) 		YR05D63 37.40 37.40
Monroe
(Passage Lever Pair) 		YR05D6W
Norwood
(Passage Lever Pair) 		YR05D68 37.40 37.40
Pacific Beach
(Passage Lever Pair) 		YR05D62
Valdosta
(Passage Lever Pair) 		YR05D6V 37.40 37.40
Virgo
(Passage Lever Pair) 		YR05D61
Woodland
(Passage Lever Pair) 		YR05D69 37.40 37.40
OPTIONS
Less Cylinder (LC) $0.00
No deductions
SFIC (LC only) $0.00
No deductions 		Lock SFICLC only. A600 or K600 available, should be listed as a separate line item. To order specify SFIC.
LFIC (LC only) No deductions Lock LFICLC only. 1210, 5210 or K800 core available, should be listed as a separate line item. To order specify YR852 x LFIC.
Arrow Keyway $0.00 No adder To order specify "AR" keyway.
Para Keyway $0.00 No adder
GA Keyway (Only) $0.00 No adder Extend leadtime for BK, MK, GMK, etc.
Other Commercial keyways and Cylinder formats $0.00
No deductions
  1. Specify less core when ordering through ASSA ABLOY ACCENTRA™
    Residential
  2. Order cylinder through ASSA ABLOY ACCENTRA™ Commercial.
KW1 cylinder separately 6 pin $11.20 See page 44 for cylinder options and part numbers.
Schlage C separately 6-pin $15.90 See page 44 for cylinder options and part numbers.
ACCENTRA Para separately 6 pin $15.90 See page 44 for cylinder options and part numbers.
1803 Cylinder separately Includes GB - GH Order through ASSA ABLOY ACCENTRA™ Commercial DB = 1803-134S and Lever = 1803-54K
Arrow cylinders separately See Arrow Price Book DB = 692C x 6 pin and Lever = 100YC x 6 pin

Latch Price List

LOCKSET LATCHES
PLAIN SPRING
LATCHES 		BACKSET FRONT WIDTH THROW LATCH
DIAMETER** 		CORNER SPECS MODEL NO LIST PRICE
2-3/8" (60mm) 1" (25mm) 1/2" (13mm) 7/8" (22mm) Radius YR01802*U 13.20
2-3/8" (60mm) 1" (25mm) 1/2" (13mm) 7/8" (22mm) Square YR01804*U 13.20
2-3/4" (70mm) 1" (25mm) 1/2" (13mm) 7/8" (22mm) Radius YR01806*U 13.20
2-3/4" (70mm) 1" (25mm) 1/2" (13mm) 7/8" (22mm) Square YR01808*U 13.20

* Specify finish when ordering.

MECHANICAL DEADBOLT LATCHES
or use with ASSA ABLOY ACCENTRA™ PARA, Kwikset and Schlage C keyway cylinders (82 Deadbolt)
BACKSET FRONT WIDTH THROW CORNER SPECS MODEL NO LIST PRICE
100 Adjustable^ 1" (25mm) 1" (25mm) Square YR01D44*U 15.20
Adjustable ^ 1" (25mm) 1" (25mm) Radius YR01D41*U 15.20
For use with LFIC, SFIC, Ar row and ASSA ABLOY ACCENTRA™ Commercia l GA Keyway cylin ders. (D200 Deadbolt)
BACKSET FRONT WIDTH THROW CORNER SPECS MODEL NO LIST PRICE
2-3/8" Fixed 1" (25mm) 1" (25mm) Square D38* **
00 00 2-3/8" Fixed 1" (25mm) 1" (25mm) Radius D38R* **
2-3/4" Fixed 1" (25mm) 1" (25mm) Square D34* **
20 2-3/4" Fixed 1" (25mm) 1" (25mm) Radius D34R* **

* Specify finish when ordering.

FIXED CORE CYLINDERS
LOCK TYPE KEYWAY DESCRIPTION MODE L NUMBER NUMBER LIST PRICE
LUCK TYPE KETWAT DESCRIPTION LOCKSET DEADBOLT OF PINS LIST PRICE
Kwikset® Standard cylinder.
Available 1-bitted, KA, KD (std), MK, BK 		YR06D013 (605)
YR06D016 (626) 		YR06D103ICN (605)
YR06D106ICN (626) 		6 10.60
ASSA ABLOY
ACCENTRA™
PARA 		Optional cylinder.
Available 0-bitted, KD, KA, MK, BK 		YR06Y303 (605)
YR06Y306 (626 		YR06Y413ICN (605)
YR06Y416ICN (626) 		6 15.20
Mechanical ACCENTRA GA Optional cylinder.
Available 0-bitted, KD, KA, MK, CMK
extend leadtime for BK, MK, GMK, etc. 		1803-54K 1803-134S 6 **
Arrow AR Optional cylinder.
Available KA, KD 		100YC 692C 6 **
Schlage® C Optional cylinder.
Available 0-bitted, KD, KA, MK, BK 		YR068D01 (605)
YR068D05 (626) 		YR068D02ICN (605)
YR068D06ICN (626) 		6 15.20

605 finish cylinders used with 605, 613E and 10BP finish locks. 626 finish cylinders used with 619, 626, BSP finish locks. Specify finish and keying when ordering.

Specify finish and keying when ordering. **Note: Other ASSA ABLOY ACCENTRA™ Commercial keyways and cylinder mechanisms available separately. Contact customer service for availability. Specify finish and keying when ordering.

INTERCHANGEABLE CORE

Small Format - Small format interchangeable core is available. To order, specify "x SFIC-LC" for cylinder. i.e. AU x YR852 x SFIC-LC x 4" x 626. All units will be provided less core. Model number

A600 or K600 cores can be ordered separately through ASSA ABLOY ACCENTRA™ Commercial. Large Format – ASSA ABLOY ACCENTRA™ Commercial large format interchangeable core is available for passage function. To order, specify "x LFIC-LC" for cylinder. i.e. AU x YR852 x LFIC-LC x 4"x 626. All units will be provided less 6-pin core only. LFIC cores can be ordered separately through ASSA ABLOY ACCENTRA™ Commercial

Navis Paddle

The Navis Paddle redefines the landscape of residential mechanical hardware with push to open products designed to fit seamlessly into your home. The Navis Paddle makes door opening versatile and convenient for any member of the household. A door can be easily pushed open with a hip or elbow when carrying an armful of groceries or a load of laundry its two-way push/pull operation makes it ideal for laundry rooms, garage entries, basements, bedrooms and more. The ADA-compliant handle is also accessible for children, the elderly and the disabled.

  • Hands full? No problem. Just push or pull! The Navis Paddle redefines the way we open and close doors today. Instead of rotating, just push or pull - with the palm of your hand, elbow or hip for faster, easier access.
  • Two-way push/pull operation makes Navis ideal for laundry rooms, garage entries, basements, bedrooms and more.
  • Fits standard doors. Works with both inswing and outswing doors, and can be handed for left or right swing.

Navis Paddle

STYLES
STYLE NO. DESCRIPTION
11 PASSAGE: Latchbolt is operated by either lever at all times. (nonhanded)
21 PRIVACY: Latchbolt is operated by either paddle except when inside is locked by push button. Push button is released by pushing paddle on inside or with tool on outside.
٥ 81 DUMMY: For doors where only pull is required.
PRODUCT SPECIFICATIONS
Face Bore 21/8" Face Bore
Edge Bore 1"
Latch Available in 23/8" or 23/4"
Door Thickness 1^{3}/_{8} " to 1^{3}/_{4} "
Strike 2 1 / 4 " Full Lip
RC (Round Corner)

Standard Case Quantities - Enter the exact number of individual units required. As an example: If there are 12 units in a case and you require 1 case, enter 12 in the "quantity" space. See below for an example of standard case quantities.

STANDARD CASE QUANTITIES (NAVIS PADDLE) Box Pack(SP)

Levers 12

DESIGN FUNCTION NO 605 625 626 613E US10BP 609 619 620 GM BSP
Gun Metal Black
Suede
Navis Dummy 81 49.90 N/A 49.90 N/A 49.90 N/A 49.90 N/A N/A 49.90
(NV) Passage 11 91.50 N/A 91.50 N/A 91.50 N/A 91.50 N/A N/A 91.50
Privacy 21 96.70 N/A 96.70 N/A 96.70 N/A 96.70 N/A N/A 96.70
NAVIS PADDLE COMPONENTS
Latch Face Plate RC 03 YR01P213 3.10 Privacy Pin BSP YR08P00S 3.10
Latch Face Plate RC 15 YR01P21N 3.10 Privacy Pin 15 YR08P00N 3.10
Latch Face Plate RC 10BP/BSP YR01P21B 3.10 Privacy Pin 03 YR08P003 3.10
Latch Passage 2-3/8 YR01P106 14.60 Privacy Pin 10BP YR08P00K 3.10
Latch Passage 2-3/4 YR01P336 14.60 Screw Pack 10BP/BSP YR07P0B 4.20
Latch Privacy 2-3/8 YR01P306 14.60 Screw Pack 15 YR07P0N 4.20
Latch Privacy 2-3/4 YR01P316 14.60 Screw Pack 03 YR07P03 4.20

Heritage Collection Grade 2 Knobs

The Heritage Collection Grade 2 continues a legacy of distinctive design, high manufacturing standards and demanding performance. The Heritage Collection Grade 2 leverages years of engineering refinement with artful execution to offer a series of ANSI Grade 2 superior light commercial quality locks that will beautifully serve any home for generations. They offer superior functionality such as pushbutton locking and removable knobs for simple re-keying.

Heritage Collection Grade 2 Knobs

FUNCTIONS
FUNCTION NO. DESCRIPTION
80 DUMMY: For doors where only pull is required.
10 PASSAGE: Latchbolt is operated by either knob at all times.
60 ONE SIDED W/PLATE: Latchbolt is operated by knob on one side only.
20 PRIVACY: Latchbolt is operated by either knob except when inside knob is locked by push button. Push button is released by special emergency key on outside or by turning inside knob.
26 BATHROOM: Same function as 20 privacy with US26 finish on interior knob.
70 ENTRY: Guarded latchbolt operated from outside by key; inside by knob. Push button locks outside knob. Outside knob unlocks by key or by turning inside knob.
•3 75 CLASSROOM: Guarded latchbolt operated by either knob except when outside knob is locked by out side key. Inside knob is always free.
78 STOREROOM: Guarded latchbolt operated from outside knob by key; inside by knob. Outside knob fixed until cylinder is unlocked by key. Key captured until cylinder is locked. Inside knob is always free.
PRODUCT SPECIFICATIONS
Door Specs 21/8" Face Bore,
1" Edge Bore,
23/8" or 23/4" Backset
Latch Face 1" x 21/4"
RC (Round corner; Square corner
optional)
Latch Adjustable 23/8" to 23/4" RC (Round Corner)
Door Thickness 1 3 / 8 " to 1 3 / 4 "
Cylinder 6 Pin KW-1 Standard (SC-1 Optional)
Keying KA3 (Keyed Alike)
Faceplate 1" W x 2 1 / 4 " H
RC (Round Corner)
Strike 2 1 / 4 " Full Lip
RC (Round Corner)
Certified
ANSI/BHMA 		A156.39 Grade A BHMA .

Standard Case Quantities - Enter the exact number of individual units required. As an example: If there are 24 units in a case and you require 1 case, enter 24 in the "quantity" space. See below for an example of standard case quantities.

STANDARD CASE QUANTITIES (Heritage Collection Grade 2)

Box Pack(SP)
Dummy 12
Knobs 24
Levers 12
Deadbolts 12
Combo Sets 12

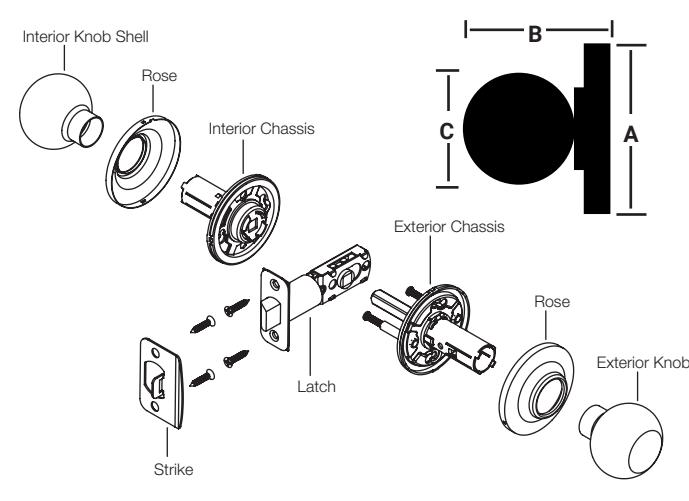

DIMENSIONS Α В С
Bridgeport 2 9 /16" 2 9 /16" 2"
Oxford 29/16" 21/4" 21/8"
Cambridge 2 9 /16" 21/4" 2 5 /64"
Dartmouth 2 9 / 16 " 23/8" 21/2"

Price List

Heritage Collection Grade 2

Oval 2-9/16" W x 4-7/32" H Center Hole: Knob 15/16" – Lever 1-1/32"

Traditional 2-9/16" W x 4-7/32" H Center Hole: Knob 15/16" – Lever 1-1/32"

Modern 2-9/16" W x 3" H Center Hole: 1-1/32"

Flat Square 2-9/16" W x 2-9/16" H Center Hole: 1-1/32"

Pair with all Heritage Collection Grade 2 knob styles.

Rosette
Availability 		605 10BP 619 BSP 625 626 List Upcharge
Full
Lockset 		Dummy
Oval • • • 20.80 10.40
Traditional • • • 20.80 10.40
Modern • • • 16.60 8.30
Flat Square • • • • • 16.60 8.30

Note: Decorative rosettes ship separate as kit.

LIST PRICE Knobs

Featuring Push Button Locking with Free Interiors

DESIGN FUNCTION NO 605 626 609 619 GM BSP 625 620 613E 10BP
BHMA Gun Metal Black Suede
Bridgeport Dummy 80 15.10 15.10 N/A 15.10 N/A N/A 16.10 N/A N/A N/A
(BP) One Sided w/plate 60 38.10 38.10 N/A 38.10 N/A N/A 40.10 N/A N/A N/A
Passage 10 38.10 38.10 N/A 38.10 N/A N/A 40.10 N/A N/A N/A
Privacy 20 43.70 43.70 N/A 43.70 N/A N/A 45.80 N/A N/A N/A
Bath* 26 46.80 46.80 N/A 46.80 N/A N/A 48.90 N/A N/A N/A
Entry 70 73.00 73.00 N/A 73.00 N/A N/A 75.10 N/A N/A N/A
Classroom 75 73.00 73.00 N/A 73.00 N/A N/A 75.10 N/A N/A N/A
Storeroom 78 73.00 73.00 N/A 73.00 N/A N/A 75.10 N/A N/A N/A
Cambridge Dummy 80 15.10 15.10 15.10 15.10 15.10 15.10 16.10 16.10 16.10 16.10
(CB) One Sided w/plate 60 38.10 38.10 38.10 38.10 38.10 38.10 40.10 40.10 40.10 40.10
Passage 10 38.10 38.10 38.10 38.10 38.10 38.10 40.10 40.10 40.10 40.10
Privacy 20 43.70 43.70 43.70 43.70 43.70 43.70 45.80 45.80 45.80 45.80
Bath* 26 46.80 46.80 46.80 46.80 46.80 46.80 N/A 48.90 48.90 48.90
Entry 70 73.00 73.00 73.00 73.00 73.00 73.00 75.10 75.10 75.10 75.10
Classroom 75 73.00 73.00 73.00 73.00 73.00 73.00 75.10 75.10 75.10 75.10
Storeroom 78 73.00 73.00 73.00 73.00 73.00 73.00 75.10 75.10 75.10 75.10
Dartmouth Dummy 80 26.00 N/A N/A 26.00 26.00 26.00 N/A N/A 27.00 27.00
(DM) One Sided w/plate 60 59.40 N/A N/A 59.40 59.40 59.40 N/A N/A 61.50 61.50
Passage 10 59.40 N/A N/A 59.40 59.40 59.40 N/A N/A 61.50 61.50
Privacy 20 64.10 N/A N/A 64.10 64.10 64.10 N/A N/A 66.10 66.10
Entry 70 86.10 N/A N/A 86.10 86.10 86.10 N/A N/A 88.20 88.20
Classroom 75 86.10 N/A N/A 86.10 86.10 86.10 N/A N/A 88.20 88.20
Storeroom 78 86.10 N/A N/A 86.10 86.10 86.10 N/A N/A 88.20 88.20
Oxford Dummy 80 15.10 N/A 15.10 15.10 N/A N/A N/A N/A N/A 16.10
(XF) One Sided w/plate 60 38.10 N/A 38.10 38.10 N/A N/A N/A N/A N/A 40.10
Passage 10 38.10 N/A 38.10 38.10 N/A N/A N/A N/A N/A 40.10
Privacy 20 43.70 N/A 43.70 43.70 N/A N/A N/A N/A N/A 45.80
Entry 70 73.00 N/A 73.00 73.00 N/A N/A N/A N/A N/A 75.10
Classroom 75 73.00 N/A 73.00 73.00 N/A N/A N/A N/A N/A 75.10
Storeroom 78 73.00 N/A 73.00 73.00 N/A N/A N/A N/A N/A 75.10
AVAILABLE OPTIONS LIST PRICE
UPCHARGE
Rosettes - Traditional, Oval Full Lockset 20.80
Rosettes - Traditional, Oval Dummy 10.40
Rosettes - Flat Square & Modern Full Lockset 16.60
Rosettes - Flat Square & Modern Dummy 8.30
Accessory Stemmed Dummy Plate 073003 4.70
(allows 2 dummies to be installed on a through bored door)
UL 90 Minute listing 6.20
UL 90 Minute listing Combo Sets 12.50
AVAILABLE OPTIONS LIST PRICE
UPCHARGE
Page 18 Heritage Collection Grade 2 Series
Latches 		NC when specified
Page 42 T-Strikes 1.50
Page 42 ANSI 47
/8" Strike 		7.10
Page 42 Other Lockset Strikes NC when specified
Page 43 Additional keying options
Extension Kit 2 to 2 1/4" Heritage Collection
Grade 2 Knobs/Levers (Passage) # YR076100

Heritage Collection Grade 2

Heritage Collection Grade 2 Levers

Heritage Collection Grade 2 levers offer a range of designs with sculptured roses and delicately crafted curves. The "non-handed" design and strength of the interior sub-assemblies allow for quick and easy installation and years of secure operation. All products in this series are ANSI Grade 2 superior light commercial quality.

FUNCTIONS
FUNCTION NO. DESCRIPTION
4 81 DUMMY: For doors where only pull is required. (handing required)
11 PASSAGE: Latchbolt is operated by either lever at all times. (non-handed)
61 ONE SIDED W/PLATE: Latchbolt is operated by lever on one side only. (handing required)
21 PRIVACY: Latchbolt is operated by either lever except when inside lever is locked by push button. Push button is released by coin release slot on outside or by turning inside lever. (non-handed)
22 BATHROOM: Same function as
21 privacy with US26 finish on interior
lever. (handing required)
71 ENTRY (LEVER/LEVER): Guarded latchbolt operated from outside by key; inside by lever. Push button locks outside lever. Outside lever unlocks by key or by turning inside lever. (nonhanded)
•=== 73 ENTRY (LEVER/LEVER): Guarded latchbolt operated from outside lever by key. Inside by lever. Turn button locks outside lever. Outside lever unlocks by key or turning inside turn button. (non-handed)
74LC ENTRY (Lever/Lever): Guarded latchbolt with SFIC cylinder operated from outside lever by key. Inside by lever. Turn button locks outside lever. Outside lever unlocks by key or turning inside turn button. (non-handed)
• — [] 76 CLASSROOM: Guarded latchbolt
operated by either lever except when
outside lever is locked by outside key.
Inside lever is always free. (handing
required)
79 STOREROOM: ADA Guarded latchbolt
operated from outside lever by key;
inside by lever. Outside lever fixed
until cylinder is unlocked by key. Key
captured until cylinder is locked. Inside
lever is always free. (handing required)
Standard Case Quantities - Enter the exact number of individual units
required. As an example: If there are 24 units in a case and you require 1
case, enter 24 in the "quantity" space. See below for an example of standard
case quantities.
STANDARD CASE QUANTITIES (Heritage Collection Grade 2) BOX PACK(SP)
Dummy 12
Knobs 24
Levers 12
Deadbolts 12
Combo Sets 12
PRO DUCT SPECIFICATIONS
Door Specs 2 1 / 8 " Face Bore,
1" Edge Bore,
2 3 / 8 " or 2 3 / 4 " Backset
Latch Face 1" x 2 1 / 4 "
RC (Round corner; Square corner
optional)
Latch Adjustable 2^{3}/_{8} " or 2^{3}/_{4} " RC (Round Corner)
Door Thickness 1 3 / 8 " to 1 3 / 4 "
Cylinder 6 Pin KW-1 Standard (SC-1 Optional)
Keying KA3 (Keyed Alike)
Faceplate 1" W x 2 1 / 4 " H
RC (Round Corner)
Strike 2 1 / 4 " Full Lip
RC (Round Corner)
Certified
ANSI/BHMA 		A156.2 Series 4000 Grade 2
A156.39 Grade A

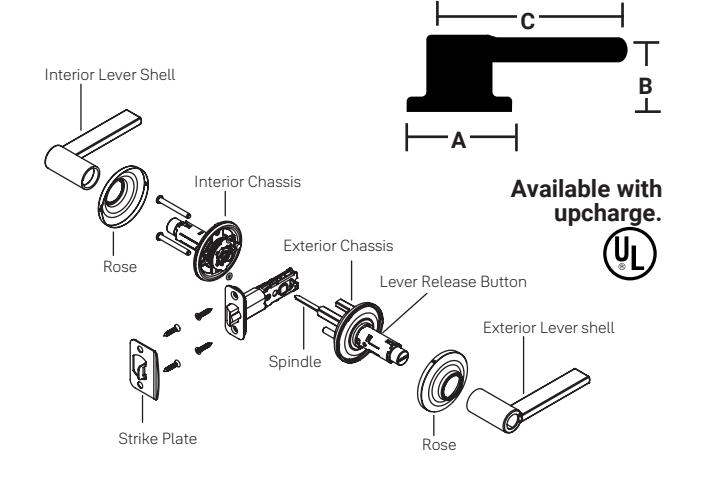

DIMENSIONS Α В С
Academy 2 9/16" 2 7/16" 4 19/64"
Augusta 2 9/16" 2 1/2" 4 3/4"
Charleston 2 9/16" 2 1/2" 5 3/8"
Delaware 2 9/16" 2 3/4" 4 5/8"
Kincaid 2 9/16" 2 7/16" 4 1/2"
Kincaid Black Insert 2 9/16" 2 7/16" 4 1/2"
Marina 2 9/16" 3 5/16" 4 7/8"
McClure 2 9/16" 2 7/16" 4 3/16"
Milan 2 9/16" 2 7/16" 4 1/16"
Monroe 2 9/16" 2 7/16" 4 5/8"
Norwood 2 9/16" 2 1/2" 4 7/32"
Pacific Beach 2 9/16" 2 7/16" 4 3/4"
Valdosta 2 9/16" 2 1/2" 4 5/8"
Virgo 2 9/16" 2 9/16" 4 1/2"

Decorative Rosettes

Oval 2-9/16" W x 4-7/32" H Center Hole: Knob 15/16" – Lever 1-1/32" Traditional 2-9/16" W x 4-7/32" H Center Hole: Knob 15/16" – Lever 1-1/32" Modern 2-9/16" W x 3" H

Center Hole: 1-1/32" Flat Round 2-9/16" Dia Center Hole: 1-1/32"

Flat Square 2-9/16" W x 2-9/16" H Center Hole: 1-1/32"

Pair with all Heritage Collection Grade 2 lever styles.

Rosette
Availability 		605 10BP 619 BSP 625 626 List Upcharge
Full
Lockset 		Dummy
Oval • • • 20.80 10.40
Traditional • • • 20.80 10.40
Modern • • • 16.60 8.30
Flat Round • • • • 10.40 5.20
Flat Square • • • • • 16.60 8.30

Note: Decorative rosettes ship separate as kit.

LIST PRICE Featuring Push Button Locking with Free Interiors

DESIGN FUNCTION NO 605 625 626 609 619 620 GM BSP 613E US10BP
BHMA Gun Black
Metal Suede
Academy Dummy 81 N/A N/A 28.10 28.10 28.10 N/A N/A N/A N/A N/A
(AC) Passage 11 N/A N/A 66.00 66.00 66.00 N/A N/A N/A N/A N/A
One Sided w/plate 61 N/A N/A 66.00 66.00 66.00 N/A N/A N/A N/A N/A
Privacy** 21 N/A N/A 70.40 70.40 70.40 N/A N/A N/A N/A N/A
Entry (Lever/Lever)** 71 N/A N/A 109.20 109.20 109.20 N/A N/A N/A N/A N/A
Entry (T - Turn) 73 N/A N/A 109.20 109.20 109.20 N/A N/A N/A N/A N/A
Classroom 76 N/A N/A 109.20 109.20 109.20 N/A N/A N/A N/A N/A
Storeroom 79 N/A N/A 109.20 109.20 109.20 N/A N/A N/A N/A N/A
Augusta Dummy 81 29.10 N/A 29.10 29.10 29.10 N/A N/A N/A 30.20 30.20
(AU) Passage 11 69.70 N/A 69.70 69.70 69.70 N/A N/A N/A 71.80 71.80
One Sided w/plate 61 69.70 N/A 69.70 69.70 69.70 N/A N/A N/A 71.80 71.80
Privacy** 21 78.00 N/A 78.00 78.00 78.00 N/A N/A N/A 80.10 80.10
Entry (Lever/Lever)** 71 117.50 N/A 117.50 117.50 117.50 N/A N/A N/A 119.60 119.60
Entry (T - Turn) 73 117.50 N/A 117.50 117.50 117.50 N/A N/A N/A 119.60 119.60
Entry SFIC 74LC 117.50 N/A 117.50 117.50 117.50 N/A N/A N/A 119.60 119.60
Classroom 76 117.50 N/A 117.50 117.50 117.50 N/A N/A N/A 119.60 119.60
Storeroom 79 117.50 N/A 117.50 117.50 117.50 N/A N/A N/A 119.60 119.60
Charleston
(CH) 		Dummy 81 N/A N/A 29.10 N/A 29.10 N/A N/A 29.10 30.20 N/A
Passage 11 N/A N/A 69.70 N/A 69.70 N/A N/A 69.70 71.80 N/A
One Sided w/plate 61 N/A N/A 69.70 N/A 69.70 N/A N/A 69.70 71.80 N/A
Privacy** 21 N/A N/A 78.00 N/A 78.00 N/A N/A 78.00 80.10 N/A
Entry (Lever/Lever)** 71 N/A N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Entry (T - Turn) 73 N/A N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Classroom 76 N/A N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Storeroom 79 N/A N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Delaware Dummy 81 N/A 29.10 29.10 N/A 29.10 N/A N/A 29.10 30.20 31.20
(DW) Passage 11 N/A 69.70 69.70 N/A 69.70 N/A N/A 69.70 71.80 71.80
One Sided w/plate 61 N/A 69.70 69.70 N/A 69.70 N/A N/A 69.70 71.80 71.80
Privacy** 21 N/A 78.00 78.00 N/A 78.00 N/A N/A 78.00 80.10 80.10
Bath* 22 N/A 81.10 81.10 N/A 81.10 N/A N/A 81.10 83.20 83.20
Entry (Lever/Lever)** 71 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Entry (T - Turn) 73 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Classroom 76 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Storeroom 79 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Kincaid (KC) Dummy 81 34.00 N/A 34.00 N/A 34.00 N/A N/A 34.00 N/A N/A
Passage 11 78.00 N/A 78.00 N/A 78.00 N/A N/A 78.00 N/A N/A
One Sided w/plate 61 78.00 N/A 78.00 N/A 78.00 N/A N/A 78.00 N/A N/A
Privacy** 21 82.20 N/A 82.20 N/A 82.20 N/A N/A 82.20 N/A N/A
Entry (Lever/Lever)** 71 122.70 N/A 122.70 N/A 122.70 N/A N/A 122.70 N/A N/A
Entry (T - Turn) 73 122.70 N/A 122.70 N/A 122.70 N/A N/A 122.70 N/A N/A
Classroom 76 122.70 N/A 122.70 N/A 122.70 N/A N/A 122.70 N/A N/A
Storeroom 79 122.70 N/A 122.70 N/A 122.70 N/A N/A 122.70 N/A N/A

* Bath Function has 625 Polished Chrome Interior

** ADA Push Button Locking

LIST PRICE
Featuring Push Button Locking with Free Interiors
DESIGN FUNCTION NO US3 US26 US26D US5 US15 US15A GM BSP 10BE US10BP
BHMA 605 625 626 609 619 620 Gun Black 613E
Metal Suede
Kincaid Dummy 81 38.50 N/A N/A N/A 38.50 N/A N/A N/A N/A 39.50
Black Insert Passage 11 99.40 N/A N/A N/A 99.40 N/A N/A N/A N/A 101.50
(KCB) Privacy** 21 106.10 N/A N/A N/A 106.10 N/A N/A N/A N/A 108.20
Entry (Lever/Lever)** 71 133.10 N/A N/A N/A 133.10 N/A N/A N/A N/A 135.20
Classroom 76 133.10 N/A N/A N/A 133.10 N/A N/A N/A N/A 135.20
Storeroom 79 133.10 N/A N/A N/A 133.10 N/A N/A N/A N/A 135.20
Marina Dummy 81 N/A 29.10 29.10 N/A 29.10 N/A 29.10 N/A 30.20 30.20
(MA) Passage 11 N/A 69.70 69.70 N/A 69.70 N/A 69.70 N/A 71.80 71.80
One Sided w/plate 61 N/A 69.70 69.70 N/A 69.70 N/A 69.70 N/A 71.80 71.80
Privacy* 21 N/A 78.00 78.00 N/A 78.00 N/A 78.00 N/A 80.10 80.10
Bath* 22 N/A 81.10 81.10 N/A 81.10 N/A 81.10 N/A 83.20 83.20
Entry (Lever/Lever)** 71 N/A 117.50 117.50 N/A 117.50 N/A 117.50 N/A 119.60 119.60
Entry (T - Turn) 73 N/A 117.50 117.50 N/A 117.50 N/A 117.50 N/A 119.60 119.60
Classroom 76 N/A 117.50 117.50 N/A 117.50 N/A 117.50 N/A 119.60 119.60
Storeroom 79 N/A 117.50 117.50 N/A 117.50 N/A 113.00 N/A 115.00 115.00
McClure Dummy 81 28.10 N/A 28.10 N/A 28.10 28.10 N/A N/A 29.10 29.10
(MC) Passage 11 66.00 N/A 66.00 N/A 66.00 66.00 N/A N/A 68.10 68.10
One Sided w/plate 61 66.00 N/A 66.00 N/A 66.00 66.00 N/A N/A 68.10 68.10
Privacy** 21 70.40 N/A 70.40 N/A 70.40 70.40 N/A N/A 72.50 72.50
Entry (Lever/Lever)** 71 109.20 N/A 109.20 N/A 109.20 109.20 N/A N/A 111.30 111.30
Entry (T - Turn) 73 109.20 N/A 109.20 N/A 109.20 109.20 N/A N/A 111.30 111.30
Classroom 76 109.20 N/A 109.20 N/A 109.20 109.20 N/A N/A 111.30 111.30
Storeroom 79 109.20 N/A 109.20 N/A 109.20 109.20 N/A N/A 111.30 111.30
Milan Dummy 81 28.10 28.10 28.10 N/A 28.10 N/A N/A N/A N/A N/A
(MN) Passage 11 66.00 66.00 66.00 N/A 66.00 N/A N/A N/A N/A N/A
One Sided w/plate 61 66.00 66.00 66.00 N/A 66.00 N/A N/A N/A N/A N/A
Privacy** 21 70.40 70.40 70.40 N/A 70.40 N/A N/A N/A N/A N/A
Bath* 22 73.50 73.50 73.50 N/A 73.50 N/A N/A N/A N/A N/A
Entry (Lever/Lever)** 71 109.20 109.20 109.20 N/A 109.20 N/A N/A N/A N/A N/A
Entry (T - Turn) 73 109.20 109.20 109.20 N/A 109.20 N/A N/A N/A N/A N/A
Classroom 76 109.20 109.20 109.20 N/A 109.20 N/A N/A N/A N/A N/A
Storeroom 79 109.20 109.20 109.20 N/A 109.20 N/A N/A N/A N/A N/A
Monroe Dummy 81 29.10 N/A 29.10 N/A 29.10 N/A N/A 29.10 30.20 N/A
(MO) Passage 11 69.70 N/A 69.70 N/A 69.70 N/A N/A 69.70 71.80 N/A
One Sided w/plate 61 69.70 N/A 69.70 N/A 69.70 N/A N/A 69.70 71.80 N/A
Privacy** 21 78.00 N/A 78.00 N/A 78.00 N/A N/A 78.00 80.10 N/A
Entry (Lever/Lever)** 71 117.50 N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Entry (T - Turn) 73 117.50 N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Classroom 76 117.50 N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Storeroom 79 117.50 N/A 117.50 N/A 117.50 N/A N/A 117.50 119.60 N/A
Norwood
(NW) 		Dummy
Passage 		81
11 		28.10
66.00 		28.10
66.00 		28.10
66.00 		28.10
66.00 		28.10
66.00 		28.10
66.00 		28.10
66.00 		28.10
66.00 		29.10
68.10 		29.10
68.10
One Sided w/plate 61 66.00 66.00 66.00 66.00 66.00 66.00 66.00 66.00 68.10 68.10
Privacy** 21 70.40 70.40 70.40 70.40 70.40 70.40 70.40 70.40 72.50 72.50
Bath* 22 73.50 73.50 73.50 73.50 73.50 73.50 73.50 73.50 75.60 75.60
Entry (Lever/Lever)**
Entry (T - Turn) 		71
73 		109.20
109.20 		109.20
109.20 		109.20
109.20 		109.20
109.20 		109.20
109.20 		109.20
109.20 		109.20
109.20 		109.20
109.20 		111.30
111.30 		111.30
111.30
Classroom 76 109.20 109.20 109.20 109.20 109.20 109.20 109.20 109.20 111.30 111.30
Storeroom 79 109.20 109.20 109.20 109.20 109.20 109.20 109.20 109.20 111.30 111.30
Pacific Dummy 81 29.10 29.10 29.10 29.10 29.10 N/A N/A N/A 30.20 N/A
Beach Passage 11 69.70 69.70 69.70 69.70 69.70 N/A N/A N/A 71.80 N/A
(PB) One Sided w/plate 61 69.70 69.70 69.70 69.70 69.70 N/A N/A N/A 71.80 N/A
Privacy** 21 78.00 78.00 78.00 78.00 78.00 N/A N/A N/A 80.10 N/A
Bath* 22 81.10 81.10 81.10 81.10 81.10 N/A N/A N/A 83.20 N/A
Entry (Lever/Lever)** 71 117.50 117.50 117.50 117.50 117.50 N/A N/A N/A 119.60 N/A
Entry (T - Turn) 73 117.50 117.50 117.50 117.50 117.50 N/A N/A N/A 119.60 N/A
Classroom 76 117.50 117.50 117.50 117.50 117.50 N/A N/A N/A 119.60 N/A
Storeroom 79 117.50 117.50 117.50 117.50 117.50 N/A N/A N/A 119.60 N/A

* Bath Function has 625 Polished Chrome Interior

** ADA Push Button Locking

LIST PRICE
Featuring Push Button Locking with Free Interiors
DESIGN FUNCTION NO 605 625 626 609 619 620 GM BSP 613E US10BP
BHMA Gun Black
Metal Suede
Valdosta Dummy 81 N/A 29.10 29.10 N/A 29.10 N/A N/A 29.10 30.20 30.20
(VL) Passage 11 N/A 69.70 69.70 N/A 69.70 N/A N/A 69.70 71.80 71.80
One Sided w/plate 61 N/A 69.70 69.70 N/A 69.70 N/A N/A 69.70 71.80 71.80
Privacy** 21 N/A 78.00 78.00 N/A 78.00 N/A N/A 78.00 80.10 80.10
Bath* 22 N/A 81.10 81.10 N/A 81.10 N/A N/A 81.10 83.20 83.20
Entry (Lever/Lever)** 71 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Entry (T - Turn) 73 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Classroom 76 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Storeroom 79 N/A 117.50 117.50 N/A 117.50 N/A N/A 117.50 119.60 119.60
Valdosta Dummy 81 N/A 37.40 37.40 N/A 37.40 N/A N/A 37.40 N/A N/A
SQR Rose Passage 11 N/A 86.30 86.30 N/A 86.30 N/A N/A 86.30 N/A N/A
(VLSQ) One Sided w/plate 61 N/A 86.30 86.30 N/A 86.30 N/A N/A 86.30 N/A N/A
Privacy** 21 N/A 94.60 94.60 N/A 94.60 N/A N/A 94.60 N/A N/A
Bath* 22 N/A 97.80 97.80 N/A 97.80 N/A N/A 97.80 N/A N/A
Entry (Lever/Lever)** 71 N/A 134.20 134.20 N/A 134.20 N/A N/A 134.20 N/A N/A
Entry (T - Turn) 73 N/A 134.20 134.20 N/A 134.20 N/A N/A 134.20 N/A N/A
Classroom 76 N/A 134.20 134.20 N/A 134.20 N/A N/A 134.20 N/A N/A
Storeroom 79 N/A 134.20 134.20 N/A 134.20 N/A N/A 134.20 N/A N/A
Virgo Dummy 81 28.10 28.10 28.10 N/A 28.10 28.10 N/A 28.10 29.10 29.10
(VG) Passage 11 66.00 66.00 66.00 N/A 66.00 66.00 N/A 66.00 68.10 68.10
One Sided w/plate 61 66.00 66.00 66.00 N/A 66.00 66.00 N/A 66.00 68.10 68.10
Privacy** 21 70.40 70.40 70.40 N/A 70.40 70.40 N/A 70.40 72.50 72.50
Bath* 22 N/A N/A N/A N/A N/A 73.50 N/A N/A 75.60 75.60
Entry (Lever/Lever)** 71 109.20 109.20 109.20 N/A 109.20 109.20 N/A 109.20 111.30 111.30
Entry (T - Turn) 73 109.20 109.20 109.20 N/A 109.20 109.20 N/A 109.20 111.30 111.30
Classroom 76 109.20 109.20 109.20 N/A 109.20 109.20 N/A 109.20 111.30 111.30
Storeroom 79 109.20 109.20 109.20 N/A 109.20 109.20 N/A 109.20 111.30 111.30

* Bath Function has 625 Polished Chrome Interior

** ADA Push button locking

AVAILABLE OPTIONS LIST PRICE
UPCHARGE
Rosettes - Traditional, Oval Full Lockset 20.80
Rosettes - Traditional, Oval Dummy 10.40
Rosettes - Flat Round Full Lockset 10.40
Rosettes - Flat Round Dummy 5.20
Rosettes - Flat Square & Modern Full Lockset 16.60
Rosettes - Flat Square & Modern Dummy 8.30
Accessory Stemmed Dummy Plate YR073003 6.20
(allows a Dummy with Stems to be created from 2 Standard Dummy Trims)
UL 90 Minute listing 6.20

HOW TO DETERMINE HANDING OF DOORS

UL 90 Minute listing Combo Sets 12.50

  • The handing of a door is always determined by facing the exterior of a door.
  • If the hinge is on the left side of the door, the door is left handed (LH).
  • If the hinge is on the right side of the door, the door is right handed (RH). • To order a handed product, specify LH or RH. Not all products are handed;
  • only specify handing when required.

Storeroom, Classroom, Dummies, and Interior Packs require handing

AVAILABLE OPTIONS LIST PRICE
UPCHARGE
Page 27 Heritage Collection Grade 2 Series Latches NC when specified
Page 42 T-Strikes 1.50
Page 42 ANSI 47
⁄8" Strike 		7.10
Page 42 Other Lockset Strikes NC when specified
Page 43 Additional keying options
Page 43 Para cylinder options 3.10
GA Keyway (allow for extended lead time) Add $20.00
Extension Kit 2 to 2 1/4" Heritage Collection Grade 2
Knobs/Levers (Passage) # YR076100 		5.20
(specify finish)

NOTE: Heritage Collection Grade 2 levers are designed to be reversible to eliminate handing (except for the single dummy, Function #81, and entry functions (Function #72). For the single dummy (Function #81) and entry functions (Function #72), please specify handing either right hand (RH) or left hand (LH) when ordering these functions, or when ordering split finishes.

Heritage Collection Grade 2 Deadbolts

Contractors will appreciate our ongoing focus on builder functionality with these finely designed Heritage Collection Grade 2 deadbolts. The Premier Deadbolt "face-removable" design provides easy access to the solid brass cylinder without having to remove the deadbolt from the door. This is a significant benefit to multi-family and multi-unit projects commonly requiring re-keying. The Select Deadbolt offers ANSI Grade 2 strength and security with standard access to the cylinder.

Heritage Collection Grade 2 Deadbolts

FUNCTIONS
FUNCTION NO. DESCRIPTION
82

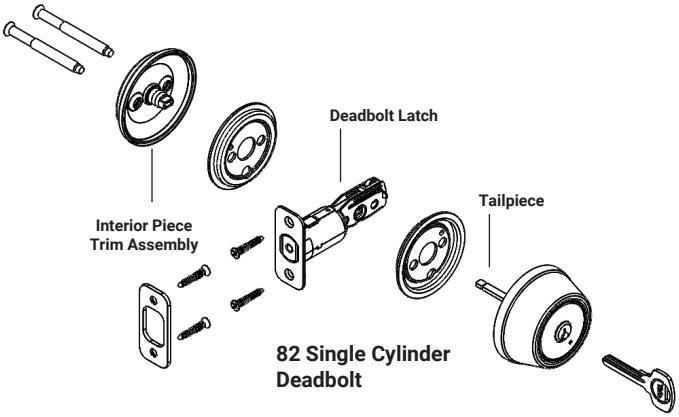

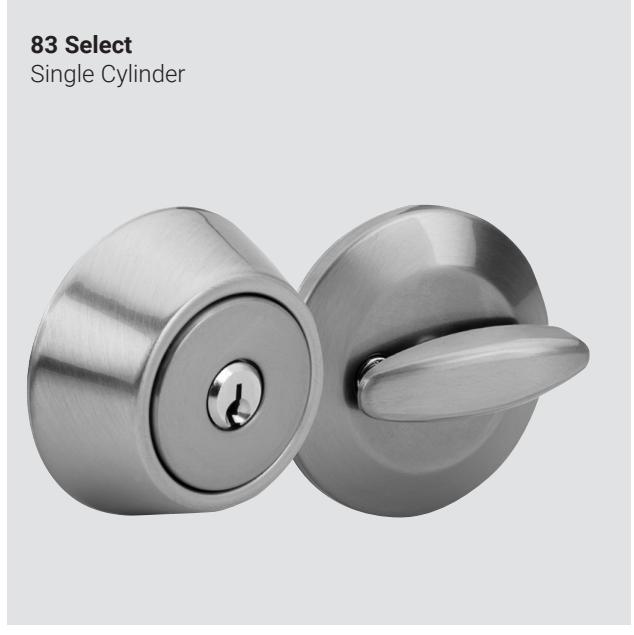

83 		SINGLE CYLINDER: Latch operated from outside by key, inside by T turn.

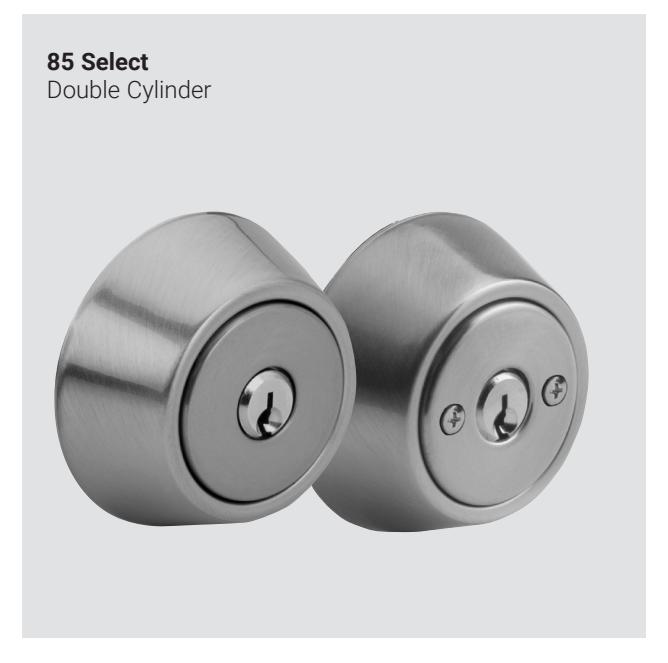

•=0- 85 DOUBLE CYLINDER: Latch operated on either side by key. Concealed screws.
DIMENSIONS Α В С
82 Single Exterior 2 19/32" 11/8" 2"
82 Single Interior 21/2" 17/8" 2"
83 Single Exterior 21/2" 1" 1 7 /8"
83 Single Interior 21/2" 17/8" 2"

PRODUCT SPECIFICATIONS
Door Specs 2 1 / 8 " Face Bore,
1" Edge Bore,
2 3 / 8 " or 2 3 / 4 " Backset
Latch Face 1" x 2 1 / 4 "
RC (Round corner; Square corner
optional)
Latch Adjustable 2 3 / 8 " or 2 3 / 4 " RC (Round Corner)
Door Thickness 1 3 / 8 " to 1 3 / 4 "
2" to 2 1 / 4 "
Requires ext. Kit 07600* 83 Single
Cylinder Select Series Only
Cylinder 6 Pin KW-1 Standard (SC-1 Optional)
Keying KA3 (Keyed Alike)
Faceplate 1" W x 2 1 / 4 " H
RC (Round Corner)
Strike 1" x 2 1 / 4 " RC
RC (Round Corner)
Certified
ANSI/BHMA 		A156.36 Grade 2
A156.40 Grade B
Meets ADA Guidelines 💍

Standard Case Quantities - Enter the exact number of individual units required. As an example: If there are 24 units in a case and you require 1 case, enter 24 in the "quantity" space. See below for an example of standard case quantities.

STANDARD CASE QUANTITIES (HERITAGE COLLECTION GRADE 2)

(
Box Pack(SP)
Dummy 12
Knobs 24
Levers 12
Deadbolts 12
Combo Sets 12

Available with upcharge.

Heritage Collection Grade 2 Deadbolts

LIST PRICE
DESIGN Deadbolts NO 605 625 626 609 619 620 GM
Gun Metal 		BSP
Black
Suede 		613E 10BP
Premier Single Cyl 82 72.60 72.60 72.60 72.60 72.60 72.60 72.60 72.60 78.00 78.00
Premier Series features: Removable Cylinders without removing deadbolt from door, includes high security strike.
Select Single Cyl 83 60.10 60.10 60.10 60.10 60.10 60.10 60.10 60.10 65.50 65.50
Double Cyl 85 69.50 69.50 69.50 69.50 69.50 69.50 69.50 69.50 81.10 81.10

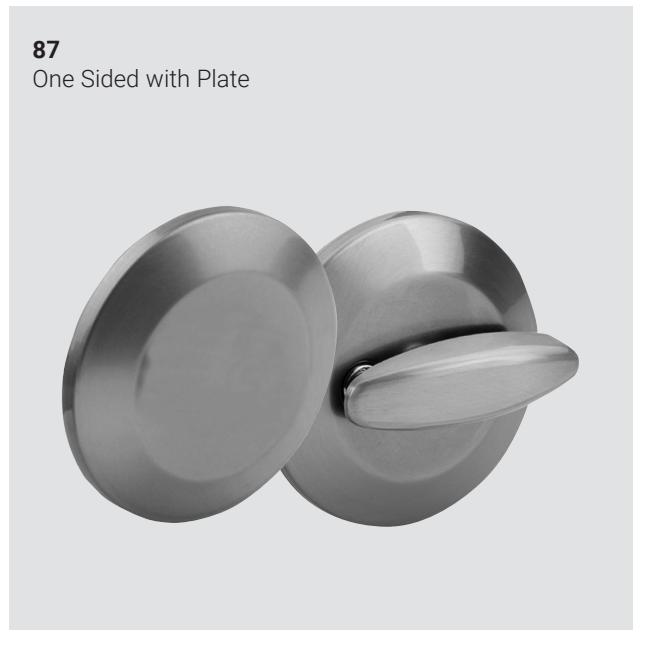

One Sided w/plate 87 39.50 39.50 39.50 39.50 39.50 39.50 N/A N/A N/A N/A
STRIKES - AVAILABLE OPTIONS
ITEM CORNER
SPECS 		MODEL NO LIST PRICE UPCHARGE
Standard 1" - 21
⁄4" SC Strike 		Square Corner YR02082 N/C when specified
Standard 1" - 21
⁄4" RC Strike 		Round Corner YR02080 N/C when specified
11
⁄8" - 23
⁄4" SC Universal Deadbolt Strike 		Square Corner YR02086 N/C when specified
11
⁄8" - 23
⁄4" RC Universal Deadbolt Strike 		Round Corner YR02088 N/C when specified
11
⁄8" - 23
⁄4" RC Universal Deadbolt Strike 		Round Corner YR02089 N/C when specified
11
⁄4" - 35
⁄8" RC Maximum Security Strike 		Round Corner YR02081 Add $1.00
11
⁄4" - 35
⁄8" SC Maximum Security Strike 		Square Corner YR02083 Add $1.00
13
⁄4" - 21
⁄4" RC Full Lip Strike^ 		Round Corner YR02084 N/C when specified

* Specify finish when ordering

^ Not available for 85 deadbolt

AVAILABLE OPTIONS LIST PRICE
UPCHARGE
UL 90 Minute listing 6.20
UL 90 Minute listing Combo Sets 12.50
AVAILABLE OPTIONS LIST PRICE
UPCHARGE
Page 27 Heritage Collection Grade 2
Series Latches 		NC when
specified
Page 43 Additional keying options
Page 43 Para cylinder options (Not
available for 85 deadbolt) 		3.10
Extension Kit 2 to 2-1/4" Single Deadbolt
Only (Thick Door Pack) #YR07600 		13.10
(specify finish)

Latch Price List

LIST PRICE
INTERIOR SPRING
LATCHES 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
2 3/8" Spring Latch 1 x 2 1/4" Square Corner YR01D05* 11.20
2 3/8" Spring Latch 1 x 2 1/4" Round Corner YR01D02* 11.20
2 3/4" Spring Latch 1 x 2 1/4" Square Corner YR01D06* 11.20
2 3/4" Spring Latch 1 x 2 1/4" Round Corner YR01D08* 11.20
2 3/8" Spring Drive-In Latch 1" Dia. N/A YR01D11* 11.20
2 3/4" Spring Drive-In Latch 1" Dia. N/A YR01D13* 11.20
2 3/8"-2 3/4" Adj. Spring Latch 1 x 2 1/4" Square Corner YR01D17* 11.20
2 3/8"-2 3/4" Adj. Spring Latch 1 x 2 1/4" Round Corner YR01D14* 11.20
2 3/8"-2 3/4" Adj. Spring Dr. In Latch 1" Dia. N/A YR01D71* 11.20
EXTERIOR
DEADLOCKING
LATCHES 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
2 3/8" Deadlocking Latch 1 x 2 1/4" Square Corner YR01D25* 11.20
2 3/8" Deadlocking Latch 1 x 2 1/4" Round Corner YR01D22* 11.20
2 3/4" Deadlocking Latch 1 x 2 1/4" Square Corner YR01D26* 11.20
2 3/4" Deadlocking Latch 1 x 2 1/4" Round Corner YR01D28* 11.20
2 3/8" Deadlocking Dr. In Latch 1" Dia. N/A YR01D32* 11.20
2 3/4" Deadlocking Dr. In Latch 1" Dia. N/A YR01D34* 11.20
2 3/8"-2 3/4" Adj. Deadlocking Latch 1 x 2 1/4" Square Corner YR01D30* 11.20
2 3/8"-2 3/4" Adj. Deadlocking Latch 1 x 2 1/4" Round Corner YR01D31* 11.20
2 3/8"-2 3/4" Adj. Deadlocking Dr. In Latch 1" Dia. N/A YR01D33* 11.20
ADJUSTABLE
DEADBOLT LATCHES 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
2 3/8"-2 3/4" Adj. Deadbolt Latch Square Corner YR01D44* 11.20
2 3/8"-2 3/4" Adj. Deadbolt Latch Round Corner YR01D41* 11.20
2 3/8"-2 3/4" Adj. Deadbolt Drive-In Latch 1" Dia. N/A YR01D47* 11.20

* Specify finish when ordering

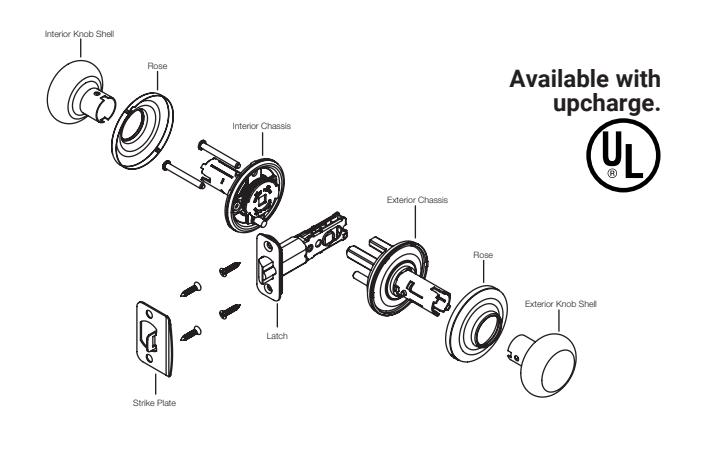

Heritage Collection Grade 3 Knobs

Doors Require Blocking

The ASSA ABLOY ACCENTRA™ standard duty knobs from the Heritage Collection Grade 3 series offer outstanding strength, durability and simple, elegant designs highlighted by natural curves for comfort and ease of turning. The Cirrus, Horizon, Oasis, Terra, and Valley knobs are built to the highest quality standards. These products are built on a steel Grade 3 chassis and feature concealed holding screws. In addition, all Heritage Collection Grade 3 products feature "Quick-Install," a unique chassis design, which drastically reduces installation time. The Heritage Collection Grade 3 series offers all of these superb features at an incredible value.

Heritage Collection Grade 3 Knobs

FUNCTIONS
FUNCTION NO. DESCRIPTION
80 DUMMY: For doors where only pull is required.
100 PASSAGE: Latchbolt is operated by either knob at all times.
160 ONE SIDED W/PLATE: Latchbolt is operated by knob on one side only.
200 PRIVACY: Latchbolt is operated
by either knob except when inside
knob is locked by turn button. A
special emergency key releases
turn button and unlocks outside
knob.
226 BATHROOM: Same function as 200 privacy with US26 finish on interior knob.
700 ENTRY: Guarded Latch bolt operated from outside by key. Inside by knob. Turn button Locks both knobs. Knobs unlock by Key outside or by rotating inside turn button.
DIMENSIONS Α В С
Cirrus 29/16" 21/2" 2"
Horizon 29/16" 21/4" 2"
Oasis 29/16" 21/4" 2"
Terra 29/16" 23/8" 21/2"
Valley 29/16" 25/16" 115/16"

PR PRODUCT SPECIFICATIONS
Door Specs 2 1 / 8 " Face Bore,
1" Edge Bore,
2 3 / 8 " or 2 3 / 4 " Backset
Latch Face 1" x 21/4"
Round corner (Square corner optional)
Latch Adjustable 2 3 / 8 " or 2 3 / 4 " RC (round corner)
Door Thickness 1 3 / 8 " to 1 3 / 4 "
Cylinder 5 Pin KW-1 Cylinder Standard
(SC-1 Optional)
Keying KA3 (Keyed Alike)
Faceplate 1" W x 2 1 / 4 " H
RC (Round Corner)
Strike 2 1 / 4 " Full Lip
RC (Round Corner)
Designed to
Meet
ANSI/BHMA 		A156.2 Series 4000 Grade 3
A156.39 Grade B

Standard Case Quantities - Enter the exact number of individual units required. As an example: If there are 24 units in a case and you require 1 case, enter 24 in the "quantity" space. See below for an example of standard case quantities.

STANDARD CASE QUANTITIES (HERITAGE COLLECTION GRADE 3)

Box Pack(SP)
Dummy 12
Knobs 24
Levers 12
Deadbolts 12
Combo Sets 12

Available with upcharge.

Heritage Collection Grade 3 Knobs

LIST PRICE
DESIGN FUNCTION
BHMA 		NO 605 626 609 619 GM
Gun
Metal 		BSP
Black
Suede 		625 620 613E 10BP
Cirrus Dummy 80 13.00 13.00 N/A 13.00 13.00 N/A 14.00 14.00 14.00 14.00
(C) Passage 100 28.90 28.90 N/A 28.90 28.90 N/A 31.00 31.00 31.00 31.00
One Sided w/plate 160 28.90 28.90 N/A 28.90 28.90 N/A 31.00 31.00 31.00 31.00
Privacy 200 31.20 31.20 N/A 31.20 31.20 N/A 33.30 33.30 33.30 33.30
Bath* 226 34.30 34.30 N/A 34.30 34.30 N/A N/A 36.40 36.40 36.40
Entry 700 39.60 39.60 N/A 39.60 39.60 N/A 41.70 41.70 41.70 41.70
Horizon Dummy 80 13.00 13.00 13.00 13.00 13.00 13.00 14.00 14.00 14.00 14.00
(H) Passage 100 28.90 28.90 28.90 28.90 28.90 28.90 31.00 31.00 31.00 31.00
One Sided w/plate 160 28.90 28.90 28.90 28.90 28.90 28.90 31.00 31.00 31.00 31.00
Privacy 200 31.20 31.20 31.20 31.20 31.20 31.20 33.30 33.30 33.30 33.30
Bath* 226 34.30 34.30 34.30 34.30 34.30 34.30 N/A 36.40 36.40 36.40
Entry 700 39.60 39.60 39.60 39.60 39.60 39.60 41.70 41.70 41.70 41.70
Oasis Dummy 80 N/A N/A N/A 14.00 N/A N/A N/A N/A N/A 15.10
(O) Passage 100 N/A N/A N/A 30.60 N/A N/A N/A N/A N/A 32.70
One Sided w/plate 160 N/A N/A N/A 30.60 N/A N/A N/A N/A N/A 32.70
Privacy 200 N/A N/A N/A 34.00 N/A N/A N/A N/A N/A 36.10
Bath* 226 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Entry 700 N/A N/A N/A 43.10 N/A N/A N/A N/A N/A 45.10
Terra Dummy 80 N/A N/A N/A 17.00 17.00 N/A N/A N/A N/A 18.00
(T) Passage 100 N/A N/A N/A 39.50 39.50 N/A N/A N/A N/A 41.60
One Sided w/plate 160 N/A N/A N/A 39.50 39.50 N/A N/A N/A N/A 41.60
Privacy 200 N/A N/A N/A 41.60 41.60 N/A N/A N/A N/A 43.70
Bath* 226 N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Entry 700 N/A N/A N/A 59.30 59.30 N/A N/A N/A N/A 61.40
Valley Dummy 80 13.00 13.00 N/A N/A N/A N/A N/A N/A N/A N/A
(V) Passage 100 28.90 28.90 N/A N/A N/A N/A N/A N/A N/A N/A
One Sided w/plate 160 28.90 28.90 N/A N/A N/A N/A N/A N/A N/A N/A
Privacy 200 31.20 31.20 N/A N/A N/A N/A N/A N/A N/A N/A
Bath* 226 34.30 34.30 N/A N/A N/A N/A N/A N/A N/A N/A
Entry 700 39.60 39.60 N/A N/A N/A N/A N/A N/A N/A N/A

*Bath Function has 625 Polished Chrome Interior

KNOB COMBO SET – LIST PRICE

Combo Sets Include 1 Entry Knob with 1 Single or 1 Double Deadbolt

DESIGN FUNCTION NO 605 626 609 619 GM BSP 625 620 613E 10BP
BHMA Gun Metal Black
Suede
Cirrus (C) Single Cylinder 827 79.20 79.20 N/A 79.20 79.20 N/A 90.00 90.00 90.00 90.00
Horizon (H) Single Cylinder 827 79.20 79.20 79.20 79.20 79.20 76.20 90.00 90.00 90.00 90.00
Oasis (O) Single Cylinder 827 N/A N/A N/A 82.70 N/A N/A N/A N/A N/A 98.90
Terra (T) Single Cylinder 827 N/A N/A N/A 98.90 98.90 N/A N/A N/A N/A 106.20
Valley (V) Single Cylinder 827 79.20 79.20 N/A N/A N/A N/A N/A N/A N/A N/A
AVAILABLE OPTIONS LIST PRICE
UPCHARGE
UL 90 Minute listing 6.20
UL 90 Minute listing Combo Sets 12.50
AVAILABLE OPTIONS LIST PRICE
UPCHARGE
Page 37 Heritage Collection Grade 3 Series Latches NC when specified
Page 42 T-Strikes 1.50
Page 42 ANSI 47
⁄8" Strike 		7.10
Page 42 Other Lockset Strikes NC when specified
Page 43 Additional keying options

Note : All Heritage Collection Grade 3 entry function leversets will be shipped with the Cirrus knob exterior unless otherwise specified. Heritage Collection Grade 3 levers are designed to be reversible to eliminate handing errors (except for the single dummy, function #81, and entry function #701). For the single dummy (function #81) and entry functions (function #701), please specify handing either right hand (RH) or left hand (LH) when ordering these functions, or when ordering split finishes.

Doors Require Blocking

With concealed holding screws, and a strengthened square spindle, Heritage Collection Grade 3 products reflect an outstanding commitment to quality. Like the Heritage Collection Grade 3 knobs, the levers are exquisitely designed. With free-flowing curves and smooth edges, the Mesa, Niagara, Prairie, Savannah, Vernal, Vidalia, and Woodland levers offer impeccable elegance at an exceptional price.

FUNCTIONS
FUNCTION NO. DESCRIPTION
Ļ 81 DUMMY: For doors where only pull is required. (handing required)
101* PASSAGE: Latchbolt is operated by either lever at all times. (non-handed)
161 ONE SIDED W/PLATE: Latchbolt is operated by lever on one side only. (handing required)
201 PRIVACY: Latchbolt is operated by either lever except when inside lever is locked by turn button. A coin turn releases turn button and unlocks outside lever. (non-handed)
; 221 BATHROOM: Same function as 201 privacy with US26 finish on interior lever. (handing required)
771 ENTRY (LEVER/LEVER): Guarded latch bolt operated from outside lever by key. Inside by lever. Turn button locks both levers. Levers unlock by key or by turning inside turn button.
DII 4510101 _
DIMENSIONS Α В С
Mesa 29/16" 23/8" 31/4"
Niagara 29/16" 21/2" 47/32"
Savannah 29/16" 21/4" 37/8"
Prairie 29/16" 27/16" 419/64"
Vernal 29/16" 29/16" 41/2"
Vidalia 29/16" 21/2" 45/8"
Woodland 29/16" 25/8" 37/8"

PRODUCT S PECIFICATIONS
Door Specs 2 1 / 8 " Face Bore,
1" Edge Bore,
2 3 / 8 " or 2 3 / 4 " Backset
Latch Face 1" x 2 1 / 4 "
Round corner
(Square corner optional)
Latch Adjustable 2 3 / 8 " or 2 3 / 4 " RC (round corner)
Door Thickness 1 3 / 8 " to 1 3 / 4 "
Cylinder 5 Pin KW-1 Cylinder Standard (SC-1 Optional)
Keying KA3 (Keyed Alike)
Faceplate 1" W x 2 1 / 4 " H
RC (Round Corner)
Strike 2 1 / 4 " Full Lip
RC (Round Corner)
Designed to
Meet
ANSI/BHMA 		A156.2 Series 4000 Grade 3
A156.39 Grade B

Standard Case Quantities - Enter the exact number of individual units required. As an example: If there are 24 units in a case and you require 1 case, enter 24 in the "quantity" space. See below for an example of standard case quantities.

STANDARD CASE QUANTITIES
(HERITAGE COLLECTION GRADE 3)
Box Pack(SP)
Dummy 12
Knobs 24
Levers 12
Deadbolts 12
Combo Sets 12

HOW TO DETERMINE HANDING OF DOORS

  • The handing of a door is always determined by facing the exterior of a door
  • If the hinge is on the left side of the door, the door is left handed (LH).
  • If the hinge is on the right side of the door, the door is right handed (RH).
  • To order a handed product, specify LH or RH. Not all products are handed; only specify handing when required.

Decorative Rosettes

Flat Round 2-9/16" Dia Center Hole: 1-1/32"

Center Hole: 1-1/32" Modern 2-9/16" W x 3" H Center Hole: 1-1/32"

Pair with all Heritage Grade 3 lever styles.

Rosette
Availability 		605 10BP 619 BSP 625 626 List Upcharge
Full Lockset 		Dummy
Flat Round • • • • 10.00 5.00
Flat Square • • • • • 16 .00 8.00
Modern • • • 16.00 8.00

Note: Decorative rosettes ship separate as kit.

LIST PRICE

Levers
DESIGN
Featuring Quick Install
Design 		FUNCTION
BHMA 		NO 605 626 609 619 GM
Gun
Metal 		BSP
Black
Suede 		625 620 613E 10BP
Mesa Dummy 81 N/A 20.40 20.40 20.40 N/A N/A N/A N/A 21.90 N/A
(ML) Passage 101 N/A 48.30 48.30 48.30 N/A N/A N/A N/A 51.40 N/A
One Sided w/plate 161 N/A 48.30 48.30 48.30 N/A N/A N/A N/A 51.40 N/A
Not available
771 lever x lever entry 		Privacy 201 N/A 50.30 50.30 50.30 N/A N/A N/A N/A 53.50 N/A
Entry (Knob/Lever) 701 N/A 64.40 64.40 64.40 N/A N/A N/A N/A 67.50 N/A
Dummy 81 20.40 20.40 20.40 20.40 20.40 20.40 21.90 21.90 21.90 21.90
Niagara
(NL) 		Passage 101 48.30 48.30 48.30 48.30 48.30 48.30 51.40 51.40 51.40 51.40
One Sided w/plate 161 48.30 48.30 48.30 48.30 48.30 48.30 51.40 51.40 51.40 51.40
Privacy 201 50.30 50.30 50.30 50.30 50.30 50.30 53.50 53.50 53.50 53.50
Bath* 221 53.50 53.50 53.50 53.50 53.50 53.50 N?A 56.60 56.60 56.60
Entry (Lever/Lever) 771 70.30 70.30 70.30 70.30 70.30 70.30 73.40 73.40 73.40 73.40
Dummy 81 N/A 20.40 20.40 20.40 N/A N/A 21.90 N/A N/A N/A
Prairie
(PL) 		Passage 101 N/A 48.30 48.30 48.30 N/A N/A 51.40 N/A N/A N/A
One Sided w/plate 161 N/A 48.30 48.30 48.30 N/A N/A 51.40 N/A N/A N/A
Privacy 201 N/A 50.30 50.30 50.30 N/A N/A 53.50 N/A N/A N/A
Bath* 221 N/A 53.50 53.50 53.50 N/A N/A N/A N/A N/A N/A
Entry (Lever/Lever) 771 N/A 70.30 70.30 70.30 N/A N/A 73.40 N/A N/A N/A
Dummy 81 20.40 20.40 20.40 20.40 20.40 20.40 21.90 21.90 21.90 21.90
Savannah Passage 101 48.30 48.30 48.30 48.30 48.30 48.30 51.40 51.40 51.40 51.40
(SL)
One Sided w/plate 161 48.30 48.30 48.30 48.30 48.30 48.30 51.40 51.40 51.40 51.40
Privacy 201 50.30 50.30 50.30 50.30 50.30 50.30 53.50 53.50 53.50 53.50
Bath* 221 53.50 53.50 53.50 53.50 53.50 53.50 N/A 56.60 56.60 56.60
Entry (Lever/Lever) 771 70.30 70.30 70.30 70.30 70.30 70.30 73.40 73.40 73.40 73.40
Vernal Dummy 81 N/A 20.40 N/A 20.40 N/A 20.40 N/A N/A 21.90 21.90
(VE) Passage 101 N/A 48.30 N/A 48.30 N/A 48.30 N/A N/A 51.40 51.40
One Sided w/plate 161 N/A 48.30 N/A 48.30 N/A 48.30 N/A N/A 51.40 51.40
Privacy 201 N/A 50.30 N/A 50.30 N/A 50.30 N/A N/A 53.50 53.50
Entry (Lever/Lever) 771 N/A 70.30 N/A 70.30 N/A 70.30 N/A N/A 73.40 73.40
Vidalia Dummy 81 N/A 20.40 N/A 20.40 N/A 20.40 21.90 N/A N/A 21.90
(VI) Passage 101 N/A 48.30 N/A 48.30 N/A 48.30 51.40 N/A N/A 51.40
One Sided w/plate 161 N/A 48.30 N/A 48.30 N/A 48.30 51.40 N/A N/A 51.40
Privacy 201 N/A 50.30 N/A 50.30 N/A 50.30 53.50 N/A N/A 53.50
Bath* 221 N/A 53.50 N/A 53.50 N/A 53.50 56.60 N/A N/A 56.60
Entry (Lever/Lever) 771 N/A 70.30 N/A 70.30 N/A 70.30 73.40 N/A N/A 73.40
Vidalia SQR Rose Dummy 81 N/A N/A N/A 28.70 N/A 28.70 N/A N/A N/A 30.30
(VISQ) Passage 101 N/A N/A N/A 64.90 N/A 64.90 N/A N/A N/A 68.00
One Sided w/plate 161 N/A N/A N/A 64.90 N/A 64.90 N/A N/A N/A 68.00
Privacy 201 N/A N/A N/A 67.00 N/A 67.00 N/A N/A N/A 70.10
Bath* 221 N/A N/A N/A 70.10 N/A 70.10 N/A N/A N/A 73.20
Entry (Lever/Lever) 771 N/A N/A N/A 95.70 N/A 95.70 N/A N/A N/A 98.80
Woodland Dummy 81 20.40 20.40 20.40 20.40 20.40 20.40 21.90 21.90 21.90 21.90
(WL) Passage 101 48.30 48.30 48.30 48.30 48.30 48.30 51.40 51.40 51.40 51.40
One Sided w/plate 161 48.30 48.30 48.30 48.30 48.30 48.30 51.40 51.40 51.40 51.40
Privacy 201 50.30 50.30 50.30 50.30 50.30 50.30 53.50 53.50 53.50 53.50
Bath* 221 53.50 53.50 53.50 53.50 53.50 53.50 56.60 56.60 56.60 56.60
Entry (Lever/Lever) 771 70.30 70.30 70.30 70.30 70.30 70.30 73.40 73.40 73.40 73.40

*Bath Function has 625 Polished Chrome Interior

AVAILABLE OPTIONS LIST PRICE
UPCHARGE
UL 90 Minute listing
UL 90 Minute listing 		Combo Sets 6.20
12.50
AVAILABLE OPTIONS
Page 37 Heritage Collection Grade 3 Series Latches UPCHARGE
NC when specified
Page 42 T-Strikes 1.50
Page 42 ANSI 47
/8" Strike 		7.10
Page 42 Other Lockset Strikes NC when specified
Page 43 Additional keying options

Note : All Heritage Collection Grade 3 entry function leversets will be shipped with the Cirrus knob exterior unless otherwise specified. Heritage Collection Grade 3 levers are designed to be reversible to eliminate handing errors (except for the single dummy function #81, and entry function #701). For the single dummy (function #81) and entry functions (function #701), please specify handing either right hand (RH) or left hand (LH) when ordering these functions, or when ordering split finishes.

Heritage Collection Grade 3 Deadbolts

The ASSA ABLOY ACCENTRA™ 800 series deadbolts offer a variety of functions and finishes, and are compatible with all Heritage Collection Grade 3 leversets and knobsets. The 800 series deadbolts offer excellent strength and reliability, certified to an ANSI Grade 3.

Heritage Collection Grade 3 Deadbolts

FUNCTIONS
FUNCTION NO. DESCRIPTION
810 DUMMY: No cylinder, no latch
• = 0) 820 SINGLE CYLINDER: Latch operated from the outside by key, inside by T-turn.
•=== 840 DOUBLE CYLINDER: Latch operated from either side by the key.
© + 860 ONE SIDED DEADBOLT WITH PLATE: No cylinder. Latch operated by the T-turn on the inside. For doors bored completely through.
880 ONE WAY: No cylinder. Latch operated by the T-turn on the inside. For doors not bored completely through.
. , . inside. For doors not bored completely through.
DIMENSIONS Α В С
800 Interior 21/2" 15 /16" 2"
800 Exterior 21/2" 1" 17/8"
820R/820S Interior 21/2" 7/8" 1 5 / 16 "
820R/820S Exterior 21/2" 7/8" 21/2"
820M Interior 3" 1" 2"
820M Exterior 3" 7/8" 23/8"

0 Tailpiece
Reinforced Protective Shroud
Deadbolt Core Assemb Adapter Ring
Decorative Cover Deadbolt Latch
Strike
Interio or Trim Piece Assemb ly

Available with upcharge.

PRODUC T SPECIFICATIONS
Door Specs 2 1 / 8 " Face Bore,
1" Edge Bore,
Latch Face 1" x 2 1 / 4 "
Round corner (Square corner
optional)
Latch Adjustable 23/8" or 23/4" RC (round corner)
Door Thickness 1 3 / 8 " to 1 3 / 4 "
Cylinder 5 Pin KW-1 Cylinder Standard
(SC-1 Optional)
Keying KA3 (Keyed Alike)
Faceplate 1" W x 2 1 / 4 " H
RC (Round Corner)
Strike 1"x2 1 / 4 " RC
RC (Round Corner)
Certified
ANSI/BHMA 		A156.36 Grade 3
A156.40 Grade C
Meets ADA Guidelines 💍

Standard Case Quantities - Enter the exact number of individual units required. As an example: If there are 24 units in a case and you require 1 case, enter 24 in the "quantity" space. See below for an example of standard case quantities.

STANDARD CASE QUANTITIES (Heritage Collection Grade 3) BOX PACK(SP)
Dummy 12
Knobs 24
Levers 12
Deadbolts 12
Combo Sets 12

Heritage Collection Grade 3 Deadbolts

LIST PRICE
800 SERIES FUNCTION NO 605 626 609 619 GM BSP 625 620 613E US10BP
DEADBOLTS ВНМА Gun
Metal 		Black
Suede
Dummy 810 29.10 29.10 29.10 29.10 N/A N/A 34.30 34.30 N/A 34.30
Single Cylinder 820 39.60 39.60 39.60 39.60 39.60 39.60 44.80 44.80 44.80 44.80
Double Cylinder 840 49.90 49.90 49.90 49.90 49.90 49.90 55.10 55.10 55.10 55.10
One Sided W/Plate 860 32.90 32.90 32.90 32.90 32.90 32.90 38.10 38.10 38.10 38.10
Oneway* 880 23.90 23.90 23.90 23.90 23.90 23.90 30.20 30.20 30.20 30.20
Only Flat Round Single Cyl** 820R 57.80 57.80 57.80 57.80 57.80 57.80 62.00 62.00 62.00 62.00
available Flat Square Single Cyl** 820S 57.80 57.80 57.80 57.80 57.80 57.80 62.00 62.00 62.00 62.00
20 minute
UL 		Modern Single Cyl ** 820M N/A N/A N/A 57.80 N/A 57.80 N/A N/A N/A 62.00

*880 deadbolt available fixed latch only. 2-3/8 RC is Std. **Only available 20 minute UL \,

STRIKES - AVAILABLE OPTIONS
ITEM CORNER SPECS MODEL NO LIST PRICE UPCHARGE
Standard 1" - 21/4" /SC Strike Square Corner YR02082 N/C when specified
Standard 1" - 21/4" /RC Strike Round Corner YR02080 N/C when specified
1 1 / 8 " - 2 3 / 4 " /SC Strike Square Corner YR02086 N/C when specified
1 1 / 8 " - 2 3 / 4 " /RC Strike Round Corner YR02088 N/C when specified
11/4" - 35/8" /RC Maximum Security Strike Square Corner YR02081 Add $1.00
11/4" - 35/8" /SC Maximum Security Strike Round Corner YR02083 Add $1.00
1 3 / 4 " - 2 1 / 4 " /RC Full Lip Strike Round Corner YR02084 N/C when specified
Screw Pack (4 each 3" Screws) 08818* 1.60

* Specify finish when ordering

AVAILA ABLE OPTIONS LIST PRICE UPCHARGE
(UL) UL 90 Minute listing 6.20
UL 90 Minute listing Combo Sets 12.50

Heritage Collection Grade 3

Latch Price List

LIST PRICE
INTERIOR SPRING
LATCHES 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
2 3/8"-2 3/4" Adj. Spring Latch 1 x 2 1/4" Square Corner YR01464* 6.20
2 3/8"-2 3/4" Adj. Spring Latch 1 x 2 1/4" Round Corner YR01461* 6.20
2 3/8"-2 3/4" Drive-In Spring Latch 1" Dia. N/A YR01D71* 10.60
EXTERIOR
DEADLOCKING
LATCHES 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
2 3/8"-2 3/4" Adj. Deadlocking Latch
2 3/8"-2 3/4" Adj. Deadlocking Latch 		1 x 2 1/4"
1 x 2 1/4" 		Square Corner
Round Corner 		YR01474*
YR01471* 		7.30
7.30
2 3/8"-2 3/4" Adj. Deadlocking DriveIn Latch 1" Dia. N/A YR01D33* 10.60
DEADBOLT
LATCHES
880 Deadbolt Only 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
2 3/8" Deadbolt Latch 1 x 2 1/4" Square Corner YR01445* 10.60
2 3/8" Deadbolt Latch 1 x 2 1/4" Round Corner YR01442* 10.60
2 3/8" Deadbolt Drive-In Latch 1" Dia. N/A YR01448* 10.60
2 3/4" Deadbolt Latch
2 3/4" Deadbolt Latch 		1 x 2 1/4"
1 x 2 1/4" 		Square Corner
Round Corner 		YR01446*
YR01443* 		10.60
10.60
2 3/4" Deadbolt Drive-In Latch 1" Dia. N/A YR01449* 10.60
ADJUSTABLE
DEADBOLT
LATCHES 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
820, 840, 860 Deadbolts & Handlesets
2 3/8"-2 3/4" Adj. Deadbolt Latch Square Corner YR01D44* 10.60
2 3/8"-2 3/4" Adj. Deadbolt Latch
2 3/8"-2 3/4" Adj. Deadbolt Drive-In Latch 		1" Dia. Round Corner
N/A 		YR01D41*
YR01D47* 		10.60
10.60
*Specify finish when ordering

Our decorative handlesets combine elegance with ease of installation. These designs offer balanced torque springs on a split-hub for ease of opening, solid thumb pieces, and finishes utilizing the world's most advanced clear coat technology. Designed to fit most American-made doors, each handleset comes with easy-to-read installation instructions.

FUNCTIONS
FUNCTION NO. DESCRIPTION
681
682
986
987
988
989 		DUMMY: For on-working side of
double doors. Non-functioning
deadbolt, knob or lever.
621
622
926
927
928
929 		SINGLE CYLINDER: Thumbpiece retracts latch from exterior side. Knob or lever retracts latch from interior side. Deadbolt latch retracts with key from exterior side, T-turn retracts deadbolt latch from interior side.
641
642
946
947 		DOUBLE CYLINDER: Thumbpiece retracts latch from\nexterior side. Knob or lever retracts latch from interior side. Deadbolt latch retracts with key from exterior side and interior side.
DIMENSIONS Α В С D
Homestead 23/8" 51/2" 911/16" 18"
Jamestown 23/8" 51/2" 911/16" 18"
McKinley 23/8" 51/2" 911/16" 18"
Pedestal 211/16" 51/2" 911/16" 181/2"
Rainier 23/8" 51/2" 911/16" 18"
Ridgefield 23/8" 51/2" 911/16" 18"
Teton 23/8" 51/2" 911/16" 18"
Exterior Deadbolt Deadbolt Core Assembly Tailpiece Deadbolt Latch Interior Deadbolt B | D | C |
Latch Interior Chassis
Strike Knob Release Button Decorative Screw Cap
PRO DUCT SPECIFICATIONS
Door Specs 2 1 / 8 " Face Bore, 1" Edge
Bore, 5 1 / 2 " O.C.
Latch Face
1" x 2 1 / 4 " RC (Round Corner)
Latch 2 3 / 8 " RC (Round Corner)
Deadbolt: 2 3 / 8 "-2 3 / 4 " ADJ.
RC (Round Corner)
Deadbolt: 2 3 / 8 "-2 3 / 4 " ADJ.
RC (Round Corner)
Door Thickness 1 3 / 4 "
2" to 2 1 / 4 " Requires Ext. Kit 07600
Cylinder
Keying 		KW-1 Compatible
KD (Keyed Different)
Faceplate 1" W x 2 1 / 4 " H
RC (Round Corner)
Strike Spring latch 2 1 / 4 " Full Lip RC (Round Corner) Deadbolt: 1"x 2 1 / 4 " RC (Round Corner) Deadbolt: 1"x 2 1 / 4 " RC (Round Corner)
Interior Trim Specify Interior Trim Style

Standard Case Quantities - Enter the exact number of individual units required. As an example: If there are 24 units in a case and you require 1 case, enter 24 in the "quantity" space. See below for an example of standard case quantities.

STANDARD CASE QUANTITIES BOX PACK(SP)
Handlesets 6
Handlesets - Interior Pack 6

UL - Not available on ASSA ABLOY ACCENTRA™ Handlesets

Price List

LIST PRICE (PRICE INCLUDES INTERIOR TRIM)

DESIGN FUNCTION
BHMA 		NO 605 625 626 609 619 620 GM
Gun
Metal 		BSP
Black
Suede 		613E 10BP
Homestead Dummy 986 205.90 205.90 205.90 205.90 205.90 205.90 205.90 205.90 226.70 226.70
Single Cylinder 926 244.40 244.40 244.40 244.40 244.40 244.40 244.40 244.40 265.20 265.20
Double Cylinder 946 265.20 265.20 265.20 265.20 265.20 265.20 265.20 265.20 286.00 286.00
Jamestown Dummy 987 205.90 205.90 205.90 205.90 205.90 205.90 205.90 205.90 226.70 226.70
Single Cylinder 927 244.40 244.40 244.40 244.40 244.40 244.40 244.40 244.40 265.20 265.20
Double Cylinder 947 265.20 265.20 265.20 265.20 265.20 265.20 265.20 265.20 286.00 286.00
McKinley Dummy 682 171.60 171.60 171.60 171.60 171.60 171.60 171.60 171.60 192.40 192.40
Single Cylinder 622 202.80 202.80 202.80 202.80 202.80 202.80 202.80 202.80 223.60 223.60
Double Cylinder 642 223.60 223.60 223.60 223.60 223.60 223.60 223.60 223.60 244.40 244.40
Pedestal Dummy 988 205.90 N/A N/A N/A N/A N/A N/A 205.90 N/A 226.70
Single Cylinder 928 244.40 N/A N/A N/A N/A N/A N/A 244.40 N/A 265.20
Teton Dummy 681 N/A N/A N/A N/A 171.60 171.60 171.60 171.60 N/A 192.40
Single Cylinder 621 N/A N/A N/A N/A 202.80 202.80 202.80 202.80 N/A 223.60
Double Cylinder 641 N/A N/A N/A N/A 223.60 223.60 223.60 223.60 N/A 244.40
Rainier Dummy 683 N/A 171.60 171.60 N/A 171.60 171.60 171.60 171.60 N/A 192.40
Single Cylinder 623 N/A 202.80 202.80 N/A 202.80 202.80 202.80 202.80 N/A 223.60
Double Cylinder 643 N/A 223.60 223.60 N/A 223.60 223.60 223.60 223.60 N/A 244.40
Ridgefield Dummy 989 N/A N/A N/A N/A 205.90 N/A N/A 205.90 N/A 226.70
Single Cylinder 929 N/A N/A N/A N/A 244.40 N/A N/A 244.40 N/A 265.20

NOTE: Handleset Interior Trim - Selection Chart Below. Split finish not available.

INTERIOR TRIM ASSEMBLIES ITEM MODEL NO LIST PRICE*
Heritage Collection Grade 2 Dummy 719 20.80
Single Cylinder Deadbolt 720 26.00
Double Cylinder Deadbolt 740 31.20
Heritage Collection Grade 3 Dummy 680 20.80
Single Cylinder Deadbolt 620 26.00
Double Cylinder Deadbolt 640 31.20
Vidalia/Valdosta SQR Rose 34.30
*All finishes
AVAILABLE OPTIONS – BOX PACK ONLY LIST PRICE UPCHARGE
Page 41 Split-Hub Latches NC when specified
Page 37 800 Series Deadbolt Latches NC when specified
Page 42 T-Strikes 1.50
Page 42 ANSI 4-7/8" Strike 7.10
Page 42 Deadbolt Security Strikes 0.80
Page 42 Other Lockset Strikes NC when specified
Page 43 Additional keying options NC when specified
Extension Kit 2 to 2-1/4" Heritage Collection Grade 2 and Grade 3
Handleset (Thick Door Pack) #YR07600 		13.10
(specify finish)

Price List

HERITAGE COLLECTION GRADE 2 INTERIOR TRIM
DESIGN GM BSP
605 625 626 609 619 620 Gun
Metal 		Black
Suede 		613E 10BP
Bridgeport A A A N/A A N/A N/A N/A N/A N/A
Cambridge A A A A A A A A A A
Dartmouth A N/A N/A N/A A N/A A A N/A A
Oxford A N/A N/A A A N/A N/A A A A
Academy N/A N/A A A A N/A N/A N/A N/A N/A
Augusta A N/A A A A N/A N/A N/A A A
Delaware N/A A A N/A A N/A N/A A A A
Kincaid A N/A N/A N/A A N/A N/A A N/A A
Marina N/A A A N/A A N/A A N/A A A
McClure A N/A A N/A A A N/A N/A A A
Monroe N/A N/A A N/A A N/A N/A N/A N/A N/A
Milan A A A N/A A N/A N/A N/A N/A N/A
Norwood A A A A A A A A A A
Pacific Beach A A A A A N/A N/A N/A N/A N/A
Valdosta N/A A A N/A A N/A N/A A A A
Valdosta SQR Rose N/A N/A N/A N/A A N/A N/A A N/A N/A
Virgo A N/A A N/A A N/A N/A N/A A A

Specify handing when ordering lever interior trim. With split finish orders, strikes match interior finishes.

A = Available as factory direct interior pack selection in Handlesets

N/A = Not available as interior pack selection in Heritage Collection Grade 2

HERITAGE COLLECTION GRADE 3 INTERIOR TRIM
DESIGN 605 625 626 609 619 620 GM
Gun
Metal 		BSP
Black
Suede 		613E 10BP
Cirrus A A A N/A A A A N/A A A
Horizon A A A A A A A A A A
Oasis N/A N/A N/A N/A A N/A N/A N/A N/A A
Terra N/A N/A N/A N/A A N/A A N/A N/A A
Valley A N/A A N/A N/A N/A N/A N/A N/A N/A
Mesa N/A N/A A A A N/A N/A N/A N/A N/A
Niagara A A A A A A A A A A
Prairie N/A A A A A N/A N/A N/A N/A N/A
Savannah A A A A A A A N/A A A
Vidalia A A A A A A A A A A
Woodland A A A A A A A A A A
SQR Rose N/A N/A N/A N/A A N/A N/A A N/A A

Specify handing when ordering lever interior trim. With split finish orders, strikes match interior finishes.

A = Available as factory direct interior pack selection in Handlesets

N/A = Not available as interior pack selection in Heritage Collection Grade 3

LIST PRICE
HANDLESET
LATCHES - INTERIOR
SPLIT HUB SPRING
LATCHES 		DESCRIPTION DIMENSION CORNER SPECS MODEL NO LIST PRICE
2 3/8" Spring Latch 1 x 2 1/4" Square Corner YR01804* 13.20
2 3/8" Spring Latch 1 x 2 1/4" Round Corner YR01802* 13.20
2 3/8" Spring Drive-In Latch 1" Dia. N/A YR01803* 13.20
2 3/4" Spring Latch 1 x 2 1/4" Square Corner YR01808* 13.20
2 3/4" Spring Latch 1 x 2 1/4" Round Corner YR01806* 13.20
2 3/4" Spring Drive-In Latch 1" Dia. N/A YR01807* 13.20

Heritage Collection Grade 2 & Grade 3 Accessories

Strikes

LOCKSET STRIKES
ITEM DIMENSIONS CORNER SPECS MODEL NO LIST PRICE
Standard Full Lip Strike/SC 13
⁄4" x 21
⁄4" 		Square Corner YR02001* 2.10
Standard Full Lip Strike/RC 13
⁄4" x 21
⁄4" 		Round Corner YR02000* 2.10
T-Strike 11
⁄8" x 23
⁄4" 		Square Corner YR02020* 3.10
ANSI 47
⁄8" 		11
⁄4" x 47
⁄8" 		Square Corner YR02030* 8.80

* Specify finish when ordering

Note: Not all finishes available

Standard Full Lip/SCS YR02001*

Standard Full Lip/RCS YR02000*

T-Strike YR02020*

YR02030*

DEADBOLT STRIKES
ITEM
CORNER SPEC
MODEL NO
LIST PRICE
Standard Deadbolt Strike/SC
Square Corner
YR02082*
2.10
Standard Deadbolt Strike/RC
Round Corner
YR02080*
2.10
Security Strike 35⁄8"
Round Corner
YR02081*
2.70
Security Strike 35⁄8"
Square Corner
YR02083*
2.70
Full Lip Deadbolt Strike
Square Corner
YR02085*
2.10
Full Lip Deadbolt Strike
Round Corner
YR02084*
2.10
Universal Deadbolt Strike
Square Corner
YR02086*
2.10
Universal Deadbolt Strike
Radius Corner
YR02088*
2.10
White Plastic Dust Box 1" x 23/4" Deadbolt
YR026002
0.50
(For Universal Strike)
Universal Deadbolt Strike with Security Plate Radius Corner YR02089* 2.80

*Specify finish when ordering Note: Not all finishes available

YR02081*

FINISH MATCH FOR LATCH, STRIKE, CYLINDER & SCREWS* Heritage Collection Grade 2 and Grade 3

Lock Finish 605 609 619 620 GM/
BSP 		US10BP 613E 626 625
Latch Face Plate Color 605 609 Nickel Black Black Black 10BE Nickel Nickel
Latch Head Color Nickel Nickel Nickel Nickel Nickel Nickel Nickel Nickel Nickel
Standard Strike Plate Color 605 609 Nickel Black Black Black 10BE Nickel Nickel
Cylinder Color Brass Brass Nickel Nickel Nickel Brass Brass Nickel Nickel
Screw Color Brass Brass Nickel Black Black Black Black Nickel Nickel

* For Standard Strike & Latch Options Only Note: All Deadbolt Latch Bolts are Nickel

Heritage Collection Grade 2 & Grade 3 Accessories

Keys and Keying Cylinders

ACCENTRA KEY BLANKS AND SPECIAL KEYING CHARGES
KEY BLANK DESCRIPTION QUANTITY MODEL NO LIST PRICE
Heritage Collection Grade 2 Key Blank 50 per box YR068003 1.50
Heritage Collection Grade 2 6 PIN KW DO NOT COPY Key Blank 50 per box YR068013 2.10
Heritage Collection Grade 2 Key - cut 50 per box YR068550 2.10
Heritage Collection Grade 2 6 Pin PARA Key Blank 50 per box YR068Y01 2.30
Heritage Collection Grade 2 6 PIN Schlage Key Blank 50 per box YR068009 1.50
Heritage Collection Grade 2 6 PIN Schlage Key - cut 50 per box YR068509 2.10
Heritage Collection Grade 2 6 PIN Schlage DO NOT COPY Key Blank 50 per box YR068011 2.10
Heritage Collection Grade 3 Key Blank 50 per box YR068004 1.40
Heritage Collection Grade 3 5 PIN KW DO NOT COPY Key Blank 50 per box YR068010 2.10
Heritage Collection Grade 3 Key - cut 50 per box YR068500 1.80
Heritage Collection Grade 3 5 PIN Schlage Key Blank 50 per box YR068008 1.40
Heritage Collection Grade 3 5 PIN Schlage Key - cut 50 per box YR068508 1.80
SPECIAL KEYING CHARGE DESCRIPTION MODEL NO LIST PRICE
KA - Keyed Alike KA NC when specified
MK - Master Keyed MK 1.40
BK - Builder Keyed BK 1.90
BMK - Builder Keyed and Master Keyed BMK 3.80
GMK - Grand Master Keyed GMK 5.20
BKGM - Builder Keyed and Grand Master Keyed BKGM 6.20
K-T-P - Keyed To Pass K-T-P 1.50
Extra Cut Keys YR068550 2.10
YR068500 1.80
YR068551 2.80
Extra Cut Master Keys YR068511 2.40
YR068558 2.80
Extra Cut Builder Keys YR068521 2.40
Stamp control number on key 1.90

Heritage Collection Grade 2 & Grade 3 Accessories

Keys and Keying Cylinders

HERITAGE COLLECTION GRADE 2 & GRADE 3 CYLINDER OPTIONS
SC-1
5-PIN STANDARD FOR Heritage Collection
Grade 2 & Grade 3, 6-PIN MUST BE SPECIFIED IF NEEDED 		MODEL NO LIST PRICE
5-PIN
No charge when specified with Heritage Collection Grade 3 lock - compatible with F Series
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 YR068401 13.30
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 03 YR068402 13.30
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 YR068405 13.30
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 26 YR068406 13.30
6-PIN
No charge when specified with Heritage Collection Grade 2 lock - compatible with A Series
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 YR068D01 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece,High Stack, Deadbolt, 03 YR068D02 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 YR068D05 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Deadbolt, 26 YR068D06 15.20
KW-1 5-PIN STANDARD FOR Heritage Collection Grade 2,
6-PIN STANDARD FOR Heritage Collection
Grade 3 		MODEL NO LIST PRICE
5-PIN
No charge when specified with Heritage Collection Grade 3 lock
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 YR060003 8.90
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 03 YR060103 8.90
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 YR060006 8.90
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Deadbolt, 26 YR060106 8.90
6-PIN
No charge when specified with Heritage Collection Grade 2 lock
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 03 YR06D013 10.60
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Select Deadbolt, 03 YR06D303 10.60
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 03 YR06D103 10.60
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Entry, 26 YR06D016 10.60
Brass Cylinder & 2 Brass Keys, Tailpiece, Low Stack, Select Deadbolt, 26 YR06D306 10.60
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 26 YR06D106 10.60
PARA FOR RESIDENTIAL PRODUCT ONLY MODEL NO LIST PRICE
6-PIN
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Entry Lever, 03 YR06Y303 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Entry Lever, 26 YR06Y306 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, 83/820 Deadbolt, 03 YR06Y403 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, 83/820 Deadbolt, 26 YR06Y406 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 03 YR06Y413 15.20
Brass Cylinder & 2 Brass Keys, Tailpiece, High Stack, Premier Deadbolt, 26 YR06Y416 15.20

NOTE: For Interconnects add ICN to above part numbers (Adds Longer Interconnect tailpiece)

Accessories

Rekeying

REKEYING – KEYING KITS & REKEYING PARTS

DESCRIPTION QUANTITY MODEL NO LIST PRICE
ACCENTRA KW Keying Kit Each YR069116 116.50
ACCENTRA SC-1 Keying Kit Each YR069115 97.80
KW-1 Pins
.172 – #1 Bottom Pins 100 pieces YR065011 8.30
.195 – #2 Bottom Pins 100 pieces YR065012 8.30
.218 – #3 Bottom Pins 100 pieces YR065013 8.30
.241 – #4 Bottom Pins 100 pieces YR065014 8.30
.264 – #5 Bottom Pins 100 pieces YR065015 8.30
.287 – #6 Bottom Pins 100 pieces YR065016 8.30
.023 – #1 Master Pins 100 pieces YR065001 8.30
.046 – #2 Master Pins 100 pieces YR065002 8.30
.069 – #3 Master Pins 100 pieces YR065003 8.30
.092 – #4 Master Pins 100 pieces YR065004 8.30
.115 – #5 Master Pins 100 pieces YR065005 8.30
.138 – #6 Master Pins 100 pieces YR065006 8.30
SC-1 Pins
.165 – #0 Bottom Pins 100 pieces YR065600 8.30
.180 – #1 Bottom Pins 100 pieces YR065611 8.30
.195 – #2 Bottom Pins 100 pieces YR065612 8.30
.210 – #3 Bottom Pins 100 pieces YR065613 8.30
.225 – #4 Bottom Pins 100 pieces YR065614 8.30
.240 – #5 Bottom Pins 100 pieces YR065615 8.30
.255 – #6 Bottom Pins 100 pieces YR065616 8.30
.270 – #7 Bottom Pins 100 pieces YR065617 8.30
.285 – #8 Bottom Pins 100 pieces YR065618 8.30
.300 – #9 Bottom Pins 100 pieces YR065619 8.30
.030 – #2 Master Pins 100 pieces YR065602 8.30
.045 – #3 Master Pins 100 pieces YR065603 8.30
.060 – #4 Master Pins 100 pieces YR065604 8.30
.075 – #5 Master Pins 100 pieces YR065605 8.30
.090 – #6 Master Pins 100 pieces YR065606 8.30
.105 – #7 Master Pins 100 pieces YR065607 8.30
.120 – #8 Master Pins 100 pieces YR065608 8.30
.135 – #9 Master Pins 100 pieces YR065609 8.30
Standard Top Pin 100 pieces YR065008 8.30
Standard Top Pin (82,84 Deadbolts) 100 pieces YR0650D8 8.30
ACCENTRA Builder Key Balls 100 pieces YR067050 12.50
Cylinder Springs (High Stack) 100 pieces YR067001(DBLT) 5.20
Cylinder Springs (Low Stack) 100 pieces YR067002(ENT) 5.20
C-Clips 100 pieces YR067201 5.20
E-Clips (#820,840,83,85 Deadbolts) 100 pieces YR067204 18.70
E-Clips (#82,84 Deadbolts) 100 pieces YR0672D4 18.70
E-Clips (PARA Deadbolts, Cyl 820/83) 100 pieces YR0672Y6 18.70
E-Clips (PARA Deadbolts, Cyl Premier) 100 pieces YR0672Y5 18.70
Spring Retainer Caps (low stack) 100 pieces YR067101 12.50
Spring Retainer Caps (high stack) 100 pieces YR067102 12.50
Key Cut Gauge/C-Clip Tool Each YR069012 5.20
Plug Follower Each YR069001 5.70
Heritage Collection Grade2/3 Entry tailpiece 100 pieces YR067304 19.80
Single Cylinder Tailpiece 100 pieces YR067307 62.40
Double Cylinder Tailpiece 100 pieces YR067308 62.40
Interconnected Cylinder Tailpiece 100 pieces YR067307ICN 62.40

225 Episcopal Road Berlin, CT 06037 USA Tel 1-855-686-2204 Fax 1-800-338-0965

Customer Service Email: customerservice.accentrares@assaabloy.com

Technical Product Support Email: techsupport.accentra@assaabloy.com

Order Entry Email: orders.accentrares@assaabloy.com

THE ASSA ABLOY ACCENTRA™ BRAND , with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution.

THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.

Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under US copyright laws. All contents current at time of publication. ASSA ABLOY Residental Mechanical reserves the right to change availability of any item in this price book, its design, construction and/or its materials. Copyright 2024. ASSA ABLOY Residental Mechanical. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Residental Mechanical, is prohibited. 4200-0310-02/24
