8800 Series

ANSI/BHMA Grade 1 Certified Mortise Locks

Benefits & Features3-4
SL8800 4
How to Order 5
Finishes 6
Lever Trim7-8
Reflections® Decorative Trim 9
Roses/Escutcheons 10
Knob Trim11
Mechanical Functions12-17
Indicators 18-23
Electrified Mortise Locksets 24
Electrified Mortise Lockset Functions25-26
Electrified Mortise Lockset Accessories 27
Cylinders28-30
Cylinder Collars 31-38
Strikes39
Thumbturns40
Miscellaneous41
Handing42
Dimensions and Exploded Views43
Installations44
Technical Specifications & Listings45

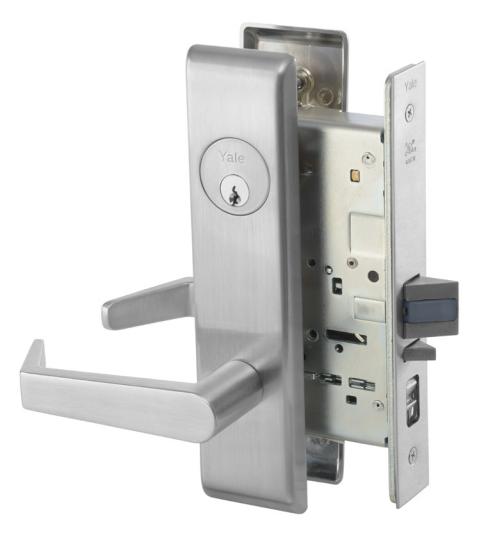

8800 Series Mortise Locks

Yale® 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard non-handed strike. Once installed, the 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability. The 8800 Series Mortise Lock is even backed by a 10 year mechanical warranty, making this product completely worry-free.

When you can't compromise on the quality of your security, Yale Works for YouSM.

Benefits & Features

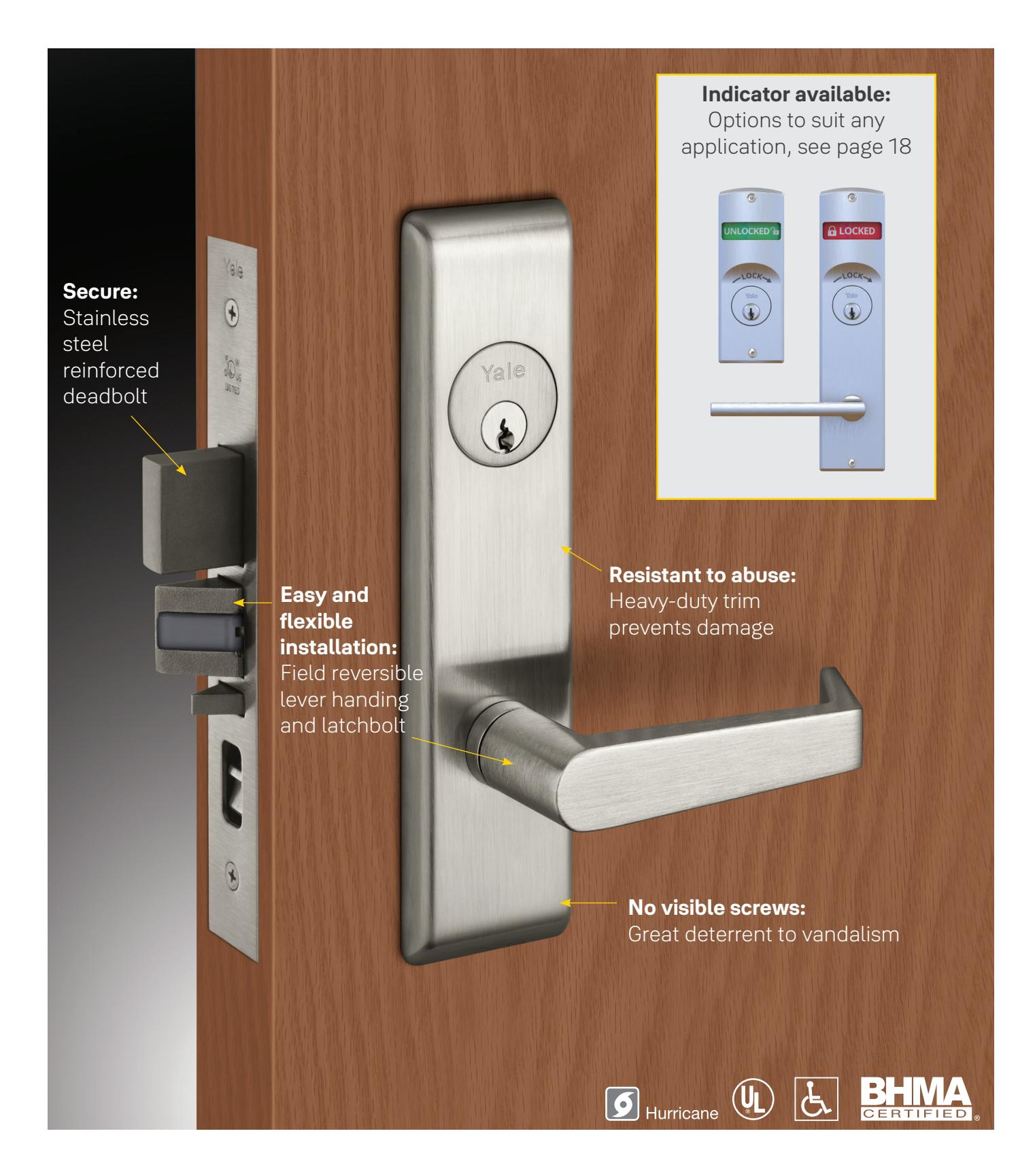

Features

UL Cycle above and beyond test completed at 12.3 Million Cycles. Verification ID: V572228
Heavy-duty trim for resistance against damage and vandalism
Functions available for any industrial or commercial application
Field adjustable lever handing and latchbolt
ANSI/BHMA Certified Grade 1 for long-life and durability
UL/cUL listed for 3 hour fire rated doors
10 year mechanical warranty
Available in a variety of attractive trims and finishes
Status indicator options available to provide peace of mind on the locked/unlocked status of a door

Offices
Shopping centers
Industrial buildings
Commercial facilities

Specifications

Armor Front	8" x 1-1/4"
Backset	2-3/4" only
Case	Wrought steel, zinc dichromated
Deadbolt	1" throw, cast stainless steel.
Door Thickness	1-3/4" standard, available for up to 3-1/4" thick doors
Handing	Field reversible
Hubs	3/8" solid steel, fine-blanked and heat treated for additional strength
Latchbolt	3/4" throw, stainless steel one piece anti-friction

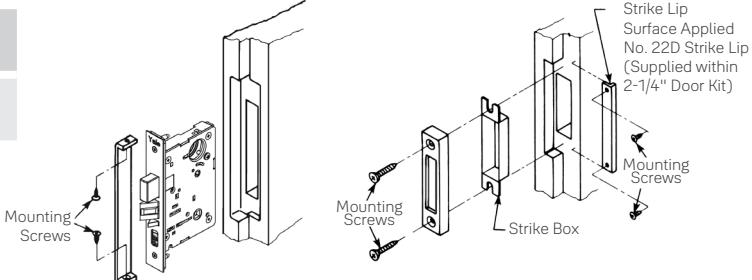

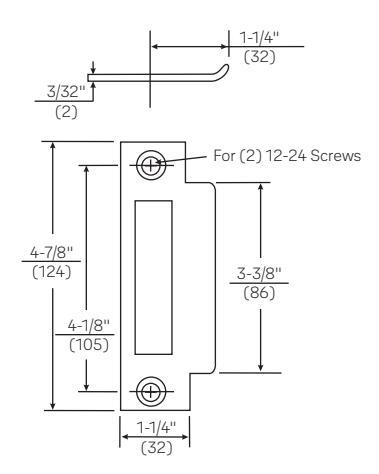

Strike	1-1/4" (model 2815) curved lip strike standard, see page 39 for additional options.

Escutcheon Trim Rose/Sectional Trim

SL8800

For more heavy-duty applications, the SL8800 Series Mortise Lock offers an extra measure of security. The SL8800 is ideal for situations where heavy abuse or vandalism might be a concern. The SL8800 is available in most mortise lock functions; please see pages 12-17 for more information. 630 finish only.

Available with the following lever designs: AR, AU, CR, JN, MO, PB, VI

Features

Heavy duty escutcheon trim that is flat against the door to resist damage and vandalism
Lever attached directly to escutcheon for added security
Thrubolted security head screws offer added protection

Applications

Schools
Minimum security prisons
High crime areas

How To Order

Trim Design	Lock Series/ Function	Cylinder	Hand	Door Thickness	Finish	Highest Keying Level	Supplementary Specifications/Options Please add to end of order string.
See pages 7-11	See pages 12-17	2153 cylinder standard, see pages 28-30 for additional options. If other than the standard cylinder is required, please specify by model number.	RH LH	1-3/4" standard, please specify if different door thickness required	See page 6 YMS = MicroShield*	"Level One" - KA or KD "Level Two" - MK "Level Three" - GM "Level Four" - GGM	Lead lined (see page 45) Knurled (see page 45) Abrasive coated Specific keying 7-pin cylinders (see page 28) Specific strike requirements, i.e. special lip length, curved, open back (see page 39) For split finishes, please specify in detail. Indicate outside finish first regardless of hand of door. For RHR and LHR doors indicate the finish desired for front and strike.

Ordering Example

AU x CN x 8807FL x 2153 x RH x 1-3/4" x 626 x GM

Finishes

The Yale® 8800 Series Mortise Lock is available in the finishes below. All knobs, lever handles, roses, escutcheons, cylinder collars and other exposed parts are fabricated of either brass, stainless steel or zinc and will be compatible with the finish ordered. When ordering, specify the finish required by the ANSI/BHMA Code Number only. When locksets are ordered with different trim finishes on each side, specify the outside finish first, i.e. AUR8817-2 x 612 x 625. The front and strike finish will match the inside finish unless specified otherwise.

		ANSI/BHMA Code Finish Description
605 Bright Brass, Clear Coated	606 Satin Brass, Clear Coated	611 Bright Bronze, Clear Coated	612 Satin Bronze, Clear Coated	613E Dark Oxidized Satin Bronze - equivalent

618 Bright Nickel Plated, Clear Coated	619* Satin Nickel Plated, Clear Coated	625 Bright Chrome Plated	626* Satin Chrome Plated	629 Bright Stainless Steel

630* Satin Stainless Steel	693 Black Painted	BSP Black Suede Powder Coat	WSP White Suede Powder Coat

Notes:

HA lever available in only the following finishes: 605, 619, 625, 626.

SL escutcheon trim available in 630 finish only.

Reflections® decorative levers are NOT available in the following finish: 693.

MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.

^* Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.

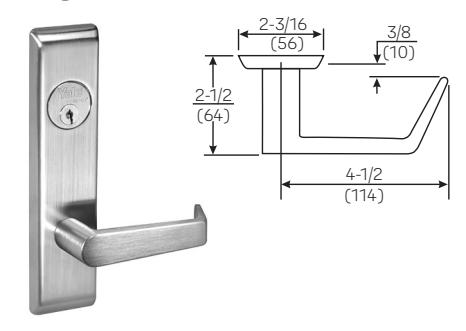

Lever Trim &

Standard Rose

Lever Handle: Cast CO Rose**: Stamped Cylinder Collar: See pages 31-38

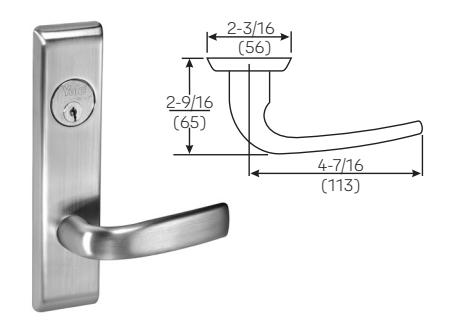

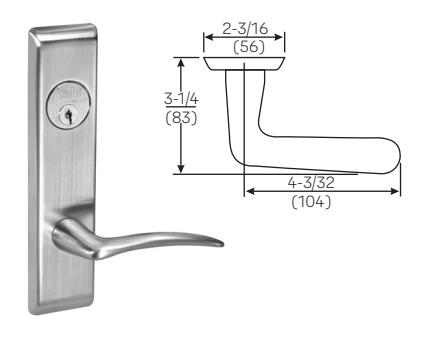

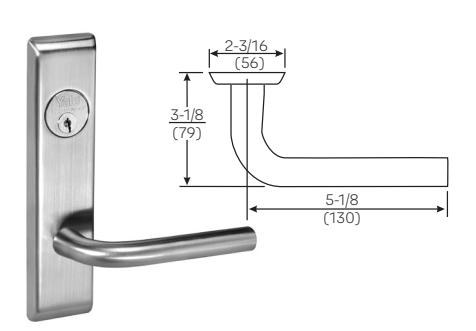

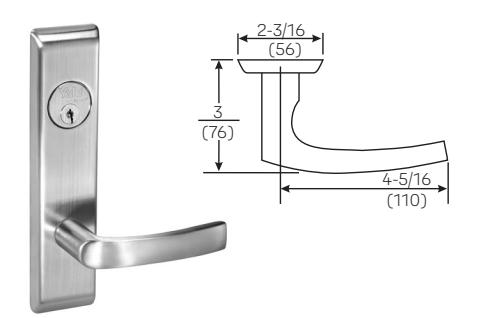

Arcadia - ARR*

Jefferson - JNR

Augusta - AUR

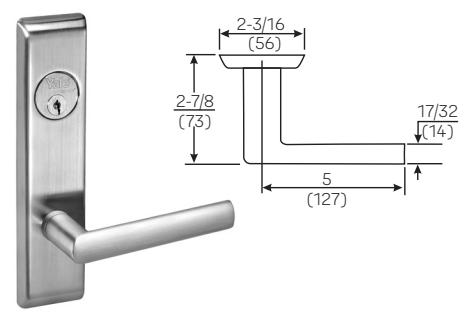

Monroe - MOR

Carmel - CRR

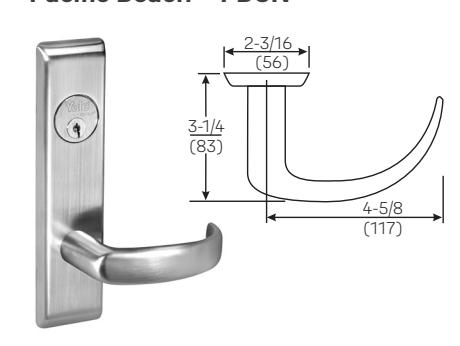

Pacific Beach - PBR

Pinehurst - PNR

Virginia - VIR

Hampton - HAR

^* Indicates levers that are handed. **Lever also available with Reflections" roses. See page 10 for options.

Lever Trim &

Standard Escutcheon

Lever Handle: Cast CN Escutcheon**: Cast

Cylinder Collar: See pages 31-38

Arcadia - ARCN*

Augusta - AUCN

Carmel - CRCN

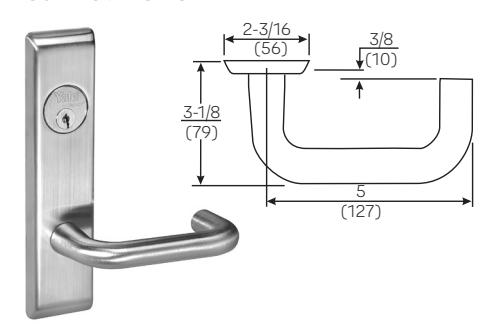

Jefferson - JNCN

Monroe - MOCN

Pacific Beach - PBCN

Pinehurst - PNCN

Virginia - VICN

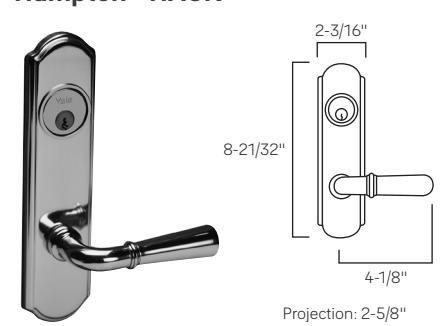

Hampton - HACN

^* Indicates levers that are handed. **Lever also available with Reflections" escutcheons. See page 10 for options. For SL escutcheon trim, specify design x SL. i.e. ARSL. Available with all designs except PN & HA.

Reflections® Decorative Trim

Yale® 8800RL Mortise Locks are available with Reflections lever trim, a comprehensive line of highly stylized lever handles. Reflections lever handles are made from solid brass or stainless steel and can withstand years of abuse. Available in an array of finishes, these levers complement any wood grain or other door exterior. Each lever is hand-polished and specially designed for ergonomics and style.

Hudson	Spree	Seine	Thames	Victoria	Niagara
TB	RS	TE	TM	TT*	CH*
UB	RT	TG*	TN	TU*	DW
TC	RU	TI	TP	TW*	MA*
TD	RV	TJ*	TR	TX*	RA*
UC		TK*	TS	UX*	RB*
			TQ	TY*	RC*

^* Indicates levers that are handed.

Note: The following Reflections levers are not available in 629 or 630 finish: Victoria TT, TU, TW, TX, TY, UX; Seine TG, TJ, TK, TE, TI. Please consider the 618 or 619 finish as an alternative. Reflections levers are not available with knurling option.

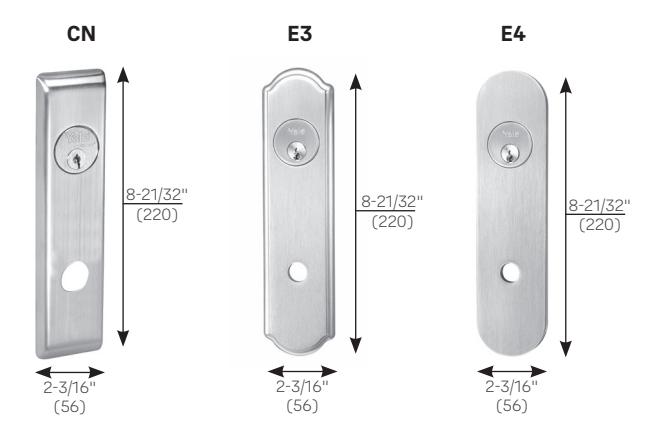

Roses/Escutcheons

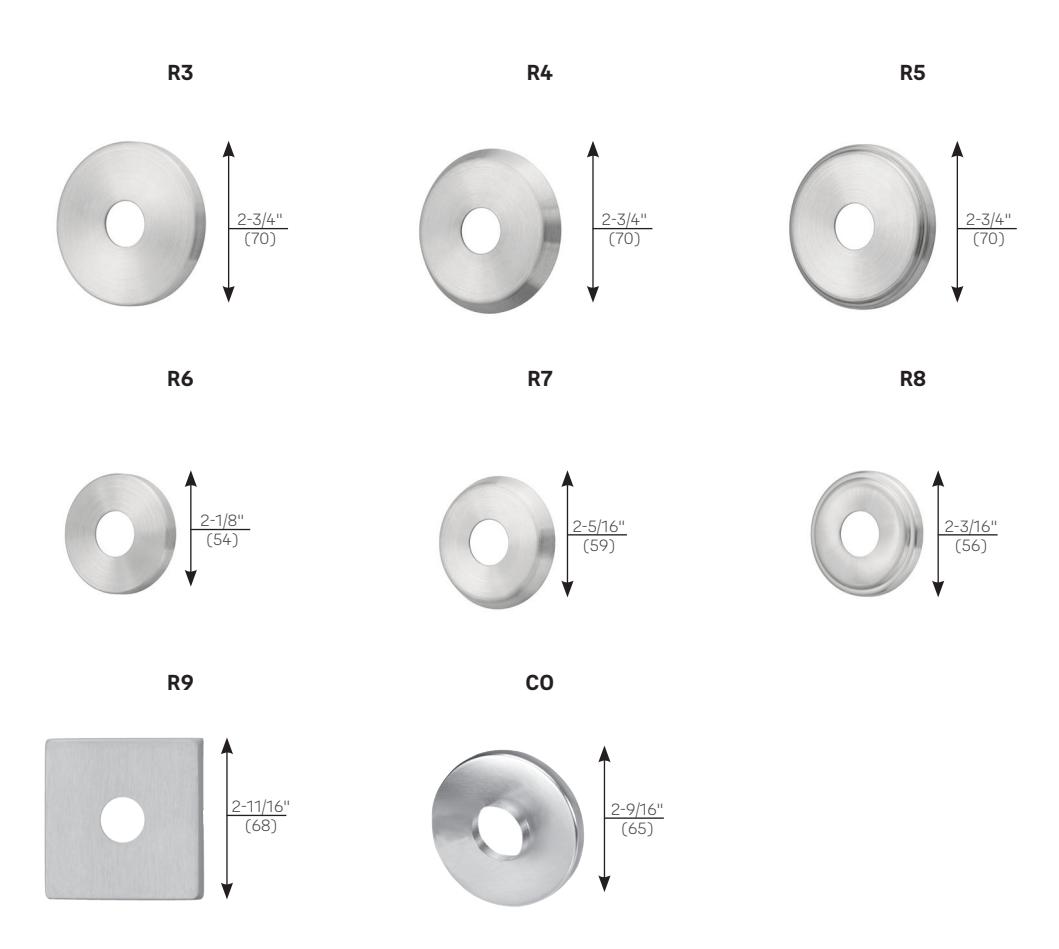

Roses

Escutcheons

Note: All rose and escutcheon options are available with any standard or Reflections® lever design.

Knob Trim

Standard Rose

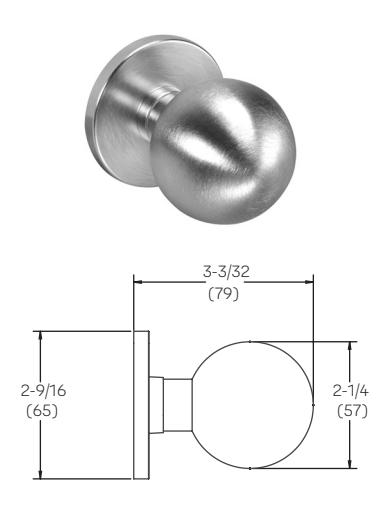

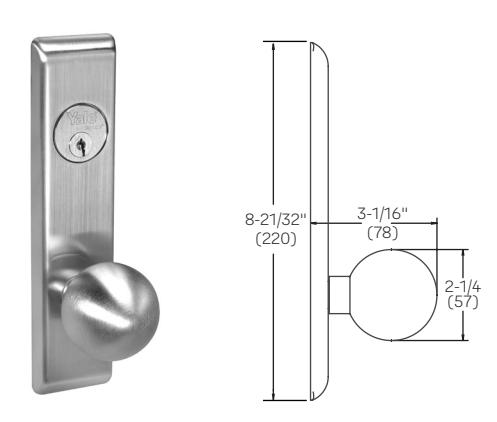

Copenhagen - COR

CO Knob: Cast CO Rose<sup>1</sup>: Stamped Cylinder Collar: See pages 31-38

Standard Escutcheon

Copenhagen - CO X CN

CO Knob: Cast CN Escutcheon¹: Cast

Cylinder Collar: See pages 31-38

^1. Available with Reflections® rose or escutcheon. See page 10 for options.

8801 Passage Or Closet Latch (F01) 8808 Classroom Lock (F05)

For doors that do not require locking
Latchbolt retracted by knob/lever either side at all times

	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8801K	8801FL	3/4"
SL	—	SL8801FL	3/4"
Reflections®	—	8801RL	3/4"

8802 Privacy, Bedroom Or Bath Lock (F19) 8808-2 Intruder Latchbolt Lock (F32)

Latchbolt retracted by knob/lever either side
Deadbolt operated by thumbturn inside
When the deadbolt is projected, outside knob/lever is automatically locked
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied

		Model Numbers		Throw
Trim	Knobs	Levers	Latchbolt Deadbolt
Standard	8802K	8802FL	3/4"	1"
SL	—	SL8802FL	3/4"	1"
Reflections®	—	8802RL	3/4"	1"

8805 Storeroom Or Closet Lock (F07) 8809 Classroom Or Office Lock

For use on storeroom, utility, exit doors
Latchbolt retracted by key outside, knob/lever inside
Outside knob/lever rigid at all times
Inside knob/lever always active
Deadlocking latchbolt

	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8805K	8805FL	3/4"
SL	—	SL8805FL	3/4"
Reflections®	—	8805RL	3/4"

For office doors where locking is required
Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator
When outside knob/lever is locked, latchbolt is operated by key outside and knob/lever inside
Deadlocking latchbolt


	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8807K	8807FL	3/4"
SL	—	SL8807FL	3/4"
Reflections®	—	8807RL	3/4"

For classroom, office, or utility room doors
Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key
Inside knob/lever always active
Latchbolt can be retracted by key when outside knob/lever is locked
Operating inside knob/lever retracts latchbolt, but outside knob/lever remains locked
Deadlocking latchbolt

	Model Numbers		Latchbolt
Trim	Knobs	Levers	Throw
Standard	8808K	8808FL	3/4"
SL	—	SL8808FL	3/4"
Reflections®	—	8808RL	3/4"

Latchbolt retracted by knob/lever either side unless outside knob/lever is locked by key
Either cylinder locks or unlocks outside knob/lever
Latchbolt can be retracted by key when outside knob/lever is locked
Operating inside knob/lever retracts latchbolt, but outside knob/lever remains locked
Deadlocking latchbolt


Trim		Model Numbers	Latchbolt Throw
	Knobs	Levers
Standard	8808-2K	8808-2FL	3/4"
SL	—	SL8808-2FL	3/4"
Reflections®	—	8808-2RL	3/4"

Latchbolt retracted by knob/lever either side unless outside knob/lever is locked by key outside or thumbturn inside
Latchbolt retracted by thumbturn inside or key outside
Inside knob/lever always active
Deadlocking latchbolt

	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8809K	8809FL	3/4"
SL	—	SL8809FL	3/4"
Reflections®	—	8809RL	3/4"

8807 Entry Lock (F04) 8811-2 Intruder Deadbolt Lock (F33)

Latchbolt retracted by knob/lever either side unless outside knob/lever is locked by key
Deadbolt operated by key either side
When deadbolt is projected, outside knob/lever is automatically locked
Key retraction of deadbolt unlocks outside knob/lever
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.


		Model Numbers		Throw
Trim	Knobs	Levers	Latchbolt Deadbolt

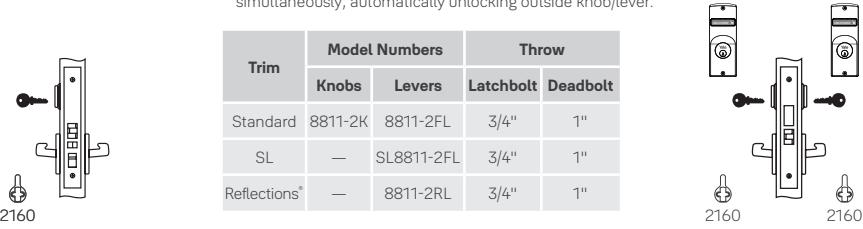

Standard 8811-2K		8811-2FL	3/4"	1"
SL	—	SL8811-2FL	3/4"	1"
Reflections®	—	8811-2RL	3/4"	1"

Indicator options available for both sectional and escutcheon trim.

Cylinder cam required.

Indicates rigid knob/lever.

8812-2 Intruder Deadbolt Lock (F34)

Latchbolt retracted by knob/lever either side unless outside knob/lever is locked by key
Deadbolt operated by key either side
When deadbolt is projected, outside knob/lever is automatically locked
· Key retraction of deadbolt unlocks outside knob/lever
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
Deadlocking latchbolt

	Model Numbers		Throw
Trim	Knobs	Levers	Latchbolt	Deadbolt
Standard	8812-2K	8812-2FL	3/4"	1"
SL	-	SL8812-2FL	3/4"	1"
Reflections®	-	8812-2RL	3/4"	1"

8813ST Classroom Deadlock (F29)

· Deadbolt operated by key outside, thumbturn inside
. Thumbturn inside will retract the deadbolt but will not project it
NOT UL listed
· Not available with E3 or E4 escutcheons

Model Number	Deadbolt Throw
8813ST	1"

8813ST-2 Classroom Deadlock

· Deadbolt operated by key either side
Thumbturn inside will retract the deadbolt but will not project it
NOT UL listed
Not available with E3 or E4 escutcheons

Model Number	Deadbolt Throw
8813ST-2	1"

8814 Deadlock (F18)

· Deadbolt operated by key outside only
No inside operation
NOT UI listed
· Not available with E3 or E4 escutcheons

Note: Indicators available for sectional trim only

Model Number	Deadbolt Throw
8814K	1"

8814-2 Deadlock (F16)

Deadbolt operated by key either side
NOT UL listed
Not available with E3 or E4 escutcheons Note: Use only on rooms with more than one exit Indicators available for sectional trim only

Model Number	Deadbolt Throw
8814-2K	1"

8815 Deadlock (F17)

Deadbolt operated by key outside, thumbturn inside
NOT UL listed
Not available with E3 or E4 escutcheons

Note: Indicators available for sectional trim only

Model Number	Deadbolt Throw
8815K	1"

8817-2 Apartment, Exit Or Public Toilet Lock (F09)

Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key inside
When outside knob/lever is locked, latchbolt is operated by key outside and knob/lever inside
Deadlocking latchbolt

Trim	Model	Latchbolt
111111	Knobs	Throw
Standard	8817-2K	8817-2FL	3/4"
SL	_	SL8817-2FL	3/4"
Reflections"	_	8817-2RL	3/4"

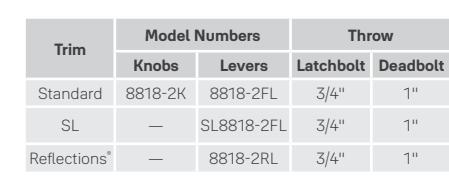

8818-2 Classroom Security Intruder Lock

· Latchbolt retracted by knob/lever unless outside knob/lever is locked by key
· Deadbolt operated by key either side
When deadbolt is projected, outside knob/lever is automatically locked
Key retraction of latchbolt by either side unlocks outside knob/lever · Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt
simultaneously, with outside knob/lever remaining locked.
Deadlocking latchbolt

Note: Indicator shows deadbolt position only

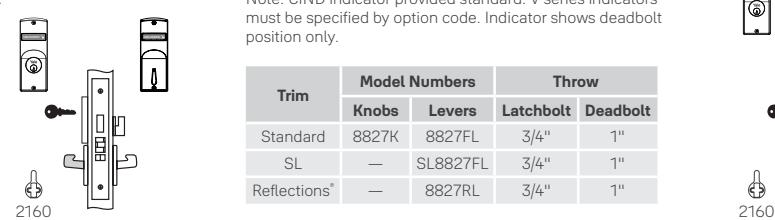

8820 Hotel Guest Lock (F15) 8827 Hotel/Motel Lock

Latchbolt retracted by key outside, knob/lever inside
Latchbolt retracted by master keys and change keys only when deadbolt is NOT projected • Deadbolt operated by emergency/shut-out or display key outside and thumbturn inside
When deadbolt is projected, the indicator shows red with a locked padlock icon (indicating room is occupied). Access from outside can be gained only with an emergency/shut-out or
Outside knob/lever rigid at all times
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously
Deadlocking latchbolt

display key.

• Master key system must be 7-pin
Function only available with CO, R6, R7, R8 roses or CN escutcheon Note: CIND indicator provided standard. V series indicators must be specified by option code. Indicator shows deadbolt position only.


	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8820K	8820FL	3/4"
SL	—	SL8820FL	3/4"
Reflections®	—	8820RL	3/4"

Latchbolt retracted by knob/lever either side
Deadbolt operated by key outside and thumbturn inside
When the deadbolt is projected, outside knob/lever is automatically locked
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.


		Model Numbers	Throw
Trim	Knobs	Levers		Latchbolt Deadbolt
Standard	8822K	8822FL	3/4"	1"
SL	—	SL8822FL	3/4"	1"
Reflections®	—	8822RL	3/4"	1"

8823 Storeroom Lock 8829 Closet Lock

Latchbolt retracted by knob/lever outside
Deadbolt operated by key outside
When deadbolt is projected, outside knob/lever is automatically locked
No inside knob/lever or cylinder
Not available with E3 or E4 escutcheons

		Model Numbers	Throw
Trim	Knobs	Levers		Latchbolt Deadbolt
Standard	8823K	8823FL	3/4"	1"
SL	—	SL8823FL	3/4"	1"
Reflections®	—	8823RL	3/4"	1"

For classroom, office, or utility room doors
Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by key outside
Latchbolt can be held in retracted position by outside cylinder
Inside knob/lever always active
Deadlocking latchbolt
NOT UL listed

	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8824K	8824FL	3/4"
SL	—	SL8824FL	3/4"
Reflections®	—	8824RL	3/4"

Latchbolt retracted by knob/lever either side, except when outside knob/lever is independently locked by stopwork activator or automatically locked when the deadbolt is projected
Latchbolt retracted by master keys and change keys only when deadbolt is NOT projected
Deadbolt operated by emergency/shut-out or display key outside and thumbturn inside
When deadbolt is projected, the indicator shows red with a locked padlock icon (indicating room is occupied). Access from outside can be gained only with an emergency/shut-out or display key.
Anti-panic operation. Operating inside knob/lever automatically retracts latchbolt and deadbolt with outside knob/lever remaining locked.
Deadlocking latchbolt
• Master key system must be 7-pin
Function only available with CO, R6, R7, R8 roses or CN escutcheon Note: CIND indicator provided standard. V series indicators must be specified by option code. Indicator shows deadbolt position only.

Model Numbers Trim			Throw
	Knobs	Levers	Latchbolt Deadbolt
Standard	8827K	8827FL	3/4"	1"
SL	—	SL8827FL	3/4"	1"
Reflections®	—	8827RL	3/4"	1"

8822 Dormitory Or Exit Lock (F13) 8828 Exit Or Communicating Lock (F31)

For twin communicating or exit doors where one-sided operation is required
Latchbolt retracted by knob/lever inside at all times
No outside operations
Deadlocking latchbolt
Not available with E3 or E4 escutcheons

		Model Numbers
Trim	Knobs	Levers	Latchbolt Throw
Standard	8828K	8828FL	3/4"
SL	—	SL8828FL	3/4"
Reflections®	—	8828RL	3/4"

Latchbolt retracted by knob/lever outside
Outside cylinder locks or unlocks outside knob/lever
No inside knob/lever or cylinder
Deadlocking latchbolt
Not available with E3 or E4 escutcheons

	Trim		Model Numbers	Latchbolt
	Trim	Knobs	Levers	Throw
	Standard	8829K	8829FL	3/4"
	SL	—	SL8829FL	3/4"
2160	Reflections®	—	8829RL	3/4"

8824 Holdback Lock (F06) 8830-2 Asylum Or Institutional Lock (F30)

Latchbolt retracted by key both sides
Rigid knob/lever both sides for use as pulls only
Deadlocking latchbolt

Trim		Model Numbers		Latchbolt
Trim	Knobs	Levers	Throw
	Standard	8830-2K	8830-2FL	3/4"
	SL	—	SL8830-2FL	3/4"
2160	Reflections®	—	8830-2RL	3/4"	2160 2160

Cylinder cam required.

8831 Detention Lock

Latchbolt retracted by key outside, knob/lever inside
Latchbolt retracted by master keys and change keys only when deadbolt is NOT projected Deadbolt operated by emergency (guards) key only outside
Inside knob/lever only opens door when deadbolt is in retracted position
Outside knob/lever rigid at all times
Deadlocking latchbolt
· Trim mounted with fasteners outside
· Furnished standard with TORX® security screws
Master key system must be 7-pin

T. C.	Model I	Numbers	Throw
Trim	Knobs	Levers	Latchbolt	Deadbolt
Standard	8831K	-	3/4"	1"
SL	_	SL8831FL	3/4"	1"

8832 Hotel/Motel Lock

Latchbolt retracted by key outside, knob/lever inside
· Latchbolt retracted by master keys and change keys only when deadbolt is NOT projected
Deadbolt operated by emergency/shut-out or display key only outside and thumbturn inside
Outside knob/lever rigid at all times
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously.

Deadlocking latchbolt Master key system must be 7-pin Note: Indicator shows deadbolt position only

T. C.	Model	Numbers	Thr	ow
Trim	Knobs	Knobs Levers		Deadbolt
Standard	8832K	8832FL	3/4"	1"
SL	_	SL8832FL	3/4"	1"
Reflections®	_	8832RL	3/4"	1"

8833 Exit Lock

· Latchbolt retracted by key outside, knob/lever inside
No knob/lever outside
Deadlocking latchbolt
Not available with E3 or E4 escutcheons

T. C.	Model N	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8833K	8833FL	3/4"
SL	-	SL8833FL	3/4"
Reflections"	_	8833RL	3/4"

8833-2 All-Purpose Lock

· Latchbolt retracted by key both sides
· No knob/lever either side
Deadlocking latchbolt

escutcheon trim.

• Not available with E3 or E4 escutcheons

Model Number	Latchbolt Throw
8833-2	3/4"

Cylinder cam required.

8834 All Purpose Lock

Latchbolt retracted by key outside, knob/lever inside
No knob/lever outside Latchbolt can be held in retracted position by inside thumbturn cylinder
Deadlocking latchbolt
NOT UL listed
· Not available with E3 or E4 escutcheons

-	Model N	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8834K	8834FL	3/4"
Reflections*	_	8834RL	3/4"

8834-2 All Purpose Lock

. For classroom, office, or utility room doors
Latchbolt retracted by key outside, knob/lever inside
No knob/lever outside
· Latchbolt can be held in retracted position by inside cylinder
Deadlocking latchbolt NOT UL listed
Not available with E3 or E4 escutcheons

	Model I	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8834-2K	8834-2FL	3/4"
Reflections*	-	8834-2RL	3/4"

8835 Exit Lock

Latchbolt retracted by knob/lever inside
· Deadbolt operated by thumbturn inside
No outside operations
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously.
· Deadlocking latchbolt
Not available with E3 or E4 escutcheons

	Model N	lumbers	Throw
Trim	Knobs	Levers	Latchbolt	Deadbolt
Standard	8835K	8835FL	3/4"	1"
SL	-	SL8835FL	3/4"	1"
Reflections ^®	_	8835RL	3/4"	1"

8840 Storeroom Deadbolt

· Latchbolt retracted by key outside, knob/lever inside
Deadbolt operated by key outside and thumbturn inside Outside knob/lever rigid at all times
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously. • Deadlocking latchbolt

Note: Indicator shows deadbolt position only

	Model Numbers		Throw
Trim	Knobs	Levers	Latchbolt	Deadbolt
Standard	8840K	8840FL	3/4"	1"
SL	_	SL8840FL	3/4"	1"
Reflections®	_	8840RL	3/4"	1"

Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator
Deadbolt operated by key outside, thumbturn inside
When outside knob/lever is locked, latchbolt and deadbolt are operated by key outside
When deadbolt is projected, outside knob/lever is automatically locked
Anti-panic operation. Operating inside knob/lever automatically retracts latchbolt and deadbolt with outside knob/lever remaining locked.
Deadlocking latchbolt

Note: Indicator shows deadbolt position only

		Model Numbers	Throw
Trim	Knobs Levers		Latchbolt	Deadbolt
Standard	8847K	8847FL	3/4"	1"
SL	—	SL8847FL	3/4"	1"
Reflections®	—	8847RL	3/4"	1"

Latchbolt retracted by knob/lever either side
Deadbolt operated by key outside, thumbturn inside


		Model Numbers	Throw
Trim Knobs	Levers		Latchbolt Deadbolt
Standard	8860K	8860FL	3/4"	1"
SL	—	SL8860FL	3/4"	1"
Reflections®	—	8860RL	3/4"	1"

8860-2 Store Door Lock (F14) 8865 Bathroom Lock

Latchbolt retracted by knob/lever either side
Deadbolt operated by key both sides

	Model Numbers Trim Knobs Levers		Throw
	Model Numbers Trim Knobs Levers		Latchbolt Deadbolt
Standard	8860-2K	8860-2FL	3/4"	1"
SL	—	SL8860-2FL	3/4"	1"
Reflections®	—	8860-2RL	3/4"	1"

Latchbolt retracted by knob/lever either side
Deadbolt operated by key outside, thumbturn inside
When deadbolt is projected, outside knob/lever is automatically locked
When deadbolt is retracted, outside knob/lever is automatically unlocked

		Model Numbers		Throw
Trim	Knobs	Levers		Latchbolt Deadbolt
Standard	8861K	8861FL	3/4"	1"
SL	—	SL8861FL	3/4"	1"
Reflections®	—	8861RL	3/4"	1"

Cylinder cam required.

8847 Apartment Corridor Door Lock (F20) 8862 Privacy, Bedroom Or Bath Lock (F22)

Latchbolt retracted by knob/lever either side except when outside knob/lever is locked by thumbturn
Operating inside knob/lever retracts the latchbolt, automatically unlocking outside knob/lever
Outside emergency release unlocks outside knob/lever. E203 emergency key supplied
Automatically unlocks when door latches

	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8862K	8862FL	3/4"
SL	—	SL8862FL	3/4"
Reflections®	—	8862RL	3/4"

8860 Room Door Lock (F21) 8864 Bathroom Lock With Indicator

Latchbolt retracted by key outside, knob/lever inside
Indicator operated by thumbturn inside, key outside
When indicator shows red with a locked padlock icon, key outside will operate indicator and retract latchbolt
Outside knob/lever rigid at all times
Inside knob/lever always active
Deadlocking latchbolt
Function only available with CO, R6, R7, R8 roses or CN escutcheon Note: CIND indicator provided standard. V series indicators must be specified by option code.

	Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw

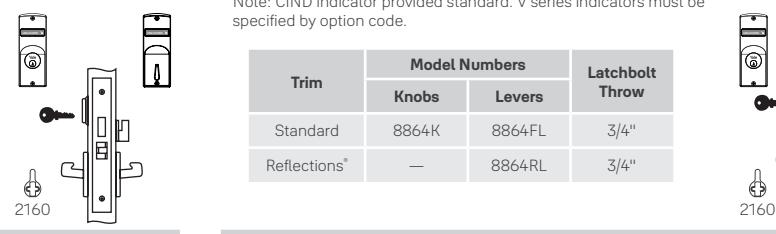

Standard	8864K	8864FL	3/4"
Reflections®	—	8864RL	3/4"

Latchbolt retracted by knob/lever either side except when outside knob/lever is locked by thumbturn either side
Outside thumbturn unlocks outside knob/lever
Automatically unlocks when door latches
Operating inside knob/lever retracts the latchbolt, automatically unlocking outside knob/lever


		Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8865K	8865FL	3/4"
SL	—	SL8865FL	3/4"
Reflections®	—	8865RL	3/4"

8861 Dormitory Or Storeroom Lock 8866 Passage Lock With Indicator

For doors with indicator that do not require locking
Latchbolt retracted by knob/lever either side at all times • Throwing thumbturn on inside changes state of status indicator
Rotating either knob/lever returns indicator to previous state Note: Only available with "V" series indicators. Indicator option code must be specified with this function

		Model Numbers	Latchbolt
Trim	Knobs	Levers	Throw
Standard	8866K	8866FL	3/4"
Reflections®	—	8866RL	3/4"

8867 Dormitory Or Exit Lock (F12) Active Dummy Trim

Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator or automatically locked when deadbolt is projected
Deadbolt operated by key outside, thumbturn inside
When outside knob/lever is locked, operating key outside retracts both latchbolt and deadbolt
Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, with outside knob/lever remaining locked.

Note: Indicator shows deadbolt position only

	Model Numbers		Throw
Trim	Knobs	Levers		Latchbolt Deadbolt
Standard	8867K	8867FL	3/4"	1"
SL	—	SL8867FL	3/4"	1"
Reflections®	—	8867RL	3/4"	1"

836A/838A Dummy Trim Both Sides

Push and pull only
Knob/lever both sides
Both knob/lever non-operational and rigid at all times
Plain rectangular front used with spindle-bar stabilizer
Available in all sectional and escutcheon trim

Model Numbers
Knobs	Levers
836A prefixed by design symbol (i.e. COR836A, CO x CN836A)	838AFL prefixed by design symbol (i.e.JNR838AFL, JN x CN838AFL)

836B/838B Dummy Trim Both Sides

Push or pull only
Knob/lever both sides of inactive leaf of a pair of doors
Both knob/lever non-operational and rigid at all times
Available in all sectional and escutcheon trim
2815 Strike available upon request

Model Numbers
Knobs	Levers
836B prefixed by design symbol (i.e. COR836B, CO x CN836B)	838BFL prefixed by design symbol (i.e.JNR838BFL, JN x CN838BFL)

855 Dummy Trim One Side

Push or pull only
Knob/lever one side
Knob/lever non-operational and rigid at all times
Function only available with CO, R3, R4, R5 roses or CN escutcheon

Model Numbers
Knobs	Levers
855 prefixed by design symbol (i.e. COR855)	855FL prefixed by design symbol (i.e. CR x CN855FL)

Knob/lever both sides
Push or pull only
Primarily for lever handle trim
Knob/lever active to prevent damage

8871DT – Armor front acts as strike for latchbolt only functions

8872DT – Armor front acts as strike for latchbolt x deadbolt functions

	Model Numbers
Knobs	Levers	Reflections®	Outside \| Inside
8870DT	8870FLDT	8870RLDT
8871DT	8871FLDT	8871RLDT
8872DT	8872FLDT	8872RLDT

Handing must be specified when ordering

Applications

8800 Series indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/ unlocked status of a room.

Restrooms
Quiet rooms
Nursing mother's rooms
Classroom doors

Features

Inside, outside or both sides of the door
Sectional or escutcheon trim
Available with 24 different functions including thumbturn functions

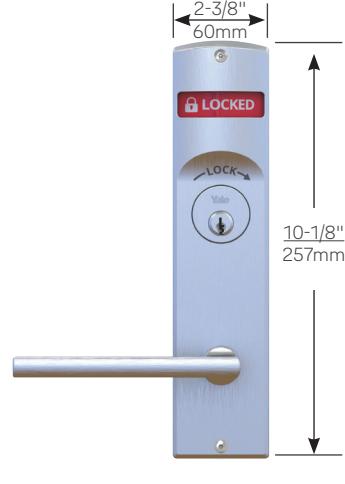

Viewing window 25% larger than competition
Patented curved design for viewing at multiple angles
Window located prominently above the cylinder
Highly reflective viewing window for increased safety
Optional directional engraving available must specify handing
Retrofitable for existing applications

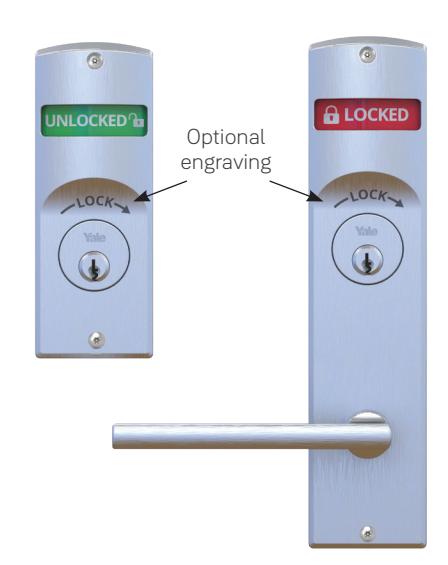

Shown with optional directional arrow engraving

Functions

• Indicators are available with the following 8800 Series functions. See pages 12-17 for details.

Function	Description
8802	Privacy, Bedroom Or Bath Lock (F19)
8808	Classroom Lock (F05)
8808-2	Intruder Latchbolt Lock (F32)
8809	Classroom Or Office Lock
8811-2	Intruder Deadbolt Lock (F33)
8812-2	Intruder Deadbolt Lock (F34)
8814	Deadlock (F18)
8814-2	Deadlock (F16)
8815	Deadlock (F17)

Function	Description
8818-2	Classroom Security Intruder Lock
8820	Hotel Guest Lock (F15)
8822	Dormitory Or Exit Lock (F13)
8827	Hotel/Motel Lock
8832	Hotel/Motel Lock
8840	Storeroom Deadbolt
8847	Apartment Corridor Door Lock (F20)
8860	Room Door Lock (F21)
8860-2	Store Door Lock (F14)


Function	Description
8861	Dormitory Or Storeroom Lock
8862	Privacy, Bedroom Or Bath Lock (F22)
8864	Bathroom Lock With Indicator
8865	Bathroom Lock
8866	Passage Lock With Indicator
8867	Dormitory Or Exit Lock (F12)

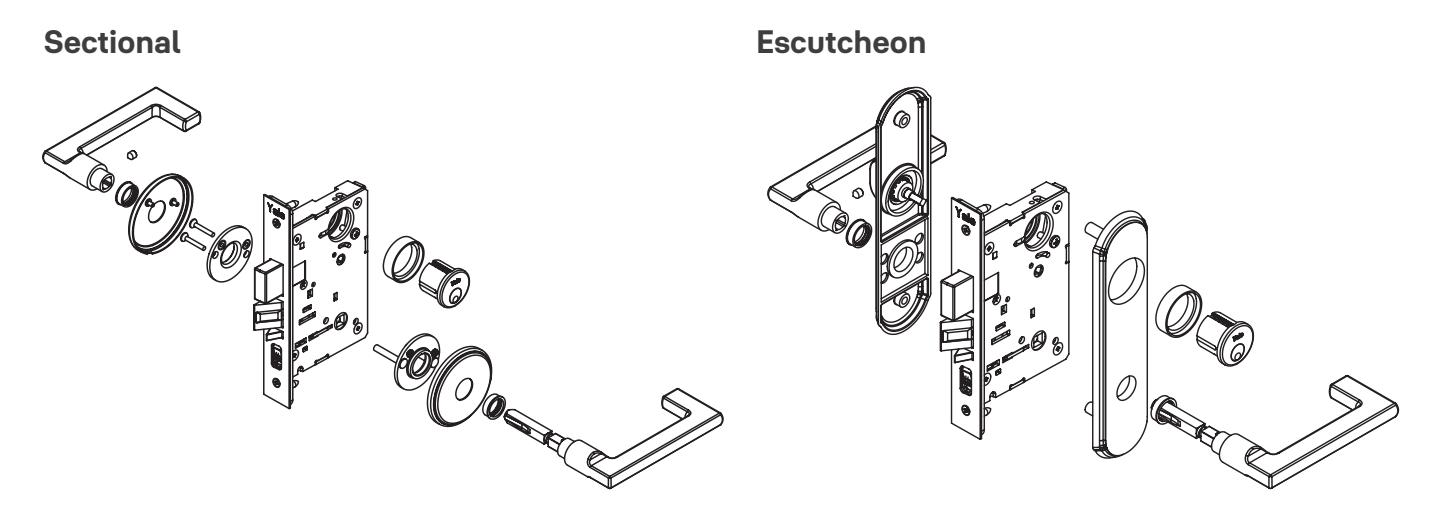

Sectional Trim

Surface mounted
Torx security screws provided
Compatible with all rose designs: CO, R3, R4, R5, R6, R7, R8, R9
Available with optional directional arrow engraving

To order indicator with complete lock, specify by adding V series indicator option code to order string. See page 21 for indicator codes and page 22 for how to order examples.

Shown with optional directional arrow engraving

Retrofit/Upgrade Kits

Retrofit/upgrade kits only are available for existing applications only. Each kit includes single side indicator plate with mechanism, screw pack, plastic template and instructions.

To order retrofit/upgrade kits only, specify by model number below. Door thickness, handing and indicator option code must also be specified with kit. Retrofit/upgrade kits with directional engraving must include lock handing.

See page 22 for how to order examples. Note: Indicators for both sides of door require two kits.

	Model #	Used with Functions	Available Option Codes	Indicator Location
UNLOCKED To	YA190	8811-2, 8814, 8814-2, 8815, 8818-2, 8822, 8832, 8840, 8847, 8860, 8860-2, 8861, 8867	Outside Trim: V10, V10F, V20, V20F, V30, V40,
	YA191	8812-2	V50, V60 Inside Trim: V01, V01F,	Inside and/or Outside*
	YA192	8808, 8808-2, 8809	V03, V04, V06
	YA193	8802, 8820, 8827, 8862, 8864	V10, V10F, V20, V20F, V30, V40, V50, V60	Outside
UNLOCKEO (*)	YA194	8802, 8815, 8820, 8822, 8827, 8832, 8840, 8847, 8860, 8861, 8867
	YA196	8862, 8864, 8865, 8866	V01, V01F, V03, V04, V06	Inside
	YA198	8809
	YA197	8866	Outside Trim: V10, V10F, V20, V20F, V30, V40, V50, V60 Inside Trim: V01, V01F, V03, V04, V06	Inside, Outside

^* When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side.

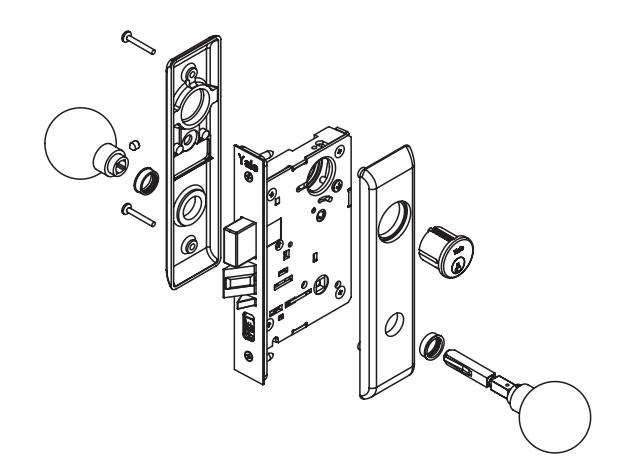

Escutcheon Trim

Unique escutcheon (VN) for both inside and outside of door for indicator functions
Non-indicator functions provide with standard escutcheons as ordered, i.e. E3, E4, CN, SL
Through-bolted
Torx security screws optional
Available with optional directional arrow engraving (see page 22)

Specify option code when ordered with lock. See page 21 for indicator option codes and page 22 for how to order examples.

Shown with optional directional arrow engraving

Escutcheon Trim Upgrade Kit Only

Complete trim kits are available to retrofit/upgrade existing applications.

Trim kit includes levers and escutcheons with mechanism for both sides of door, screw pack, door marker and instructions.

To order trim kit only, specify by adding TP prefix to function required with trim, hand, finish and indicator option code.

Prefix	Functions
TP	All functions*

^* Escutcheon indicator trim kits available for all functions as listed on page 18 except 8814, 8814-2, 8815.

Note: Escutcheon applications require both sides of the door to have the unique VN escutcheon. Kits will be provided as a set.

How to Order Example (Escutcheon Kit Only)

Lever	Escutcheon	Function	Hand	Finish	Options
AU	VN	TP8802*	RH	626	V21 x EMB

^* The function of the existing lock is required so the proper escutcheons can be provided.

Privacy Bedroom/Bath function x escutcheon trim x double indicator - Vacant/Occupied – Green/Red (Outside) Unlocked/Locked – Green/Red (Inside) x inside engraving with "Lock" and directional arrow

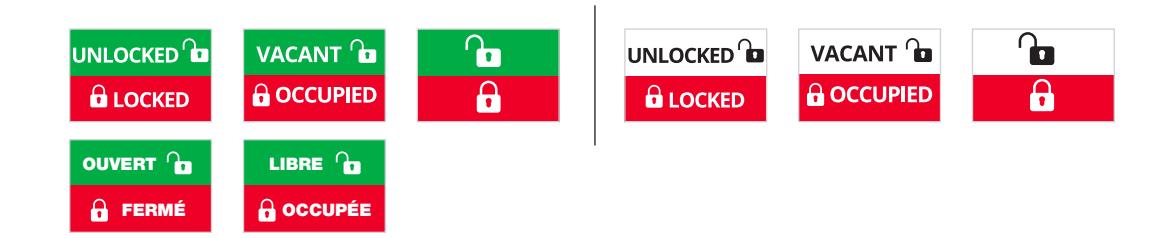

Indicator Option Codes

8800 Series indicator option codes are designed to convey wording, color and side of door desired in one simple code. To order, specify option code for complete locksets and/or retrofit/upgrade trim kits.

Single Indicator
Option Code	Outside Wording	Inside Wording	Color
V10	Unlocked/Locked	No Indicator	Green/Red
V10F	Ouvert/Fermé	No Indicator	Green/Red
V20	Vacant/Occupied	No Indicator	Green/Red
V20F	Libre/Occupée	No Indicator	Green/Red
V30	Icons Only	No Indicator	Green/Red
V40	Unlocked/Locked	No Indicator	White/Red
V50	Vacant/Occupied	No Indicator	White/Red
V60	Icons Only	No Indicator	White/Red
V01	No Indicator	Unlocked/Locked	Green/Red
V01F	No Indicator	Ouvert/Fermé	Green/Red
V03	No Indicator	Icons Only	Green/Red
V04	No Indicator	Unlocked/Locked	White/Red
V06	No Indicator	Icons Only	White/Red
	Double I	ndicator
Option Code	Outside Wording	Inside Wording	Color
V11	Unlocked/Locked	Unlocked/Locked	Green/Red
V11F	Ouvert/Fermé	Ouvert/Fermé	Green/Red
V21	Vacant/Occupied	Unlocked/Locked	Green/Red
V21F	Libre/Occupée	Ouvert/Fermé	Green/Red
V33	Icons Only	Icons Only	Green/Red
V44	Unlocked/Locked	Unlocked/Locked	White/Red
V54	Vacant/Occupied	Unlocked/Locked	White/Red
V66	Icons Only	Icons Only	White/Red
Engraving
Option Code	Outside	Inside	Wording
EMA	Engraving	No Engraving	"Lock" with arrow
EMB	No Engraving	Engraving	"Lock" with arrow
EMC	Engraving	Engraving	"Lock" with arrow

Engraving Options

Laser engraving with "LOCK" and directional arrow
Only available in the following finishes: 605, 606, 618, 619, 625, 626, 629*, 630*
Available with MicroShield®
Door handing must be specified

Option Code	Description
EMA	Engraving located on outside of door
EMB	Engraving located on inside of door
EMC	Engraving located on inside and outside of door

Note: Engraving is available as an option for all functions when ordered with an indicator. Option codes must be specified with complete lock and/or retrofit (upgrade) kits/trim.

How to Order Examples

Complete with Lock

Sectional Trim

Trim	Function	Hand	Finish	Options
AUR	8818-2FL	RH	626	V01

Classroom Security Intruder Latchbolt function x sectional trim x single indicator inside – Unlocked/Locked – Green/Red

Escutcheon Trim

Lever	Escutcheon	Function	Hand	Finish	Options
AU	VN	8802FL	RH	626	V21 x EMB

Retrofit (Upgrade)/Trim Kit Only

Sectional Trim*

Model #	Door Thickness	Hand	Finish	Option
YA190	1-3/4"	RH	626	V04

Keyed function indicator for sectional trim x single indicator inside – Unlocked/Locked – Red/White

Escutcheon Trim

Lever	Escutcheon	Function	Hand	Finish	Options
AU	VN	TP8802**	RH	626	V21 x EMB

^* Indicator escutcheon is nickel plated to match Stainless Steel

^* When indicators are required on both sides of the door, 2 upgrade kits must be ordered, one kit for each side.

^** The function of the existing lock is required so the proper escutcheons can be provided.

Indicators - IND/CIND Option

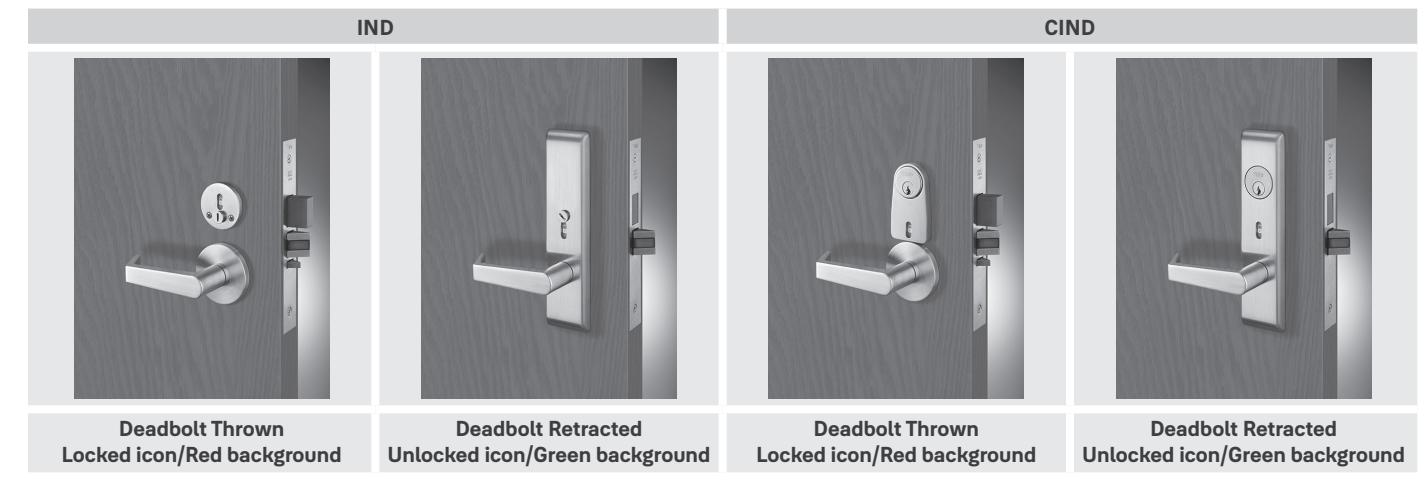

Indicator options IND and CIND are provided with a padlock icon on a green or red background.

Trim Availability

	IND	CIND
Levers/Knobs	All	All
Roses	CO, R3, R4, R5, R6, R7, R8, R9	CO, R6, R7, R8
Escutcheons	CN	CN

Functions

Indicators are available on the outside of the door for the following functions:

	8802	8818-2*	8820	8822	8827	8832	8862	8864
IND	Optional						Optional
CIND		Optional	Standard	Optional	Standard	Optional		Standard

^* Specify mounting side.

How To Order

When ordering with lock, specify the complete lock ordering string and include option code based on function.

Trim	Function	Hand	Finish	Option
AUR	8802FL	RH	626	IND
AUCN	8822FL	RH	626	CIND

When ordering for upgrade to existing lockset, specify kit number x finish.

Trim	Type	Kit
Sectional	Privacy	IND-K x Finish
Sectional	Cylinder	CIND-K x Finish
Escutcheon	Privacy	CN88 x 261 x Finish
Escutcheon	Cylinder	CN88 x 260 x Finish
Escutcheon	Cylinder w/cointurn	CN88 x 262 x Finish

Notes:

IND-K and CIND-K are kits which includes indicator mechanism and mounting hardware. Cylinder not included.
For escutcheon trim, CN88 is the outside escutcheon only with indicator assembly, does not include levers or cylinder

Electrified Mortise Locksets

Featuring EcoFlex®:

Reduces energy consumption up to 92% as certified by GreenCircle
- Lower operating costs
- Assists with load reduction in optimizing energy performance credit in LEED
- Reduces number of power supplies required
Field configurable to fail safe or fail secure
Operates from 12-24VDC, offering greater flexibility in system design
Innovative actuator design provides superior reliability
- Higher performance and reduced maintenance
- Ability to have longer cable runs without negatively impacting lock function
- Reduces risk of voltage drops and eliminates inductive kickback
- Lower total cost of ownership

Trim Designs

8800 electrified mortise locksets are available with all standard lever and Reflections® trims.

ANSI/BHMA

Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon meet Security Grade 1).

Applications

Stair tower doors, office doors, classrooms, interlocks, elevator lobby doors, laboratories, computer rooms, cashier stations, hospital equipment rooms and pharmaceutical storage rooms. For narrow frame profiles, consult factory.

Electrical Specifications

Fail Safe/Fail Secure

Current draw: 15mA @ 12V or 24V Continuous
Peak current draw: 500mA @ 12V or 24V (Max 2 locks per 1A Power Supply)
Monitor switch rating: 2A Max to 30VDC

Note: Operating voltage not to exceed +/- 10%.

Environmental Specifications

Operating Temperature -13°F (-25°C) to 151°F (66°C)

Monitoring Options

Model Number	Description
REX	Request to Exit - An SPDT switch that monitors activation of the free lever (not available with knob trim). REX is available for all mechanical and electrified functions and can be supplied alone or with either LBM or DBM.
LBM	Latchbolt Monitor - An SPDT switch that monitors full retraction of the latchbolt. LBM is available for all electrified functions and can be supplied alone or with REX.
DBM	Deadbolt Monitor - An SPDT switch that monitors full retraction of the deadbolt. DBM is available for all mechanical and electrified funtions with a deadbolt and can be supplied alone or with REX.

ElectroLynx®

Yale® electrified 8800 locks are equipped with ElectroLynx connectors. As a standard feature, these connectors link power from the incoming source to electrified locking products, including hinges, locks, exit devices, magnetic holders and strikes.

Note: Electrified door hardware with ElectroLynx connectors require a compatible number of lead wires attached to the door hinge.

Electrified Mortise Lockset Functions

Fail Safe

The following functions are locked when power is on and unlocked when power is off.

Power off outside lever active
Power on outside lever locked
Auxiliary latch deadlocks latchbolt
Inside lever always free
No key override

Power off both levers active
Power on both levers locked
Auxiliary latch deadlocks latchbolt
No key override

Power off outside lever active
Power on outside lever locked
Auxiliary latch deadlocks latchbolt
Inside lever always free
Mechanical key override by outside when locked

Power off both levers active
Power on both levers locked
Auxiliary latch deadlocks latchbolt
Mechanical key override by both sides when locked

8880 8896

Power off outside lever active (even when deadbolt thrown)
Power on outside lever locked
Auxiliary latch deadlocks latchbolt
Deadbolt projected by key outside, thumbturn inside
Inside lever always free
Mechanical key override by outside when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

8884 8896-2

Power off outside lever active (even when deadbolt thrown)
Power on outside lever locked
Auxiliary latch deadlocks latchbolt
Deadbolt projected by key both sides
Inside lever always free
Mechanical key override by both sides when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

8890 8898

Power off both levers active (even when deadbolt thrown)
Power on both levers locked
Auxiliary latch deadlocks latchbolt
Deadbolt projected by key outside, thumbturn inside
Mechanical key override by outside when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

8894-2 8898-2

Power off both levers active (even when deadbolt thrown)
Power on both levers locked
Auxiliary latch deadlocks latchbolt
Deadbolt projected by key both sides
Mechanical key override by both sides when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

Electrified Mortise Lockset Functions

Fail Secure

The following functions are unlocked when the power is on and locked when power is off.

8881

Power off outside lever locked
Power on outside lever active
· Auxiliary latch deadlocks latchbolt
Inside lever always free
No key override

Power off both levers locked
Power on both levers active
Auxiliary latch deadlocks latchbolt
No key override

8891

Power off outside lever locked
Power on outside lever active
Auxiliary latch deadlocks latchbolt
Inside lever always free
Mechanical key override by outside when locked

8895-2

Power off both levers locked
Power on both levers active
Auxiliary latch deadlocks latchbolt
Mechanical key override by both sides when locked

8897

Power off outside lever locked
Power on outside lever active (even when deadbolt thrown)
· Auxiliary latch deadlocks latchbolt
Deadbolt projected by key outside, thumbturn inside
Inside lever always free
Mechanical key override by outside when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

8897-2

Power off outside lever locked
Power on outside lever active (even when deadbolt thrown)
Auxiliary latch deadlocks latchbolt
Deadbolt projected by key both sides
Inside lever always free
Mechanical key override by both sides when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

8899

Power off both levers locked
Power on both levers active (even when deadbolt thrown)
Auxiliary latch deadlocks latchbolt
Deadbolt projected by key outside, thumbturn inside
Mechanical key override by outside when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

8899-2

Power off both levers locked
Power on both levers active (even when deadbolt thrown)
Auxiliary latch deadlocks latchbolt
Deadbolt projected by key both sides
Mechanical key override by both sides when locked
Anti-panic operation. Operating inside knob/ lever automatically retracts latchbolt and deadbolt

Electrified Mortise Lockset Accessories

BPS Power Supplies By Securitron®

Operation

Power supplies are designed to provide reliable filtered and regulated power for long life to a variety of electrified hardware components.

Product Features

Individual output circuit breakers
Regulated and filtered fuse protected outputs
LEDs monitor zone status (voltage or no voltage)
Slide switches connect or disconnect load from power (Not available on 1 Amp supplies)
Internal Back-Up battery charging circuit
Rugged steel enclosure
Fire alarm interface

Listings

• UL CLASS 2

Applications (use with):

Fail Safe mortise locks
Fail Secure mortise locks

Ordering

Ex: BPS-24-4, BPS-12-3

Model	Input	Output	Application*
BPS-24-1	120 VAC	1 Amp @ 24 VDC	2-8800
BPS-24-2	120 VAC	2 Amp @ 24 VDC	5-8800
BPS-24-4	120 VAC	4 Amp @ 24 VDC	11-8800
BPS-12-1	120 VAC	1 Amp @ 12 VDC	1-8800
BPS-12-3	120 VAC	3 Amp @ 12 VDC	3-8800

^* Preceding number denotes how many locks can be hardwired to each power supply.

Consult factory for additional power supply applications.

Yale recommends McKinney® , Pemko and Securitron® for power transfer devices and other electronic accessories.

Cylinders

Conventional Mortise Cylinders

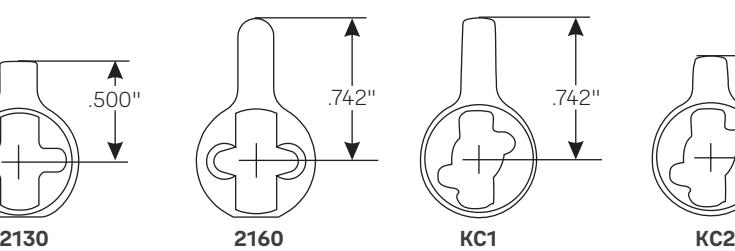

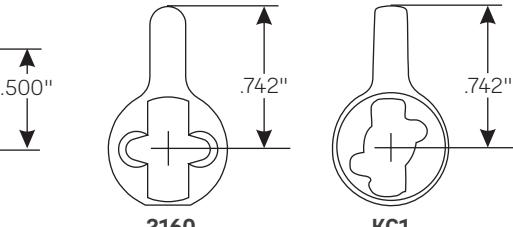

Illustration	Cylinder Model	Application	Cam	Length
ittostration	Number	Application	Calli	6-Pin	7-Pin
	2153	Standard cylinder	2160	1-1/8" 1-1/4" 1-3/8"	1-1/4" 1-3/8"
	21538	For inside operation of 8817-2 and 8834-2 functions only	2130	1-1/2" 1-5/8" 1-3/4"	1-1/2" 1-5/8" 1-3/4"
	2123	Cylinder for longer lengths	2160
	2123$	For inside operation of 8817-2 and 8834-2 functions only for longer lengths	2130	1-7/8" thru 3-1/2" in 1/8" incre 30
	2719	For 8820, 8827, 8831 and 8832 functions	2160	1-3/8"	_

^* Contact Technical Product Support for cylinder collar requirements when ordering these cylinders separately. See pages 31-38 for other collar requirements.

Interchangeable Core Mortise Cylinders

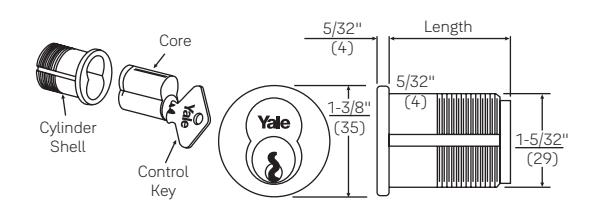

Cylinder Model Number	Application	Cam	Length	Pins	Housing Only Model Number	Core Only Model Number
2196	Standard Cylinder	2160	1-1/2", 1-3/4", 2"	6	2221	1210
2197	Standard Cylinder	2160	1-11/16", 2"	7	2213	1220
2196H	For Hotel/Motel Locks 8820, 8827, 8832	2160	1-11/16"	6	2213	1210H
2196S	For inside operations of 8817-2 and 8834-2 functions	2130	1-1/2"	6	2214S	1210
2197S	For inside operations of 8817-2 and 8834-2 functions	2130	1-11/16"	7	2217S	1220

Note: When ordering interchangeable core cylinders or cores only, control keys are not furnished. If control keys are required they must be ordered separately.

Cylinders

Security Cylinders

Security cylinders contain two independent locking mechanisms. The first is a traditional 6- or 7-pin tumbler mechanism with spool drivers for greatly increased picking resistance.

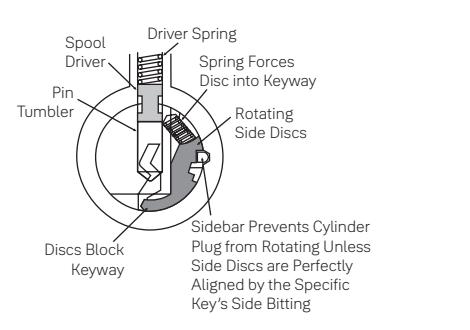

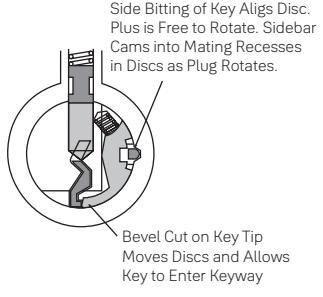

The second is an innovative 5-tumbler rotating disc mechanism with sidebar engagement. The rotating discs are spring loaded and block the bottom of the keyway.

Illustration

Security/High Security Mortise Cylinders

Model Number	Application	Cam	Length
			6-pin	7-pin
5153/U5153	Standard Cylinder	2160	1-1/8"
5153S/U5153S	For inside operations of 8817-2 and 8834-2 functions	2130	1-1/4"	1-1/4"
5719/U5719	For 8820, 8827, 8831 and 8832 functions	2160	1-3/8"

Security Interchangeable Core Mortise Cylinders

Cylinder Model Number	Application	Cam	Length	Pins	Housing Only Model Number	Core Only Model Number
5196	Standard Cylinder	2160	1-1/2"	6	2221	5210
5197	Standard Cylinder	2160	1-11/16"	7	2213	5220
5196H	For Hotel/Motel Locks 8820, 8827, 8832	2160	1-11/16"	6	2213	5210H
5196S	For inside operations of 8817-2 and 8834-2 functions	2130	1-1/2"	6	2214S	5210
5197S	For inside operations of 8817-2 and 8834-2 functions	2130	1-11/16"	7	2217S	5220

Note: When ordering interchangeable core cylinders or cores only, control keys are not furnished. If control keys are required they must be ordered separately.

Cylinders

Yale® KeyMark®

For those applications requiring protected key control, Yale® KeyMark® cylinders guard against unauthorized key duplication. The Yale KeyMark Security Leg® keyway feature increases resistance against picking and impressioning and can easily retrofit into existing systems. For further details and availability, refer to the separate Yale KeyMark catalog.

Protected Keyway Mortise Cylinders

Model Number	Type	Cam	Length	Pins	Housing Only Model Number	Core Only Model Number
K100	Fixed Core Mortise	KC1	1-1/8", 1-1/4" 1-1/2", 1-3/4" 2"	6 or 7	N/A	N/A
			1-1/2", 1-3/4" 2"	6
K820	Large Format IC Mortise	KC1	1-11/16" 2"	7	K860	K800
			1-1/4"	6
K620	Small Format IC Mortise	KC1	1-3/8", 1-3/4"	6 or 7	K660	K600
			1-1/4"	6
K630	Small Format IC Mortise-Tapered	KC1	1-3/8"	6 or 7	K670	K600

Note: KC2 cam required for inside operation of 8817-2 and 8834-2 functions.

Miscellaneous Cylinder Cams

Model Number	Application	Cam	Length
S2053S	Thumbturn cylinder, for inside operation of 8834 function only	2130	1" 1-1/8"
S2053	Thumbturn cylinder, for replacement of key operated cylinder.	2160	1" 1-1/8"

Other Manufacturers' Keyway Cylinders/Cores

Model Number	Type	Cam	Length	Pins	Housing Only Model Number	Core Only Model Number
A620	Small Format IC Mortise, includes Best® Keyway Core. Available keyed random, master keyed or uncombinated. Specify	KC1	1-1/4"	6	K660	A600
	keyway A, B, C, D, E, F, G, H, J, K, L or M.		1-3/8" 1-3/4"	6 or 7
2553	Fixed Core Mortise Schlage® "C" Keyway Cylinder. Available 0-bitted or keyed random. Available finishes: 606, 612, 613, 626	2160	1-1/8"	6	N/A	N/A

Cylinder collars are supplied as standard where required with products supplied with cylinders. Collar size and thickness are supplied to suit the length of the cylinder, the thickness of the door and the trim ordered. (If door thickness is not specified, collars will be supplied to suit 1-3/4" (44mm) door.)

Collar length required must be specified for cylinders and/or housings ordered separately.

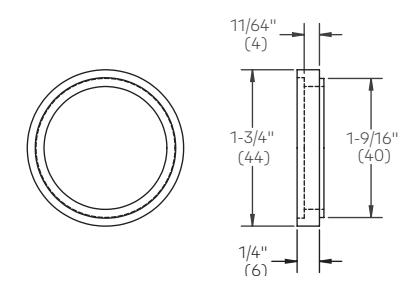

1765 Recessed Cylinder Collar

"A" Dimension: See chart for available sizes. To order, specify "1765.size" i.e. 1765.250.

Material: Brass, Stainless Steel


			"A" Dimension

Size	Specify	Size	Specify	Size	Specify
1/16"	.062	11/32"	.344	21/32"	.656
3/32"	.094	3/8"	.375	23/32"	.719
1/8"	.125	13/32"	.406	3/4"	.750
5/32"	.156	7/16"	.437	27/32"	.844
3/16"	.187	15/32"	.469	59/64"	.924
7/32"	.219	1/2"	.500	15/16"	.937
1/4"	.250	17/32"	.531	1-15/32"	1.473
9/32"	.281	9/16"	.563
5/16"	.312	19/32"	.594

1766 Step Collar for U5109 and U5153 High Security Cylinders.

Material: Stainless Steel

KP3 Wave Washer (Furnished standard with 1765 collar for Yale® KeyMark® cylinders only).

KP4 Flush Mount Cylinder Collar Material: Brass, Bronze

1767 Square Collar (provided standard with R9 rose)

"A" Dimension: See chart for available sizes. To order, specify "1767.size" i.e. 1767.XXX Material: Brass, Stainless Steel

	"A" Dimension
Size	Specify
1/32	.042
1/8	.122
3/16	.192
1/4	.248
5/16	.310
3/8	.373
7/16	.436
1/2	.498
9/16	.560
5/8	.623
11/16	.703
25/32	.788

For Use With Standard Sectional And All Reflections® Trims

Door Thickness	Rose or Escutcheon Trim Design	Cylinder Length		2153, 2153S, 2719, 5153, 5719 Fixed Core Cylinders*			5196S, 5197,5197S LFIC Cylinders*	2196, 2196H, 2196S, 2197, 2197S, 5196, 5196H,	U5153, U5153S, H.S. Fixed Core Cylinders**
			Standard Collar	Square Collar (Single Cyl)	Square Collar (Double Cyl)	Standard Collar	Square Collar (Single Cyl)	Square Collar (Double Cyl)	Standard Collar
		1-1/8"	1765.250	1767.122	1767.192				Collar Not Req'd
	R, R1, R2, R3, R4, R5,	1-1/4"	1765.375	1767.248	1767.373				1766
1-3/4"	R6, R7, R8,	1-3/8"	1765.531	1767.310	1767.498
	R9, E1, E2, E3, E4	1-1/2"	1765.656	1767.498	1767.623	1765.656	1767.498	1767.623
		1-11/16"				1765.844	1767.703	1767.788
		1-1/8"	1765.125	1767.042	1767.122				Use Longer Cyl
	R, R1, R2, R3, R4, R5,	1-1/4"	1765.250	1767.122	1767.248				Collar Not Req'd
2"	R6, R7, R8,	1-3/8"	1765.375	1767.248	1767.373
	R9, E1, E2, E3, E4	1-1/2"	1765.531	1767.373	1767.498	1765.531	1767.310	1767.498
		1-11/16"				1765.719	1767.498	1767.703
		1-1/8"	KP4	Use Longer Cyl	Use Longer Cyl				Collar Not Req'd
	R, R1, R2, R3, R4, R5,	1-1/4"	1765.125	1767.042	1767.122				Collar Not Req'd
2-1/4"	R6, R7, R8,	1-3/8"	1765.250	1767.122	1767.248
	R9, E1, E2, E3, E4	1-1/2"	1765.375	1767.248	1767.373	1765.375	1767.248	1767.373
		1-11/16"				1765.563	1767.436	1767.560
		1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl
	R, R1, R2, R3, R4, R5,	1-1/4"	KP4	1767.042	1767.042				Collar Not Req'd
2-1/2"	R6, R7, R8,	1-3/8"	1765.125	1767.042	1767.122
	R9, E1, E2, E3, E4	1-1/2"	1765.250	1767.122	1767.248	1765.250	1767.121	1767.248
		1-11/16"				1765.469	1767.310	1767.436
		1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl
	R, R1, R2, R3, R4, R5,	1-1/4"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl
2-3/4"	R6, R7, R8,	1-3/8"	KP4	1767.042	1767.042
	R9, E1, E2,	1-1/2"	1765.125	1767.042	1767.122	1765.125	1767.042	1767.122
	E3, E4	1-11/16"				1765.344	1767.192	1767.310
		1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl
	R, R1, R2, R3, R4, R5,	1-1/4"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl
3"	R6, R7, R8,	1-3/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	R9, E1, E2,	1-1/2"	KP4	1767.042	1767.042	KP4	1767.042	1767.042
	E3, E4	1-11/16"				1765.187	1767.112	1767.192
		1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl
	R, R1, R2,	1-1/4"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl
3-1/4"	R3, R4, R5, R6, R7, R8,	1-3/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	R9, E1, E2,	1-1/2"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	E3, E4	1-11/16"				1765.062	1767.042	1767.042

^* Refer to Pages 28-30 for available lengths for each model

Note: R1, R2, E1 and E2 discontinued. Information for reference only.

^** Square collar not available.

For Use With Standard Sectional And All Reflections® Trims

	Rose or			K100 Yale KeyMark Fixed Core Cylinders			K820, K860 Yale KeyMark LFIC Cylinders			K620, K630, K660, K670, A620, A630 Yale KeyMark and Best Keyway SFIC Cylinders
Door Thickness	Escutcheon Trim Design	Cylinder Length	Standard Collar	Square Collar (Single Cyl)	Square Collar (Double Cyl)	Standard Collar	Square Collar (Single Cyl)	Square Collar (Double Cyl)	Standard Collar	Square Collar (Single Cyl)	Square Collar (Double Cyl)
	R, R1, R2,	1-1/8"	1765.312	1767.192	1767.248
1-3/4"	R3, R4, R5, R6, R7, R8,	1-1/4" 1-3/8"	1765.375	1767.310	1767.373				1765.375 1765.563	1767.248 1767.373	1767.373 1767.498
	R9, E1, E2,	1-1/2"	1765.656	1767.560	1767.623	1765.656	1767.498	1767.623
	E3, E4	1-11/16"				1765.844	1767.703	1767.788
	R, R1, R2,	1-1/8"	1765.187	1767.042	1767.122
	R3, R4, R5,	1-1/4"	1765.281	1767.192	1767.248				1765.281	1767.122	1767.248
2"	R6, R7, R8,	1-3/8"							1765.469	1767.248	1767.373
	R9, E1, E2, E3, E4	1-1/2"	1765.563	1767.436	1767.498	1765.563	1767.373	1767.498
		1-11/16"				1765.750	1767.560	1767.703
	R, R1, R2,	1-1/8"	1765.062	1767.042	1767.042
	R3, R4, R5,	1-1/4"	1765.125	1767.042	1767.122				1765.125	1767.042	1767.122
2-1/4"	R6, R7, R8, R9, E1, E2,	1-3/8"							1765.312	1767.122	1767.248
	E3, E4	1-1/2"	1765.406	1767.310	1767.373	1765.406	1767.248	1767.373
		1-11/16"				1765.594	1767.436	1767.560
	R, R1, R2,	1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
2-1/2"	R3, R4, R5, R6, R7, R8,	1-1/4"	1765.062	1767.042	1767.042				1765.062	Use Longer Cyl	Use Longer Cyl
	R9, E1, E2,	1-3/8"							1765.187	1767.042	1767.122
	E3, E4	1-1/2"	1765.281	1767.192	1767.248	1765.281	1767.122	1767.248
		1-11/16"				1765.500	1767.310	1767.436
		1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	R, R1, R2, R3, R4, R5,	1-1/4"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
2-3/4"	R6, R7, R8, R9, E1, E2,	1-3/8"							1765.062	1767.042	1767.042
	E3, E4	1-1/2"	1765.187	1767.042	1767.122	1765.187	1767.042	1767.122	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
		1-11/16"				1765.375	1767.192	1767.310	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
		1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	R, R1, R2, R3, R4, R5,	1-1/4"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
3"	R6, R7, R8, R9, E1, E2,	1-3/8"							Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	E3, E4	1-1/2"	1765.062	1767.042	1767.042	1765.062	Use Longer Cyl	Use Longer Cyl
		1-11/16"				1765.219	1767.042	1767.192
		1-1/8"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	R, R1, R2, R3, R4, R5,	1-1/4"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl				Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
3-1/4"	R6, R7, R8, R9, E1, E2,	1-3/8"							Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
	E3, E4	1-1/2"	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl	Use Longer Cyl
		1-11/16"				1765.062	1767.042	1767.042

^* Refer to Pages 28-30 for available lengths for each model

^** Square collar not available.

For Use With Standard Escutcheon Trim

Thickness Door	Escutcheon Trim Design	Cylinders	5153, 2123, 2123S Fixed Core Mortise 2153, 2153S,		H.S. Fixed Core Cylinders U5153, U5153S,	2196, 2196S, 5196, 2197, 2197S, 5197 LFIC Cylinders		Fixed Core Hotel/ Motel Cylinders	5719, 2719		Hotel/Motel LFIC 5196H, 2196H Cylinders		Fixed Core Cylinders Yale® KeyMark® K100		K820, K860 Yale® KeyMark® LFIC Cylinders		K620, K630 K660, K670, A620, A630 and Best® Keyway Yale® KeyMark® SFIC Cylinders
		Cylinder Length	Required Collar	Cylinder Length	Required Collar	Cylinder Length	Required Collar	Cylinder Length	Required Collar	Cylinder Length	Required Collar	Cylinder Length	Required Collar	Cylinder Length	Required Collar	Cylinder Length	Required Collar
		1-1/8"	1765.156	1-1/8"	Collar Not Req'd	1-1/2"	1765.563	1-3/8"	1765.469	1-11/16"	1765.750	1-1/8"	1765.187	1-1/2"	1765.594	1-1/4"	1765.344
	Copenhagen	1-1/4"	1765.312	1-1/4"	Collar Not Req'd	1-11/16"	1765.750					1-1/4"	1765.344		1-11/16" 1765.844	1-3/8"	1765.469
	(E)	1-3/8"	1765.469	1-3/8"	Collar Not Req'd							1-1/2"	1765.594
		1-1/2"	1765.563	1-1/2"	Collar Not Req'd
		1-1/8"	Collar Not Req'd	1-1/8"	N/A	1-1/2"	1765.219	1-3/8"	1765.094	1-11/16"	1765.469	1-1/8"	Collar Not Req'd	1-1/2"	1765.250	1-1/4"	Collar Not Req'd
	Camden	1-1/4"	Collar Not Req'd	1-1/4"	N/A	1-11/16"	1765.406					1-1/4"	Collar Not Req'd		1-11/16" 1765.469	1-3/8"	1765.125
	(CN)	1-3/8"	1765.094	1-3/8"	N/A							1-1/2"	1765.250
		1-1/2"	1765.219	1-1/2"	N/A
		1-1/8"	1765.094	1-1/8"	N/A	1-1/2"	1765.469	1-3/8"	1765.344	1-11/16"	1765.656	1-1/8"	1765.125	1-1/2"	1765.500	1-1/4"	1765.156
1-3/4"		1-1/4"	1765.219	1-1/4"	Collar Not Req'd	1-11/16"	1765.656					1-1/4"	1765.156	1-11/16"	1765.719	1-3/8"	1765.375
(44)	SL	1-3/8"	1765.375	1-3/8"	N/A							1-1/2"	1765.500
		1-1/2"	1765.500	1-1/2"	N/A
		1-1/8"	1765.062	1-1/8"	N/A	1-1/2"	1765.500	1-3/8"	1765.375	1-11/16"	1765.656	1-1/8"	1765.125	1-1/2"	1765.500	1-1/4"	1765.156
	Easton	1-1/4"	1765.219	1-1/4"	Collar Not Req'd	1-11/16"	1765.656					1-1/4"	1765.156	1-11/16"	1765.719	1-3/8"	1765.375
	(CE)	1-3/8"	1765.344	1-3/8"	N/A							1-1/2"	1765.500
		1-1/2"	1765.500	1-1/2"	N/A
		1-1/8"	1765.094	1-1/8"	N/A	1-1/2"	1765.531	1-3/8"	1765.406	1-11/16"	1765.750	1-1/8"	1765.187	1-1/2"	1765.563	1-1/4"	1765.281
	Lenoir	1-1/4"	1765.281	1-1/4"	Collar Not Req'd	1-11/16"	1765.750					1-1/4"	1765.281	1-11/16"	1765.750	1-3/8"	1765.469
	(LN)	1-3/8"	1765.406	1-3/8"	N/A							1-1/2"	1765.563
		1-1/2"	1765.531	1-1/2"	N/A
		1-1/8"	KP4	1-1/8"	N/A	1-1/2"	1765.406	1-3/8"	1765.312	1-11/16"	1765.594	1-1/8"	1765.094	1-1/2"	1765.469	1-1/4"	1765.219
	Copenhagen	1-1/4"	1765.187	1-1/4"	Collar Not Req'd	1-11/16"	1765.594					1-1/4"	1765.219		1-11/16" 1765.656	1-3/8"	1765.344
	(E)	1-3/8"	1765.312	1-3/8"	N/A							1-1/2"	1765.469
		1-1/2"	1765.406	1-1/2"	N/A
		1-1/8"	N/A	1-1/8"	N/A	1-1/2"	1765.062	1-3/8"	N/A	1-11/16"	1765.250	1-1/8"	N/A	1-1/2"	1765.125	1-1/4"	Collar Not Req'd
	Camden	1-1/4"	Collar Not Req'd	1-1/4"	Collar Not Req'd	1-11/16"	1765.250					1-1/4"	Collar Not Req'd		1-11/16" 1765.344	1-3/8"	Collar Not Req'd*
	(CN)	1-3/8"	N/A	1-3/8"	N/A							1-1/2"	1765.125
		1-1/2"	1765.062	1-1/2"	N/A
		1-1/8"	N/A	1-1/8"	N/A	1-1/2"	1765.344	1-3/8"	1765.219	1-11/16"	1765.531	1-1/8"	KP4	1-1/2"	1765.375	1-1/4"	1765.094
2"		1-1/4"	1765.094	1-1/4"	N/A	1-11/16"	1765.531					1-1/4"	1765.094		1-11/16" 1765.563	1-3/8"	1765.250
(51)	SL	1-3/8"	1765.219	1-3/8"	N/A							1-1/2"	1765.375
		1-1/2"	1765.344	1-1/2"	N/A
		1-1/8"	N/A	1-1/8"	N/A	1-1/2"	1765.344	1-3/8"	1765.219	1-11/16"	1765.500	1-1/8"	KP4	1-1/2"	1765.375	1-1/4"	1765.094
	Easton	1-1/4"	1765.062	1-1/4"	N/A	1-11/16"	1765.500					1-1/4"	1765.094		1-11/16" 1765.563	1-3/8"	1765.250
	(CE)	1-3/8"	1765.219	1-3/8"	N/A							1-1/2"	1765.375
		1-1/2"	1765.344	1-1/2"	N/A
		1-1/8"	Collar Not Req'd	1-1/8"	N/A	1-1/2"	1765.344	1-3/8"	1765.187	1-11/16"	1765.531	1-1/8"	Collar Not Req'd*	1-1/2"	1765.406	1-1/4"	1765.125
	Lenoir	1-1/4"	1765.094	1-1/4"	N/A	1-11/16"	1765.531					1-1/4"	1765.125		1-11/16" 1765.594	1-3/8"	1765.312
	(LN)	1-3/8"	1765.187	1-3/8"	N/A							1-1/2"	1765.406
		1-1/2"	1765.344	1-1/2"	N/A

*Single Cylinder Only N/A = Application Not Available Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference

only.

For Use With Standard Escutcheon Trim


Door	Escutcheon Trim Design	2153, 5153, 212 Fixed Cor Cylir	2153, 2153S, 5153, 2123, 2123S Fixed Core Mortise Cylinders	US1 H.S. Fixe	U5153, U5153S, H.S. Fixed Core Cylinders	2196, 219 2197, 219 LFIC C ₎	2196, 2196S, 5196, 2197, 2197S, 5197 LFIC Cylinders	5719, Fixed Co Motel C	5719, 2719 Fixed Core Hotel/ Motel Cylinders	5196H, Hotel/M Cylin	5196H, 2196H Hotel/Motel LFIC Cylinders	K7 Yale*K Fixed Cor	K100 Yale* KeyMark* Fixed Core Cylinders	K820, K8 KeyMal Cylir	K820, K860 Yale° KeyMark° LFIC Cylinders	K620, K6 K670, A6 Yale* K and Best SFICC	K620, K630 K660, K670, A620, A630 Yale KeyMark and Best Keyway SFIC Cylinders
		Cylinder Length	Collar Required	Cylinder Length	Collar Required	Cylinder Length	Collar Required	Cylinder Length	Collar Required	Cylinder Length	Collar Required	Cylinder Length	Collar Required	Cylinder Length	Collar Required	Cylinder Length	Collar Required
		1-1/8"	A/A	1-1/8"	A/N	1-1/2"	1765.344	1-3/8"	1765.187	1-11/16"	1765.500	1-1/8"	√ V	1-1/2"	1765.375	1-1/4"	1765.094
	Copenhagen	1-1/4"	1765.062	1-1/4"	A/N	1-11/16"	1765.500					1-1/4"	1765.094	1-11/16"	1765.531	1-3/8"	1765.250
	(E)	1-3/8"	1765.187	1-3/8"	A/N							1-1/2"	1765.375
		1-1/2"	1765.344	1-1/2"	A/N
		1-1/8"	N/A	1-1/8"	A/N	1-1/2"	A/N	1-3/8"	Collar Not Ben'd	1-11/16"	1765.156	1-1/8"	∀/N	1-1/2"	N/A	1-1/4"	N/A
	Camden	1-1/4"	N/A	1-1/4"	N/A	1-11/16"	1765.156		2			1-1/4"	∀/N	1-11/16"	1765.219	1-3/8"	Collar Not
	(CN)	1-3/8"	Collar Not	1-3/8"	N/A							1-1/2"	∀/N				5
		1-1/2"	N/A	1-1/2"	N/A
		1-1/8"	A/N	1-1/8"	N/A	1-1/2"	1765.219	1-3/8"	1765.062	1-11/16"	1765.406	1-1/8"	∀/N	1-1/2"	1765.250	1-1/4"	N/A
2-1/4"	i	1-1/4"	A/A	1-1/4"	A/N	1-11/16"	1765.406					1-1/4"	A/N	1-11/16"	1765.469	1-3/8"	1765.156
(25)		1-3/8"	1765.062	1-3/8"	A/N							1-1/2"	1765.250
		1-1/2"	1765.219	1-1/2"	A/N
		1-1/8"	N/A	1-1/8"	A/N	1-1/2"	1765.219	1-3/8"	1765.062	1-11/16"	1765.406	1-1/8"	A/N	1-1/2"	1765.250	1-1/4"	N/A
	Easton	1-1/4"	N/A	1-1/4"	A/N	1-11/16"	1765.406					1-1/4"	A/N	1-11/16"	1765.469	1-3/8"	1765.156
	(CE)	1-3/8"	1765.062	1-3/8"	A/N							1-1/2"	1765.250
		1-1/2"	1765.219	1-1/2"	A/N
		1-1/8"	N/A	1-1/8"	Collar Not Req'd	1-1/2"	1765.219	1-3/8"	Collar Not	1-11/16"	1765.406	1-1/8"	Collar Not	1-1/2"	1765.312	1-1/4"	1765.062
	Lenoir*	1-1/4"	Collar Not	1-1/4"	Collar Not Req'd	1-11/16"	1765.406		2			1-1/4"	1765.062	1-11/16"	1765.469	1-3/8"	1765.187
	(LN)	1-3/8"	1765.094	1-3/8"	Collar Not Reg'd							1-1/2"	1765.312
		1-1/2"	1765.219	1-1/2"	Collar Not Reg'd							1
		1/2/2	A/N	1-1/2	A/N	1-1/2"	1765 187	1-3/8"	1765 062	1-11/16"	1765 375	1-1/S"	4/N	1-1/2"	1765 219	1-1/4"	N/A
	Conchector	1-1/4"	Z/Z Z/Z	1-1/4"	( ∢ Ž Ž	1-11/16"	1765.375	0/0	200.00	2	2.00	1-1/4"	( ∢ Z Z	1-11/16"	1765.406	1-3/8"	1765.094
	Copellinagell (E)	1-3/8"	1765.062	1-3/8"	N/A							1-1/2"	1765.219
		1-1/2"	1765.187	1-1/2"	A/N
		1-1/8"	N/A	1-1/8"	N/A	1-1/2"	Collar Not	1-3/8"	N/A	1-11/16"	1765.062	1-1/8"	∀/N	1-1/2"	Collar Not	1-1/4"	N/A
	Camden	1-1/4"	N/A	1-1/4"	A/N	1-11/16"	1765.062					1-1/4"	A/N	1-11/16"	1765.062	1-3/8"	N/A
	(CN)	1-3/8"	A/N	1-3/8"	A/N							1-1/2"	Collar Not Rea'd			1-3/4"	1765.187
		1-1/2"	Collar Not	1-1/2"	A/N								, ,
		1-1/8"	N/A	1-1/8"	A/N	1-1/2"	1765.062	1-3/8"	A/A	1-11/16"	1765.250	1-1/8"	A/N	1-1/2"	1765.125	1-1/4"	A/A
2-1/2"	ō	1-1/4"	N/A	1-1/4"	A/N	1-11/16"	1765.250					1-1/4"	A/N	1-11/16"	1765.312	1-3/8"	KP4
(64)	3	1-3/8"	N/A	1-3/8"	A/N							1-1/2"	1765.125
		1-1/2"	1765.062	1-1/2"	A/N
		1-1/8"	N/A	1-1/8"	N/A	1-1/2"	1765.062	1-3/8"	N/A	1-11/16"	1765.250	1-1/8"	∀/N	1-1/2"	1765.125	1-1/4"	N/A
	Easton	1-1/4"	N/A	1-1/4"	A/N	1-11/16"	1765.250					1-1/4"	A/N	1-11/16"	1765.312	1-3/8"	KP4
	(CE)	1-3/8"	N/A	1-3/8"	A/N							1-1/2"	1765.125
		1-1/2"	1765.062	1-1/2"	A/N
		1-1/8"	N/A	1-1/8"	A/N	1-1/2"	1765.094	1-3/8"	N/A	1-11/16"	1765.312	1-1/8"	∀/N	1-1/2"	1765.156	1-1/4"	Collar Not Reg'd
	Lenoir	1-1/4"	N/A	1-1/4"	A/N	1-11/16"	1765.312					1-1/4"	Collar Not Reg'd	1-11/16"	1765.375	1-3/8"	1765.062
	(LN)	1-3/8"	Collar Not	1-3/8"	N/A							1-1/2"	1765.156
		1-1/2"	1765.094	1-1/2"	A/N
VID O DOIN	Single Ovlinder Only

*Single Cylinder Only N/A = Application Not Available N/A = Application Not Available Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference only.

For Use With Standard Escutcheon Trim

K620, K630 K660, K670, A620, A630 and Best® Keyway Yale® KeyMark® SFIC Cylinders	Required Collar	N/A	N/A			N/A	N/A				N/A	N/A			N/A	N/A			N/A	N/A			N/A	N/A					N/A	N/A					N/A	N/A					N/A	N/A					N/A	N/A
	Cylinder Length	1-1/4"	1-3/8"			1-1/4"	1-3/8"				1-1/4"	1-3/8"			1-1/4"	1-3/8"			1-1/4"	1-3/8"			1-1/4"	1-3/8"					1-1/4"	1-3/8"					1-1/4"	1-3/8"					1-1/4"	1-3/8"					1-1/4"	1-3/8"
K820, K860 Yale® KeyMark® LFIC Cylinders	Required Collar	1765.062	1-11/16" 1765.250			N/A	Collar Not	Req'd*			KP4	1765.187			KP4	1765.187			1765.062	1765.219			N/A	1765.156					N/A	Collar Not	Req'd				N/A	1-11/16" 1765.062					N/A	1-11/16" 1765.062					Collar Not Req'd	1765.125
	Cylinder Length	1-1/2"				1-1/2"	1-11/16"				1-1/2"	1-11/16"			1-1/2"	1-11/16"			1-1/2"	1-11/16"			1-1/2"	1-11/16"					1-1/2"	1-11/16"					1-1/2"						1-1/2"						1-1/2"	1-11/16"
Fixed Core Cylinders Yale® KeyMark® K100	Required Collar	N/A	N/A	1765.062		N/A	N/A		N/A		N/A	N/A	KP4		N/A	N/A	KP4		N/A	N/A	1765.062		N/A	N/A	N/A				N/A	N/A	N/A				N/A	N/A	N/A				N/A	N/A	N/A				N/A	N/A	N/A
	Cylinder Length	1-1/8"	1-1/4"	1-1/2"		1-1/8"	1-1/4"		1-1/2"		1-1/8"	1-1/4"	1-1/2"		1-1/8"	1-1/4"	1-1/2"		1-1/8"	1-1/4"	1-1/2"		1-1/8"	1-1/4"	1-1/2"				1-1/8"	1-1/4"	1-1/2"				1-1/8"	1-1/4"	1-1/2"				1-1/8"	1-1/4"	1-1/2"				1-1/8"	1-1/4"	1-1/2"
Hotel/Motel LFIC 5196H, 2196H Cylinders	Required Collar	1765.250				Collar Not Req'd					1765.094				1765.094				1765.156				1765.094						N/A						N/A						N/A						1765.062
	Cylinder Length	1-11/16"				1-11/16"					1-11/16"				1-11/16"				1-11/16"				1-11/16"						1-11/16"						1-11/16"						1-11/16"						1-11/16"
Fixed Core Hotel/ Motel Cylinders 5719, 2719	Required Collar	N/A				N/A					N/A				N/A				N/A				N/A						N/A						N/A						N/A						N/A
	Cylinder Length	1-3/8"				1-3/8"					1-3/8"				1-3/8"				1-3/8"				1-3/8"						1-3/8"						1-3/8"						1-3/8"						1-3/8"
2196, 2196S, 5196, 2197, 2197S, 5197 LFIC Cylinders	Required Collar	1765.062	1765.250			N/A	Collar Not	Req'd			N/A	1765.094			N/A	1765.094			1765.062	1765.156			N/A	1765.094					N/A	N/A					N/A	N/A					N/A	N/A					N/A	1765.062
	Cylinder Length	1-1/2"	1-11/16"			1-1/2"	1-11/16"				1-1/2"	1-11/16"			1-1/2"	1-11/16"			1-1/2"	1-11/16"			1-1/2"	1-11/16"					1-1/2"	1-11/16"					1-1/2"	1-11/16"					1-1/2"	1-11/16"					1-1/2"	1-11/16"
U5153, U5153S, H.S. Fixed Core Cylinders	Required Collar	N/A	N/A	N/A	N/A	N/A	N/A		N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Cylinder Length	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"		1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"
2153, 2153S, 5153, 2123, 2123S Fixed Core Mortise Cylinders	Required Collar	N/A	N/A	N/A	1765.062	N/A	N/A		N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1765.062	N/A	N/A	N/A	N/A	1765.062	N/A	N//A	N/A	N/A	N/A	N/A	Collar Not Req'd	N/A	N/A	N/A	N/A	N/A	1765.062	N/A	N/A	N/A	N/A	N/A	1765.062	N/A	N/A	N/A	N/A	N/A
	Cylinder Length	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"		1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"
Escutcheon Trim Design			Copenhagen	(E)			Camden	(CN)				SL				Easton	(CE)			Lenoir*	(LN)				Copenhagen	(E)					Camden	(CN)					SL						Easton	(CE)					Lenoir	(LN)
Thickness Door											2-3/4"	(70)																									3"	(76)

N/A = Application Not Available Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference only.

*Single Cylinder Only

For Use With Standard Escutcheon Trim

K620, K630 K660, K670, A620, A630 and Best® Keyway Yale® KeyMark® SFIC Cylinders	Required Collar	**	**						**	**						**	**						**	**						**	**
	Cylinder Length	1-1/4"	1-3/8"						1-1/4"	1-3/8"						1-1/4"	1-3/8"						1-1/4"	1-3/8"						1-1/4"	1-3/8"
K820, K860 Yale® KeyMark® LFIC Cylinders	Required Collar	**	**						**	**						**	**						**	**						**	**
	Cylinder Length	1-1/2"	1-11/16"						1-1/2"	1-11/16"						1-1/2"	1-11/16"						1-1/2"	1-11/16"						1-1/2"	1-11/16"
Fixed Core Cylinders K100	Required Collar	**	**	**					**	**	**					**	**	**					**	**	**					**	**	**
Yale® KeyMark®	Cylinder Length	1-1/8"	1-1/4"	1-1/2"					1-1/8"	1-1/4"	1-1/2"					1-1/8"	1-1/4"	1-1/2"					1-1/8"	1-1/4"	1-1/2"					1-1/8"	1-1/4"	1-1/2"
Hotel/Motel LFIC 5196H, 2196H Cylinders	Required Collar	1765.062							1765.062							1765.062							1765.062							1765.062
	Cylinder Length	1-11/16"							1-11/16"							1-11/16"							1-11/16"							1-11/16"
Fixed Core Hotel/ Motel Cylinders 5719, 2719	Required Collar	N/A							N/A							N/A							N/A							N/A
	Cylinder Length	1-3/8"							1-3/8"							1-3/8"							1-3/8"							1-3/8"
2196, 2196S, 5196, 2197, 2197S, 5197 LFIC Cylinders	Required Collar	N/A	N/A						N/A	N/A						N/A	N/A						N/A	N/A						N/A	N/A
	Cylinder Length	1-1/2"	1-11/16"						1-1/2"	1-11/16"						1-1/2"	1-11/16"						1-1/2"	1-11/16"						1-1/2"	1-11/16"
U5153, U5153S, H.S. Fixed Core Cylinders	Required Collar	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Cylinder Length	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"
2153, 2153S, 5153, 2123, 2123S Fixed Core Mortise Cylinders	Required Collar	N/A	N/A	N/A	N/A	N/A	1765.062	1765.125	N//A	N/A	N/A	N/A	N/A	N/A	Collar Not Req'd	N/A	N/A	N/A	N/A	N/A	N/A	1765.062	N/A	N/A	N/A	N/A	N/A	N/A	1765.062	N/A	N/A	N/A	N/A	N/A	Collar Not Req'd	1765.094
	Cylinder Length	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"	1-1/8"	1-1/4"	1-3/8"	1-1/2"	1-5/8"	1-3/4"	1-7/8"
Escutcheon Trim Design					Copenhagen	(E)						Camden (CN)							SL							Easton (CE)							Lenoir (LN)
Thickness Door																			3-1/4"	(83)

*Single Cylinder Only **Consult Factory N/A = Application Not Available Note: Copenhagen, Easton and Lenoir escutcheons discontinued. Information for reference only.

For Use with Sectional and Escutcheon Trim with V Series Indicators

Door Thickness	Trim	Function	Cylinder Length	Collar Required
			1-1/8"	Collar Not Req'd
			1-1/4"	Collar Not Req'd
		Single Cylinder	1-3/8"	1765.062
			1-1/2"	1765.094
1-3/4"			1-11/16"	1765.281
(44)	Sectional or Escutcheon		1-1/8"	Collar Not Req'd
			1-1/4"	N/A
		Double Cylinder	1-3/8"	1765.094
			1-1/2"	1765.219
			1-11/16"	1765.406
			1-1/8"	N/A
			1-1/4"	Collar Not Req'd
		Single Cylinder	1-3/8"	Collar Not Req'd
			1-1/2"	1765.062
2"			1-11/16"	1765.187
(51)	Sectional or Escutcheon		1-1/8"	N/A
			1-1/4"	Collar Not Req'd
		Double Cylinder	1-3/8"	N/A
			1-1/2"	1765.094
			1-11/16"	1765.281
			1-1/8"	N/A
			1-1/4"	N/A
		Single Cylinder	1-3/8"	Collar Not Req'd
			1-1/2"	Collar Not Req'd
2-1/4"	Sectional or Escutcheon		1-11/16"	1765.062
(57)			1-1/8"	N/A
			1-1/4"	N/A
		Double Cylinder	1-3/8"	Collar Not Req'd
			1-1/2"	N/A
			1-11/16"	1765.156

N/A = Application Not Available

Strikes

Yale® 8800 Series Mortise Locks come standard with a 2815 Curved Lip Strike with a 1-1/4" (32mm) lip length. The strike supplied will accommodate the locking function, i.e. latchbolt and/or deadbolt, and can be installed on doors 1-3/4" (44mm) thick. These strikes are nonhanded.

Material: Brass, Stainless Steel.

Longer/Shorter Lip Lengths: Mortise lock strikes are mounted 3/8" above the center line of the lock. To determine the proper length of lip use the following formula:

1/2 of the door thickness, plus 1/16" inset, plus trim thickness, plus 1/8" for flat lip strike or 1/4" for curved lip strike. Select the nearest available length.

2815 Curved Lip:

1-1/4" (32mm) standard To special order
1-1/8" (29mm)
1-3/8" (35mm)
1-1/2" (38mm)
1-5/8" (41mm)
1-3/4" (44mm)
1-7/8" (48mm)
2" (51mm)
2-1/8" (54mm)
2-1/4" (57mm)

2816 Flat Lip:

To special order,

7/8" (22mm)
1" (25mm)
1-1/8" (29mm)
1-1/4" (32mm)
1-1/2" (38mm)
1-3/4" (44mm)
2" (51mm)
2-1/4" (57mm)
2-1/2" (64mm)

Optional Strikes

497B ANSI Blank Filler Plate: Reversible to replace a strike where a lock has been removed or where a frame with a strike preparation when no lock is installed on a door. Lip Lengths: 1-1/8" (29mm) only.

Material: Brass, Bronze, Stainless Steel.

718 Open Back Strike: Field handable for a standard V-beveled pair of doors with a latchbolt only function on the active door. This strike permits emergency opening of the inactive door without damaging the lock mechanism. Available for doors 1-3/4" or 2-1/4" thick only. Specify the door thickness required.

Material: Stainless Steel, Black Nylon Coated.

202 Strike Box: Reversible for installation with all Flat or Curved Lip Strikes. Available to special order only.

Material: Wrought Steel, Zinc Plated, Dichromated.

Thumbturns

GF1824 Standard Thumbturn and Round Plate

Supplied as standard on all locks with round rose sectional trim or lock functions with no roses.

Thumbturn: Cast Zinc.

Plate: 1-7/8" (48mm) Diameter.

Brass, Stainless Steel.

Part Number	Door Thickness
50-1824-0014	1-3/4" - 2-1/4"
50-1824-0021	2-1/4" - 3-1/4"

Mounting screws not included.

Square Thumbturn and Plate

Supplied as standard on all locks with square rose sectional trim.

Thumbturn: Brass, Stainless Steel.

Plate: 1-1/2" (38mm). Brass, Stainless Steel.

Part Number	Door Thickness
50-1824-0057	1-3/4" - 1-7/8"
50-1824-0058	2" - 2-1/8"
50-1824-0059	2-1/4" - 2-3/8"
50-1824-0060	Over 2-3/8" - 4-1/8" (specify)

Includes mounting screws.

Part Number Door Thickness

GF1826 Plate for Privacy

Used for outside of 8802 Privacy Lock. Plate: 1-7/8" (48mm) Diameter. Brass, Stainless Steel.

50-1826-7003 All

Mounting screws not included.

GF1828 Blank Plate

For use on doors where thumbturn is no longer used.

Plate: 1-7/8" (48mm) Diameter.

Brass, Stainless Steel.

Part Number	Door Thickness
50-1826-7005	All

Mounting screws not included.

HA Thumbturn and Plate

Supplied as standard on all locks with HA lever and rose sectional trim.

Thumbturn: Cast Zinc.

Plate: 1-7/8" (48mm) Diameter.

Cast Zinc.

Part Number	Door Thickness
50-1824-0033	1-3/4" - 2"

Includes mounting screws. Consult factory for other door thicknesses.

Specify part number x finish.

Mounting Screw Pack

No. 6 x 3/8" (10mm) type "AB", Oval Phillips Head sheet metal screw, stainless steel plated to match trim.

Part Number	Used With
81-9400-0041	GF1824, GF1826, GF1828

Specify finish required.

Miscellaneous

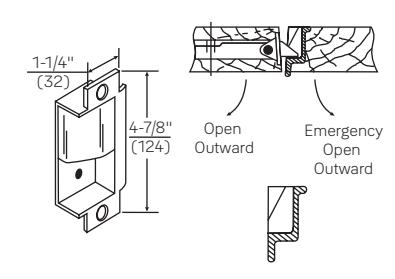

Rabbeted Door Kits

The Yale® 8800 Series Mortise Lock can be installed on a pair of doors with a standard 1/2" (13mm) step rabbet. Kits are available which adapt these locks to the rabbeted doors. These kits contain a 1/2" (13mm) standard step rabbet strip for the active door, a strike, a strike box, and, depending on the door thickness, a strike lip. They are available for doors 1-3/4" (44mm), 2" (51mm) and 2-1/4" (57mm) thick. All components of these kits are reversible.

To order a complete Yale mortise lock with a Rabbet Door Kit, suffix the lock model number with a Rabbeted Door by door thickness, hand and finish required, i.e. AU8807 x Rabbeted Door x 1-3/4" x RH x 626.

Kits for rabbeted doors can be ordered by model number separately from the accompanying chart. When ordered separately, specify the finish required.

Door Thickness	Rabbeted Door Kit Model No.	Strike Model No.
1-3/4" 2"	RK245	22E

These kits contain the above components plus a No. 22D strike lip with attaching screws for doors above 2".

Emergency Key

E203

Used with 8802 privacy lock and 8862 bathroom lock for emergency access from outside.

Handing

Handing The 8800 Mortise Lock Hand Of Doors

HANDING THE LATCHBOLT

1. Insert a flat blade screwdriver into cover slot.
2. Pull back on screwdriver until latchbolt extends past the base front.
3. Rotate head to desired position.

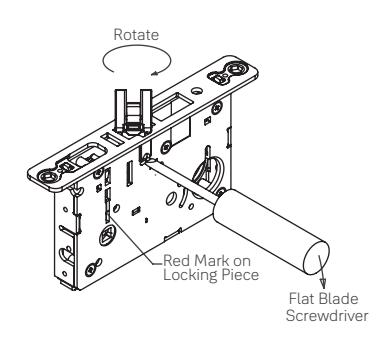

HANDING THE HUBS (LEVER OPERATION)

1. Locate the red mark on locking piece
2. The red mark indicates the locked side
3. Push toggle button to the "Unlock" position
4. With a flat blade screwdriver push red mark on locking piece to rotate locking piece 180° to the desired location
5. The locking piece must be fully rotated 180° for proper operation

The outside is the key side of an entrance door or the corridor side of a room door. The outside of a single communicating door is the side opposite the hinges. The outside of twin communicating doors is the space between the doors.

Left Hand: Hinges on left, opens inward. For handed locks, specify LH.

Left Hand Reverse: Hinges on left, opens outward. For handed locks, specify LHR.

Right Hand: Hinges on right, opens inward. For handed locks, specify RH.

Right Hand Reverse: Hinges on right, opens outward. For handed locks, specify RHR.

Dimensions and Exploded Views

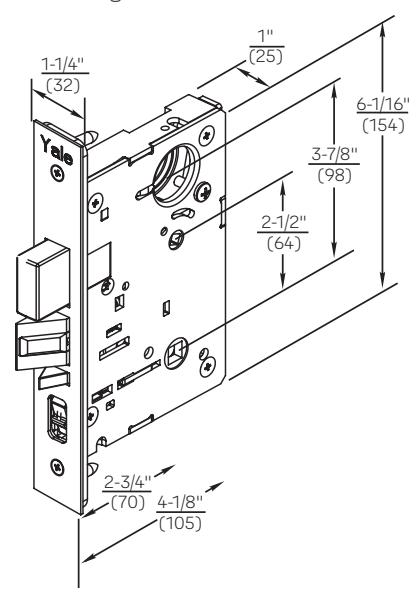

8800/SL8800 Series

• Armor Front 8" x 1-1/4"
• Door Thickness 1-3/4" standard, to 3-1/4" thick doors to order.
• Deadbolt 1" throw, solid investment cast stainless steel.
• Latchbolt 3/4" throw, stainless steel one-piece anti-friction.
• Backset 2-3/4" only.
• Case wrought steel, zinc dichromated.
• Hubs 3/8" solid steel, fine-blanked and heat treated for additional strength.

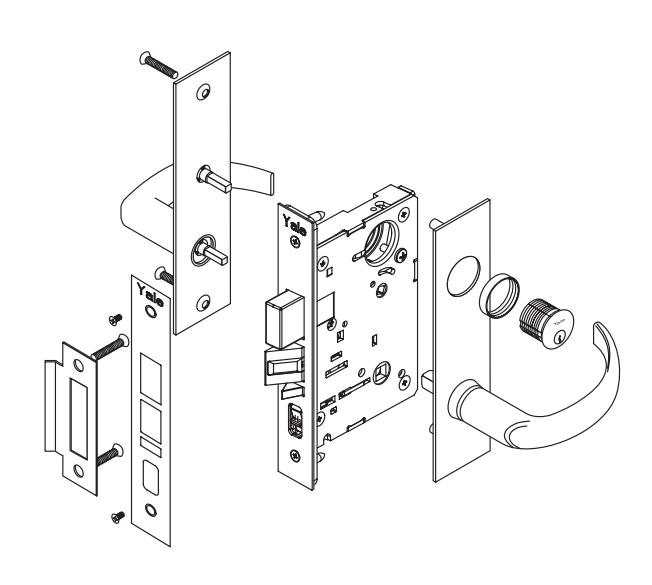

SL8800 Lever

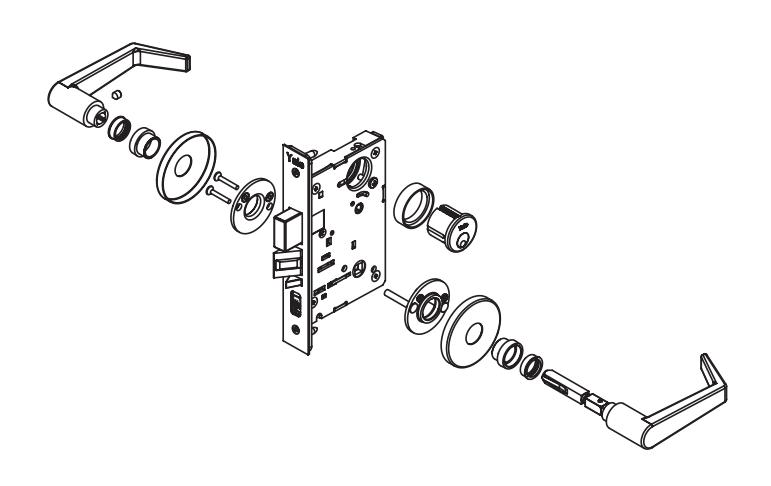

Standard Lever

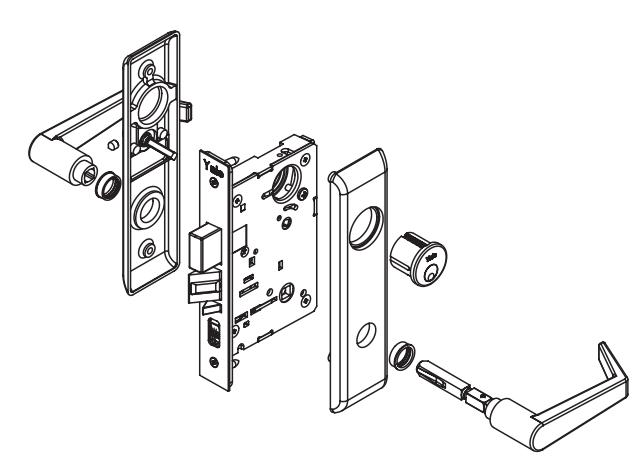

Sectional Escutcheon

Installations

Reflections® Lever

*When using Reflections levers with the CO rose, the rose adaptor is not used. Levers will not install and/or properly operate if rose adaptor is included.

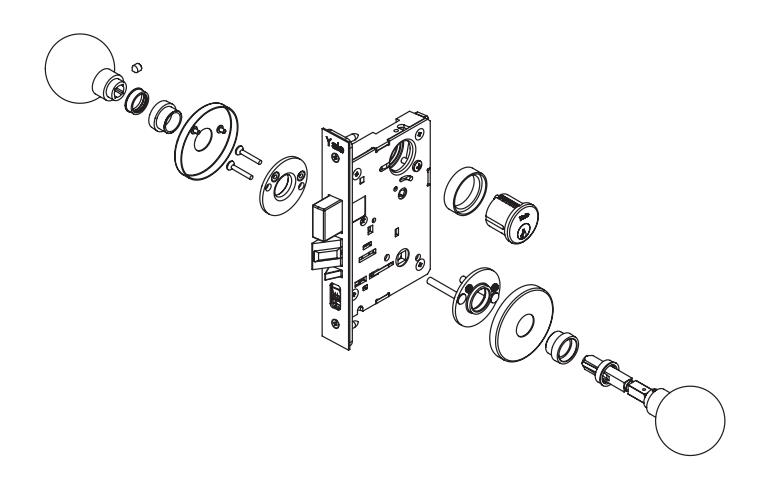

Knob

Sectional Escutcheon

Technical Specifications and Listings

ADA

Knurled Designs

The 8800 meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility standards and ANSI 117.1, all requiring ease of

accessibility.

Where required by the local authority, trim can be knurled to be identifiable to the touch for blind persons. CO knob design and all lever designs except HA and Reflections® trim may be ordered knurled.

ANSI/BHMA

Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1). 8800 Series Mortise Locks conform to ANSI/BHMA Specifications A156.115 which cover hardware preparations for steel doors and steel frames and A156.115-W which cover hardware preparations for wood doors with wood or steel frames.

Only the outside knob or lever will be knurled or abrasive coated unless specified otherwise. To order a complete lockset knurled or abrasive coated, suffix the lockset model number with one of the following codes, i.e AUCN x 8807FL x 626 x KNB.

Option	Description
KNB	Knurled both sides
KNI	Knurled inside only
KNO	Knurled outside only
ABCB	Abrasive coating both sides
ABCI	Abrasive coating inside only
ABCO	Abrasive coating outside only

Bevel Front

Yale 8800 series fronts are free-floating to adjust from flat to the standard bevel of 1/8" in 2".

Underwriters Laboratories (UL/cUL)

Yale 8800 Series Mortise Locks have been listed by Underwriters Laboratories Inc. for use on fire doors having a rating up to and including 3 hours and for use on 20 minute wood doors. This pertains to single swing doors not exceeding 4 feet in width and 8 feet in height and in doors mounted in pairs not exceeding 8 feet in either direction (unless otherwise noted in the individual listings.)

Door Thickness

8800 Series Mortise Locks are supplied as standard for 1-3/4" thick doors. For other than standard, specify the door thickness on the order: (i.e. 2", 2-1/4", etc.)

In general, single-point mortise locks or latches with 3/4" minimum latch throw are intended for the active leaf of doors mounted in pairs, with the inactive leaf provided with top and bottom flush or surface bolts of the manual, automatic, or selflatching type. The door Classification Marking specifies the minimum latch throw required for the individual door.

Installation

Yale 8800 Series sectional and escutcheon trims feature thrubolted installation. Outside trim is held in place by threaded posts. For sectional trims, the posts fit through holes in the lock case and are secured by thrubolts from the inside trim. For escutcheon trims, the posts fit through the door and are secured by thrubolts from the inside trim. The posts fit through holes in the door, above and below the lock case, and are secured by thrubolts from the inside trim.

Yale 8800 Series Mortise Locks with 3/4" throw latchbolts may also be used on single swing doors rated 1-1/2 hours or less, up to 4 feet in width and 9 feet in height. This is in addition to the rating mentioned above. All Yale 8800 Series Mortise Locks with Lever Handle Trim are UL listed for fire door applications. Underwriters Laboratories does not list locks with rabbeted fronts, locks with deadbolt only, or locks with hold-back feature on the latchbolt.

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

ISO 9001

Designed and manufactured under a certified ISO 9001 quality system.

Warranty

Yale 8800 Series mechanical mortise locks are protected by a ten (10) year warranty and 8800 Series electrified mortise locks have a two (2) year warranty.

Lead Shielding

All Yale 8800 Series Mortise Locks are available with a lead shield for installation in lead-lined doors. To order, suffix the lockset model number with "lead-lined."

Windstorm

Certified (refer to local codes).

Trusted every day

Phone

1-855-557-5078

Customer Service Email

customerservice.yale@assaabloy.com

Technical Product Support Email

techsupport.yale@assaabloy.com

Order Entry Email

orders.yaleus@assaabloy.com

Fax

1-800-338-0965

Website

www.yalecommercial.com

Contact Us

U.S.A.

Yale Locks & Hardware

Address: 225 Episcopal Road Berlin, CT 06037-4004 Tel: 1-800-438-1951 Fax: 1-800-338-0965 yalecommercial.com

Canada:

ASSA ABLOY Door Security Solutions Canada

Address: 160 Four Valley Drive Vaughan, Ontario L4K 4T9 Tel: 1-800-461-3007 Fax: 1-800-461-8989 assaabloydss.ca

International:

ASSA ABLOY Americas International

Tel: 1-905-821-7775 Fax: 1-905-821-1429 assaabloyai.com

ASSA ABLOY Group companies offer MicroShield®, an anti-microbial coating for door hardware. MicroShield uses proven silver ion-based technology from Agion®, a leading provider of antimicrobial solutions, to stem the spread of bacteria and other microbes.

MicroShield® is a registered trademark of ASSA ABLOY Access and Egress Hardware Group, Inc.

The Agion antimicrobial is not intended as a substitute for good hygiene. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. ASSA ABLOY makes no representations or warranties, express or implied, as to the efficacy of the Agion antimicrobial. A copy of the Agion warranty is available upon request. Agion is a registered trademark of Agion Technologies, Inc., Wakefield, MA, USA.

THE YALE BRAND , with its unparalleled global reach and range of products, reassures more people in more countries than any other consumer locking solution.

THE ASSA ABLOY GROUP is the world´s leading manufacturer and supplier of locking solutions, dedicated to satisfying end-user needs for security, safety and convenience.

Yale Commercial is a business associated with ASSA ABLOY Access and Egress Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2004-2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

Part of ASSA ABLOY 42002-03/24

Hudson	Spree	Seine	Thames	Victoria	Niagara
TB	RS	TE	TM	TT*	CH*
UB	RT	TG*	TN	TU*	DW
TC	RU	TI	TP	TW*	MA*
TD	RV	TJ*	TR	TX*	RA*
UC		TK*	TS	UX*	RB*
			TQ	TY*	RC*

Hudson	Spree	Seine	Thames	Victoria	Niagara
TB	RS	TE	TM	TT*	CH*
UB	RT	TG*	TN	TU*	DW
TC	RU	TI	TP	TW*	MA*
TD	RV	TJ*	TR	TX*	RA*
UC		TK*	TS	UX*	RB*
			TQ	TY*	RC*

ASSA ABLOY ACCENTRA 8800 Series Mortise Locks Catalog_42002

8800 Series

Table of Contents

Contents

8800 Series Mortise Locks

Benefits & Features

Features

Features

Specifications

SL8800

Features

Applications

How To Order

Ordering Example

Finishes

Notes:

Lever Trim &

Standard Rose

Arcadia - ARR*

Augusta - AUR

Lever Trim &

Standard Escutcheon

Arcadia - ARCN*

Augusta - AUCN

Carmel - CRCN

Jefferson - JNCN

Monroe - MOCN

Pacific Beach - PBCN

Pinehurst - PNCN

Virginia - VICN

Hampton - HACN

Reflections® Decorative Trim

Roses/Escutcheons

Roses

Escutcheons

Knob Trim

Standard Rose

Copenhagen - COR

Standard Escutcheon

Copenhagen - CO X CN

8801 Passage Or Closet Latch (F01) 8808 Classroom Lock (F05)

8802 Privacy, Bedroom Or Bath Lock (F19) 8808-2 Intruder Latchbolt Lock (F32)

8805 Storeroom Or Closet Lock (F07) 8809 Classroom Or Office Lock

8807 Entry Lock (F04) 8811-2 Intruder Deadbolt Lock (F33)

8812-2 Intruder Deadbolt Lock (F34)

8813ST Classroom Deadlock (F29)

8813ST-2 Classroom Deadlock

8814 Deadlock (F18)

8814-2 Deadlock (F16)

8815 Deadlock (F17)

8817-2 Apartment, Exit Or Public Toilet Lock (F09)

8818-2 Classroom Security Intruder Lock

8820 Hotel Guest Lock (F15) 8827 Hotel/Motel Lock

8823 Storeroom Lock 8829 Closet Lock

8822 Dormitory Or Exit Lock (F13) 8828 Exit Or Communicating Lock (F31)

8824 Holdback Lock (F06) 8830-2 Asylum Or Institutional Lock (F30)

8831 Detention Lock

8832 Hotel/Motel Lock

8833 Exit Lock

8833-2 All-Purpose Lock

8834 All Purpose Lock

8834-2 All Purpose Lock

8835 Exit Lock

8840 Storeroom Deadbolt

8860-2 Store Door Lock (F14) 8865 Bathroom Lock

8847 Apartment Corridor Door Lock (F20) 8862 Privacy, Bedroom Or Bath Lock (F22)

8860 Room Door Lock (F21) 8864 Bathroom Lock With Indicator

8861 Dormitory Or Storeroom Lock 8866 Passage Lock With Indicator

8867 Dormitory Or Exit Lock (F12) Active Dummy Trim

836A/838A Dummy Trim Both Sides

836B/838B Dummy Trim Both Sides

855 Dummy Trim One Side

Applications

Features

Shown with optional directional arrow engraving

Functions

Sectional Trim

Retrofit/Upgrade Kits

Escutcheon Trim

Escutcheon Trim Upgrade Kit Only

Hudson	Spree	Seine	Thames	Victoria	Niagara
TB	RS	TE	TM	TT*	CH*
UB	RT	TG*	TN	TU*	DW
TC	RU	TI	TP	TW*	MA*
TD	RV	TJ*	TR	TX*	RA*
UC		TK*	TS	UX*	RB*
			TQ	TY*	RC*
