7220M(F) Concealed Vertical Rod

Exit Device

WARNING

80-9472-0021-000 01/24 Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

1-855-557-5078 • www.assaabloy.com

7220M(F) Concealed Vertical Rod

Exit Device

Installation Instructions

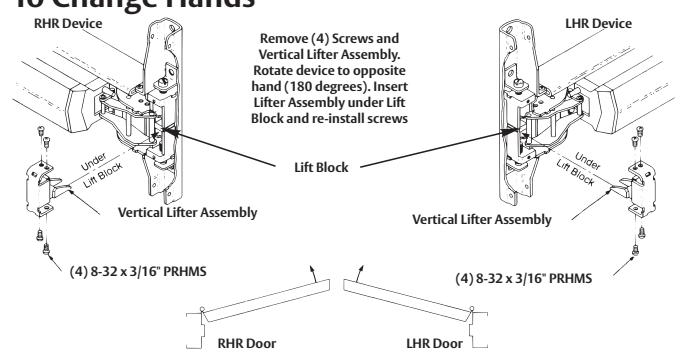

To Change Hands

Maintenance

• 1. Periodically remove covers and coat mechanisms with a silicone base lubricant. This is particularly required in corrosive environments for proper product function.
• 2. Check mounting fasteners periodically. Retighten if found loose. Apply screw locking compound (available at automotive part stores) or change part fasteners if screws continue to back out.
• 3. Periodic checks (and adjustments) of strikes are required to compensate for changes in the opening (e.g. door sagging).

Check Before Starting

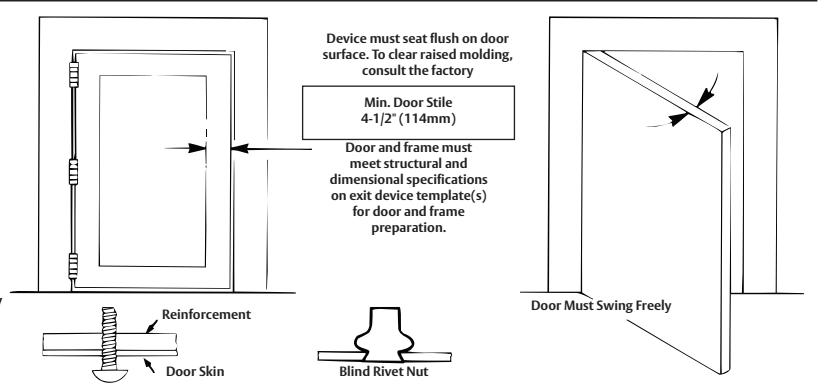

Unreinforced Doors or Frames

Doors and Frames with walls having a structural thickness (metal skin plus reinforcement or solid hardwood) to engage less than (3) full screw threads are considered unreinforced.

Unreinforced Doors: Use SNB (sex nuts and bolts).

Unreinforced Frames: Use Blind Rivet Nuts.

Recommended fasteners for unreinforced openings are not necessarily supplied by Locks & Hardware.

1. Mark Door

Single Door or Pair without Mullion

Locate and Mark Horizontal and Vertical Reference Centerlines as shown. LHR door shown, preparation is typical for both door hands.

Note: Bottom Bolt will retract to 1/8" (3mm) above Floor Strike. Floor covering in the door path must be laid out accordingly..

LHR DOOR INSIDE FACE VERTICAL REFERENCE Measure Gap: HORIZONTAL REFERENCE (1014) 39-15/16 FINISHED FLOOR DOOR

2. Prepare Door

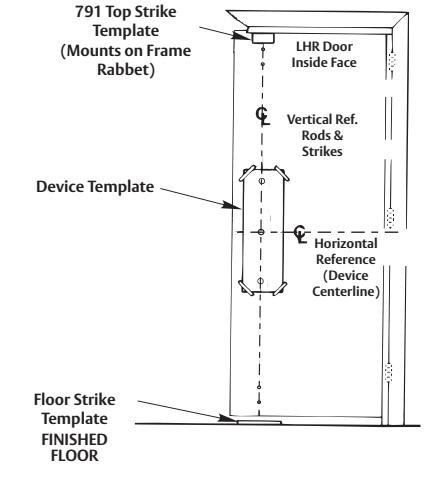

A. Locate "Device Template" aligning VERTICAL REFERENCE and HORIZONTAL REFERENCE LINES on door and template. Tape template to door face.

B. Extend centerline of Rod & Strikes from "Device Template" to door top and bottom, on door face.

C. Locate "Top Strike" and "Floor Strike" templates, aligned on the Vertical Reference. Tape templates in place.

NOTE: An auxiliary door marker is included to verify correct door preparation. Reinforced doors and frames with factory made cutouts are recommended.

D. Locate and tape Trim Template to door (See instructions packed with Trim).

E. Mark and prepare holes:

Device: Each (2) 1/4-20 Machine Screws (Metal reinforced door only.) or (2) 3/8" (10mm) Dia. Sex Nuts & Bolts

Top Strike: (2) 10-24 Machine Screws or (2) #10 Wood Screws

NOTE: Third screw MUST ONLY be used to lock Strike in final position (Step 8C). Bottom Strike: 5/8" (16mm) dia x 3/4" (19mm) deep hole

80-9472-0021-000 01/24

1-855-557-5078 • www.assaabloy.com

7220M(F) Concealed Vertical Rod

Exit Device

Installation Instructions

3. Size Device

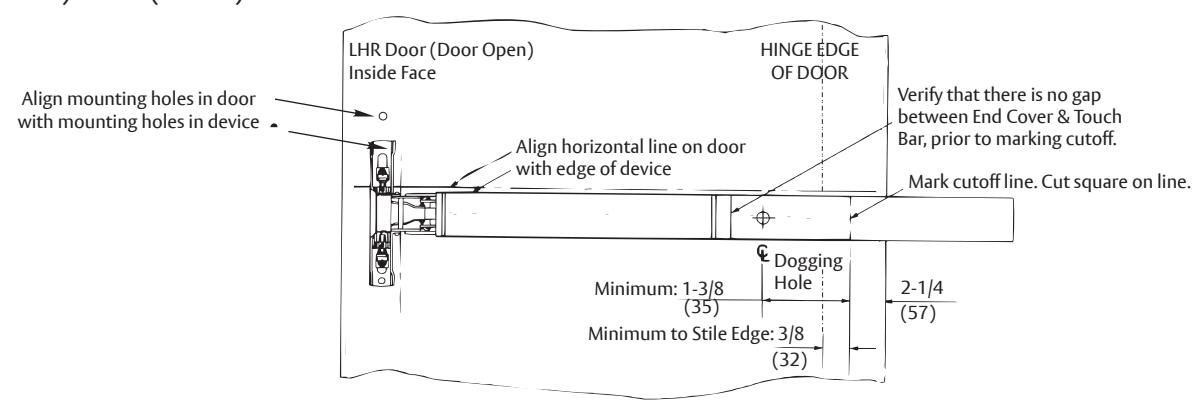

Device must be field cut to size unless standard opening and device are 36" (0.91m) or 48" (1.22m).

4. Rod Assembly & Preliminary Adjustment

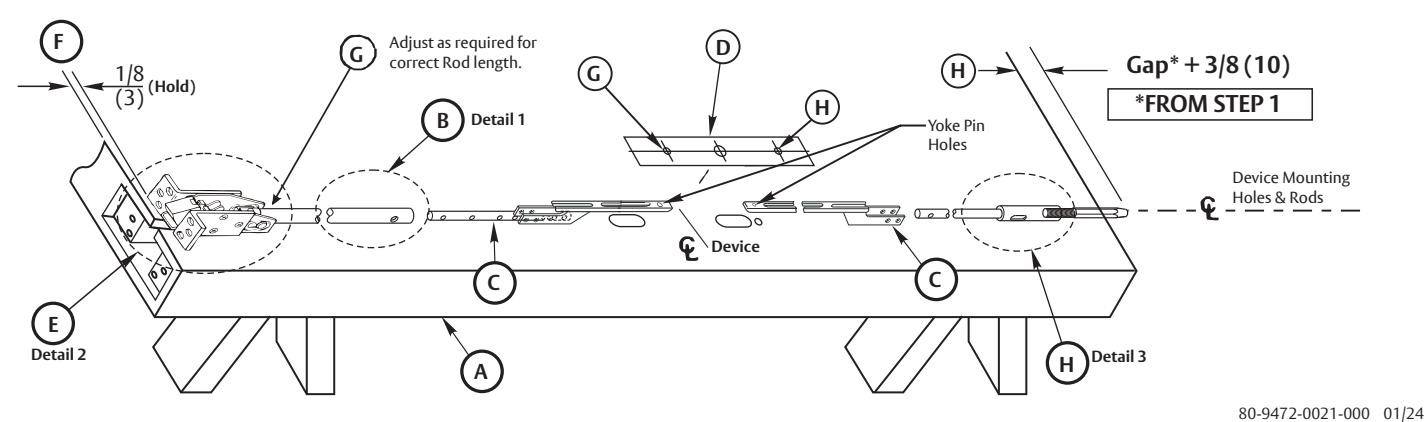

• A. Remove door from opening. Set flat, device side up. (Do not hang door until Step 8 of device installation sheet)

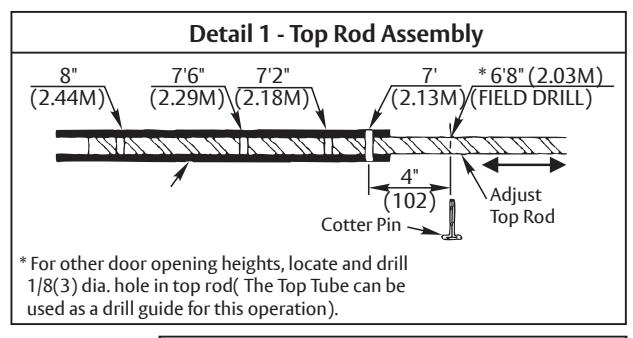

• B. Set length of Top Rod Assembly (see Detail 1).
• C. Connect Top & Bottom Rods to Arm/Bracket Assemblies. (2 Cotter Pins each)
• D. Align Rod Setup Gauge over Device Cutouts and Centerlines. Tape Gauge to door face.
• E. Connect top latch to Rod Assembly.
• F. Set Top Latch and Rod Assembly in place on door. Maintain 1/8"(3) location from top as shown.

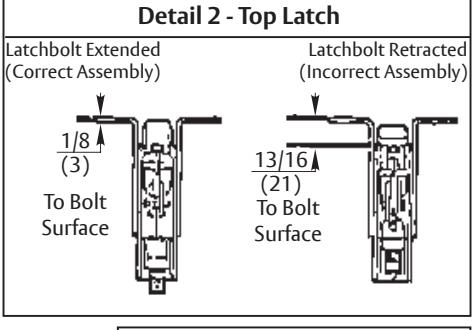

• G. Align Yoke Pin holes in Arm and Bracket Assembly with Alignment Hole in Rod Setup Gauge. Adjust top Latch and Rod Assembly for proper alignment. Latchbolt must be extended. (See Detail 2).
• H. Thread bottom bolt into Bottom Rod Assembly. Set Bottom Bolt Rod Assembly in place on door. Align Yoke pin hole in the Bottom Arm and Bracket Assembly with Alignment Hole in Rod Setup Gauge. Adjust Bottom Bolt until it protrudes 3/8"(10) + the gap from Step 1,past the bottom edge of door. Make sure Bottom Bolt is fully extended, (See Detail 3).

ASSA ABIOY

1-855-557-5078 • www.assaabloy.com

Experience a safer and more open world

5. Install Rods

• A. Slide Rod Assemblies into door.

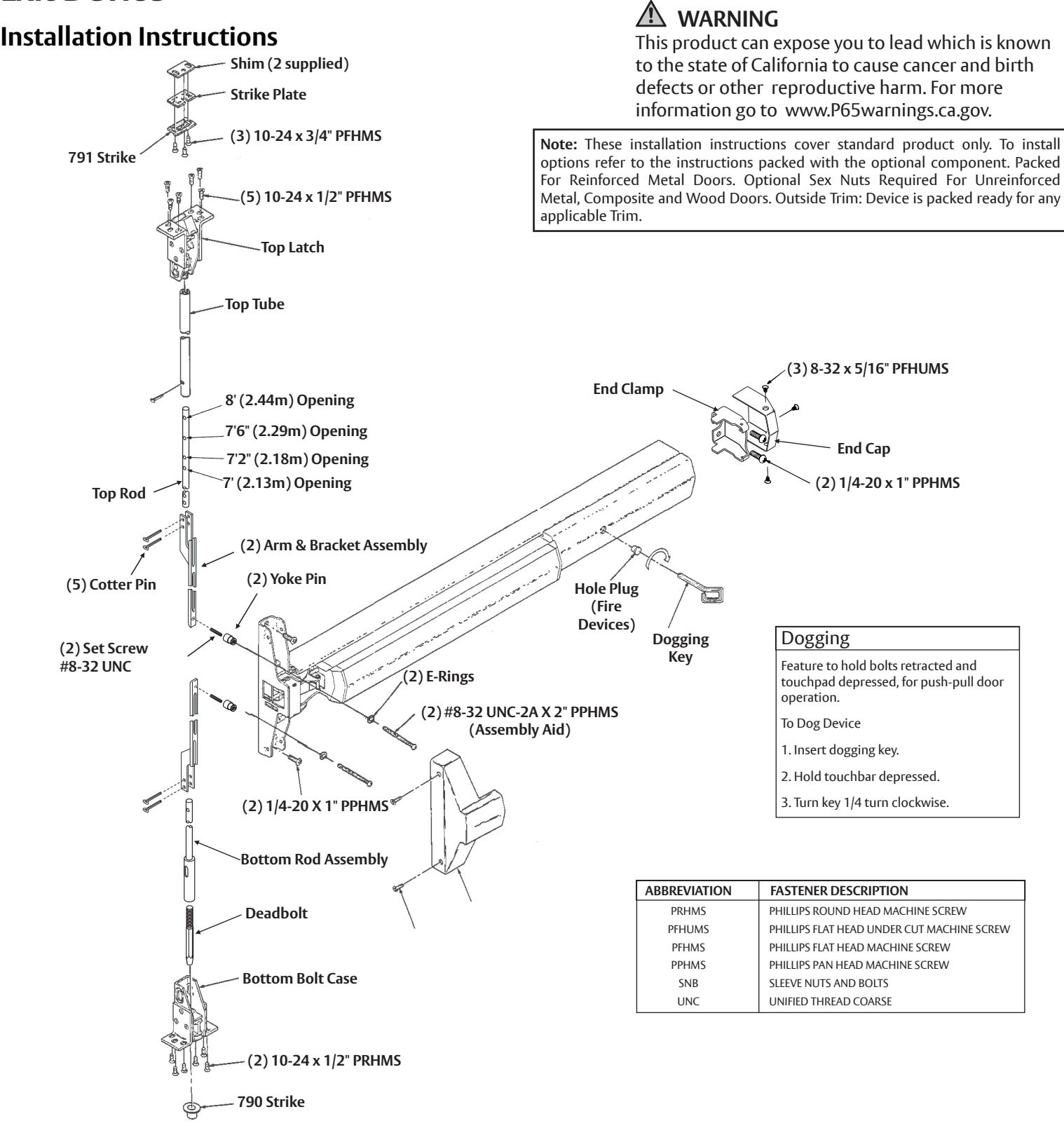

• B. Attach Top Latch and Bottom Bolt Case with (4) #10-24 X 1/2" PFHMS.

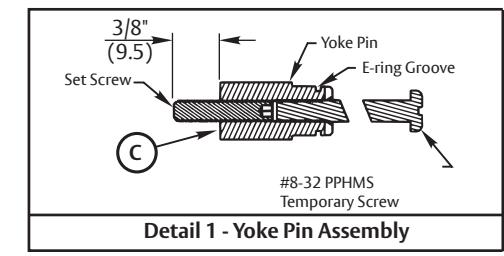

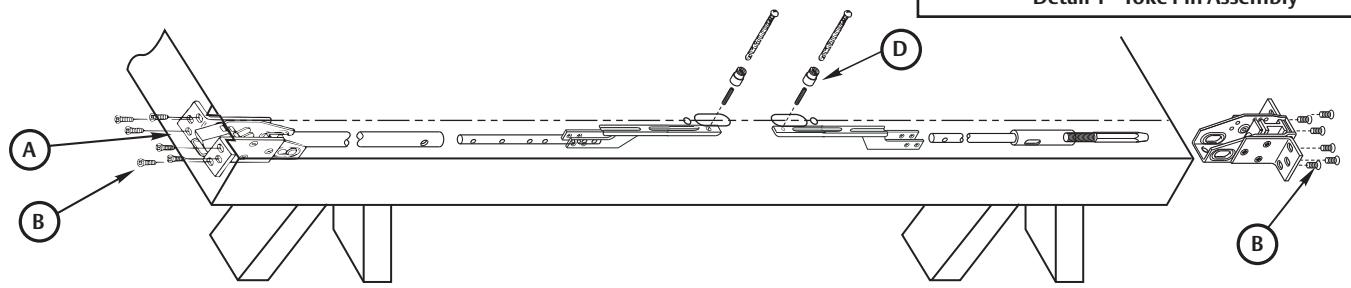

• C. Thread Set Screw into Yoke Pins (Insert With Hex Socket End Inside Pin). Thread #8-32 X 2" PPHMS Temporary Screws into slotted end of Yoke Pins, until seated to Hex Head Set Screw. (See Detail 1.)

D. Install (2) Yoke Pin Assemblies into Arm and Bracket Assemblies.

6. Install Device

• A. Mount trim (follow instructions packed with trim).
• B. Seat device in place using the Temporary Screws from Step 5 to position the Yoke Pins to the latch head. Install E-Ring into Yoke Pin Grooves. (See Detail 1).
• C. Fasten device Latch Head (2) 1/4-20 PPHMS or 3/8" (10) dia. SNB.
• D. Remove Temporary Screws. Note: Tighten Yoke Pins after removal of Temporary screws.

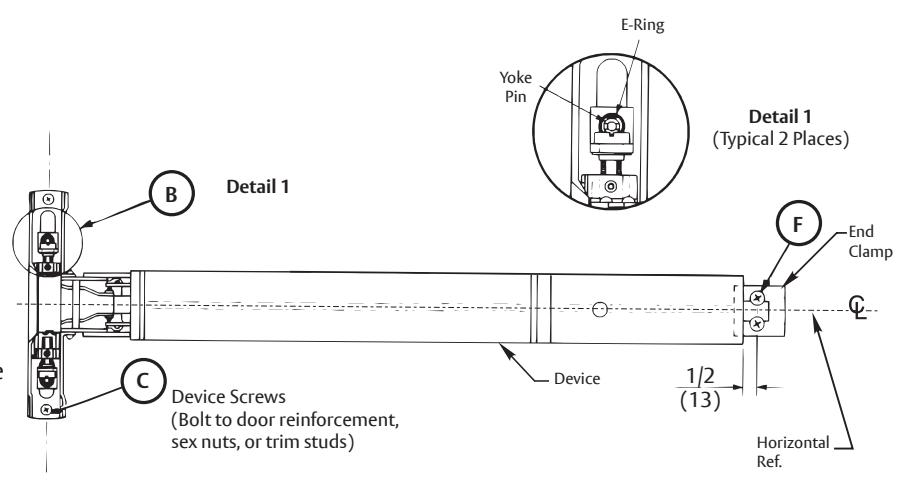

• E. Center end of device on horizontal reference line of door. Using the End Clamp as a template, locate the end clamp mounting holes.
• F. Prepare end clamp holes and mount End Clamp using (2) 1/4-20 PPHMS or 3/8" (10) SNB.

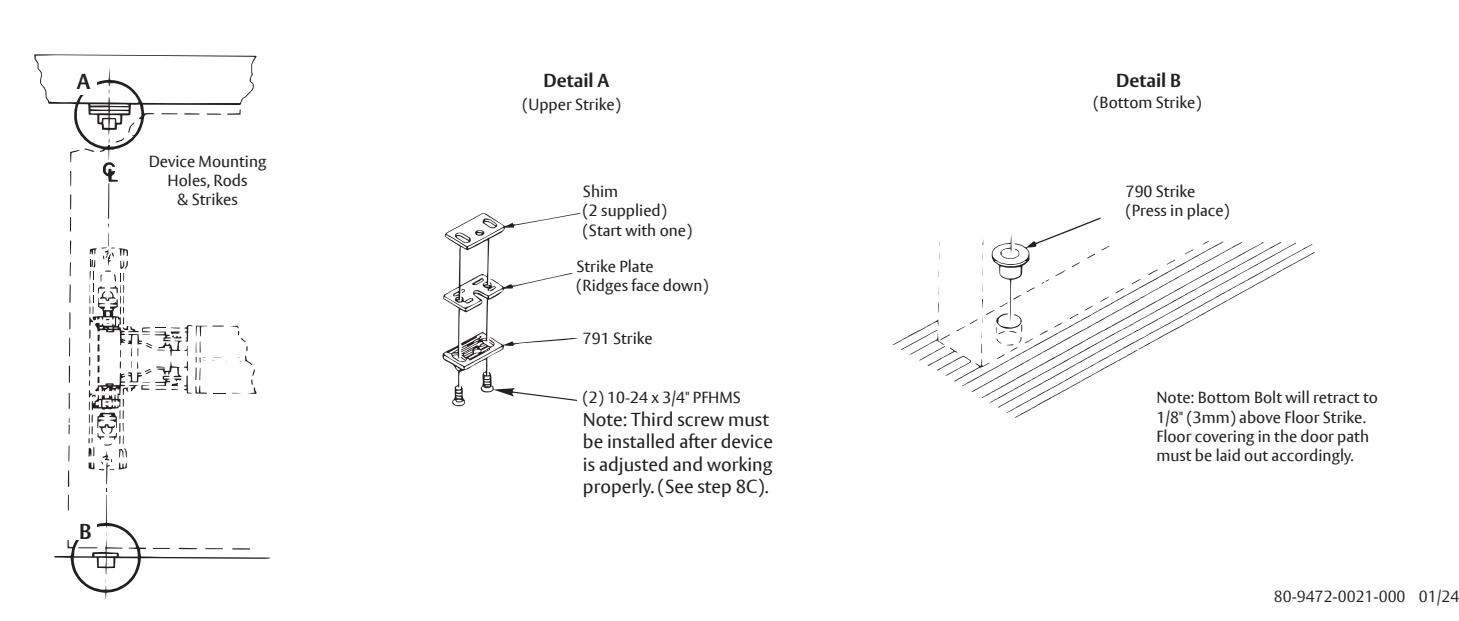

7. Install Strikes

1-855-557-5078 • www.assaabloy.com

A. Rehang the door plumb and true to the opening. Set strike roller between tripping lever and bolt. DO NOT PRELOAD THE BOLT. Shim strike as needed.

NOTE: Rods should move freely inside door. Bolts extend automatically and should deadlock when door closes and top strike hits tripping lever. Top bolt should retract flat. Bottom bolt should travel 1/2" and engage 3/8" into strike in down position, without dragging on floor surface in up position. Test device action by touchbar, by trim, and by dogging. Adjust as needed.

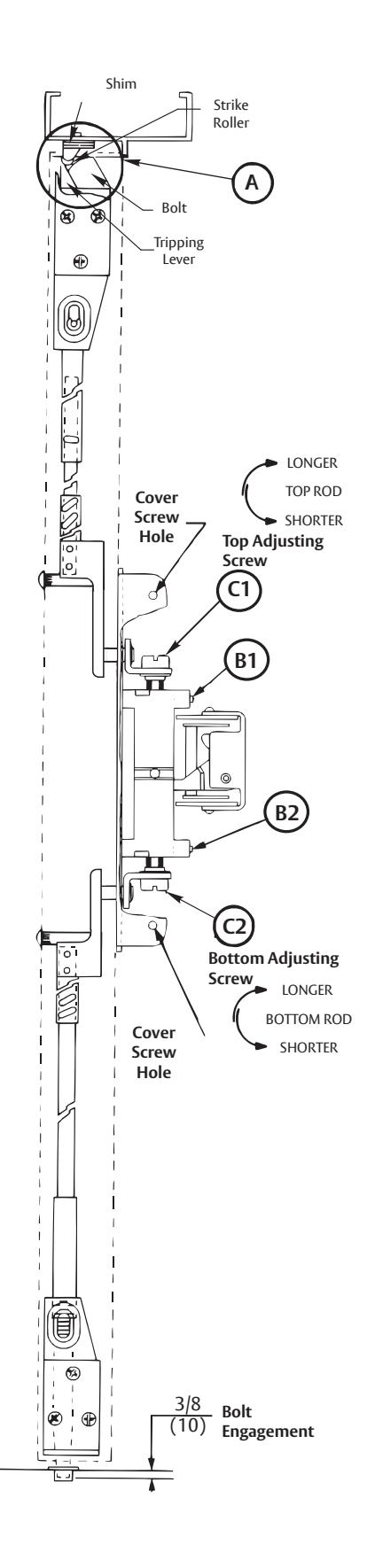

• B. Rod Adjustment for Proper Bolt Throw
• 1. Use 3/32" hex wrench to loosen set screws B1 and B2.
• 2. Adjust the top rod first with adjusting screw C1. With device in dogged position (panic devices) or touchbar fully depressed (fire devices) adjust top rod so that the top latchbolt is flush and the hold back feature is engaged. Lengthen top rod an additional 1/2 turn for proper latchbolt positioning.

NOTE: If adjusting screws bottom out before proper device operation, door and device must be removed so larger adjustments may be made by threading rod in or out, or by moving cotter pin to different hole in rod (See Installation Instructions Step 4).

• 3. Adjust bottom rod with adjusting screw C2. With top latch retracted in hold back position, and touchbar dogged or fully depressed, adjust bottom rod so that the deadbolt clears the strike by 1/16".
• 4. Check device operation by opening and closing the door. An additional minor adjustment may be required for full retraction and correct strike engagement.

NOTE: To avoid thread damage and provide positive locking, be sure set screws engage flats on adjusting screws.

• C. After acceptable device function, install third screw in top strike to lock strike in position with 10-24 x 3/4" PFHMS.
• D. Install device cover and end cap with (2) 8-32 PFHMS each.
