ASSA ABLOY ACCENTRA 673F Trim for 1500(F), 6100ED(F), and 7100(F) Series Wide Stile Mortise_7400-1673

Open the original PDF document

View PDF

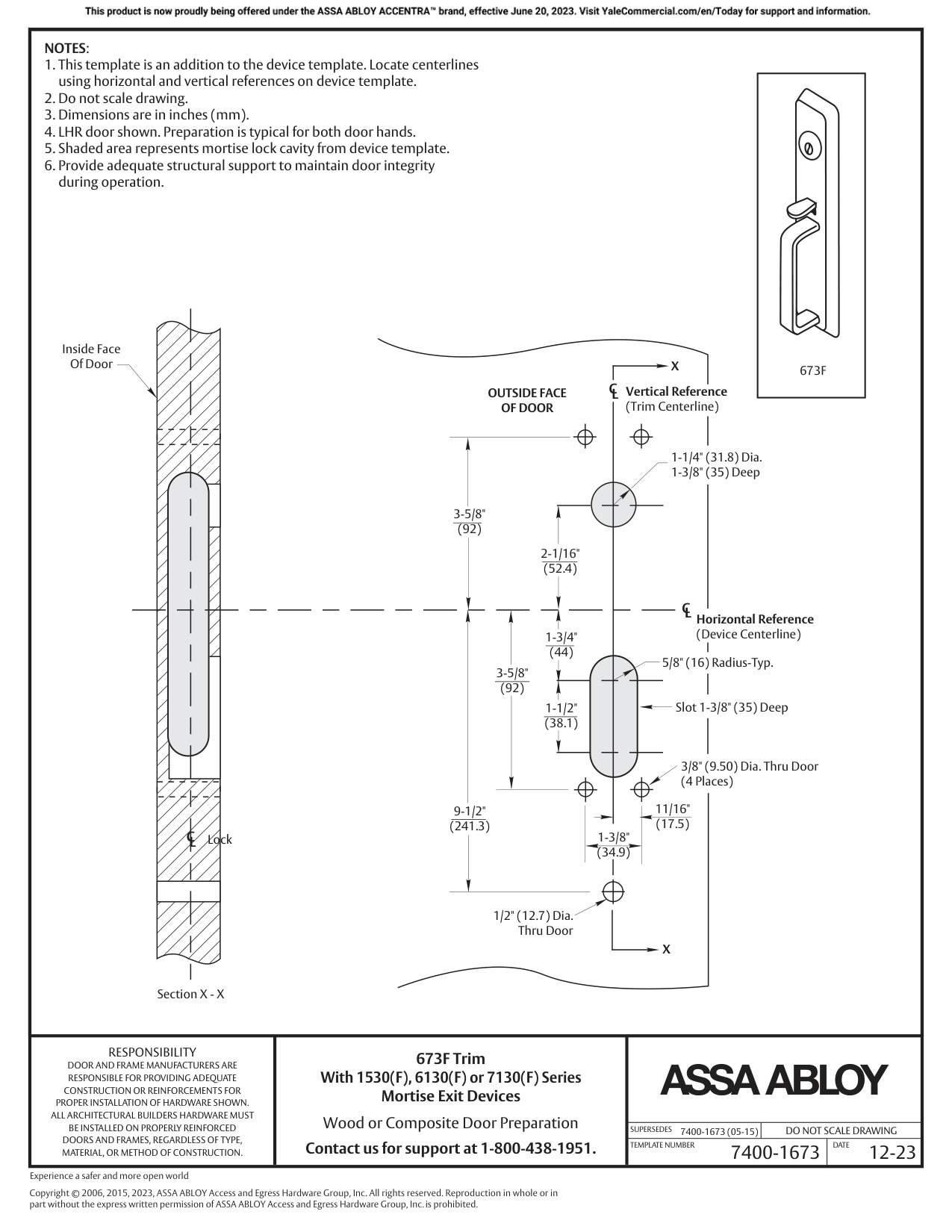

ASSA ABLOY ACCENTRA 673F Trim for 1500(F), 6100ED(F), and 7100(F) Series Wide Stile Mortise_7400-1673 diagram on page 1
