ASSA ABLOY ACCENTRA 4400 Series PA4400 Door Closer Parallel Non-Hold Open Arm with 290 Plate_7344-0207

Open the original PDF document

View PDF

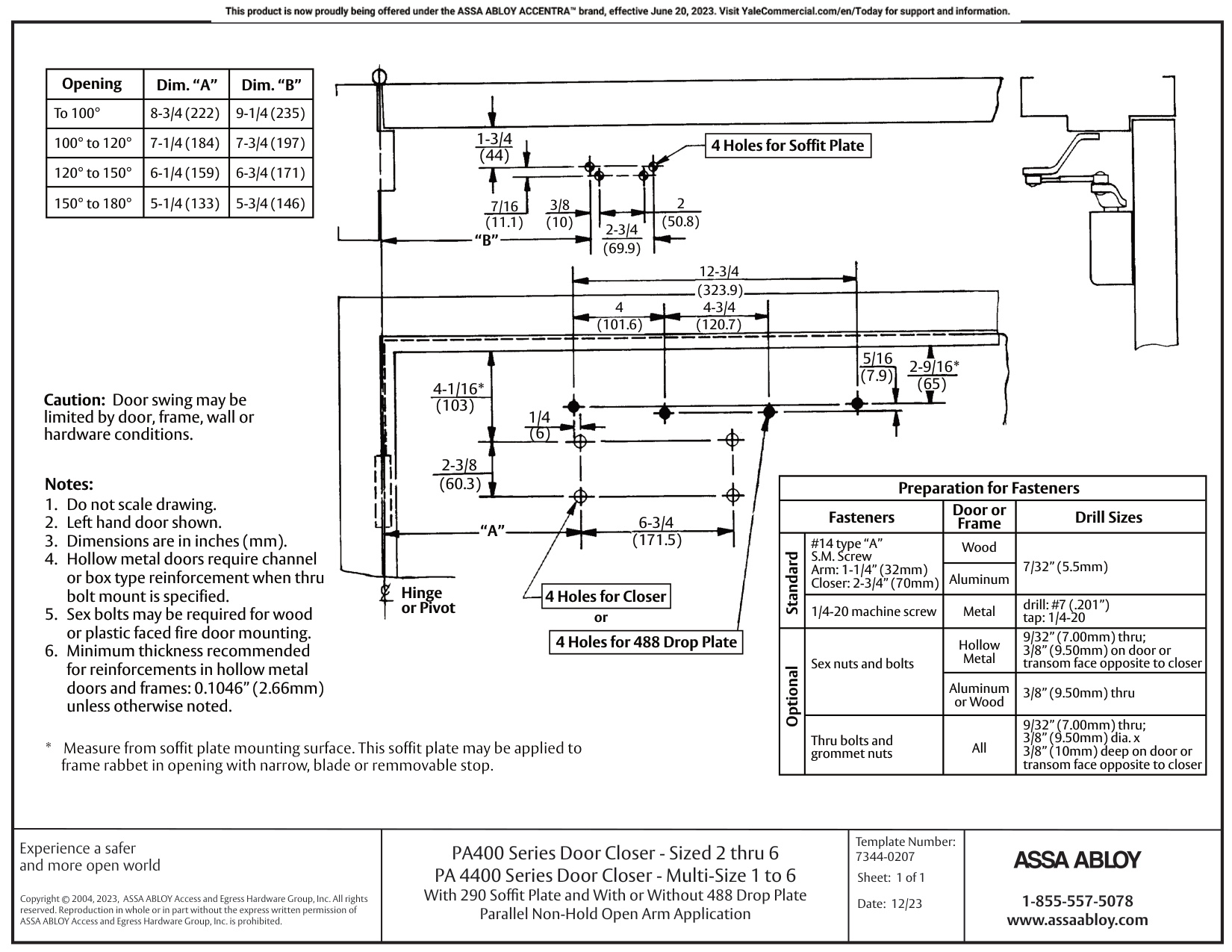

ASSA ABLOY ACCENTRA 4400 Series PA4400 Door Closer Parallel Non-Hold Open Arm with 290 Plate_7344-0207 diagram on page 1
