View PDFEffective November 1, 2018
2018 Government Products Price List
Security Products Made To Meet Exacting U.S. Government Standards
MAKE-TO-ORDER CAPABILITY
SECURITY PRODUCTS BUILT AND KEYED TO YOUR REQUIREMENTS
- SHACKLE OPTIONS Choose extra length shackles 1
- KEYING FLEXIBILITY Over 60 padlock, door hardware and interchangeable core keyways available Choose keying – KD, KA, MK, GMK 2
- CHOOSE CUSTOM LASER ENGRAVING ON SOLID BRASS LOCKS 3
EDGE® KEY CONTROL
Prevents unauthorized duplication of keys
ADVANCED CYLINDER TECHNOLOGY
Excellent protection against lock bumping
To learn more about Government security products and accessories, contact your dealer or visit americanlock.com and masterlock.com
24/7 On-Line Ordering & Quoting Resource*
MasterLockShop.com
Accurately enter orders, validate key numbers and create laser engraved orders.
*A Master Lock account number is required to use this system. No minimum order size.
Table of Contents
| Terms of Sale | 3 |
| Ordering Information | 3 |
| BumpStop® | 4 |
| Government Products | 5 |
| American Lock | |
| - Build Your Lock | 6 |
| - New NSN Listing | 8 |
| - Existing NSN Listing | 9 |
| Master Lock | |
| - Build Your Lock | 10 |
| - NSN Listing | 11 |
| - Resettable Combination Locks | 13 |
| - Key Cabinets | 14 |
| Service Parts | 14 |
THE MASTER LOCK COMPANY TERMS OF SALE – EFFECTIVE NOVEMBER 2018
All orders are subject to acceptance by Master Lock Company LLC, Milwaukee, Wisconsin, USA
PRICES:
- All prices are stated in US dollars ($).
- Orders are subject to prevailing prices on order acceptance date.
- 10% will be added for less than Master Carton quantities per customer program.
- Although descriptions are believed correct at publication approval, accuracy cannot be guaranteed
MINIMUM ORDER:
■ US$50 on all catalog items except parts and keys.
ADDITIONS/CHANGES:
- Once your order has been processed, additions, cancellations or changes may not be accepted. A separate order may be required.
- Master Lock Company LLC reserves the right to make product specification changes from time to time, without notice or obligation, and to change or discontinue models.
FREIGHT TERMS:
- All shipments within the US and Canada are FOB destination.
- Shipments to Alaska or Hawaii will be to US port of exit (Seattle or Los Angeles)
- Master Lock Company LLC will pre-pay freight charges on all orders over US$1,000 (based on net prices) to a single destination within the contiguous United States or Canada.
- Orders destined to Alaska or Hawaii ship prepaid to the customer's designated freight forwarder in either Seattle or Los Angeles.
- Freight charges on orders less than US$1,000 (net) will be shipped on a Prepay & Add basis. Freight charges will be added to the customer's invoice.
- Master Lock Company LLC reserves the right to select both the carrier and mode of transport when shipping on a Prepaid or Prepay & Add basis.
- Customer is responsible for any charges in excess of normal transportation that result from services requested by the receiving party.
- For an International Shipment that is a Routed-Transaction the Buyer's [consignee's] freight forwarder is responsible for export clearance and AES filing.
CLAIMS:
- You must report any claims for shortages or damages for which Master Lock Company LLC or our freight carriers are responsible within 30 days of receipt of merchandise.
- Receivers must note visible discrepancies on the carrier's copy of the delivery receipt in order for the claim to be considered valid. Visible discrepancies include, but are not limited to, open, torn, crushed or water damaged cartons, piece counts that do not match the delivery receipt, etc.
- Master Lock Company LLC uses yellow stretch-wrap. If freight is received with stretch-wrap that is clear or any other color, it should be noted on carrier's copy of the delivery receipt.
- ■ Concealed damages must be reported within five business days of receipt of merchandise in order to determine liability.
- ■ All carriers' claims on Prepaid (or Prepay & Add) shipments are filed by Master Lock Company LLC.
RETURN GOODS
- No merchandise may be returned without authorization from The Master Lock Company.
- All returns must have a Returned Material Authorization (RMA) Number issued by The Master Lock Company Customer Care.
- The RMA must be shown on all labels and correspondence with regards to returned merchandise.
- All returns must be prepaid and returned within 30 days of authorization in order to receive credit.
- A minimum 15% handling charge will be assessed on authorized returns.
- Returns received without prior authorization (RMA Code) may be returned to the customer.
- Returns will not be authorized for custom "Made To Order (MTO)" products and/or products built to a specific customer requirement such as laser engraved, master keyed, or keyed alike products.
WARRANTY INFORMATION:
- If this product or any part of the product fails due to a defect in materials or workmanship at any time during the life of the product, Master Lock Company LLC ("Master Lock") will repair or replace the product or part free of charge. Simply contact Master Lock at www.masterlock.com or 1.800.464.2088 for instructions on obtaining repair or replacement. Canadian customers please call 1.800.227.9599.
- This limited warranty applies only to defects in materials and workmanship, and does not cover products which have been abused, altered, damaged, misused, cut or excessively worn. TO THE EXTENT PERMITTED BY LAW, MASTER LOCK DISCLAIMS ALL OTHER IMPLIED OR EXPRESS WARRANTIES INCLUDING ALL WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
- This limited warranty is your sole and exclusive remedy and MASTER LOCK shall not be liable for any damages, whether direct, indirect, incidental, special, consequential, exemplary, or otherwise, including property damage, lost revenues and lost profits, arising out of any theory of recovery, including statutory, contract or tort.
-
■ This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state and province to province.
- For complete warranty details please visit www.masterlock.com.
How To Order
Orders may be placed via Electronic Data Interchange (EDI), online ordering at www.masterlockshop.com, facsimile to 1-800-308-9245 or e-mail at orders@mlock.com. Telephone orders may also be placed by calling The Master Lock Company Customer Care at 1-800-308-9242 or 1-800-308-9244. To best assure order accuracy and validate information, we reserve the right to require a hard copy of an order prior to processing a phone request.
Order confirmation is available via e-mail or fax.
For convenience, online order tracking is available 24 hours a day at www.masterlock.net.
Please contact our Customer Care Team for details.
When Ordering Products, Please:
- A. Indicate your customer account number, billing address (including zip code), contact name, phone and fax numbers.
- B. Specify complete model number, quantity, and price.
- C. Be sure to specify key number if needed.
- D. Order by units listed, such as each lock or package of service parts.
- E. Indicate color of lock if applicable, (i.e., 6835GRN).
- F. When ordering combination locks for schools or institutions, indicate name and location address (including zip code) of end user.
- G. When ordering laser engraving, indicate clearly which areas of the padlock to engrave. All engraving requests must be accompanied by a fully completed laser layout sheet.
Customer Care Hours: Weekdays 7:30 a.m. to 5:00 p.m. Central Standard Time (C.S.T.). Orders may be faxed or emailed 24 hours a day. All orders received weekdays by 3:00 p.m. C.S.T. will be entered the same day.
EDI
The Master Lock Company is able to accept purchase orders, transmit invoices and Advance Ship Notices (ASN), and receive forecast and Point of Sale (POS) data via EDI. The Master Lock Company utilizes the ANSI X.12 standards. For more information on EDI, contact your Master Lock Company Sales or Customer Care Representative.

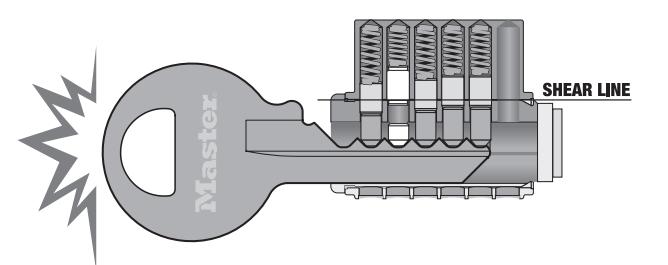

THE BUMP STOPS HERE!
Advanced Cylinder Technology
High Performance Spring
Precision Cylinder Chamber
Lock Bumping –
Lock Bumping has become a legitimate security threat as information on the topic has become widely exposed in the news media and on the internet.
In response to this threat, The Master Lock Company developed exclusive patented BumpStop® Advanced Technology that hinders the transfer of force from the bump key to the pins and blocks rotation of the cylinder. With a reverse rake tapered driver pin, high performance spring and precision tolerance chamber, our 4, 5 and 6-pin BumpStop® products resist bump attacks.
BumpStop® is included in all American Lock and Master Lock Government security products - Made-to-order and NSNs, to meet CID requirements.
In addition, BumpStop is an upgrade available with most American Lock and Master Lock pin tumbler padlocks and security products.
Model Number Option: N
For more details, see www.bumpstopsecurity.com or call your Master Lock Customer Service Representative today.

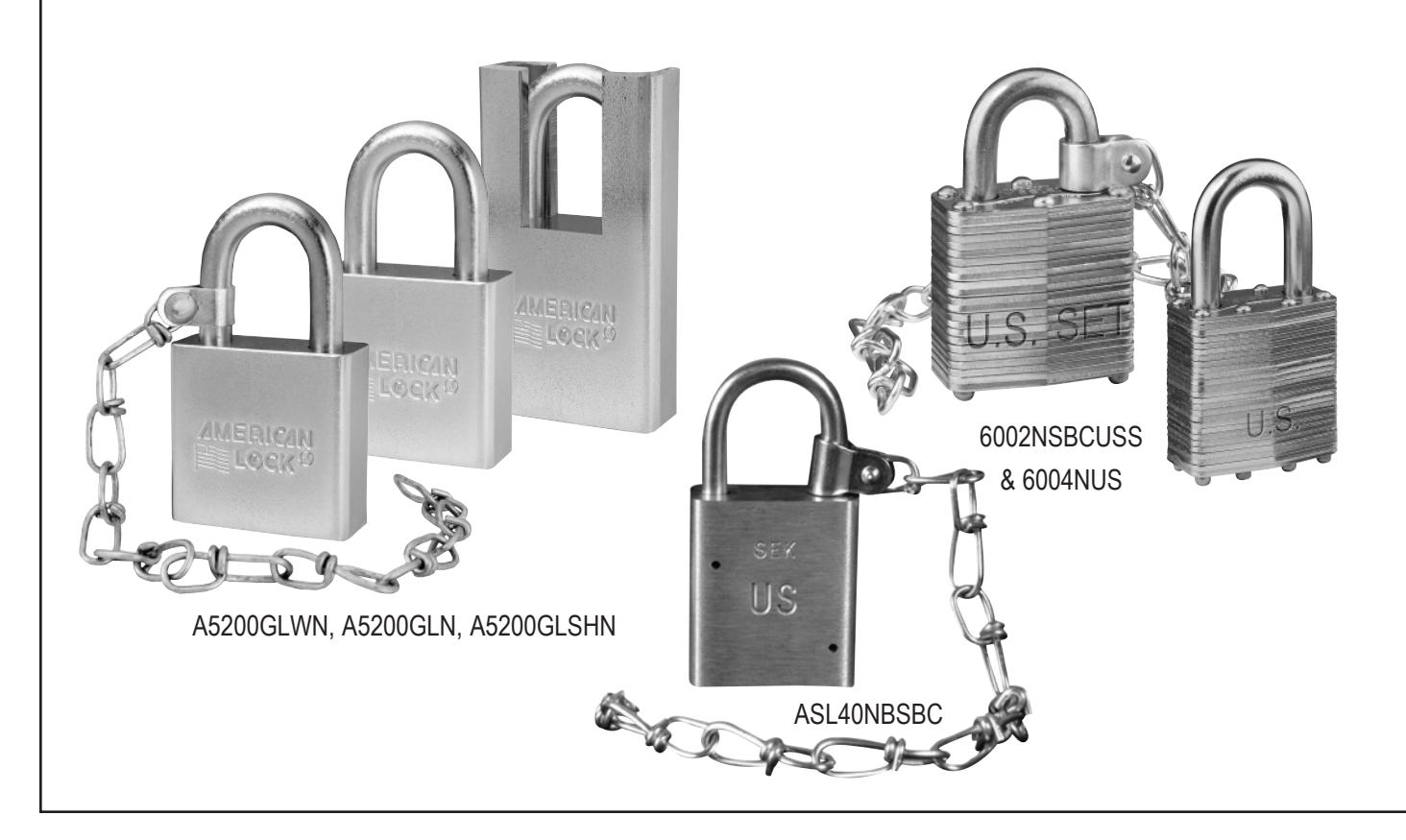

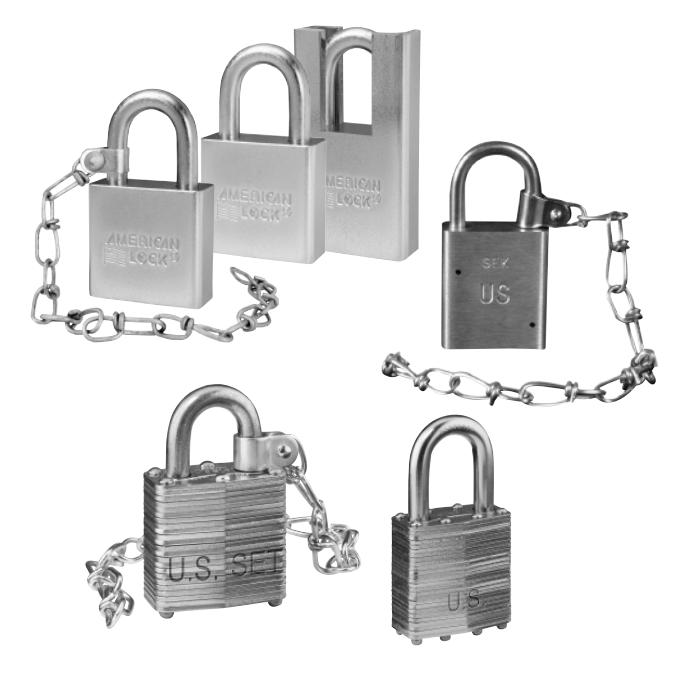

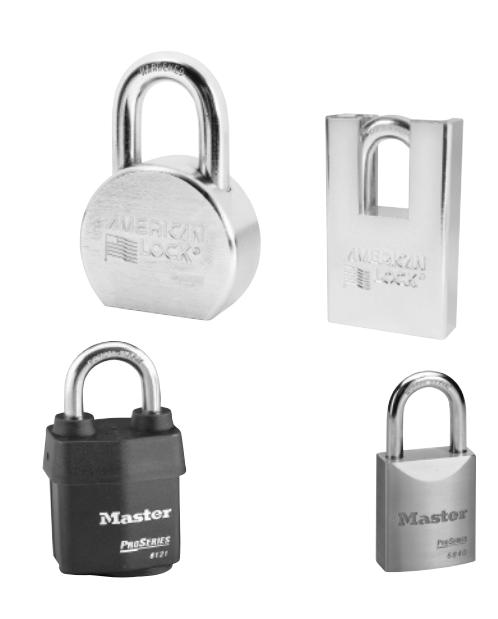

Government Products
For over 60 years, American Lock and Master Lock, as prime contractors and subcontractors, have supplied every segment of D.D., Federal, State and Local Governments.
With unmatched lines of padlocks and portable security products, both American Lock and Master Lock padlocks are manufactured to exact Government CIDs and PIDs. Also, the exclusive BumpStop Advanced Cylinder Technology resists bump attacks.
American Lock has over 60 National Stock Numbers assigned to its product line to meet the most applications. Master Lock has more than 85 NSNs assigned to its product line. And through distribution Master Lock has in aggregate over 550 line items in GSA Advantage and 31 NSN line items referenced in D.D. Emall. Master Lock also supplies product to AAFES, Navy, Marines and the U.S.Coast Guard.
If an NSN set doesn't exactly match a requirement, turn to the Make-to-Order capabilities of American Lock and Master Lock. Choose the precise quantity of padlocks with the specific shackle lengths, chain attachments and keying options needed. American Lock and Master Lock will manufacture the locks to match your requirements.
- M Where required, American Lock and Master Lock products are designed to stringent government standards, CID-A-A-59486, CID-A-A-59487 and ASTM F883
- M BumpStop® Advanced Cylinder Technology resists surreptitious attacks
- M Make-to-Order capability security products built and keyed to your requirements: shackle options, keying flexibility, laser engraving, key control and custom sets available
- M 5-pin tumbler cylinder for added security
- M More than 10,000 key changes available for maximum pick resistance
- M Dual locking for superior pry resistance
- M Most models are stamped "US"; sets are stamped "US SET"
- M Non-removable keys for added security
Make-to-Order Solid Steel Padlocks
A C

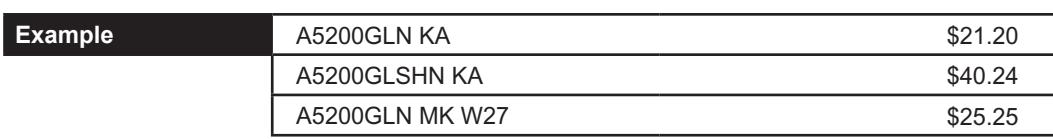

| Base Model | Description | Price/ea. | |||||
|---|---|---|---|---|---|---|---|
|
1-3/4in (44mm) Wide x 3/4in (19mm) Thick, Solid Steel Padlock with Hardened Boron Shackle, A = 5/16in (8mm),
C = 3/4in (19mm), 5-pin Rekeyable W17 BumpStop® cylinder, Non-Removable Key, Lock Body Stamped "US". |
|||||||
| A5200GLN |
B = 1-1/8in (28mm)
$20.05 |
||||||
| A5200GLWN | B = 1-1/8in (28mm), with double loop chain, zinc plated, 9in, no holder | $22.18 | |||||
| A5201GLN | B = 2in (50mm) | $24.04 | |||||
| A5201GLWN | B = 2in (50mm), with double loop chain, zinc plated, 9in, no holder | $26.19 | |||||
| A5202GLN | B = 3in (75mm) | $24.30 | |||||
| A5202GLWN | B = 3in (75mm), with double loop chain, zinc plated, 9in, no holder | $26.45 | |||||
|
1-3/4in (44mm) Wide x 3/4in (19mm) Thick, Solid Steel Padlock with Shrouded Hardened Boron Shackle, A = 5/16in
(8mm), C = 3/4in (19mm), 5-pin Rekeyable W17 BumpStop® cylinder, Non-Removable Key, Lock Body Stamped "US". |
|||||||
| A5200GLSHN | B = 1-1/8in (28mm) | $39.09 | |||||
| Keying | Standard: Keyed Different | |
|---|---|---|
| KA | Keyed Alike | $1.15 |
| MK | Keyed Different; Master Keyed (W27 BumpStop® cylinder) | $5.20 |
| KAMK | Keyed Alike; Master Keyed (W27 BumpStop® cylinder) | $6.35 |
| Shackle | ||
|---|---|---|
| SS |
Stainless Steel (available for A5200GLN, A5200GLWN, A5201GLN and A5201GLWN
series only) |
$4.40 |
| Cylinder | Standard: 5-pin W17 BumpStop® cylinder (Keyed Different and Keyed Alike only) | |
| W27 | Master Keyed. 5-pin BumpStop® cylinder Master Keyed and Master Keyed Alike Option | $0.00 |
| Custom Marking |
| USS | Stamped "US Set" | $0.00 |
|---|---|---|
| Number of Keys | Standard: 2 keys per lock | |
| 1KEY | 1 key per lock | $0.00 |
| 3KEY | 3 keys per lock | $2.00 |
| 4KEY | 4 keys per lock | $4.00 |
| NOKEY | 0 keys per lock | $0.00 |
| Boxed Sets | |||
|---|---|---|---|
| Model Number | SKU | Description | List Price (Each) |
| 1-3/4in (44mm) Wide x 3/4in (19mm) Thick Solid Steel Padlock with Hardened Boron Shackle, A = 5/16in (8mm), C = 3/4in (19mm), Rekeyable 5-pin BumpStop® cylinder, Lock Body Stamped "US SET". | |||
| A5200GLNKAS4 | P14357 | Set of 4 locks keyed alike | $84.80 |
| A5200GLNKAS5 | 111997 | Set of 5 locks keyed alike | $106.00 |
| A5200GLNKAS6 | 111998 | Set of 6 locks keyed alike | $127.20 |
| A5200GLNKAS10 | P11246 | Set of 10 locks keyed alike | $212.00 |
| A5200GLNKAS12 | 111999 | Set of 12 locks keyed alike | $254.40 |
Locks within a set are keyed alike. For orders with more than one set, each set has its own unique key, different from the next set. Include both the SKU number and model number when placing order.
Non-Rekeyable Solid Brass Government Padlocks
| Base Model | Description | Price/ea. | ||||
|---|---|---|---|---|---|---|
|
1-1/2in (38mm) Wide x 3/4in (19mm) Thick, Solid Brass Padlock with Hardened Boron Shackle, A = 1/4in (6mm),
C = 3/4in (19mm), 5-pin W17 BumpStop® cylinder, Non-Removable Key, Lock Body Height 1.695in, Lock Body Stamped "US". |
||||||
| ASL40N | B = 1in (25mm) | $19.39 | ||||
| ASL42N | B = 3in (75mm) | $22.59 | ||||
| Keying | Standard: Keyed Different | |
|---|---|---|
| KA | Keyed Alike | $1.15 |
| MK | Keyed Different; Master Keyed (W27 BumpStop® cylinder) | $5.20 |
| KAMK | Keyed Alike; Master Keyed (W27 BumpStop® cylinder) | $6.35 |
| Shackle |
| B | Brass, B = 1in (25mm) (ASL40 option); B = 3in (76mm) (ASL42 option) | $1.55 |
|---|---|---|
| Chain | ||
| SBC | Double Loop Brass Chain, 9in (229mm) Long, Solid Brass, No Holder | $3.35 |
| Cylinder | Standard: 5-pin W17 BumpStop® cylinder (Keyed Different and Keyed Alike only) | |
|---|---|---|
| W27 | Master Keyed. 5-pin BumpStop® cylinder Master Keyed and Master Keyed Alike Option | $0.00 |
| Custom Marking | ||
|---|---|---|
| USS | Stamped "US Set" | $0.00 |
| LZ1 | Laser engraved in 1 area | $1.11 |
| LZ2 | Laser engraved in 2 areas | $2.22 |
| LZ3 | Laser engraved in 3 areas | $3.33 |
| LZ4 | Laser engraved in 4 areas | $4.44 |
| Number of Keys | Standard: 2 keys per lock | |
|---|---|---|
| 1KEY | 1 key per lock | $0.00 |
| 3KEY | 3 keys per lock | $2.00 |
| 4KEY | 4 keys per lock | $4.00 |
| NOKEY | 0 keys per lock | $0.00 |
National Stock Number Listing for Solid Body Padlocks
Previously, many National Stock Numbers (NSNs) were able to be satisfied by either a laminated or a solid body padlock based on their Commercial Item Description (CID). This often led to confusion due to a number of agencies or organizations that stipulated a particular "body type" as mandatory or preferred. In order to relieve this issue, the Defense Logistics Agency (DLA) has created and assigned new NSNs to only satisfy solid body padlocks. These NSNs became active in the Master Lock Government Products Price List and are listed below. Each of the new NSNs fully comply with the performance standards identified in CIDs AA59486 and AA59487. The only difference is the "body type."
For example, there are two (2) different NSNs for what was the 5340-00-158-3805. The 5340-00-158-3805 ONLY satisfies laminated body padlocks and the 5340-01-588-1036 ONLY satisfies solid body padlocks.
The Master Lock Company has partnered with LC Industries to have these American Lock® NSNs, page 8 only, listed on the federal procurement list. As a result, all orders for the items on page 8 need to be sent to LC Industries directly.
For pricing, to set up an account, and to place orders, contact LC Industries by phone at (877) 524-3478 or by email, service@lcidistribution.com
| Governm | ent Produc | ts | _ | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
National Stock
Number (NSN) |
OLD National Stock
Number (NSN) |
Spec Number
(CID) |
Equivalent Commercial
Model Number (for reference only) |
Set
Size |
Master
Keys |
Grand
Master Kevs |
Keys
Per Set KS |
Keying | Chain |
Ordering
Model Number |
| 5340-01-588-1036 | 5340-00-158-3805 | AA 59487-2SS | A5200GLN | 1 | , | Keyed Different | N | NSN015881036 | ||
| 5340-01-588-1010 | 5340-00-158-3807 | AA 59487-2SCS | A5200GLWN | 1 | Keyed Different | Υ | NSN015881010 | |||
| 5340-01-588-1031 | 5340-00-291-4204 | AA 59486-1IB100S | ASL40N MK B SBC W27 USS | 100 | 2 | Master Keyed | Y | NSN015881031 | ||
| 5340-01-588-1044 | 5340-00-291-4209 | AA 59486-1IB40S | ASL40N MK B SBC W27 USS | 40 | 2 | Master Keyed | Y | NSN015881044 | ||
| 5340-01-588-1063 | 5340-00-291-4210 | AA 59486-1IB50S | ASL40N MK B SBC W27 USS | 50 | 2 | Master Keyed | Υ | NSN015881063 | ||
| 5340-01-588-1091 | 5340-00-291-4211 | AA 59486-1IB20S | ASL40N MK B SBC W27 USS | 20 | 2 | Master Keyed | Y | NSN015881091 | ||
| 5340-01-588-1563 | 5340-00-291-4212 | AA 59486-1IB30S | ASL40N MK B SBC W27 USS | 30 | 2 | Master Keyed | Υ | NSN015881563 | ||
| 5340-01-588-1567 | 5340-00-291-4213 | AA 59486-1IB05S | ASL40N MK B SBC W27 USS | 2 | Master Keyed | Υ | NSN015881567 | |||
| 5340-01-588-1582 | 5340-00-291-4214 | AA 59486-1IB10S | ASL40N MK B SBC W27 USS | 10 | 2 | Master Keyed | Y | NSN015881582 | ||
| 5340-01-588-1592 | 5340-00-292-0902 | AA 59486-1IB13050503S | SL40N MK B SBC W27 USS (GRP 5-5-3) | 6 | 2 |
Grand Master
Keyed |
Y | NSN015881592 | ||
| 5340-01-588-1596 | 5340-00-292-0904 | AA 59486-11B30151005S | ASL40N MK B SBC W27 USS (GRP 15-10-5) 30 | 6 | 2 |
Grand Master
Keyed |
Y | NSN015881596 | ||
| 5340-01-588-1641 | 5340-00-292-0906 | AA 59486-1IB50202010S |
ASL40N MK B SBC W27 USS
(GRP 20-20-10) |
50 | 6 | 2 |
Grand Master
Keyed |
Υ | NSN015881641 | |
| 5340-01-588-1646 | 5340-00-406-6496 | AA 59486-21B55351010LS |
A5560N MK B SBC NR LZ1 USS (GRP 35-10),
A5562 N MK B SBC NR LZ1 USS (GRP 10) |
55 | 6 | 2 |
Grand Master
Keyed |
Υ | NSN015881646 | |
| 5340-01-588-1652 | 5340-00-409-3246 | AA 59486-1IB301510L05S |
ASL40N MK B SBC W27 USS (GRP 15-5),
ASL42N MK B SBC W27 USS (GRP 10) |
6 | 2 |
Grand Master
Keyed |
Y | NSN015881652 | ||
| 5340-01-588-1657 | 5340-00-421-9382 | AA 59486-1IB4020L1505S |
ASL40N MK B SBC W27 USS (GRP 15-5),
ASL42N MK B SBC W27 USS (GRP 20) |
6 | 2 |
Grand Master
Keyed |
Υ | NSN015881657 | ||
| 5340-01-588-1664 | 5340-00-409-3247 | AA 59486-2IB804520L15S |
A5560N MK B SBC NR LZ1 USS (GRP 45-15),
A5562N MK B SBC NR LZ1 USS (GRP 20) |
80 | 6 | 2 |
Grand Master
Keyed |
Y | NSN015881664 | |
| 5340-01-588-1676 | 5340-00-682-1505 | AA 59486-1AB05S2E1S | ASL40N KA B SBC USS 1KEY 2 Extra Keys | 5 | 2 | Keyed Alike | Y | NSN015881676 | ||
| 5340-01-588-1709 | 5340-00-682-1645 | AA 59487-1BLS | ASL42N B | 1 | Keyed Different | N | NSN015881709 | |||
| 5340-01-588-1687 | 5340-00-682-1506 | AA 59486-2IB80303020S | A5560N MK B SBC W27 NR LZ1 USS (GRP 30-30-20) | 80 | 6 | 2 |
Grand Master
Keyed |
Y | NSN015881687 | |
| 5340-01-588-1819 | 5340-00-682-1508 | AA 59487-1BCS | ASL40N B SBC | 1 | Keyed Different | Υ | NSN015881819 | |||
| 5340-01-588-1827 | 5340-00-838-5266 | AA 59486-1AB10S2S | ASL40N KA B SBC USS NOKEY 2 Extra Keys | 10 | 2 | Keyed Alike | Υ | NSN015881827 | ||
| 5340-01-588-1831 | 5340-00-838-5267 | AA 59486-1AB20S2S | ASL40N KA B SBC USS NOKEY 2 Extra Keys | 20 | 2 | Keyed Alike | Υ | NSN015881831 | ||
| 5340-01-588-1838 | 5340-00-838-5268 | AA 59486-1AB30S3S | ASL40N KA B SBC USS NOKEY 3 Extra Keys | 30 | 3 | Keyed Alike | Υ | NSN015881838 | ||
| 5340-01-588-1841 | 5340-00-838-5275 | AA 59486-1AB100S10S | ASL40N KA B SBC USS NOKEY 10 Extra Keys | 100 | 10 | Keyed Alike | Υ | NSN015881841 | ||
| 5340-01-588-1846 | 5340-00-912-4089 | AA 59486-1AB06S3S | ASL40N KA B SBC USS NOKEY 3 Extra Keys | 6 | 3 | Keyed Alike | Y | NSN015881846 | ||
| 5340-01-588-1863 | 5340-01-004-5180 | AA 59487-1BCLS | ASL42N B SBC | 1 | Keyed Different | Y | NSN015881863 | |||
| 5340-01-588-1891 | 5340-01-050-7059 | AA 59486-1AB05S2S | ASL40N KA B SBC USS NOKEY 2 Extra Keys | 5 | 2 | Keyed Alike | Υ | NSN015881891 | ||
| 5340-01-588-1895 | 5340-01-151-4203 | AA 59486-1AB25S2E1S | ASL40N KA B SBC USS 1KEY 2 Extra Keys | 25 | 2 | Keyed Alike | Y | NSN015881895 | ||
| 5340-01-588-1905 | 5340-01-158-1998 | AA59486-2AS01LE2S | A5202GLWN KA | Keyed Alike | Y | NSN015881905 | ||||
| 5340-01-588-1911 | 5340-01-269-9345 | AA 59486-1AB05LS2E1S | ASL42N KA B SBC USS 1KEY 2 Extra Keys | 2 | Keyed Alike | Y | NSN015881911 | |||
| 5340-01-588-1916 | 5340-01-408-8434 | AA 59486-2IS01LS | A5202GLWN | 1 | Keyed Different | Y | NSN015881916 | |||
| 5340-01-588-1924 | 5340-01-408-8450 | AA 59486-2IB01S | A5560N B SBC NR LZ1 US | 1 | Keyed Different | Υ | NSN015881924 | |||
| 5340-01-588-1928 | 5340-01-408-8452 | AA 59486-2AS10S0E2S | A5200GLWN KA USS | 10 | Keyed Alike | Y | NSN015881928 | |||
| 5340-01-588-1954 | 5340-01-437-0625 | AA 59486-2AS06S0E2S | A5200GLWN KA USS | 6 | Keyed Alike | Y | NSN015881954 | |||
| 5340-01-588-1960 | 5340-01-437-0627 | AA 59486-2AS24S48S | A5200GLWN KA USS NOKEY 48 Extra Keys | 24 | 48 | Keyed Alike | Υ | NSN015881960 | ||
| 5340-01-611-8130 | 5340-01-437-0630 | AA 59486-2AS06LS12S | A5202GLWN KA USS NOKEY 12 Extra Keys | 6 | 12 | Keyed Alike | Υ | NSN016118130 | ||
For any NSN with a set size greater than 1, the orderable quantity for a set is 1. The list price is the same for any ordered set quantity.
*NSNs include Government labels when ordering by "Ordering Model Number"
* Equivalent Commercial Models may require ordering separately additional keys, master and grand master keys. KS=Keys per Set Consult the current Government CID AA 59486 and AA 59487 before ordering.
Existing National Stock Number Listing for Solid Body Padlocks
Continue to order these American Lock® NSNs, on page 9, from The Master Lock Company.
| Government Products | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
National Stock
Number (NSN) |
Spec Number
(CID) |
Equivalent Commercial
Model Number (for reference only) |
Set
Size |
Master
Keys |
Grand
Master Keys |
Keys
Per Set KS |
Keying | Chain |
Ordering
Model Number |
List Price
(Each/Set) |
| 5340-00-291-4205 | AA 59486-1IB80S | ASL40N MK B SBC W27 USS | 80 | 2 | Master Keyed | Y | NSN002914205 | $2,485.18 | ||
| 5340-00-291-4206 | AA 59486-1IB90S | ASL40N MK B SBC W27 USS | 90 | 2 | Master Keyed | Y | NSN002914206 | $2,794.62 | ||
| 5340-00-291-4207 | AA 59486-1IB60S | ASL40N MK B SBC W27 USS | 60 | 2 | Master Keyed | Y | NSN002914207 | $1,866.31 | ||
| 5340-00-291-4208 | AA 59486-1IB70S | ASL40N MK B SBC W27 USS | 70 | 2 | Master Keyed | Y | NSN002914208 | $2,175.75 | ||
| 5340-00-422-1612 | N/A | ABKB Blank (Keys) | N/A | N | ABKB | $1.08 | ||||
| 5340-00-514-2782 | ASTM F883 | A400 | 1 | N/A | N | NSN005142782 | $7.89 | |||
| 5340-00-562-3703 | AA59486-1AB10S3S | ASL40N KA B SBC USS NOKEY 3KS | 4 | 4 | Keyed Alike | Y | ASL42NKABSBCUSS1KEY | $258.42 | ||
| 5340-00-582-2741 | AA 59487-1BS | ASL40N B | 1 | Keyed Different | N | NSN005822741 | $21.97 | |||
| 5340-00-838-6986 | AA 59486-1AB40S4S | ASL40N KA B SBC USS NOKEY 4 Extra Keys | 40 | 4 | Keyed Alike | Y | NSN008386986 | $1,085.36 | ||
| 5340-00-838-6987 | AA 59486-1AB50S5S | ASL40N KA B SBC USS NOKEY 5 Extra Keys | 50 | 5 | Keyed Alike | Y | NSN008386987 | $1,356.71 | ||
| 5340-01-012-1581 | N/A | A400K A452 (No Control Key Provided) | 1 | Combo Different | N | A400K | $9.41 | |||
| 5340-01-178-5983 | AA 59486-2IB15S | A5560N MK B SBC W27 NR LZ1 USS | 15 | 2 | Master Keyed | Y | NSN011785983 | $564.10 | ||
| 5340-01-225-4786 | N/A | A825 (Hasp) | N/A | N | NSN012254786 | $13.01 | ||||
| 5340-01-242-8106 | N/A | A895 (Hasp) | 1 | N/A | N | NSN012428106 | $25.77 | |||
| 5340-01-265-8868 | AA59486-1AB04LS0E1S | ASL42N KA B SNC USS 1KEY | 4 | 4 | Keyed Alike | Y | ASL42NKABSBCUSS1KEY | $108.84 | ||
| 5340-01-314-2447 | N/A | AK5 (box of 50) | N/A | N | AK5 | $34.29 | ||||
| 5340-01-340-8871 | AA 59486-1IB15S | ASL40N MK B SBC W27 USS | 15 | 2 | Master Keyed | Y | NSN013408871 | $486.15 | ||
| 5340-01-346-4611 | ASTM F883 | A5200N | 1 | Keyed Different | N | NSN013464611 | $25.11 | |||
| 5340-01-346-4612 | ASTM F883 | A5200NCN | 1 | Keyed Different | Y | NSN013464612 | $30.86 | |||
| 5340-01-346-7462 | ASTM F883 | ASL40NB | 1 | Keyed Different | N | NSN013467462 | $21.97 | |||
| 5340-01-398-2755 | N/A | A11 | 1 | Keyed Different | N | NSN013982755 | $17.18 | |||
| 5340-01-408-8445 | N/A | A50 | 1 | Keyed Different | N | NSN014088445 | $17.12 | |||
| 5340-01-412-7004 | ASTM F883 | ASL40N B KA USS | 6 | Keyed Alike | N | NSN014127004 | $138.73 | |||
| 5340-01-463-5841 | ASTM F883 | A5200GLN KA USS 1KEY 2 Extra Keys | 10 | 2 | Keyed Alike | N | NSN014635841 | $231.65 | ||
| 5340-01-468-5390 | DWG 12422368 | A5200GLN KA Set of 2 | 2 | Keyed Alike | N | NSN014685390 | $44.41 | |||
| 5340-01-484-8654 | AA59486-1AB03S2S | ASL40N KA B SBC USS NOKEY 2 Extra Keys | 3 | 2 | Keyed Alike | Y | NSN014848654 | $89.15 | ||
| 5340-01-533-6882 | N/A | A7202 | 1 | Keyed Different | N | NSN015336882 | $31.95 | |||
| 5340-01-533-6884 | N/A | A7262 | 1 | Keyed Different | N | NSN015336884 | $37.44 | |||
| 5340-01-538-0334 | N/A | A5200GLN KA | 1 | Keyed Alike | N | NSN015380334 | $23.10 | |||
| 5340-01-587-7914 | N/A | A5201GLN KA | 1 | Keyed Alike | N | NSN015877914 | $27.46 | |||
| 5340-01-629-2435 | AA59486-1AB02LS2E2S | ASL42N KA B SBC USS 2KS | 2 | 2 | Keyed Alike | Y | ASL42NKABSBCUSS2KS | $65.78 |
For any NSN with a set size greater than 1, the orderable quantity for a set is 1. The list price is the same for any ordered set quantity.
*Equivalent Commercial Models may require ordering separately additional keys, master and grand master keys. KS=Keys per Set Consult the current Government CID AA 59486 and AA 59487 before ordering.
*NSNs include Government labels when ordering by "Ordering Model Number"
Non-Rekeyable Laminated Steel & Brass Government Padlocks
|
Example
6001N LF US $16.04 |
|---|
| Base Model | Description | Price/ea. |
|---|---|---|
| 6001N |
1-3/4in (44mm) wide laminated steel, hardened steel shackle, double ball locking,
non-removable key, 5-pin W17 BumpStop® cylinder. Shackle dimensions: A=5/16in (8mm), C= 3/4in (19mm); must specify shackle height (B) LF or LT option. |
$14.24 |
| 6002N |
1-3/4in (44mm) wide laminated brass, brass shackle, double ball locking, non
removable key, 5-pin W17 BumpStop® cylinder. Standard shackle dimensions: A=5/16in (8mm), B=3/4in (19mm), C= 3/4in (19mm) |
$21.89 |
| 6004N |
1-9/16in (40mm) wide laminated brass, brass shackle, dual lever locking, non
removable key, 5-pin W17 BumpStop® cylinder. Standard shackle dimensions: A=9/32in (7mm), B=3/4in (19mm), C= 5/8in (16mm) |
$19.30 |
| Keying | Standard: Keyed Different | |
|---|---|---|
| KA | Keyed Alike | $1.15 |
| MK | Keyed Different; Master Keyed (W27 BumpStop® cylinder) | $5.20 |
| KAMK | Keyed Alike; Master Keyed (W27 BumpStop® cylinder) | $6.35 |
| Shackle | Standard: Brass, B = 3/4in (19mm) (only on 6002 & 6004) | |
| LF | Hardened Steel, B=1-3/16in (30mm) (6001 option only) | $1.80 |
| LT | Hardened Steel, B=3in (76mm) (6001 option only) | $2.20 |
| BLJ |
Brass, B = 2-5/8in (67mm), 5/16in (8mm) dia (6002 option only),
B = 2-5/8in (67mm), 9/32in (7mm) dia (6004 option only) |
$2.45 |
| Chain | Standard: 6001: Steel Chain; 6002 & 6004: Brass Chain | |
| SBC | 9in (229mm) Long, Double Loop Brass Chain, no holder (6002 & 6004 option Only) | $3.35 |
| W |
9in (229) Long, Zinc Plated Double Loop Chain and Shackle Collar, no holder
(6001 option Only) |
$3.35 |
| Cylinder | Standard: 5-pin W17 BumpStop® cylinder (Keyed Different and Keyed Alike only) | |
| W27 | Master Keyed. 5-pin BumpStop® cylinder Master Keyed and Master Keyed Alike Option | $0.00 |
| Custom Marking | ||
| US | Stamped "US" | $0.00 |
| USS | Stamped "US SET" | $0.00 |
| Number of Keys | Standard: 2 keys per lock | |
| 1KEY | 1 key per lock | $0.00 |
| 3KEY | 3 keys per lock | $2.00 |
4KEY 4 keys per lock $4.00 NOKEY 0 keys per lock $0.00
National Stock Number Listing for Laminated Padlocks
| National Stock | Snoo Number | Equivalent Commercial | Sot | Montor | Grand | Keys | Ordoring | Liet Drice | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
National Stock
Number (NSN) |
Spec Number
(CID) |
Equivalent Commercial
Model Number (for reference only) |
Set
Size |
Master
Keys |
Master
Keys |
Per Set
KS |
Keying | Chain |
Ordering
Model Number |
List Price
(Each/Set) |
| 4010-01-624-2087 | N/A | 85DPF | 1 | ,. | N/A | N | 85DPF | $10.58 | ||
| 5340-00-158-3805 | AA 59487-2S | 6001N LF US | 1 | Keyed Different | N | 5340-00-158-3805 | $16.8 | |||
| 5340-00-158-3807 | AA 59487-2SC | 6001N LF W US | 1 | Keyed Different | Y | 5340-00-158-3807 | $20.3 | |||
| 5340-00-290-4670 | N/A | 517D | 1 | Keyed Different | N | 5340-00-290-4670 | $9.1 | |||
| 5340-00-291-4204 | AA 59486-1IB100 | 6004N MK SBC W27 USS | 100 | 2 | Master Keyed | Y | 5340-00-291-4204 | $2,925.6 | ||
| 5340-00-291-4205 | AA 59486-1IB80 | 6004N MK SBC W27 USS | 80 | 2 | Master Keyed | Y | 5340-00-291-4205 | $2,342.2 | ||
| 5340-00-291-4206 | AA 59486-1IB90 | 6004N MK SBC W27 USS | 90 | 2 | Master Keyed | Y | 5340-00-291-4206 | $2,633.9 | ||
| 5340-00-291-4207 | AA 59486-1IB60 | 6004N MK SBC W27 USS | 60 | 2 | Master Keyed | Y | 5340-00-291-4207 | $1,758.8 | ||
| 5340-00-291-4209 | AA 59486-1IB40 | 6004N MK SBC W27 USS | 40 | 2 | Master Keyed | Y | 5340-00-291-4209 | $1,175.3 | ||
| 5340-00-291-4210 | AA 59486-1IB50 | 6004N MK SBC W27 USS | 50 | 2 | Master Keyed | Y | 5340-00-291-4210 | $1,467.0 | ||
| 5340-00-291-4211 | AA 59486-1IB20 | 6004N MK SBC W27 USS | 20 | 2 | Master Keyed | Y | 5340-00-291-4211 | $591.9 | ||
| 5340-00-291-4212 | AA 59486-1IB30 | 6004N MK SBC W27 USS | 30 | 2 | Master Keyed | Y | 5340-00-291-4212 | $883.6 | ||
| 5340-00-291-4213 | AA 59486-1IB05 | 6004N MK SBC W27 USS | 5 | 2 | Master Keyed | Y | 5340-00-291-4213 | $154.3 | ||
| 5340-00-291-4214 | AA 59486-1IB10 | 6004N MK SBC W27 USS | 10 | 2 | Master Keyed | Y | 5340-00-291-4214 | $300.2 | ||
| 5340-00-292-0896 | ASTM F883 | 179LH* | 1 | N/A | N | 5340-00-292-0896 | $12.6 | |||
| 5340-00-292-0902 | AA 59486-1IB13050503 | 6004N MK SBC W27 USS (GRP 5-5-30) | 13 | 6 | 2 |
Grand Master
Keyed |
Y | 5340-00-292-0902 | $413.1 | |
| 5340-00-292-0904 | AA 59486-1IB30151005 | 6004N MK SBC W27 USS (GRP 15-10-5) | 30 | 6 | 2 |
Grand Master
Keyed |
Υ | 5340-00-292-0904 | $909.0 | |
| 5340-00-292-0906 | AA 59486-1IB50202010 | 6004N MK SBC W27 USS (GRP 20-20-10) | 50 | 6 | 2 | Grand Master | Υ | 5340-00-292-0906 | $1,492.4 | |
| 2240 00 257 0277 | N/A | K1POV Planka | 1 Day | Keyed | NI NI | KIROV | ¢00.7 | |||
| 5340-00-357-9277 | N/A | K1BOX Blanks | 1 Box | - | N/A | N | K1BOX | $22.7 | ||
| 5340-00-406-6496 | AA59486-21B55351010L |
6002N MK SBC W27 USS (GRP 35-10),
6002N MK B LJ SBC W27 USS (GRP 10) |
55 | 6 | 2 |
Grand Master
Keyed |
Y | 5340-00-406-6496 | $1,814.3 | |
| 5340-00-409-3246 | AA 59486-1IB301510L05 |
6004N MK SBC W27 USS (GRP 15-5),
6004N MK B LJ SBC W27 USS (GRP 10) |
30 | 6 | 2 |
Grand Master
Keyed |
Y | 5340-00-409-3246 | $935.7 | |
| 5340-00-409-3247 | AA 59486-2IB804520L15 |
6002N MK SBC W27 USS (GRP 45-15),
6002N MK B LJ SBC W27 USS (GRP 20) |
80 | 6 | 2 |
Grand Master
Keyed |
Υ | 5340-00-409-3247 | $2,638.2 | |
| 5340-00-409-3248 | AA 59486-2IB80501515L |
6002N MK SBC W27 USS (GRP 50-15),
6002N MK B LJ SBC W27 USS (GRP 15) |
80 | 6 | 2 |
Grand Master
Keyed |
Y | 5340-00-409-3248 | $2,624.9 | |
| 5340-00-421-9382 | AA 59486-1IB4020L1505 |
6004N MK SBC W27 USS (GRP 15-5),
6004N MK B LJ SBC W27 USS (GRP 20) |
40 | 6 | 2 |
Grand Master
Keyed |
Y | 5340-00-421-9382 | $1,254.2 | |
| 5340-00-473-5948 | N/A | K7BOX | 1 Box | N/A | N | K7BOX | $22.7 | |||
| 5340-00-473-5946 | ASTM F883 | 1500 | 1 B0X |
N/A
N/A |
N N | 5340-00-514-2782 | $7.8 | |||
| 5340-00-514-2762 | N/A | 1500 | 1 | - | Combo Different | N N | 5340-00-663-0714 | $7.0 | ||
| 5340-00-682-1505 | AA 59486-1AB05S2E1 | 6004N KA SBC USS 1KEY 2 Extra Keys | 5 | 2 | Keyed Alike | Y | 5340-00-663-0714 | $135.2 | ||
| 5340-00-682-1506 | AA 59486-2IB80303020 | 6002N MK SBC W27 USS (GRP 30-30-20) | 80 | 6 | 2 | 2 | Grand Master | Y | 5340-00-662-1505 | $2,584.8 |
| 5040 00 000 4500 | AA 50407 4D0 | , , , , , , , , , , , , , , , , , , , | 4 | Keyed | 5040.00.000.4500 | 000.7 | ||||
| 5340-00-682-1508 | AA 59487-1BC | 6004N SBC US | 1 | Keyed Different | Y | 5340-00-682-1508 | $23.7 | |||
| 5340-00-682-1645 | AA 59487-1BL | 6004N LJ US | 1 | Keyed Different | N | 5340-00-682-1645 | $22.9 | |||
| 5340-00-684-9801 | N/A | 5 | 1 | Keyed Different | N | 5340-00-684-9801 | $15.7 | |||
| 5340-00-817-4657 | N/A | 6 | 1 | Keyed Different | N | 5340-00-817-4657 | $22.7 | |||
| 5340-00-838-5266 | AA 59486-1AB10S2 | 6004N KA SBC USS NOKEY 2 Extra Keys | 10 | 2 | Keyed Alike | Y | 5340-00-838-5266 | $259.7 | ||
| 5340-00-838-5267 | AA 59486-1AB20S2 | 6004N KA SBC USS NOKEY 2 Extra Keys | 20 | 2 | Keyed Alike | Y | 5340-00-838-5267 | $508.8 | ||
| 5340-00-838-5268 | AA 59486-1AB30S3 | 6004N KA SBC USS NOKEY 3 Extra Keys | 30 | 3 | Keyed Alike | Y | 5340-00-838-5268 | $763.2 | ||
| 5340-00-838-5275 | AA 59486-1AB100S10 | 6004N KA SBC USS NOKEY 10 Extra Keys | 100 | 10 | Keyed Alike | Y | 5340-00-838-5275 | $2,544.0 | ||
| 5340-00-838-6986 | AA 59486-1AB40S4 | 6004N KA SBC USS NOKEY 4 Extra Keys | 40 | 4 | Keyed Alike | Y | 5340-00-838-6986 | $1,017.6 | ||
| 5340-00-838-6987 | AA 59486-1AB50S5 | 6004N KA SBC USS NOKEY 5 Extra Keys | 50 | 5 | Keyed Alike | Y | 5340-00-838-6987 | $1,272.0 | ||
| 5340-00-905-6716 | N/A | 500KA-201 | 1 | Keyed Alike | N | 5340-00-905-6716 | $5.9 | |||
|
5340-00-912-2364
5340-00-912-4089 |
N/A
AA 59486-1AB06S3 |
1KALF 2004
6004N KA SBC USS NOKEY 3 Extra Keys |
1 | 3 |
Keyed Alike
Keyed Alike |
N
Y |
5340-00-912-2364
5340-00-912-4089 |
$15.8 | ||
| + | 6004N LJ SBC US | 6 | 3 | Y | + | $165.4 | ||||
| 5340-01-004-5180 | AA 59487-1BCL | - | Keyed Different | 5340-01-004-5180 | $26.4 | |||||
| 5340-01-007-4403 |
N/A
N/A |
81LJCN | 1 | Keyed Different | Y | 5340-01-007-4403 |
$22.8
$10.1 |
|||
|
5340-01-012-1580
5340-01-012-1581 |
N/A
N/A |
1525 V51 (No Control Key Provided) | 1 | - |
V51
V60 |
N
N |
1525 V51
1525 V60 |
$10.1 | ||
| 5340-01-012-1581 |
N/A
N/A |
1525 V60 (No Control Key Provided) 7LF | 1 | - | Keyed Different |
N
N |
5340-01-021-2619 | |||
|
5340-01-021-2619
5340-01-024-6500 |
N/A
N/A |
22KA | 1 | - |
Keyed Different
Keyed Alike |
N
N |
5340-01-021-2619 |
$10.7
$5.1 |
||
| 5340-01-024-6500 | AA 59486-1AB05S2 | 6004N KA SBC USS NOKEY 2 Extra Keys | 5 | - | 2 | Keyed Alike | Y | 5340-01-024-6500 | $135.2 | |
| 5340-01-093-0148 |
|
15 | 1 | Keyed Different | + | |||||
|
N/A
A A 50486 1 A D0693 |
6004N KA SBC USS NOKEY 3 Extra Keys | _ | - | 2 | - |
N
Y |
5340-01-093-0148 |
$28.0
$165.4 |
||
| 5340-01-098-6792 | AA 59486-1AB06S3 | , | 6 | - | 3 | Keyed Alike | 5340-01-098-6792 | $165.4 | ||
|
5340-01-112-5151
5340-01-119-3981 |
AA 1928
AA 1928 |
175
175LH |
1 | - |
N/A
N/A |
N
N |
5340-01-112-5151
5340-01-119-3981 |
$23.4
$26.6 |
||
| 5340-01-119-3981 | AA 59486-1AB25S2E1 | 6004N KA SBC USS 1KEY 2 Extra Keys | 25 | - | 2 | Keyed Alike | Y | 5340-01-119-3981 | $633.3 | |
|
5340-01-151-4203
5340-01-158-1998 |
AA 59486-1AB25S2E1
AA 59486-2AS01LE2 |
6001N KA LT W US | 1 | - |
Keyed Alike
Keyed Alike |
Y |
|
$633.0 | ||
| + | _ | 2 | 5340-01-158-1998 | |||||||
| 340-01-178-5983 | AA 59486-2IB15 | 6002N MK SBC W27 USS | 15 | 2 | Master Keyed | Y | 5340-01-178-5983 | $437. | ||
| 340-01-189-3547 | N/A | 81KA Set of 6 | 6 | Keyed Alike |
N
N |
5340-01-189-3547 | $114. | |||
| 5340-01-196-3056 | N/A | 140D | Keyed Different | N N | 5340-01-196-3056 | $7.4 | ||||
| 340-01-220-0160 | N/A | 703D (Hasp) | 1 | N/A |
N
N |
703D | $4.9 | |||
| 340-01-234-7726 | N/A | 1517D | 1 | - | N/A | N | 5340-01-234-7726 | $12. | ||
| 340-01-247-9650 | N/A | 5KALJ | 1 | - | Keyed Alike | N | 5340-01-247-9650 | $19. | ||
| 5340-01-255-9322 | N/A | 500 | 1 - | - | Keyed Different | N | 5340-01-255-9322 | $5.0 | ||
| 340-01-269-9345 | AA 59486-1AB05LS2E1 | 6004N KA B LJ SBC USS 1KEY 2 Extra Keys | 5 | 2 | Keyed Alike | Y | 5340-01-269-9345 | $148. | ||
| 340-01-277-4615 | N/A | 17LH | 1 1 | 1 | I | I | Keyed Different | N | 5340-01-277-4615 | $24. |
* 179 LH - Master Carton Quantity 25
National Stock Number Listing for Laminated Padlocks
| Government Products | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
National Stock
Number (NSN) |
Spec Number
(CID) |
Equivalent Commercial
Model Number (for reference only) |
Set
Size |
Master
Keys |
Grand
Master Keys |
Keys
Per Set KS |
Keying | Chain |
Ordering
Model Number |
List Price
(Each/Set) |
| 5340-01-278-0154 | N/A | 3 | 1 | Keyed Different | N | 5340-01-278-0154 | $11.20 | |||
| 5340-01-281-5678 | N/A | 1525 | 1 | N/A | N | 1525 | $10.19 | |||
| 5340-01-334-4488 | N/A | 4KA | 1 | Keyed Alike | N | 5340-01-334-4488 | $16.85 | |||
| 5340-01-340-8871 | AA 59486-1IB15 | 6004N B MK SBC W27 USS | 15 | 2 | Master Keyed | Y | 5340-01-340-8871 | $486.15 | ||
| 5340-01-344-2146 | N/A | 5KA | 1 | Keyed Alike | N | 5340-01-344-2146 | $16.83 | |||
| 5340-01-346-4611 | ASTMF 883 | 1 LF BLK | 1 | Keyed Different | N | 5340-01-346-4611 | $25.11 | |||
| 5340-01-346-4612 | ASTMF 883 | 1 LF W BLK | 1 | Keyed Different | Y | 5340-01-346-4612 | $19.55 | |||
| 5340-01-376-9718 | N/A | 4KAB | 1 | Keyed Alike | N | 5340-01-376-9718 | $19.65 | |||
| 5340-01-387-6639 | N/A | 1502 | 1 | Combo Different | N | 5340-01-387-6639 | $8.10 | |||
| 5340-01-390-3817 | N/A | 3KA | 1 | Keyed Alike | N | 5340-01-390-3817 | $12.86 | |||
| 5340-01-408-8434 | AA 59486-2IS01L | 6001N LT W US | 1 | Keyed Different | Y | 5340-01-408-8434 | $20.74 | |||
| 5340-01-408-8450 | AA 59486-2IB01 | 6002N SBC US | 1 | Keyed Different | Y | 5340-01-408-8450 | $26.48 | |||
| 5340-01-408-8452 | AA 59486-2AS10S0E2 | 6001N KA LF W USS | 10 | Keyed Alike | Y | 5340-01-408-8452 | $213.41 | |||
| 5340-01-437-0625 | AA 59486-2AS06S0E2 | 6001N KA LF W USS | 6 | Keyed Alike | Y | 5340-01-437-0625 | $128.04 | |||
| 5340-01-437-0627 | AA 59486-2AS24S48 | 6001N KA LF W USS NOKEY 48KS Extra Keys | 24 | 48 | Keyed Alike | Y | 5340-01-437-0627 | $767.97 | ||
| 5340-01-437-0630 | AA 59486-2AS06LS12 | 6001N KA LT W USS NOKEY 12KS Extra Keys | 6 | 12 | Keyed Alike | Y | 5340-01-437-0630 | $195.24 | ||
| 5340-01-446-4353 | N/A | 722DPF | 1 | N/A | N | 5340-01-446-4353 | $13.20 | |||
| 5340-01-468-5390 | DWG 12422368 | 6001N KA LF Set of 2 | 2 | Keyed Alike | N | 5340-01-468-5390 | $35.69 | |||
| 5340-01-484-8654 | AA 59486-1AB03S2 | 6004N KA SBC USS NOKEY 2 Extra Keys | 3 | 2 | Keyed Alike | Y | 5340-01-484-8654 | $85.38 | ||
| 5340-01-494-0998 | N/A | 443KA 3275 | 1 | Keyed Alike | N | 5340-01-494-0998 | $16.43 | |||
| 5340-01-494-4004 | N/A | 160D | 1 | Keyed Different | N | 5340-01-494-4004 | $14.63 | |||
| 5340-01-499-8438 | N/A | 6121KA | 1 | Keyed Alike | N | 5340-01-499-8438 | $26.84 | |||
| 5340-01-509-7800 | N/A | 1557 | 1 | Combo Alike | N | 5340-01-509-7800 | $17.11 | |||
| 5340-01-509-7806 | N/A | 1558 | 1 | Combo Alike | N | 5340-01-509-7806 | $25.39 | |||
| 5340-01-517-2237 | N/A | 410RED | 1 | Keyed Different | N | 5340-01-517-2237 | $15.53 | |||
| 5340-01-518-5212 | N/A | 6127KA | 1 | Keyed Alike | N | 5340-01-518-5212 | $36.58 | |||
| 5340-01-518-3548 | N/A | 130D | 1 | Keyed Different | N | 5340-01-518-3548 | $5.70 | |||
| 5340-01-539-0439 | N/A | 8LF | 1 | Keyed Different | N | 5340-01-539-0439 | $13.48 | |||
| 5340-01-559-3127 | N/A | 6125 KA | 1 | Keyed Alike | N | 5340-01-559-3127 | $30.98 | |||
| 5340-01-564-9809 | N/A | 8428DPS | 1 | Keyed Different | N | 8428DPS | $32.50 | |||
| 5340-01-567-7035 | N/A | 176 | 1 | Keyed Different | N | 176 | $26.63 | |||
| 5340-01-579-7685 | N/A | 6121KANR | 1 | Keyed Alike | N | 5340-01-579-7685 | $29.87 | |||
| 5340-01-599-1736 | N/A | 1480KA | 1 | Keyed Alike | N | 1480KA | $27.67 | |||
| 5340-01-615-6465 | N/A | 178BLK | 1 | Keyed Different | N | 178BLK | $15.49 | |||
| 5340-01-617-2823 | N/A | 4130KA | 1 | Keyed Alike | N | 4130KA | $5.75 | |||
| 5340-01-630-6506 | N/A | 6840N | 1 | Keyed Different | N | 6840N | $27.87 | |||
| 5340-01-645-2638 | N/A | 8KAB | 1 | Keyed Alike | N | 8KAB | $16.65 | |||
| 5342-01-106-7110 | N/A | 475KA | 1 | Keyed Alike | N | 5342-01-106-7110 | $20.82 | |||
| 5342-01-164-0779 | N/A | 706D (Hasp) | 1 | N/A | N | 5342-01-164-0779 | $11.75 | |||
| 5925-01-647-8281 | N/A | 453XL | 1 | — | — | 453XL | $33.09 | |||
| 5930-LN-001-0595 | N/A | 496B | 1 | — | — | 496B | $9.17 |
For any NSN with a set size greater than 1, the orderable quantity for a set is 1. The list price is the same for any ordered set quantity.
*NSNs include Government labels when ordering by "Ordering Model Number"
* Equivalent Commercial Models may require ordering separately additional keys, master and grand master keys. KS=Keys per Set Consult the current Government CID AA 59486 and AA 59487 before ordering.
Resettable Combination
-
No. 175LH No. 1175 No. 1177 No. 1178 No. 975
-
Nos. 975, 975LH, 878 & 878LH are TAA Compliant
- Shackle seal protects internal components from dirt and grime • Deadlocking mechanism protects against prying, shimming and rap attacks
-
Nos. 1175, 1177 & 1178
- Octagonal boron-carbide shackle for superior cut resistance
- Shackle seal and dust cover protect internal components and dials for (not from) trouble-free operation
- Deadlocking mechanism protects against prying, shimming and rap attacks
-
All models
- Set-your-own 4-digit combination for convenience and security
- Reset to any of 10,000 possible personalized combinations Width Width
| Resettable Combination Locks | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Product
Number |
Description |
Shelf
Pack Quantity |
Master
Carton Quantity |
A |
Shackle
Dimensions B |
C | A |
Shackle
Dimensions (Metric) B |
C |
List
Price (Each) |
| 175 |
2in (51mm) wide Brass Body, with Round
Hardened Steel Shackle |
6 | 36 | 5/16in | 1in | 1in | 8mm | 25mm | 25mm | $23.12 |
| 175LH |
2in (51mm) wide Brass Body, with Round
Hardened Steel Shackle |
6 | 36 | 5/16in | 2-1/4in | 1in | 8mm | 57mm | 25mm | $26.22 |
| 878 |
Set-Your-Own Combination; Black Powder Coated
Zinc Body; NO Combination Reset Tool Required, TAA Compliant |
6 | 36 | 5/16in | 1in | 1in | 8mm | 25mm | 25mm | $16.38 |
| 878LH |
Set-Your-Own Combination; Black Powder
Coated Zinc Body; 2-1/4in (57mm) Shackle; NO Combination Reset Tool Required, TAA Compliant |
6 | 36 | 5/16in | 2in | 1in | 8mm | 51mm | 25mm | $19.12 |
| 975 |
Set-Your-Own Combination; NO Combination
Reset Tool Required, TAA Compliant |
6 | 36 | 5/16in | 1in | 1in | 8mm | 25mm | 25mm | $25.43 |
| 975LH |
Set-Your-Own Combination; 2-1/4in (57mm)
Shackle; No Combination Reset Tool Required, TAA Compliant |
6 | 36 | 5/16in | 2in | 1in | 8mm | 51mm | 25mm | $28.84 |
| 1174 |
2-1/4in (57mm) wide Stainless Steel Body,
with Round Stainless Steel Shackle |
4 | 24 | 5/16in | 1-1/16in | 1in | 8mm | 28mm | 25mm | $38.40 |
| 1175 |
2-1/4in (57mm) wide Brass Body, with
Octagonal Boron-Carbide Shackle |
4 | 24 | 3/8in | 1-1/16in | 15/16in | 10mm | 28mm | 24mm | $27.75 |
| 1175LH |
2-1/4in (57mm) wide Brass Body, with
Octagonal Boron-Carbide Shackle |
4 | 24 | 3/8in | 2-1/16in | 15/16in | 10mm | 53mm | 24mm | $31.46 |
| 1175LHSS |
2-1/4in (57mm) wide Brass Body, with Round
Stainless Steel Shackle |
4 | 24 | 5/16in | 2-1/16in | 1in | 8mm | 53mm | 25mm | $32.16 |
| 1175RS |
2-1/4in (57mm) wide Brass Body, with Round
Stainless Steel Shackle |
4 | 24 | 5/16in | 1-1/16in | 1in | 8mm | 28mm | 25mm | $27.75 |
| 1175LHRS |
2-1/4in (57mm) wide Brass Body, with Round
Stainless Steel Shackle |
4 | 24 | 5/16in | 2-1/16in | 1in | 8mm | 53mm | 25mm | $31.46 |
| 1177 |
2-1/4in (57mm) wide Shrouded Brass Body, with
Octagonal Boron-Carbide Shackle |
4 | 24 | 3/8in | 1-1/16in | 1in | 10mm | 28mm | 25mm | $31.38 |
| 1178 |
2-1/4in (57mm) wide Die Cast Body, with
Octagonal Boron-Carbide Shackle |
4 | 24 | 3/8in | 1-1/16in | 15/16in | 10mm | 28mm | 24mm | $15.78 |
| Custom Marking | ||
|---|---|---|
| LZ1 | Laser engraved in 1 area | $1.11 |
| LZ2 | Laser engraved in 2 areas | $2.22 |
| LZ3 | Laser engraved in 3 areas | $3.33 |
| LZ4 | Laser engraved in 4 areas | $4.44 |
Key Cabinets and Service Parts
No. 7126D
- Heavy duty 16 gauge steel construction with full length, hinged door and built-in slotted key racks
- Durable, beige powder coated cabinet finish
- Rekeyable wafer cylinder lock that utilizes our K1 Key with improved pick resistance
- Key retaining security insures key cannot be removed until cabinet is locked
- 2 keys, key holders, cross reference chart and installation hardware included
- No. 7117 snap hook design fits slotted and key style key cabinets, boards, etc. for use with 7125D and 7126D
| SAFES | SAFESPACE® Heavy Duty Locking Key Cabinets Boxed Products | |||||||
|---|---|---|---|---|---|---|---|---|
|
Product
Number |
Description |
Master Carton
Quantity |
List Price
(Each |
|||||
| 7125D | Heavy Duty Key Cabinet holds 60 keys. 12-1/4in (31.1cm) x 10-3/4in (27.3cm) x 3in (7.6cm) | 4 | $101.68 | |||||
| 7126D | Heavy Duty Key Cabinet holds 120 keys. 17in (43.2cm) x 13in (33cm) x 3-1/4in (8.3cm) | 4 | $164.26 | |||||
| Plastic Key H | anger | |||||||
| 7117D | Plastic Key Holder; 20 holders per bag. 1-1/2in (38mm) x 1-2/3in (42mm) x 4/5in (20mm) | 10 bags | $7.27 | |||||
| 7116D | Plastic Key Tags; 20 tags per bag. 1-1/4in (32mm) x 1-1/10in (28mm) x 1/2in (12mm) | 10 bags | $7.27 | |||||
| Service P | arts American Lock® | ||
|---|---|---|---|
| Product Number | Description | Units Package Each | List Price (Each) |
| Padlock Cylinders | |||
| APTC15NW17 | 5 Pin Bump Resistant Cylinder Keyed Different for Government GL Padlocks | 1 | $6.37 |
| APT15NKAW17 | 5 Pin Bump Resistant Cylinder Keyed Alike for Government GL Padlocks | 1 | $7.32 |
| APTC15NMKW27 | 5 Pin Bump Resistant Cylinder Master Keyed Keyed Different for Government GL Padlocks | 1 | $11.07 |
| APT15NKAMKW27 | 5 Pin Bump Resistant Cylinder Master Keyed Keyed Alike for Government GL Padlocks | 1 | $12.02 |
| Government Padlocks | s dated prior to July 12, 2010 require an actuator, p/n APKG0001670 | • | ` |
| Actuator | |||
| APKG0001670 | Actuator, dead locking, for a A5200GL Series using a 5-pin Bump resistant cylinder, padlocks dated prior to July 12, 2010 | 6/pkg | $14.50 |
| Cut Keys | |||
| 5 Pin Tumbler | AK27N Cut Master Key for W27 Bump Resistant Cylinder | 1 | $8.85 |
| 5 Pin Tumbler | AK17N Cut Standard Key for W17 Bump Resistant Cylinder | 1 | $8.85 |
| Key Blanks | |||
| BumpStop® Padlock | Key Blanks | ||
| AK5W17BOX | Key Blank, BumpStop®, 5-pin (W17 Cylinder), Keyed Different and Keyed Alike Only | 50/Bx | $34.29 |
| AK5W27BOX | Key Blank, BumpStop®, 5-pin (W27 Cylinder), Master Keyed Only | 50/Bx | $34.29 |
| Standard Padlock K | ey Blanks | _ | |
| AK5BOX | Key Blank, Standard, 5-pin (APTC15 Cylinder) Non BumpStop® | 50/Bx | $34.29 |
| Service I | Parts Master Lock | ||
|---|---|---|---|
| Product Number | Description | Units Package Each | List Price (Each) |
| Cut Keys | |||
| 5 Pin Tumbler | K27N Cut Master Key for W27 Bump Resistant Cylinder | 1 | $8.33 |
| 5 Pin Tumbler | K17N Cut Standard Key for W17 Bump Resistant Cylinder | 1 | $8.33 |
| Key Blanks | |||
| BumpStop® Padloc | k Key Blanks | ||
| K17BOX | Key Blank, BumpStop®, 5-pin (W17 Cylinder), Keyed Different and Keyed Alike Only | 50/Bx | $22.11 |
| K27BOX | Key Blank, BumpStop®, 5-pin (W27 Cylinder), Master Keyed and Keyed Alike Master Keyed Only | 50/Bx | $22.11 |
| Standard Padlock I | Key Blanks | ||
| K81BOX | For Nos. 6001, 6002 and 6004 (W81 Cylinder) Non BumpStop® | 50/Bx | $22.11 |
More From The Master Lock Company

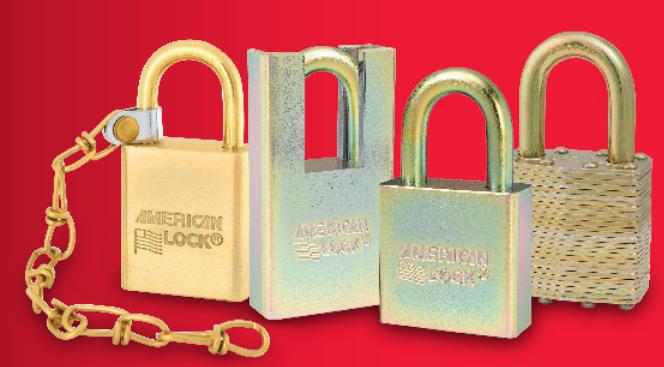

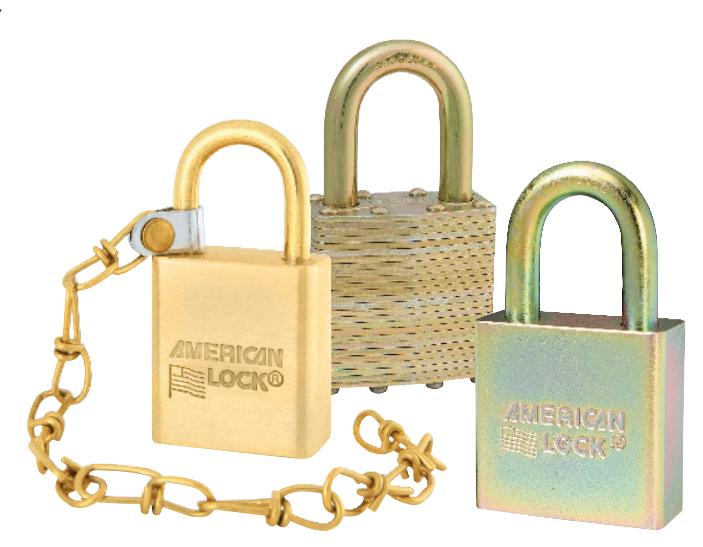

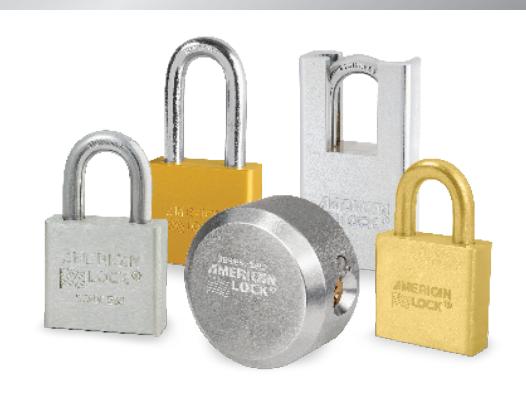

AMERICAN LOCK® PRODUCTS
Solid Steel Padlocks, Solid Brass Padlocks, Solid Aluminum Padlocks, Edge® Key Control, BumpStop® Advanced Cylinder Technology.

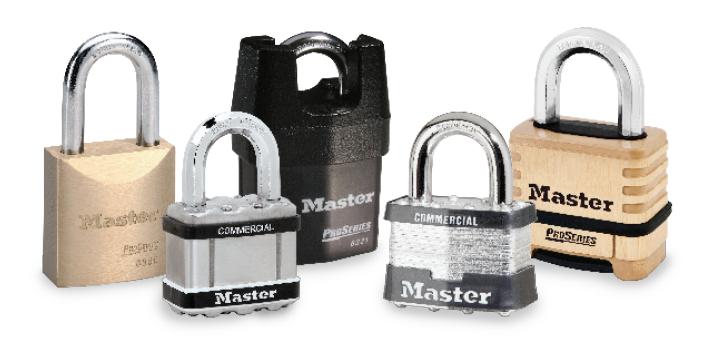

COMMERCIAL SECURITY PRODUCTS
ProSeries® Rekeyable Padlocks, Weather Tough® Padlocks, ProSeries® Resettable Combination Padlocks, Safespace® Storage Security, Door Key Compatible and Interchangeable Core Locks, Hasps and Accessories, Edge® Key Control, BumpStop® Advanced Cylinder Technology.

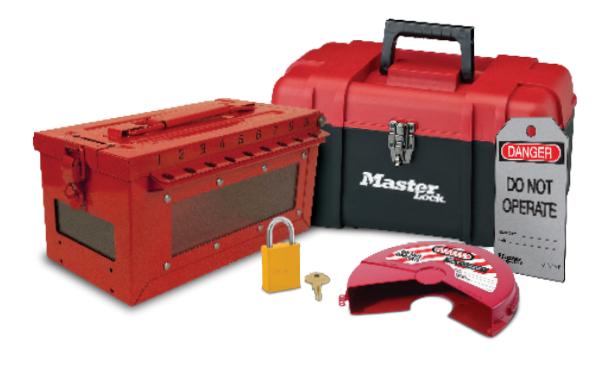

SAFETY SOLUTIONS PRODUCTS
Safety Padlocks, Lockout Devices, Safety Identification Signs and Tags.

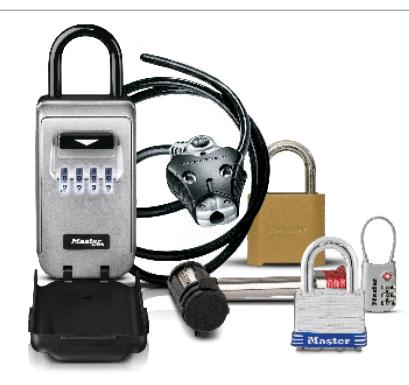

CONSUMER SECURITY RETAIL CARDED PRODUCTS
Laminated Padlocks, Brass Laminated Padlocks, Shrouded Padlocks, Solid Body Padlocks, Combination Padlocks, Carabiners, TSA Accepted Luggage Locks, Gun Locks.
www.masterlock.com
