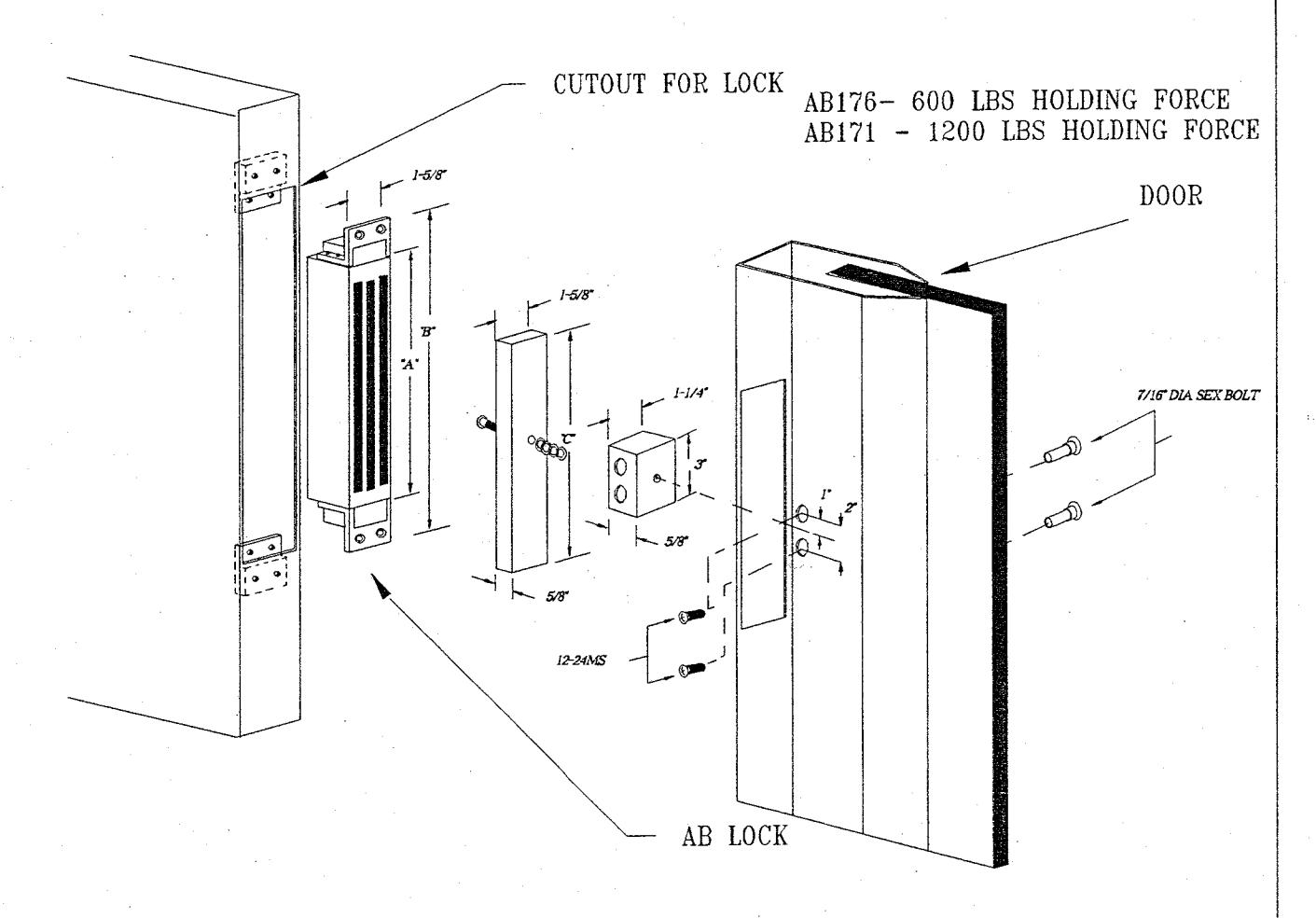

AB170 SERIES MORTISED DOOR/FRAME

LOCK MODEL	Ά'	ъ.	r
ABI7I	10-1/2"	12-1/2*	10-1/2
AB176	6-7/8"	9*	6-1/2"

ELECTRICAL SPECIFICATIONS 0.25 AMP • 24VDC 0.50 AMP • 12VDC

ASTERIX SECURITY HARDWARE INT'L 7045 TRANMERE DR. UNIT 10 MISSISSAUGA ONT. L5S 1M2 TEL:(905)672 1245 FAX:(905)672 1247

AB176- 600 LBS HOLDING FORCE AB171 - 1200 LBS HOLDING FORCE
