8200 ALP Mortise Lock Visual (185CALP), Occupancy(185PALP) Indicators
Open the original PDF document
View PDFINSTALLATION INSTRUCTIONS FOR 8200 ALP MORTISE LOCK VISUAL (185CALP) / OCCUPANCY (185PALP) INDICATORS
SARGENT
ASSA ABLO
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com
ASSA ABLOY, the global leader in door opening solutions
A8059:A 4-15-10

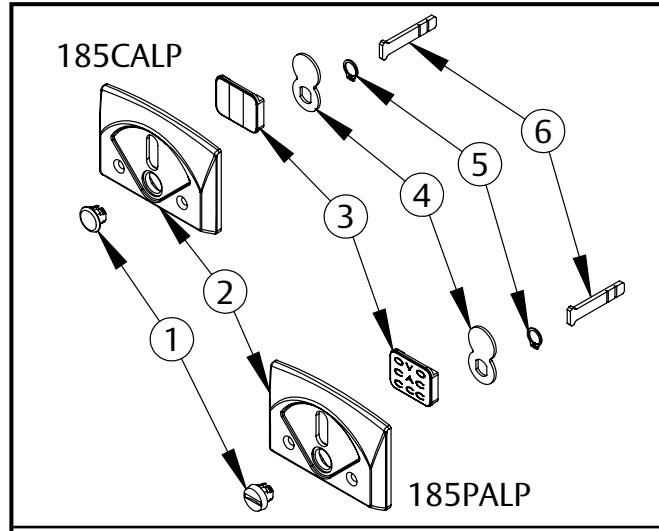

| Item No. | Part No. | Description | QTY |
|---|---|---|---|
| 1 | 82-0592 | PLAIN BUTTON | - 1 |
| 82-0591 | EMERGENCY BUTTON | ||
| 2 | 78-0486 | INDICATOR HOUSING | 1 |
| 3 | 82-4050 | SLIDE ASSEMBLY (RED/WHITE) | 1 |
| 82-4051 | SLIDE ASSEMBLY (VAC/OCC) | ||
| 4 | 82-0590 | HUB PLATE | 1 |
| 5 | 01-4552 | RETAINING RING | 1 |
| 6 | 77-1195 | SPINDLE (FOR DOORS 1-3/8" THRU 2-1/4") | 1 |
| 7 | 01-2036 | #6 x 5/8" WOOD SCREW (NOT SHOWN) | 2 |
| 8 | 01-1020 | #6-32 x 1/2" MACHINE SCREW (NOT SHOWN) | 2 |
185CALP

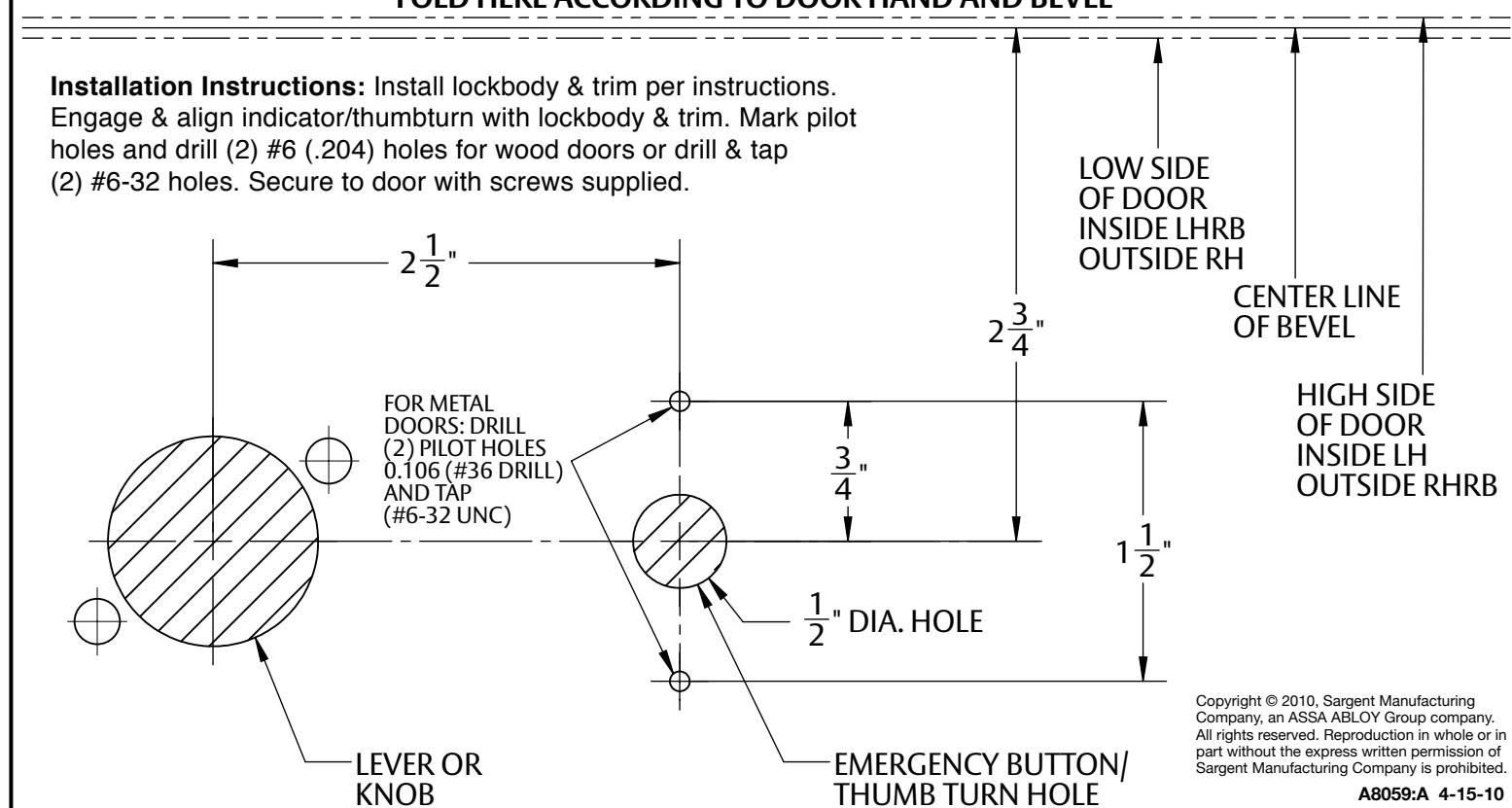

FOLD HERE ACCORDING TO DOOR HAND AND BEVEL
INSTALLATION INSTRUCTIONS FOR 8200 ALP MORTISE LOCK
SARGENT
ASSA ABLO
VISUAL (186CALP) / OCCUPANCY (186PALP) INDICATORS
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com
ASSA ABLOY, the global leader in door opening solutions

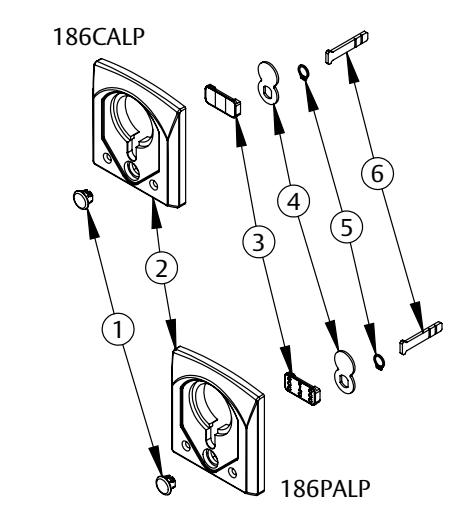

| Item No. | Part No. | Description | QTY | |
|---|---|---|---|---|
| 1 | 82-0592 | PLAIN BUTTON | ||
| 2 | 78-0491 | INDICATOR HOUSING (CYLINDER) | ] ' | | |
| 3 | 82-4836 | SLIDE ASSEMBLY (RED/WHITE) | 1 | |
| 82-4837 | SLIDE ASSEMBLY (VAC/OCC) | |||
| 4 | 82-0590 | HUB PLATE | 1 | |
| 5 | 01-4552 | RETAINING RING | 1 | |
| 6 | 77-1195 | SPINDLE (FOR DOORS 1-3/8" THRU 2-1/4") | 1 | |
| 7 | 01-2036 | #6 x 5/8" WOOD SCREW (NOT SHOWN) | 2 | |
| 8 | 01-1020 | #6-32 x 1/2" MACHINE SCREW (NOT SHOWN) | 2 | |
Note: 186PALP & 186CALP indicators are designed for use with #41(1-1/8") cylinders. For longer cylinders, shims are supplied; for #42 (1-1/4") cylinders, use (1) shim and for #43 (1-3/8") cylinders, use (2) shims.

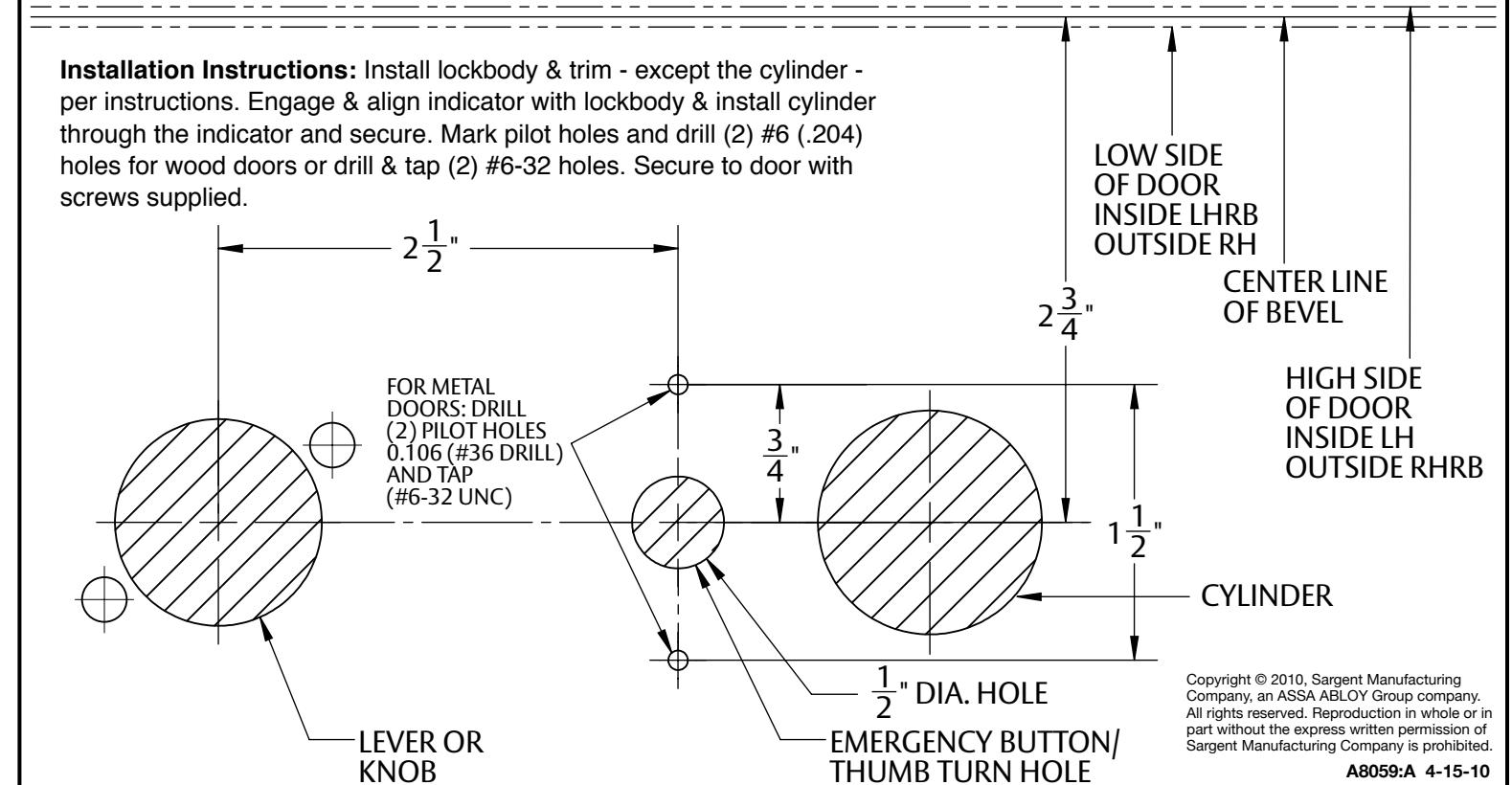

FOLD HERE ACCORDING TO DOOR HAND AND BEVEL
