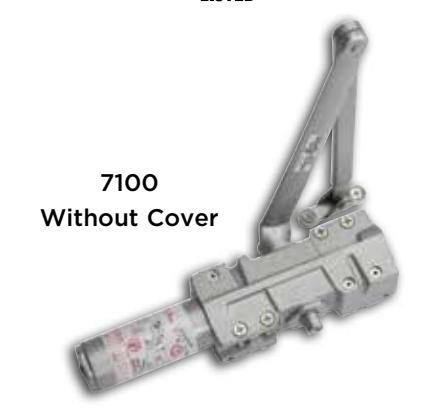

7100 SERIES
Institutional Full Featured Closer Grade 1
SPECIFICATIONS
HANDING: Non-handed
OPERATION: · Rack and pinion design
BODY: Cast Iron
ARMS: • Forged steel main arm
ARM OPTIONS: Hold open arm
• Track/Track Hold Open
• DS/DSHO heavy duty parallel stop arm • Spring Cushion Stop for DS/DSHO
• EDA (Extra Duty PA Arm).
PISTON: • Hardened steel, 1-1/2" diameter ADJUSTMENT: · Adjustable controlled closing
· Separate hydraulic backcheck standard
• Backcheck positioning valve standard Separate sweep, latch, backcheck intensity and
backcheck positioning valves
• Optional delayed action (in addition to backcheck)
ADJUSTMENT VALVES:
All Adjustment Valves are STAKED.
FACTORY DEFAULT SPRING SETTING:
• Size 3
• Adjustable (BARRIER" BF Plus 1 through 6 SIZE:
MOUNTING: • Mounting hole pattern retrofits LCN® 4040 (for more comparisons, see cross reference table)
• Tri-packed for regular, top jamb and parallel
arm installations
• Includes fasteners for metal and wood doors
• Sex nuts and bolts standard
• Self drilling self tapping screws available
• Full plastic cover standard (non-handed), optional
full metal cover available (handed)
FINISHES: • 605 (US3) - Polished Brass,625 (US26) - Polished Chrome, 689 (US28) - Aluminum, 695 (N/A) - Duro
Bronze, 696 (US4) - Gold
FINISHES - SPRING
COVER:
CUSHION STOPS: • 605 (US3) - Bright Brass (PVD), 613 (US10B) - Oil Rubbed Bronze (PVD), 630 (US32D) -
Satin Stainless Steel Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear, durability and corrosion.
CERTIFICATIONS • UL228 listed
LISTINGS • ANSI/UL 10C listed for labeled swinging fire doors
COMPLIANCES: rated for up to and including 3 hours
• Certified to ANSI/BHMA A156.4-2006 Grade 1
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and
Usable Buildings
• Meets requirements of the Buy American Act
WARRANTY: • Twenty-five (25) year limited warranty

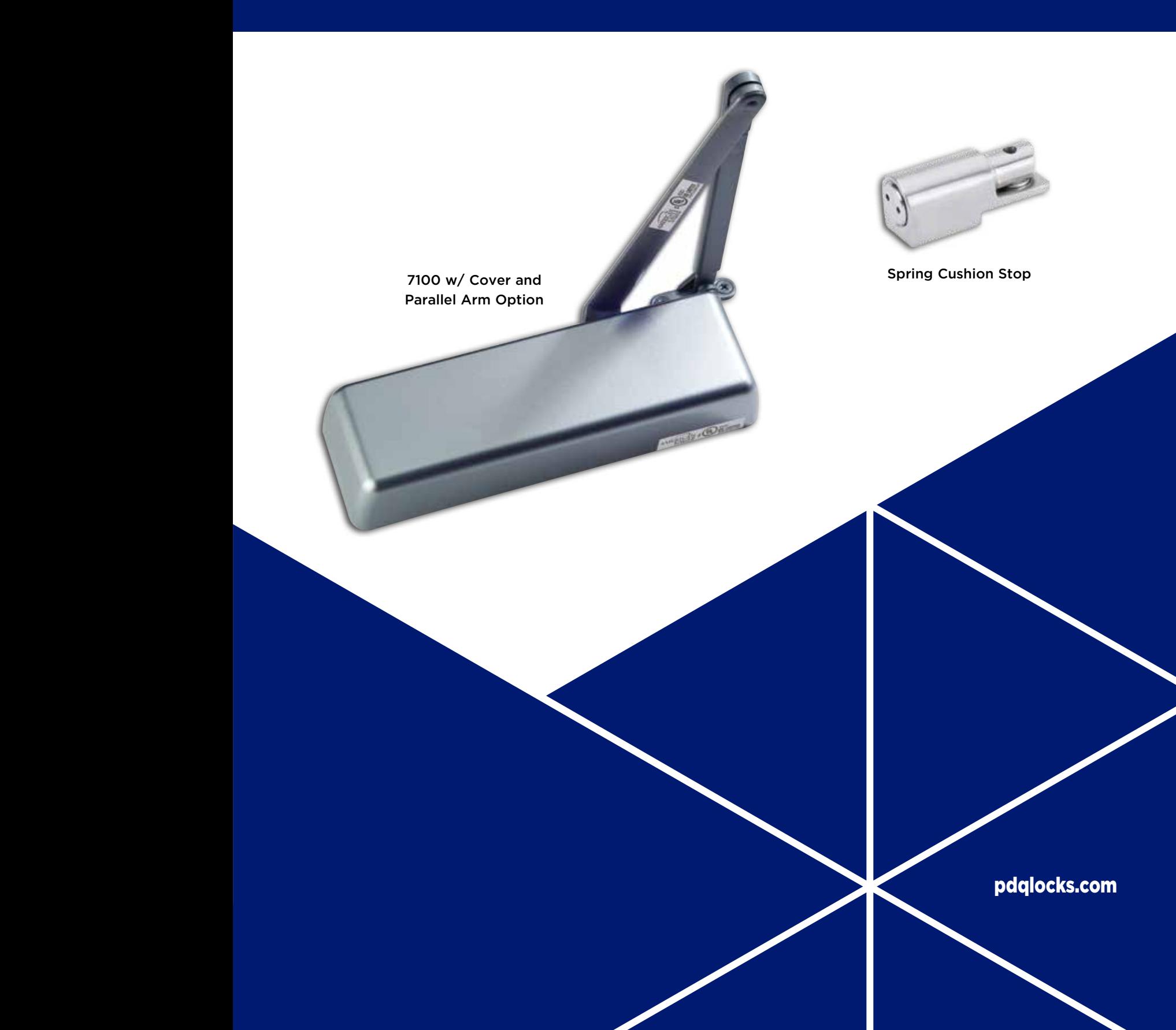

SPRING CUSHION STOPS
630 SATIN STAINLESS STEEL
613 OIL RUBBED
605 BRIGHT

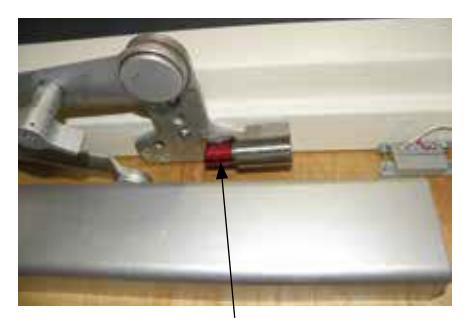

PDQ's SCS Series Spring Cushion Stop helps reduce wear and tear on the opening. As the door begins moving through backcheck to its maximum opening angle, the stop acts as a shock absorber, dampening the impact forces.
NOTE: PLUNGER SHOWN IN RED TO ENHANCE THE CUSHIONING FEATURE
STOP SHOWN REFORE DOOR IS FULLY OPENED
STOP SHOWN WHEN DOOR IS FULLY OPENED
FINISHES
ARCHITECTURAL
Bright Brass
605 (US3) 625 (US26)
Bright Chromium
PAINTED
689 (US28) Aluminum
695 (N/A) Dark Duranodic Bronze
696 (US4)) Satin Brass (Gold)
FEATURES
- 5lb. Barrier Free Spring Setting for ADA Compliance
- 6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action.
- Barrier Free Settings Available on Both Regular/ Top Jamb and Parallel Arm Applications.
TYPICAL APPLICATIONS
- Assisted Living
- Church
- Multi-Family
• K-12 Education
-
Federal Government
Office
- Healthcare
- Retail
- Higher Education
- · State & Local
- Hospitality
- Government
- Industrial
HOW TO ORDER
| SERIES | SI | ZE | ОРТ | IONS | ACCESSORIES | ||
|---|---|---|---|---|---|---|---|
| 71 – 7100 Series Door Closer | 1 - Adjustable (PARRIER BF-6 | DS - Door Saver Arm 1 DSHO - Door Saver Hold Open Arm 2 EDA - Extra Duty Arm Hold Open 1,2 HO - Hold Open, Tri-Pack 2 PA - Tri-Pack (standard) SCS - Spring Cushion Stop TA - Track Arm TAHO - Track Arm Hold Open 2 | Blank - SNB & Full Plastic Cover (Standard) BP - Back Plate BPTJ - Top Jamb Back Plate BS - Blade Stop Spacer DPTJ - Top Jamb Drop Plate DPPA - Parallel Arm Drop Plate FCM - Full Metal Cover specify Hand NFB - Narrow Frame Bracket SDST - Self Drilling Self Tapping Screws | ||||
| 71 | 0 | 1 | ВС | PA | 689 | BP | |
|
0 - Non-Delayed Action
4 - Delayed Action (In Addition To Backcheck) |
BC - Adjustable Hydraulic
Backcheck (Standard) Backcheck Positioning (Standard) |
605 - Polished Brass
625 - Polished Chrome 689 - Aluminum 695 - Duro Bronze 696 - Gold |
|||||
| DELAYED ACTION | ВАСК | СНЕСК | FIN | ||||
Ordering Example: 7101 BCPA 689 NOTES: 1 - For EDA (Extra Duty PA Arm) applications, remove stop from soffit bracket. Requires separate limiting stop by others.
2 - Not appropriate for use on fire labeled doors
SIZE SELECTOR
| APPLICATION | CLOSER SIZE | INTERIOR | EXTERIOR | ||
|---|---|---|---|---|---|
| (EARRIER BF | 5 lbf (36" door) | NA | |||
| 1 | 32" | 28" | |||
| 2 | 36" | 32" | |||
| Regular / Top Jamb | 3 | 42" | 36" | ||
| 4 | 48" | 42" | |||
| 5 | 54" | 48" | |||
| 6 | 58" | 54" | |||
| (Serree BF | 5 lbf (36" door) | NA | |||
| 1 | 28" | NA | |||
| 2 | 32" | 28" | |||
| Parallel Arm | 3 | 36" | 32" | ||
| 4 | 42" | 36" | |||
| 5 | 48" | 42" | |||
| 6 | 54" | 48" | |||
Note: 7100 Series Closers can be adjusted to meet ADA barrier free applications. Strict compliance with ADA barrier free requirements may result with door not fully closing and latching. Check with local AHJ. Closer sizes may vary due to site conditions.
CROSS REFERENCE
| MANUFACTURER | PDQ |
CAL
ROYAL |
CORBIN/
RUSSWIN® |
DORMA | HAGER | LCN* | NORTON* | SARGENT* | YALE* |
|---|---|---|---|---|---|---|---|---|---|
| SERIES | 7100 | CR441 | DC8000 | 8900 | 5100 | 4040 | 7500 | 281 | 5800/4400 |
| MOUNTING HOLE PATTERN RETRO-FIT | YES | YES | NO | NO | NO | YES | NO | NO | NO |
Information on this sheet is compiled from public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

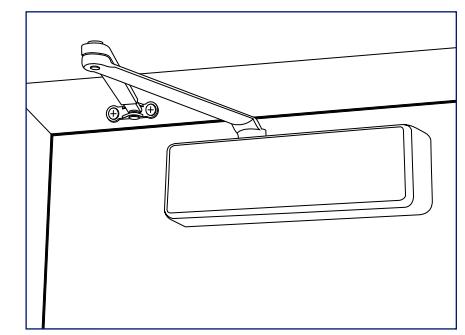

REGULAR ARM
Regular arm mount is a pull side application with double lever arm. The closer mounts on the door and the arm mounts to the frame. It provides the most efficient operation for a door control and is commonly used on in-swing doors from corridors or other interior doors. Regular arm mount is a poor choice for exterior outswinging doors as it would put the closer on the exterior of the building. The arm assembly projects directly out from the frame. That may be a concern for vandalism or aesthetics. Regular arm application can be used with non-hold open or hold open arms.

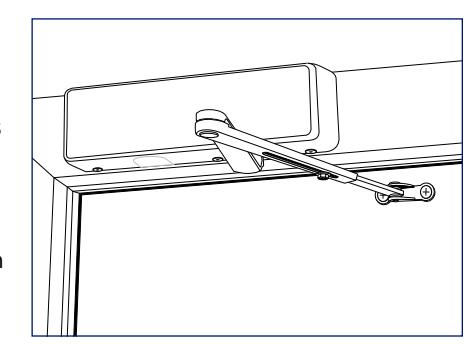

TOP JAMB
Top jamb mount is a push side double lever arm application that offers the best alternative to regular arm mount. The closer mounts to the frame and the arm mounts to the door. This application is commonly used on exterior out-swinging doors. It is a poor application for in-swinging doors from a corridor as it places the closer arm in a visible application projecting into the corridor. The arm projects out similar to regular arm mount. Therefore, it can be a concern for vandalism or aesthetics. Top jamb application can be used with non-hold open or hold open arms.

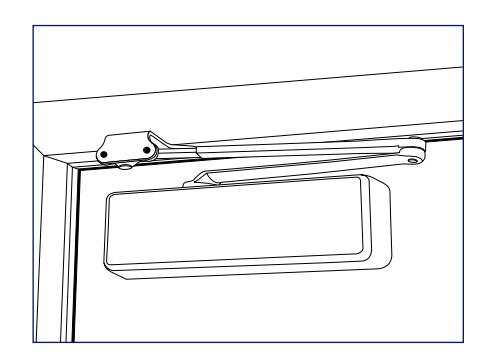

PARALLEL ARM
Parallel arm mount is a push side double lever arm application. The closer is installed on the push side of the door and the arm is mounted to a parallel arm adapter plate installed to the frame soffit. The arm is approximately parallel with the face of the door, eliminating the projection condition evident with regular arm and top jamb applications. Parallel arm is often preferred where aesthetics or vandalism are concerns. Parallel arm is less efficient than regular or top jamb mounts due to the geometry of the arm. Parallel arm application can be used with non-hold open or hold open arms.

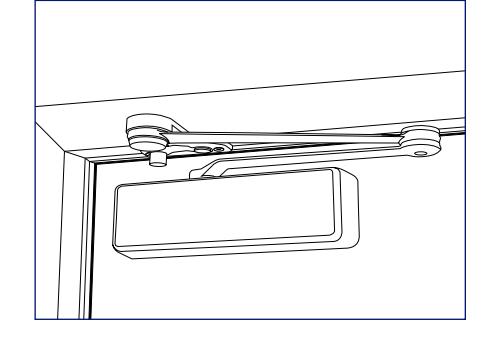

PARALLEL ARM (DS/DSHO) STOP ARM EXTRA DUTY ARM (EDA/EDAHO) ARM
The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer's backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized. The parallel stop arm is available in non-hold open (DS) and hold open (DSHO) applications.
Recommend using the SCS Spring Cushion Stop for moderate to high abuse installations.
For Extra Duty PA Arm applications, specify EDA or EDAHO. Similar to DS/DSHO without the stop. Requires separate limiting stop by others.

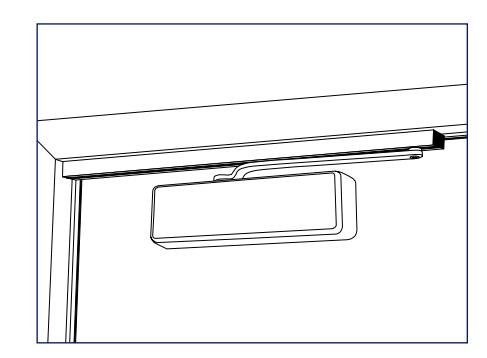

TRACK ARM (TA)
The non-handed track arm mount incorporates a single forged main arm for installation in high use, high abuse door applications. It's low profile helps prevent damage.
ACCESSORIES/OPTIONS
RA - REGULAR ARM — Can be mounted REG/TJ/PA (requires PA bracket)
Part No.: 719003
DS - DOOR SAVER (LIMITING STOP) ARM — PA application only
Part No.: 719005
DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN ARM — PA application only
PART NO.: 719016
HO - HOLD OPEN ARM — Can be mounted REG/TJ/PA (requires PA bracket)
PART NO.: 719002
EDA - EXTRA DUTY ARM — PA application only (bumper eliminated)
PART NO.: 719005
EDAHO - EXTRA DUTY ARM HOLD OPEN — PA application only (bumper eliminated)
PART NO.: 719005
PA - PARALLEL ARM BRACKET — Hold Open & Non-Hold Open
PART NO.: 719001
BP - BACK PLATE — For regular arm applications to clear mortised stop/holder
PART NO.: 719008
BPTJ - TOP JAMB BACK PLATE — Required to mount TJ on frame face less than 4"
PART NO.: 719024
DPTJ - TOP JAMB DROP PLATE — Required to mount TJ w/limited ceiling clearance or to clear surface applied stop/holder
PART NO.: 719023
PARALLEL ARM DROP PLATE — Required for Parallel arm mount with limited top door rail
PART NO.: 719018
NFB - NARROW FRAME BRACKET — For use w/DS/ DSHO/SCS arms & BS spacer for added reinforcement with narrow frame applications
PART NO.: 999011
SDST - SELF DRILLING SELF TAPPING SCREWS
PART NO.: 719007
SNB - SEX NUTS AND BOLTS — For through bolting on unreinforced, hollow core, composite or labeled fire doors 1-3/4" only
PART NO.: 999004
BS - BLADE STOP SPACER — Shims all PA brackets to clear 1/2" blade stop PA application only
PART NO.: 999026
SCS - SPRING CUSHION STOP — For use w/DS/DSHO (PA mount) arms only PART NO.: 999032-01, 999033-01
FC - FULL PLASTIC COVER PART NO.: 719006
FCM - FULL METAL COVER (OPTIONAL) PART NO.: 719006ST
TA - TRACK ARM ASSEMBLY PART NO.: 719025
TAHO - TRACK ARM HOLD OPEN
PART NO.: 719027
ANSI FUNCTIONS TO PDQ MODELS
| ANSI OPTIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
ANSI
NUMBER |
MOUNTING | PDQ MODEL | PT-4A | PT-4C | PT-4D | PT-4E | PT-4F | PT-4G | PT-4H |
| C02011 | HINGE SIDE | 7101BCPA | X | X | X | X | X | ||
| 7141BCPA | X | X | X | X | X | X | |||
| PARALLEL | 7101BCPA | X | X | X | X | X | |||
| C02021 | 7141BCDS | X | X | X | X | X | X | X | |
| 7141BCPA | X | X | X | X | X |
X
X |
X | ||
| TOP JAMB | 7101BCPA | X | X | X | X | X | |||
| C02041 | 7141BCPA | X | X | X | X | X | X | ||
|
HINGE SIDE HOLD
OPEN |
7101BCHO | X | X | X | X | X | |||
| C02051 | 7141BCHO | X | X | X | X | X | X | ||
|
PARALLEL
HOLD OPEN |
7101BCDSHO | X | X | X | X | X | |||
| C02061 | 7101BCHO | X | X | X | X | X | |||
| 7141BCDSHO | X | X | X | X | X | X | |||
| 7141BCHO | X | X | X | X | X | X | |||
| C02081 |
TOP JAMB
HOLD OPEN |
7101BCHO | X | X | X | X | X | ||
| 7141BCHO | X | X | X | X | X | X | |||
| C02211 | HINGE SIDE TRACK | 7101BCTA | X | X | X | X | X | ||
| 7141BCTA | X | X | X | X | X | X | |||
|
HINGE SIDE HOLD
OPEN TRACK |
7101BCTAHO | X | X | X | X | X | |||
| C02221 | 7141BCTAHO | X | X | X | X | X | X |
SUGGESTED ARCHITECTURAL SPECIFICATIONS
All door closers shall be PDQ Industries, Inc. 7100 Series with full rack and pinion construction, heavy duty cast iron closer body, forged steel main arm and full architectural cover. Hydraulic control shall be through separate hex key non-critical sweep, latch and backcheck valve adjustment. Backcheck positioning valve to provide consistent backcheck range on parallel arm applications. Optional delayed action (in addition to backcheck) to be effective from maximum opening to approximately 70 degrees. Closers shall be non-handed, suitable for regular, top jamb and parallel arm applications with fasteners for wood and metal doors and frames. Sex nuts and bolts shall be furnished standard. Spring adjustment to be provided throughout a range of sizes to include Barrier Free plus sizes 1-6 and capable of meeting barrier free force restrictions. All products to carry a 25-year manufacturer's limited warranty. Closers shall be listed by U.L./U.L.C., comply with UL 10C and UBC 7-2 (1997) for positive pressure and certified to ANSI A156.4 Grade 1.
