7000 SERIES HOLDERS & STOPS

HEAVY DUTY, SURFACE MOUNT

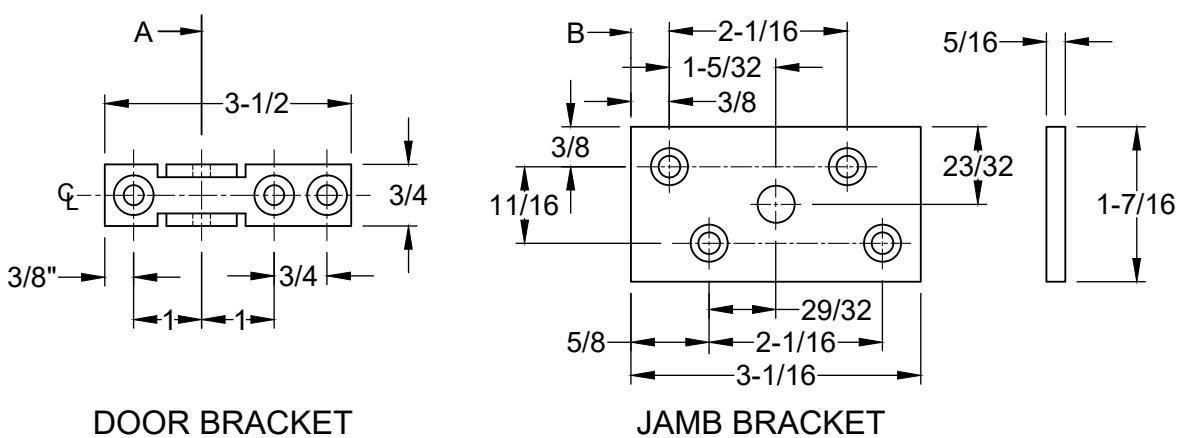

DOOR BRACKET

NOTES:

  • 1. REVERSIBLE/ NON HANDED
  • 2. FOR SINGLE ACTING DOORS ONLY
  • 3. ALL DRILLING & TAPPING TO BE DONE IN FIELD.
  • 4. ALWAYS REQUEST LATEST TEMPLATE/ DRAWING FOR NEW INSTALLATIONS.
  • 5. ALL DIMENSIONS ARE IN INCHES. UNLESS NOTED OTHERWISE.
  • 6. DRAWING IS NOT TO SCALE

SCREW DETAIL QTY WOOD METAL • #14 x 1-1/2" FLAT HEAD • 1/4-20 x 3/4" FLAT HEAD JAMB WOOD SCREW MACHINE SCREW • 5/16-18 x 1" FLAT HEAD MACHINE SCREW DOOR 5-16-18 x 1-9/16" SEX BOLT

7000-1-13.DWG

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

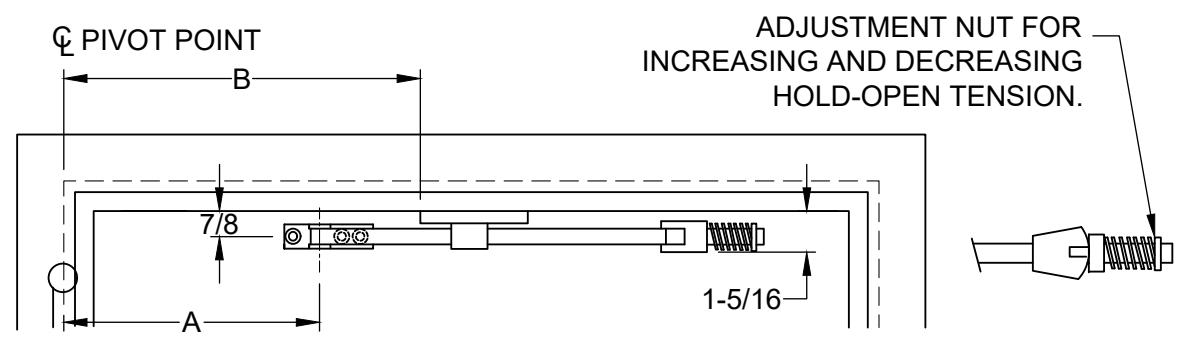

7000 SERIES SURFACE HOLDERS & STOPS

SURFACE MOUNT ■ 7010 HOLD-OPEN ■ 7020 STOP

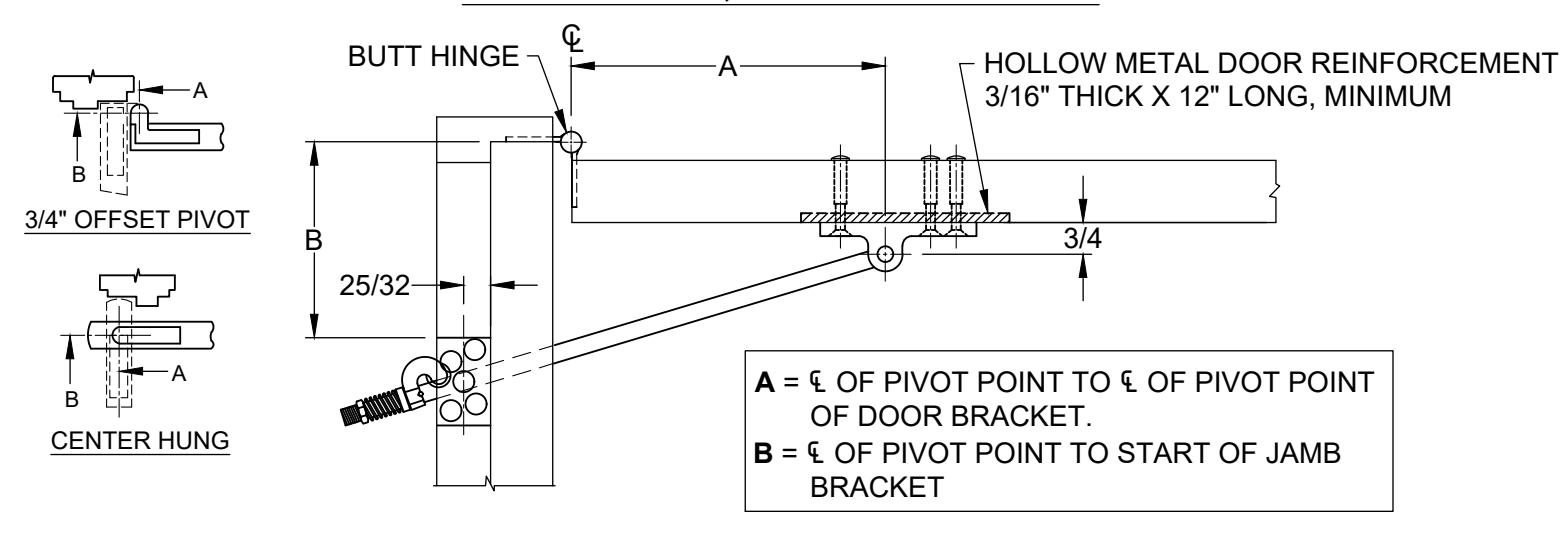

  • 1. FOR DEAD STOP ADD 3/8" TO "A" DIMENSION
  • 2. ALL DIMENSIONS ARE IN INCHES.

DEGREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
DOOR
THICK-
NESS
1-1/4"
TO
2-3/8" 		MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В Α В Α В Α В
• 7010
• 7020 		23" TO
28-15/16" 		5-3/8 8-1/4 5 7-7/8 4-11/16 7-9/16 4-3/8 7-1/4 4-1/8 7 3-7/8 6-3/4
• 7011
• 7021 		29" TO
34-15/16" 		7-15/16 11-7/8 8-3/8 10-1/4 7-15/16 9-13/16 7-1/2 9-3/8 7-3/16 9-1/16 6-7/8 8-3/4
BUTT
HINGE
OR
3/4"
OFFSET
PIVOT 		• 7012
• 7022 		35" TO
40-15/16" 		10-9/16 14-1/8 10-15/16 12-5/16 10-7/16 11-13/16 9-15/16 11-5/16 9-1/2 10-7/8 9-1/8 10-1/2
• 7013
• 7023 		41" TO
46-15/16" 		13-1/4 16-7/16 13-9/16 14-1/2 12-15/16 13-7/8 12-3/8 12-5/16 11-7/8 12-13/16 11-7/16 12-3/8
• 7014
• 7024 		47" TO
54" 		15-1/2 19-13/16 15-7/8 17-11/16 15-3/16 17 14-1/2 16-5/16 13-15/16 15-3/4 13-3/8 15-3/16
• 7014 47" TO 15-1/2 19-13/16 15-7/8 17-11/16 15-3/16 17 14-1/2 16-5/16 13-15/16 15-3/4 13-3/8 15
DEGREE 85° H.O. 90° H.O. 95° H.O. 100° H.O. 105° H.O. 110° H.O.
|| MODEL
NO. 		DOOR
OPENING 		Α В Α В Α В Α В Α В Α В
• 7010
• 7020 		24" TO
31-15/16" 		5-3/8 8-1/4 5-1/16 7-15/16 4-3/4 7-5/8 4-1/2 7-3/8 4-5/16 7-3/16 4-1/16 6-15/16
1-1/4"
TO 		• 7011
• 7021 		32-1/2" TO
38-7/16" 		9 10-7/8 8-1/2 10-3/8 8-1/8 10 7-3/4 9-5/8 7-7/16 9-5/16 7-1/8 9
• 7022 38-1/2" TO
44-3/16" 		11-11/16 13-1/16 11-1/8 12-1/2 10-5/8 12 10-1/8 11-1/2 9-3/4 11-1/8 9-7/16 10-13/16
44-1/4" TO
50-3/16" 		14-3/8 15-5/16 13-11/16 14-5/8 13-1/16 14 12-9/16 13-1/2 12-1/16 13 11-5/8 12-9/16
• 7014
• 7024 		50-1/4" TO
60" 		16-3/4 18-9/16 15-15/16 17-3/4 15-3/16 17 14-9/16 16-3/8 14-1/16 15-7/8 13-9/16 15-3/8

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

7000-2-13.DWG
