651 Stabilizers Installation Instructions
Open the original PDF document
View PDFInstallation Instructions
651 Stabilizers

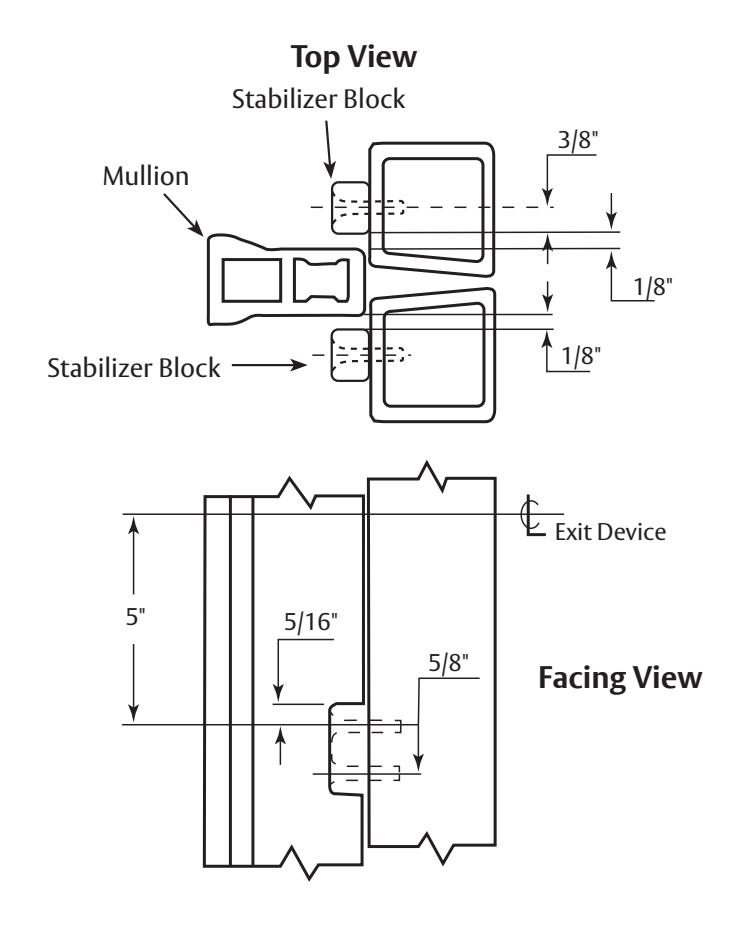

- 1. On the inside door face, mark screw hole locations as shown.
- 2. Metal door: Drill and tap (2) #10-24 holes per stabilizer block. Wood door: Pre-drill for (2) #10 wood screws per stabilizer block.
- 3. Metal door: Attach each stabilizer block using (2) #10-24 x ¾" Oval Head machine screws provided. Wood Door: Attach each stabilizer block using (2) #10 x 1" Oval Head wood screws provided.

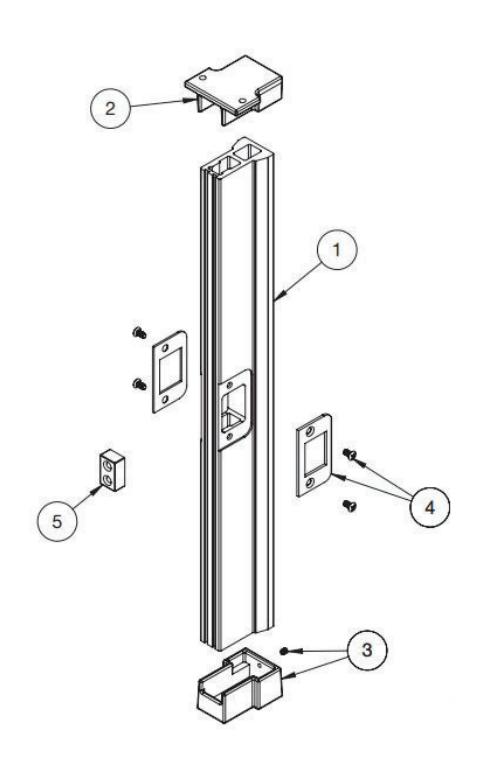

| Item | Part No. | Description | Qty | Sellable |
|---|---|---|---|---|
| 1 | 98-2555 | Mullion, 8' | 1 | No |
| 98-2566 | Mullion, 10' | No | ||
| 2 | 94-2050 | Top Retainer Pack 1,2 | 1 | Yes |
| 3 | 94-2051 | Bottom Retainer Pack 1,2 | 1 | Yes |
| 4 | 658 | Strike Pack | 1 | Yes |
| 5 | 651 | Stabilizer Block 3 | 1 | Yes |
- 1. Retainer packs contain mounting fasteners.
- 2. Specify finish.
- 3. Mounts to the door.
