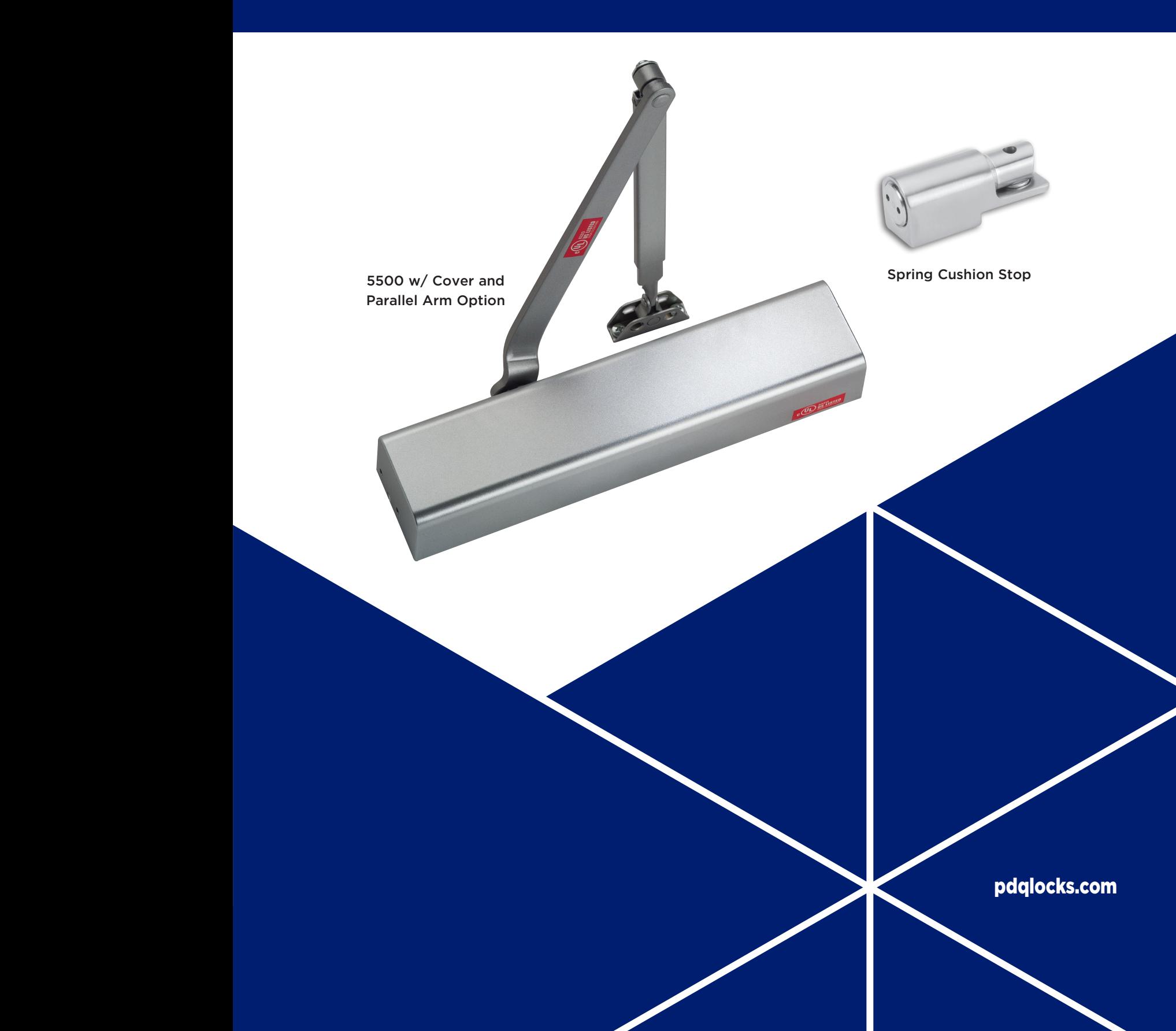

5500 SERIES
Full Cover Commercial Closer Grade 1
Specifications
HANDING: • Non-handed
OPERATION: • Rack and pinion design
BODY: • Cast High Strength Aluminum Alloy
ARM: • Stamped steel main arm
ARM OPTIONS: • Hold open arm
DS/DSHO heavy duty parallel stop arm Spring Cushion Stop for DS/DSHO
• Track/Track Hold Open
• EDA/EDAHO Extra Duty PA Arm.
PS Pivot stop arm
PISTON: • Hardened steel
ADJUSTMENT: • Adjustable controlled closing
Separate hydraulic backcheck standardSeparate sweep, latch and backcheck
intensity valves
Optional adjustable delayed action (in addition to backcheck)
- Common 12" x 3/4" mounting hole pattern retrofits Norton 8300/8500 and Yale
3300/3500
FACTORY DEFAULT SPRING SETTING:
Size 3
SIZE:
• Adjustable ( BARRIER BF through 6
• Fasteners furnished for hollow metal, wood or aluminum doors and frames
Sex nuts and bolts standard Tri-packed for regular, top jamb and parallel arm installations
COVER: FINISHES:
• Full plastic cover standard (field-reversible)
605 (US3) - Polished Brass, 625 (US26) - Polished Chrome, 689 (US28) - Aluminum, 695 (N/A) -
Duro Bronze, 696 (US4) - Gold FINISHES - SPRING
CUSHION STOPS:
605 (US3) - Bright Brass (PVD), 613 (US10B) Oil Rubbed Bronze (PVD), 630 (US32D) Satin Stainless Steel Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear, durability and corrosion.
CERTIFICATIONS LISTINGS COMPLIANCES:
• UL228 listed
• ANSI/UL 10C listed for labeled swinging fire doors rated for up to and including 3 hours
Certified to ANSI/BHMA A156.4-2006 Grade 1
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and
Usable Buildings
• Meets requirements of the Buy American Act
WARRANTY: • Twenty-five (25) year limited warranty
BHMA
Spring Cushion Stops
630 SATIN STAINLESS STEEL
613 OIL RUBBED BRONZE
605 BRIGHT BRASS
PDQ's SCS Series Spring Cushion Stop helps reduce wear and tear on the opening. As the door begins moving through backcheck to its maximum opening angle, the stop acts as a shock absorber, dampening the impact forces.

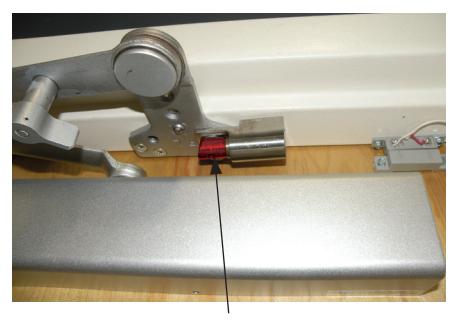

NOTE: PLUNGER SHOWN IN RED TO ENHANCE THE CUSHIONING FEATURE.
STOP SHOWN BEFORE DOOR IS FULLY OPENED
STOP SHOWN WHEN DOOR IS FULLY OPENED
Finishes
Architectural
605 (US3) Bright Brass
613 (US10B) Oil Rubbed Bronze
625 (US26) Bright Chromium
630 (US32D) Satin Stainless Steel
689 (US28) Aluminum
695 Dark Duranodic Bronze
696 (US4) Satin Brass (Gold)
Features
6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action.
Typical Applications
- Aluminum Storefronts
- Government Facilities
- Higher Education
- Hospitality
- Houses of Worship
- Interior Office Doors
- Multi-family
- Offices
- Retail
How to Order
| SERIES | SIZE | ОРТ | IONS | ACCESSORIES | ||||
|---|---|---|---|---|---|---|---|---|
| 55 –5500 Series Door Closer |
1 - Adjustable (FREE) BF-6
BF = Barrier Free |
DS - Door Saver
DSHO - Door Saver EDA - Extra Dut EDA HO - Extra Open 2,3 HO - Hold Open PA - Tri-Pack (st SCS - Spring Cus SCSHO - Spring TA - Track Arm 3 TAHO - Track Ar PS - Pivot Stop A |
ver Hold Open Arm
3
y Arm 2 Duty Arm Hold , Tri-Pack 3 andard) shion Stop Cushion Stop |
Blank - SNB & Full Plastic Cover (Standard) DBPA - Parallel Arm Drop Bracket BP - Back Plate BS - Blade Stop Spacer BPTJ - Top Jamb Back Plate DPTJ - Top Jamb Drop Plate DPPA - Parallel Arm Drop Plate FCM - Full Metal Cover NFB - Narrow Frame Bracket SDST - Self Drilling Self Tapping Screws | ||||
| 55 | 0 | 1 | ВС | PA | 689 | BP | ||
|
0 - Non-Delayed Action
4 - Delayed Action (In Addition To Backcheck) |
BC - Adjustable Hydraulic
Backcheck (Standard) |
605 - Polished
625 - Polished 689 - Aluminu 695 - Duro Br 696 - Gold |
d Chrome
im |
|||||
| DELAYED ACTION | ВАСКСНЕСК | FIN | IISH | |||||
Ordering Example: 5501 BCPA 689 NOTES: 1 - Case quantity is 6 / Case weight is 50 lbs.
2 - Requires separate limiting stop by others.
3 - Not appropriate for use on fire labeled doors
Size Selector
| APPLICATION | CLOSER SIZE | INTERIOR | EXTERIOR | ||
|---|---|---|---|---|---|
| (Serre | 5 lbf (36" door) | NA | |||
| 1 | 32" | 28" | |||
| 2 | 36" | 32" | |||
| Regular / Top Jamb | 3 | 42" | 36" | ||
| 5 , , | 4 | 48" | 42" | ||
| 5 | 54" | 48" | |||
| 6 | 58" | 54" | |||
| BARRIER BF | 5 lbf (36" door) | NA | |||
| 1 | 28" | NA | |||
| 2 | 32" | 28" | |||
| Parallel Arm | 3 | 36" | 32" | ||
| 4 | 42" | 36" | |||
| 5 | 48" | 42" | |||
| 6 | 54" | 48" | |||
Note: 5500 Series Closers can be adjusted to meet ADA barrier free applications. Strict compliance with ADA barrier free requirements may result with door not fully closing and latching. Check with local AHJ. Closer sizes may vary due to site conditions.
Cross Reference
| MANUFACTURER | PDQ |
CAL
ROYAL® |
CORBIN/
RUSSWIN* |
DORMA |
DOR-O-
MATIC ® |
HAGER* | LCN ® |
NORTON/
YALE® |
SARGENT* | STANLEY* |
|---|---|---|---|---|---|---|---|---|---|---|
| SERIES |
5500
Foot Pattern 12"X 3/4" |
900 | DC6200 | 8616FC | SC80FC | 5200 |
4010/4110
(Handed) |
8501/3501 | 350 | D-4550 |
| MOUNTING HOLE PATTERN RETRO-F | T YES | YES | NO | YES | YES | NO | NO | YES | NO | NO |
Information on this sheet is compiled from public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

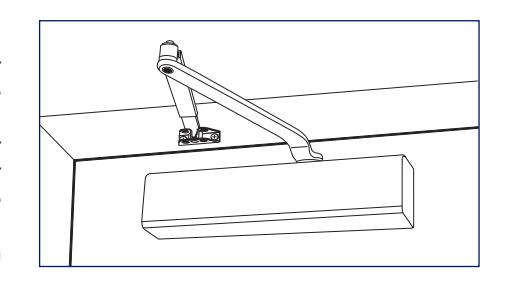

Regular Arm (RA)
Regular arm mount is a pull side application with double lever arm. The closer mounts on the door and the arm mounts to the frame. It provides the most efficient operation for door control and is commonly used on in-swing doors from corridors or other interior doors. Regular arm mount is a poor choice for exterior out-swinging doors as it would put the closer on the exterior of the building. The arm assembly projects directly out from the frame. That may be a concern for vandalism or aesthetics. Regular arm application can be used with non-hold open or hold open arms.

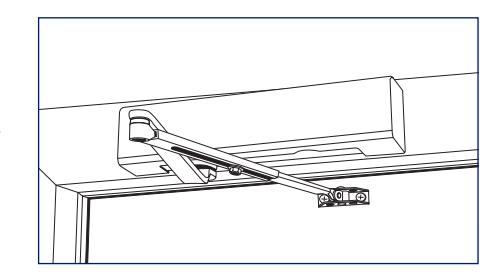

Top Jamb Mount
Top jamb mount is a push side double lever arm application that offers the best alternative to regular arm mount. The closer mounts to the frame and the arm mounts to the door. This application is commonly used on exterior out-swinging doors. It is a poor application for in-swinging doors from a corridor as it places the closer arm in a visible application projecting into the corridor. The arm projects out similar to regular arm mount. Therefore, it can be a concern for vandalism or aesthetics. Top jamb application can be used with non-hold open or hold open arms.

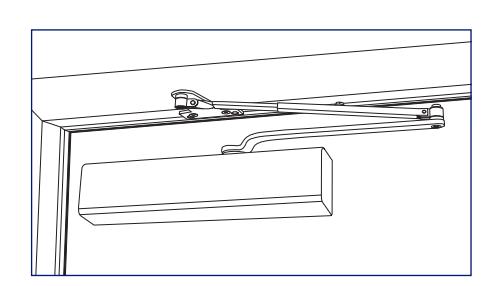

Parallel Arm (PA)
Parallel arm mount is a push side double lever arm application. The closer is installed on the push side of the door and the arm is mounted to a parallel arm adapter plate installed to the frame soffit. The arm is approximately parallel with the face of the door, eliminating the projection condition evident with regular arm and top jamb applications. Parallel arm is often preferred where aesthetics or vandalism are concerns. Parallel arm is less efficient than regular or top jamb mounts due to the geometry of the arm. Parallel arm application can be used with non-hold open or hold open arms.

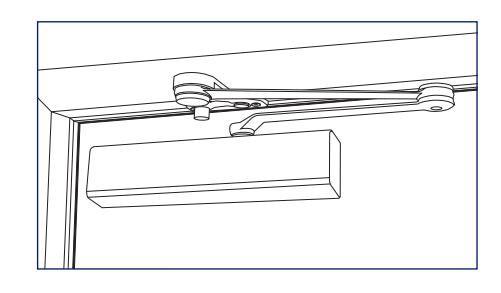

Parallel Stop Arm (DS/DSHO) Extra Duty PA Arm (EDA/EDAHO)
The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer's backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized. The parallel stop arm is available in non-hold open (DS) and hold open (DSHO) applications.
Recommend using the SCS Spring Cushion Stop for moderate to high abuse installations.
For Extra Duty PA Arm applications, specify EDA or EDAHO. Similar to DS/DSHO without the stop. Requires separate limiting stop by others.

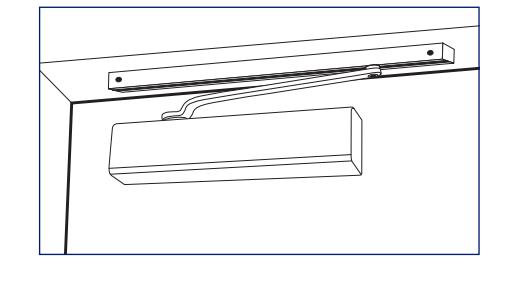

Track Arm (TA)
The non-handed Track Arm mount incorporates a single stamped arm not designed to be used as a limiting dead stop. It's low profile helps to eliminate projecting arm conditions, which can reduce vandal damage.

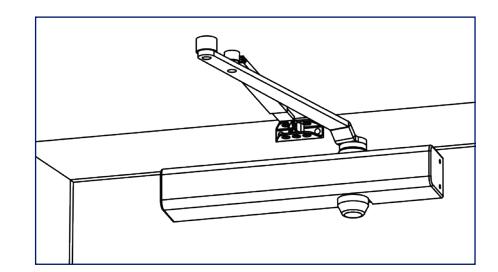

Pivot Stop Arm (PS)
The PS (Pivot Stop) arm is designed to serve as a medium-duty door stop for situations where a door stop or overhead stop is not practical. Available in Regular and Top Jamb mounting, the PS arm uses backcheck to slow the door and a stop integrated into the closer arm to limit the travel of the door. The PS arm limits the travel of the door to a specific, templated angle. Templating is available for opening angles from 85 to 110 degrees in 5 degree increments. The PS arm is not available with hold-open.
Parts
RA - REGULAR ARM — Can be mounted REG/TJ/PA (requires PA bracket)
PS - PIVOT STOP — Regular and Top Jamb Mounting Only PART NO.: 999018
HO - HOLD OPEN ARM - HO — Can be mounted REG/TJ/PA (requires PA bracket) PART NO.: 999002
DS - DOOR SAVER (LIMITING STOP) ARM — PA application only PART NO.: 999005
DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN — PA application only PART NO.: 999016
EDA - EXTRA DUTY ARM — PA application only PART NO.:
EDA HO - EXTRA DUTY ARM HOLD OPEN — PA application only PART NO.:
TA - TRACK ARM ASSEMBLY PART NO.: 999025 TAHO - TRACK ARM HOLD OPEN
DBPA - PARALLEL ARM DROP BRACKET — PA application only PART NO.:
DBPA - PARALLEL ARM BRACKET — PA Non-hold open applications PART NO.:
PAHO - PARALLEL ARM HO BRACKET — Hold open applications PART NO.: 999022
BP - BACK PLATE — For regular arm applications to clear mortised stop/holders or for TJ with limited ceiling clearance PART NO.:
DPTJ - TOP JAMB DROP PLATE — Provides greater drop than BP or can be used to provide clearance for surface applied stop/ holder
PART NO.:
PART NO.: 999027
NFB - NARROW FRAME BRACKET — For use w/DS/ DSHO/SCS arms & BS spacer for added reinforcement with narrow frame applications PART NO.: 999011
SDST - SELF DRILLING SELF TAPPING SCREWS PART NO.: 999007
SNB - SEX NUTS AND BOLTS — For through bolting on unreinforced, hollow core, composite or labeled fire doors, 1-3/4" only
PART NO.: 999004
SCS - SPRING CUSHION STOP — For use w/DS/DSHO (PA mount) arms only PART NO.: SCS-1 PART NO.: 999032
999033
FC - FULL PLASTIC COVER PART NO.: FMC - FULL METAL COVER (OPTIONAL) PART NO.:
BS - BLADE STOP SPACER — Shims all PA brackets to clear 1/2" blade stop PART NO.: 999026
ANSI Functions to PDQ Models
| ANSI Functions to PDQ Models | ANSI FUNCTIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ANSI NUMBER | MOUNTING | PDQ MODEL | PT-4A | PT-4C | PT-4D | PT-4E | PT-4F | PT-4G | PT-4H | |
| 5501BCPA | X | X | X | X | X | |||||
| C02011 | HINGE SIDE | 5541BCPA | X | X | X | X | X | X | ||
| PARALLEL | 5501BCDS | X | X | X | X | X | X | |||
| 5501BCDS | X | X | X | X | X | X | ||||
| C02021 | 5501BCPA | X | X | X | X | X | ||||
| 5541BCDS | X | X | X | X | X | X | X | |||
| 5541BCPA | X | X | X | X | X | X | ||||
| C02041 | TOP JAMB | 5501BCPA | X | X | X | X | X | |||
| 5541BCPA | X | X | X | X | X | X | ||||
| C02051 | HINGE SIDE HOLD OPEN | 5501BCPAHO | X | X | X | X | X | |||
| 5541BCPAHO | X | X | X | X | X | X | ||||
| PARALLEL HOLD OPEN | 5501BCDSHO | X | X | X | X | X | X | |||
| C02061 | 5501BCPAHO | X | X | X | X | X | ||||
| 5541BCDSHO | X | X | X | X | X | X | X | |||
| TOP JAMP HOLD OPEN | 5541BCPAHO | X | X | X | X | X | X | |||
| C02081 | 5501BCPAHO | X | X | X | X | X | ||||
| HINGE SIDE TRACK | 5541BCPAHO | X | X | X | X | X | X | |||
| C02211 | 5501BCTA | X | X | X | X | X | ||||
| HINGE SIDE HOLD OPEN | 5541BCTA | X | X | X | X | X | X | |||
| C02221 | TRACK | 5501BCPA | X | X | X | X | X | |||
| 5541BCPA | X | X | X | X | X | X | ||||
| C03011 | HINGE SIDE | 5501BCPA | X | X | X | X | X | |||
| 5541BCDS | X | X | X | X | X | X | X | |||
| C03021 | PARALLEL | 5541BCPA | X | X | X | X | X | X | ||
| 5501BCPA | X | X | X | X | X | |||||
| 5541BCPA | X | X | X | X | X | X | ||||
| C03041 | TOP JAMB | 5501BCPAHO | X | X | X | X | X | |||
| HINGE SIDE HOLD OPEN | 5541BCPAHO | X | X | X | X | X | X | |||
| C03051 | 5501BCDSHO | X | X | X | X | X | X | |||
| PARALLEL HOLD OPEN | 5501BCPAHO | X | X | X | X | X | ||||
| C03061 | 5541BCDSHO | X | X | X | X | X | X | X | ||
| 5541BCPAHO | X | X | X | X | X | X | ||||
| 5501BCPAHO | X | X | X | X | X | |||||
| C03081 | TOP JAMB HOLD OPEN | 5541BCHOHO | X | X | X | X | X | X | ||
| 5541BCTAHO | X | X | X | X | X | X | ||||
| C03081 | TOP JAMB HOLD OPEN | 5501BCTA | X | X | X | X | X | |||
Suggested Architectural Specifications
All door closers shall be narrow projection PDQ 5500 Series with full rack and pinion construction, heavy duty cast aluminum closer body, stamped flat style arm assembly and full cover. Hydraulic control shall be through separate hex-key noncritical sweep, latch and backcheck adjustment. Optional delayed action to be effective from maximum opening to approximately 70 degrees. Closers shall be non-handed, suitable for regular, top jamb and parallel arm applications with fasteners for wood or metal doors and frames. Sex nuts and bolts shall be furnished standard. Spring adjustment to be provided throughout a range of sizes 1-6 and capable of meeting barrier free opening force requirements. All products carry a 25-year manufacturer's limited warranty. Closers shall be listed by U.L./U.L.C., comply with UL 10C and UBC 7-2 (1997) for positive pressure and certified to ANSI A156.4 Grade 1.
C03211 HINGE SIDE TRACK 5501BCTAHO X X X X X
