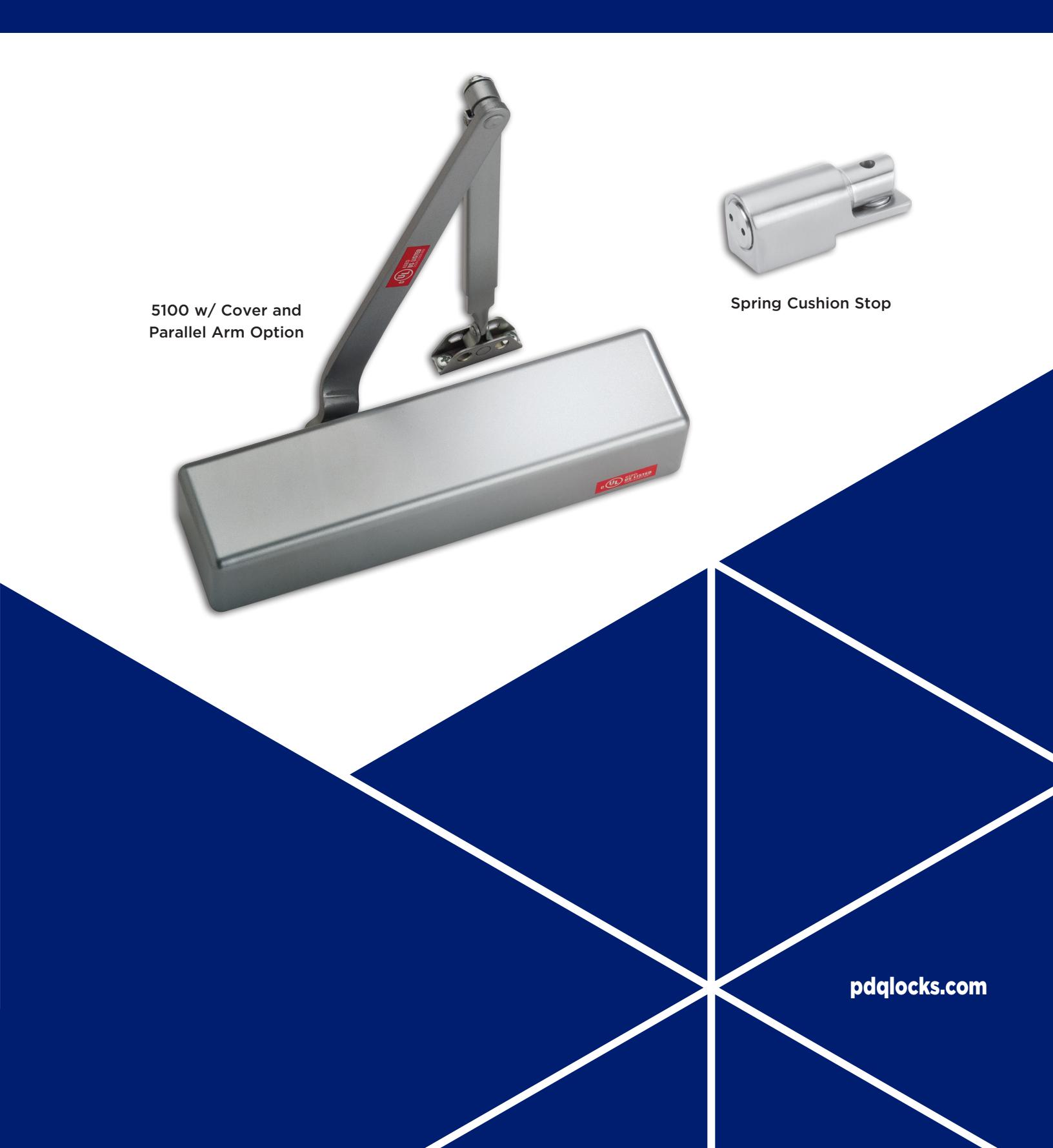

5100 SERIES Commercial Full Featured Closer Grade 1
Specifications
HANDING: • Non-handed
OPERATION: • Rack and pinion design
BODY: • High Strength Aluminum Alloy
ARM: • Stamped steel main arm
ARM OPTIONS: • Hold open arm
• Track/Track Hold Open
DS/DSHO heavy duty parallel stop armSpring Cushion Stop for DS/DSHO
• EDA (Extra Duty PA Arm).
• PS Pivot stop arm
PISTON: • Hardened steel, 1-1/2" diameter ADJUSTMENT: • Adjustable controlled closing
Separate hydraulic backcheck standard
• Separate sweep, latch and backcheck intensity in
addition to backcheckOptional delayed action
SIZE: • Adjustable 1 through 6
• Factory pre-set to size 3
MOUNTING: • Tri-packed for regular, top jamb and parallel arm installations
Fasteners furnished for metal, wood and aluminum doors and frames
• Sex nuts and bolts standard
• Self drilling self tapping screws available
COVER: • Full plastic cover standard (non-handed),
optional full metal cover available (handed)
FINISHES: • 605 (US3) - Polished Brass, 625 (US26) - Polished Chrome, 689 (US28) - Aluminum,
695 (N/A) - Duro Bronze, 696 (US4) - Gold
FINISHES - SPRING
CUSHION STOPS: • 605 (US3) - Bright Brass (PVD), 613 (US10B) -
Oil Rubbed Bronze (PVD), 630 (US32D) - Satin
Stainless Steel
Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear,
durability and corrosion.
CERTIFICATIONS • UL228 listed
LISTINGS COMPLIANCES:
ANSI/UL 10C listed for labeled swinging fire doors rated for up to and including 3 hours
• Certified to ANSI/BHMA A156.4-2006 Grade 1
· Meets requirements of the Buy American Act
WARRANTY: • Twenty-five (25) year limited warranty
BHMA CERTIFIED
Spring Cushion Stops
630 SATIN STAINLESS STEEL
613 OIL RUBBED BRONZE
605 BRIGHT BRASS

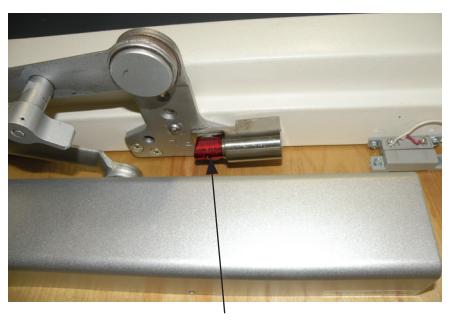

PDQ's SCS Series Spring Cushion Stop helps reduce wear and tear on the opening. As the door begins moving through backcheck to its maximum opening angle, the stop acts as a shock absorber, dampening the impact forces.
NOTE: PLUNGER SHOWN IN RED TO ENHANCE THE CUSHIONING FEATURE.
STOP SHOWN BEFORE DOOR IS FULLY OPENED
STOP SHOWN WHEN DOOR IS FULLY OPENED
Finishes
Architectural
605 (US3) Bright Brass
Coating
Painted
689 (US28) Aluminum
695 Dark Duranodic Bronze
696 (US4)) Satin Brass (Gold)
Features
• 6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action.
Typical Applications
- Aluminum Storefronts
- Government Facilities
- Higher Education
- Hospitality
- Houses of Worship
- Interior Office Doors
- Multi-family
- Offices
- Retail
How to Order
| SERIES | SIZE | ОРТ | IONS | ACCESSORIES | ||||
|---|---|---|---|---|---|---|---|---|
| 51 –5100 Series Door Closer | 1 – Adjustable Size 1-6 | DS - Door Saver Arm DSHO - Door Saver Hold Open Arr EDA - Extra Duty Arm 2 EDA HO - Extra Duty Arm Hold Open 2,3 HO - Hold Open, Tri-Pack 3 PA - Tri-Pack (standard) SCS - Spring Cushion Stop SCSHO - Spring Cushion Stop TA - Track Arm 3 TAHO - Track Arm Hold Open 3 PS - Pivot Stop Arm | Blank - SNB & Full Plastic Cover n 3 (Standard) DBPA - Parallel Arm Drop Bracket BP - Back Plate BS - Blade Stop Spacer BPTJ - Top Jamb Back Plate DPTJ - Top Jamb Drop Plate DPPA - Parallel Arm Drop Plate FCM - Full Metal Cover NFB - Narrow Frame Bracket SDST - Self Drilling Self Tapping Screws | |||||
| 51 | 0 | 1 | ВС | PA | 689 | BP | ||
|
0 – Non-Delayed Action
4 – Delayed Action (In Addition To Backcheck) |
BC – Adjustable Hydraulic
Backcheck (Standard) |
605 - Polished Brass
625 - Polished Chrome 689 - Aluminum 695 - Duro Bronze 696 - Gold |
||||||
| DELAYED ACTION | ВАСКСНЕСК | FIN | IISH | |||||
Ordering Example: 5101 BCPA 689 NOTES: 1 - Case quantity is 6 / Case weight is 50 lbs.
2 - Requires separate limiting stop by others.
3 - Not appropriate for use on fire labeled doors
Size Selector
| APPLICATION | CLOSER SIZE | INTERIOR | EXTERIOR | ||
|---|---|---|---|---|---|
| 1 | 30" | _ | |||
| 2 | 34" | 26" | |||
| Regular / Top Jamb | 3 | 38" | 30" | ||
| Regular / Top Sallib | 4 | 48" | 36" | ||
| 5 | 54" | 42" | |||
| 6 | 60" | 48" | |||
| 1 | _ | _ | |||
| 2 | 30" | _ | |||
| Daniella I. A. | 3 | 34" | 26" | ||
| Parallel Arm | 4 | 38" | 30" | ||
| 5 | 48" | 36" | |||
| 6 | 54" | 42" | |||
Note: 5100 Series Closer sizes may vary due to site conditions.
Cross Reference
| MANUFACTURER | PDQ |
CAL
ROYAL® |
CORBIN/
RUSSWIN* |
DORMA |
DOR-O-
MATIC ® |
HAGER ® | LCN ® |
NORTON/
YALE® |
SARGENT* | STANLEY* |
|---|---|---|---|---|---|---|---|---|---|---|
| SERIES | 5100 | 900 | N/A | 7414/7436 |
SC60/
SC61 |
5200 | 1370 | 160/51 | 1130/1131 | N/A |
| MOUNTING HOLE PATTERN RETRO-FIT | YES | YES | NO | NO | NO | YES | NO | NO | NO | NO |
Information on this sheet is compiled from public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

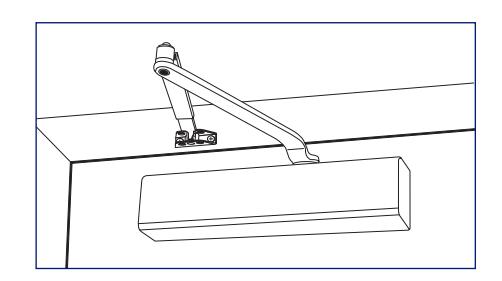

Regular Arm (RA)
Regular arm mount is a pull side application with double lever arm. The closer mounts on the door and the arm mounts to the frame. It provides the most efficient operation for door control and is commonly used on in-swing doors from corridors or other interior doors. Regular arm mount is a poor choice for exterior out-swinging doors as it would put the closer on the exterior of the building. The arm assembly projects directly out from the frame. That may be a concern for vandalism or aesthetics. Regular arm application can be used with non-hold open or hold open arms.

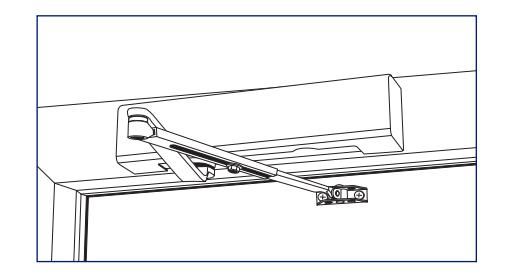

Top Jamb Mount
Top jamb mount is a push side double lever arm application that offers the best alternative to regular arm mount. The closer mounts to the frame and the arm mounts to the door. This application is commonly used on exterior out-swinging doors. It is a poor application for in-swinging doors from a corridor as it places the closer arm in a visible application projecting into the corridor. The arm projects out similar to regular arm mount. Therefore, it can be a concern for vandalism or aesthetics. Top jamb application can be used with non-hold open or hold open arms.

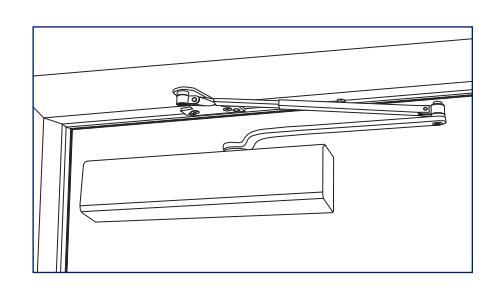

Parallel Arm (PA)
Parallel arm mount is a push side double lever arm application. The closer is installed on the push side of the door and the arm is mounted to a parallel arm adapter plate installed to the frame soffit. The arm is approximately parallel with the face of the door, eliminating the projection condition evident with regular arm and top jamb applications. Parallel arm is often preferred where aesthetics or vandalism are concerns. Parallel arm is less efficient than regular or top jamb mounts due to the geometry of the arm. Parallel arm application can be used with non-hold open or hold open arms.

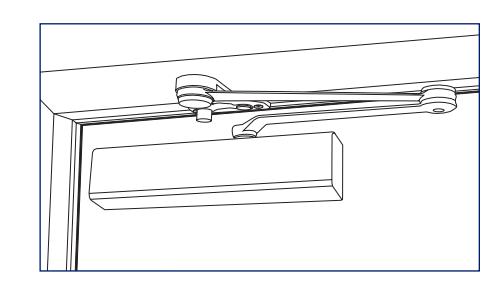

Parallel Stop Arm (DS/DSHO) Extra Duty PA Arm (EDA/EDAHO)
The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer's backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized. The parallel stop arm is available in non-hold open (DS) and hold open (DSHO) applications.
Recommend using the SCS Spring Cushion Stop for moderate to high abuse installations.
For Extra Duty PA Arm applications, specify EDA or EDAHO. Similar to DS/DSHO without the stop. Requires separate limiting stop by others.

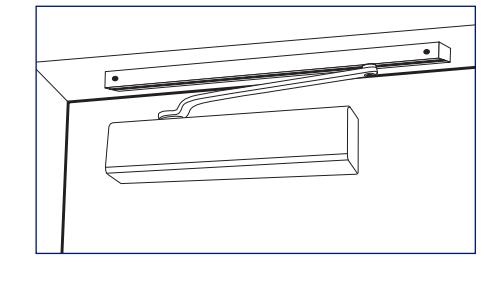

Track Arm (TA)
The non-handed Track Arm mount incorporates a single stamped arm not designed to be used as a limiting dead stop. It's low profile helps to eliminate projecting arm conditions, which can reduce vandal damage.

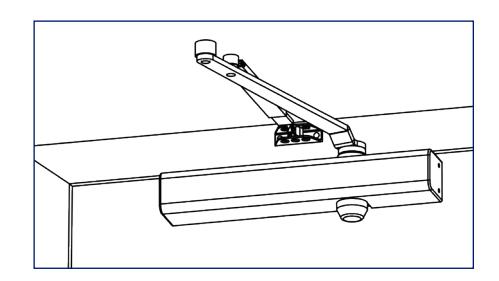

Pivot Stop Arm (PS)
The PS (Pivot Stop) arm is designed to serve as a medium-duty door stop for situations where a door stop or overhead stop is not practical. Available in Regular and Top Jamb mounting, the PS arm uses backcheck to slow the door and a stop integrated into the closer arm to limit the travel of the door. The PS arm limits the travel of the door to a specific, templated angle. Templating is available for opening angles from 85 to 110 degrees in 5 degree increments. The PS arm is not available with hold-open.
Parts
RA - REGULAR ARM — Can be mounted REG/TJ/PA (requires PA bracket) PART NO.:
HO - HOLD OPEN ARM - HO — Can be mounted REG/TJ/PA (requires PA bracket) PART NO.: 999002
DS - DOOR SAVER (LIMITING STOP) ARM — PA application only PART NO.: 999005
DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN — PA application only PART NO.: 999016
EDA - EXTRA DUTY ARM — PA application only PART NO:
EDA HO - EXTRA DUTY ARM HOLD OPEN — PA application only PART NO.:
PS - PIVOT STOP — Regular and Top Jamb Mounting Only PART NO.: 999018
TA - TRACK ARM ASSEMBLY PART NO.: 999025 TAHO - TRACK ARM HOLD OPEN PART NO.: 999027
DBPA - PARALLEL ARM DROP BRACKET — PA application only PART NO.:
DBPA - PARALLEL ARM BRACKET — PA Non-hold open applications PART NO.:
PAHO - PARALLEL ARM HO BRACKET — Hold open applications PART NO.: 999022
BP - BACK PLATE — For regular arm applications to clear mortised stop/holders or for TJ with limited ceiling clearance PART NO.:
DPTJ - TOP JAMB DROP PLATE — Provides greater drop than BP to provide clearance for surface applied stop/holder, also required for PA applications PART NO.:
NFB - NARROW FRAME BRACKET — For use W/DS/ DSHO/SCS arms & BS spacer for added reinforcement with narrow frame applications PART NO.: 999011
SDST - SELF DRILLING SELF TAPPING SCREWS PART NO.: 999007
LING SNB - SEX NUTS AND BOLTS — For through bolting on unreinforced, hollow core, composite or
SCS - SPRING CUSHION STOP — For use w/DS/DSHO (PA mount) arms only PART NO.: SCS-1 PART NO.: aganza
FC - FULL PLASTIC COVER PART NO.: FMC - FULL METAL COVER (OPTIONAL) PART NO.:
BS - BLADE STOP SPACER — Shims all PA brackets to clear 1/2" blade stop PART NO.: 999026
ANSI Functions to PDQ Models ANSI FUNCTIONS PDQ MODEL PT-4A PT-4C PT-4D PT-4E PT-4G PT-4H PT-4E PT-4G ANSI NUMBER MOUNTING C02011 HINGE SIDE 5141RCPA 5101BCPA 5141BCPA Х Х C02021 PARALLEL 5101BCDS X X Х 5141BCDS 5101BCPA C02041 TOP JAMB 5141BCPA 5101BCHO C02051 HINGE SIDE HOLD OPEN 5141BCHO Χ 5101BCHO Х 5141BCHO C02061 PARALLEL HOLD OPEN 5101BCDSHO 5141BCDSHO C02081 TOP JAMP HOLD OPEN 5141BCHO Χ 5101RCTA C02211 HINGE SIDE TRACK 5141BCTA Х 5101BCTAHO HINGE SIDE HOLD OPEN C02221 5141BCTAHO 5101BCPA Χ X X Χ Χ HINGE SIDE C03011 5141BCPA 5101BCPA C03021 PARALLEL 5141BCPA Χ 5101BCDS Χ 5141BCDS C03041 TOP JAMB 5101BCPA 5141BCPA C03051 HINGE SIDE HOLD OPEN 5101BCHO 5<u>141BCHO</u> Х C03061 PARALLEL HOLD OPEN 5101BCHO 5141BCHO Х 5101BCDSHC C03081 TOP JAMB HOLD OPEN 5141BCDSHO 5101BCHO C03081 TOP JAMB HOLD OPEN 5141BCHO X X X Χ C03211 HINGE SIDE TRACK 5141BCTA Х HINGE SIDE TRACK HOLD OPEN 5101BCTAHO C03221 5141BCTAHO
Suggested Architectural Specifications
All door closers shall be PDQ Industries, Inc. 5100 Series with full rack and pinion construction, heavy duty cast aluminum closer body, stamped flat style arm assembly and full architectural cover. Hydraulic control shall be through separate hex-key non-critical sweep, latch and backcheck adjustment. Optional delayed action to be effective from maximum opening to approximately 70 degrees. Closers shall be non-handed, suitable for regular, top jamb and parallel arm applications with fasteners for wood or metal doors and frames. Sex nuts and bolts shall be furnished standard. Spring adjustment to be provided throughout a range of sizes 1-6. All products carry a 25-year manufacturer's limited warranty. Closers shall be UL 10C listed for positive pressure and certified to ANSI/BHMA A156.4-2006 Grade 1.
