TABLE OF CONTENTS
| FINISHES | 2 |
|---|---|
| EXIT DEVICES | 3-6 |
| 4200R SERIES RIM | |
| 4200V SERIES SURFACE VERTICAL ROD | 4 |
| HOW TO ORDER | |
| DOOR WIDTH CHART | |
| TRIM | 6-13 |
| LEVER DESIGNS, ANSI FUNCTIONS, FINISHES, HANDING | |
| TRIM OPTIONS | 7 |
| ESCUTCHEON | 8-9 |
| SECTIONAL | 10-11 |
| PLATE, PULL, GRIIP WIDE PLATE | 12-13 |

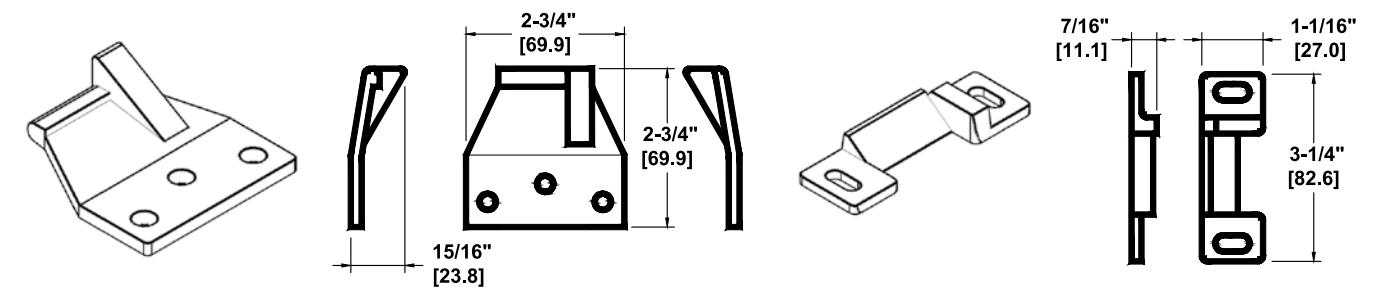

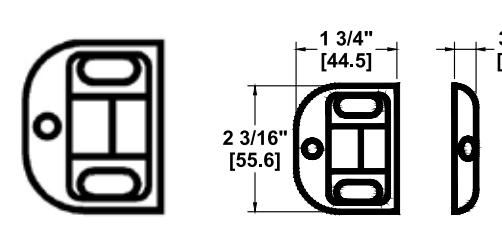

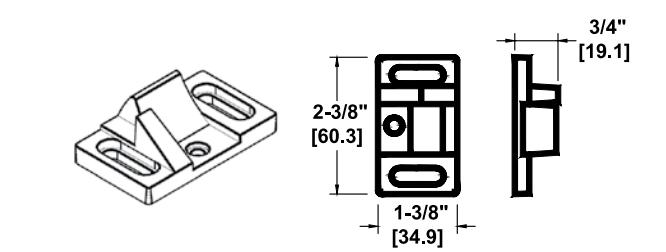

| STRIKES | |
| ACCESSORIES | |
| TRIM CROSS REFERECE TABLES (OLD PDQ MODELS TO NEW PDQ MODELS) | |
| ARCHITECTURAL SPECIFICATIONS. | |
FINISHES
ARCHITECTURAL
605 (US3) Bright Brass, No Coating
613 (US10B) Oil Rubbed Bronze, No Coating
626 (US26D) Satin Chromium Plated, No Coating
630 (US32D) Satin Stainless Steel, No Coating
PAINTED
689 (US28) Aluminum
695 (N/A) Dark Duranodic Bronze
696 (US4)) Satin Brass (Gold)
Finishes shown are representative only. PDQ cannot guarantee that product shipped will match finishes shown. Not all products are available in all finishes listed.
LET US HELP YOU — WIN MORE PROJECTS!!
PDQ offers complimentary key systems design, project quotation and cross reference services — To get started, contact our quote desk at 800-441-9692
SPECIFICATIONS
CHASSIS: • Corrosion resistant plated steel
RAIL: • Heavy gauge steel or stainless steelTOUCH PAD: • Heavy gauge steel or stainless steel
LATCH: • 3/4" throw
BACKSET: • 2-3/4" backset • Supplied standard for 161 prep with door gap of 1/8"
STRIKE: • Supplied standard for 161 prep with 5/8" stop and standard door gap of 1/8"
PROJECTION: • 2-5/8" projection
HAND: • Device is non-handedDOGGING: • Hex key dogging standard
• No dogging on fire listed devices
MINIMUM STILE WIDTH: • 4-1/4" when paired with 4 EW, 4 EN, 4P and 4GW Series Trim.
• 4-1/2" when paried with for 4S and 4K Series Sectional Trim.
DOOR THICKNESS: • 1-3/4" For other door thickness applications, contact PDQ Customer Service
DOOR WIDTH: • Supplied standard for 3 ft doors.
• Consult Door Width Chart to determine correct device for your application
FINISHES: • 605 (US3) - Polished Brass, 626 (US26D) - Satin Chrome, 630 (US32D) - Satin Stainless Steel,
689 (US28) – Aluminum, 695 (N/A) – Duro Bronze, 696 (US4) – Gold
• Optional Antimicrobial Coating available on 626 and 630 finishes only
FASTENERS: • Device supplied with machine screws and wood screws
SEX Nuts supplied with all Fire Listed devices.
• UL/ULC 305 listed for "Panic", UL10C Listed for "Fire Exit Hardware" for doors labeled for up to
LISTINGS 1-1/2 hour for 3'0" x 7'0" maximum single, 6'0" x 7'0" maximum pairs
COMPLIANCES: • Meets requirements of the Buy American Act.
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY: • Five (5) year limited warranty
CROSS REFERENCE
| DESCRIPTION | PDQ |
CAL
ROYAL |
CORBIN/
RUSSWIN |
DORMA | FALCON | HAGER | PRECISION | SARGENT | S PARKER | TELL |
VON
Duprin |
YALE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RIM | 4200R | 2200 | ED8200 | 8300 | 19 R | 4700 Rim | 5100 | 2828 | UL520 | 8300 | 22 | 2100 |

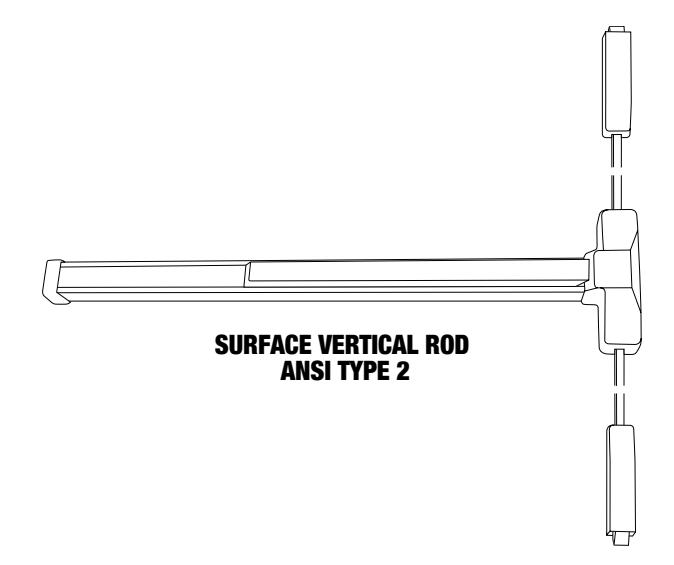

4200 SERIES SURFACE VERTICAL ROD EXIT DEVICE
SPECIFICATIONS
CHASSIS: • Corrosion resistant plated steel
RAIL: • Heavy gauge steel or stainless steelTOUCH PAD: • Heavy gauge steel or stainless steel
LATCHES: • Top Latch — Pullman with dead latching 5/8" (16mm) throw
• Bottom Latch — Pullman with 5/8" (16mm) throw, held retracted during door swing
BACKSET: • 2-3/4" backset • Supplied standard for 161 prep with door gap of 1/8"
PROJECTION: • 2-5/8" projection
HAND: • Device is non-handed
DOGGING: • Hex key dogging standard • No dogging on fire listed devices
MAXIMUM STILE WIDTH: • 4-1/4" when paired with 4 EW, 4 EN, 4P and 4GW Series Trim.
4-1/2" when paried with for 4S and 4K Series Sectional Trim.
DOOR THICKNESS: 1-3/4" For other door thickness applications, contact PDQ Customer Service Supplied standard for 3 ft doors. Consult Door Width Chart to determine correct size device
- Supplied standard for it doors. - Software Policy Wildle Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standard Software Standar
FINISHES: • 605 (US3) — Polished Brass, 626 (US26D) — Satin Chrome, 630 (US32D) — Satin Stainless Steel, 689 (US28) — Aluminum,
695 (N/A) – Duro Bronze, 696 (US4) – Gold
Optional Antimicrobial Coating available on 626 and 630 finishes only
FASTENERS: • Device supplied with machine screws and wood screws.
SEX Nuts supplied with all Fire Listed devices.
• UL/ULC 305 listed for "Panic", UL10C Listed for "Fire Exit Hardware" for doors labeled for up to
LISTINGS 1-1/2 hour for 3'0" x 7'0" maximum single, 6'0" x 7'0" maximum pairs
COMPLIANCES: • Meets requirements of the Buy American Act.
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY: • Five (5) year limited warranty
CROSS REFERENCE
| DESCRIPTION | PDQ |
CAL
ROYAL |
CORBIN/
RUSSWIN |
DORMA | FALCON | HAGER | PRECISION | SARGENT | S PARKER | TELL |
VON
Duprin |
YALE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SURFACE
VERTICAL ROD |
4200V | 2260 | ED8400 | 8400 | 19 V | 4700 SVR | 5200 | 2727 | 520V | 8400 | 2227 | 2110 |
HOW TO ORDER
| SERIES | DEVICE TYPE | DOOR WIDTH | FINISH | ||||
|---|---|---|---|---|---|---|---|
| Exit Device Series |
R – Rim
V - Surface Vertical Rod |
BLANK – For 3' Doors (Default)
A – For doors up to 4' (Panic only) Consult DoorWidth Chart to determine correct device |
605 – Polished Brass
626 – Satin Chrome 630 – Satin Stainless Steel 689 - Aluminum 695 - Duro Bronze 696 - Gold |
||||
| 42 | 00* | R | — | — |
BLANK – For RIM
Required for SVR |
630 | — |
|
00 – Hex Key Dogging
* Dogging Not Furnished With Fire Listed Devices |
BLANK – Panic Listed
(Default) F – Fire Listed (For 3' x 7' labeled doors only) |
7 – 7ft (default)
8 – 8ft 9 – 9ft 10 – 10ft |
AM – Anti-microbial | ||||
| DOGGING | LABELING |
DOOR HEIGHT
(Required for SVR) |
SPECIAL
FINISH COATING |
||||
Ordering Example, RIM Device: 42 00 R 630 Ordering example, SVR Device: 42 00 V 7 630
4200 SERIES DOOR WIDTH CHART
| FOR DOOR | MIN DOOR | MAX CUT | PUSH PAD | ||
|---|---|---|---|---|---|
| 4200R | 4200 Rim Hex Key Dogging | 36" | 27" | 9" | 18" |
| 4200RF | 4200 Rim Fire | 36" | 27" | 9" | 18" |
| 4200V | 4200 SVR Hex Key Dogging | 36" | 27" | 9" | 18" |
| 4200VF | 4200 SVR Fire | 36" | 27" | 9" | 18" |
| 4200RA | 4200 Rim Hex Key Dogging | 48" | 39" | 9" | 30" |
| 4200VA | 4200 SVR Hex Key Dogging | 48" | 39" | 9" | 30" |
Note: A size units CANNOT be cut to fit a 3 Ft. door. Please see chart above to determine door width and cut dimensions
TRIM
LEVER SHAPE TRIM TYPES
PHILADELPHIA
WIDE ESCUTCHEON NARROW ESCUTCHEON
SECTIONAL LEVER
SECTIONAL KNOB
PULL PLATE
GRIP PULL
ANSI TRIM FUNCTIONS
|
ANSI
FUNCTION |
DESCRIPTION |
|---|---|
| 01 | Exit only, no trim or blank escutcheon. |
| 02 | Entrance by trim when actuating bar is locked down (dummy trim). |
| 03 | Entrance by trim when latch bolt is retracted by key. Key removable only when locked (night latch). |
| 05 | Entrance by thumb piece. Key locks or unlocks thumb piece (classroom thumb piece). |
| 08 | Entrance by knob or lever. Key unlocks lever (classroom w/lever or knob). |
| 09 | Entrance by lever only when released by key. Key removable when locked (storeroom). |
| 14 | Entrance by trim when latch bolt is released by lever or knob. Always active, no cylinder (passage w/lever or knob). |
| 15 | Entrance by trim when latchbolt is released by thumb piece. Always active, no cylinder (passage thumb piece). |

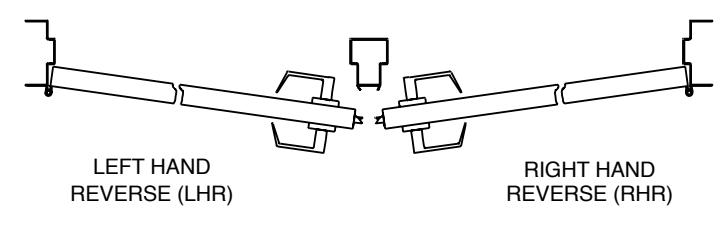

FINISHES HANDING
ANSI (US) Description
ARCHITECTURAL
605 (US3) Bright Brass, Clear Coated 613 (US10B) Oil Rubbed Bronze, No Coating 626 (US26D) Satin Chromium Plated, No Coating 630 (US32D) Satin Stainless Steel, No Coating
PAINTED
689 (US28) Aluminum
695 (None) Dark Duranodic Bronze
Out Swing Door
OUTSIDE
TRIM OPTIONS
|
LEVER
Design |
ARCI | HITECTU | RAL FINI | SHES |
PAII
FINI: |
ITED
Shes |
||||
|---|---|---|---|---|---|---|---|---|---|---|
|
ANSI
Function |
DESCRIPTION | TRIM | ТҮРЕ | PHL | 605 | 613 | 626 | 630 | 689 | 695 |
| 4 EW | _ | ١ | _ | _ | _ | |||||
| 4 EN | _ | _ | ||||||||
| 02 |
Dummy Trim
(Rigid Lever) |
4 S | _ | ٦ | _ | _ | ||||
| 4 P | _ | _ | _ | _ | _ | |||||
| 4 GW | _ | _ | ||||||||
| 4 EN | _ | _ | ||||||||
| 03 | Night Latch | 4 P | . | _ | _ | _ | _ | |||
| 4 GW | _ | _ | ||||||||
| 05 |
Classroom
w/Thumbpiece |
4 GW | _ | _ | ||||||
| 4 EW | _ | ٦ | N | |||||||
| 08 | Classroom | 4 EN | _ | |||||||
| 06 | w/Lever or Knob | 4 S | $ | ٦ | _ | |||||
| 4 K | _ | _ | _ | _ | _ | |||||
| 4 EW | _ | ٦ | N | _ | _ | |||||
| 09 | Storeroom w/Lever | 4 EN | _ | _ | ||||||
| 4 S | _ | ٦ | _ | _ | _ | |||||
| 4 EW | $ | _ | ١ | _ | _ | _ | ||||
| 14 |
Passage
w/Lever or Knob |
4 EN | $ | _ | ||||||
| 14 | w/Lever or Knob | 4 S | $ | _ | ١. | |||||
| 4 K | _ | _ | ||||||||
| 15 |
Passage
w/Thumbpiece |
4 GW | Ī | _ | _ |
4 EW SERIES HEAVY DUTY EXIT DEVICE TRIM
HOW TO ORDER
| TYPE |
SPECIAL FINISH
LEVER SHAPES KEYWAY COATING |
KEYING | |||
|---|---|---|---|---|---|
| EW — Escutcheon Wide Stile | PHL — Philadelphia | AM — Anti-microbial |
SCC — Default
Others - See Keyway Table |
KD — Keyed Different (Default)
Others - See Keying Table |
|
|
EW
4 |
PHL
08 |
—
626 |
SCC
D |
KD | |
| 4 |
02 — Dummy (Rigid Lever)
08 — Classroom 09 — Storeroom 14 — Passage |
613 — Oil Rubbed Bronze5
626 — Satin Chrome |
D — Default
L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge© Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing less core LFL — Schalge© Compatible LFIC Housing less core |
||
| SERIES | ANSI FUNCTION | FINISH |
CYLINDER
OR HOUSING |
||
Ordering Example: 4 EW 08 PHL 626 D SCC KD
Notes:
- 1 All levers field handed.
- 2 Door thickness 1-3/4".
- 3 Other finishes available. Contact PDQ Customer Service.
CYLINDER REFERENCE GUIDE
|
ANSI
FUNCTION |
DESCRIPTION | 6CYLINDER TYPE |
|---|---|---|
| 08 | Classroom | Mortise |
| 09 | Storeroom | Mortise |
CYLINDER
LENGTH INCLUDES CAM
| TYPE | LENGTH |
PDQ CAM
NUMBER |
|---|---|---|
| Cylinder, Conventional | 1-1/4" | I127-4204 |
| SFIC Housing, 6 Pin | 1-1/4" | I54031 |
| SFIC Housing, 7 Pin | 1-3/8" | I54031 |
| LFIC Housing | 1-1/2" | I54231 |
KEYWAYS
| CONVENTIONAL CYLINDER | SMALL FORMAT INTERCHANGEABLE CORE | LARGE FORMAT INTERCHANGEABLE CORE | ||||
|---|---|---|---|---|---|---|
| KEYWAY | PDQ KEYWAY DESIGNATOR | KEYWAY (BEST COMPATIBLE) | PDQ KEYWAY DESIGNATOR |
KEYWAY (SCHLAGE COMPATIBLE)
PDQ KEYWAY DESIGNATOR |
||
| Schlage C (Default) | SCC | Schlage C (Default) | SCC (Default) | |||
| PDQ Restricted | TA | |||||
| Arrow AR1 | ARA | BEST A (Default), B, C, D, E, F, | A (Default), B, C, D, E, F, G, | |||
| Corbin 59A1 | CO59A1 |
G, H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
|||
| Corbin 60 | CO6 | KEYING | ||||
| Corbin L4 | CL4 | |||||
| Russwin D1 | RUD | PDQ1 | PDQ KEYING | |||
| Russwin 981 | RUD981 | PDQ Exclusive | PDQ2 | DESCRIPTION | DESIGNATOR | |
| Schlage E | SCE | PDQ Exclusive and Restricted | PDQ3 | Keyed Different (Default) | KD | |
| Schlage C | SCC | Keyed Alike | KA | |||
| Schlage C-K | SCC-K | "O" Zero Bitted | KO | |||
| Sargent LA | SAL | Master Keyed | MK | |||
| Sargent RA-RC | RA-RC | Construction Master Keyed | CMK | |||
| Yale E1R | YA8 | |||||
| Yale GA | GA | Grand Master Keyed | GMK | |||
| Falcon E-R | FAL | |||||
4 EN SERIES NARROW ESCUTCHEON TRIM
ORDERING GUIDE
| TYPE | LEVER SHAPES | FINISH |
CYLINDER
Or Housing |
KEYING | |
|---|---|---|---|---|---|
|
EN
— Escutcheon,
Narrow Stile |
PHL — Philadelphia |
605 — Bright Brass
626 — Satin Chrome 689 — Aluminum 695 — Dark Duronodic Bronze |
D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge® Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing\nless core SF7L — SFIC 7 Pin Housing\nless core LFL — Schalge® Compatible LFIC Housing less core |
KD
— Keyed Different (Default)
Others - See Keying Table |
|
| 4 EN | 08 PHL | 689 AM | D SCC | KD | |
| 4 | 02 — Dummy (Rigid Lever) 03 — Night Latch 08 — Classroom 14 — Passage | AM — Anti-microbial |
SCC — Default
Others - See Keyway Table |
||
| SERIES | SERIES ANSI FUNCTION SPECIAL FINISH COATING | KEYWAY | |||
Ordering Example: 4 EN 08 PHL 630 D SCC KD
ANSI Function
03
80
1 - All levers field handed.

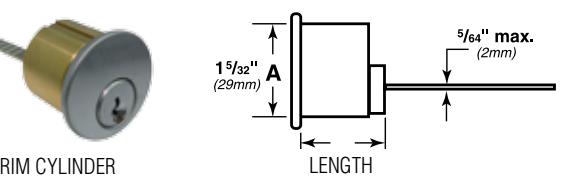

CYLINDER REFERENCE GUIDE
DESCRIPTION
Night Latch
Classroom
2 - Door thickness - 1-3/4".
CYLINDER
TYPE
RIM
Mortise
3 - Other finishes available. Contact PDQ Customer Service.
LENGTH INCLUDES CAM
| ТҮРЕ | LENGTH |
PDQ CAM
NUMBER |
|---|---|---|
| Conventional- RIM | 1 | |
|
Conventional -
Mortise |
1-1/4" | 1127-4204 |
| SFIC Housing, 6 PinPin | 1-1/4" | 154031 |
| SFIC Housing, 7 Pin | 1-3/8" | 154031 |
| LFIC Housing | 1-1/2" | I54231 |
KEYWAYS
Falcon E-R
Kwikset
FAL KW
RIM CYLINDER
| CONVENTI | ONAL CYLINDER | SMALL FORMAT INTE | RCHANGEABLE CORE | LARGE FORMAT INTERC | HANGEABLE CORE | |
|---|---|---|---|---|---|---|
| KEYWAY | PDQ KEYWAY DESIGNATOR | KEYWAY (BEST COMPATIBLE) | PDQ KEYWAY DESIGNATOR | KEYWAY (SCHLAGE COMPATIBLE) | PDQ KEYWAY DESIGNATOR | |
| Schlage C (Default) | SCC | Schlage C (Default) | SCC (Default) | |||
| PDQ Restricted | TA | 1 | ||||
| Arrow AR1 | ARA | BEST A (Default), B, C, D, E, F, A (Default), B, C, D, E, F, G, G, H, J, K, L, M, Q, R, WA, WB, H, J, K, L, M, Q, R, WA, WB, | KENINO | |||
| Corbin 59A1 | C059A1 |
7 G, H, J, K, L, M, Q, K, WA, WB,
- WG, WH, TB, TD, TE, R |
H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R | KEYING | ||
| Corbin 60 | C06 | VVG, VVII, ID, ID, IE, N | WG, WII, 10, 10, 11, 11 | PDQ KEYING | ||
| Corbin L4 | CL4 | DESCRIPTION | ||||
| Russwin D1 | RUD | DDO Evelveive | PDQ1 | DESIGNATOR | ||
| Russwin 981 | RUD981 | PDQ Exclusive | PDQ2 | Keyed Different (Default | ) KD | |
| Schlage E | SCE | PDQ Exclusive and Restricted | PDQ3 | Keyed Alike | KA | |
| Schlage C | SCC | • | "O" Zero Bitted | KO | ||
| Schlage C-K | SCC-K | Master Keyed | MK | |||
| Sargent LA | SAL | 1 | Construction Master Key | yed CMK | ||
| Sargent RA-RC | RA-RC | Grand Master Keyed | GMK | |||
| Yale E1R | YA8 | 1 | . | · . | ||
| Yale GA | GA | 1 | ||||
Schlage C (Default) SCC (Default)
| DESCRIPTION |
PDQ KEYING
Designator |
|---|---|
| Keyed Different (Default) | KD |
| Keyed Alike | KA |
| "O" Zero Bitted | КО |
| Master Keyed | MK |
| Construction Master Keyed | СМК |
| Grand Master Keyed | GMK |
ORDERING GUIDE
| TYPE | LEVER SHAPE | FINISH |
CYLINDER
OR HOUSING |
KEYING | ||||
|---|---|---|---|---|---|---|---|---|
| S — Sectional | PHL — Philadelphia |
613 — Oil Rubbed Bronze
626 — Satin Chrome |
D — Default
L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge© Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing less core LFL — Schalge© Compatible LFIC Housing less core |
KD — Keyed Different (Default)
Others - See Keying Table |
||||
|
4
S |
08 |
PHL
626 |
134 | D | SCC | KD | ||
| 4 |
02 — Dummy (Rigid Lever)
08 — Classroom 09 — Storeroom 14 — Passage |
AM — Anti-microbial |
SCC — Default
Others - See Keyway Table |
|||||
| SERIES |
SPECIAL FINISH
FUNCTION COATING |
KEYWAY | KEYING | |||||
Ordering Example: 4S 08 PHL 626 D SCC KD
Notes:
1 - All levers field handed. 2 - Door thickness - 1-3/4". 3 - Other finishes available. Contact PDQ Customer Service.
KEY IN KNOB/ LEVER CYLINDER
CYLINDER REFERENCE GUIDE
| ANSI FUNCTION | DESCRIPTION | CYLINDER TYPE |
|---|---|---|
| 08 | Classroom | Key in Knob/Lever |
| 09 | Storeroom | Key in Knob/Lever |
KEYWAYS
| CONVENTIONAL CYLINDER | SMALL FORMAT INTERCHANGEABLE CORE | LARGE FORMAT INTERCHANGEABLE CORE | |||
|---|---|---|---|---|---|
| KEYWAY | PDQ KEYWAY DESIGNATOR | KEYWAY (BEST COMPATIBLE) | PDQ KEYWAY DESIGNATOR | KEYWAY (SCHLAGE COMPATIBLE) | PDQ KEYWAY DESIGNATOR |
| Schlage C (Default) | SCC | Schlage C (Default) | SCC (Default) | ||
| PDQ Restricted | TA | ||||
| Arrow AR1 | ARA | BEST A (Default), B, C, D, E, F, | A (Default), B, C, D, E, F, G, | ||
| Corbin 59A1 | CO59A1 |
G, H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
||
| Corbin 60 | CO6 | ||||
| Corbin L4 | CL4 | KEYING | |||
| Russwin D1 | RUD | PDQ1 | PDQ KEYING | ||
| Russwin 981 | RUD981 | PDQ Exclusive | PDQ2 | DESCRIPTION | DESIGNATOR |
| Schlage E | SCE | PDQ Exclusive and Restricted | PDQ3 | ||
| Schlage C | SCC | Keyed Different (Default) | KD | ||
| Schlage C-K | SCC-K | Keyed Alike | KA | ||
| Sargent LA | SAL | "O" Zero Bitted | KO | ||
| Sargent RA-RC | RA-RC | Master Keyed | MK | ||
| Yale E1R | YA8 | Construction Master Keyed | CMK | ||
| Yale GA | GA | Grand Master Keyed | GMK | ||
| Falcon E-R | FAL | ||||
4K SERIES BALL KNOB SECTIONAL TRIM
ORDERING GUIDE
|
SPECIAL FINISH
TYPE FINISH COATING |
KEYWAY | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| K — Ball Knob | 630 — Satin Stainless Steel | AM — Anti-microbial |
SCC — Default
Others - See Keyway Table |
||||||||
| 4 | K | 08 | 630 |
—
D |
SCC | KD | |||||
| 4 |
08 — Classroom
14 — Passage |
D — Default
L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing less core |
KD — Keyed Different (Default)
Others - See Keying Table |
||||||||
| SERIES | FUNCTION |
CYLINDER
OR HOUSING |
KEYING | ||||||||
Ordering Example: 4 K 08 630 D SCC KD
Notes:
- 1 All levers field handed.
- 2 Door thickness 1-3/4".
- 3 Other finishes available. Contact PDQ Customer Service.
CYLINDER REFERENCE GUIDE
| ANSI FUNCTION | DESCRIPTION | CYLINDER TYPE |
|---|---|---|
| 08 | Classroom | Key in Knob/Lever |
| 09 | Storeroom | Key in Knob/Lever |
KEYWAYS
Kwikset KW
| CONVENTIONAL CYLINDER | SMALL FORMAT INTERCHANGEABLE CORE | LARGE FORMAT INTERCHANGEABLE CORE | ||||
|---|---|---|---|---|---|---|
| KEYWAY | PDQ KEYWAY DESIGNATOR | KEYWAY (BEST COMPATIBLE) | PDQ KEYWAY DESIGNATOR |
KEYWAY (SCHLAGE COMPATIBLE)
PDQ KEYWAY DESIGNATOR |
||
| Schlage C (Default) | SCC | Schlage C (Default) | SCC (Default) | |||
| PDQ Restricted | TA | |||||
| Arrow AR1 | ARA | BEST A (Default), B, C, D, E, F, | A (Default), B, C, D, E, F, G, | |||
| Corbin 59A1 | CO59A1 |
G, H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
|||
| Corbin 60 | CO6 | KEYING | ||||
| Corbin L4 | CL4 | |||||
| Russwin D1 | RUD | PDQ1 | DESCRIPTION | PDQ KEYING | ||
| Russwin 981 | RUD981 | PDQ Exclusive | PDQ2 | DESIGNATOR | ||
| Schlage E | SCE | PDQ Exclusive and Restricted | PDQ3 | Keyed Different (Default) | KD | |
| Schlage C | SCC | Keyed Alike | KA | |||
| Schlage C-K | SCC-K | "O" Zero Bitted | KO | |||
| Sargent LA | SAL | Master Keyed | MK | |||
| Sargent RA-RC | RA-RC | Construction Master Keyed | CMK | |||
| Yale E1R | YA8 | Grand Master Keyed | GMK | |||
| Yale GA | GA | |||||
| Falcon E-R | FAL | |||||
4P SERIES PLATE TRIM
ORDERING GUIDE PLATE TRIM PULL TRIM
| TYPE | ANSI FUNCTION |
SPECIAL FINISH
COATING |
KEYWAY | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| P — Plate |
01 — Exit Only
02 — Dummy Pull 03 — Night Latch |
AM — Anti-microbial |
SCC — Default
Others - See Keyway Table |
||||||||
| 4 | P | 03 | 689 | — | D | SCC | KD | ||||
| 4 |
689 — Aluminum
695 — Dark Duronodic Bronze |
D — Default
L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge© Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing less core LFL — Schalge© Compatible LFIC Housing less core |
KD — Keyed Different (Default)
Others - See Keying Table |
||||||||
| SERIES | FINISH |
CYLINDER
OR HOUSING |
KEYING | ||||||||
Ordering Example: 4 P 03 689 D SCC KD
Notes:
- 1 Door thickness 1-3/4".
- 2 Other finishes available. Contact PDQ Customer Service.
CYLINDER REFERENCE GUIDE
|
ANSI
FUNCTION |
DESCRIPTION | CYLINDER TYPE |
|---|---|---|
| 03 | Night Latch | RIM |
KEYWAYS
| CONVENTIONAL CYLINDER | SMALL FORMAT INTERCHANGEABLE CORE | LARGE FORMAT INTERCHANGEABLE CORE | |||
|---|---|---|---|---|---|
| KEYWAY | PDQ KEYWAY DESIGNATOR | KEYWAY (BEST COMPATIBLE) | PDQ KEYWAY DESIGNATOR | KEYWAY (SCHLAGE COMPATIBLE) | PDQ KEYWAY DESIGNATOR |
| Schlage C (Default) | SCC | Schlage C (Default) | SCC (Default) | ||
| PDQ Restricted | TA | ||||
| Arrow AR1 | ARA | BEST A (Default), B, C, D, E, F, | A (Default), B, C, D, E, F, G, | ||
| Corbin 59A1 | CO59A1 |
G, H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
H, J, K, L, M, Q, R, WA, WB,
WG, WH, TB, TD, TE, R |
||
| Corbin 60 | CO6 | ||||
| Corbin L4 | CL4 | ||||
| Russwin D1 | RUD | PDQ1 | KEYING | ||
| Russwin 981 | RUD981 | PDQ Exclusive | PDQ2 | ||
| Schlage E | SCE | PDQ Exclusive and Restricted | PDQ3 | DESCRIPTION | PDQ KEYING |
| Schlage C | SCC | DESIGNATOR | |||
| Schlage C-K | SCC-K | Keyed Different (Default) | KD | ||
| Sargent LA | SAL | Keyed Alike | KA | ||
| Sargent RA-RC | RA-RC | "O" Zero Bitted | KO | ||
| Yale E1R | YA8 | Master Keyed | MK | ||
| Yale GA | GA | Construction Master Keyed | CMK | ||
| Falcon E-R | FAL | Grand Master Keyed | GMK | ||
| Kwikset | KW | ||||
4GW SERIES GRIP WIDE PLATE TRIM
ORDERING GUIDE
| TYPE ANSI FUNCTION | FINISH |
CYLINDER
OR HOUSING |
KEY | ING | ||||
|---|---|---|---|---|---|---|---|---|
| GW — Grip Pull, Wide Stile 02 — Dummy Trim 03 — Night Latch 05 — Classroom w/Thumb Piece 15 — Passage w/Thumb Piece |
ch
m w/Thumb |
605 — Bright Brass
626 — Satin Chrome 630 — Satin Stainless Steel 689 — Aluminum 695 — Dark Duronodic Bronze |
D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge® Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing\nless core SF7L — SFIC 7 Pin Housing\nless core LFL — Schalge® Compatible LFIC Housing less core |
fferent (Default)
Keying Table |
||||
| 4 GW | 03 | RHR | 630 | _ | D | SCC | KD | |
|
4 RHR
LHR |
AM — Anti-microbial |
SCC — Default
Others - See Keyway Table |
||||||
| SERIES | HAN | DING |
AL FINISH
Ating |
KEY | WAY | |||
Ordering Example: 4 GW 03 630 D SCC KD
MORTISE CYLINDER
LENGTH INCLUDES CAM
SAL
YA8
GA FAL
KW
RA-RC
- 1 Door thickness 1-3/4". 2 Other finishes available. Contact PDQ Customer Service.
- 3 Trim functions 02, 03, 04 do not align with functions 05 and 15 when used on a pair of doors.
CYLINDER REFERENCE GUIDE
| ANSI FUNCTION | DESCRIPTION | CYLINDER TYPE |
|---|---|---|
| 03 | Night Latch | RIM |
| 05 | Classroom w/Thumbpiece | Mortise |
| TYPE | LENGTH | PDQ CAM NUMBER |
|---|---|---|
| Conventional - RIM | 1 | 1 |
| Conventional - Mortise | 1-1/4" | 1127-4204 |
| SFIC Housing, 6 PinPin | 1-1/4" | 154031 |
| SFIC Housing, 7 Pin | 1-3/8" | 154031 |
| LFIC Housing | 1-1/2" | 154231 |
Construction Master Keyed
Grand Master Keyed
KEYWAYS
Sargent LA
Yale E1R
Yale GA
Falcon E-R Kwikset
Sargent RA-RC
| KEIWAIS | ||||||
|---|---|---|---|---|---|---|
| CONVENTIONAL CYLINDER | SMALL FORMAT INTE | RCHANGEABLE CORE | LARGE FORMAT INTERCHANGEABLE CORE | |||
| KEYWAY | PDQ KEYWAY DESIGNATOR | KEYWAY (BEST COMPATIBLE) | PDQ KEYWAY DESIGNATOR | KEYWAY (SCHLAGE COMPATIBLE) | PDQ KEYWAY DESIGNATOR | |
| Schlage C (Default) | SCC | Schlage C (Default) | SCC (Default) | |||
| PDQ Restricted | TA | DEOT 4 (D ( 11) D O D E E | A (D ( 11) D O D E E O | |||
| Arrow AR1 | ARA |
BEST A (Default), B, C, D, E, F,
G, H, J, K, L, M, Q, R, WA, WB, |
A (Default), B, C, D, E, F, G,
H, J, K, L, M, Q, R, WA, WB, |
KEYING | ||
| Corbin 59A1 | C059A1 | WG, WH, TB, TD, TE, R | WG, WH, TB, TD, TE, R | KETING | ||
| Corbin 60 | C06 | , wa, wii, ib, ib, ie, ii | , Wa, Wii, 15, 15, 12, 11 | PDQ KEYING | ||
| Corbin L4 | CL4 | DESCRIPTION | DESIGNATOR | |||
| Russwin D1 | RUD | PDQ Exclusive | PDQ1 | |||
| Russwin 981 | RUD981 | PDQ Exclusive | PDQ2 | Keyed Different (Default |
|
|
| Schlage E | SCE | PDQ Exclusive and Restricted | usive and Restricted PDQ3 Keyed | KA | ||
| Schlage C | SCC | "O" Zero Bitted | KO | |||
| Schlage C-K | SCC-K | Master Keyed | MK | |||
CMK
GMK
STRIKES
429019 DOUBLE DOOR STRIKE
429036 RIM STD. LOW PROFILE STRIKE (2-3/4" BACKSET) FIRE & PANIC
429006 SVR BOTTOM STRIKE W/2 SHIMS PANIC AND FIRE
429005 SVR TOP STRIKE W/2 SHIMS PANIC AND FIRE
ACCESSORIES
|
PART
(SPECIFY FINISH) |
DESCRIPTION |
SPECIFY FINISH
PAINTED 689/695/696 |
SPECIFY FINISH
PLATED 605/626/630 |
|---|---|---|---|
| 429020 | Top surface vertical rod for 7'0" door | • | • |
|
429021
429023 |
Top surface vertical rod, 1' extension for 8'0" door
Top surface vertical rod, 3' extension for up to 10'0" door |
•
• |
•
• |
| 429024 | Bottom surface vertical rod | • | • |
| 429001 | Sex nut and bolt set | • | N/A |
| 429002 | Lock front filler | • | |
| 429003 | Strike filler | • | |
| 429005 | Strike, SVR Top Rod, Fire and Panic w/2ea 1/16" shims | • | |
| 429006 | Strike, SVR Bottom Rod, Fire and Panic w/2ea 1/16" shims | • | |
| 429014 | Trim back plate (2-1/2" x 8"), use w/narrow escutcheon to cover 161 prep | • | |
| 429017 | Trim back plate (3-1/2" x 8"), use w/narrow escutcheon to cover 161 prep | • | |
| 429019 | Double door strike | • | |
| 429150 | Universal Glass Bead Kit | • | |
| 429036 | Low profile RIM strike supplied standard for 161 prep with 5/8" stop and 1/8" standard gap | • | |
| 429043 | Dogging Key | • | |
TRIM CROSS REFERENCE
| OLD TRIM # | STATUS | NEW TRIM # | ANSI FUNCTION | DESCRIPTION |
|---|---|---|---|---|
| 429GPH | # CHANGED TO: | 4 GW 02 | 02 | DUMMY TRIM (RIGID PULL) |
| 429GPG | # CHANGED TO: | 4 GW 03 | 03 | NIGHT LATCH |
| 429GPK | # CHANGED TO: | 4 GW 05 | 05 | CLASSROOM W/THUMB PIECE |
| 429GPN | # CHANGED TO: | 4 GW 15 | 15 | PASSAGE |
| STD. DUTY SECTIONAL KNOB FOR RIM & SVR DEVICES | ||||
| OLD TRIM # | STATUS | NEW TRIM # | ANSI FUNCTION | DESCRIPTION |
| 429CQK | # CHANGED TO: | 4 K 08 | 08 | CLASSROOM |
| 429CQN | # CHANGED TO: | 4 K 14 | 14 | PASSAGE |
| SECTIONAL LEVER TRIM FOR RIM & SVR DEVICES | ||||
| OLD TRIM # | STATUS | NEW TRIM # | ANSI FUNCTION | DESCRIPTION |
| 429LPK | REPLACE W/HD: | 4 S 08 PHL | 08 | CLASSROOM |
| 429LPS | REPLACE W/HD: | 4 S 09 PHL | 09 | STOREROOM |
| 429LPN | REPLACE W/HD: | 4 S 14 PHL | 14 | PASSAGE |
| WIDE ESCUTCHEON FOR RIM & SVR DEVICES | ||||
| OLD TRIM # | STATUS | NEW TRIM # | ANSI FUNCTION | DESCRIPTION |
| 429LPENXH | # CHANGED TO: | 4 EW 02 PHL | 02 | DUMMY TRIM (RIGID LEVER) |
| 429LPEKFH | # CHANGED TO: | 4 EW 08 PHL | 08 | CLASSROOM |
| 429LPEKXH | # CHANGED TO: | 4 EW 09 PHL | 09 | STOREROOM |
| 429LPENFH | # CHANGED TO: | 4 EW 14 PHL | 14 | PASSAGE |
| NARROW ESCUTCHEON FOR RIM & SVR DEVICES | ||||
| OLD TRIM # | STATUS | NEW TRIM # | ANSI FUNCTION | DESCRIPTION |
| 429LPENX | # CHANGED TO: | 4 EN 02 PHL | 02 | DUMMY TRIM (RIGID LEVER) |
| 429LPEKF | # CHANGED TO: | 4 EN 08 PHL | 08 | CLASSROOM |
| 429LPEKX | # CHANGED TO: | 4 EN 09 PHL | 09 | STOREROOM |
| 429LPENF | # CHANGED TO: | 4 EN 14 PHL | 14 | PASSAGE |
| SECTIONAL HD LEVER TRIM FOR RIM & SVR DEVICES | ||||
| OLD TRIM # | STATUS | NEW TRIM # | ANSI FUNCTION | DESCRIPTION |
| 429LPKH | # CHANGED TO: | 4 S 08 PHL | 08 | CLASSROOM |
| 429LPSH | # CHANGED TO: | 4 S 09 PHL | 09 | STOREROOM |
| 429LPNH | # CHANGED TO: | 4 S 14 PHL | 14 | PASSAGE |
| PLATE/PULL FOR RIM & SVR DEVICES | ||||
| OLD TRIM # | STATUS | NEW TRIM # | ANSI FUNCTION | DESCRIPTION |
| 429PTD | # CHANGED TO: | 4 P 01 | 01 | EXIT ONLY (BACKPLATE) |
| 429PUN | # CHANGED TO: | 4 P 02 | 02 | DUMMY TRIM |
| 429PUK | # CHANGED TO: | 4 P 03 | 03 | NIGHT LATCH |
SUGGESTED ARCHITECTURAL SPECIFICATIONS
All exit devices shall be PDQ 4200 Series rim or surface vertical rod devices. Surface vertical rod devices to have top and bottom pullman latch bolts. Latch bolts to be dead locking where applicable. All touch bar components to be constructed of heavy gauge wrought steel or stainless steel. Devices to be furnished with metal chassis covers and end caps. Devices to be available for fire labeled doors. Devices for non-labeled doors shall have hex key dogging standard. All devices to offer a variety of trim options including escutcheon, sectional lever, sectional knob, plate and grip pull. Fasteners to be furnished for wood and metal applications. Fire listed devices furnished standard with sex nuts. Devices shall be listed by U.L./U.L.C. and comply with U.L. 10C and UBC 7-2 (1997) for positive pressure. All products to carry a 5-year limited warranty. All devices and trim shall comply with ADA Guidelines and Buy American Act.
Headquarters: 2754 Creek Hill Road • Leola, PA 17540 • 800.441.9692 • 717.656.6892 Fax Regional Distribution Centers: Kansas City, MO, Salt Lake City, UT, Seattle, WA www.pdqlocks.com
PDQ'S 4200 Series Brochures are now printed entirely on Forest Stewardship Council™ certified paper. FSC Certification ensures that the paper used in this catalog contains fiber from well-managed and responsibly harvested forests that meet strict environmental and socioeconomic standards. We•re proud to be one of the first hardware manufacturers in the country to make this significant move to help our environment. The FSC logo on our brochure signals not only FSC Certification, but also PDQ•s commitment to improving the environment.
