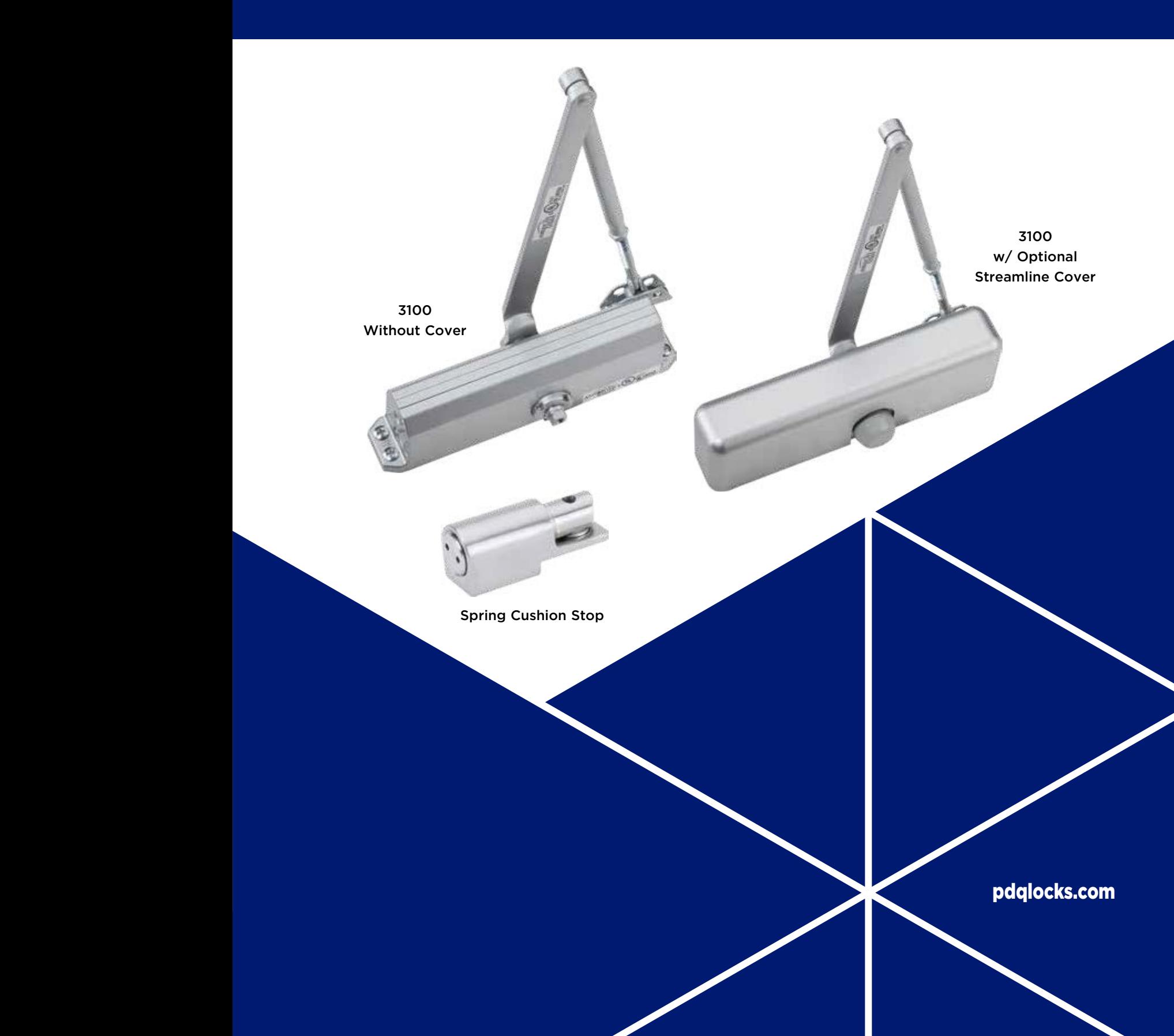

3100 SERIES Light Commercial Closer Grade 1
SPECIFICATIONS
HANDING:
Non-handed
OPERATION:
Rack and pinion design
BODY: BODY DIMENSIONS:
• High strength aluminum alloy • 9-13/16"" W x 2-11/16" H
ARM:
• Round style arm assembly
ARM OPTIONS:
• Hold Open Arm
Track/Hold Open Arm • EDA (Extra Duty PA Arm). See How to Order Guide.
DS/DSHO heavy duty parallel stop arm
Spring Cushion Stop for DS/DSHO
FACTORY DEFAULT SPRING SIZE, 1-4:
Size 2 • Hardened Steel PISTON:
FACTORY DEFAULT SPRING SIZE, 3-6:
• Sizo 3
PISTON: ADJUSTMENT:
Hardened Steel
Adjustable controlled closing
· Separate hydraulic backcheck standard
· Separate sweep, latch and backcheck intensity
• Adjustable spring size (Serre BF - 4 or 3 - 6 SIZE: (see size selector table)
• Available to meet barrier free opening
force requirements
MOUNTING: • Common 9-1/16" x 3/4" mounting hole pattern retrofits Yale® 50, Norton® 1600 (For more comparisons, see cross reference table)
• Tri-packed for regular, top jamb and parallel
arm installations
Includes fasteners for metal and wood doors
• Sex nuts and bolts standard
• Self drilling self tapping screws available
COVER:
Streamline plastic cover optional
COVER DIMENSIONS: FINISHES CLOSERS:
• 10-5/8" W x 2-1/16" H
FINISHES CUSHION STOPS:
• 689 - Aluminum, 695 - Duro bronze, 696 - Gold
605 (US3) - Bright Brass (PVD), 613 (US10B) - Oil Rubbed Bronze (PVD), 630 (US32D) -Satin Stainless Steel Note: PVD (Physical Vapor Deposition) coated finishes offer outstanding resistance to wear, durability and corrosion.
CERTIFICATIONS, LISTINGS,
UI 228 listed
COMPLIANCES:
ANSI/UL 10C listed for labeled swinging fire doors rated for up to and including 3 hours.
Certified to ANSI/BHMA A156.4-2006 Grade 1
· Meets requirements of the Buy American Act
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and
Usable Buildings
WARRANTY: • Twenty-Five (25) year limited warranty
SPRING CUSHION STOPS
630 SATIN STAINLESS STEEL
613 OIL RUBBED BRONZE
605 BRIGHT RPASS
PDQ's SCS Series Spring Cushion Stop helps reduce wear and tear on the opening. As the door begins moving through backcheck to its maximum opening angle, the stop acts as a shock absorber, dampening the impact forces.

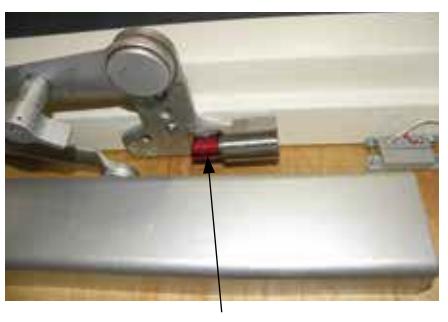

NOTE: PLUNGER SHOWN IN RED TO ENHANCE THE CUSHIONING FEATURE.
STOP SHOWN BEFORE DOOR IS FULLY OPENED
STOP SHOWN WHEN DOOR IS FULLY OPENED
FINISHES
ARCHITECTURAL
Bright Brass
605 (US3) 613 (US10B)
Oil Rubbed
Bronze
630 (US32D) Satin Stainless Steel
PAINTED
689 (US28) Aluminum
695 (N/A) Dark Duranodic Bronze
696 (US4)) Satin Brass (Gold)
FEATURES
- 5lb. Barrier Free Spring Setting for ADA Compliance
- 6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action.
- Barrier Free Settings Available on Both Regular/ Top Jamb and Parallel Arm Applications.
TYPICAL APPLICATIONS
- Hospitality
- Multi-Family
HOW TO ORDER
| SERIES | APPLIC | CATION | FINISH | ||||
|---|---|---|---|---|---|---|---|
| 31 - 3100 Series Door Closer |
BC - Adjustable I
Backcheck |
689 - Aluminum
695 - Dark Duranodic Bronze 696 - Gold |
|||||
| 31 | 00 | ВС | PA | 689 | _ | ||
|
00 – Adjustable Size 3-6
01 – Adjustable Size പ്രൂട്ടേല്ലേ (BF -4) |
Arm
2
HO - Hold Ope PA - Tri-Pack ( SCS - Spring C SV - Streamline TA - Track Arn |
Saver Hold Open
en, Tri-Pack 2 (standard) (ushion Stop e Cover |
Blank - SNB (standard) BP - Back Plate DP - Drop Plate NFB - Narrow Frame Bracket SCS - Spring Cushion Stop SDST - Self Drilling Self Tapping Screws BS - Blade Stop Spacer SV - Streamline Plastic Cover | ||||
| SIZE | ВАСК | CHECK | OPTIONS | ||||
Ordering Example: 3100 BCPA 689
NOTES: 1 - For EDA (Extra Duty PA Arm) applications, remove stop from soffit bracket. Requires separate limiting stop by others. 2 - Not appropriate for use on fire labeled doors.
SIZE SELECTOR
| APPLICATION | CLOSER SIZE | INTERIOR | EXTERIOR | ||
|---|---|---|---|---|---|
| Regular / Top Jamb | 3101 BF BF BARRIER 1 2 3 3 4 3100 5 6 |
5 lbf (36" door)
32" 36" 42" 48" 54" 58" |
NA
28" 32" 36" 42" 48" 54" |
||
| Parallel Arm | 3101 BF GRANIER 1 2 3 3 4 3100 5 6 1 |
5 lbf (36" door)
28" 32" 36" 42" 48" 54" |
NA
NA 28" 32" 36" 42" 48" |
||
Note: 3100 Series Closers can be adjusted to meet ADA barrier free applications. Strict compliance with ADA barrier free requirements may result with door not fully closing and latching. Check with local AHJ. Closer sizes may vary due to site conditions.
CROSS REFERENCE
| MANUFACTURER | PDQ |
CAL
ROYAL® |
CORBIN/
RUSSWIN® |
DORMA |
DOR-O-
MATIC® |
HAGER* | K2 ® | LCN® |
NORTON/
YALE® |
SARGENT* | STANLEY® | YALE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SERIES | 3100 | 300 | N/A | 3800 | SC60 |
5300
LESS COVER |
ODC300 | 1260 | 1600/50 | 1130 | D-1650 | 50 |
|
MOUNTING
HOLE PATTERN RETRO-FIT |
YES | YES | NO | NO | YES | NO | YES | YES | YES | YES | YES | YES |
Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional architectural hardware consultant.

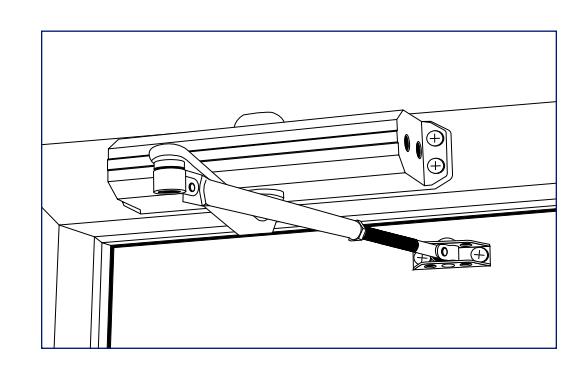

REGULAR ARM
Regular arm mount is a pull side application with double lever arm. The closer mounts on the door and the arm mounts to the frame. It provides the most efficient operation for a door control and is commonly used on in-swing doors from corridors or other interior doors. Regular arm mount is a poor choice for exterior outswinging doors as it would put the closer on the exterior of the building. The arm assembly projects directly out from the frame. That may be a concern for vandalism or aesthetics. Regular arm application can be used with non-hold open or hold open arms.

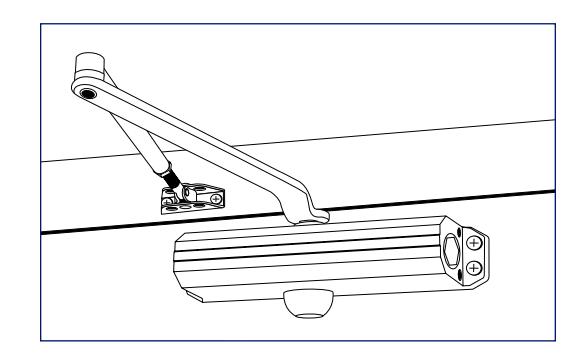

TOP JAMB
Top jamb mount is a push side double lever arm application that offers the best alternative to regular arm mount. The closer mounts to the frame and the arm mounts to the door. This application is commonly used on exterior out-swinging doors. It is a poor application for in-swinging doors from a corridor as it places the closer arm in a visible application projecting into the corridor. The arm projects out similar to regular arm mount. Therefore, it can be a concern for vandalism or aesthetics. Top jamb application can be used with non-hold open or hold open arms.

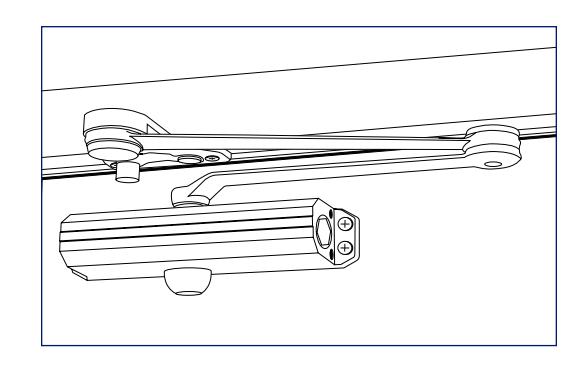

PARALLEL ARM
Parallel arm mount is a push side double lever arm application. The closer is installed on the push side of the door and the arm is mounted to a parallel arm adapter plate installed to the frame soffit. The arm is approximately parallel with the face of the door, eliminating the projection condition evident with regular arm and top jamb applications. Parallel arm is often preferred where aesthetics or vandalism are concerns. Parallel arm is less efficient than regular or top jamb mounts due to the geometry of the arm. Parallel arm application can be used with non-hold open or hold open arms.

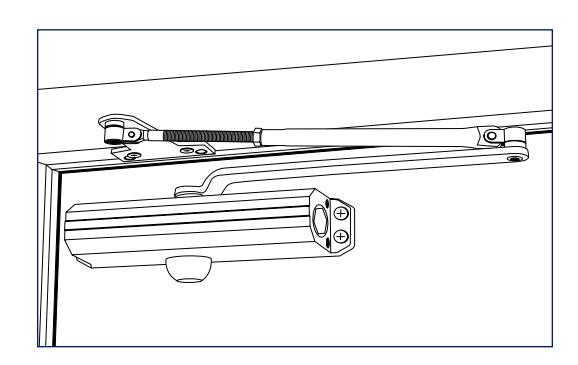

PARALLEL ARM (DS/DSHO) STOP ARM
The parallel stop arm mount is an enhanced version of the parallel arm application. It is similar to the parallel arm mount but incorporates a heavy duty rigid arm and soffit plate with limiting dead stop. The dead stop feature is field handed. The closer's backcheck function should be adjusted to cushion the impact of the stop. The parallel stop arm is intended for use where an auxiliary stop cannot be utilized. The parallel stop arm is available in
1
non-hold open (DS) and hold open (DSHO) applications. For EDA (Extra Duty PA Arm) applications, remove stop from soffit bracket. Requires separate limiting stop by others.
Recommend using the SCS Spring Cushion Stop for moderate to high abuse installations.

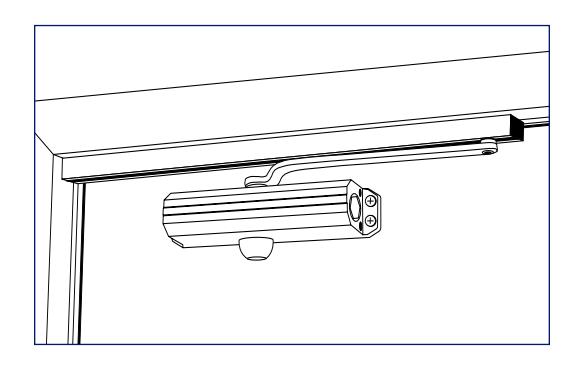

The Non Handed Track arm mount incorporates a single forged main arm for installation in high use, high abuse door applications. It's low profile helps prevent damage.
PARTS
RA - REGULAR ARM — Can be mounted REG/TJ/PA (requires PA bracket)
Part No.: 319003
HO - HOLD OPEN ARM - HO — Can be mounted REG/TJ/ PA (requires PA bracket)
PART NO.: 999002
DS - DOOR SAVER (LIMITING STOP) ARM — PA application only
PART NO.: 999005
DSHO - DOOR SAVER (LIMITING STOP) HOLD OPEN — PA application only
PART NO.: 999016
TA - TRACK ARM ASSEMBLY PART NO.: 999025
TAHO - TRACK ARM HOLD OPEN
PART NO.: 999027
PA - PARALLEL ARM BRACKET — Non-hold open applications
PART NO.: 999001
PAHO - PARALLEL ARM HO BRACKET — Hold open applications
PART NO.: 999022
BP - BACK PLATE — For regular arm applications to clear mortised stop/holders or for TJ with limited ceiling clearance
PART NO.: 319008
DPTJ - TOP JAMB DROP PLATE — Provides greater drop than BP to provide clearance for surface applied stop/holder, also required for PA applications
PART NO.: 319009
NFB - NARROW FRAME BRACKET — For use w/DS/ DSHO/SCS arms & BS spacer for added reinforcement with narrow frame applications
PART NO.: 999011
SDST - SELF DRILLING SELF TAPPING SCREWS PART NO.: 999007
SNB - SEX NUTS AND BOLTS — For through bolting on unreinforced, hollow core, composite or labeled fire doors, 1-3/4" only
PART NO.: 999004
BS - BLADE STOP SPACER — Shims all PA brackets to clear 1/2" blade stop
PART NO.: 999026
SCS - SPRING CUSHION STOP — For use w/DS/DSHO (PA mount) arms only
PART NO.:
SCS-1 PART NO.: 999032 SCS-2 PART NO.: 999033
SV - STREAMLINE PLASTIC COVER
PART NO.: 319006
ANSI FUNCTIONS TO PDQ MODELS ANSI FUNCTIONS
| ANSI NUMBER | MOUNTING | PDQ MODEL | PT-4A PT-4C PT-4D | PT-4E | PT-4G PT-4H | |||
|---|---|---|---|---|---|---|---|---|
| 3100BCPA | X | X | X | X | X | |||
| C02011 | HINGE SIDE | 3101BCPA | X | X | X | X | X | |
| 3100BCDS | X | X | X | X | X | X | ||
| 3100BCPA | X | X | X | X | X | |||
| C02021 | PARALLEL | 3101BCDS | X | X | X | X | X | X |
| 3101BCPA | X | X | X | X | X | |||
| 3100BCPA | X | X | X | X | X | |||
| C02041 | TOP JAMB | 3101BCPA | X | X | X | X | X | |
| 3100BCHO | X | X | X | X | X | |||
| C02051 | HINGE SIDE HOLD OPEN | 3101BCHO | X | X | X | X | X | |
| 3100BCDSHO | X | X | X | X | X | X | ||
| 3100BCHO | X | X | X | X | X | |||
| C02061 | PARALLEL HOLD OPEN | 3101BCDSHO | X | X | X | X | X | X |
| 3101BCHO | X | X | X | X | X | |||
| 3100BCHO | X | X | X | X | X | |||
| C02081 | TOP JAMB HOLD OPEN | 3101BCHO | X | X | X | X | X | |
| 3100BCTA | X | X | X | X | X | |||
| C02211 | HINGE SIDE TRACK | 3101BCTA | X | X | X | X | X | |
| 3100BCTAHO | X | X | X | X | X | |||
| C02221 | HINGE SIDE HOLD OPEN TRACK | 3101BCTAHO | X | X | X | X | X | |
| 3100BCPA | X | X | X | X | X | |||
| C03011 | HINGE SIDE | 3101BCPA | X | X | X | X | X | |
| PARALLEL | 3100BCPA | X | X | X | X | X | ||
| C03021 | 3101BCDS | X | X | X | X | X | X | |
| 3101BCPA | X | X | X | X | X | |||
| 3100BCPA | X | X | X | X | X | |||
| C03041 | TOP JAMB | 3101BCPA | X | X | X | X | X | |
| 3100BCHO | X | X | X | X | X | |||
| C03051 | HINGE SIDE HOLD OPEN | 3101BCHO | X | X | X | X | X | |
| PARALLEL HOLD OPEN | 3100BCHO | X | X | X | X | X | ||
| C03061 | 3101BCDSHO | X | X | X | X | X | X | |
| 3101BCHO | X | X | X | X | X | |||
| 3100BCHO | X | X | X | X | X | |||
| C03081 | TOP JAMB HOLD OPEN | 3101BCHO | X | X | X | X | X | |
| 3100BCTA | X | X | X | X | X | |||
| 3101BCTA | X | X | X | X | X | |||
| C03211 | Track Arm | 3100BCTAHO | X | X | X | X | X | |
| 3101BCTAHO | X | X | X | X | X |
SUGGESTED ARCHITECTURAL SPECIFICATIONS
All door closers shall be full rack and pinion construction, cast aluminum closer body, round style arm assembly and optional streamline cover. Hydraulic control shall be through separate noncritical sweep, latch and backcheck valve adjustment. Closers shall be non-handed, suitable for regular, top jamb and parallel arm applications with fasteners for wood and metal doors and frames. Sex nuts and bolts shall be furnished standard. Closers shall be available in adjustable spring size Barrier Free plus sizes 1-4 or 3-6. Closers shall be UL 10C listed and certified to ANSI/BHMA A156.4-2006 Grade 1. Barrier Free plus sizes 1-4 meets ADA requirements when used on a 36" door.
