12-Wire Quick Connect Harness Cables Installation Instructions I-CT00098

ITEMS COVERED IN THIS DOCUMENT:

12" Harness 3" Harness 1-479-0007 1-479-0008 6" Harness 1-479-0012 26" Harness 32" Harness 38" Harness 1-479-0026 1-479-0032 1-479-0038 1-479-0044 44" Harness 1-479-0400 50" Harness 1-479-1500 182" Harness

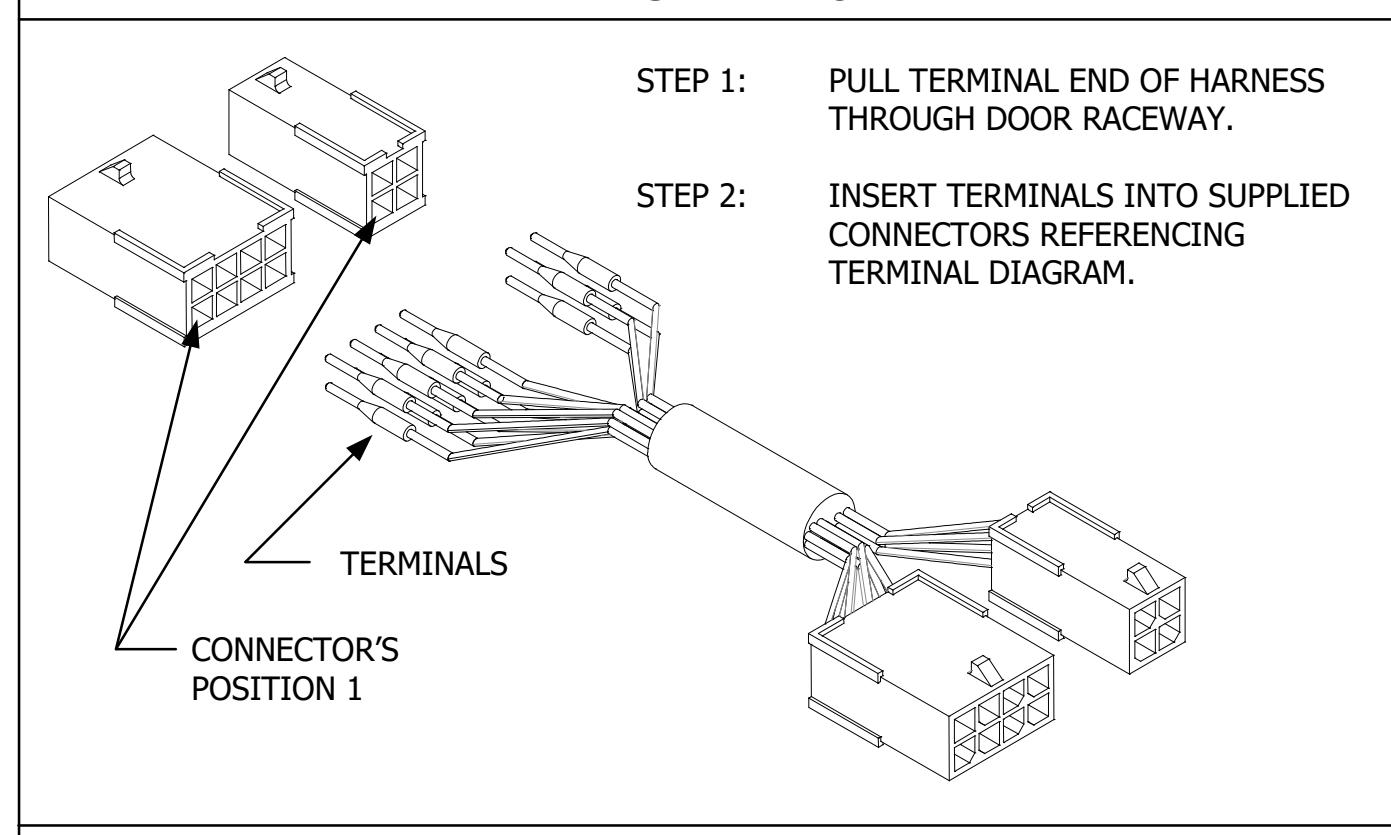

INSTALLATION

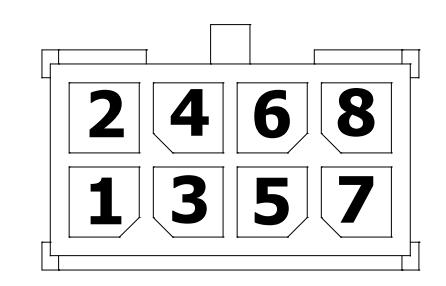

TERMINATION DIAGRAM FROM TERMINAL INSERTION SIDE

1. BLACK
2. RED
3. WHITE
4. GREEN

Rev 2, Rev Date: 7/19/21

5. ORANGE
6. BLUE
7. BROWN
8. YELLOW

2413
1. VIOLET
2. GRAY
3. PINK
4. TAN
